19709
Air Hammer
Need help with your new Air Hammer?
Call our customer service hotline at 1-800-386-0191 SAVE THESE INSTRUCTIONS

2
IMPORTANT SAFETY PRECAUTIONS
WARNING! Read and understand all instructions before using this tool. Keep this manual for
the safety warnings and precautions, operating, inspection and maintenance instructions.
When using this tool, basic precautions should always be followed to reduce the risk of per-
sonal injury and/or damage to the equipment.
WORK AREA
1. Keep your work area clean and well lit. Cluttered and dark areas invite accidents.
2. Operate in a safe work environment. Do not use machines or power tools in damp or wet locations. Do not
expose to rain. Do not use power tools in the presence of ammable gasses or liquids.
3. Keep children, bystanders and visitors away from the work area. Do not let them handle tools, hoses or
extension cords. No one should be in the work area if they are not wearing suitable protective equipment.
4. Store unused equipment. When not in use, tools must be stored in a dry location to prevent rust. Always lock
up tools and keep them out of reach of children.
PERSONAL SAFETY
1. Use eye, face, head, breathing and ear protection. Always wear ANSI approved impact safety goggles, which
must provide both frontal and side protection. Wear a full face shield if your work creates metal lings or wood
chips. Wear an ANSI approved dust mask or respirator when working around metal, wood and chemical dusts
and mists. Wear ANSI approved earplugs.
2. Do not over reach; keep proper footing and balance at all times. Proper footing and balance enables better
control of the tool in unexpected situations.
3. Dress properly, wear protective equipment. Do not wear loose clothing or jewelry as they can be caught in
moving parts. Tie back long hair. Protective, electrically non-conductive clothes and non-skid footwear are rec-
ommended when working.
4. Stay alert, watch what you are doing and use your common sense. Do not operate any machine or tool
when you are tired, under the inuence of drugs, alcohol or medications.
5. Use clamps or other practical ways to secure and support the work piece to a stable platform. Holding the
work piece by hand or against your body is unstable and may lead to loss of control.
TOOL USE AND CARE
1. Use the right tool for the job. Do not attempt to force a small tool or attachment to do the work of a larger
industrial tool. The tool will perform better and safer at the task for which it was intended. Do not modify tools or
use for a purpose for which they are not designed.
2. Maintain tools with care. Keep tools clean, sharp and in good condition for better and safer performance. Fol-
low instructions for lubrication and changing accessories. Inspect tool ttings, alignment and hoses periodically
and, if damaged, have them repaired by an authorized technician or replaced. The handles must be kept clean,
dry and free from oil and grease at all times. A properly maintained tool reduces the risk of binding and is easier
to control. Do not apply excessive force to try to get the job done faster. Applying excessive force can lead to
slips and damage to your work or personal injury.
3. Avoid unintentional starts. Be sure that the throttle is in neutral or OFF position when not in use and before
connecting it to any air source. Do not carry the tool with ngers on or near the switch.
4. Only use the lubricants supplied with a tool or specied by the manufacturer. Other lubricants may not be
suitable and may damage the tool or even make the tool explode.
5. When not in use for an extended period, apply a thin coat of lubricant to the steel parts to avoid rust.
6. Do not use tool if the trigger switch does not function properly. Any tool that cannot be controlled with the
ON/OFF switch is dangerous and must be repaired.
3
SERVICE
1. Check for damaged parts. Before using any tool, any part that appears to be damaged should be carefully
checked to determine that it will operate properly and perform its intended functions. Check for alignment and
binding of moving parts, broken parts or mounting xtures or any other condition that may affect proper opera-
tion. Any part that is damaged should be properly repaired or replaced by qualied technician.
2. When servicing, use only identical replacement parts. Only use accessories intended for use with this tool.
Replace damaged parts immediately.
AIR SOURCE
1. Disconnect air supply. Disconnect tools from air pressure source when not in use, before cleaning, servicing or
changing a piece or accessory. After disconnecting, discharge any residual air pressure.
2. Use proper size and type of air pressure line and ttings. The recommended air line for this tool is 1/4" NPT
air inlet.
3. Always verify prior to using a tool that the air source has been adjusted to the rated air pressure or
within the rated air pressure range. Over-pressurizing a tool may cause bursting, abnormal operation, break-
age of the tool or serious injury to persons. Use only clean, dry, regulated air at the rated pressure as marked
on the tool.
4. Never use pure oxygen, carbon dioxide, combustible gases or any bottled gas as an air source for a tool.
Such gases are capable of causing an explosion and serious injury to persons. Do not use an air source other
than an air compressor to power this tool.
5. Always use an air regulator and a moisture trap in your compressed air system.
6. Drain the air tank daily. Water in the air line will damage the tool.
7. Clean air inlet lter weekly.
8. Avoid using an unnecessarily long air hose. Choose a hose that is appropriate for the situation, as a hose
that is too long and running across the oor can be more dangerous than helpful.
9. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections
are secure.
10. Always carry a tool by its handle, never carry the tool by the air hose.
11. Line pressure should be increased to compensate for unusually long air hoses over 25 feet. (8 meters).
The hose diameter should be 3/8” I.D.
VIBRATION PRECAUTIONS
Some tools vibrate during use. Repeated or long-term exposure to vibration may cause temporary or permanent physi-
cal injury, particularly to the hands, arms and shoulders.
1. Anyone using vibrating tools regularly or for an extended period should rst be examined by a doctor
and then have regular medical checkups to ensure medical problems are not being caused by or wors-
ened from tool use. Pregnant women or people who have impaired blood circulation to the hands, past hand
injuries, nervous system disorders, diabetes or Raynaud's Disease should not use these tools. If you feel any
medical symptoms related to vibrations (such as tingling, numbness, and white or blue ngers), seek medical
attention as soon as possible.
2. Do not smoke during use. Nicotine reduces the blood ow to the hands and ngers, increasing the risk of
vibration-related injury.
3. Wear suitable gloves to reduce the vibration effects on the user.
4. Use tools with the lowest amount of vibration when there is a choice between different processes.
5. Do not use for extended periods. Take frequent breaks when using these tools.
6. Let the tool do the work. Grip tool as lightly as possible (while still keeping safe control of it.)
7. To reduce vibration, maintain tool as explained in this manual. If abnormal vibrations occur, stop using this
tool immediately.

4
LUBRICATION
An automatic inline lter-regulator-lubricator is recommended as it increases tool life and keeps the tool in sustained op-
eration. The inline lubricator should be regularly checked and lled with air tool oil. Proper adjustment of the inline lubrica-
tor is performed by placing a sheet of paper next to the exhaust ports and holding the throttle open for approximately 30
seconds. The lubricator is properly set when a light stain of oil collects on the paper. Excessive amounts of oil should be
avoided.
In the event that it becomes necessary to store the tool for an extended period of time (overnight, weekend, etc.), it should
receive a generous amount of lubrication at that time. The tool should be run for approximately 30 seconds to ensure oil
has been evenly distributed throughout the tool. The tool should be stored in a clean and dry environment.
• It is most important that the tool be properly lubricated by keeping the inline lubricator lled and correctly
adjusted. Without proper lubrication the tool will not work properly and parts will wear prematurely.
• Use the proper lubricant in the inline lubricator. The lubricator should be of low air now or changing air now
type and should be kept lled to the correct level. Use only recommended lubricants, specially made for pneu-
matic applications. Substitutes may harm the rubber compounds in the tool's O-rings and other rubber parts.
USER-MAINTENANCE INSTRUCTIONS
If a lter/regulator/lubricator is not installed on the air system,
air operated tools should be lubricated at least once a day or after
2 hours work with 2 to 6 drops of oil, depending on the work envi-
ronment, directly through the male tting in the tool housing. Only
a qualied technician should perform procedures not specically
explained in this manual.
1. Incorporate an in-line oiler, shut-off valve, regulator
with pressure gauge, and lter for best service, as
shown in the diagram at right. An inline shutoff valve
is an important safety device because it controls the air
supply even if the air hose is ruptured.
Note:
If an automatic oiler system is not used, add a few
drops of pneumatic tool oil to the airline connection
before operation. Add a few more drops after each hour
of continuous use.
2. Attach an air hose to the compressor's air outlet.
Connect the air hose to the air inlet of the tool.
INSTALLATION
1. Attach a standard 1/4" air connector to the tool's air inlet. Wrap the threaded portion of the air connector
with Teon tape. Tighten securely.
2. Attach a standard quick-connector to the air pressure source hose. Attach the air hose to the tool.
3. Set the air pressure regulator on the air compressor to 90 PSI.
Do not exceed the recommended pressure of 90 PSI. Excess pressure could result in damage to
the tool, to your work piece or serious injury.
4. Check the air line and its connections for air leaks. Do not use this tool until you have repaired all air leaks.
Note:
Turn off the air compressor, disconnect the air pressure hose and discharge any residual pressure before
changing accessories or making any adjustments to the tool. Failure to do so could result in severe injury or
property damage.
Male
Connector
Quick
Coupler
Quick
Coupler
Valve Oiler Filter
Regulator with
Pressure Gauge
Recommended Air Line Components
Tool
Air
Compressor
Male
Connector
Air Hose
on Reel
WARNING
5
DESCRIPTION
Hardened steel barrel and piston for less wear and longer life, lightweight aluminum pistol-grip housing,Front
exhaust ,150mm air hammer set includes the 4 most popular chisels(round&hex),a retainer spring and a quick
coupler,190mm air hammer includes 5 chisels(round&hex), a retainer spring and a quick coupler,Ideal for general
cutting,chipping and scraping.
OPERATION
1. Connect the tool to the air hose.
2. Press the trigger to operate the tool.
3. The ow of air may be regulated by adjusting ow valve at the base of the handle.
4. Ensure the air supply is clean and does not exceed 90psi while operating the tool. Too high an air pres-
sure and unclean air will shorten the product life due to excessive wear, and may be dangerous caus-
ing damage or personal injury.
DO NOT use any additional force upon the tool.
DO NOT allow tool to free run for an extended period of time as this will shorten its life.
MAINTENANCE
Disconnect tool from air supply before changing accessories, servicing or performing mainte-
nance. Replace or repair damaged parts immediately.
1. Lubricate the tool daily by dropping a few drops of air tool oil into the air inlet, or use an in-line oiler as
described on Page 4.
2. Clean the tool after use.
WARNING
Chisel Opening: .4" (10mm)
Bore Diameter: 3/4" (19mm)
Blows per minute: 4,500 BPM
Avg. air consumption: 4-8 CFM (800 l/min)
Suggested air pressure: 90 PSI (6.3 bar)
Air inlet size: 1/4"
Air hose: 3/8" I.D.
Suggested air
compressor:
2 HP
CONTENTS
Air Hammer
Spring Retainer
4 Chisels
TECHNICAL DATA

6 7
# Description # Description # Description # Description
1 Handle 6 Trigger 11 Hose Adapter 16 Cylinder
2 Pin 7 O-ring 12 Upper Valve Case 17 Quick change Re-
tainer
3 Ball Seat 8 Pin 13 Valve Disc
4 O-ring 9 Pin Seat 14 Lower Valve Case
5 Regulator 10 Throttle Spring 15 Piston

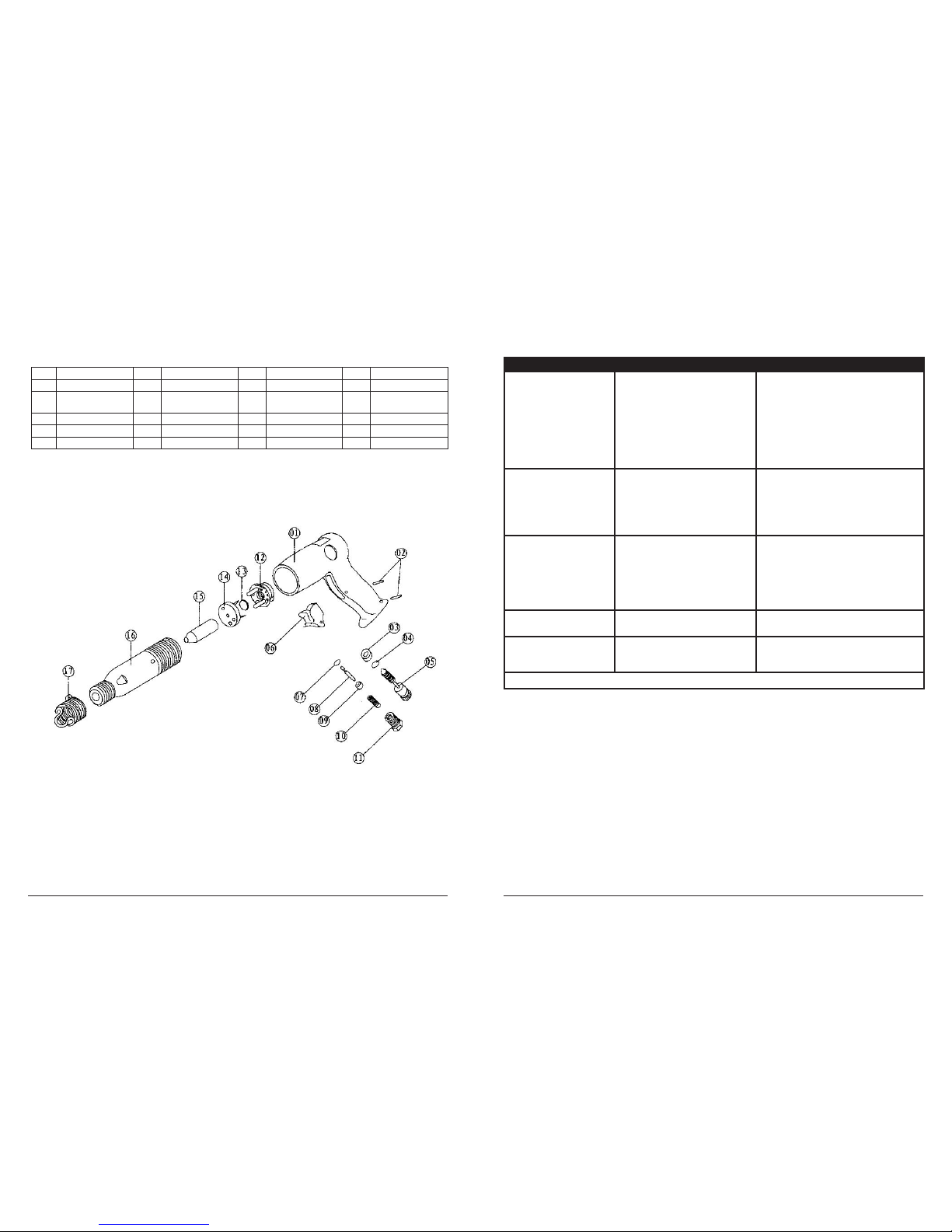

Parts Breakdown
Tool runs at normal speed but
loses power under load
Tool runs slowly. Air flows
slightly from exhaust.
Problem Possible Cause
Note: Repairs should be carried out by a qualified person.
Suggested Solutions
Motor parts worn
Cam clutch worn or sticking due to lack of
lubricant
Have a qualified technician replace worn parts
1. Lubricate clutch housing.
2. Check for excess clutch oil.
3. Overfilling can cause drag on high speed clutch parts,
ie, a typical oiled/lubricated wrench requires
1/2 oz. of oil.
Grease lubricated note:
Heat usually indicates insufficient grease in chamber,
Severe operating conditions may require more frequent
lubrication.
Motor parts jammed with dirt particles.
Power regulator in closed position.
Air flow blocked by dirt.
1. Check air inlet filter for blockage.
2. Pour air tool lubricating oil into air inlet
as per instructions.
3. Operate tool in short bursts quickly reversing rotation
back and forth where applicable.
4. Repeat above as needed. If this fails, return to
service center.
Tool will not run. Air flows
freely from exhaust.
O-rings throttle valve dislodged from
seat inlet valve.
1. Pour air tool lubricating oil into air inlet
as per instructions.
2. Operate tool in short bursts of forward and/or reversing
rotation where applicable.
3. Tap motor housing gently with plastic mallet.
4. Disconnect supply. Free motor by rotating drive shank
manually where applicable.
5. If tool remains jammed, return to service center.
O-rings throttle valve dislodged from
seat inlet valve.
Tool will not shut off. Have a qualified technician replace the O-ring
Excessive drain on the air line. Moisture or
restriction in the air pipe. Incorrect size or type
of hose connectors.
Loss of power or
erratic performance.
Check the air supply. If tool is not connected to a
1/4” line, connect it properly.
TROUBLESHOOTING

Distributed by Star Asia-USA, LLC
P.O. Box 58399, Renton, WA 98058
Consumer Service: 800-386-0191
e-mail: [email protected]
©2010 Star Asia-USA, LLC
