VARMILO Sword 68 User manual

键盘版本区分
1
2
3 4
充电指示灯
标准款 主题款
正面立体装饰
正面铭牌

3
4
1
充电指示灯【基础款】： 充电时红灯常亮，充满电后转变成霓虹灯。电量不足时红灯闪烁，提示要充电。
充电指示灯【主题款】：充电时，CAPSLOCK指示灯上的红灯常亮，充满电后转变成霓虹灯，
电量不足时红灯闪烁，提示要充电。
CAPSLOCK指示灯 : 大写时亮白光亮，小写时恢复背光灯。
蓝牙指示灯 ：Q 、W 、E 键指示灯对应通道灯闪烁蓝灯表示等待配对， 连接成功后熄灭。
2.4G指示灯 ：R键指示灯绿灯闪烁表示等待配对， 连接成功后熄灭。
1
2
3
4
·蓝牙设备必须为蓝牙5.0或者以上
·所有与Fn键组合的操作，必须是先按Fn不松手，再按组合的功能键执行功能；按键释放不分先后
注意事项
有线，蓝牙/2.4G切换
·无线（蓝牙/2.4G）开关在CAPSLOCK键下面，需要拆开键帽来进行拨动开关：
开关向上为无线（蓝牙/2.4G）模式，开关向下为有线模式。
·在无线模式下，连接充电线仅对键盘进行充电。

4
3
2
1
蓝牙模式连接操作
2.4G连接操作
·开关向上拨动，切换成无线模式，在需要连接的设备端打开蓝牙进行搜索，
键盘的蓝牙名称为“Varmilo S68”。
蓝牙可搜索时间为2分钟。
·Fn+Q/W/E切换蓝牙频道，初次切换时，Q/W/E键蓝色灯闪烁，进入配对状态，
连接设备后恢复至之前背光灯模式。
设置成功后，切换蓝牙频道会自动匹配设置好的设备。
·Fn+Q/W/E长按三秒，重置对应的蓝牙频道，重新进入匹配状态。
·Fn+X长按3秒背光灯（白色）闪烁3次，清除蓝牙之前的配对记录
（仅有在蓝牙模式下才可以清除）。
·开关拨动向上，切换成无线模式，Fn+R 长按3秒，2.4G进行配对，此时R键绿色灯闪烁，
进入配对状态，插上2.4G接收器即可使用。

6
5
灯光效果
系统切换
·Fn + Tab长按5秒切换Win /Mac系统，充电指示灯（主题款为CAPSLOCK灯）闪烁白灯3秒后熄灭。
Tap层功能介绍
·在驱动-全局设置中可以开启/关闭Tap层功能。
·开启Tap功能后，短按按键可以触发Tap层功能，长按按键则触发原键值。
·灵敏度越高，触发Tap功能所需的按键时间越长。
·在驱动软件的键位设置里，切换到Tap层，可对Tap层功能进行修改。
·灯效切换: Fn+左Shift或者右 Shift，切换当前灯效下的上一个，或者下一个灯效模式。
·颜色切换: Fn+“【”或者 “】”，切换单色灯效下的上一个或者下一个颜色
·灯效速度:Fn+“←”或者“→”，降低或者提高当前RGB灯效的动态速度
·灯效亮度:Fn+“↓”或者“↑”，降低或者提高当前RGB灯效的灯效亮度。

6
多媒体功能
键盘休眠及关机
·6分钟无按键操作，关闭键盘背光灯，30分钟无操作进入休眠模式，按任意键退出休眠。
（驱动内可调节进入休眠时间）
·CAPSLOCK键下的开关下拨即可关闭蓝牙/2.4G模式，有线模式下拔线即可关机 。

7

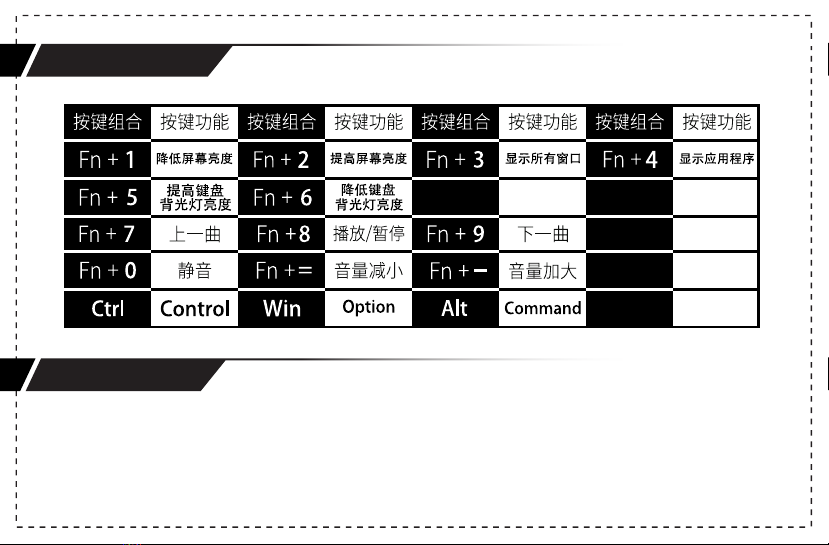

Mac模式快捷键功能
其他
·Fn+ Win键可屏蔽Win键，Win 键被屏蔽时亮白灯。
·恢复出厂设置：Fn+D长按3秒，背光灯白灯闪烁3秒，恢复出厂成功。

3
4
2
1
驱动下载
·进入阿米洛官网（https://keyboard.varmilo.com）在技术支持中的搜索栏输入型号，
或者在驱动选项下，查找对应驱动。
·驱动下载链接：https://oss.varmilo.com/varmilo_asset/v2/software/Varmilo-Sword68-Setup.exe
驱动功能说明
·全局设置：查看设备信息，修改驱动语言，Tap层开关，调节休眠模式，调节延迟，恢复出厂。
·按键设置：修改基础层 ;Fn1层;Fn2层;Tap层的键值。
可将键值设置为其他按键，宏定义，快捷方式及鼠标操作。
·灯效设置：切换灯效，修改灯光颜色，自定义灯效。
·音乐律动：开启音乐律动，切换音乐律动灯效。
·宏 设 置： 整理，录制自定义宏。
·延迟调节：调节键盘的反应速度。
8

9
阿米洛全系列键盘/外设在出售后，会提供给消费者商一年质保服务（配件类为三个月质保服务）。
保修期限内以此卡与产品购买日期为依据，请您妥善保存，遗失不予补发。若遗失此卡，您仍可以
依购买凭据（发票，小票）与电商购买信息作为保修依据。
免费质保服务仅适用于正常使用下非人为所发生的质量问题，若产品因人为因素或不可抗力造成破
坏，则无法享受免费质保服务。其中人为因素包括外力损伤（撞击，刮擦等），进液体（水，饮料
等），擅自拆解，移除产品本身的序列号或保修贴纸等；不可抗力包含受洪水、受潮、啮齿动物损
坏等自然灾害造成的损害。
外壳有印制图案的产品款式请避免用酒精擦拭清理，可使用清水或无酒精洗涤用品清洁。
保修期内您可以享受免费质保服务，保修期外阿米洛仍提供付费维修服务。
阿米洛外设产品支持全国联保（仅支持中国大陆地区），您可以联系您购买产品的电商店铺或线下
门店进行保修，也可登录阿米洛官方网站varmilo.com 进行保修。
Varmilo阿米洛保修信息
维修须知

10

Layout
Version distinction
1
2
3 4
Charging indicator light
Classic Black Ariel
Three-dimensional
decorative pieces
Name
11

3
4
1
【Classic Black】: When charging the cable, the red light on the side of the nameplate is steady,
when it's full of charge back to neon light. When the battery is low, the red light flashes,
indicating need to charge.
【Ariel】When charging the cable, the red light on the CAPSLOCK indicator is steady,
when it's full of charge back to neon light, When the battery is low, the red light flashes,
indicating need to charge.
CAPSLOCK Indicator: White light when capitalized, back to the normal backlight when Lower case.
Bluetooth Indicator: Q, W, E key indicator corresponding to the channel light blinking
blue light indicates waiting for pairing; After successful connection, the blue light off.
2.4G Indicator: The R key indicator blinks green to indicate that it is waiting for pairing,
After successful connection, the green light off.
2
3
4
·The Bluetooth device must be Bluetooth 5.0 or above.
·All operations combined with Fn key must first press Fn and then press the combined function key to
perform the function; the key is released in no particular order.
Matters need attention
Charging indicator light:
1
12

Wired, Wireless(Bluetooth & 2.4G) channel switching
·The wireless mode switch is underneath the CAPSLOCK key, and you need to remove the
keycap and turn button to toggle.
·Flip the switch upward is the wireless mode, Flip the switch down is the wired mode.
·When you turn on the wireless mode, you can choose Bluetooth or 2.4G to connect.
·When the keyboard in wireless mode, then connect the charging cable is for charging the keyboard.
·In wireless mode(Bluetooth & 2.4G ), select Bluetooth channel Q or W or E, and turn on Bluetooth
for search on the device to be connected.
·The Bluetooth name of the keyboard is "Varmilo S68".
·Bluetooth searchable time is 2 minutes.
·Fn+Q or W or E, switch Bluetooth channel. When switching for the first time,
the blue light of Q or W or E key flashes and enters the pairing state.
Bluetooth mode connection operation
13

14
·The device search lasts for 2 minutes, and the backlight mode is restored after the device
is connected.After the setting is successful, switching the Bluetooth channel will automatically
match the set device.
·Long press Fn+Q/W/E for 3 seconds to reset the corresponding Bluetooth channel
and enter the matching state again.
·Fn+X long press for 3 seconds and flash the backlight (white) 3 times to clear the pairing record
before Bluetooth(Can only be cleared in Bluetooth mode)
2.4G Pairing Operation
·In wireless mode(Bluetooth & 2.4G ), long press Fn+R for 3 seconds to pair 2.4G, then the green
light under R key flashes.
·Enter the pairing state, plug in the 2.4G receiver and use it.
·The code matching time is 20 seconds, and the backlight mode will be restored after the code
matching is successful.
(The factory has been paired with the user directly plug the receiver can be used)

15
Current light effect
·Light effect switching: Fn+Left Shift or Right Shift, switch the previous or next light effect
mode under the current light effect.
·Colour switching: Fn+ "{" or "}" to switch the previous or next color under the monochrome light effect.
·Lighting Speed: Fn+ "←" or "→" reduces or increases the dynamic speed of the current RGB light effect
·Lamp Brightness: Fn+ "↓" or "↑" to reduce or increase the light effect brightness of the
current RGB light effect.
·Light effect restore: Fn+ "D", long press for 3 seconds, the light effect restore factory Settings.
Tap Layer Function Introduction
·Tap layer function can be on or off in Driver-Global Settings.
·When the Tap function is turned on, a short press on the Tap key triggers the Tap layer function,
and a long press on the Tap key will be the original Tap key.
·The higher the sensitivity, the longer the key press time required to trigger the Tap function.
·Switch to the Tap layer in the key setting of the driver software to modify the Tap layer function.

16
Multimedia Function
Hibernation and shutdown
·6 minutes without key operation, turn off the keyboard backlight, 30 minutes without operation
into sleep mode, press any key to exit sleep. (Regulatory time into dormancy within drive)
CAPSLOCK The switch under the key can turn off the Bluetooth / 2.4G mode, and the cable can
be pulled off in the wired mode. Keyboard hibernation and shutdown
Functions Functions Functions Functions
Music Email Calculator Computer
Last song Plya/Pause Next song
Volume Up
Volume Down Mute
Combinations Combinations Combinations Combinations

17
Mac Mode-Multi-Media Keys
System switching
·Fn + Tab long press for 5 seconds to switch Win or Mac system,
charging indicator (Ariel is CAPSLOCK light) flashes white light for 3 seconds and then snuffed out.
Mute Volume Up
Volume Down
Last song Plya/Pause Next song
Brightness – Brightness + Display all
interfaces
Display all
apps
Keyboard
backlight
brightness-
Keyboard
backlight
brightness+
Functions Functions Functions Functions
Combinations Combinations Combinations Combinations

18
Driver Function Description
·Global Settings: View device information, modify driver language, boot up, Tap layer on or off,
sleep mode, delay, reset.
·Key Setting: Modify the key setting of Base Layer, Fn1 Layer, Fn2 Layer and Tap Layer, you can set key,
macro, shortcut and mouse.
·Light Mode settings: switch the Light Mode, modify the colour of the Light Mode, customize the
Light Mode.
·Music Rhythm: Turn on Music Rhythm and switch the music rhythm Light Mode.
·Macro Settings: Typing and record custom macros.
·Delay adjustment: Adjust the response speed of the keyboard.
Other
·Fn + Win key can screen Win key, Win key when the white light is screened.
·Restore the factory setting: Fn + D long press for 3 seconds, backlight white light flashing for 3 seconds,
restore the factory successfully.

19
Driver Download
·In Varmilo website（https://keyboard.varmilo.com）, select Technical Support,
search the model number in the search bar, or choose the Driver button to look for the
corresponding model driver.
·Driver download link:https://oss.varmilo.com/varmilo_asset/v2/software/Varmilo-Sword68-Setup.exe
·Hold down Fn + Tab key for 5 seconds to switch to the Win or Mac mode.
When the keyboard is used for the first time, the default mold is Win mode.
【Lalic and Black】The indicator on the nameplate flashes a white light for three seconds,
indicating that the switch is successful.
【Arile】The CAPSLOCK key indicator blinks white for three seconds, indicating that the switchover
is successful.
