Varytec Blitz Bar 240 User manual

Blitz Bar 240
Stroboscope
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
22.08.2023, ID: 550535

Table of contents
1 General information................................................................................................................................. 6
1.1 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation.................................................................................................................................................. 15
5 Starting up.................................................................................................................................................. 18
6 Connections and operating elements........................................................................................... 20
7 Operating.................................................................................................................................................... 23
7.1 Starting the device........................................................................................................................... 23
7.2 Main menu.......................................................................................................................................... 23
7.2.1 DMX address.................................................................................................................................. 24
7.2.2 DMX mode...................................................................................................................................... 25
7.2.3 Auto operation.............................................................................................................................. 26
7.2.4 Sound control................................................................................................................................ 27
7.2.5 Manual colour settings............................................................................................................... 28
7.3 System settings................................................................................................................................. 30
7.4 System information......................................................................................................................... 31
7.5 Menu overview................................................................................................................................. 32
7.6 Functions in 8-channel mode...................................................................................................... 33
Table of contents
Blitz Bar 240 3
Stroboscope

7.7 Functions in 14-channel mode................................................................................................... 35
7.8 Functions in 232-channel mode................................................................................................. 38
8 Technical specications....................................................................................................................... 40
9 Plug and connection assignments.................................................................................................. 42
10 Troubleshooting...................................................................................................................................... 43
11 Cleaning....................................................................................................................................................... 45
12 Protecting the environment.............................................................................................................. 46
Table of contents
4Blitz Bar 240
Stroboscope

Blitz Bar 240 5
Stroboscope

1 General information
This document contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the document for future refer‐
ence. Make sure that it is available to all those using the product. If you sell the product to
another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They
are therefore subject to change. Please refer to the latest version of the documentation, which
is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this document.
General information
6Blitz Bar 240
Stroboscope

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
General information
Blitz Bar 240 7
Stroboscope

Warning signs Type of danger
Warning – danger zone.
General information
8Blitz Bar 240
Stroboscope

2 Safety instructions
This device is intended to be used as an illumination eect. The device is designed for profes‐
sional use and is not suitable for use in households. Use the device only as described in this
user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
DANGER!
Danger to life due to electric current!
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device when covers, safety equipment or optical components are missing or damaged.
Intended use
Safety instructions
Blitz Bar 240 9
Stroboscope

DANGER!
Danger to life due to electric current!
A short circuit could lead to a re hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a
safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and
arrange repair. If in doubt, seek advice from a qualied electrician.
WARNING!
Risk of eye damage caused by high light intensity!
The device generates highly intense light radiation. Looking directly into the light source can damage the eyes. Never look directly
into the light source.
WARNING!
Risk of epileptic t due to ashing lights!
The device emits ashing lights (strobe eects). Flashing lights can trigger epileptic ts in specic people. If you are at risk of epi‐
lepsy, avoid spending longer periods of time subjected to ashing lights and looking into strobing light.
NOTICE!
Risk of re due to covered vents and neighbouring heat sources!
If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐
heat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat
sources. Never operate the device in the immediate vicinity of naked ames.
Safety instructions
10 Blitz Bar 240
Stroboscope

NOTICE!
Damage to the device if operated in unsuitable ambient conditions!
The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient
conditions specied in the “Technical specications” chapter of this user manual. Avoid operating it in environments with direct sun‐
light, heavy dirt and strong vibrations. Avoid operating it in environments with strong temperature uctuations. If temperature uc‐
tuations cannot be avoided (for example after transport in low outside temperatures), do not switch on the device immediately.
Never subject the device to liquids or moisture. Never move the device to another location while it is in operation. In environments
with increased dirt levels (for example due to dust, smoke, nicotine or mist): Have the device cleaned by qualied specialists at reg‐
ular intervals to prevent damage due to overheating and other malfunctions.
NOTICE!
Damage to the device due to high voltages!
The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess vol‐
tages can also cause a risk of injury and res. Make sure that the voltage specication on the device matches the local power grid
before plugging in the device. Only operate the device from professionally installed mains sockets that are protected by a residual
current circuit breaker (FI). As a precaution, disconnect the device from the power grid when storms are approaching or it the device
will not be used for a longer period.
NOTICE!
Risk of re by exceeding the maximum current
The device can supply power to other devices of identical design and connected in series. If too many devices are connected, the
power consumption can exceed the maximum permitted power consumption, which can cause the device to overheat and burst
into ames. Only connect devices of identical design to the device. When deciding how many devices you can connect in series,
make sure that the maximum permitted power consumption as stated on the device is not exceeded. Also refer to the specications
in the technical specications for the device. Only use power cords with a cable cross-section designed for the required current
intensity when connecting the devices in series.
Safety instructions
Blitz Bar 240 11
Stroboscope

NOTICE!
Risk of re due to installation of a wrong fuse!
Using fuses of a dierent type than compatible with the device may cause a re and seriously damage the device. Only use fuses of
the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter.
Safety instructions
12 Blitz Bar 240
Stroboscope

3 Features
nLED strobe bar with ambient eect
nFuturistic eects through pixel control of the stroboscope
nCreative running eects
n240 × CW LEDs for bright and dynamic strobe eects, arranged tubularly in the middle
n384 × RGB LEDs for wash eects and colourful accents in the background
nUp to 20 individually controllable segments with the CW LEDs
nUp to 32 individually controllable segments with the RGB LEDs
nControl via DMX and via buttons and display on the device
nOperating modes:
– Master/Slave
– Sound control via built-in microphone
– Auto operation
– DMX (3 modes)
n20 built-in chase programmes in automatic mode and sound control
nFlash rate: 0…20 Hz
nOLED display with four touch-sensitive buttons
nSwivelling mounting bracket
nWithout fan due to convection cooling
nWith Omega bracket for safe, hanging installation
Features
Blitz Bar 240 13
Stroboscope

For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
14 Blitz Bar 240
Stroboscope

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury from falling devices that were inadequately secured!
If devices are not properly secured during assembly, they can cause severe injury
and considerable damage by falling.
When installing and operating, make sure to follow the standards and regulations
that apply in your country.
Always secure the device with a secondary safety attachment, such as a safety
cable or a safety chain.
Installation
Blitz Bar 240 15
Stroboscope

NOTICE!
Risk of overheating and re due to inadequate distance and bad ventilation!
If the distance between the light source and the illuminated surface is too short or
the device is badly ventilated, the device can overheat and cause res.
Make sure that illuminated surfaces are more than 2 m away.
Do not operate the device in ambient temperatures above 40 °C.
Always ensure sucient ventilation at the operating location.
NOTICE!
Data transfer errors due to improper wiring!
If the DMX connections are wired incorrectly, this can cause errors during the data
transfer.
Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐
ers.
Use special DMX cables for the wiring instead of normal microphone cables.
You can install the device in hanging or standing position. When in use, the device must
always be attached to a solid surface or an approved truss. Use the openings provided on the
two-piece bracket for attaching.
Mounting options
Installation
16 Blitz Bar 240
Stroboscope

Always work from a stable platform whenever installing, moving or servicing the device. In
doing so, the area underneath the device must be cordoned o.
The safety cable must be attached to the bracket.
Please note that this device must not be connected to a dimmer.
Installation
Blitz Bar 240 17
Stroboscope

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼W).
Connections in DMX mode
Starting up
18 Blitz Bar 240
Stroboscope

When you congure a group of devices in master/slave mode, the rst unit will control the
other units for an automatic, sound-activated, synchronized show. This function is ideal when
you want to start a show immediately. Connect the DMX output of the master device to the
DMX input of the rst slave device. Then connect the DMX output of the rst slave device to
the DMX input of the second slave device and so on.
Connections in master/slave
mode
Starting up
Blitz Bar 240 19
Stroboscope

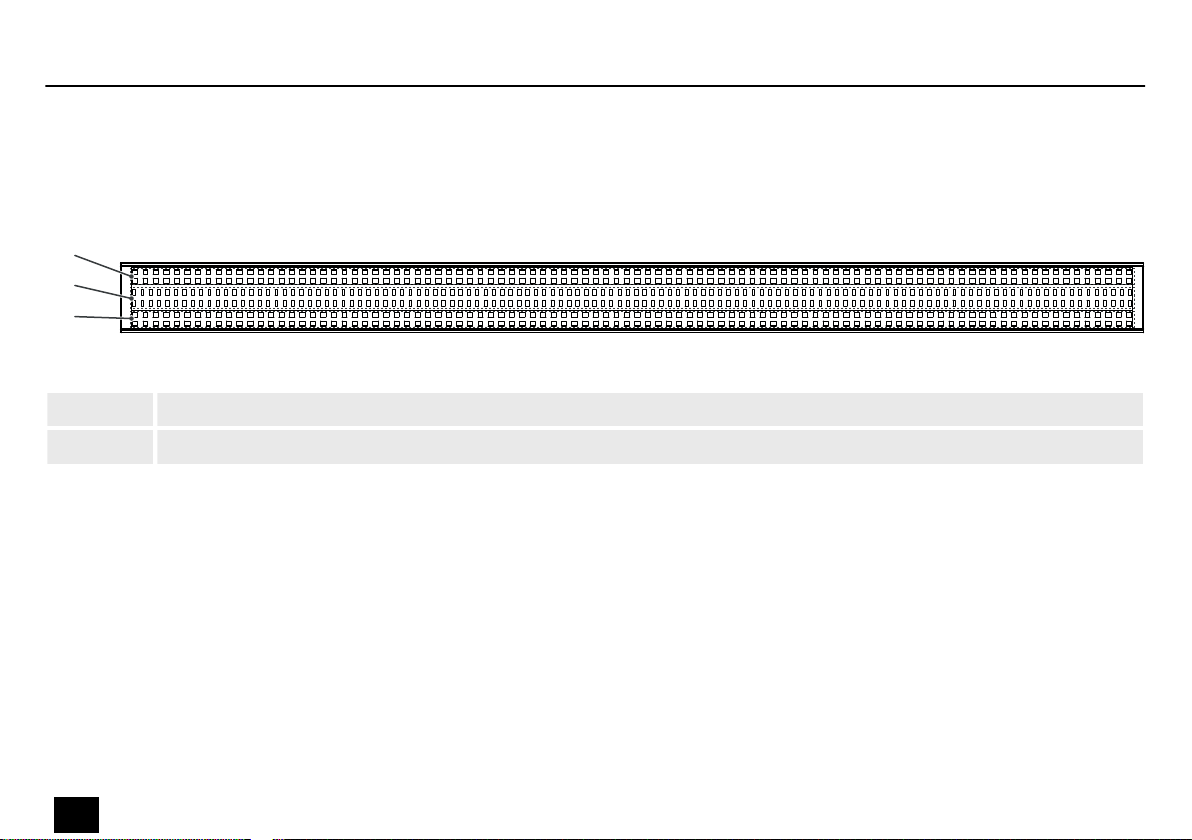

6 Connections and operating elements
ö
#
ö
1 RGB LEDs
2 CW LEDs
Front panel
Connections and operating elements
20 Blitz Bar 240
Stroboscope
