Varytec Blitz Bar 240 User manual

Blitz Bar 240
Stroboscope
User Manual

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
Internet: www.thomann.de
20.06.2023, ID: 550535

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 7
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 11
3 Features....................................................................................................................................................... 14
4 Installation.................................................................................................................................................. 16
5 Starting up.................................................................................................................................................. 18
6 Connections and operating elements........................................................................................... 20
7 Operating.................................................................................................................................................... 23
7.1 Starting the device........................................................................................................................... 23
7.2 Main menu.......................................................................................................................................... 23
7.2.1 DMX address.................................................................................................................................. 24
7.2.2 DMX mode...................................................................................................................................... 25
7.2.3 Auto operation.............................................................................................................................. 26
7.2.4 Sound control................................................................................................................................ 27
7.2.5 Manual colour settings............................................................................................................... 28
7.3 System settings................................................................................................................................. 30
7.4 System information......................................................................................................................... 31
Table of contents
Blitz Bar 240 3
Stroboscope

7.5 Menu overview................................................................................................................................. 32
7.6 Functions in 8-channel mode...................................................................................................... 33
7.7 Functions in 14-channel mode................................................................................................... 35
7.8 Functions in 232-channel mode................................................................................................. 38
8 Technical specications....................................................................................................................... 40
9 Plug and connection assignments.................................................................................................. 42
10 Troubleshooting...................................................................................................................................... 43
11 Cleaning....................................................................................................................................................... 45
12 Protecting the environment.............................................................................................................. 46
Table of contents
4Blitz Bar 240
Stroboscope

Blitz Bar 240 5
Stroboscope

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6Blitz Bar 240
Stroboscope

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
1.2 Notational conventions
This manual uses the following notational conventions:
General information
Blitz Bar 240 7
Stroboscope

The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Displays
Instructions
General information
8Blitz Bar 240
Stroboscope

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
Warning – suspended load.
General information
Blitz Bar 240 9
Stroboscope

Warning signs Type of danger
Warning – danger zone.
General information
10 Blitz Bar 240
Stroboscope

2 Safety instructions
This device is intended to be used as an illumination eect. The device is designed for profes‐
sional use and is not suitable for use in households. Use the device only as described in this
user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
Intended use
Safety instructions
Blitz Bar 240 11
Stroboscope

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
Safety instructions
12 Blitz Bar 240
Stroboscope

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC
outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the
user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric
shock or re.
NOTICE!
Fire hazard due to exceedance of the maximum current
The device can power other devices of identical construction. The current consumption of all other devices connected in series must
not exceed the values indicated in the technical specications. Otherwise you risk injuries and irreparable damages to the device.
Only connect so many identical devices that the maximum current consumption is not exceeded. Ensure the sucient dimensioning
(wire cross section) of the power cables used for all devices connected in series.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
Safety instructions
Blitz Bar 240 13
Stroboscope

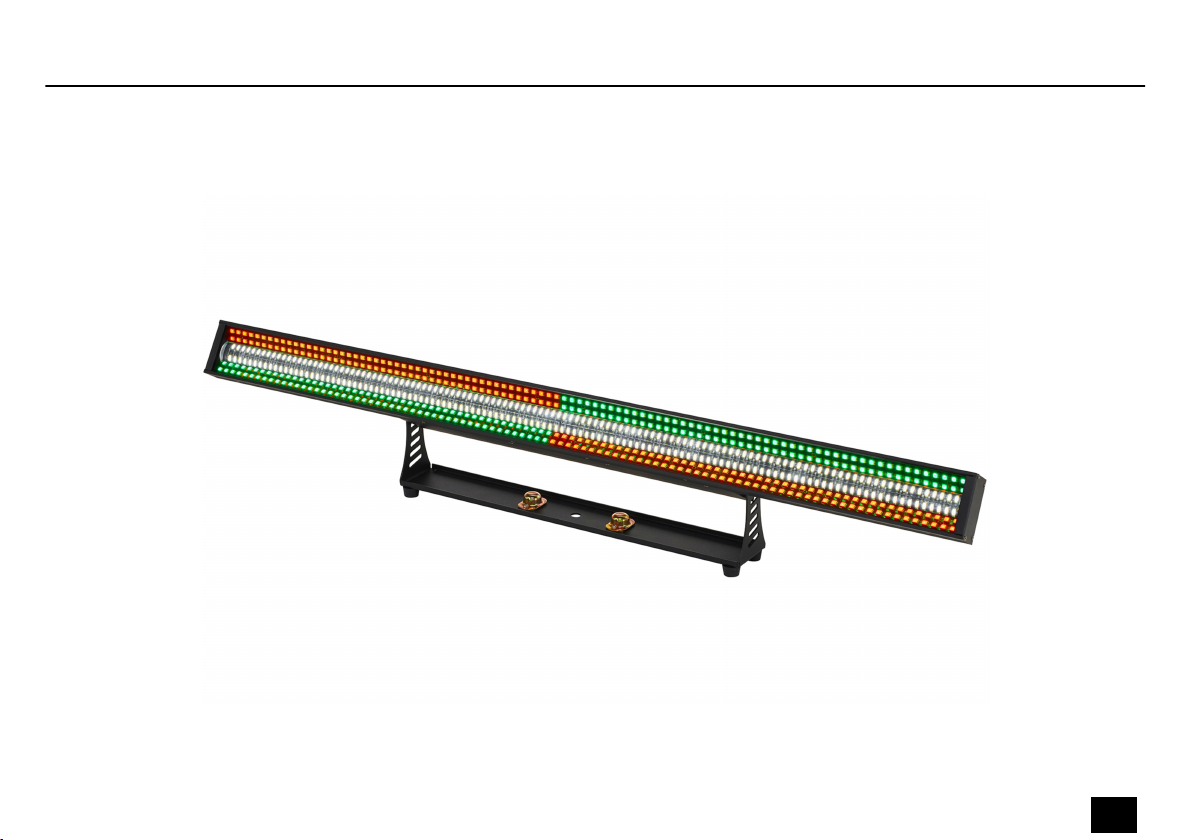

3 Features
nLED strobe bar with ambient eect
nFuturistic eects through pixel control of the stroboscope
nCreative running eects
n240 × CW LEDs for bright and dynamic strobe eects, arranged tubularly in the middle
n384 × RGB LEDs for wash eects and colourful accents in the background
nUp to 20 individually controllable segments with the CW LEDs
nUp to 32 individually controllable segments with the RGB LEDs
nControl via DMX and via buttons and display on the device
nOperating modes:
– Master/Slave
– Sound control via built-in microphone
– Auto operation
– DMX (3 modes)
n20 built-in chase programmes in automatic mode and sound control
nFlash rate: 0…20 Hz
nOLED display with four touch-sensitive buttons
nSwivelling mounting bracket
nWithout fan due to convection cooling
nWith Omega bracket for safe, hanging installation
Features
14 Blitz Bar 240
Stroboscope

For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
Blitz Bar 240 15
Stroboscope

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more
than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
Installation
16 Blitz Bar 240
Stroboscope

NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
You can install the device in hanging or standing position. When in use, the device must
always be attached to a solid surface or an approved truss. Use the openings provided on the
two-piece bracket for attaching.
Always work from a stable platform whenever installing, moving or servicing the device. In
doing so, the area underneath the device must be cordoned o.
The safety cable must be attached to the bracket.
Please note that this device must not be connected to a dimmer.
Mounting options
Installation
Blitz Bar 240 17
Stroboscope

5 Starting up
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

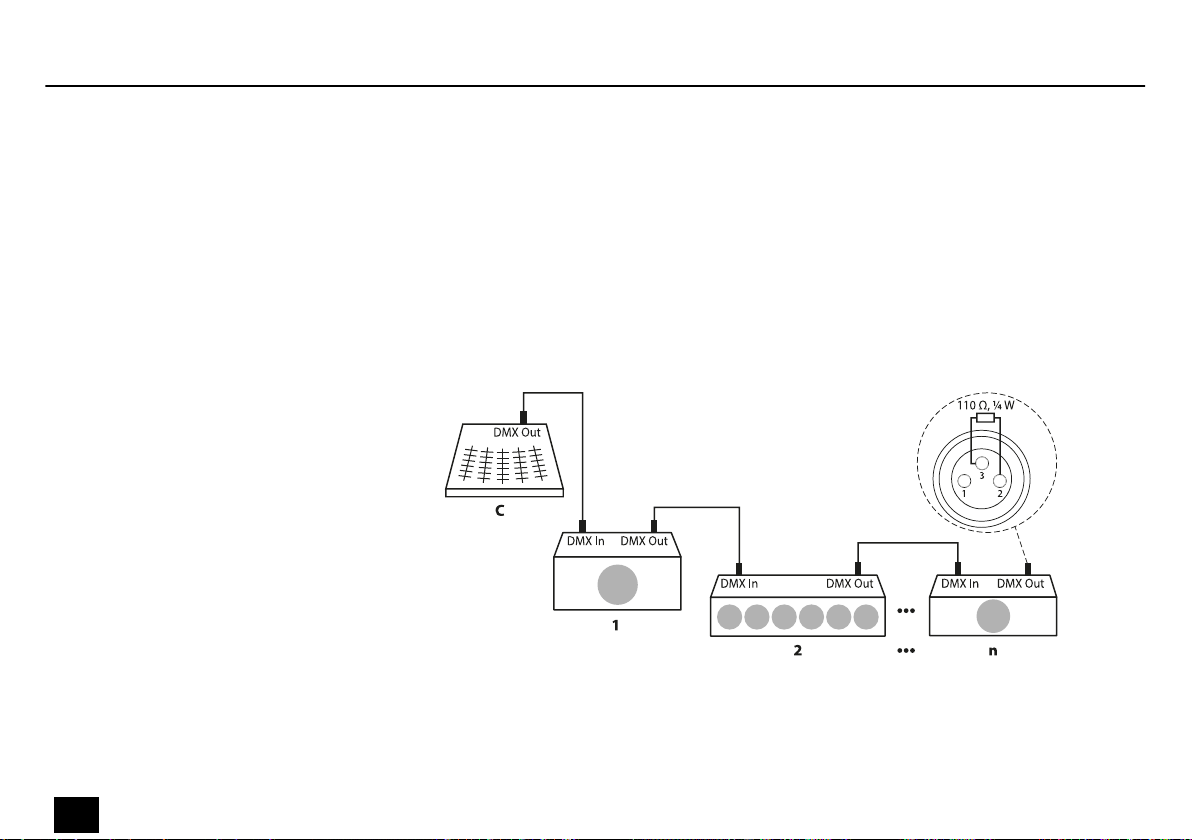

Connect the DMX input of the device to the DMX output of a DMX controller or another DMX
device. Connect the output of the rst DMX device to the input of the second one, and so on
to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain
is terminated with a resistor (110 Ω, ¼W).
Connections in DMX mode
Starting up
18 Blitz Bar 240
Stroboscope

When you congure a group of devices in master/slave mode, the rst unit will control the
other units for an automatic, sound-activated, synchronized show. This function is ideal when
you want to start a show immediately. Connect the DMX output of the master device to the
DMX input of the rst slave device. Then connect the DMX output of the rst slave device to
the DMX input of the second slave device and so on.
Connections in master/slave
mode
Starting up
Blitz Bar 240 19
Stroboscope

6 Connections and operating elements
ö
#
ö
1 RGB LEDs
2 CW LEDs
Front panel
Connections and operating elements
20 Blitz Bar 240
Stroboscope
