Vasco T350 User manual

INSTALLATION MANUAL
VENTILATION
UNIT VASCO
T350/T500
SYSTEM D

CONTENTS
1. INTRODUCTION 01
2. SAFETY 01
3. INSTALLERS MANUAL 02
• CONTENTS PACKAGING 02
• DIMENSION 04
• INSTALLATION CONDITIONS 05
• ASSEMBLY PREPARATIONS 05
• ELECTRIC PRE-HEATING ELEMENT T350/T500 07
• MOUNTING THE VENTILATION UNIT/ CONDENSATION DRAIN 08
• AIR DUCT CONNECTIONS 09
• MOUNTING SWITCHES 10
• COMMISSIONING AND ADJUSTMENT 14
4. MAINTENANCE 17
5. ELECTRICAL DIAGRAM 19
6. MALFUNCTION 20
7. PARTS LIST 22
8. WARRANTY CONDITIONS 23

1 INTRODUCTION
The ventilation unit ensures a healthy indoor climate through continuous
ventilation. For this purpose, a minimum ventilation flow rate is always required.
The unit is therefore not equipped with an on/off switch. The resident must
ensure that the unit is always plugged into the wall socket and that the wall
socket is live.
The D ventilation system from Vasco Ventilation Concepts is a balance
ventilation system with heat recovery that guarantees a comfortable and
healthy indoor climate in a controlled way.
2 SAFETY
Only a professional installer is authorised to open the ventilation unit. The fitter
must use the appropriate tools for each job .
The electronic components of the ventilation unit may be electrically live.
In the event of a defect, contact a professional installer and have repairs carried
out only by qualified personnel.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they are supervised or instructed in the use of the appliance
by a person responsible for their safety.
is for their safety. Children should be supervised to ensure that they do not
play with the device.
If the power cord is damaged, it must be replaced by the
manufacturer, the
after-sales service or persons with similar qualifications in order to avoid
danger.
The user is responsible for the safe disposal of the
ventilation unit at the
end of its service life, in accordance with the locally applicable laws or
regulations. You can also dispose of the unit at a collection point for used
electrical appliances.
INTRODUCTION / SAFETY 01
SAFETY
INSTRUCTION
S
ELECTRONIC
COMPONENTS

PACKAGING
The ventilation unit must be inspected periodically for dirt. For inspection
purposes the ventilation unit must be switched off by removing the mains plug
from the wall socket. The ventilation unit contains rotating mechanical parts. If
you remove the plug from the socket, these parts continue to rotate for a few
seconds. Therefore, wait for about 20 seconds after turning off the ventilation
unit so that the components come to a standstill.
Make sure that the plug cannot be reinserted into the power socket by
another person before you have finished your work. Do not plug the unit
into the power socket until the ventilation unit has been installed and all
components have been assembled.
Vasco is not liable for any damage caused by not observing the safety instructions or
not following the instructions in the user manual. You will find the guarantee
conditions on
page 24 ofthis manual.
3 INSTALLATION MANUAL FOR THE
INSTALLER
The ventilation unitis delivered on a pallet and packed in a box. Remove
the packaging and check the contents.
The content consists of:
- 1 ventilation unit
- 1 wall bracket
- 1 wireless mode switch
- 1 user manual
- 1 installation manual
- 2 baffleplates
- 2 suspension brackets with bolts
- 2 galva sleeves
The appliance must be transported and unpacked with due care. Make
sure that the packaging materials are disposed of in an environmentally
friendly way .
02 INSTALLATION MANUAL FOR THE INSTALLER
MAINTENANCE
GUARANTEE

wall bracket
ventilation
unit
Suspension
brackets
wireless
mode
switch
Installation
manual
User Manual
2 bumpers (supplied separately)
2 Galva sockets (below unit connection)
INSTALLATION MANUAL FOR THE INSTALLER 03

04 DIMENSIONAL
DRAWINGS
Screws and plugs not included
Distance from the wall:
16
Depth 560
110
centre distance
520
110
Ø180
Mains cable 230
VAC Antenna RF
Cable grommet wired
3 position switch or cable 0-10V
control (both cables to be
provided by the installer)
764
Sizes indicated in mm.
DIMENSION
252,5
centre-
distance 280
296,1
140
156,1
724

INSTALLATION CONDITIONS/PREPARATIONS 05
To determine whether the installation of the ventilation unit in a certain room is
possible, the following aspects should be taken into account:
• the room must be frost-free
• The installation must be carried out inaccordance with the general and
locally applicable safety and installation regulations for, among other things,
ventilation, electricity and sewerage as well as the regulations in this
manual.
• The following facilities must be available in the room:
- air duct connections
- 230V±10%, single-phase, 50Hz socket
- provision for the condensation drain
• no construction dust may enter the ventilation unit
or the air duct system
The ventilation unit can easily be mirrored so that the house connections can be on the
right or left side.
STANDARD CONFIGURATION RIGHT REVERSED
CONFIGURATION LEFT
outwa
rd from outsid
e
from
home to
home from
home to
home
outwa
rd from outside
from
home
to
home
from
home
to
home
INSTALLATION
CONDITIONS
ASSEMBLY
PREPARATIONS

06 ASSEMBLY PREPARATIONS
For this, only the mounting brackets of the ventilation unit have to be fixed on
the right side as shown in the following figures:
STANDARD CONFIGURATION RIGHT REVERSED
CONFIGURATION LEFT
Stick the protective caps on the ventilation unit before fixing the
ventilation unit to the wall.

ELECTRIC PRE-HEATING ELEMENT T350 /T500 07
For the T350 /T500 units, an electric pre-heating element is optionally
available. There is one type:
Electric pre-heating element T350 / T500 Article number 11VE 44130
MOUNTING AND ELECTRICAL CONNECTION
OF THE PRE-HEATING ELEMENT
Attention: The electric pre-heating element must be in place before the
ventilation unit is fixed to the wall.
Attach the door panel to the connection "from outside".
The electric pre-heating element is mounted on the socket
"from outside".
The cable of the electric pre-heating element must be led through the
provided notches to the PCB and connected to terminal X17.
X13
X14
X27
X17
ELECTRIC
PREHEATING
ELEMENT
T350 /T500

08 MOUNTING VENTILATION UNIT/ CONDENSATE
DRAIN
The ventilation unit must be mounted on a wall of sufficient strength. Wall
plugs and screws are not supplied. Use the appropriate fixing materials
depending on the wall structure.
The condensate from the ventilation unit must be discharged in a
proper manner. For this purpose, the ventilation unit must be
connected to the indoor sewage system in a frost-free and airtight
manner.
A siphon is part of this drainage system and must be provided on site
separately. We advise to glue the connection to the ventilation unit or
to connect it airtight by using a seal. The connection to the ventilation
unit is Ø32mm. If the condensate drain is connected to the siphon with
a hose, it is important that the end of the hose is at least
60 mm below the water level. For a fixed connection, we
recommend an additional filling possibility near the siphon.
CONDENSARY FOOD
MOUNTING
VENTILATION
UNIT
min. 1 cm
min. 1 cm
75 cm
61 cm
60 mm
100 cm
min. 114 cm
min. 38 cm
min. 50 cm

From out
OUTSIDE
outside
from home
outward
to home
For a low-noise ventilation system, Vasco recommends using the components
from the range offered for Vasco.
Mount the installation with the lowest possible air resistance and free of
leaks. The main air ducts should have an internal diameter of Ø170 mm or
Ø180 mm.
Connection residential side
Vasco recommends using the Vasco Easyflow air duct system.
External connection
The air ducts of the outside connection should always be insulated to prevent
condensation on the outside of the air duct.
The above drawing is a connection possibility, other connection configurations
are possible.
AIR DUCT CONNECTIONS 09
AIR DUCT
CONNECTIONS

10MOUNTING SWITCHES
Mounting tips
Always place the switch away from places where moisture drops can
form.
Never place the wall transmitter in a metal housing or near large metal
objects.
MOUNTING RF SWITCH
Always install the RF position switch in an easily accessible location.
Step 1: Loosen the knobs and the electronics module to free the base
plate for wall mounting.
Step 2: Draw screw holes for the base plate on the wall.
Step 3: Mount the base plate to the wall with screws. Step 4:
Mount in the order shown below:
1. Window 2. Base 23. Electronics and buttons
MOUNTING
SWITCHES

MOUNTING SWITCHES 11
MOUNTING CO2 RF SWITCH
Always install the CO2 RF switch in an easily accessible location in the room in
which you wish to monitor the
CO2
concentration. Always provide a 230 V power
supply for the switch.
Step 1: Dismantle
the switch.
Step 4:
Connect the 230V
supply voltage to
the connectors.
Step 2:
Screw the base plate
onto the wall.
Step 5:
Place the cover back
on the switch.
Step 3:
Open the cover on the base
plate to reveal the electrical
connections.
MOUNTING RH RF SWITCH
Always install the RH RF switch in an easily accessible place in the bathroom.
Step 1: Dismantle the
switch.
Step 2: Draw the screw
holes of the base plate
onto the wall.
Step 3: Screw the base
plate to the wall. Step 4: Place the cover
back on the switch.

12MOUNTING SWITCHES

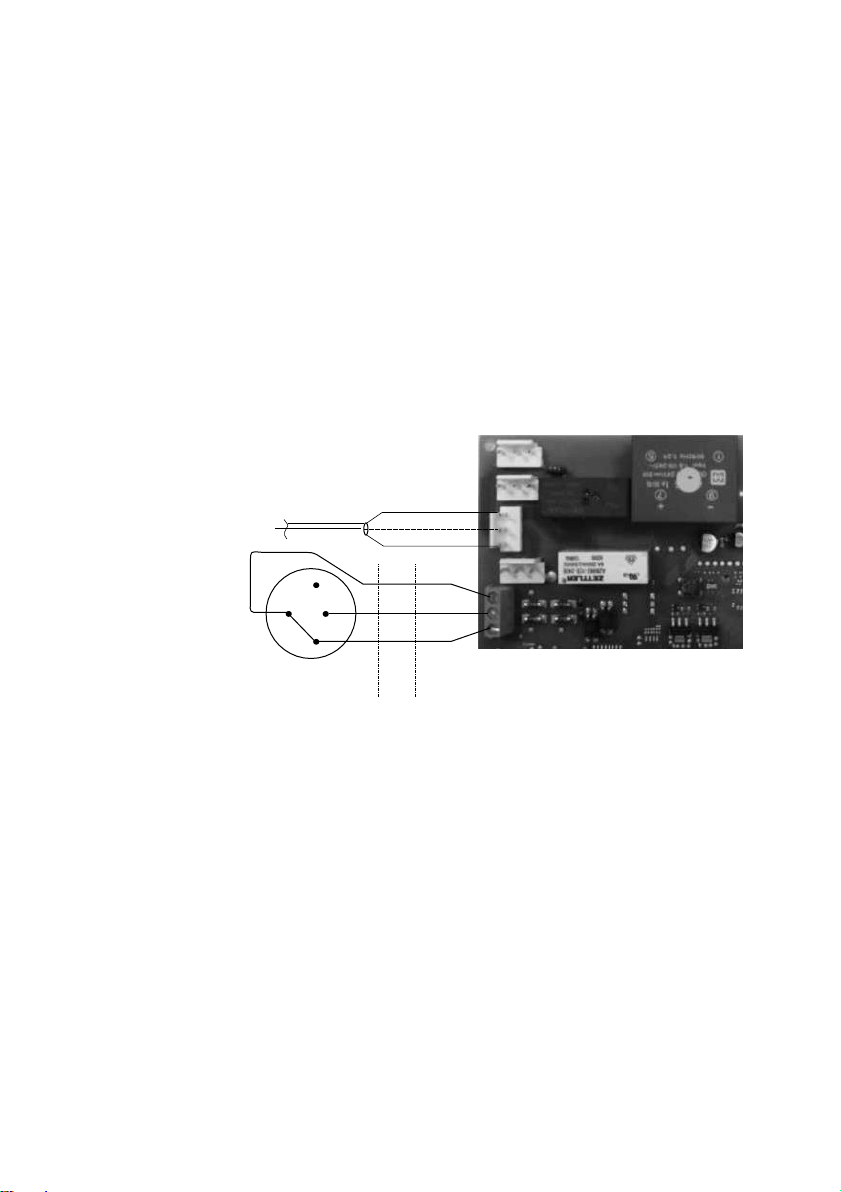

CONNECTION TO A WIRED 3 POSITION SWITCH OR
A 3GANG SWITCH MODULE
To connect a wired 3-position switch, the
ventilation unit must be opened in a correct manner in order to reach the PCB .
This method can be found in the chapter
of the electric pre-heating element. The correct cable must then be led to the
PCB via the cut-out with grommet provided for this purpose in the ventilation
unit.
Finally, connect the cable to terminal X9 "Connection 3 position switch"
according to the following diagram.
3 position switch or
3-fold switching module
Intended grommets in
the ventilation unit
L1 and L3 closed = high (position 3)
L1 and L2 closed = medium (position
2) L1 open = low (position 1)
L1 is connected to terminal C L2 is
connected to terminal 1 L3 is
connected to terminal 2
Circuit board T350
/T500
Sample circuit
3 position switch NIKO (type
170-45900 + xxx-659336)
X13
X14
brow
n
power cord
230V ˜ 50Hz
yellow/green
X27
blue
C1
2
L1 X17
L2
L3
X9
{

MOUNTING SWITCHES 13
CONNECTION FOR 0-10 V SIGNAL
(BUILDING MANAGEMENT SYSTEM
APPLICATION)
With 0-10 V, the flow rate can be steplessly adjusted between the minimum
and maximum flow rate of the ventilation unit. This corresponds to the following
values:
1 V
T350
T500
40 m³/h
60 m³/h
1 –10 V
Linear relationship
Linear relationship
10 V
350 m³/h
500 m³/h
To connect a 0-10 V signal, the cover on the ventilation unit must be
opened in a correct manner so that the circuit board can be reached. This
method can be found in the chapter on the electric pre-heating element.
Next, a correct cable must be led to the PCB through the grommet in the
ventilation unit .
Finally, connect the control signal to terminal X26 " Building
control system connection " according to the following
diagram.
Circuit board T350 /T500
X
X
9
X6X22
X23
8
X5X21 X20
X15X26
0-10V signalGround
Grommet provided in
ventilation unit.
2 x 1.5 mm2
(maximum)
Building management
system

14MOUNTING SWITCHES
The position switch is registered with the ventilation unit at the factory.
If all air and electrical connections have been made, the plug may be inserted
into the mains socket.
After 1 minute and 30 seconds, the fans start up briefly (about 4 seconds) .
Then you have 10 minutes to set the air volume and to connect additional
optional position switches.
Adjusting the air volume:
Press the button for position 3 for at least 3 seconds and release it when the
LED in the centre of the switch gives a series of light signals. These indicate the
air quantity set. In the factory, the LED lights up orange once.
Indication LED on switch
T350
T500
1x green
230 m³/h
350 m³/h
2x green
250 m³/h
375 m³/h
1x orange (standard)
270 m³/h
400 m³/h
2x orange
290 m³/h
425 m³/h
3x orange
310 m³/h
450 m³/h
1x red
330 m³/h
475 m³/h
2x red
350 m³/h
500 m³/h
Reducing the air volume:
Press the button of position 1 once. The LED indication will change according
to the table. By repeatedly pressing the button of position 1 at 1 second
intervals , the air volume is further reduced.
Increasing the air volume:
Press the button of position 2 once. The LED indication will change according to
the table. By repeatedly pressing the button at 1 second intervals, the
of position 2, the air volume is further increased.
Press the button of position 3 for at least 3 sec. to confirm the change. If the RF
switch remains untouched for one minute, the changes are automatically
saved.
COMMISSIONING AND
ADJUSTMENT

MOUNTING SWITCHES 15
Activating and deactivating additional optional RF switches:
The switch supplied with the unit is factory-coupled to the ventilation unit. In total,
up to 20 switches can be connected to the system.
Activating and deactivating additional optional RF switch (11VE20012):
Sign up:
Unplug the ventilation unit and plug it back in. After this, the ventilation unit will
search for new switches for 10 minutes . Press the buttons for position 2 and
timer simultaneously for at least 3 seconds . If the pairing is successful, the
LED in the middle lights up green twice.
Tip: You can link one switch to a maximum of 3 units
Sign off:
Remove the plug from the socket and put it back. The ventilation unit can
disconnect switches for 10 minutes. Press the buttons of position 1 and 3
simultaneously for at least 3 seconds. The switch LED lights up orange twice to
indicate that the switches have been disconnected.
Activating and deactivating optional CO2 RF switch (11VE20013):
Sign up:
Unplug the ventilation unit and plug it back in . After this the ventilation unit will
search for new switches for 10 minutes. After that, click the sensor onto the
bottom plate to put it back on .
Touch the bottom right operating zone for at least 3 seconds. When all LEDs
are flashing, release the control zone. If the pairing is successful the LED in
the top left-hand corner will light up green twice and a LED will light up on
the right-hand side to indicate the respective position of the CO2 RF switch.
Tip: You can connect one switch to a maximum of 3 units :
Briefly de-energise the switch by clicking it out and back into the base plate. The
switch can disconnect ventilation units for 10 minutes. Touch the bottom right
operating zone for at least 10 seconds. When all the LEDs light up green for the
second time, you must let go of the control zone. If several ventilation units are
registered, all registered units are now disconnected. The LED of the switch lights
up red four times to indicate that the units have been disconnected.

16MOUNTING SWITCHES
Activating and deactivating additional optional RH RF switch (11VE20014):
Sign up:
Unplug the ventilation unit and plug it back in. After this, the ventilation unit will
search for new switches for 10 minutes. Then take out the batteries and replace
them (see RH RF switch battery replacement ).
Touch the bottom right operating zone for at least 3 seconds. When all LEDs
are flashing, release the operating zone. If the pairing is successful the LED
in the upper left corner will light up green twice and a LED will light up on
the right indicating the respective position of the
RH RF switch is located.
Tip: You can connect one switch to a maximum of 3 units :
Momentarily de-energise the switch by removing the batteries from the sensor
and inserting them again (see RH RF switch battery replacement). The switch
can disconnect ventilation units for 10 minutes. Touch the lower right control
area for at least 10 seconds. When all the LEDs light up for the second time,
release the control zone. In case of several registered ventilation units, all
registered units are now logged off. The LED of the switch lights up red four
times to indicate that the units have been disconnected.

INSPECTION/ CLEANING OF HEAT EXCHANGER
17
4 MONITORING
The user must ensure that the entire installation is maintained periodically by
the installer.
Remove the plug from the mains socket before commencing maintenance work.
1x per four years
• Dismantle the door panel.
• Remove the filter trays from the unit.
• Pull the strap of the heat exchanger, never remove it!
• If necessary, clean the heat exchanger by wiping the four surfaces with
a damp cloth.
• Do not use aggressive or solvent cleaning agents.
• Before pushing back the heat exchanger, check the tray of the
condensation drain.
• Carefully slide the exchanger back into the device without damaging the
sealing rubbers.
• Slide the filter trays back into the unit.
• Mount the door panel.
INSPECTION /
CLEANING OF HEAT
EXCHANGER

18INSPECTION/ CLEANING OF FANS
1x per four years
• Dismantle the door panel.
• Remove the filter trays from the appliance.
• Pull the strap of the heat exchanger, never remove it!
• Disconnect the connectors.
• Disconnect the temperature sensors.
• Loosen the screw on the fan module.
• Tilt the fan module by pulling the metal tab.
• Pull the fan module out of the unit.
• Do this for both fan modules.
• Use a soft brush to clean the fans and sensors and a hoover to
remove the dust
• Attention, do not damage the paddles when cleaning and certainly do
not remove the clips on the paddles, these are used for balancing the
wheel
• Reinstall everything in reverse order.
INSPECTION / CLEANING
VENTILATORS
