VATA 2365 User manual
Advanced Venipuncture
Training Aid™– 2365/2366
USER MANUAL
308 South Sequoia Parkway, Canby, Oregon 97013 USA
www.vatainc.com
Thank you for your purchase of VATA’s Advanced Venipuncture Training Aid™ –
2365/2366
This model is made with two of VATA’s proprietary materials, Dermalike ll™ and
Dermalike V™. The tissue pad is made with Dermalike ll™ and when used according
to the instructions, offers many unique properties.
Some of the properties are:
• This model is rated for 3,600 needle accesses, though customers often report that
they can access many more times than this
• 60% less needle drag when puncturing, which results in a much more realistic
experience
• Improved tear resistance, extending the lifespan of the product
• Feels and palpates like human tissue for a more realistic learning experience
The veins are made of VATA’s latex free Dermalike V™. This material has properties
more similar to real veins compared to the latex tubing still being used by other
manufacturers.
The Advanced Venipuncture Training Aid™ – 2365/2366 features four barely
discernable blue veins of 3 different diameters – with the fourth vein deeply placed – in
a semi-transparent, tissue-like pad. When accessing a realistic “ashback” of simulated
blood conrms the proper needle placement. An optional carrying case, with storage
pouch for supplies, is available (see page 10, 0385).
Please read the entire User’s Manual carefully before using the model to ensure that
you understand the proper care and use of this device. This will also avoid situations
that may not be covered by the warranty, and help you to enjoy the maximum benets.
With exceptional “true to life” feel when accessing and the elimination of potential
reactions for those with latex sensitivity, this is a truly welcomed advancement in
anatomical teaching models.
As always we welcome your suggestions and comments concerning our products, as
many signicant improvements and new product ideas have been the result of our
customers’ suggestions.
To view our informational video on this product go to:
www.vatainc.com/2365video
1
Thank You For Your Purchase!
www.vatainc.com
Product Components
1
Base
2
Vein pad of Dermalike II™
3
Hinged cover plate for vein pad
4
Bubble Trap White Cap
5
Bubble Trap
6
Blood Bag with
Simulated Blood
7
Stopcock
1
3
6
4
5
2
7
2366 Darkly Pigmented
2
www.vatainc.com
Helpful Hints
• There are four veins of three different sizes in this model. The front area of the
base displays four red circles that are the same size as the inside diameters of
the veins for visualization of the spaces when accessing. The large vein on the
left is deeply placed. Though the veins may visually appear large, accessing
and achieving a ashback can be challenging.
• The life of the veins will be maximized by the use of 20g needles in the large
and medium veins and 24g needles or smaller in the small vein. By changing
the access location each time and using sharp, non-burred needles, you can
access this venipuncture model 3,600 times, though customers often report that
they can access many more times than this.
• Store at to avoid deformation. Check that stopcock, bubble trap and bubble
trap cap are snapped securely in place before closing cover. Do not store with
items on top of the vein pad as it will take on the impression permanently.
Always store with the cover in place over the Dermalike II™ vein pad.
• All veins will produce a realistic “ashback” when accessed.
• The simulated blood is stain resistant.
• Avoid the use of dull or burred needles as these will damage the veins and
cause premature leakage.
• Depending on use, over time, it may become necessary to replace the tissue
pad and veins of the model. Replacement tissue pad/veins, items #2381/#2382,
are available for purchase and take approximately 5 minutes to install/replace.
See video: www.vatainc.com/2365video
• The simulated blood provided is only for use in models and is not intended for
any other use. To replace, use VATA’s simulated blood, items #1491 quart or
#1494 gallon. We do not recommend using VATA’s thicker simulated blood,
items #2491 quart or #2494 gallon, as the thicker blood does not ow as easily
though the veins. Our simulated blood is stain resistant. For best results, rinse
fabric with cold water as soon as possible after coming in contact with simulated
blood.
• Cleaning of the vein pad is best done by wiping with an alcohol wetted,
non-linting cloth. The pad should be permitted to air dry and then powdered with
cornstarch baby talc. Any excess talc can be removed with a dry cloth. If at any
time the vein pad becomes tacky to the touch, talc should be applied.
3
www.vatainc.com
1. Place nger on tab and push in to
open hinged cover.
2. Open cover to a
vertical position
until an audible
“click” is heard,
conrming the
top is in the
locked position.
3. Remove bubble trap from holder.
4. Unscrew cap and replace bubble trap
into holder.
Set-up Instructions
4
www.vatainc.com
5

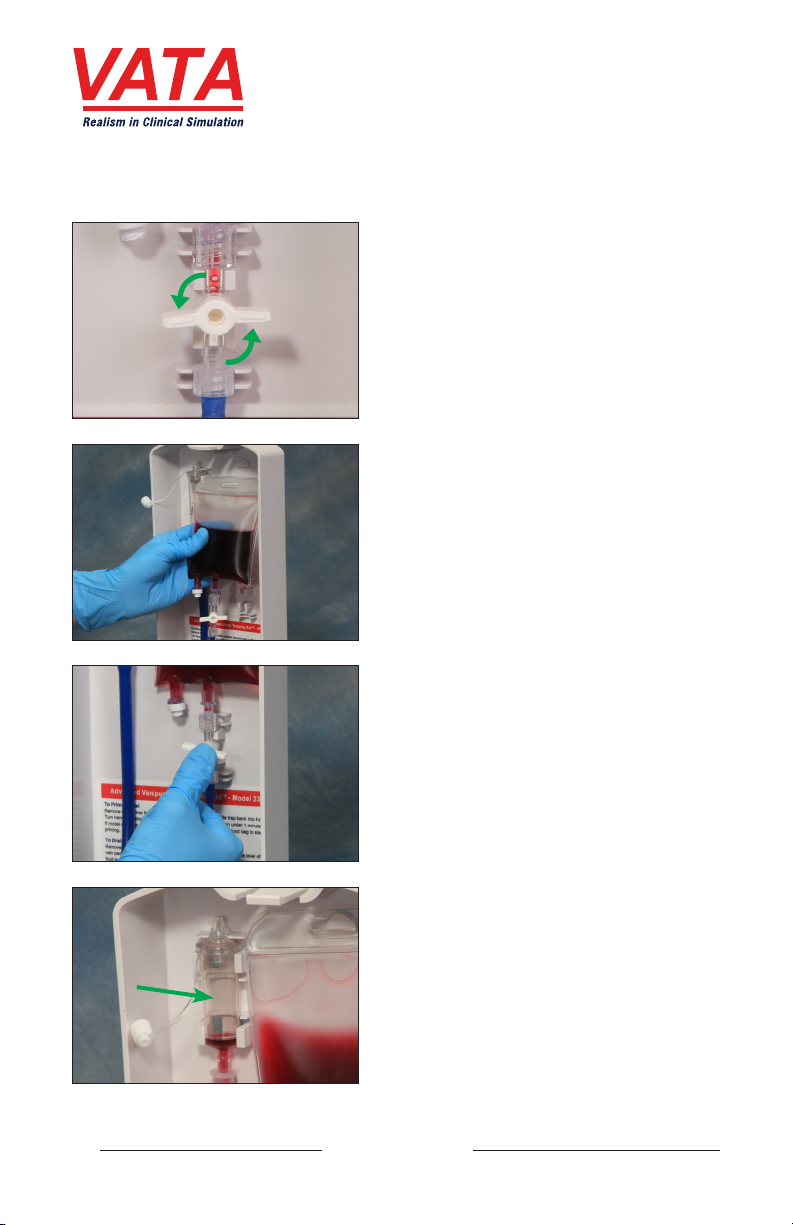

5. Turn handle on stopcock to a vertical
position; model will prime in under 1
minute.
6. Model is primed when simulated blood
is visible in the bottom of the bubble
trap. If model does not prime see next
step.
7. If model does not prime automatically,
apply light pressure to simulated blood
bag to start the priming.
Set-up Instructions, Cont.
www.vatainc.com
1. Remove stopcock from the cover.
2. Remove the simulated blood bag from
the hook on the cover.
3. Place simulated blood bag below the
level of the vein pad and simulated
blood will drain from the model in
under 1 minute.
4. Draining is complete when no blood is
seen owing through stopcock.
Storing Instructions
6
www.vatainc.com
5. When the model is completely
drained, turn the handle on the
stopcock to a horizontal position.
6. Place the simulated blood bag back
onto the hook in the cover.
7. Snap the stopcock back into the
holder – an audible “click” will conrm
proper placement.
8. Remove bubble trap from cover.
Storing Instructions, Cont.
7
www.vatainc.com 8
9. Screw cap back onto the bubble trap.
10.Snap bubble trap into holder – an
audible “snap” will conrm proper
placement.
11. Stabilize base and apply closing
pressure to cover to release from the
locked position – an audible “click” will
conrm disengagement.
12. An audible “click”
will be heard
when the cover is
properly closed.
Storing Instructions, Cont.
www.vatainc.com
9

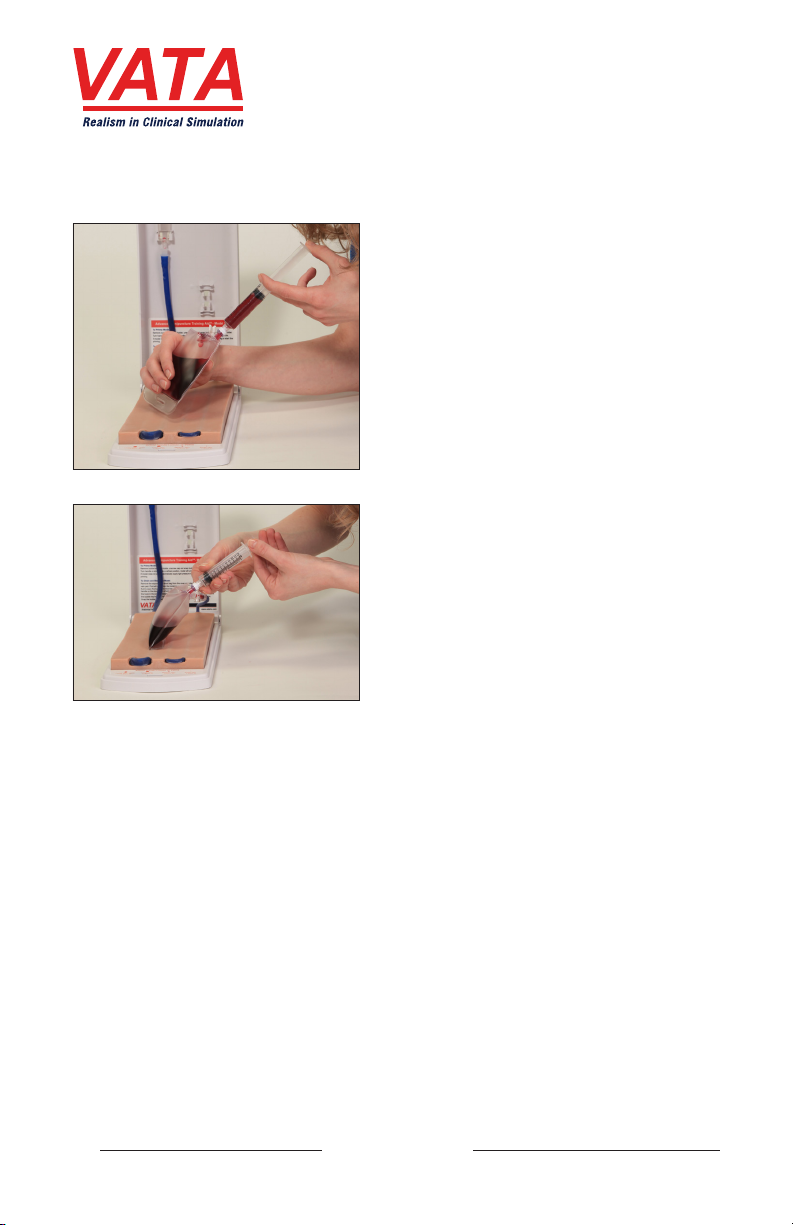

The model is supplied with a simulated
blood bag containing 80 cc.
When simulated blood needs to be added
to the bag, close the stopcock by turning
to a horizontal position. Remove bag from
hook in cover. Position the needleless
adapter in a superior position. Attach the
prelled syringe to the needleless adapter
and infuse the simulated blood. Repeat as
needed
Should you wish to remove air from the
bag, close the stopcock by turning to a
horizontal position. Remove bag from
hook in cover. Position the needleless
adapter in a superior position. Attach the
syringe to the needleless adaptor and
withdraw air. Repeat as needed.
Care & Filling of Simulated Blood Bag
www.vatainc.com
Product # Description
2365 Advanced Venipuncture Training Aid™
Lightly Pigmented
2366 Advanced Venipuncture Training Aid™
Darkly Pigmented
0385 Optional Carrying Case for items 2365 & 2366
2367 Simulated Blood Reservoir – with Stopcock
2368 Replacement Bubble Trap
2381 Vein and Tissue Pad Replacement, Lightly Pigmented
2382 Vein and Tissue Pad Replacement, Darkly Pigmented
1491 Simulated Blood, One Quart – Stain Resistant
1494 Simulated Blood, One Gallon – Stain Resistant
The following items are available for purchase at www.vatainc.com.
