Vax 6131 User manual

Multifunction
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
User Guide
Get cleaning...
What’s your Vax model number? (Located on the flap of the packaging)
What’s your serial number? (Located on the base of the machine)
Note these down in case you need them in future. Please keep instructions for further use.
– ––––
e.g. 61 3 1
vax.co.uk 6131 series
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 1

---
20
2
Filters
20 Cone filter 21 Foam post-motor filter 22 Foam pre-motor filter
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
1 Filter housing
2 Clean water tank
3 Dirty water tank/dirt container
4 Carry handle
5 On/off button
6 Solution pump on/off button
7 Power cord
8 Motor housing lid
9 2 piece extension tube
10 Crevice tool
11 Dusting brush
12 Upholstery tool
13 Hose and handle
14 Solution delivery tube
15 Combination floor head
16 FibreFlow wash head
17 Wash tool
18 3 x paper dust bags
19 Vax carpet cleaning solution
21 22
1
2
3
4
Unit and accessories
6
5
7
8
9
10
11 12
18
19 17
15
16
13
14
Mac ine Overview
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 2

FOR HOUSEHOLD USE ONLY.
When using the multifunction cleaner, basic safety precautions should
always be observed, including the following:
1. Do not leave the multifunction cleaner unattended when
plugged in. Unplug it from the electrical socket when not in use.
2. To prevent electric shock do not use outdoors.
3. Not to be used as a toy.
4. Children should be supervised to ensure that they do not play with
the appliance.
5. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a
person responsible for their safety.
6. Only use as described in this manual. Only use Vax recommended
attachments.
7. Do not use the multifunction cleaner if it has been dropped,
damaged, left outdoors or dropped into water. Do not use the
multifunction cleaner with a damaged cord or plug. If the supply
cord is damaged, it must be replaced by the manufacturer or a
recommended Service Agent to avoid hazard and invalidating
the guarantee.
8. Do not handle the plug or multifunction cleaner with wet hands.
Do not use outdoors.
9. Do not put any ob ects into openings or operate with openings
blocked. Keep them free of anything that might reduce airflow.
10. Keep hair, loose clothing, fingers and all parts of body away from
openings and moving parts.
11. Do not pick up hot coals, cigarette butts, matches or any hot,
smoking or burning ob ects.
12. Do not use the carpet washing function without the clean water
tank in place.
13. Do not use the vacuum cleaning function without the dust bag
in place.
14. Turn off all controls before unplugging.
15. Do not vacuum up harmful or toxic material (chlorine, bleach,
ammonia, drain cleaner etc.).
16. Do not vacuum up hard or sharp ob ects such as glass, nails,
screws, coins, etc.
17. Use only CE-approved 13 amp extension cords. Non-approved
cords may overheat. Care should be taken to arrange the cord so
that the cord cannot be tripped over.
18. Store the multifunction cleaner in a cool, dry area.
19. To prevent dirty water from running into motor, do not hold the
appliance upside down or lay on its side. Use appliance in normal
vacuuming/carpet washing position.
20. Take extra care when cleaning on stairs.
21. Turn off the on/off switch before unplugging the multifunction
cleaner.
22. Do not carry appliance while motor is running.
WARNING: Always switch off and unplug the multifunction
cleaner from the electrical socket before assembling, opening,
emptying the dirt container, before connecting/disconnecting the
attachments, or carrying out maintenance or troubleshooting checks.
NOTE: Carpets should be dry vacuumed thoroughly
before washing.
IMPORTANT: If the inlet, hose or telescopic tube is blocked,
switch off the multifunction cleaner and remove the blockage(s)
before re-starting the multifunction cleaner. See maintenance;
Clearing blockages.
IMPORTANT: Cleaning filters maintains performance. Vax
recommends that your filters should be checked and cleaned
periodically. If your filters are washable make sure they are completely
dry before inserting back into the multifunction cleaner.
IMPORTANT: The motor is equipped with a thermal cut-out. If
for any reason the unit should overheat, the thermostat will
automatically turn the unit off. Should this occur, unplug the vacuum
cleaner from the electrical socket and turn off the switch. Remove dirt
container and empty. Clean filters. Allow the unit to cool for
approximately one (1) hour. To re-start, plug into an electrical socket
and switch back on.
T is multifunction is intended for ouse old use only and NOT for
commercial or industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE.
!
!
!
!
!
vax.co.uk 3
General Safety Information
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 3

---
Operation
Assembling your multifunction cleaner (dry vacuuming)
4
WARNING: Always switch off and unplug your multifunction cleaner from the electrical socket before
assembling, opening, filling, emptying, connecting/disconnecting the attachments, or carrying out maintenance
or troubleshooting checks.
!
NOTE: The crevice tool, dusting brush and upholstery tool, can all be attached to the telescopic tube/handle.
!
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Vacuuming
Insert the filter housing. Press down on clips to
secure.
Insert hose and twist
clockwise.
NOTE: Fully unwrap
power cord.
!
Remove motor housing. Remove clean
water tank.
Insert dust bag.
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 4

vax.co.uk 5
Operation
Carpet was ing
IMPORTANT: Do not use the cleaner as a dry vacuum when set up in carpet washing mode.
Before you begin cleaning:
1. Vacuum thoroughly – use your machine in dry mode and vacuum your upholstery with appropriate tool.
2. For upholstery, always check manufacturers guidelines before washing.
Test for colourfastness – wet a white absorbent cloth with the solution. In a small, hidden area gently rub the
surface with the dampened cloth. Wait ten minutes and check for colour removal or bleed with white paper towel
or cloth. If surface has more than one colour, check all colours.
When cleaning an entire floor, move furniture out of area to be cleaned. For furniture too heavy to move, place
aluminium foil or wax paper under legs. This will prevent wood finishes from staining carpet. Pin up furniture
skirts or curtains.
Helpful ints for cleaning carpet:
1. Only use Vax recommended carpet cleaning solution with this machine.
2. Do not saturate carpet with cleaning solution while using the machine.
3. For heavy soiled areas, additional applications may be necessary.
4. Allow plenty of time to dry carpet thoroughly.
5. Try not to walk on carpet until it is completely dry.
6. After carpet is thoroughly dry, vacuum the carpet using your multifunction cleaner in dry mode.
7. Before cleaning, determine where to start and end, making sure not to walk over previously cleaned areas.
8. Thoroughly clean the dirty water tank and clean water tank after use with warm water (max 40°C).
.
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 5

---
6
Assembling your multifunction cleaner (carpet was ing)
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Add 40ml of Vax solution per 1 litre of water,
unless otherwise stated on the bottle.
Ensure the solution tube is
wrapped loosely around the
hose and extension tubes.
Secure in place with the
clips provided.
Unclip solution tube from storage slot
on the underside of the motor housing.
Fill tank with warm water
(max 40C).
Press down on clips
to secure.
Attach solution tube.
Operation
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 6

vax.co.uk 7
Operating t e appliance (carpet was ing mode)
Red button – power.
NOTE: For best results apply solution on the forward stroke and recover solution on the backward stroke.
!
Green button – activate pump.
Was ing carpets
Ensure rocker switch is towards
the back of the Fibreflow wash
head to allow water flow.
To suck up excess water push
the rocker switch to the front.
Operation
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 7

---
8
Was ing up olstery
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Attach the wash tool directly
onto the handle of the hose
and wrap the excess solution
tube around as necessary.
To start water and solution flow,
push the collar on the wash tool
forwards.
To recover excess water and
solution, pull the collar
backwards.
Operation
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 8

vax.co.uk 9
24hr
Replacing t e cone filter
Cleaning t e post motor filter

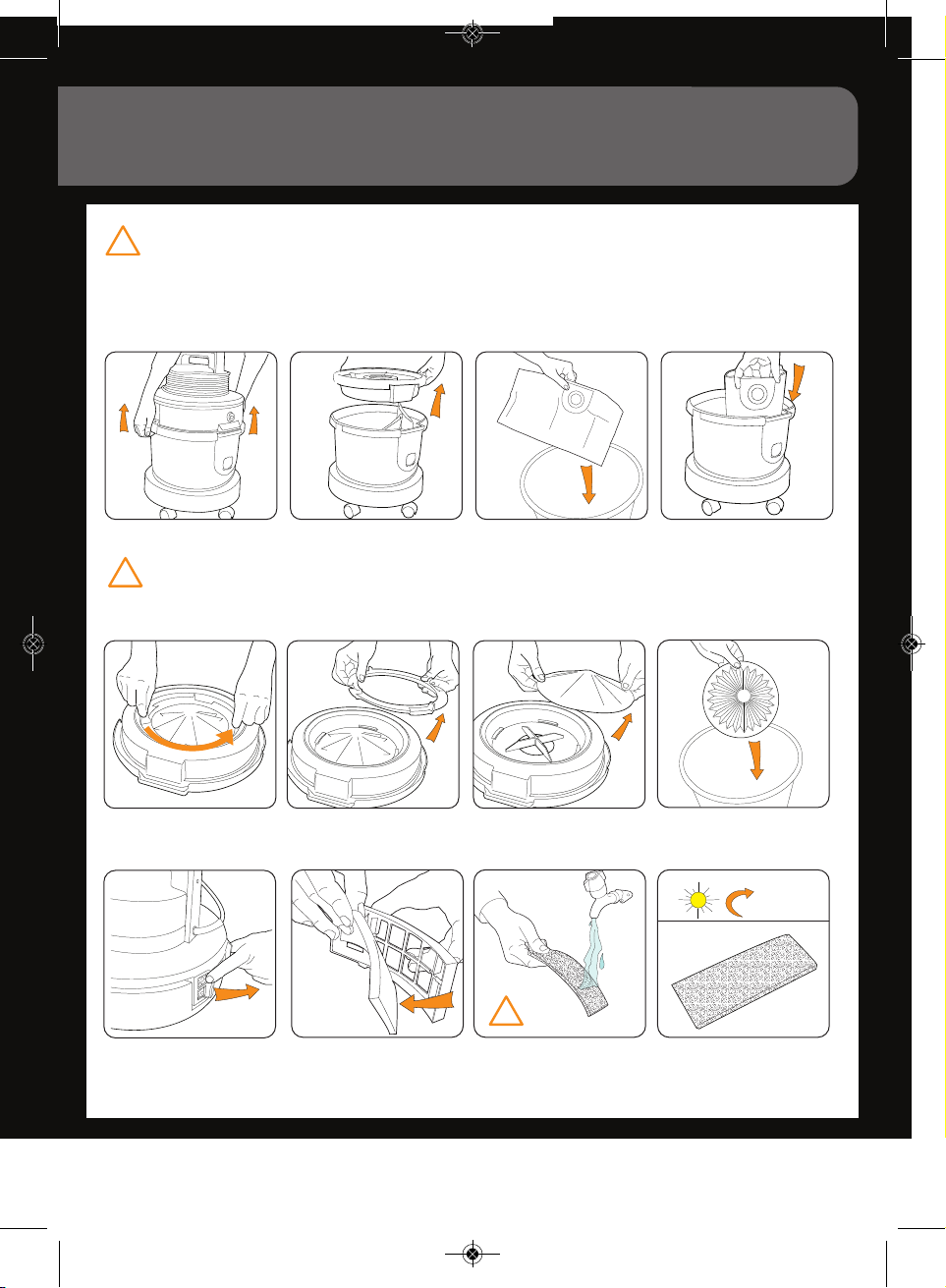

Emptying and replacing t e dust bag
Insert new bag.
IMPORTANT: The condition of the filters affects the performance of your machine.
Please check, wash/change filters periodically (depending on level of use).
!
!
40°C
max
WARNING: Always switch off and unplug your multifunction cleaner from the electrical socket before
assembling, opening, filling, emptying, connecting/disconnecting the attachments, or carrying out
maintenance or troubleshooting checks.
!
Maintenance (Keep your Vax as good as new)
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 9

---
10
Cleaning t e pre-motor filter
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
Remove motor housing.
WARNING: Always switch off and unplug your multifunction cleaner from the electrical socket before
assembling, opening, filling, emptying, connecting/disconnecting the attachments, or carrying out
maintenance or troubleshooting checks.
!

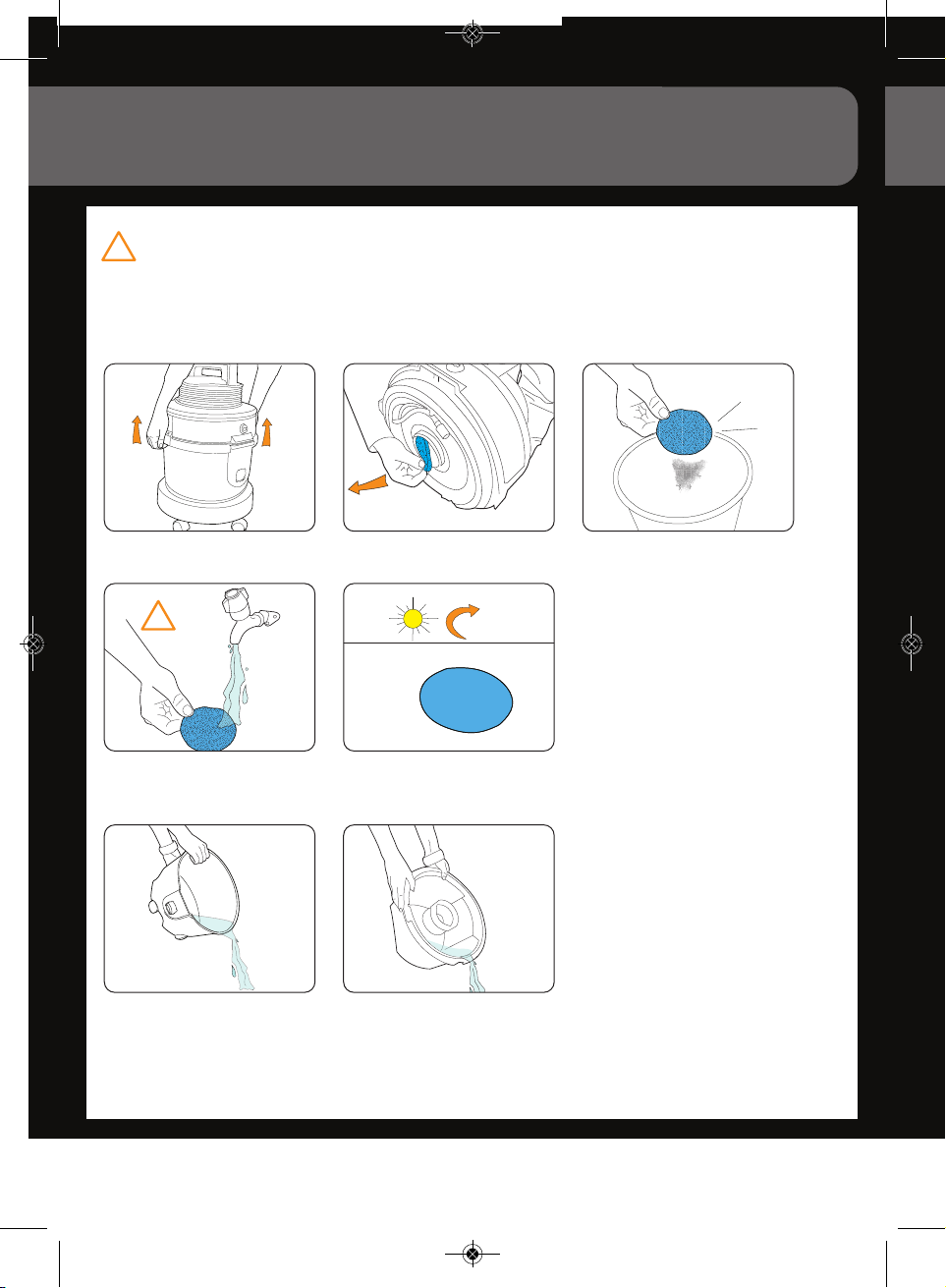

Emptying and cleaning t e clean and dirty water tanks
tap
24hr
Empty and rinse both tanks out with clean water after use.
!
40°C
max
Maintenance (Keep your Vax as good as new)
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 10

vax.co.uk 11
!
Always switc off and unplug your multifunction cleaner from t e electrical socket before
assembling, opening, filling, emptying, connecting/disconnecting t e attac ments, or carrying out
maintenance or troubles ooting c ecks.
Is t ere an accessory missing?
• Check the parts overview page to make sure the
attachment is supplied with your unit.
• If it is missing, please call our Vax Careline to order a
replacement: 0844 412 8455 or visit vax.co.uk to
order online.
W y won’t my multifunction cleaner put down
water/solution mix?
• Check there is water/solution mix in the clean water tank.
• Ensure the solution tube on the underside of the motor
housing has been released and is in the clean water tank.
• Check that the pump button on the carry handle has been
switched on.
• Ensure the foot pedal on the wash head is positioned to
the back of the wash head.
• Ensure the collar on the wash tool is pushed forward.
W y won’t my multifunction cleaner recover water?
• The dirty water tank may be full.
W at do I do if an accessory/t e unit as become
damaged or broken?
• We’re here to help. Simply call 0844 412 8455 or
visit vax.co.uk
W y won’t t e multifunction cleaner pick up in dry mode?
• A filter may be clogged; refer to maintenance section for
cleaning instructions.
• The dust bag may be incorrectly fitted; check assembling
your machine in dry mode.
• The dust bag may be full; check and replace with a
new dust bag.
• Check for blockages in the hose/floor heads/accessories.
W y is dust escaping from my multifunction cleaner in
dry mode?
• The filters may be incorrectly installed; check that they are
fitted correctly.
• The dust bag may be incorrectly fitted; check assembling
your machine in dry mode.
FAQs
(UK) 0844 412 8455
(ROI) 1-800 928 308
vax.co.uk
vaxireland.ie
This does not affect your statutory rights
Instead of taking me back
to the shop, simply call:
we’re here to help
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 11

---
Ot er Information
12
Service & Help
Vax Careline:
(UK) 0844 412 8455
(ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm
Saturday-Sunday 9.00am to 5.00pm
Any queries or concerns about using your Vax, call the Vax Careline. Calls are charged at the UK local rate.
Please make a note of the serial number and model number of the vacuum cleaner before calling.
For the nearest Service Agent, please call the Vax Careline or visit vax.co.uk
Tec nical Specification
Voltage: 220-240V ~50Hz
Wattage: 1300 W
Capacity: Dust bag 10 litres
Clean water tank 4 litres
Dirty water tank 8 litres
Cord Length: 10m
Weight: 8.7kg
Sub ect to technical change without notice.
EEC Statement of Compliance
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the 6131 series is
manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 12

vax.co.uk 13
Notes
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 13

---
14
Notes
Vax Careline: (UK) 0844 412 8455
(ROI) 1-800 928 308
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 14

vax.co.uk 15
Notes
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 15

---
Version 1.1
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwic , Worcesters ire, WR9 OQH, UK
email: [email protected] - website: vax.co.uk
6131 Series User Guide v1.1_User guide 26/10/2011 14:08 Page 16
