Vax DynamoPower U84-DY-Pe User manual

MORE REACH
MORE CAPACITY
U84-DY-Pe
U84-DY-Re
U84-DY-Te
DynamoPower
LET’S GET STARTED.

Let’s talk safety
Basic
safety
precautions
Don’ts
Do’s
This vacuum cleaner is intended for household use only
and NOT for commercial or industrial use.
• Only use the vacuum cleaner indoors on dry surfaces and keep
the area you’re cleaning well lit.
• Keep ngers, hair and loose clothing away from moving parts
and openings whilst using the vacuum cleaner.
• This vacuum cleaner can be used by children aged from 8
years and above and persons with reduced physical, sensory
• Don’t use the vacuum cleaner if it has been dropped,
damaged or left outdoors.
• Don’t run over the power cord or use vacuum cleaner if the
power cord or plug is damaged. Please contact our Customer
Service Line on: 0330 026 8455 (Mon-Fri 08:30-18:30
Sat 09:00-17:00).
• Don’t handle the plug or use the vacuum cleaner with wet hands.
• Don’t pull or carry the vacuum cleaner by the power cord.
Don’t use the power cord as a handle, pull the power cord around
corners, sharp edges or close a door over the power cord.
Don’t unplug the vacuum cleaner by pulling on the power cord.
• Don’t vacuum up any ammable or combustible materials
• Turn o all controls on the vacuum cleaner before disconnecting
or connecting the plug from the mains socket.
• Always keep the power cord away from the brushes during use.
After use always wrap the power cord around the cord
clips provided.
• Always make sure both the pre-motor/post-motor lters are
in place before use.
• This vacuum cleaner is tted with a constantly rotating brushbar.
To avoid damage to your ooring, make sure the brush bar
is raised to the highest setting when using the accessories
and when using on stairs.
• Always take extra care when positioning the vacuum cleaner
on the stairs.

or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the vacuum cleaner in
a safe way and understand the hazards involved. Children shall not play
with the vacuum cleaner. Cleaning and user maintenance shall not be made
by children without supervision.
• Only Vax recommended tools should be used with the vacuum cleaner,
use of non-branded Vax accessories/tools will invalidate your warranty.
(lighter uid, petrol, kerosene etc) or use the vacuum cleaner in an area with
explosive vapours or liquid.
• Don’t vacuum up hot coals, cigarette butts, matches or smoking hot burning
items or use in an area where there may be harmful uids (chlorine, bleach,
and ammonia drain cleaner).
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to the vacuum cleaner, remove blockages only as instructed
in this guide.
• Don’t vacuum up hard or sharp objects such as glass, nails, screws
or coins etc.
• Don’t use the vacuum cleaner with incorrect voltage as this may result in
damage or injury to the user. The correct voltage is listed on the ratings label.
• Always switch o the vacuum cleaner before disconnecting or connecting
the hose and accessories.
• Keep all openings clear and free from debris as this may aect the
airow/suction.
• Always replace the fuse in the plug with a British 13amp fuse.
• Always protect the power cable from heated surfaces and open ames.
• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can
be a trip hazard.
• Store the vacuum cleaner in a cool, dry area. If the lters have been cleaned
as per user the guide instructions ensure they are thoroughly dry before
storing away.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE AND USE ONLY
AS INSTRUCTED IN THIS GUIDE.

Thank you for buying this Dynamo Power
Taking care of your carpets and hard oors
The Dynamo Power is designed to make vacuuming carpets and hard oors regularly,
as eective and ecient as possible and this user guide will help you get the most out
of your machine.
Maintaining your carpets and hard oors will ensure they keep their appearance for longer.
You’ve chosen the carpets and hard oors for your home for a reason and Vax will help you
take good care of them.
Taking care of your Dynamo Power
Also inside this guide are instructions on maintaining your new machine, so that it’s always
ready when you are to tackle your carpets and hard oors.
Let us know what you think @VaxUK
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich,
Worcestershire, WR9 0LW, UK
This user guide can be found online at: vax.co.uk/support

Contents
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Notes

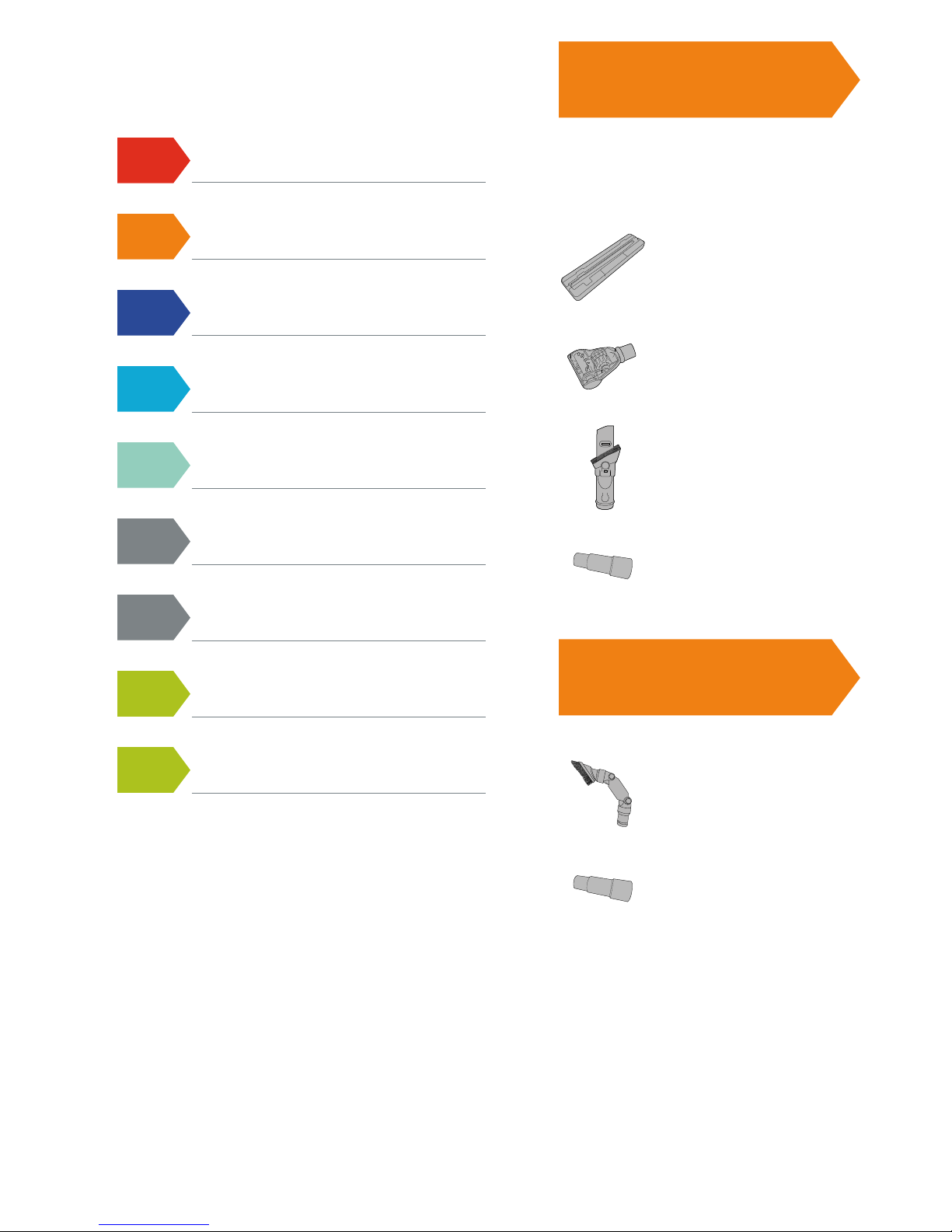

Accessories
What to do if it goes wrong
Getting in touch
Dynamo Power Pet, Reach
(Included in all models)
Dynamo Power
Total Home
Included with
your machine
Hard Floor Adaptor
TurboTool
2-in-1 Tool
Tool Connector
Up-top Tool
Tool Connector

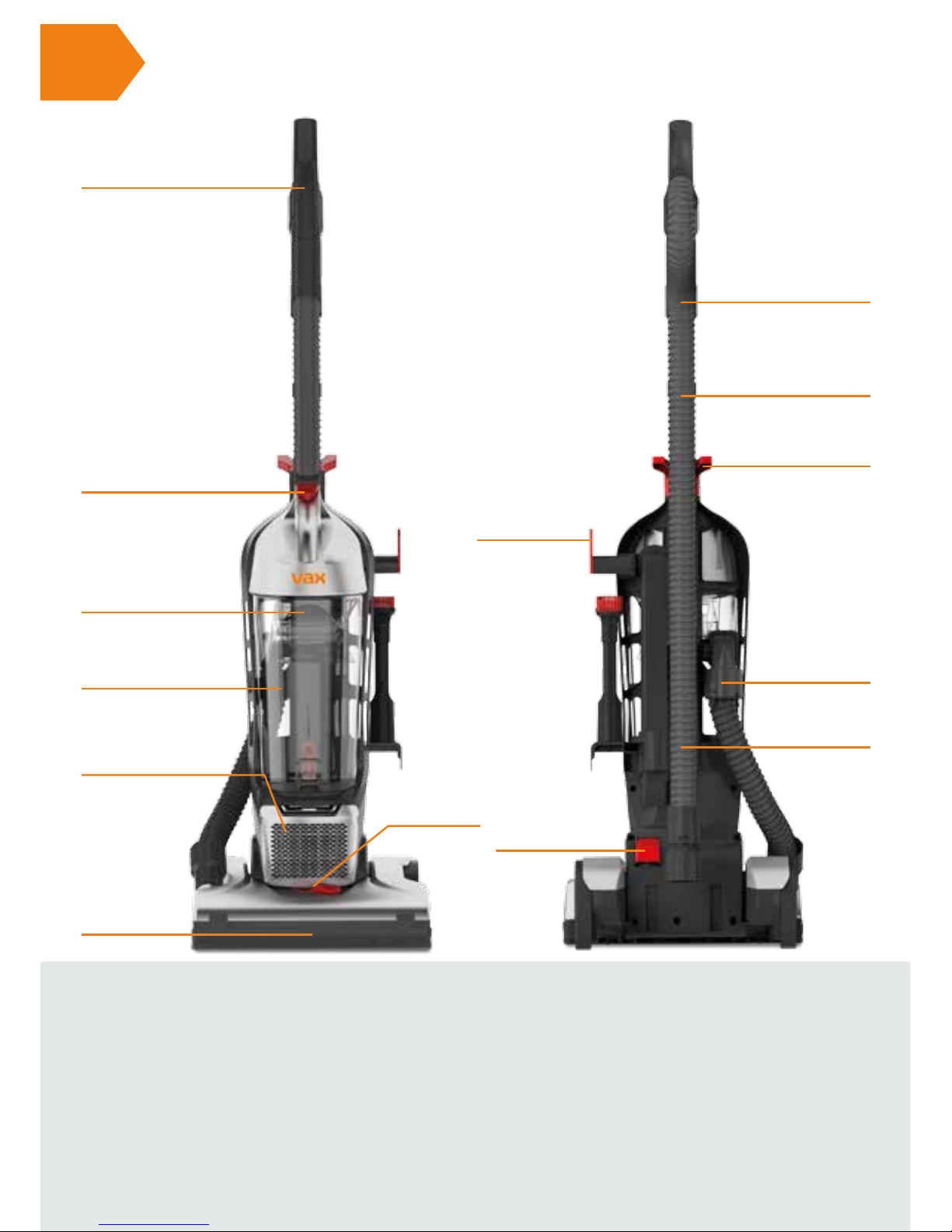

Getting to know your machine
Name Dynamo Power
Voltage Please refer to product rating label
Wattage Please refer to product rating label
Cord length 8-10m
Weight 6.2kg
Technical Specication
Subject to technical change without notice. *To purchase consumables and accessories, please visit vax.co.uk
Handle
Post motor lter
and cover
Height
adjuster dial
Stretch hose
Separator
Brushbar
Dirt container
Dirt container
release button
Accessory hose
Hose guide
Cord hooks
On/O pedal
Handle release clip
Hose guide
Accessories & Consumables
Filter Kit (Type 98)*
1-1-134233-00
Belt Kit (Type 1)*
1-1-130669-01
TurboTool (Type 6)*
1-1-134419-00

Press the release clip
on the stretch hose, line
up and push the hose
into the handle.
Slide the handle down
into the main body of
the vacuum cleaner.

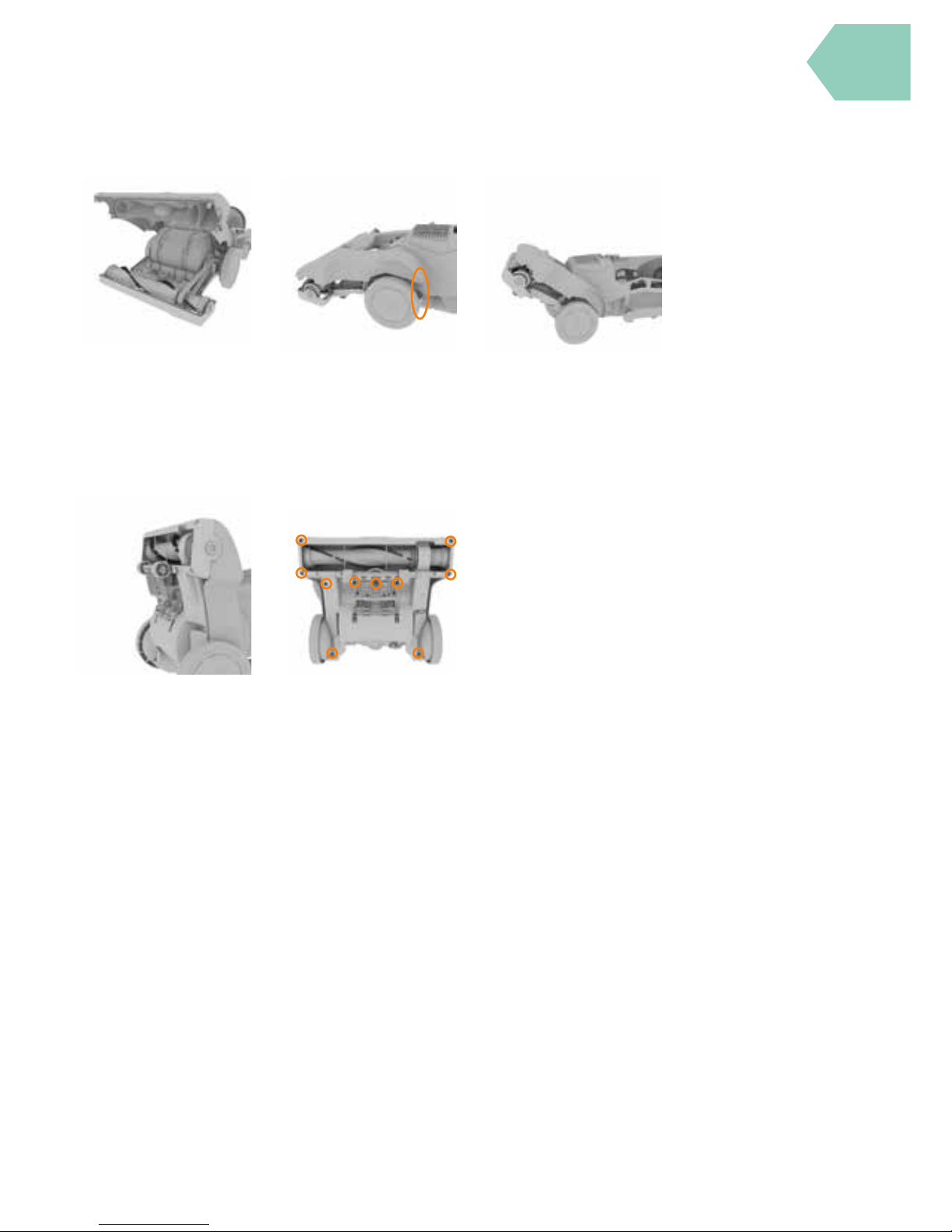

Assembling your vacuum cleaner
Getting started
*To purchase consumables and accessories, please visit vax.co.uk
Before you Begin
CAUTION: Always switch o the vacuum cleaner before connecting or disconnecting the hose/attachments or removing
and emptying the dirt container.
CAUTION:The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat
the thermostat will automatically turn the vacuum cleaner o. If this happens switch the vacuum cleaner o and unplug from
electrical socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum cleaner
to cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters to fully dry before putting
back into the machine). For best cleaning results, lters should be tapped over a bin every 4-6 uses to remove dirt and debris
and washed every 3 to 6 months (depending on the level of use). If the vacuum cleaner is blocked, switch o and unplug before
removing the blockage.
When the vacuum cleaner is stood in the upright position, or when using the hose and tools the brushbar height adjuster must
be set to the highest setting.
Line up the stretch hose with hose guides,
push and clip stretch hose into place.

Getting started
Using the Hard Floor Adaptor
Use the Hard Floor Adaptor for best results on hard oors.
Hard Floor Adaptor. Lie vacuum cleaner on its back exposing the brush bar. Line up oor tool with
the base of the vacuum cleaner, push until it clicks into place.
TIP
To make sure the oor tool is correctly tted, the wheels should be towards the back of the oor tool when attached
to the vacuum cleaner.
CAUTION: Always switch o the vacuum cleaner before disconnecting or connecting the hose and accessories. The accessories
can be attached to the handle or directly to the hose. When using accessories on the hose/handle raise the height adjuster to the
highest setting.
Plug vacuum cleaner into
the mains and switch on.
Place foot on oor head
and pull handle backwards
to recline vacuum.
Turn height adjuster dial
to the desired setting.
Press the on/o pedal
to switch on.

Using your machine

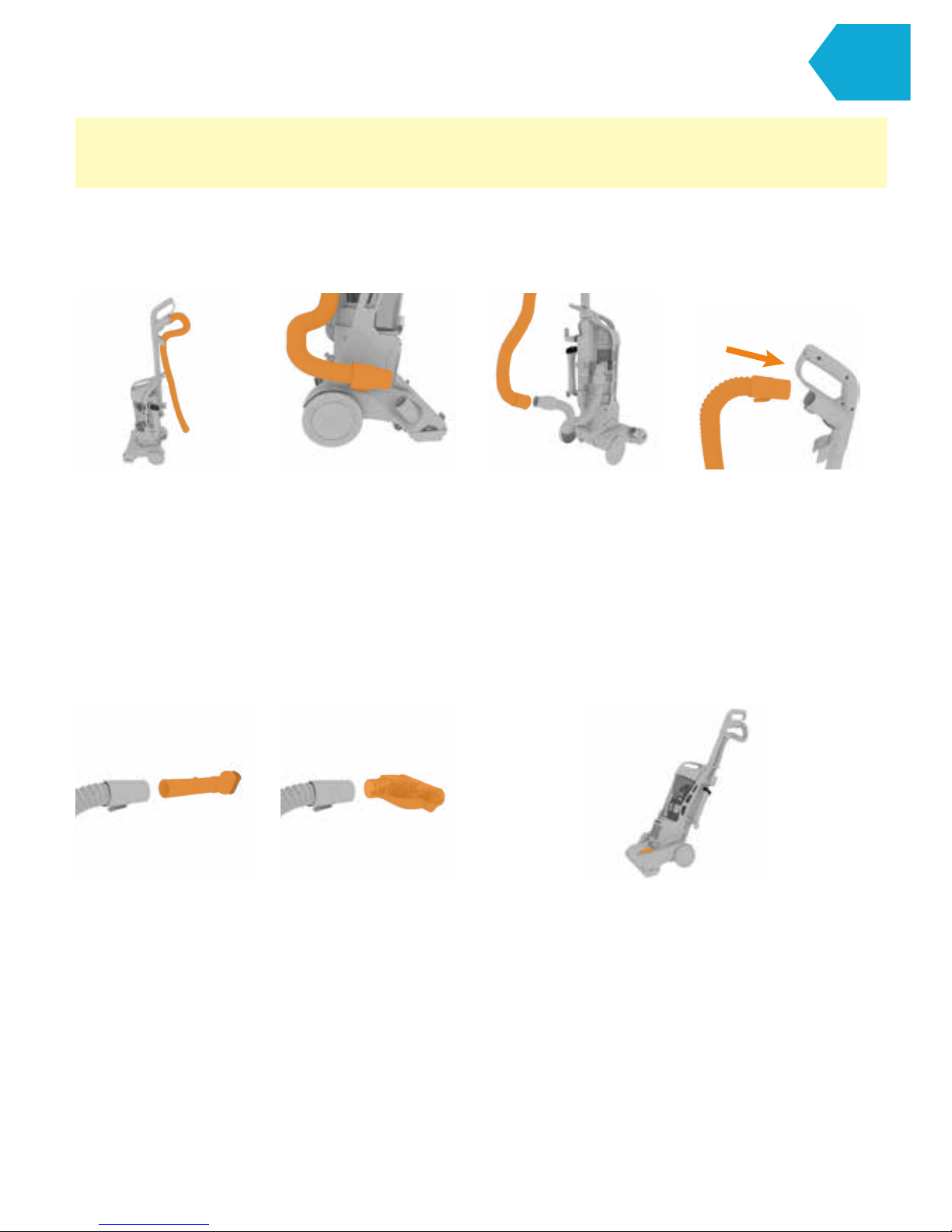

Using the hose and accessories
Pull to release the
stretch hose from
the hose guides.
Pull to remove the
accessory hose from
the base of the
vacuum cleaner.
Line up and push
the end of the accessory
hose into the stretch hose.
Twist clockwise to lock
into place.
Press the release clip
on the stretch hose,
pull to remove stretch
hose from handle.
IMPORTANT: Always switch o the vacuum cleaner before disconnecting or connecting the hose and accessories. The accessories
can be attached directly to the hose. This vacuum cleaner is tted with a constantly rotating brush bar. To avoid damage to your
ooring, make sure the brush bar is raised to the highest setting when using the accessories.
Push to attach the 2-in-1 crevice/dusting brush,
turbo tool or above oor tool (some models only)
onto the end of the tool adaptor. Then push and attach
onto the end of the stretch hose.
Recline the machine to turn the brushbar height
adjuster dial to highest setting. Stand vacuum back
into the upright position before pressing the on/o
pedal to switch the vacuum on.

Using your machine

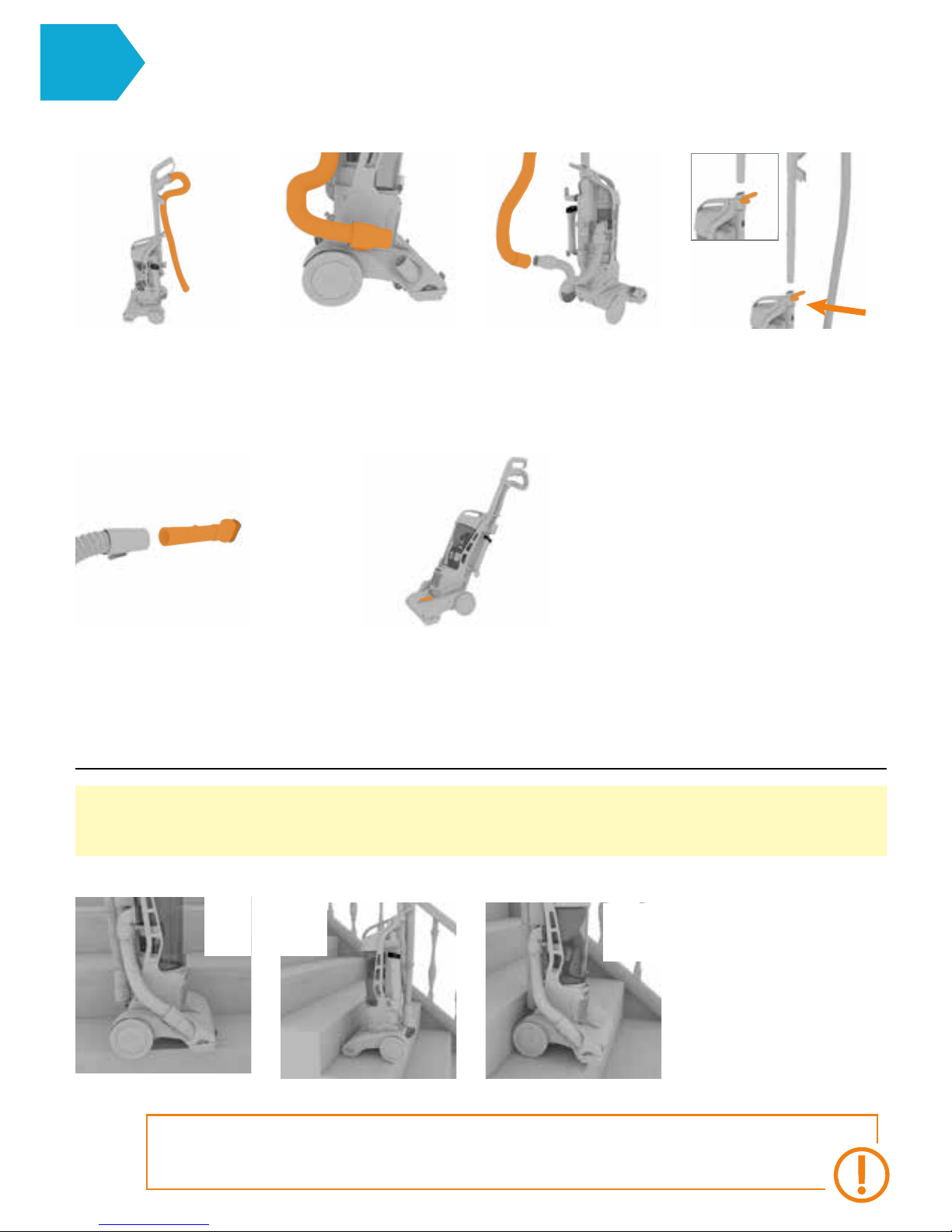

Using your machine on the stairs
This machine has a constantly rotating brushbar. When using the machine on stairs, ensure the height
adjuster dial is set to hard oor and the brushbar is overhanging the stair tread (as pictured).
Always take extra care when cleaning stairs. CAUTION
IMPORTANT: Always switch o the vacuum cleaner before disconnecting or connecting the hose and accessories.
The accessories can be attached directly to the hose. This vacuum cleaner is tted with a constantly rotating brush bar.
To avoid damage to your ooring, make sure the brush bar is raised to the highest setting when using the accessories.
Hold the vacuum cleaner with the brush bar over tread of stairs.
Using the handle and accessories
Pull to release the stretch
hose from the hose guides.
Attach the 2-in-1 crevice/
dusting brush or above
oor tool (some models
only) to the tool adaptor.
Attach this to the end
of the handle.
Pull to remove the
accessory hose
from the base of the
vacuum cleaner.
Recline the machine to turn the brushbar height
adjuster dial to highest setting. Stand vacuum back
into the upright position. before pressing
the on/o pedal to switch the vacuum on.
Line up and push the
end of the accessory
hose into the stretch hose.
Twist clockwise to lock
into place.
Press the handle release
clip, pull to remove
the handle out of the
main body.
✘ ✘ ✔

IMPORTANT: The motor is equipped with a thermal cut-out. If for any reason the machine should overheat, the thermostat will
automatically turn the machine o. Switch o and unplug the vacuum cleaner. Check the machine for blockages and clean the
lters . Wash the lters with warm water (40°C max) and leave for 24 hours or until fully dry before replacing into the machine.
For best cleaning results, lters should be tapped over a bin every 4-6 uses to remove dirt and debris and washed every 3 to 6
months (depending on the level of use). Don’t use your vacuum cleaner without all of the lters in place.

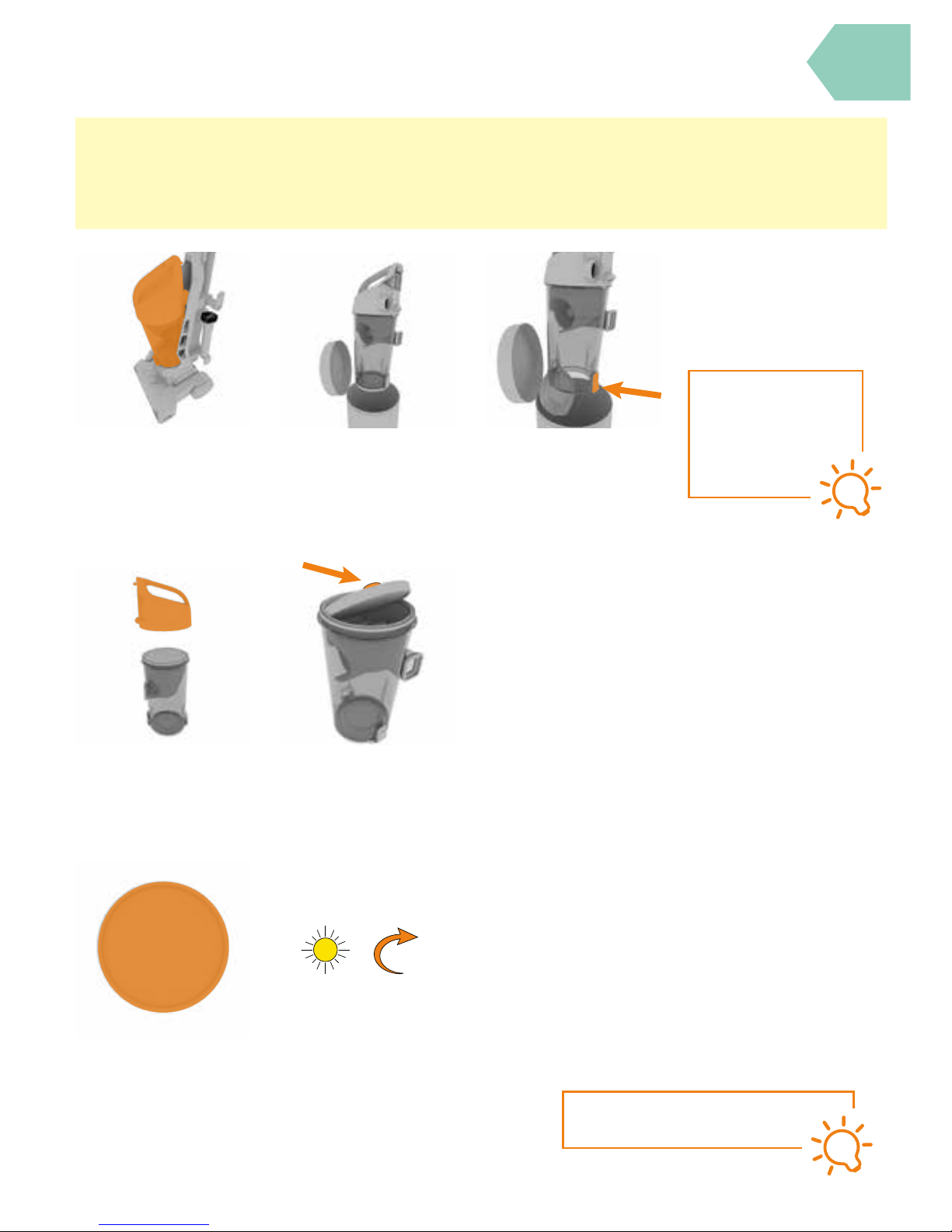

Press the dirt container
release button, pull to
remove the dirt container.
Hold the dirt container
over a bin.
Press the dirt release clip,
allowing dirt/debris to
fall out.
TIP
Don’t over ll the dirt
container to avoid
blocking the air
ow through the
vacuum cleaner.
Let’s talk technical

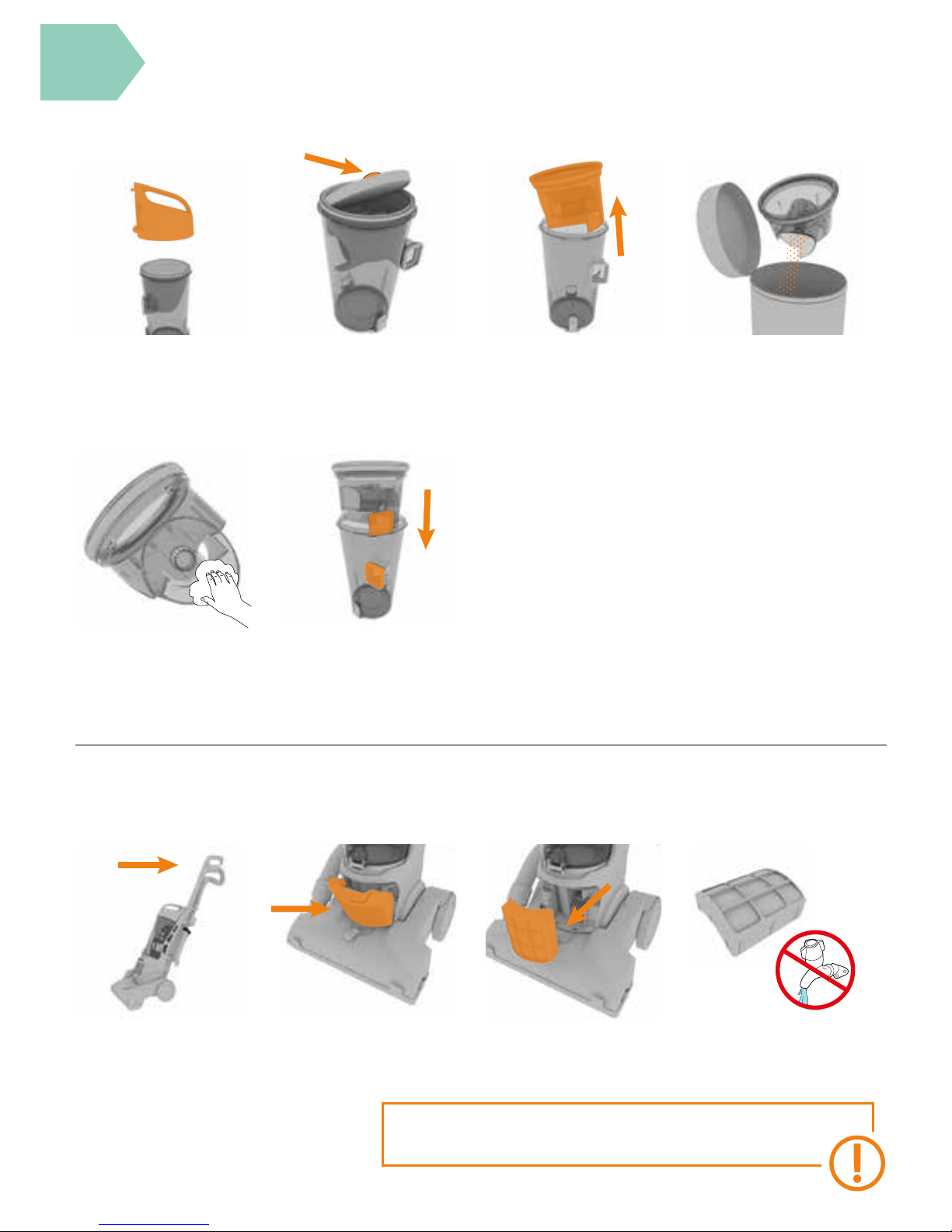

Turn the dirt container lid
anti-clock wise to unlock,
lift to remove the lid from
dirt container.
Pull the lter tab to remove
the pre motor lter.
Tap the lter over a bin
to remove any dirt/debris.
Wash the lter under
running water
(40 degrees max)
Leave for 24hrs or until
fully dry before replacing
back into the vacuum.
24hr
TIP
Replace the lters every 6-9 months.

Taking care of your machine
Post motor lter maintenance
The post motor lter is designed to oer long life with no maintenance. The lter should be checked periodically and when heavily
discoloured it should be replaced. Please do not wash, scrub or brush the lter as this will damage the lter.
Recline the machine rst. Press the release clip on the post motor lter cover, pull to
remove cover then pull to remove post motor lter.
Check the post motor lter
for any discolouration.
Don’t use your vacuum cleaner without all of the lters in place.
CAUTION
Cleaning the separator
Turn the dirt container lid
anti-clock wise to unlock,
lift to remove the lid from
the dirt container.
Pull the lter tab to remove
the pre motor lter.
Lift the separator out
of the dirt container.
Tap the separator over
a bin to remove any
dirt/debris.
Using a dry cloth wipe
the remaining dirt
/debris from the shroud.
Re t the separator making
sure both rectangular
holes in the dirt container
and separator line up.

Let’s talk technical
Post motor lter maintenance

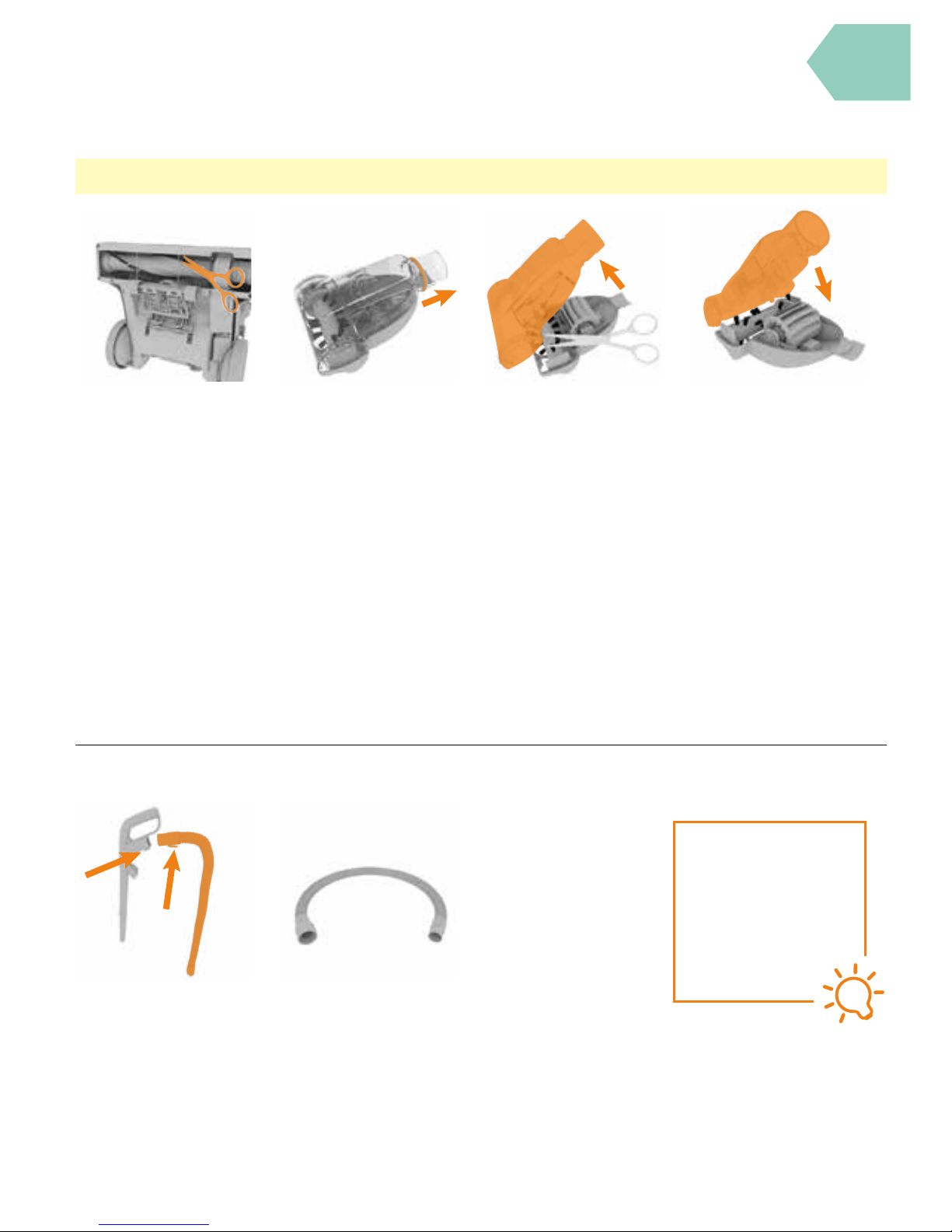

Removing a blockage from the hose
CAUTION:Unplug and switch o vacuum cleaner before performing maintenance or troubleshooting checks.
Using a pair of scissors
remove any threads
or hair caught around
the brush bar.
Press the release clip
on the stretch hose,
pull to remove hose
from the handle.
Line up the tabs on front
of housing and re-t.
Slide locking ring into
groove to secure.
Slide the locking ring
to remove.
Insert a broom handle
or similar blunt
instrument into the
hose to remove blockage.
Lift to separate the
housing. Using a pair
of scissors remove any
threads or hair caught
around the brushbar.
TIP
To test for a blockage
in hose, drop a small
ball of paper through
the hose whilst removed
from the machine.
The paper will drop
through if the hose
is clear

Let’s talk technical
Let’s talk technical

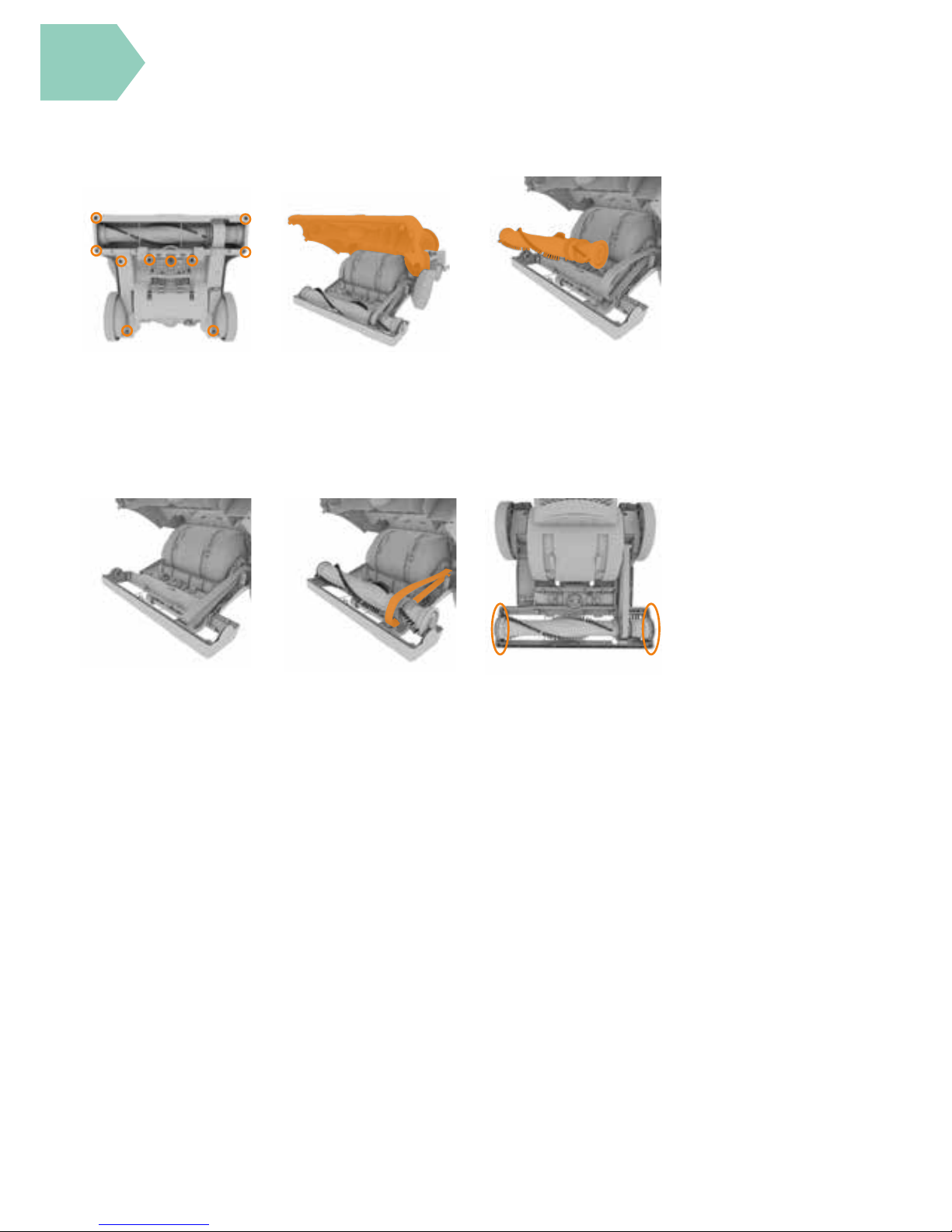

Replacing the belt
Lie vacuum cleaner
on its back exposing
brushbar. Use a crosshead
screwdriver to remove
10 screws.
Lift the top cover from the
base of vacuum cleaner.
Lift out the brushbar to
remove. Remove and
dispose of the old belt.
Remove any threads
or hair caught around
the brushbar.
Clean any debris from the
spindle and place the new
belt onto spindle.
Place the brushbar into the
belt, position the belt on
the rounded area of brush
bar without bristles.
Line up the side of
brushbar with the tabs
on the side of the base
and push into place.

Let’s talk technical
Replacing the belt
Line up the tabs on the
opposite side of the
brushbar with the tabs on
the base, push until
brushbar clicks into place.
Line up the top cover
with the base making sure
the tabs on the top cover
are inserted into the base.
Press top cover down into
place whilst lifting the base
to secure in to position.
The top cover should
click into place and
lie ush with the base
when correctly tted.
Replace the 10 screws
and tighten.

Accessories
Notes

Accessories
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
Pro cleaning kit
1-1-133326-00
All our best tools all in one kit that makes cleaning
your home quicker, easier and with even better results.
We’ve taken care of cleaning all of the hard to reach
areas such as on top of cupboards and in between
blinds to the dust that collates behind and
within the radiator.
Flexi Crevice Tool
1-1-131393-00
A handy long, exible tool for getting far behind and
around furniture.
TurboTool (Type 5)
1-1-134418-00
Use the TurboTool for vacuuming your stairs,
upholstery and car interiors. It’s great for picking up
stubborn pet hair.
Flat Upholstery Tool
1-1-131394-00
Cleans large areas of upholstery like sofas and
curtains, quickly and eectively.
3-in-1 Tool
1-1-129167-00
3-in-1 tool includes crevice tool for awkward areas
and corners, dusting brush for areas such as
skirting and an upholstery tool for cleaning sofas,
curtains, chair seats and car interiors.

• Check the ‘This pack contains’ panel on the box to make sure
the part is included with your vacuum cleaner.
• The plug may not be fully pushed into the electrical socket.
• Check the fuse in the plug if this needs replacing, always replace
with a British 13amp fuse.
• The motor thermostat may have tripped. If this has happened,
unplug the vacuum cleaner. Remove and empty the dirt container
and check the hose for blockages. Clean the lters and allow the vacuum
cleaner to cool for approximately 1 hour (if you have washed the lters
you will need to wait 24 hours for the lters to fully dry before putting
them back into the vacuum cleaner).
• The brush bar may be clogged, check the brushbar and clear any hair
or debris Go to ‘Let’s talk technical’.
• The belt may be broken, Go to ‘Let’s talk technical’.
• Empty the dirt container and clean lters. Go to ‘Taking care
of your machine’.
• There may be a blockage in the hose. Remove the hose from the vacuum
cleaner, check and clear any blockages. Go to ‘Let’s talk technical’
• The brushbar may not be turning. Go to ‘My brushbar isn’t turning’ below.
• The brushbar height adjuster dial may not be set to the correct setting.
Go to ‘Using your machine’.
• Make sure the hard oor adaptor is attached/unattached dependant
on the oor surface.
• If the accessory/tool will not pick up, check and clear any blockages.
Go to ‘Let’s talk technical’.
SolutionProblem
Caution: Always unplug the steam cleaner before performing maintenance/troubleshooting checks.
What to do if it goes wrong
There is an
accessory missing?
Why does my vacuum
cleaner have no power?
Why won’t the vacuum
cleaner pick up?
My brushbar
isn’t turning?
Getting in touch

Getting in touch
† Registration required. Terms and conditions apply, see vax.co.uk for details.
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.

GET IN TOUCH
0330 026 8455 VaxVacuums[email protected].uk vax.co.uk @VaxUK
EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
U84-DY-Pe, U84-DY-Re, and U84-DY-Te are manufactured in compliance with the following Directives: Safety: 2006/95/EC
Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
© 2015 Vax Limited. All rights reserved. The VAX trade mark and Vax lozenge is the property of Techtronic Floor Care
Technology Ltd and is registered in the EU and may be pending or registered in other countries.
