U85-I3-Be/U85-I3-Pe/U85-I3-Re

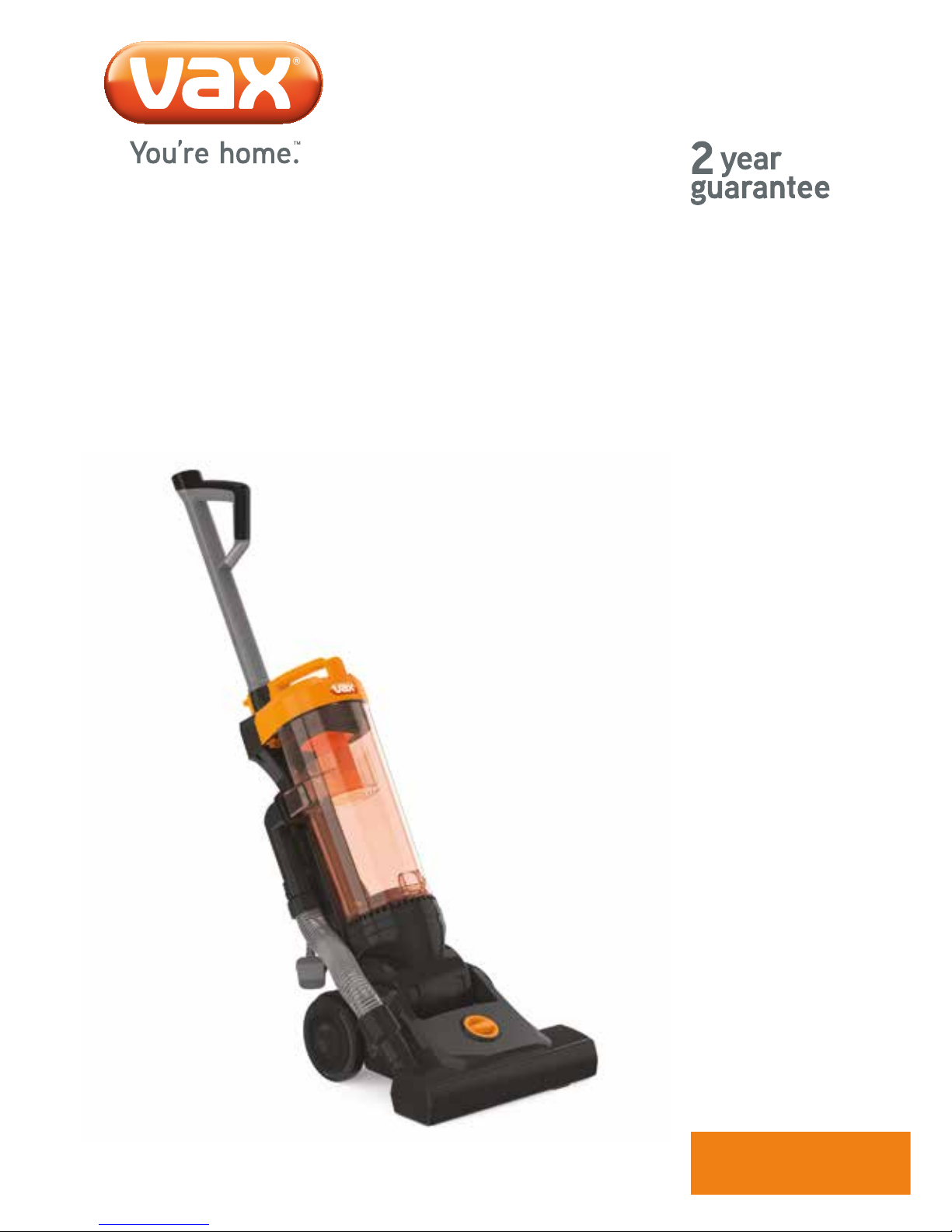

Impact Plus
Let’s get started

Please keep instructions for further
use and use only as instructed in
this guide.
This vacuum cleaner is intended for
household use only and NOT for
commercial or industrial use.
• Only use the vacuum cleaner
indoors on dry surfaces and keep
the area you’re cleaning well lit.
• Keep ngers, hair and loose
clothing away from moving parts
and openings whilst using the
vacuum cleaner.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved. Children shall not
play with the appliance. Cleaning and
user maintenance shall not be made
by children without supervision.
• Only Vax recommended tools should
be used with this vacuum cleaner.
Basic safety precautions
8Don’t use this vacuum cleaner if it
has been dropped, damaged or left
outdoors.
8Don’t run over the power cord or
use vacuum cleaner if the power
cord or plug is damaged. Please
contact our Customer Care Line on:
0330 026 8455 (Mon-Fri: 8.30am to
6.30pm, Sat: 9.00am to 5.00pm).
8Don’t handle the plug or use the
vacuum cleaner with wet hands.
8Don’t pull or carry this vacuum
cleaner by the power cord.
8Don’t use the power cord as a
handle, pull the power cord around
corners, sharp edges or close a
door over the power cord.
8Don’t unplug vacuum cleaner by
pulling on the power cord.
8Don’t vacuum up any ammable
or combustible materials (lighter
uid, petrol, kerosene etc.) or use
the vacuum cleaner in an area with
explosive vapours or liquid.
Dont’s
Let’s talk safety

3Turn o all controls on the vacuum
cleaner before disconnecting or
connecting the power cord.
3Always keep the power cord away
from the brushes whilst using your
vacuum cleaner. After use always
wrap the power cord around the
cord clips provided.
3Always make sure both the pre-
motor/post-motor lters are in place
before use.
3Always make sure the brushbar is
set to hard oor when using your
vacuum on the stairs and take extra
care when positioning the vacuum
cleaner on the stairs.
3Always switch o the vacuum
cleaner before disconnecting
or connecting the hose
and accessories.
3Keep all openings clear and free
from debris as this may aect the
airow/suction.
3Always replace the fuse in the plug
with a British 13amp fuse. Always
protect the power cable from heated
surfaces and open ames.
3Use only CE approved 13amp
extension cords, non-approved
extension cords may overheat.
Care should be taken to arrange
the extension cord as it could be a
trip hazard.
3Store the vacuum cleaner in a cool,
dry area. If lters have been cleaned
as per user the guide instructions
ensure they are thoroughly dry
before storing away.
8Don’t vacuum up hot coals, cigarette
butts, matches or smoking hot
burning items or use in an area where
there may be harmful uids (chlorine,
bleach, and ammonia drain cleaner).
8Don’t attempt to remove blockages
with sharp objects as this may cause
damage to your vacuum cleaner.
8Don’t vacuum up hard or sharp
objects such as glass, nails, screws
or coins etc.
8Don’t use the vacuum cleaner with
incorrect voltage as this may result
in damage or injury to the user.
The correct voltage is listed on the
ratings label.
Dont’s
Do’s
Let’s talk safety

Let us know what you think @VaxUK
Taking care of you
We’re here if you need us. Instead of taking me back
to the shop, simply visit:
vax.co.uk/support or call:
(UK) 0330 026 8455 (ROI) 1-800 928 308
Monday-Friday 8.30am to 6.30pm, Saturday 9.00am to 5.00pm
Calls are charged at the UK local rate. Please make a note of the serial number and model number
of the product before calling.
Alternatively, you can write to us at:
Vax Ltd., Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich,
Worcestershire, WR9 0LW, UK
This user guide can be found online at: vax.co.uk/support
Thank you for buying this Impact Plus.
Taking care of your carpets and hardoors
The Impact Plus is designed to make vacuuming carpets and hardoors regularly, as eective and
ecient as possible and this user guide will help you get the most out of your machine.
Maintaining your carpets and hardoor will ensure they keep their appearance for longer.
You’ve chosen the carpets and hardoors for your home for a reason and Vax will help you
take good care of them.
Taking care of your Impact Plus
Also inside this guide are instructions on maintaining your new machine, so that it’s always ready
when you are to tackle your carpets and hardoors.

Impact Plus Pet
TurboTool
Tool connector
Contents
Let’s talk safety
Getting to know your machine
Getting started
Using your machine
Taking care of your machine
Let’s talk technical
Accessories
What to do if it goes wrong
Getting in touch
Impact Plus
Included with
your machine
3-in-1 crevice, dust and
upholstery tool
Pre-motor lter
Post-motor lter
Hard oor adaptor
Stretch hose
Initial Setup for normal operation
1. Use the base accessories.
– Shortest hose
– Extension tube set to shortest practicable length.
2. Clean lters installed.
3. Dust receptacle empty.
4. All Bleeds must be closed.
5. Floor heads/tools set to Carpet Mode for carpet cleaning.
6. Floor heads/tools set to Hard Floor Mode for hard oor cleaning.
Impact Plus Reach

Getting to know your machine
Technical Specication
Name Impact Plus
Voltage 220-240V~50Hz
Wattage 700W
Cord length 7-9m
Weight 6.8kg
Subject to technical change without notice.
Accessories & Consumables
Filter Kit (Type 98)*
1-1-134233-00
Belt Kit (Type 1)*
1-1-130669-01
Pro Cleaning Kit (Type 2)
1-1-133326-00
TurboTool (Type 6)
1-1-134419-00
3-in-1 Tool
1-1-129167-00
*To purchase consumables and accessories, please visit vax.co.uk
Handle
TurboTool holder
(on some models)
Post-motor lter cover
Hose to
machine connector
Height adjustor dial
Handle release button
Separator
Dirt container
release button
Extension tube
Power ON/OFF button
Hose
Power cord
Quick release
cord hook
Carry handle

Twist the quick release
cord hook to release the
power cord.
Choose your desired
carpet height or
hardoor setting.
Plug in your machine and
push ON/OFF button to
switch on.
Lie vacuum cleaner on its
back exposing brushbar.
Align Hard oor adaptor
with base of vacuum
cleaner, push until its clicks
into place.
Don’t over ll the dirt
container to avoid clogging
your lter.

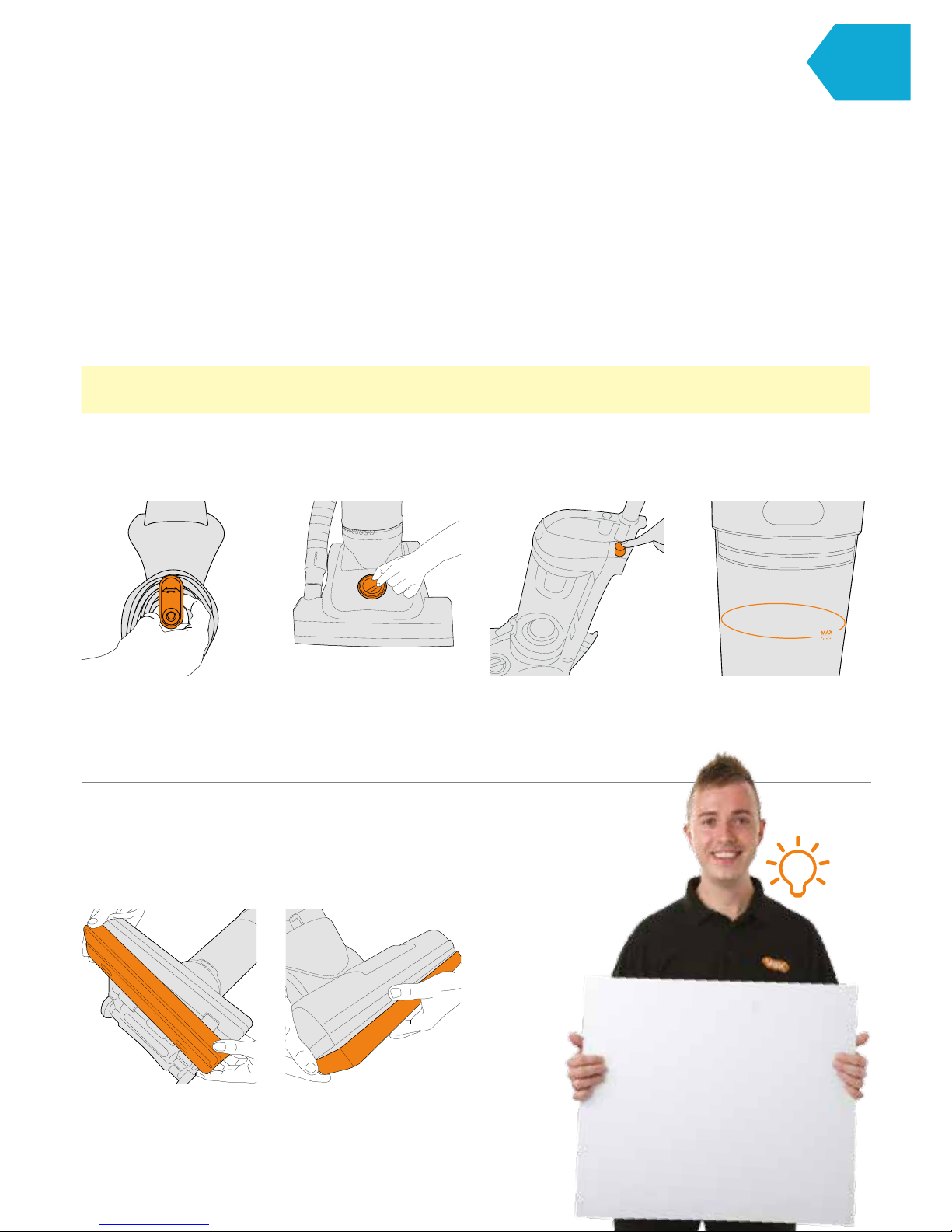

Before you begin cleaning
• Always switch o and unplug the vacuum cleaner before connecting or disconnecting the hose/attachments, or removing
and emptying the dirt container.
• The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the thermostat
will automatically turn the vacuum cleaner o. If this happens, switch the vacuum cleaner o and unplug from electrical
socket. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum cleaner to
cool for approximately 1 hour (if you have cleaned the lters please wait 24 hours for the lters to fully dry before putting
back into the vacuum).
• Filters require cleaning at least every 3 months.
• If the vacuum cleaner is blocked, switch o and unplug before removing the blockage.
• When using the accessories always make sure the brushbar is switched to the o position.
IMPORTANT: When the vacuum cleaner is stood in the upright position or when using on stairs and the hose/tools,
the brushbar height adjust dial must be set to hard oor.
Using your machine
How to use
Using the Hard Floor Adaptor
Apply the Hard oor adaptor for optimum results on hard oors.
The Hard Floor Adaptor can be used on any oor setting. TIP
To ensure the Hard oor adaptor
is correctly tted, the wheels
should be towards the back of
the oor tool when attached to
vacuum cleaner.

Extension tube
Using your machine
Remove hose end from
the oorhead.
Remove extension tube
from inside the handle.
Remove the handle from
the body of the machine.
Use handle and extension
tube to reach high places
for cleaning.
Hold the machine to steady when using on the stairs.
Always make sure the brushbar is overhanging the stair tread during use.
Choose an accessory.
Turn the extension tube
and attach to the handle.
Attach accessory
to hose end.
Attach hose to the top of
the handle.
Using accessories
If required use
tool connector.
Push accessory on to the
extension tube.
Using your machine on the stairs
This machine has a constantly
rotating brushbar. When using the
machine on stairs, ensure the height
adjuster dial is set to hard oor and
the brushbar is overhanging the
stair tread (as pictured). Always take
extra care when cleaning stairs.
IMPORTANT

Taking care of your machine
24hr
MAX
40˚C
Press dirt container
release button to remove
the dirt container.
Emptying and cleaning the dirt container
Cleaning the pre-motor lter
Hold dirt container over
a bin and unclip the lock
on the bottom of the dirt
container, allowing the dirt
to fall out.
Close the base of the dirt
container, align the dirt
container base back onto
the machine and push until
it clicks back into place.
Turn the dirt container
lid anti-clockwise
to remove.
Remove the lter.Lift the dirt container lid
to remove.
Tap the lter over a bin to
release and dirt.
Wash the lter under
running water (40°C max).
Leave to fully dry for a least
24 hours before placing
back in the machine.
TIP
Wash lters with warm
water (MAX 40°C) at least
every 3 months.

24hr
MAX
40˚C
Turn the dirt container
lid anti-clockwise and lift
to remove.
Cleaning the shroud
Post-motor lter maintenance
Remove the pre-motor
lter to allow access to
the shroud.
Tap the shroud over a bin
to remove dirt and debris.
Twist post-motor lter
cover anti-clockwise and
lift to remove.
Check the post-motor lter
for discolouration.
Remove the lter.
Let’s talk technical
Taking care of your machine
Wash the shroud under
running water and leave
to fully dry before placing
back into the machine.
Always switch the machine o
and unplug before carrying out
any maintenance.
IMPORTANT
IMPORTANT: The exhaust lter is designed to oer long life with no maintenance. The lter should be checked
periodically and when heavily discoloured it should be replaced. Please do not wash, scrub or brush the lter as this
will damage the delicate lter media.

Switch o your vacuum cleaner at the main socket.
Using a pair of scissors cut any hair or debris free
from around the brushbar.
Slide the locking ring
to remove.
Using a pair of scissors,
cut any hair or debris free
from around the brushes.
Line up the tabs on front of
housing and push together
to ret. Slide locking ring
into groove to secure.
Lift and separate
the housing.
Removing debris from the brushbar
Removing blockages from the TurboTool (some models only)
Let’s talk technical
Taking care of your machine
If the air inlet, hose or telescopic
tube is blocked, switch o the
vacuum cleaner and remove the
blockage(s) before re-starting the
vacuum cleaner.
IMPORTANT

Let’s talk technical
Changing the belt
Place the brushbar through
the belt and hook the belt
onto the metal spindle.
Replace the oorhead cover,
2 small wheels and height
adjuster dial by screwing
back into place.
Once the belt has been
replaced attach the
brushbar back onto
the vacuum.
Switch o your vacuum
cleaner at the main socket
and unplug. Unclip the 2
small wheels from the base
of the vacuum to enable you
to remove the screws from
behind. Note: The screw for
the height adjuster dial is
located here.
Remove the 9 screws
from the base of the
oorhead cover.
Remove the oorhead cover. Lift the brushbar from the
machine to remove the belt.
Note: To remove debris
from the brushbar.

Let’s talk technical
Accessories
Don’t forget your accessories!
Order at: www.vax.co.uk/spares-and-solutions
Pro Cleaning Kit (Type 2)
1-1-133326-00
All our best tools all in one kit that makes cleaning your
home quicker, easier and with even better results.
We’ve taken care of cleaning all of the hard to reach areas
such as on top of cupboards and in between blinds to the
dust that collates behind and within the radiator.
Flexi-Crevice Tool
1-1-131393-00
A handy long, exible tool for getting far behind and
around furniture.
TurboTool (Type 6)
1-1-134419-00
Use the TurboTool for vacuuming your stairs, upholstery
and car interiors. It’s great for picking up stubborn pet hair.
Flat Upholstery Tool
1-1-131394-00
Cleans large areas of upholstery like sofas and curtains,
quickly and eectively.
3-in-1 Tool
1-1-129167-00
3-in-1 tool includes crevice tool for awkward areas and
corner, dusting brush for areas such as skirting and an
upholstery tool for cleaning sofas, curtains, chair seats and
car interiors.

• Check the ‘This pack contains’ panel on the box to make sure the part is
included with your machine.
• The plug may not be fully pushed into the electrical socket.
• Check the fuse in the plug if this needs replacing, always replace with a
British 13amp fuse.
• The motor thermostat may have tripped. If this has happened, unplug the
vacuum cleaner. Remove and empty the dirt container and check the
hose for blockages.
• Clean the lters and allow the vacuum cleaner to cool for approximately
1 hour (if you have washed the lters you will need to wait 24 hours for
the lters to fully dry before putting them back into the vacuum cleaner).
• The brushbar may be clogged, check the brushbar and clear any hair
or debris. Go to ‘Let’s talk technical’.
• The belt may be broken. Go to ‘Let’s talk technical’.
• There may be a blockage in the hose. Please remove the hose from the
vacuum cleaner, check and clear any blockages.
• Empty the dirt container and clean lters.
Go to the ‘Taking care of your machine’.
• The brushbar may not be turning. Go to my brushbar isn’t
turning below.
• If the accessory/tool will not pick up, check and clear any blockages.
SolutionProblem
IMPORTANT: To reduce the risk of personal injury, unplug the vacuum before performing maintenance
/troubleshooting checks.
What to do if it goes wrong
There is an
accessory missing
Why does my vacuum
cleaner have no power?
Why won’t the vacuum
cleaner pick up?
My brushbar
isn’t turning?

Getting in touch
* Calls are charged at the UK local rate. Please make a note of the serial number and model number of the vacuum cleaner before calling.

EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility,
declare that the U85-I3-(Be/Pe/Re) is manufactured in compliance with the following Directives:
Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
© 2014 All rights reserved. VAX®, VAX Lozenge, <add extra trademark/delete as needed> are trade marks or registered trade marks of Techtronic Floor Care
Technology Ltd.
@VaxUK
Vax Ltd., 5th Floor 2 Colmore Square, 38 Colmore Circus, Queensway, Birmingham, B4 6BN, UK
email: inf[email protected] website: vax.co.uk
Version 1.0
