VBC Racing FFTwelve User manual

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT

INSTRUCTIONS MANUAL

Thank you for purchasing VBC Racing product.

This VBC Racing kit is a high performance, racing grade car kit

intended for experienced racers. The kit compose of VBC

formulated composite materials, top quality full carbon fiber

chassis and high grade 7075 material which will give you a

competitive edge over the others.

Novice racer should seek advice from more experienced racer

before assembly.

Always keep this instruction manual handy at all times for quick

reference even after completing the assembly.

Before your assembly, sand the chassis edges.

Things that we should remind you.

Sand the chassis edges with #600 sand paper and apply CA

glue to the edges and counter sink holes.

Need help or support.

If you need help or you would like to leave us a comment,

please email to our support team: [email protected] or

visit our web site www.vbcracing.com

DESIGNED IN CO-OPERATION WITH WORLD CHAMPION SURIKARN CHAIDAJSURIYA

BAG MARKED

STEP1

Graphite Edges Protection Procedure

01© VBC Racing FFTwelve

Sand the chassis edges with #600 sand paper(not included) and

apply CA glue(not included) to the edges of the chassis.

Sand the below graphite edges with #600 sand paper and apply CA glue to the edges.

A-01-VBC-2004-35 FFTwelve Graphite Rear Shock Tower

A-01-VBC-2003-35 FFTwelve Graphite Front Shock Tower

*Not included in this kit

A-01-VBC-2002-25 FFTwelve Graphite Main Chassis

A-01-VBC-2001-20 FFTwelve Upper Deck

BAG MARKED

STEP2

Gear Differential Assembly

Gear Diff Housing A-03-VBC-2005 x 1

Gear Diff Pulley 39T A-03-VBC-2006 x 1

Diff Gear 18T A-03-VBC-0019 x 2

Lightweight Hardened Gear Diff Cup B-02-VBC-0099 x 2

10x15 Ball Bearing C-02-BB-1510-B x 2

M2x10 Shaft Pin B-02-VBC-0020 x 2

15x0.3 Shim B-02-VBC-0077 x 2

Diff Shaft Sealer O-Ring B-03-VBC-0006 x 2

Differential Left Side

Apply small amount of diff oil

Differential Left Side Assembly Cross Section

Differential Right Side

10x15mm

Ball Bearing

Gear Diff Housing

Diff Shaft

Sealer O-Ring

Diff Shaft

Sealer O-Ring

Diff Gear 18T

Heavy Duty Diff Cup

10x13x0.2mm

Shim (1 PCS)

15x0.3mm Shim

2x10mm Shaft Pin

Apply small amount of diff oil

NOTICE : Insert 2x10mm Shaft Pin Direction

Diff Gear 18T

15x0.3mm Shim

Diff Shaft

Sealer O-Ring

2x10mm Shaft Pin

Gear Diff Pulley 39T

Heavy Duty Diff Cup

10x15mm

Ball Bearing

10x13x0.2mm

Shim (3 PCS)

10x13x0.2mm Shim x 4

Gear Diff Assembly Continue

Diff Gear 10T A-03-VBC-0018 x 4

M2.6x10 Flathead Screw C-02-SC-F2.6x10 x 4

Seal Gasket B-03-VBC-0004 x 1

03© VBC Racing FFTwelve

9.5x0.2mm Shim B-02-VBC-0078 x 4

STEP2

Diff Gear Shaft A-03-VBC-0020 x 1

Diff Housing Sealer O-Ring B-03-VBC-0005 x 1

BAG MARKED

Fill with supplied

gear diff oil until

the gear diff are fully

submerged

9.5x0.2mm Shim

Diff Gear 10T

Diff Gear Shaft

Left Side Diff Gear

Diff Housing

Sealer O-Ring

put inside the gap

COMPLETED ASSEMBLY GEAR DIFF

M2.6x10mm Flathead Screw

Seal Gasket

NOTICE :

The Insert Pin

Direction

Rear Bulkhead And Center

Suspension Mount Assembly

FFTwelve Lower Bulkhead (A) B-02-VBC-2007 x 2

FFTwelve Lower Bulkhead (B) B-02-VBC-2008 x 2

Center Suspension Mount x 2

B-02-VBC-0062

Center Suspension Mount Shim (1mm) x 4

A-01-VBC-0038

M3x6 Flathead C-02-SC-F0306 x 16

BAG MARKED

STEP3-4

Lower Bulkhead A

Lower Bulkhead B

Center Suspension

Arm Mount C0

Center Suspension

Arm Mount C10

M3x6mm

Flathead Screw

M3x6mm

Flathead Screw

1mm Center

Suspension Arm Shim

1mm Center

Suspension Arm Shim

X-C10

Y-C10

Center Suspension Mount (X-C10) x 1

D-05-VBC-0066

Center Suspension Mount (Y-C10) x 1

D-05-VBC-0066

Front Bulkhead And Center

Suspension Mount Assembly

Steering System Assembly

Steering Assembly Travel Plate B-02-VBC-2009 x 1

Steering Travel Arm B-02-VBC-0053 x 2

BAG MARKED

STEP5-6

Steering Assembly Pole B-02-VBC-2010 x 2

Ball Connector B-02-VBC-0045 x 3

Steering Cone Washer B-02-VBC-0089 x 2

T2 7075 Spacer B-02-VBC-0019-20 x 2

M3x6 Roundhead C-02-SC-R0306 x 2

M3x6 Set Screw C-02-SC-SS-0306 x 1

M3x42mm Turnbuckle B-02-VBC-0037 x 2

Turnbuckle Cup A-03-VBC-0039 x 4

M3x10 Set Screw C-02-SC-SS-0310 x 2

M3x6 Flathead Screw C-02-SC-F0306 x 2

Steering System Assembly

Steering Assembly Travel Plate

Steering Travel Arm

Steering Assembly Pole

Ball Connector

Steering Cone Washer

3x2.0mm 7075 Spacer

M3x6mm Roundhead Screw

M3x4mm Roundhead Screw

M3x10mm Set Screw

M3x4mm

Set Screw

M3x6mm Flathead Screw

27.5mm

MAKE TWO

M3x42mm Turnbuckle

Turnbuckle Cup

M3x4 Roundhead C-02-SC-R0304 x 2

Transmission Assembly

FFTwelve Front Gear Box (A) B-02-VBC-2023 x 1

BAG MARKED

STEP7-8

Ball Connector B-02-VBC-0045 x 2

M3x8 Roundhead C-02-SC-R0308 x 1

M3x10 Set Screw C-02-SC-SS-0310 x 2

FF12 Front Gear Box BFF12 Front Gear Box A

Ball Connector Ball Connector

M3x10Set Screw

T2 7075 Spacer

M3x8mm

Roundhead Screw

M3x10mm

Roundhead Screw

3x6mm Ball Bearing

3x5x0.1mm Shim

Direction to

install ball bearings

FFTwelve Front Gear Box (A) B-02-VBC-2024 x 1

3x6x2.5mm Bearing C-02-BB-0603-25 x 2

3x5x0.5mm Shim B-02-VBC-2020 x 1

5x7x0.5mm Spacer B-02-VBC-2015 x 1

2x8mm Shaft Pin B-02-VBC-2013 x 1

7mm Shaft O-Ring B-03-VBC-2014 x 1

Center Drive Shaft B-02-VBC-2017 x 1

Shaft O-Ring

5x7x0.5mm

Spacer

4x10x4mm

Ball Bearing

2x8mm

Shaft Pin

5x10x3mm

Ball Bearing

ADJUST DRIVE BELT TENSION

AFTER COMPLETED ASSEMBLY

THE GEAR BOX

Bearing O-Ring

Install O-Ring onto Groove

Belt Tensioner

B-02-VBC-2019 x 1

FFTwelve Driver Belt Type R

B-02-VBC-2018 x 1

Bearing O-Ring x 2

16T Alum Center Belt Pulley B-02-VBC-2012 x 1

M3x10 Roundhead C-02-SC-R0310 x 1

4x10x4mm Bearing C-02-BB-1004-40 x 1 5x10x3mm Bearing C-02-BB-1005-30 x 1

T2 7075 Spacer B-02-VBC-0019-20 x 2

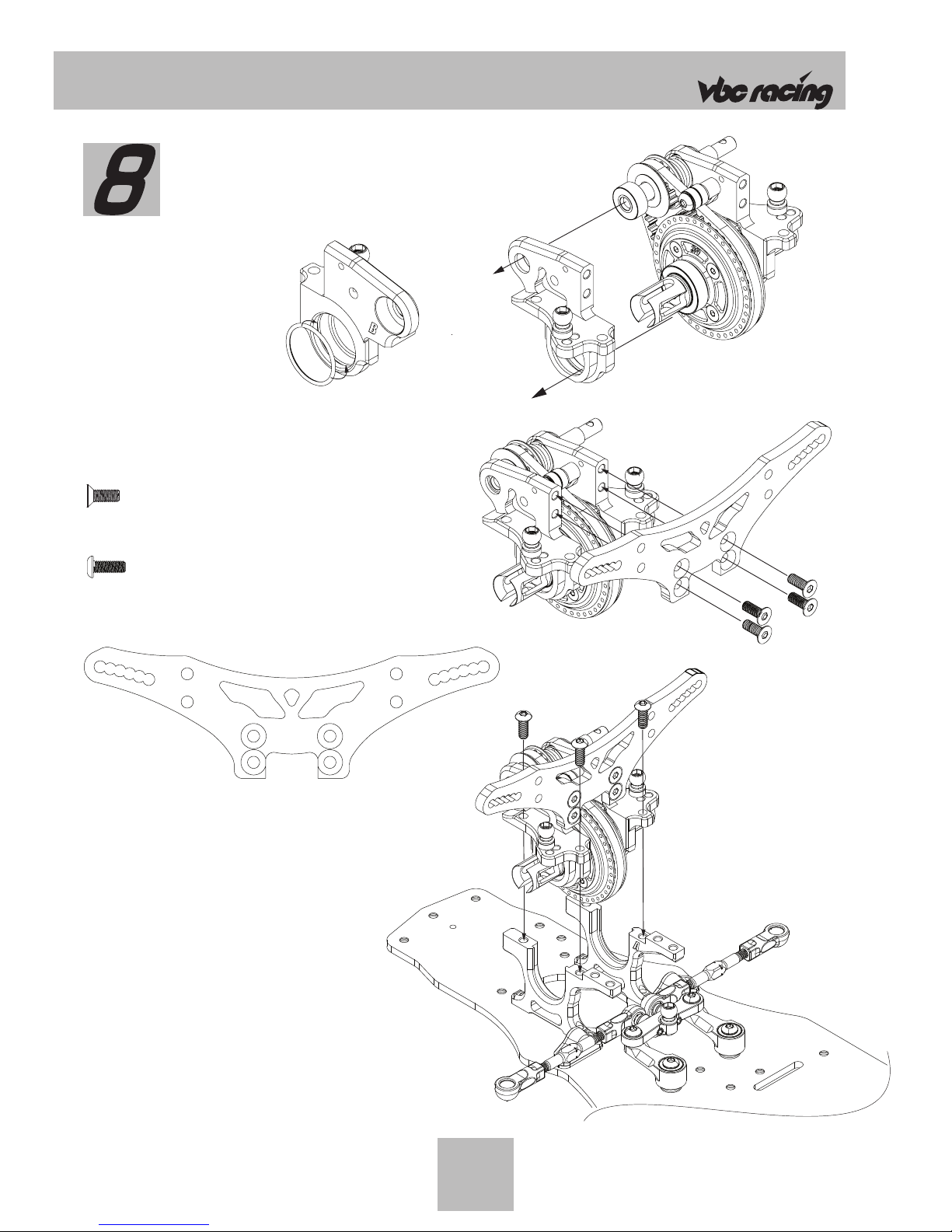

Front Damper Stay Assembly

BAG MARKED

M3x8mm

Flathead Screw

M3x8mm

Roundhead Screw

Bearing O-Ring

Install O-Ring onto Groove

M3x8 Flathead C-02-SC-F0308 x 4

M3x8 Roundhead C-02-SC-R0308 x 3

FFTwelve Graphite Front Shock Tower

A-01-VBC-2003-35 x 1

STEP7-8

Upper Bulkhead And

Rear Damper Stay Assembly

BAG MARKED

M3x8 Flathead C-02-SC-F0308 x 4

M3x8 Roundhead C-02-SC-R0308 x 4

FFTwelve Graphite Rear Shock Tower

A-01-VBC-2004-35 x 1

STEP9

Upper Bulkhead Assembly

Upper Bulkhead A

Upper Bulkhead B

Ball Connector

M3x10mm Set Screw M3x10mm Set Screw

3x2.0mm 7075 Spacer3x2.0mm 7075 Spacer

M3x8mm Flathead Screw

M3x8mm Roundhead Screw

Rear Damper Stay Assembly

FFTwelve Rear Upper Bulkhead Set (A)

B-02-VBC-2025 x 1

FFTwelve Rear Upper Bulkhead Set (B)

B-02-VBC-2026 x 1

Ball Connector B-02-VBC-0045 x 2

M3x10 Set Screw C-02-SC-SS-0310 x 2

T2 7075 Spacer B-02-VBC-0019-20 x 2

Rear Suspension Arm Assembly

BAG MARKED

STEP10-11

Ball Connector B-02-VBC-0045 x 4

M3x10 Set Screw C-02-SC-SS-0310 x 4

Rear Suspension Arm A-03-VBC-0050 x 2

Suspension Arm Spacer T2 Composite A-03-VBC-0052 x 2

Suspension Arm Spacer T1 Composite A-03-VBC-0051 x 4

Suspension Arm Pin B-02-VBC-0029 x 2

Arm Pin Pivot Ball B-02-VBC-0035 x 4

M4x10 Set Screw C-02-SC-SS-0410 x 4

1mm Suspension Shim A-01-VBC-0037 x 1

M3x6 Flat Head Screw C-02-SC-F0306 x 2

E25 Suspension Mount B-02-VBC-0061-25 x 1

Left Right

Front

Make sure the black markings are in the same direction on the left and right suspension arms

Rear Suspension Arm top view

2mm

Bottom

Top

Insert M4x10 Set Screw from the top of the suspension arm for

adjusting down stop. Initial setting is 2mm measuring

from the bottom part of the arm for both sides.

1mm Suspension Shim

E25 Suspension Mount

M3x6mm Flathead Screw

After Installing the rear arms, make sure

the arms can move freely

Notice the direction

Grease

Rear Suspension Arm

M4x10 Set Screw

Suspension Arm Pin

Arm Pin Pivot Ball

Ball Connector

M3x10 Set Screw

Ball Connector

Arm Pin Pivot Ball Suspension Arm Spacer T2

Suspension Arm

Spacer T1

Suspension Arm Spacer T1

Ball Connector
