VDO CYTEC C 10 User manual

English page 1-18
Deutsch Seite 19-36
Français page 37-54
Italiano pagine 55-72
Español pagina 73-90
Nederlands pagina 91-108
GB
C 10
D
C 10
F
C 10
I
C 10
E
C 10
NL
C 10

ETRTO WS in mm KMH WS in inch MPH
47-305 16x1,75 1272 50,1
47-406 20x1,75 1590 62,6
34-540 24x1 3/8 1948 76,7
47-507 24x1,75 1907 75,1
23-571 26x1 1973 77,7
40-559 26x1,5 2026 79,8
44-559 26x1,6 2051 80,7
47-559 26x1,75 2070 81,5
50-559 26x1,9 2089 82,2
54-559 26x2,00 2114 83,2
57-559 26x2,125 2133 84,0
37-590 26x1 3/8 2105 82,9
20-571 26x3/4 1954 76,9
32-630 27x1 1/4 2199 86,6
40-622 28x1,5 2224 87,6
47-622 28x1,75 2268 89,3
40-635 28x1 1/2 2265 89,2
37-622 28x1 3/8 2205 86,8
18-622 700x18C 2102 82,8
20-622 700x20C 2114 83,2
23-622 700x23C 2133 84,0
25-622 700x25C 2146 84,5
28-622 700x28C 2149 84,6
32-622 700x32C 2174 85,6
37-622 700x37C 2205 86,8
40-622 700x40C 2224 87,6
ETRTO WS in mm KMH WS in inch MPH

screw
GB
C
10
1
INSTALLATION AND OPERATION MANUAL - VDO CYTEC C 10
Preface
Thank you for buying a VDO CYTEC bicycle computer. The more familiar you get with this model, the more enjoyable your
trips are going to be.
Please read thoroughly all the information provided in this manual. You are getting important and useful hints for operation to
make you fully benefit from all the technical features of your VDO CYTEC bicycle computer.
We wish you enjoyable trips and rides on your bike with VDO CYTEC
CYCLE PARTS GMBH
Mounting the system
1. Mounting the handlebar holder
The handlebar holder fits handlebars of any diameter. Before mounting the system, decide if you will be using your left or right
hand to operate the computer and then mount the handlebar holder on the respective side. Position the handlebar holder,
insert the strap and adjust it by tightening the screw.
Warning: Before tightening the handlebar holder, make sure to adjust the position of the computer head (inclination) when the
LCD-display is best visible for you. Only when you find the best position tighten the screw.

GB
C
10
2

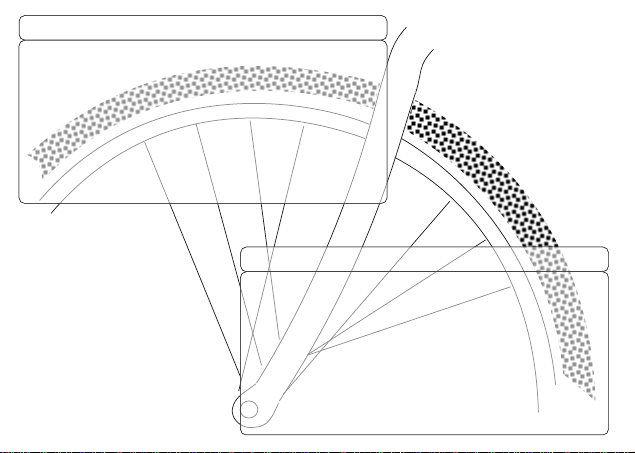

2. Mounting the speed transmitter
The sensor should be mounted on
the same side of the fork as the holder
is on the handlebar.
Watch out: Do not tighten the cable
ties yet! Accurately position the spoke
magnet and the sensor first, then
tighten the cable ties.
3. Mounting the spoke magnet
Distance between magnet and
sensor should be approx. 1-5 mm.

1.LOCK 2.CLICK
1.PRESS
2.UNLOCK
LOCK
UNLOCK
1-5mm
1-5mm
In case this distance is not
achievable in the current positioning,
slide the sensor and the magnet on
the fork or spoke accordingly.
4. Twist-Click mounting of computer onto holder
The Twist-Click mounting has been exclusively developed for the new line of VDO
CYTEC computers.
The computerhead is put onto the handlebar and by a right turn of the computerhead
(TWIST) fixed to the holder (CLICK).
It is just as easy to remove the computerhead from the handlebar holder.
Slightly push the computerhead down, twist it to the left, remove computerhead from
handlebar holder.
GB
C
10
3

OPEN CLOSE
GB
C
10
4
5. Installing battery into computer head
To save battery power, your VDO CYTEC comes with the battery not yet fitted. Prior to initial use you have to install the battery first.
If you find the computer is not functioning properly after a battery change, push the AC-button (Auto Clear) on the rear side of the
computer to reset.

GB
C
10
5
6. Information features of your VDO CYTEC C 10
Your VDO CYTEC C 10 provides you with following information:
KMH-MPH current speed indicated in either KMH or MPH, featuring automatic conversion into MPH
TRP trip counter, counts your trip distance up to 999,99 km or miles.
RID trip timer, keeps track of the actual riding time featuring automatic start/stop function, up to 9:59:59 (hrs:min:sec)
STP manual stop watch, counting up to 9:59:59 (hrs:min:sec)
AVS average speed, accurate to two decimal points.
MAX maximum speed, achieved during a ride, accurate to two decimal points.
permanent comparison of current and average speed. Deviations are indicated by up/down arrows in
the display.
TCNT Second trip counter featuring a preset mode, intended for use while following road-book instructions.
CLK clock with 12 h or 24 h selectable display mode.
ODO odometer, counting distance ridden up to 99,999 KM or M.
WS 1+WS 2 two wheelsizes for two different bicycles selectable.

Function
TRP
RID
AVS
STP
MAX
Mode 1
Function
TCNT
CLK
ODO
Mode 2
GB
C
10
6
7. Operating your VDO CYTEC C 10
Button / Key Covering
Your VDO CYTEC C 10 has 2buttons / keys
Mode 1, Mode 2

GB
C
10
7
These buttons / keys have several functions.
All functions of the respective buttons / keys outlined in the following chart below.
Your display Button / Key Length of What is going on?
indicates followingto be pushed pushing the
information button / key
TRP-AVS-RID-STP- MODE 1 brief (0.1 sec) next information from MODE 1 is indicated.
MAX
TCNT-CLK- ODO MODE 1 brief (0.1 sec) computer changes display information from MODE 2 data to
TRP-data of MODE 1
TRP-RID-AVS MODE 1 normal (1.5 sec.) TRP-RID-AVS are automatically rotated, one at a time displayed
for 1.5 sec.
TRP MODE 1 long (5 sec) enter set-up mode for wheelsizes.
CLK MODE 1 long (5 sec) enter set-up mode for clock.
ODO MODE 1 long (5 sec) enter set-up mode for odometer.
RID-AVS-STP-MAX MODE 1 long (5 sec) switching from wheelsize 1 to wheelsize 2 and vice-versa
TCNT MODE 1 long (5 sec.) Set-up mode for TCNT (second trip counter) is called into display
TCNT-CLK- ODO MODE 2 brief (0.1 sec) next information from MODE 2 is indicated.
TRP-RID-AVS-MAX MODE 2 brief (0.1 sec) computer changes display information from MODE 1 data to
MODE 2 data. TCNT always being the first information indicated.
TRP-RID-AVS-MAX MODE 2 long (5 sec) TRP-AVS-RID-MAX information reset to zero.
TCNT MODE 2 long (5 sec.) Second trip counter TCNT is being reset to zero
STP MODE 2 long (5 sec) stop watch STP reset to zero
STP MODE 2 brief (0.1 sec.) either start or stop run of stop watch

Press MODE 1 1,5 sec.
Start Scroll
SCROLL
Press MODE 2 5sec.
Reset
GB
C
10
8
8. Scroll function
To provide any information at a glance, your VDO CYTEC C 10 features
a scroll function. Calling up the scroll function automatically displays
information for a period of 1.5 sec. Scroll function may be called upon if any
of the following information is on display: TRP-AVS-RID. Scroll function is
activated by pressing the MODE 1 button for 1.5 sec.
9. Second trip counter TCNT
Your VDO CYTEC features a second trip counter TCNT. This second trip
counter allows you to easily follow road-book instructions. The TCNT may be
preset to an individual value from which it then counts up. In case you have
missed a turning point in your road-book tour, you may return to the tour leg
where you have gotten lost, re-enter the correct value and keep going from there.
Set-up mode for your second trip counter TCNT
Step 1: Call TCNT information into display.
Step 2: Press MODE 1 key for 3 sec. Display shows "TCNT" and a flashing number.
Step 3: By pressing MODE 2 key, the number can be changed.
Step 4: By pressing MODE1 key you proceed to the next number, which you can
change by pressing MODE 2 key.
Step 5: Once you have entered the last number for your TCNT, exit set-up mode by
pressing MODE 1 key for 3 sec..
Watch out: When you exit set-up without having completed entering your data, the
computer may well work with faulty values leading to misinformation in
your display.
Reset TCNT to zero
The second trip counter TCNT is reset to zero by pressing MODE 2 key for 5 sec. Before resetting to zero, make sure that TCNT
information is called into display.
Watch out: Pressing the MODE 2 key for 5 sec. without TCNT data being displayed probably resets your TRP-RID-AVS-MAX
data to zero.

Press MODE 2 5sec.
Reset
MODE 2 START/STOP
GB
C
10
9
10. Manual stop-watch STP
Your VDO CYTEC C 10 features a manual stop-watch. With information STP being displayed, you may operate your
stop-watch with the MODE 2-button.
MODE 2 press when STP is displayed = starting the stop-watch
MODE 2 press again = interrupt the stop-watch
MODE 2 press again = stop watch continues
Watch out: Pressing the MODE
2 button for 5 sec. without STP
data being displayed resets your
TRP-AVS-RID-MAX data to zero.

GB
C
10
10
Your current speed is
faster than
your average
speed. Accuracy
+/- 1 KMH/MPH
You are currently riding
as fast as your average
speed. Accuracy
+/- 1 KMH/MPH
Your current speed is
slower than your average
speed. Accuracy
+/- 1 KMH/MPH
11. Comparison of current and average speed
Your VDO CYTEC C 10 compares your current speed with your average speed. The outcome of this comparison can be seen in
your display by the use of symbols. No matter which information is currently displayed, this data keeps you updated on the
relation of your current speed and your average speed.
12. Set-up mode
Your VDO CYTEC C 10 features the following set-up procedures
wheelsize 1 = WS1 set-up starts out of TRP in display
wheelsize 2 = WS2 set-up starts out of TRP in display
clock = CLK set-up starts out of CLK in display
odometer = ODO set-up starts out of ODO in display
Trip Counter=TCNT set up starts out of TCNT in display
No matter which set-up mode is used for your VDO CYTEC C10, the procedure is the same.
You can start the set-up mode for a certain display by pressing the MODE 1 button for 5 sec.
With this MODE button you may also exit the set-up mode at any time.
Once the set-up mode is activated, MODE 1 and MODE 2 buttons are covered with following instructions:
MODE1 changing from one enter display to the next enter display
MODE2 selection of figure to be entered, changing from KMH to MPH mode

GB
C
10
11
13. Selecting the wheelsize
Your VDO CYTEC C 10 can work with two different wheelsizes (WS1 or WS2), i.e. one wheelsize for your road bike the other
one for your mountain bike. When using the respective bike you can just switch to the proper wheelsize.
Wheelsize is only selectable if any of the following information is displayed: AVS-RID-STP-MAX
The currently active wheelsize is indicated in the display by WS 1 or WS 2. You can switch from wheelsize 1 (WS 1) to
wheelsize 2 (WS 2) and vice-versa by pressing the MODE 1 button for 5 sec.
14. Entering your wheelsize
You may enter two different wheelsizes into your VDO CYTEC C 10, i.e. one wheelsize for your street bike and another one for
your mountain bike.
Your VDO CYTEC identifies different wheelsizes as WS 1 = wheelsize 1 and WS 2 = wheelsize 2.
following defaults are entered
wheelsize 1 = WS1 = 2155 mm
wheelsize 2 = WS2 = 2000 mm
Watch out: Above defaults are automatically applied after a battery change.
After a battery change, the correct wheelsizes for your bikes have to be re-entered.

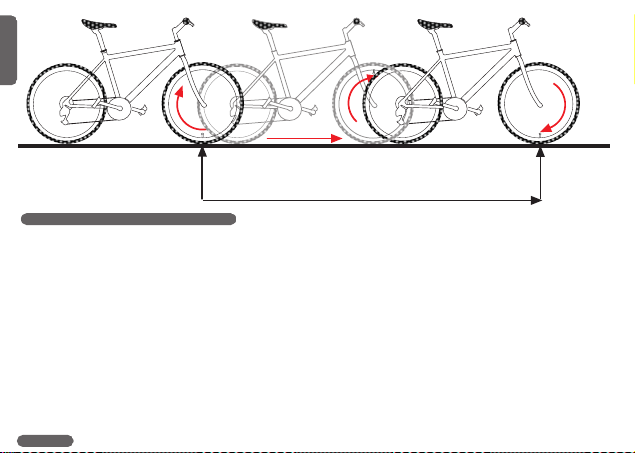

How is the wheelsize precisely determined?
Place the front wheel of your bike with the valve at the bottom, mark this position with a line and push your bike ahead until
exactly one rotation of the front wheel is completed. Draw another line where the valve now is. Take a ruler and measure the
distance between marks 1 and 2 which reflects the wheelsize = wheel-circumference. The figure measured (inches or mm) is
the wheelsize to be entered into your computer.

WS in mm / inch
1x
GB
C
10
12
Programming (setting up) your wheelsize
Step 1: Call TRP information in your display.
Step 2: Press MODE 1 button for 5 sec. "WS1" is displayed along with an alternating flashing symbol for KMH and MPH.
Step 3: By pressing the MODE 2 button you can choose whether you want MPH or KMH readout on your display.
Watch out: Your choice of either MPH or KMH applies for both wheelsizes WS 1 and WS 2.
Step 4: Once you have chosen your measuring unit, continue by pressing the MODE 1 button briefly (0.1 sec).
Now, either the default value or the wheelsize value previously entered (WS 1) is displayed with the last
number flashing.
Step 5: With buttons MODE 1 and MODE 2 you can enter wheelsize 1 previously determined. Then you enter your
measurements for wheelsize 2 (see set-up mode).
Watch out: The computer wants you to enter your wheelsizes one at a time, first WS 1, then WS 2. You may exit setting up
wheelsizes at any time by pressing the MODE 1 button for 5 sec.
Step 6: Once you have entered the last number for wheelsize 2, the computer automatically goes back to normal mode.
You may also exit the set-up mode at any time by pressing the MODE 1 button.
Watch out: When you exit set-up without having completed entering your data, the computer may well work with faulty values
leading to misinformation in your display.

MODE 2 0,1sec.
to change from
KMH to MPH
MODE 2 0,1sec.
to increase
MODE 1 5sec. MODE 1 5sec.
to quit
MODE 1 0,1sec.
switch to next
MODE 1 0,1sec.
switch to next
MODE 1 0,1sec.
switch to next
MODE 1 0,1sec.
switch to next
MODE 2
to increase
to change from
KMH to MPH
MODE 1
to start
to switch
to quit
MODE 1 0,1sec.
switch to next
GB
C
10
13

MODE 2 0,1sec.
MODE 2
MODE 1 0,1sec.
switch to next
MODE 2 0,1sec.
to increase MODE 1 0,1sec.
switch to next
MODE 1 5sec.
to quit
MODE 1 5sec.
to start
MODE 1 0,1sec.
switch to next
GB
C
10
14
15. Setting the clock CLK
Your VDO CYTEC C 10 features a clock with hour and minute display. 12 h or 24 h display selectable.
To access the clock set-up mode proceed as follows:
Step 1: call in the CLK
information into your
display.
Step 2: Press the
MODE 1 button for
5 sec. The set-up mode
for the clock starts. You
will either see the figure
"24" or "12" flashing
reflecting the
hour-mode
programmed. To set
up your clock use
MODE 1 and
MODE 2 buttons.
(see set-up mode).

MODE 1 5sec.
to quit
MODE 1 0,1sec.
switch to next
MODE 2 0,1sec.
to increase
MODE 1 5sec.
GB
C
10
15
16. Programming (setting-up) your odometer ODO
You can enter individual odometer values into your VDO CYTEC C 10 at any time, i.e. transferring data from your old computer
into your new VDO CYTEC C 10 or after a battery change.
Watch out: after a battery change, your data for total ODO is reset to zero.
TIP: If you want to re-enter your totals after a
battery change, take down the value for ODO
before removing the battery.
Step 1: Call information for ODO into your
display.
Step 2: Start the set-up mode for odometer
by pressing the MODE 1 button for 5 sec.
The last number is flashing.
Entering data is done by MODE 1 and MODE 2 buttons. (see set-up mode)

Hg
GB
C
10
16
18. Stand-by-mode
Your computer VDO CYTEC C 10 features a stand-by-mode in order to save battery power.
Your computer changes into stand-by-mode if it has not received any speed impulses for 5 min or no button has been pressed in
the same period of time.
The time of day (CLK) is still displayed in stand-by-mode, though.
By pressing any button or just continuing your ride, this will end stand-by-mode and return you to the appropriate mode.
19. Battery change
Tip:
Take down your total and wheelsize prior to battery change. see 5.
In case the computer is not properly functioning after a battery change, push the AC-button (Auto Clear) on the rear
side of the computer to reset.
Watch out:old batteries require special disposal
17. Resetting information to zero
The following information may be reset to zero with your VDO CYTEC C 10.
TRP-RID-AVS-MAX These information here is simultaneously reset to zero.
TCNT This information is singly reset to zero.
STP This information is singly reset to zero.
Information must be reset to zero by pressing the MODE 2 button for 5 sec.
Watch out: Take care that the exact information to be reset is on display.
If either of the following information, TRP, RID, AVS or MAX are displayed and you want to reset to zero by pressing the
MODE 2 button, be aware that the remaining three information are simultaneously zeroed.

GB
C
10
17
malfunction possible cause solutions
irregular LCD readout
(i.e. after battery change)
speed display does not appear check for proper distance between
sensor and magnet
cable from sensor to computer broken check cable and replace if necessary.
computerhead is incorrectly twisted on place computerhead on handlebar
holder and twist until detent (CLICK)
no wheelsize entered enter your wheelsize
display fades or disappears battery in computer empty check battery power and replace it if
necessary.
temperatures below 5°C (40°F) dull
display readout
Troubleshooting
This chart outlines possible malfunctions, their causes and solutions.
computer software is not running
smoothly press AC-button at the rear of computer
head.
readjusting distance between sensor
and magnet.
handlebar holder
back in normal temperatures, display
picks up working correctly.

21. Warranty
We warrant VDO CYTEC models (sensor, computer head and handlebar holder) to the original purchaser for five years from date of
purchase against defects in material and workmanship. This does not cover the batteries and defects resulting from normal wear and
tear, improper care, accidents, abuse or alteration.
Please take care to retain your receipt of purchase.
In case of legitimate complaints, you are entitled to receive a comparable replacement model. Due to possible model changes, your
model might not be available any more.
You may contact your retailer or store where you purchased your VDO CYTEC or send the computer directly to us:
CYCLE PARTS GMBH
Grosse Ahlmuehle 33
D-76865 Rohrbach
Technical specifications are subject to change.
22. Contents
1 computer head
1 handlebar holder with sensor, cable and screw
1 rubber shim for sensor mount
1 spoke magnet
5 cable ties
1 battery 3 V Type CR 2032
1 installation and operation manual
GB
C
10
18
Table of contents
Other VDO CYTEC Bicycle Accessories manuals
