ETRTO WS in mm KMH WS in inch MPH
47-305 16x1,75 1272 50,1
47-406 20x1,75 1590 62,6
34-540 24x1 3/8 1948 76,7
47-507 24x1,75 1907 75,1
23-571 26x1 1973 77,7
40-559 26x1,5 2026 79,8
44-559 26x1,6 2051 80,7
47-559 26x1,75 2070 81,5
50-559 26x1,9 2089 82,2
54-559 26x2,00 2114 83,2
57-559 26x2,125 2133 84,0
37-590 26x1 3/8 2105 82,9
20-571 26x3/4 1954 76,9
32-630 27x1 1/4 2199 86,6
40-622 28x1,5 2224 87,6
47-622 28x1,75 2268 89,3
40-635 28x1 1/2 2265 89,2
37-622 28x1 3/8 2205 86,8
18-622 700x18C 2102 82,8
20-622 700x20C 2114 83,2
23-622 700x23C 2133 84,0
25-622 700x25C 2146 84,5
28-622 700x28C 2149 84,6
32-622 700x32C 2174 85,6
37-622 700x37C 2205 86,8
40-622 700x40C 2224 87,6
ETRTO WS in mm KMH WS in inch MPH

GB
C
08
1
INSTALLATION AND OPERATION MANUAL - VDO CYTEC C 08
Preface
Thank you for buying a VDO CYTEC bicycle computer. The more familiar you get with this model, the more enjoyable your trips are
going to be.
Please read thoroughly all the information provided in this manual. You are getting important and useful hints for operation to make
you fully benefit from all the technical features of your VDO CYTEC bicycle computer.
We wish you enjoyable trips and rides on your bike with VDO CYTEC
CYCLE PARTS GMBH
Mounting the system
1. Mounting the handlebar holder
The handlebar holder fits handlebars of any diameter. Before mounting the system, decide if you will be using your left or right hand
to operate the computer and then mount the handlebar holder on the respective side. Position the handlebar holder, insert the strap
and adjust it by tightening the screw.
Warning: Before tightening the handlebar holder, make sure to adjust the position of the computer head (inclination) when the LCD-
display is best visible for you. Only when you find the best position tighten the screw.
screw

GB
C
08
2
2. Mounting the speed transmitter
The sensor should be mounted on the same
side of the fork as the holder is on the
handlebar.
Watch out: Do not tighten the cable ties
yet! Accurately position the spoke magnet
and the sensor first, then tighten the cable
ties.

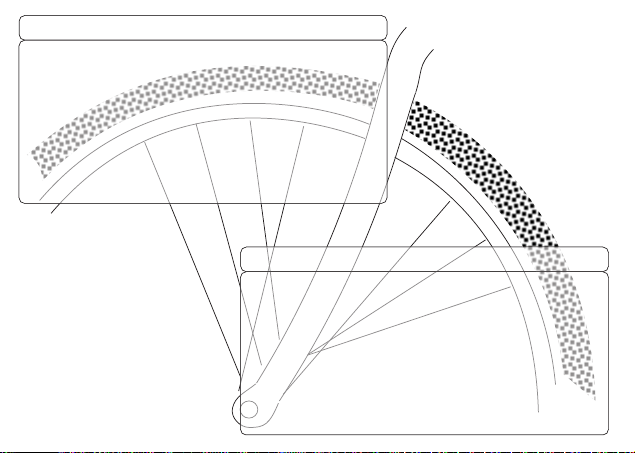

3. Mounting the spoke magnet
Distance between magnet and
sensor should be approx. 1-5 mm.

GB
C
08
3
1-5mm
1-5mm
In case this distance is not
achievable in the current positioning,
slide the sensor and the magnet on
the fork or spoke accordingly.
4. Twist-Click mounting of computer onto holder
The Twist-Click mounting has been exclusively developed for the new line of VDO
CYTEC computers. The computerhead is put onto the handlebar and by a right turn
of the computerhead (TWIST) fixed to the holder (CLICK). It is just as easy to remove
the computerhead from the handlebar holder. Slightly push the computerhead down,
twist it to the left, remove computerhead from handlebar holder.
1.LOCK 2.CLICK
1.PRESS
2.UNLOCK
LOCK
UNLOCK

GB
C
08
4
OPEN CLOSE
GB
C
08

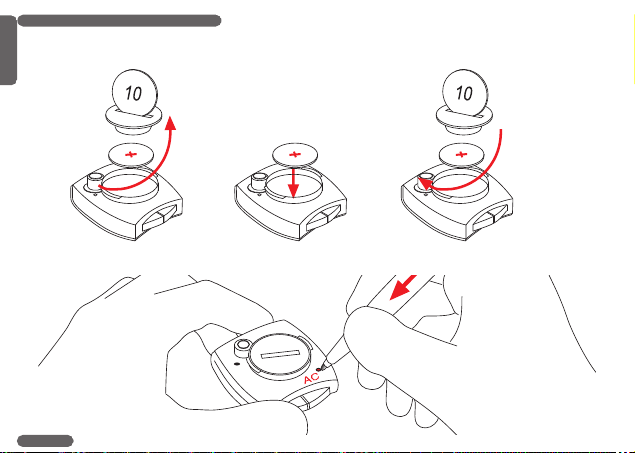

5. Installing battery into computer head
To save battery power, your VDO CYTEC comes with the battery not yet fitted. Prior to initial use you have to install the battery first.
If you find the computer is not functioning properly after a battery change, push the AC-button (Auto Clear) on the rear side
of the computer to reset.

GB
C
08
5
6. Information features of your VDO CYTEC C 08
Your VDO CYTEC C 08 provides you with following information:
KMH-MPH current speed indicated in either KMH or MPH, featuring automatic conversion into MPH
TRP trip counter, counts your trip distance up to 999,99 km or miles.
RID trip timer, keeps track of the actual riding time featuring automatic start/stop function, up to 9:59:59 (hrs:min:sec)
AVS average speed, accurate to two decimal points.
MAX maximum speed, achieved during a ride, accurate to two decimal points.
permanent comparison of current and average speed. Deviations are indicated by up/down arrows in
the display.
CLK clock with 12 h or 24 h selectable display mode.
ODO odometer, counting distance ridden up to 99,999 KM or M.

GB
C
08
6
7. Operating your VDO CYTEC C 08
Button / Key Covering
Your VDO CYTEC C 08 has 2buttons / keys
Mode 1, Mode 2
Function
TRP
RID
AVS
MAX
Mode 1
Function
CLK
ODO
Mode 2

GB
C
08
7
These buttons / keys have several functions.
All functions of the respective buttons / keys outlined in the following chart below.
Your display Button / Key Length of What is going on?
indicates followingto be pushed pushing the
information button / key
TRP-AVS-RID-MAX MODE 1 brief (0.1 sec) next information from MODE 1 is indicated.
CLK- ODO MODE 1 brief (0.1 sec) computer changes display information from MODE 2 data to
TRP-data of MODE 1
TRP-RID-AVS MODE 1 normal (1.5 sec.) TRP-RID-AVS are automatically rotated, one at a time displayed
for 1.5 sec.
TRP MODE 1 long (5 sec) enter set-up mode for wheelsizes.
CLK MODE 1 long (5 sec) enter set-up mode for clock.
ODO MODE 1 long (5 sec) enter set-up mode for odometer.
CLK- ODO MODE 2 brief (0.1 sec) next information from MODE 2 is indicated.
TRP-RID-AVS-MAX MODE 2 brief (0.1 sec) computer changes display information from MODE 1 data to
MODE 2 data. CLK always being the first information indicated.
TRP-RID-AVS-MAX MODE 2 long (5 sec) TRP-AVS-RID-MAX information reset to zero.

GB
C
08
8
Press MODE 1 1,5 sec.
Start Scroll
SCROLL
Your current speed is
faster than
your average
speed. Accuracy
+/- 1 KMH/MPH
You are currently riding
as fast as your average
speed. Accuracy
+/- 1 KMH/MPH
Your current speed is
slower than your average
speed. Accuracy
+/- 1 KMH/MPH
GB
C
08
8. Scroll function
To provide any information at a glance, your VDO CYTEC
C 08 features a scroll function. Calling up the scroll function
automatically displays information for a period of 1.5 sec.
Scroll function may be called upon if any of the following
information is on display: TRP-AVS-RID.
Scroll function is activated by pressing the MODE 1 button
for 1.5 sec.
9. Comparison of current and average speed
Your VDO CYTEC C 08 compares your current speed with your average speed. The outcome of this comparison can be seen in
your display by the use of symbols. No matter which information is currently displayed, this data keeps you updated on the relation of
your current speed and your average speed.

GB
C
08
9
11. Entering your wheelsize
Your VDO CYTEC identifies wheelsize as WS = wheelsize.
following default is entered
wheelsize = WS = 2155 mm
Watch out: Above default is automatically applied after a battery change.
After a battery change, the correct wheelsize for your bike has to be re-entered
How is the wheelsize precisely determined?
Place the front wheel of your bike with the valve at the bottom, mark this position with a line and push your bike ahead until exactly
one rotation of the front wheel is completed. Draw another line where the valve now is. Take a ruler and measure the distance between
marks 1 and 2 which reflects the wheelsize = wheel-circumference. The figure measured (inches or mm) is the wheelsize to be entered
into your computer
10. Set-up mode
Your VDO CYTEC C 08 features the following set-up procedures
wheelsize = WS set-up starts out of TRP in display
clock = CLK set-up starts out of CLK in display
odometers = ODO set-up starts out of ODO in display
No matter which set-up mode is used for your VDO CYTEC , the procedure is the same.
You can start the set-up mode for a certain display by pressing the MODE 1 button for 5 sec. With this MODE button you may also
exit the set-up mode at any time.
Once the set-up mode is activated, MODE 1 and MODE 2 buttons are covered with following instructions:
MODE1 changing from one enter display to the next enter display
MODE2 selection of figure to be entered, changing from KMH to MPH mode

GB
C
08
10
WS in mm / inch
1x

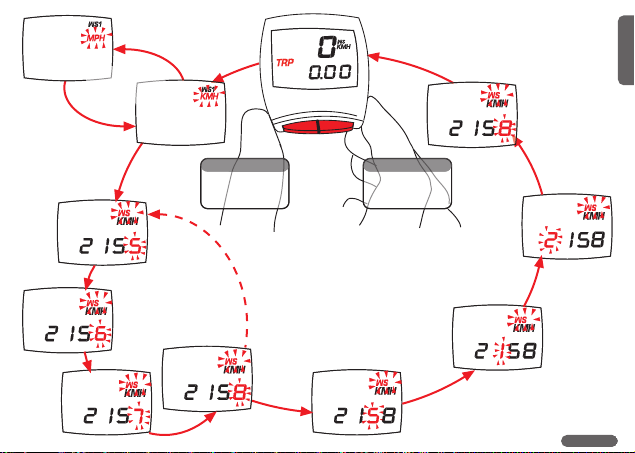

Programming (setting up) your wheelsize
Step 1: Call TRP information in your display.
Step 2: Press MODE 1 button for 5 sec.
"WS" is displayed along with an alternating flashing symbol for KMH and MPH.
Step 3: By pressing the MODE 2 button you can choose whether you want MPH or KMH readout on your display.
Step 4: Once you have chosen your measuring unit, continue by pressing the MODE 1 button briefly (0.1 sec). Now, either the default
value or the wheelsize value previously entered (WS) is displayed with the last number flashing.
Step 5: With buttons MODE 1 and MODE 2 you can enter the wheelsize previously determined. (see set-up mode).
Step 6: Once you have entered the last number for wheelsize, the computer automatically goes back to normal mode. You may also
exit the set-up mode at any time by pressing the MODE 1 button.
Watch out: When you exit set-up without having completed entering your data, the computer may well work with faulty values leading
to misinformation in your display.

GB
C
08
11
MODE 2 0,1sec.
to change from
KMH to MPH
MODE 2 0,1sec.
to increase
MODE 1 5sec. MODE 1 5sec.
to quit
MODE 1 0,1sec.
switch to next
MODE 1 0,1sec.
switch to next
MODE 1 0,1sec.
switch to next
MODE 1 0,1sec.
switch to next
MODE 2
to increase
to change from
KMH to MPH
MODE 1
to start
to switch
to quit
MODE 1 0,1sec.
switch to next

GB
C
08
12
MODE 2 0,1sec.
MODE 2
MODE 1 0,1sec.
switch to next
MODE 2 0,1sec.
to increase MODE 1 0,1sec.
switch to next
MODE 1 5sec.
to quit
MODE 1 5sec.
to start
MODE 1 0,1sec.
switch to next
GB
C
08
12. Setting the clock CLK
Your VDO CYTEC C 08 features a clock with hour and minute display. 12 h or 24 h display selectable.
To access the clock set-up mode proceed as follows:
Step 1: call in the CLK
information into your
display
Step 2: Press the
MODE 1 button for
5 sec. The set-up mode
for the clock starts. You
will either see the figure
"24" or "12" flashing
reflecting the
hour-mode
programmed. To set
up your clock use
MODE 1 and
MODE 2 buttons.
(see set-up mode).

GB
C
08
13
MODE 1 5sec.
to quit
MODE 1 0,1sec.
switch to next
MODE 2 0,1sec.
to increase
MODE 1 5sec.
13. Programming (setting-up) your odometer ODO
You can enter individual odometer values into your VDO CYTEC C 10 at any time, i.e. transferring data from your old computer
into your new VDO CYTEC C 10 or after a battery change.
Watch out: after a battery change, your data for total ODO is reset to zero.
TIP: If you want to re-enter your totals after
a battery change, take down the value for
ODO before removing the battery.
Step 1: Call information for ODO into your
display.

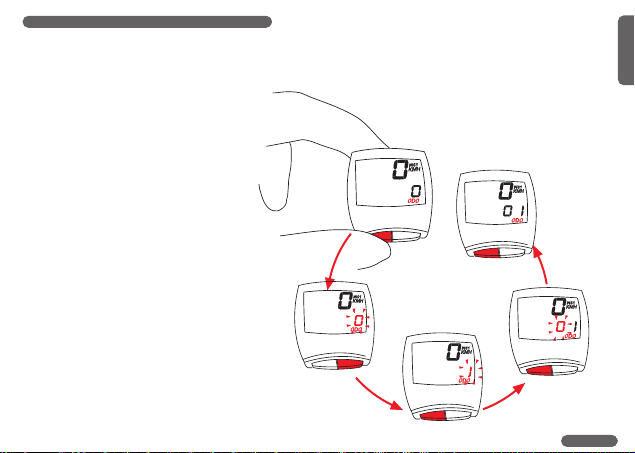

Step 2: Start the set-up mode for odometer
by pressing the MODE 1 button for 5 sec.
The last number is flashing.
Entering data is done by MODE 1 and MODE 2 buttons. (see set-up mode)

GB
C
08
14
Hg
15. Stand-by-mode
Your computer VDO CYTEC C 08 features a stand-by-mode in order to save battery power.
Your computer changes into stand-by-mode if it has not received any speed impulses for 5 min or no button has been pressed in the
same period of time.
The time of day (CLK) is still displayed in stand-by-mode, though.
By pressing any button or just continuing your ride, this will end stand-by-mode and return you to the appropriate mode.
16. Battery change
Tip:
Take down your totals and wheelsize prior to battery change.
Changing the battery in the computer head. see 5
In case the computer is not properly functioning after a battery change, push the AC-button (Auto Clear) on the rear side of
the computer to reset.
Watch out:old batteries require special disposal
GB
C
08
14. Resetting information to zero
The following information may be reset to zero with your VDO CYTEC C 08.
TRP-RID-AVS-MAX These information here is simultaneously reset to zero.
Information must be reset to zero by pressing the MODE 2 button for 5 sec.
Watch out: Take care that the exact information to be reset is on display.
If either of the following information, TRP, RID,AVS or MAX are displayed and you want to reset to zero by pressing the MODE 2 button,
be aware that the remaining three information are simultaneously zeroed.

GB
C
08
15
malfunction possible cause solutions
irregular LCD readout
(i.e. after battery change)
speed display does not appear check for proper distance between
sensor and magnet
cable from sensor to computer broken check cable and replace if necessary.
computerhead is incorrectly twisted on place computerhead on handlebar
holder and twist until detent (CLICK)
no wheelsize entered enter your wheelsize
display fades or disappears battery in computer empty check battery power and replace it if
necessary.
temperatures below 5°C (40°F) dull
display readout
computer software is not running
smoothly press AC-button at the rear of computer
head.
readjusting distance between sensor
and magnet.
handlebar holder
back in normal temperatures, display
picks up working correctly.
malfunction possible cause solutions
irregular LCD readout
(i.e. after battery change)
speed display does not appear check for proper distance between
sensor and magnet
cable from sensor to computer broken check cable and replace if necessary.
computerhead is incorrectly twisted on place computerhead on handlebar
holder and twist until detent (CLICK)
no wheelsize entered enter your wheelsize
display fades or disappears battery in computer empty check battery power and replace it if
necessary.
temperatures below 5°C (40°F) dull
display readout
17. Troubleshooting
This chart outlines possible malfunctions, their causes and solutions.

GB
C
08
16
GB
C
08
18. Warranty
We warrant VDO CYTEC models (sensor, computer head and handlebar holder) to the original purchaser for five years from date of
purchase against defects in material and workmanship. This does not cover the batteries and defects resulting from normal wear and
tear, improper care, accidents, abuse or alteration.
Please take care to retain your receipt of purchase.
In case of legitimate complaints, you are entitled to receive a comparable replacement model. Due to possible model changes, your
model might not be available any more.
You may contact your retailer or store where you purchased your VDO CYTEC or send the computer directly to us:
CYCLE PARTS GMBH
Grosse Ahlmuehle 33
D-76865 Rohrbach
Technical specifications are subject to change.
19. Contents
1 computer head
1 handlebar holder with sensor, cable and screw
1 rubber shim for sensor mount
1 spoke magnet
5 cable ties
1 battery 3 V Type CR 2032
1 installation and operation manual
Table of contents
Other VDO CYTEC Bicycle Accessories manuals
