1About this document
1.1Function
This operating instructions manual provides all the information
you need for mounting,connection and setup as well as
important instructions for maintenance and fault rectification.
Please read this information before putting the instrument into
operation and keep this manual accessible in the immediate
vicinity of the device.
1.2Target group
This operating instructions manual is directed to trained
personnel.The contents of this manual should be made
available to these personnel and put into practice by them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution:If this warning is ignored,faults or malfunc-
tions can result.
Warning:If this warning is ignored,injury to persons and/or
serious damage to the instrument can result.
Danger:If this warning is ignored,serious injury to persons
and/or destruction of the instrument can result.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4PLICSRADIO T61 -wireless emitting unit (single channel)
About this document
32865-EN-070801

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual
must be carried out only by trained specialist personnel
authorised by the operator.
During work on and with the device the required personal
protection equipment must always be worn.
2.2Appropriate use
PLICSRADIO T61 is a gateway for wireless transmission of a
HART signal.
You can find detailed information on the application range in
chapter "Product description".
Operational reliability is ensured only if the instrument is
properly used according to the specifications in the operating
instructions manual as well as possible supplementary
instructions.
Due to safety and warranty reasons,any invasive work on the
device beyond that described in the operating instructions
manual may be carried out only by personnel authorised by the
manufacturer.Arbitrary conversions or modifications are
explicitly forbidden.
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to
system components through incorrect mounting or adjustment.
2.4General safety instructions
This is a high-tech instrument requiring the strict observance of
standard regulations and guidelines.The user must take note
of the safety instructions in this operating instructions manual,
the country-specific installation standards as well as all
prevailing safety regulations and accident prevention rules.
The instrument must only be operated in a technically flawless
and reliable condition.The operator is responsible for trouble-
free operation of the instrument.
PLICSRADIO T61 -wireless emitting unit (single channel)5
For your safety
32865-EN-070801

During the entire duration of use,the user is obliged to
determine the compliance of the required occupational safety
measures with the current valid rules and regulations and also
take note of new regulations.
2.5Safety approval markings and safety tips
The safety approval markings and safety tips on the device
must be observed.
2.6CE conformity
The protection goals of the EMC Directive 2004/108/EC (EMC)
and the Low Voltage Directive 2006/95/EC (LVD)are fulfilled.
Conformity has been judged according to the following
standards:
EMC:EN 61326:2004
(electrical instruments for control technology and laboratory
use -EMC requirements)
lEmission:Class A
lSusceptibility:Industrial areas
LVD:EN 61010-1:2001
(safety regulations for electrical measurement,control and
laboratory instruments -part 1:Gerneral requirements)
PLICSRADIO T61 is designed for use in an industrial
environment.Nevertheless,electromagnetic interference from
electrical conductors and radiated emissions must be taken
into account,as is usual with a class Ainstrument according to
EN 61326.IfPLICSRADIO T61 is used in a different
environment,the electromagnetic compatibility to other in-
struments must be ensured by suitable measures.
2.7Safety instructions for Ex areas
Please note the Ex-specific safety information for installation
and operation in Ex areas.These safety instructions are part of
the operating instructions manual and come with the Ex-
approved instruments.
6PLICSRADIO T61 -wireless emitting unit (single channel)
For your safety
32865-EN-070801

2.8Environmental instructions
Protection of the environment is one of our most important
duties.That is why we have introduced an environment
management system with the goal of continuously improving
company environmental protection.The environment man-
agement system is certified according to DIN EN ISO 14001.
Please help us fulfil this obligation by observing the environ-
mental instructions in this manual:
lChapter "Packaging,transport and storage"
lChapter "Disposal"
PLICSRADIO T61 -wireless emitting unit (single channel)7
For your safety
32865-EN-070801

3Product description
3.1Configuration
The scope of delivery encompasses:
lPLICSRADIO T61
lAntenna
lDocumentation
-this operating instructions manual
-Ex-specific"Safety instructions"(with Ex-versions)
-if necessary,further certificates
PLICSRADIO T61 consists of the following components:
5
1
2
3
4

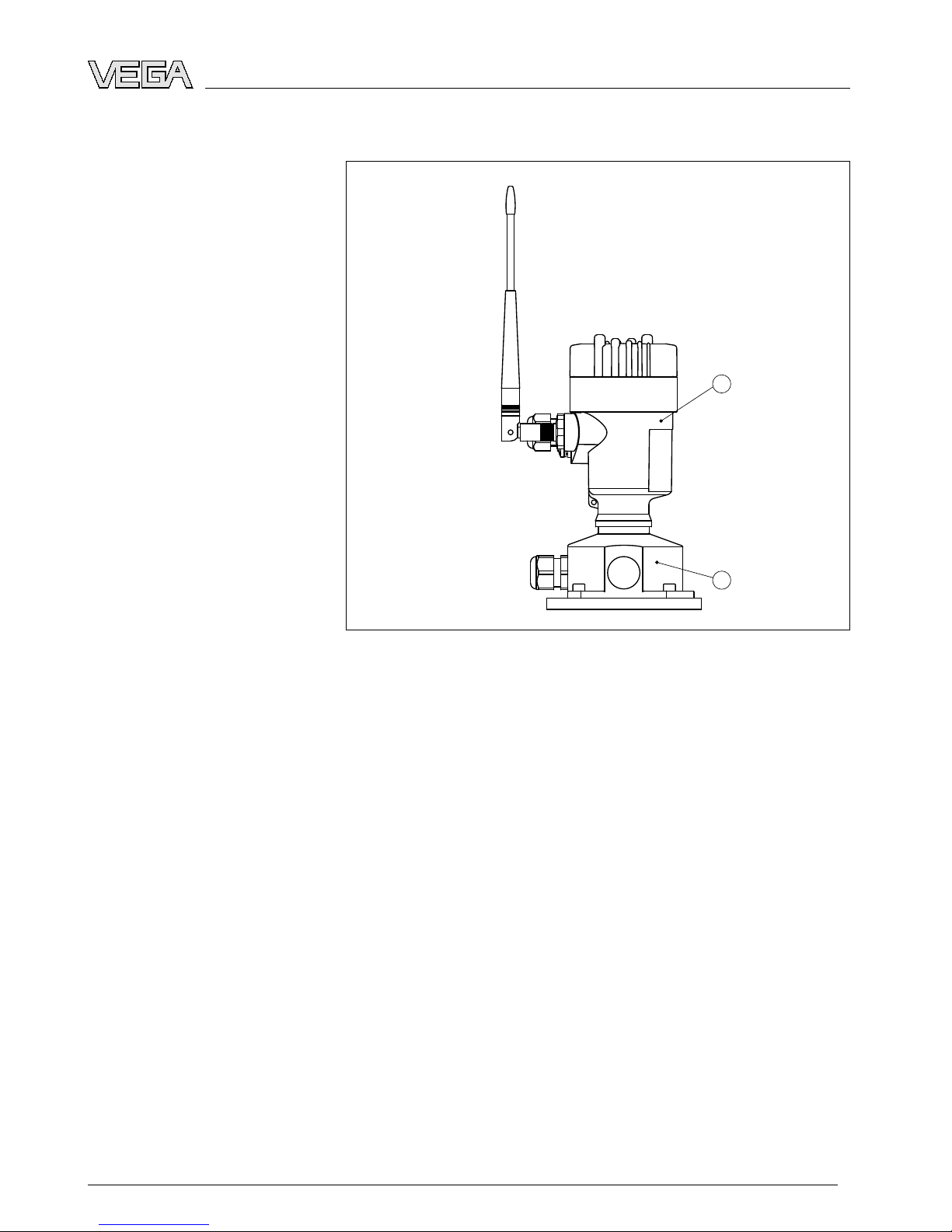

Fig.1:PLICSRADIO T61
1Housing cover,optionally available with window for indicating and adjust-
ment module
2Antenna
3Electronics housing
4Housing socket with connection compartment
5Mounting plate
3.2Principle of operation
The PLICSRADIO series consists of the following instruments:
Scope of delivery
Components
Area of application
8PLICSRADIO T61 -wireless emitting unit (single channel)
Product description
32865-EN-070801

lPLICSRADIO T61 (single channel emitting unit)
lPLICSRADIO T62 (multiple channel emitting unit)
lPLICSRADIO R61 (single channel receiving unit)
lPLICSRADIO R62 (multiple channel receiving unit)
lPLICSRADIO D61 (single channel indicating unit)
lPLICSRADIO C62 (multiple channel processing unit)
The instruments of the PLICSRADIO series are designed for
wireless transmission and indication of 4…20 mA/HART
signals and switching conditions.They are used when wiring a
signal cable from the sensor to the processing/indication unit is
not possible or too complex.Operation of the radio link is
licence and registration free.
All instruments are available in two frequency versions,as
standard version with 2.4GHz and as version for increased
effective radius with 902 MHz.1)
The max.distance with intervisibility can be up to 500 m
(2.4GHz)or 1600 m(902 MHz)depending on the radio
frequency and antenna version.Due to local conditions (e.g.
walls,ceils,buildings,plants)this effective radius may be
considerably reduced.If there is an extremely difficult
structural landscape,a separate antenna,which can be placed
at an optimal reception location,is available.
1
2 3
4
5

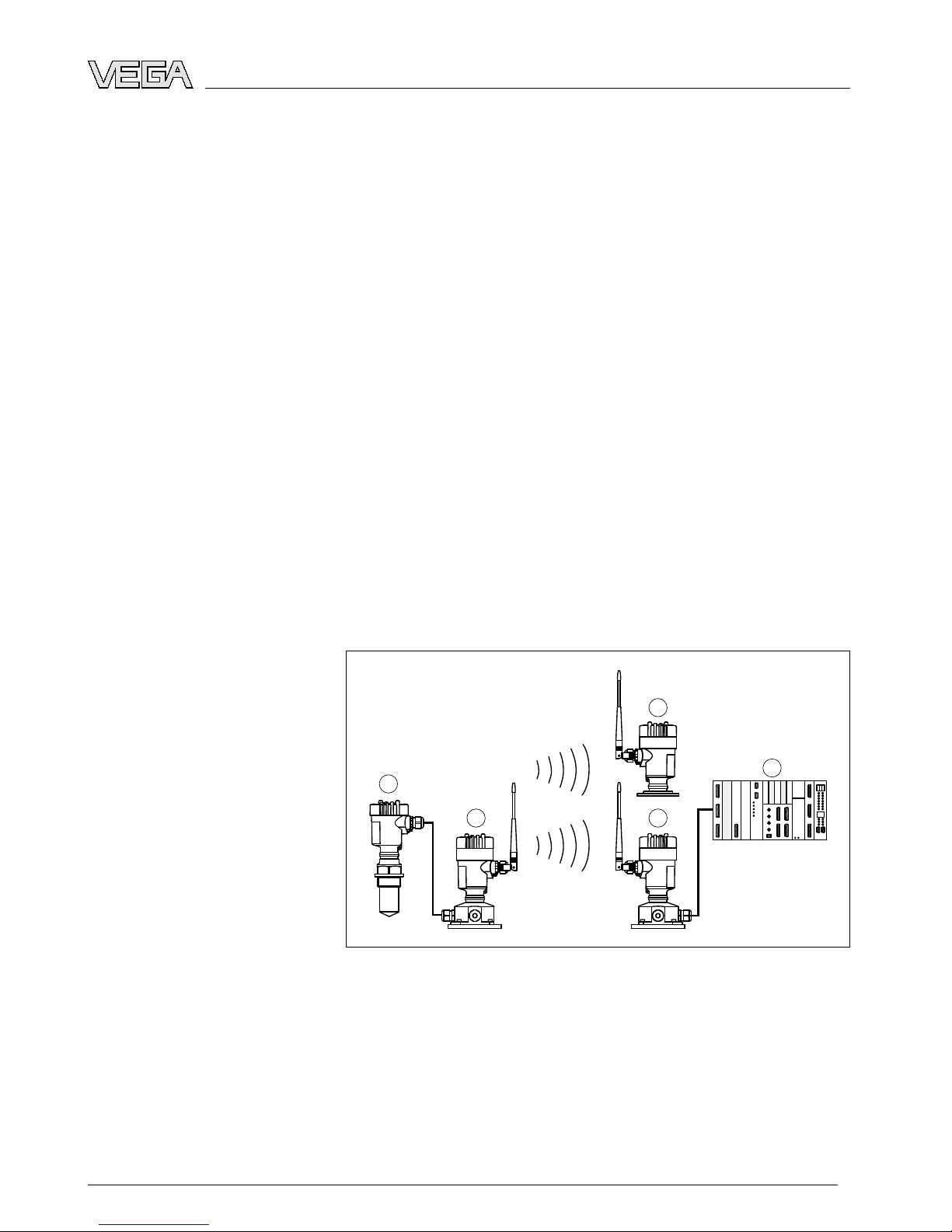

Fig.2:Example PLICSRADIO -single channel application
1HART sensor
2Emitting unit PLICSRADIO T61
3Receiving unit PLICSRADIO R61
4Indicating unit PLICSRADIO D61
5Processing,e.g.safety PLC or indication
1)Only permitted in certain countries,e.g.in USA and Australia.
PLICSRADIO T61 -wireless emitting unit (single channel)9
Product description
32865-EN-070801

4... 20 mA
Ser. No.
12345678
on
OK ESC
COM
PLICSRADIO C62
3
2
1
4
23
5
8
6
7
1
Fig.3:Example PLICSRADIO -multiple channel application
1 2xHART sensor
2 4 …20 mAinstrument
3 2x switching instruments
4Emitting unit PLICSRADIO T62
5Receiving unit PLICSRADIO R62
6Processing unit PLICSRADIO C62
7Outputs (3x4…20 mA,3x relay,RS232/Ethernet)
8Indicating unit PLICSRADIO D61
An individual HART sensor can be connected to PLICSRADIO
T61.The measured value transmission is carried out
exclusively via the digital HART protocol.It can be also used
as power supply unit for the sensor.A PLICSRADIO R61/R62
available in the radio range can retrieve the measured values
of the connected sensor via radio communication.The
measured values can be also displayed by a PLICSRADIO
D61 available in the radio range.
Two power supply unit versions are available.You can find
detailed information on the power supply in chapter "Technical
data"in the "Supplement".
3.3Operation
PLICSRADIO T61 can be adjusted with the following adjust-
ment media:
lwith indicating and adjustment module
lwith an adjustment software according to FDT/DTM
standard,for example with PACTware™and a VEGA-
CONNECT 4or the PLICSRADIO C62 processing unit
Functional principle
Supply
10 PLICSRADIO T61 -wireless emitting unit (single channel)
Product description
32865-EN-070801

The entered parameters are generally saved in PLICSRADIO
T61,when used with PACTware™and PC optionally also on
the PC.
Information:
When using PACTware™and corresponding VEGA DTMs,
additional settings can be carried out which are not possible or
only partly possible with the integrated indicating and adjust-
ment unit.When using an adjustment software,you need the
interface converter VEGACONNECT 4.
3.4Packaging,transport and storage
Your instrument was protected by packaging during transport.
Its capacity to handle normal loads during transport is assured
by a test according to DIN EN 24180.
The packaging of standard instruments consists of environ-
ment-friendly,recyclable cardboard.For special versions,PE
foam or PE foil is also used.Dispose of the packaging material
via specialised recycling companies.
Transport must be carried out under consideration of the notes
on the transport packaging.Nonobservance of these instruc-
tions can cause damage to the device.
The delivery must be checked for completeness and possible
transit damage immediately at receipt.Ascertained transit
damage or concealed defects must be appropriately dealt
with.
Up to the time of installation,the packages must be left closed
and stored according to the orientation and storage markings
on the outside.
Unless otherwise indicated,the packages must be stored only
under the following conditions:
lNot in the open
lDry and dust free
lNot exposed to corrosive media
lProtected against solar radiation
lAvoiding mechanical shock and vibration
lStorage and transport temperature see "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
Packaging
Transport
Transport inspection
Storage
Storage and transport tem-
perature
PLICSRADIO T61 -wireless emitting unit (single channel)11
Product description
32865-EN-070801

4Mounting
4.1General instructions
Select an installation position you can easily reach for
mounting and connecting as well as later retrofitting of an
indicating and adjustment module.The housing can be rotated
by 330°without the use of any tools.You can also install the
indicating and adjustment module in four different positions
(each displaced by 90°).
Mount the instrument at a place where there are as few
obstacles as possible between the emitter and receiver.Direct
intervisibility is the optimal precondition for the radio link.To
bypass possible obstacles,a remote antenna with a 3m cable
is optionally available for standard versions.
Use the recommended cables (see chapter "Connecting to
power supply")and tighten the cable gland.
You can give your instrument additional protection against
moisture penetration by leading the connection cable down-
ward in front of the cable entry.Rain and condensation water
can thus drain off.This applies mainly to mounting outdoors,in
areas where moisture is expected (e.g.by cleaning processes)
or on cooled or heated vessels.

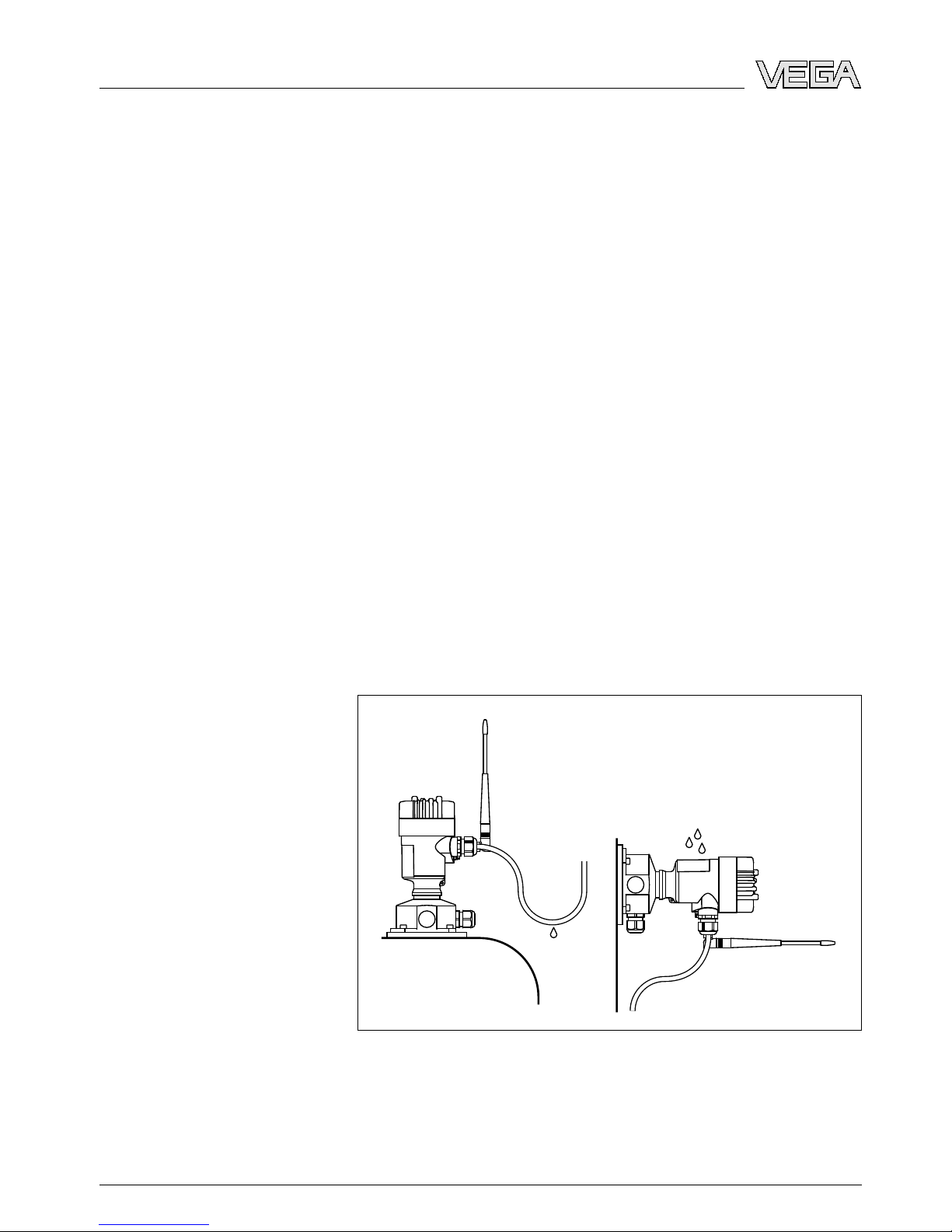

Fig.4:Measures against moisture penetration
4.2Mounting preparations
The following tools are required for mounting:
Installation position
Moisture
Tools
12 PLICSRADIO T61 -wireless emitting unit (single channel)
Mounting
32865-EN-070801

lAllen key size 4
lPhillips head size 2or Torx size T10
lSlotted screwdriver 3mm
PLICSRADIO T61 in Ex version is a corresponding,intrinsi-
cally safe piece of equipment and must not be installed in
hazardous areas.Safe operation is only ensured if the
operating instructions and EG type approval certificate are
observed.
4.3Mounting steps

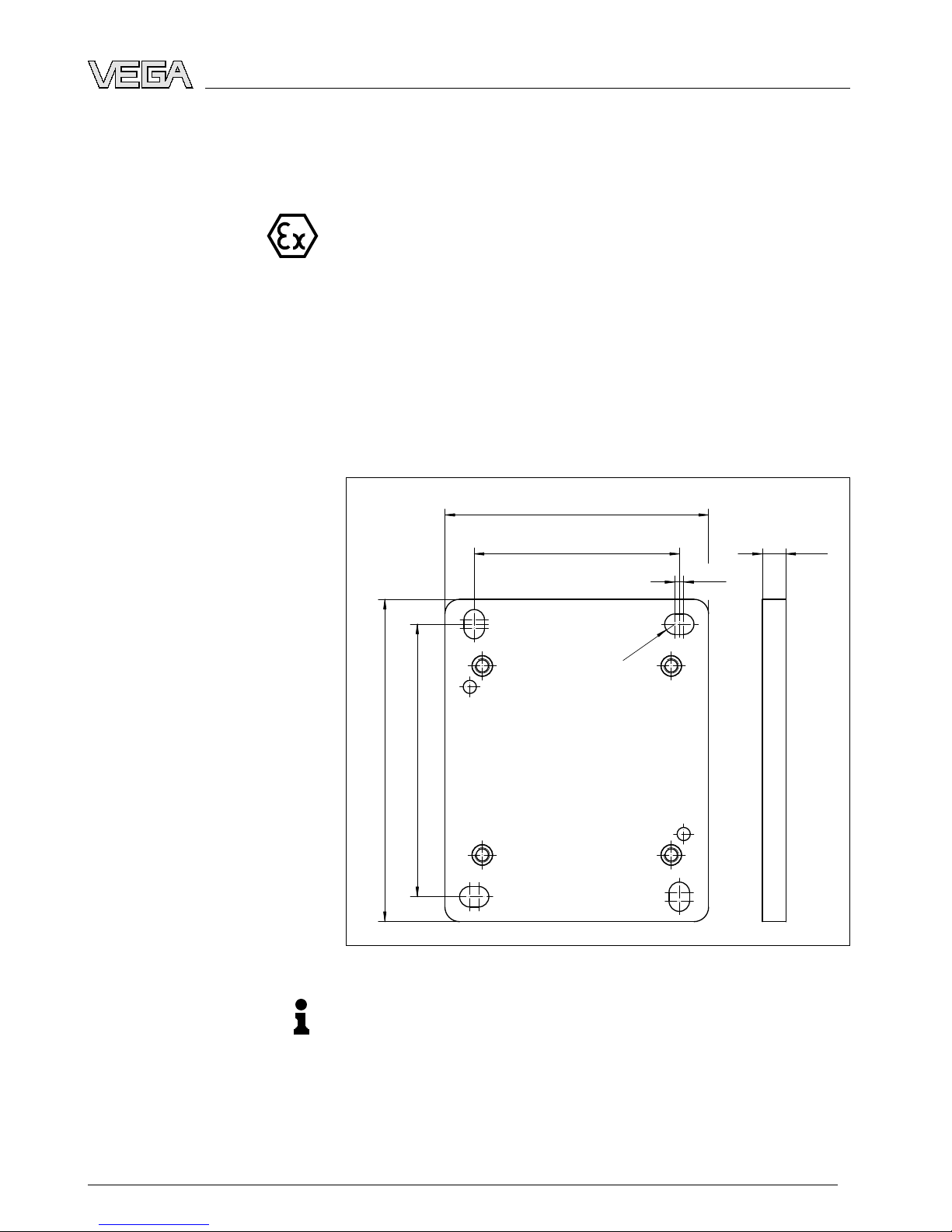

1Mark the holes according to the following drilling template
2Depending on the mounting surface,fasten the wall
mounting plate with 4screws
90mm (3 35/64")
R3,5mm
(9/64")
3mm
(1/8")
70mm (2 3/4") 8mm
(5/16")
93mm (3 21/32")
110mm (4 21/64")
Fig.5:Drilling template -wall mounting plate
Tip:
Mount the wall mounting plate so that the cable entry of the
socket housing points downward.The socket housing can be
displaced by 180°to the wall mounting plate.
Ex environment
Wall mounting
PLICSRADIO T61 -wireless emitting unit (single channel)13
Mounting
32865-EN-070801

Warning:
The four screws for the socket housing must only be hand-
screwed.Atorque >5Nm can damage the wall mounting plate.
14 PLICSRADIO T61 -wireless emitting unit (single channel)
Mounting
32865-EN-070801

5Connecting to power supply
5.1Preparing the connection
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltage surges are expected,overvoltage arresters
should be installed
In hazardous areas you should take note of the appropriate
regulations,conformity and type approval certificates of the
sensors and power supply units.
Two power supply unit versions are available.You can find
detailed information on the power supply in chapter "Technical
data"in the "Supplement".
Power supply of PLICSRADIO T61 is connected with standard
cable according to the national installation standards.
Standard two-wire cable with screening can be used for
connecting the sensors.The screening is absolutely neces-
sary to ensure interference-free operation with HART sensors.
Connect the cable screen on both ends to ground potential.In
the sensor,the screen must be connected directly to the
internal ground terminal.The ground terminal on the outside of
the sensor housing must be connected to the potential
equalisation (low impedance).
If potential equalisation currents are expected,the screen
connection on the side of PLICSRADIO T61 must be made via
a ceramic capacitor (e.g.1nF,1500 V). The low frequency
potential equalisation currents are thus suppressed,but the
protective effect against high frequency interference signals
remains.
Take note of the corresponding installation regulations for Ex
applications.In particular,make sure that no potential equal-
isation currents flow over the cable screen.In case of
grounding on both sides this can be achieved by the use of a
capacitor or a separate potential equalisation.
5.2Connection steps sensor
Proceed as follows:
Note safety instructions
Take note of safety
instructions for Ex
applications
Select power supply
Selecting connection cable
Cable screening and ground-
ing
Select connection
cable for Ex applica-
tions
PLICSRADIO T61 -wireless emitting unit (single channel)15
Connecting to power supply
32865-EN-070801

1Loosen the four screws on the housing socket with an Allen
key
2Remove the housing socket from the mounting plate
3
2
1

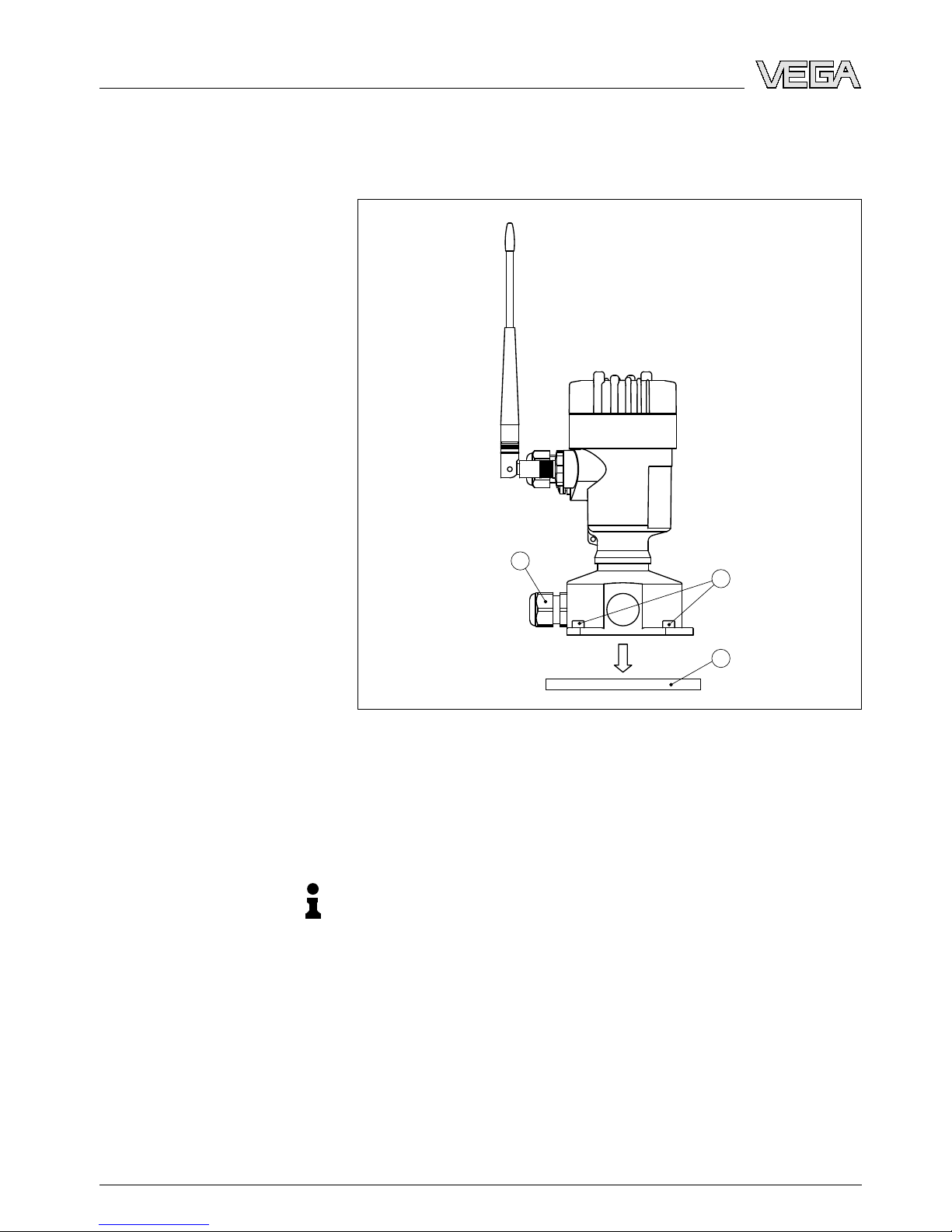

Fig.6:Remove the mounting plate from the housing socket
1Hexagon screws
2Wall mounting plate
3Cable gland

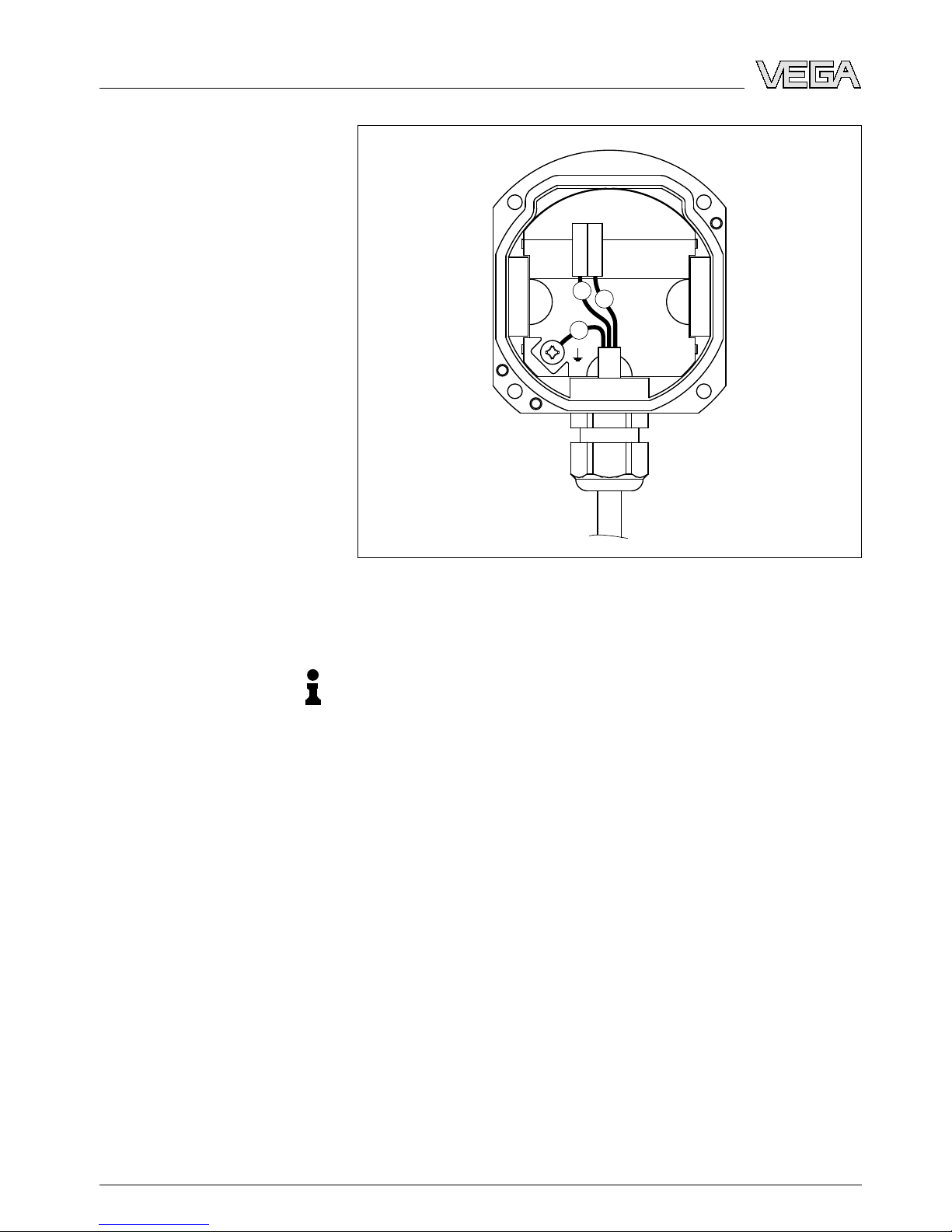

3Lead the connection cable through the cable gland on the
housing socket
Tip:
Take note when inserting the cable that after connection,the
housing must be turned again by 180°to screw it securely to
the mounting plate,i.e.bring the instrument into its the final
position.
4Connect the wire ends as described in chapter "Con-
nection plan".Take note of the polarity.
5Connect the screen to the internal ground terminal and the
external ground terminal on top of the housing to potential
equalisation
16 PLICSRADIO T61 -wireless emitting unit (single channel)
Connecting to power supply
32865-EN-070801

6Tighten the compression nut of the cable entry.The seal
ring must completely encircle the cable
7Attach the mounting plate again and tighten the screws
5.3Connection steps voltage supply
Proceed as follows:
1Unscrew the housing cover
2If an indicating and adjustment module is installed,remove
it by turning it slightly to the left.
3Remove the terminal cover by loosening the fixing screw
4Loosen compression nut of the cable entry
5Remove approx.10 cm (4in)of the cable mantle,strip
approx.1cm (0.4in)insulation from the ends of the
individual wires
6Insert the cable into the sensor through the cable entry
7Lift the opening levers of the terminals with a screwdriver
(see following illustration)
8Insert the wire ends into the open terminals according to
the wiring plan
PLICSRADIO T61 -wireless emitting unit (single channel)17
Connecting to power supply
32865-EN-070801

Fig.7:Connection steps 6and 7(connect voltage supply)
9Press down the opening levers of the terminals,you will
hear the terminal spring closing
10 Check the hold of the wires in the terminals by lightly
pulling on them
11 Tighten the compression nut of the cable entry.The seal
ring must completely encircle the cable
12 Insert and screw terminal cover
13 If an indicating and adjustment module is installed,insert it
by turning it slightly to the right.
14 Screw the housing cover back on
The electrical connection is finished.
18 PLICSRADIO T61 -wireless emitting unit (single channel)
Connecting to power supply
32865-EN-070801

5.4Wiring plan
1
2
Fig.8:Connection voltage and sensor supply
1Electronics housing with terminals for voltage supply
2Socket housing with terminals for sensor connection
Overview
PLICSRADIO T61 -wireless emitting unit (single channel)19
Connecting to power supply
32865-EN-070801

1 2
1 2
3
Fig.9:Connection of the sensor in the socket housing
1+
2-
3Grounding
Information:
Two-wire or four-wire instruments can be connected.In the
menu you can switch over between active (standard setting)
and passive operation of the measuring data input.The
connection assignment is the same for both modes.
lIn active mode,PLICSRADIO T61 provides the voltage
supply for the connected sensors.This mode is for
connection of pressure transmitters without separate
supply voltage (sensors in two-wire version).
lIn the passive mode,the sensors are not powered -only
the measured value is transmitted.This input is for sensors
with their own,separate power supply (sensors in four-wire
version). On a PLICSRADIO T61 in Ex version,the passive
input is not available for approval-technical reasons.
Wiring plan sensor connec-
tion in socket housing
20 PLICSRADIO T61 -wireless emitting unit (single channel)
Connecting to power supply
32865-EN-070801
