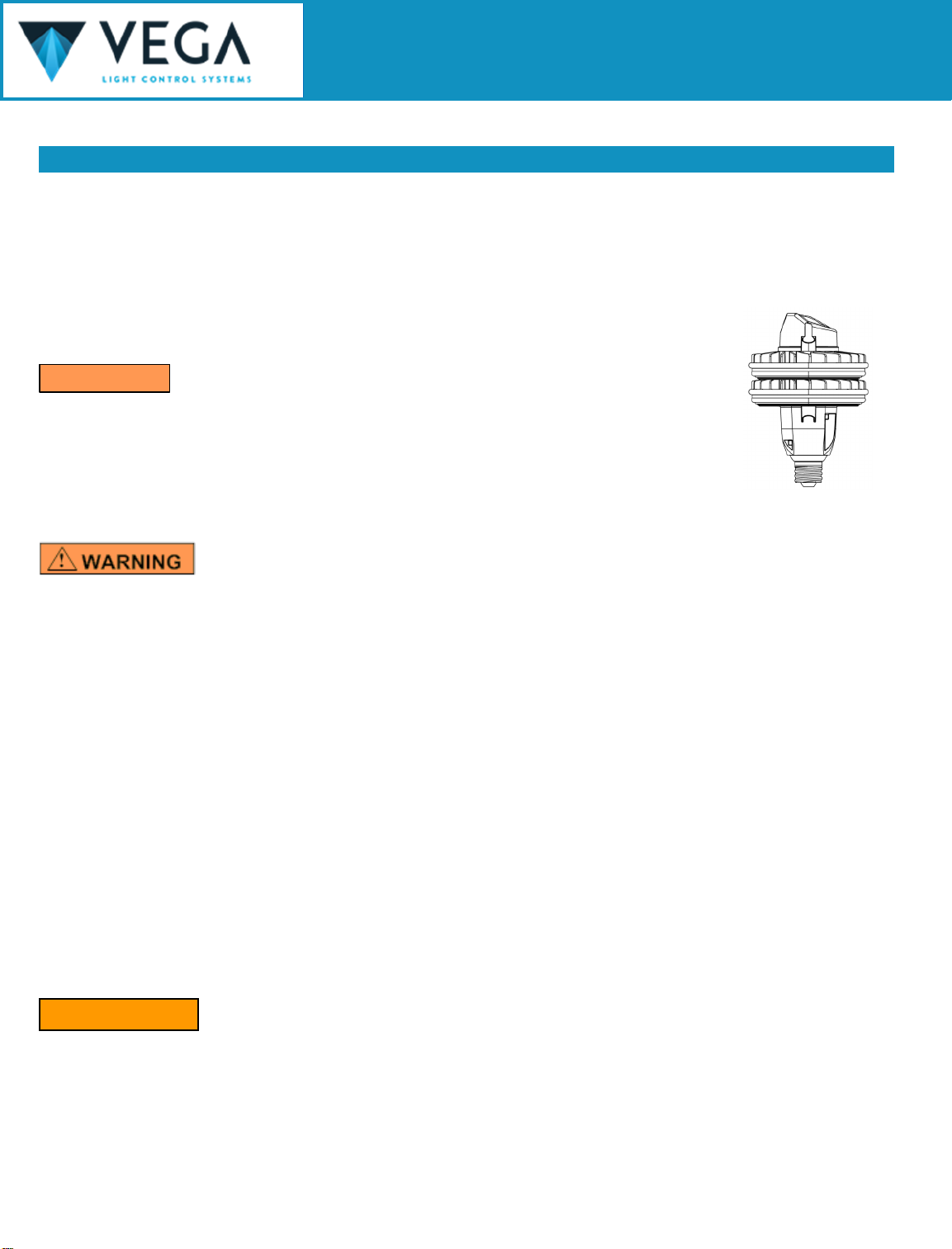

Vega D4A User manual

Key: NA –No Up Light
D –Base Down, U –Base Up
E26 –Medium Screw Base
DIM –Bluetooth control for ON/OFF and setting lamp dimming level.
** Product also available in fixed mounted Retrofit Kits. Consult Vega for options.
These installation instructions apply to the VEGA D4A Medium Lamp models designated below.
D4A E26 LED HID REPLACEMENT
INSTALLATION GUIDE
Vega Light Control Systems ●Holland, Michigan 49423
Model
-
Watts
-
CCT
-
Type
-
Acc. Cap
-
Base
Down/Up
-
Control
Applications
D4A
-
20M
-
22K
-
T5M
-
NA
-
E26 D
-
STD
HID Replacement in Post Top and Pendant
D4A
-
30M
-
30K
-
T3M
-
** U
-
DIM
Style Luminaires With 19” Globes and
D4A
-
40M
-
40K
Vertical Lamps
-
50K
E26 Medium Base D4A
5024803 REV B
AVERTISSEMENT
CAUTION
•WARNING - RISK OF FIRE OR ELECTRIC SHOCK. LUMINAIRES WIRING, POWER SUPPLY, OR OTHER
ELECTRICAL PARTS MAY BE DAMAGED WHEN DRILLING FOR INSTALLATION OF RETROFIT KIT HARDWARE.
INSPECT WIRINGAND COMPONENTS FOR DAMAGE.
•WARNING - RISK OF FIRE OR ELECTRIC SHOCK. LED RETROFIT KIT INSTALLATION REQUIRES KNOWLEDGE
OF LUMINAIRES ELECTRICAL SYSTEMS. IF NOT QUALIFIED, DO NOT ATTEMPT INSTALLATION. CONTACT A
QUALIFIED ELECTRICIAN.
•WARNING - RISK OF FIRE OR ELECTRIC SHOCK. INSTALL THIS KIT ONLY IN LUMINAIRES THAT HAVE THE
CONSTRUCTION FEATURES AND DIMENSIONS SHOWN IN THE PHOTOGRAPHS AND/OR DRAWINGS AND
WHERE THE INPUT RATING OF THE RETROFIT KIT DOES NOT EXCEED THE INPUT RATING OF THE
LUMINAIRE.
•WARNING - TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET
METAL OR OTHER SHARP OBJECTS.
•DO NOT MAKE OR ALTER ANY OPEN HOLES IN AN ENCLOSURE OF WIRING OR ELECTRICAL COMPONENTS
DURING KIT INSTALLATION.
•ONLY THOSE OPEN HOLES INDICATED IN THE PHOTOGRAPHS AND/OR DRAWINGS MAY BE MADE OR
ALTERED AS A RESULT OF KIT INSTALLATION. DO NOT LEAVE ANY OTHER OPEN HOLES IN AN ENCLOSURE
OF WIRINGOR ELECTRICAL COMPONENTS.
•THE RETROFIT KIT IS ACCEPTED AS A COMPONENT OF A LUMINAIRE WHERE THE SUITABILITY OF THE
COMBINATION SHALL BE DETERMINED BY AUTHORITIES HAVING JURISDICTION. PRODUCT MUST BE
INSTALLED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH THE APPLICABLE AND APPROPRIATE
ELECTRICAL CODES. THE INSTALLATION GUIDE DOES NOT SUPERSEDE LOCAL OR NATIONAL
REGULATIONSFOR ELECTRICAL INSTALLATIONS.
•AVERTISSEMENT - RISQUE D’INCENDIE OU DE CHOC ÉLECTRIQUE. LE CÂBLAGE DES LUMINAIRES, LES
BLOCS D’ALIMENTATION OU LES AUTRES COMPOSANTS ÉLECTRIQUES PEUVENT SUBIR DES DOMMAGES
LORS DU PERÇAGE EN VUE D’INSTALLER LA QUINCAILLERIE D’UN NÉCESSAIRE DE MODERNISATION.
VÉRIFIER SI LES CÂBLES ET LES COMPOSANTS SONT ENDOMMAGÉS.
•AVERTISSEMENT - RISQUE D’INCENDIE OU DE CHOC ÉLECTRIQUE. L’INSTALLATION DE CE NÉCESSAIRE DE
MODERNISATION EXIGE UNE PERSONNE FAMILIÈRE AVEC LA CONSTRUCTION ET LE FONCTIONNEMENT
DU SYSTÈME ÉLECTRIQUE DU LUMINAIRE ET DES RISQUES ASSOCIÉS. TOUTE PERSONNE QUI N’EST PAS
QUALIFIÉE NE DOIT FAIRE AUCUNE TENTATIVE D’INSTALLATION ET DOIT CONTACTER UN ÉLECTRICIEN
QUALIFIÉ.
•THIS IS A LINE DRIVEN 120VAC-250VAC LAMP. DO NOT INSTALL ABOVE 250VAC.
•THIS LAMP IS NOT RATED FOR USE WITHHID BALLAST OR EXTERNAL LED DRIVER.
•DO NOT USE WITH STANDARD DIMMERS.
•SUITABLE FOR DAMP LOCATIONS –DO NOT USE WHEREDIRECTLY EXPOSED TO WATER.
•THIS DEVICE IS NOT INTENDED FOR EMERGENCY LIGHTING OR FOR USE WITH
EMERGENCY EXITS.
•PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTINGINSTALLATION.
20211001

•AVERTISSEMENT - RISQUE D’INCENDIE OU DE CHOC ÉLECTRIQUE. N’INSTALLER CE NÉCESSAIRE QUE
DANS LE LUMINAIRE DONT LES CARACTÉRISTIQUES DE CONSTRUCTION ET LES DIMENSIONS SONT
CONFORME À CELLES ILLUSTRÉES DANS LES PHOTOS ET/OU LES DESSINS ET DONT LA PUISSANCE
D’ENTRÉE NOMINALE DU NÉCESSAIRE DE MODERNISATION NE DÉPASSE PAS CELLE DU LUMINAIRE.
•AVERTISSEMENT - AFIN DE PRÉVENIR L’ENDOMMAGEMENT OU L’ABRASION DES CÂBLES, ÉVITER TOUT
CONTACT ENTRE CES DERNIERS ET LE BORD D’UN OBJET TRANCHANT TEL QU’UNE TÔLE.
•NE PAS FAIRE OU MODIFIER LES TROUS OUVERTS DANS L'ENCEINTE DU CÂBLAGE OU DES COMPOSANTS
ÉLECTRIQUESPENDANT L'INSTALLATIONDU KIT.
•SEULS LES OUVERTURES INDIQUÉES DANS LES PHOTOS ET/OU LES DESSINS PEUVENT ÊTRE FAITS OU
MODIFIÉS À LA SUITE DE L’INSTALLATION DU NÉCESSAIRE. IL EST INTERDIT DE LAISSER D’AUTRES
OUVERTURES DANS UN BOÎTIERDE CÂBLAGE OU DE COMPOSANTSÉLECTRIQUES.
•LE NÉCESSAIRE DE MODERNISATION EST ACCEPTÉ À TITRE DE COMPOSANT D’UN LUMINAIRE LORSQUE
LA PERTINENCE DE LA COMBINAISON DOIT ÊTRE DÉTERMINÉE PAR LES AUTORITÉS COMPÉTENTES. CE
PRODUIT DOIT ÊTRE MIS EN PLACE PAR UN ÉLECTRICIEN QUALIFIÉ CONFORMÉMENT AUX CODES
ÉLECTRIQUES APPROPRIÉS APPLICABLES. LE GUIDE D’INSTALLATION NE SUPPLANTE PAS LES
RÈGLEMENTSLOCAUX OU NATIONAUX EN MATIÈRE D’INSTALLATIONS ÉLECTRIQUES.
Vega Light Control Systems ●Holland, Michigan 49423
FCC:
•NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interferenceat his own expense.
•This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
•Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
•The following two statements apply to Bluetoothunits:
•This transmitter must not be locatedor operating in conjunction with any other antenna or transmitter.
•Radio Frequency (RF) Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.
ISED Canada:
•This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device
may not cause interference, and (2) This device must accept any interference, including interference that may cause
undesired operation of the device.
•L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences
et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes : (1) L'appareil ne doit pas produire de brouillage; (2) L'appareil doit accepter tout
brouillage radioélectriquesubi, même si le brouillageest susceptible d'en compromettrele fonctionnement.
•Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
•Attention : Tout changement ou modification non expressément approuvé par la partie responsable de la conformité
pourrait annuler l’autorisation de l’utilisateur d’utiliser l’équipement.
•The following two statements apply to Bluetooth units: / Les deux déclarations suivantes s'appliquent aux unités
Bluetooth:
•This transmitter must not be co-locatedor operated in conjunction with any other antenna or transmitter.
•Cet émetteur ne doit pas être co-implanténi exploité conjointement avec une autre antenne ou un autre émetteur.
•Radio Frequency (RF) Radiation Exposure Statement: / Énoncé d'exposition aux rayonnements des
radiofréquences(RF) :
•This equipment should be installed and operated with minimum distance of 20 cm between the radiator and
your body.
•Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre
corps.
Link to Supplier’s Declaration of Conformity (SDoC):
•https://vegalightcontrolsystems.com/products/d4a-adaptive-light-source/#tab-id-2
5024803 REV B 20211001

INTENDED APPLICATIONS
Vega Light Control Systems ●Holland, Michigan 49423
Base UP
Pendant
style fixtures
Base DOWN
Post Top
style fixtures
If installed in fixture other than intended, contact VEGA customer service to evaluate
applicability to fixture: [e-mail], Phone: [phone]
OR visit www.vegalightcontrolsystems.com for additional reference designs
This D4A Lamp is designed for vertical use only AND in compatible applications only with
features similar to those pictured here
PRODUCT DESCRIPTION
This D4A Lamp is designed for direct installationinto the intendedfixture and will not require
the use of any drills or cutting tooling. Do not make or alter any open holes in a wiring
enclosure or electricalcomponents during the kit installation.
Required Toolsand Hardware (Not provided)
•Flat and PhillipsHead Screwdrivers
•Wrenchand/or Hex Keys
•Pliers, Wirestrippers
•Screws retained from fixture
Parts included in kit:
Re-lamping Notice Label
5024803 REV B
1. AType 5 LED Light Engine is best suited to a Refractive Globe. Type 3 Refractive globes will
effectively convert the T5M lamp into a Type 3 distribution in globes such as the Lindy Type 3
and the GranvilleType 3.
2. House side shields are available as needed.
3. Contact VEGA Customer Service with any questions: supp[email protected],
Phone: [phone]
FIXTURE CONSIDERATIONS AND PLANNING
20211001

Vega Light Control Systems ●Holland, Michigan 49423
FIXTURE PREPARATION STEPS
This is a Line Driven (120VAC-250VAC) LED Lamp
For supplemental installation instructions, see:
https://vegalightcontrolsystems.com/products/d4a-adaptive-light-source/#tab-id-2
A. Disconnect electrical power to the fixture.
B. Follow the Fixture Preparation Steps, above.
C. Bypass the existing HID ballast. Refer also to the wiring diagrams.
Step 1: Remove the lamp socket mounting plate and disconnect the lamp socket wiring at
the ballast. Retain the mounting plate, socket, and screws for reuse.
Step 2: Remove the ballast and disconnect the incoming Line Voltage (Hot) supply wire, the
Neutral supply wire, and the ground wire from the ballast.
Step 3: Connect the Hot (120VAC-250VAC) supply wire to the black wire of the lamp socket
and connect the Neutral supply wire to the white wire of lamp socket.
D. Secure the lamp socket mounting plate and lamp socket to the fixture. Reuse the screws from
the fixture to attach the lamp socket plate when possible.
E. Install the D4A LED Lamp into the lamp socket.
F. Optional: Connect the D4A ground wire to a chassis screw in the fixture or connect to the
existing ground wiring. Optional ground connectionprovides true 3-wire surge suppression.
G. Apply re-lamping notice label near the socket inside the fixture.
H. Restore the original light fixture sealing for water and insect control. Rainwater must not enter
the wiring compartment.
I. Install globe. For Type 3 globe, rotate “Street Side” of globe to street.
J. Turn power on to test installation.
INSTALLATION INSTRUCTIONS
Note: Connect line voltage wires using wire nuts as shown in the wiring diagram
✓Strip wires appropriately for the wire nuts utilized, 3/8” for those included in the kit.
✓The white wire may be either Neutral or Line.
✓The surge protector is integrated into the lamp. Maximum protection is provided when Green
or Green/Yellow wire is tied to the groundingconductor.
5024803 REV B
Note: Failure to removecomponents
noted, including internal reflectors will
voidproduct warranty
1. Disconnect electrical power before attempting installation.
2. Remove the fixture globe.
3. Remove internal reflectors or Lite Lid from globe.
4. Clean or replace globe as needed.
5. Remove lamp, original optical components.
6. Inspect the Line Voltage (Hot) supply wire, the Neutral supply wire, the Ground wire, and the
lamp socket assembly and wires for damage or deterioration. If damaged or deteriorated,
replace prior to installation of the retrofit kit.
7. If photocell-controlled, connect unit after external control.
Note: For connecting to and configuringmodels that include the Bluetooth Dimming capabilities
go to www.vegalightcontrolsystems.com for information about the VEGA Link IQ D4A smart
phone interface.
20211001

Vega Light Control Systems ●Holland, Michigan 49423

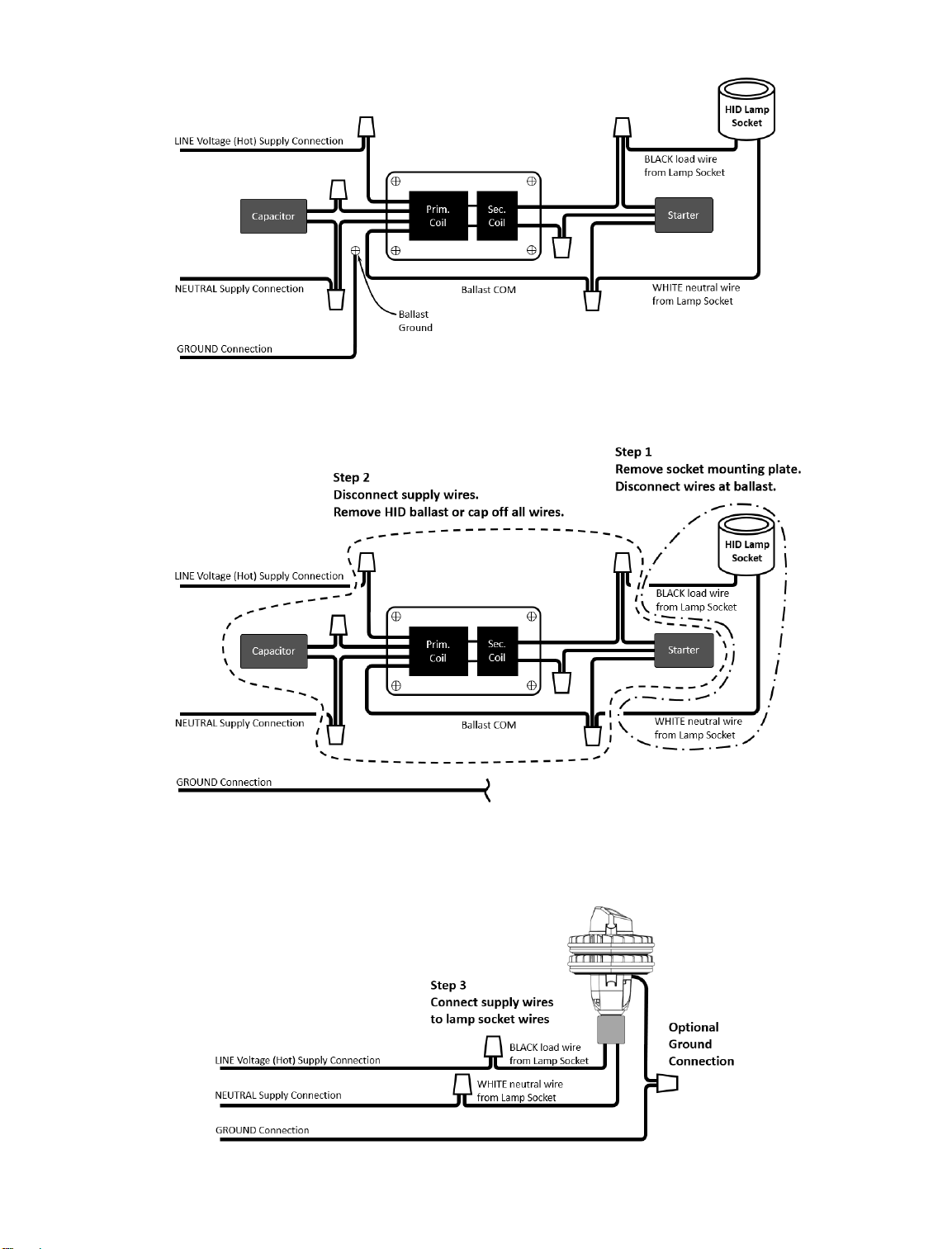

Typical Electrical Configuration Prior to Conversion
Final Configuration –Screw Base
Ballast Bypass
5024803 REV B 20211001
