Vega SH-2 User manual

www.vega-absolute.ru
LORAWAN NB-IOT
MODEM
VEGA SH-2
User manual
Modem Vega SH-2 can work with both LoRaWAN™
technology and NB-IoT data transfer technology.
There are two options for the device:
-with 6400 mAh battery;
-with 12800 mAh battery.

Vega SH-2 / User Manual
2
Revision 02 –05 April 2019
Document Information
Title
LoRaWAN NB-IoT modem Vega SH-2
Document type
Manual –Translation from Russian
Document number
V02-SH2-01
Revision and date
02 - 05 April 2019
This document applies to the following products:
Product name
Type number
End devices
Vega SH-2
Revision History
Revision
Date
Name
Comments
01
25.03.2019
KEV
Document creation date
02
05.04.2019
KEV
Case dimensions are changed

Vega SH-2 / User Manual
3
Revision 02 –05 April 2019
CONTENTS
INTRODUCTION............................................................................................................................................................................4
1 DESCRIPTION AND OPERATION ............................................................................................................................................5
Device description ....................................................................................................................................................................5
2 SPECIFICATION ..........................................................................................................................................................................6
3 OPERATION.................................................................................................................................................................................7
Contacts ......................................................................................................................................................................................7
Indication ....................................................................................................................................................................................9
Initial Startup ............................................................................................................................................................................11
LoRaWAN technology operation .........................................................................................................................................11
NB-IoT technology operation ..............................................................................................................................................12
Connecting via USB ................................................................................................................................................................12
4 VEGA LORAWAN CONFIGURATOR......................................................................................................................................15
Interface of the application ...................................................................................................................................................15
Connection to the device......................................................................................................................................................16
“Device info” tab ......................................................................................................................................................................17
“LoRaWAN settings” tab .........................................................................................................................................................19
“Vega SH-2” tab .......................................................................................................................................................................24
5 COMMUNICATION PROTOCOL ...........................................................................................................................................27
Vega SH-2 modem transmits the following types of packets........................................................................................27
VEGA SH-2 modem receives packets of the following types.........................................................................................28
Message format for MQTT broker sending ........................................................................................................................29
6 STORAGE AND TRANSPORTATION REQUIREMENTS ......................................................................................................31
7 CONTENT OF THE PACKAGE ................................................................................................................................................32
8 WARRANTY................................................................................................................................................................................33

Vega SH-2 / User Manual
4
Revision 02 –05 April 2019
INTRODUCTION
This manual is designated for Vega SH-2 modem (hereinafter –the modem)
manufactured by Vega-Absolute LLC and provides information on powering and activation
procedure, control commands and functions of the modem.
This manual is targeted at specialists familiar with installation work fundamentals of
electronic and electrical equipment.
The modem shall be installed and adjusted by qualified specialists in
order to ensure proper operation of the device

Vega SH-2 / User Manual
5
Revision 02 –05 April 2019
1 DESCRIPTION AND OPERATION

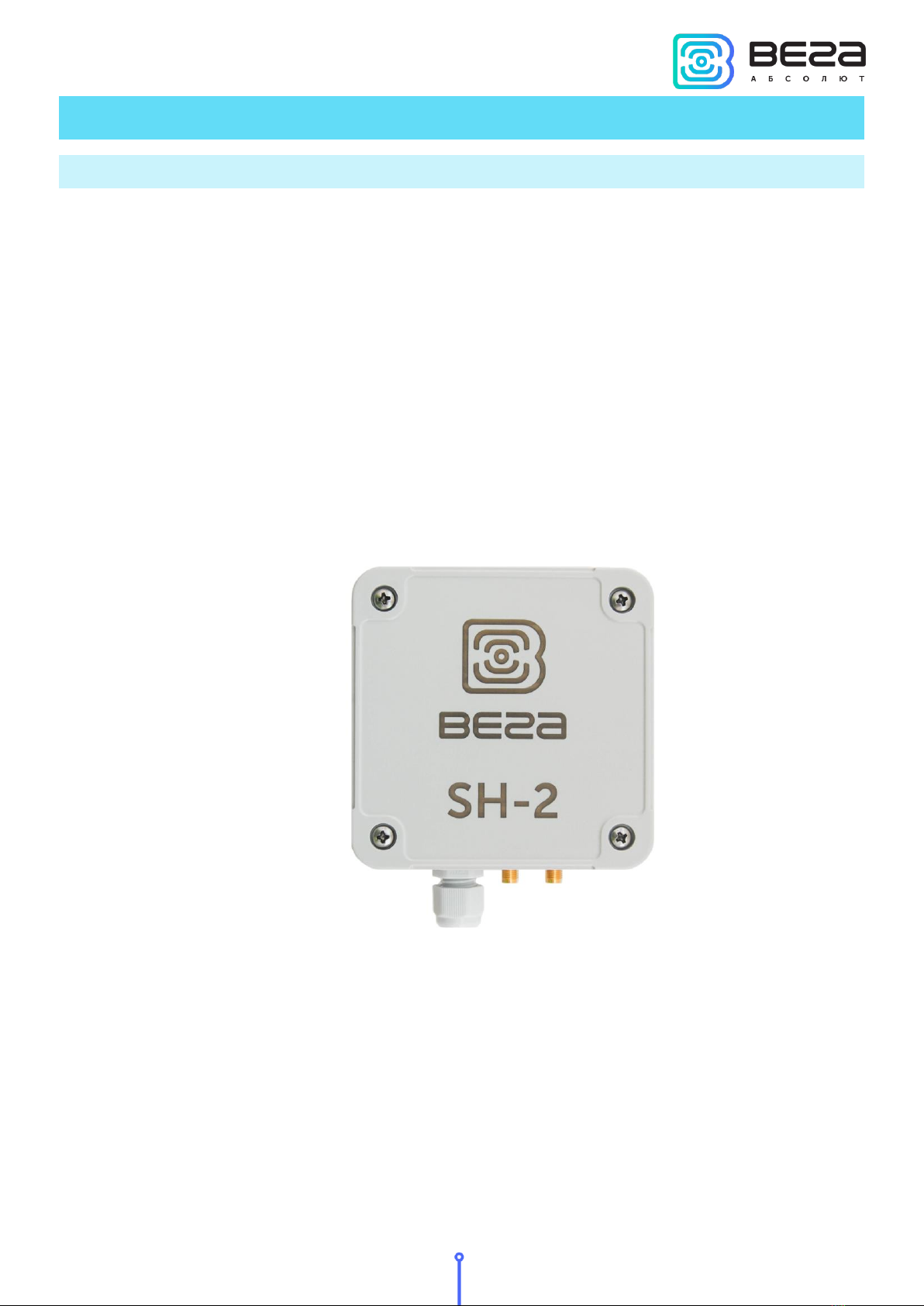

DEVICE DESCRIPTION
Vega SH-2 modem is designed for collection the data from external connected
devices, further accumulating and transmitting of this information in the LoRaWAN or LTE
NB-IoT network.
The modem collect the data from the external devices with configurable period of 5,
15, 30 minutes, 1, 6, 12 or 24 hours. Collected data is saved in modem memory as a packet
with specified time of collect and transmitted at the next communication session with
LoRaWAN network. Memory can hold up to 100 packets.
The modem has two digital inputs which may be configured as pulse or security.
Besides the device has two analog inputs, 1-Wire and RS-485 interfaces.
Communication period can be equal to 5, 15, 30 minutes, 1, 6, 12 and 24 hours. While
communication session the modem transmitting saved packets from the earliest to the latest.
The modem is powered by a one or two 6400 mAh built-in battery or an external
power supply 4.5…55 V.
The internal clock is set automatically when device connected to the "Vega LoRaWAN
Configurator" via USB, also adjustable via LoRaWAN.
The modem can transmit collected data via LoRaWAN or LTE NB-IoT technology (see
part 4).

Vega SH-2 / User Manual
6
Revision 02 –05 April 2019
2 SPECIFICATION
Main
Digital inputs
2
Analog inputs
2
Interface
1-Wire / RS-485 (modbus)
USB-port
micro-USB, type B
Operating temperatures
-40…+85 °С
Communication channels
LTE NB-IoT or LoRaWAN
Internal temperature sensor
yes
Communication period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Data collection period
5, 15, 30 minutes, 1, 6, 12 or 24 hours
Memory amount for storing packets
100 packets
Cellular
Supported cellular standards
LTE Cat NB1
Communication protocol
MQTT
Battery life up
3 years with one battery and
communication period 24 hours
LTE NB-IoT antenna type
external
LoRaWAN
LoRaWAN class
C
Quantity of LoRaWAN channels
16
Frequency plan
RU868, EU868, IN865, AS923, AU915,
KR920, US915, KZ865, custom (EU868
based)
Activation type
ABP or OTAA
Type of the LoRaWAN antenna
external
Sensitivity
-138 dBm
Radio coverage in restrained urban conditions
up to 5 km
Radio coverage within line of sight
up to 15 km
Transmitter power
up to 100 mW (configurable)
Battery life up
10 years with one battery and
communication period 24 hours
Power
Built-in battery
6400 /12800 mAh
External power supply
4.5…55 V
Case
Housing dimensions (without cable gland and SMA-
connector)
95 х 95 х 50 mm
Ingress protection rating
IP65

Vega SH-2 / User Manual
7
Revision 02 –05 April 2019
3 OPERATION
CONTACTS
The modem has 6 pairs of contacts which described in the table below.
Contact
Name on the board
Description
1
COUNT1
Digital input 1
2
COUNT2
Digital input 2
3
GND
Ground
4
GND
Ground
5
ADC1
Analog input 1 (0…21 В)
6
ADC2
Analog input 2 (0…21 В)
7
RS485_A
RS-485 Interface A
8
RS485_B
RS-485 Interface B
9
ONE_WIRE
1-Wire Interface
10
GND
Ground
11
+V_EXT
External power +
12
GND
External power -
Digital inputs COUNT1 and COUNT2 may operate in pulse or security mode. If the
input has not connection there is a logic ‘1’.

Vega SH-2 / User Manual
8
Revision 02 –05 April 2019
In the pulse mode the modem counts the number of negative pulses at the input. In the
security mode the modem monitors the input state change and send an alarm message into
the network by the one of events: security circuit close, unclose or both of it. You can specify
the event for security input triggering via the “Vega LoRaWAN Configurator” application.
Analog inputs ADC1 and ADC2 may be used for measuring an external voltage from 0
to 21 V.
RS-485 (modbus) and 10Wire interfaces cannot connecting at the same time. Switching
between two interfaces carried out with jumpers on the XP4 and XP5 connectors on the
board.
1-Wire interface allows to connect is up to 10 external thermistors (see part 4).
Jumpers
disposition for
RS-485 interface
operating
Jumpers
disposition for
1-Wire interface
operating

Vega SH-2 / User Manual
9
Revision 02 –05 April 2019
INDICATION
There is a red LED on the board. The indication is only used when the device is
activated in the LoRaWAN network, when data transmitting via NB-IoT technology and when
the operating modes are changed. Also there is a green LED which used only for configuring
during manufacture.
LED signal
Meaning
LoRaWAN technology
Series of short flashings
Linking to the LoRaWAN network
One long flashing
The device connected to the network
and is in active mode
Three long flashings
Device switched to the «Storage»mode

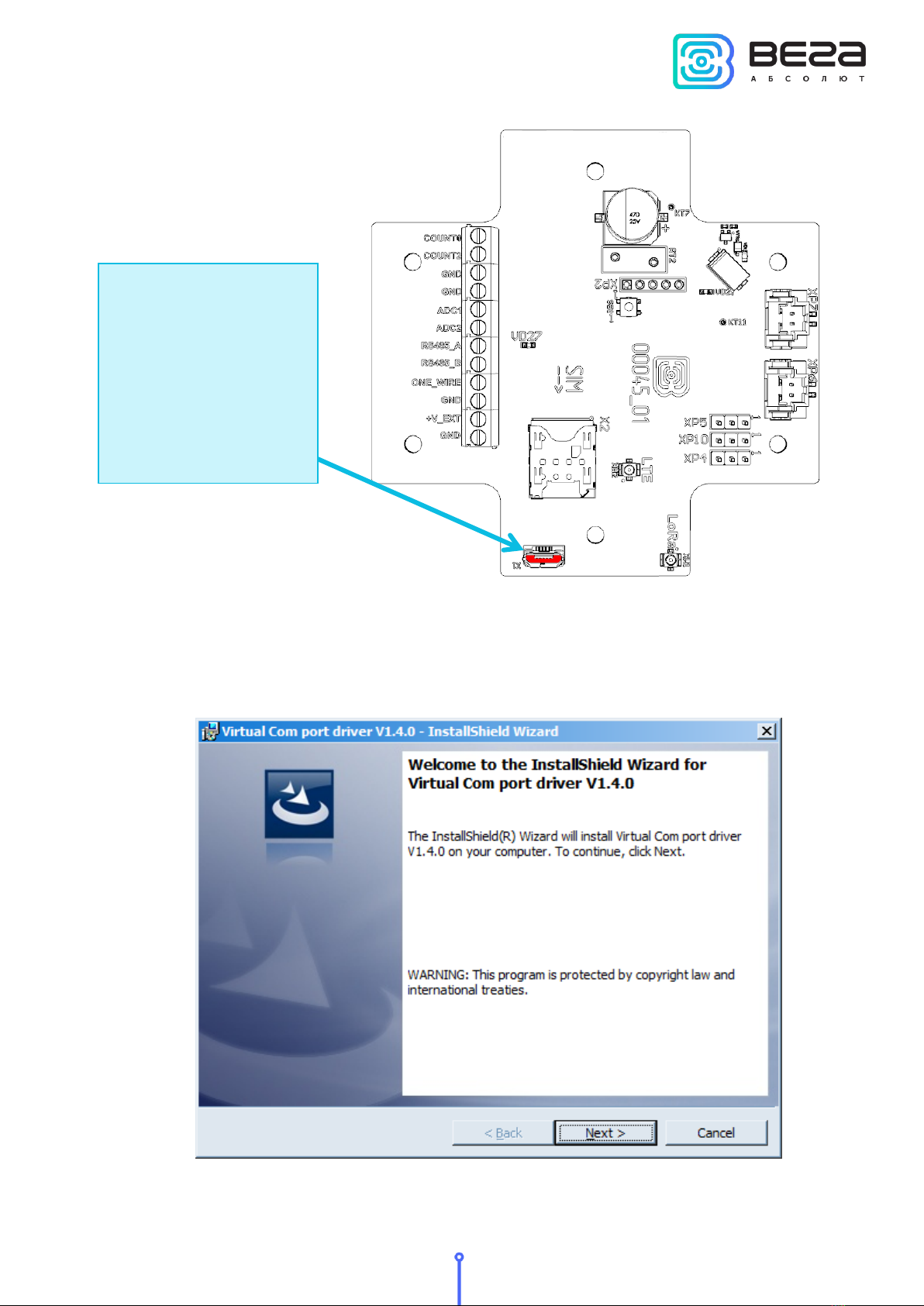

Red LED on the
board

Vega SH-2 / User Manual
10
Revision 02 –05 April 2019
NB-IoT technology
Two short flashings
every 2 seconds
Linking to the NB-IoT network
Three short flashings
every 2 seconds
The device connected to the network
and transmits the data on the server
Short flashings for 1.5
seconds
Successful (coordinates determinated or
data transmitted)
