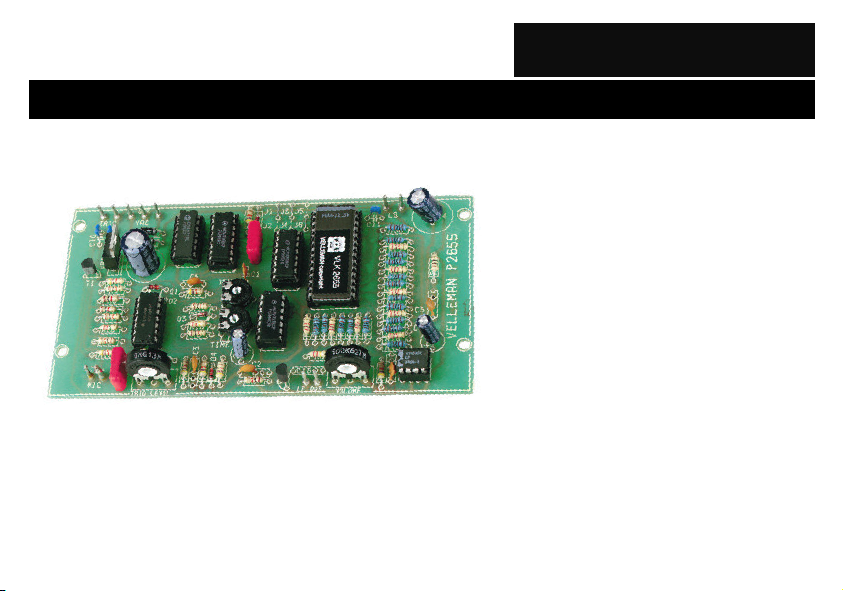

Velleman-Kit K2655 User manual

ELECTRONIC WATCHDOG
K2655
ILLUSTRATED ASSEMBLY MANUAL H2655IP-2
Total solder points: 101
Difficulty level: beginner 1 2 3 4 5 advanced
Listensandscaresintruderswith
realistic barking.

2
Features:

Very realistic simulation through the use of a random generator.
Choice of two different dogs.
Reacts to environment noise, with adjustable sensitivity.
Trigger input to connect other detectors (photo-electric cell, motion detector, smoke detector, etc...).
Connectable to more powerful amplifier.
Complete with rectifier and voltage regulator.
Specifications:
Power supply : 2x8V/0,5A transformer or 9 to 12VDC.
Loudspeaker output (2W at 4 ohm).
Supply current: standby: 75mA, when barking: max. 400mA.
Dimensions: 142x75x30mm / (5,7x3x1,2").
Features & Specifications

3
Assembly hints
1. Assembly (Skipping this can lead to troubles ! )
Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully.
1.1 Make sure you have the right tools:
 A good quality soldering iron (25-40W) with a small tip.
 Wipe it often on a wet sponge or cloth, to keep it clean; then apply solder to the tip, to give it a wet look. This is called ‘thinning’ and will
protect the tip, and enables you to make good connections. When solder rolls off the tip, it needs cleaning.
 Thin raisin-core solder. Do not use any flux or grease.
 A diagonal cutter to trim excess wires. To avoid injury when cutting excess leads, hold the lead so they
cannot fly towards the eyes.
 Needle nose pliers, for bending leads, or to hold components in place.
 Small blade and Phillips screwdrivers. A basic range is fine.
For some projects, a basic multi-meter is required, or might be handy
1.2 Assembly Hints :
Make sure the skill level matches your experience, to avoid disappointments.
Follow the instructions carefully. Read and understand the entire step before you perform each operation.
Perform the assembly in the correct order as stated in this manual
Position all parts on the PCB (Printed Circuit Board) as shown on the drawings.
Values on the circuit diagram are subject to changes.
Values in this assembly guide are correct*
Use the check-boxes to mark your progress.
Please read the included information on safety and customer service
* Typographical inaccuracies excluded. Always look for possible last minute manual updates, indicated as ‘NOTE’ on a separate leaflet.
0
.0
0
0

4
Assembly hints
1.3 Soldering Hints :
1- Mount the component against the PCB surface and carefully solder the leads
2- Make sure the solder joints are cone-shaped and shiny
3- Trim excess leads as close as possible to the solder joint
REMOVE THEM FROM THE TAPE ONE AT A TIME !
AXIAL COMPONENTS ARE TAPED IN THE CORRECT
MOUNTING SEQUENCE !
You will find the colour code for the resistances and the LEDs in the HALG
(general manual) and on our website: http://www.velleman.be/common/service.aspx

5
Construction
D1 : 1N4148
D2 : 1N4148
D3 : 1N4148
D4 : 1N4148
D5 : 1N4148
D6 : 1N4007
D7 : 1N4007
2. Diodes. Watch the polarity !
D. . .
CATHODE
J1
J3
J6
1. Jumpers
R1 : 330 (3 - 3 - 1 - B)
R2 : 10K (1 - 0 - 3 - B)
R3 : 10K (1 - 0 - 3 - B)
R4 : 10K (1 - 0 - 3 - B)
R5 : 10K (1 - 0 - 3 - B)
R6 : 220K (2 - 2 - 4 - B)
R7 : 1K (1 - 0 - 2 - B)
R8 : 1K (1 - 0 - 2 - B)
R9 : 1K (1 - 0 - 2 - B)
R10 : 4K7 (4 - 7 - 2 - B)
R11 : 4K7 (4 - 7 - 2 - B)
R12 : 4K7 (4 - 7 - 2 - B)
R13 : 4K7 (4 - 7 - 2 - B)
R14 : 47K (4 - 7 - 3 - B)
R15 : 47K (4 - 7 - 3 - B)
R16 : 47K (4 - 7 - 3 - B)
R17 : 47K (4 - 7 - 3 - B)
R18 : 220K (2 - 2 - 4 - B)
R19 : 10 (1 - 0 - 0 - B)
R20 : 2M2 (2 - 2 - 5 - B)
3. Resistors
R...
R21 : 10K (1 - 0 - 3 - B)
R22 : 2K7 (2 - 7 - 2 - B)
R23 : 2K7 (2 - 7 - 2 - B)
R24 : 2K7 (2 - 7 - 2 - B)
R25 : 2K7 (2 - 7 - 2 - B)
R26 : 2K7 (2 - 7 - 2 - B)
R27 : 2K7 (2 - 7 - 2 - B)
R28 : 2K7 (2 - 7 - 2 - B)
R29 : 2K7 (2 - 7 - 2 - B)
R30 : 100K (1 - 0 - 0 - 3 - 1)
(1 - 0 - 0 - 3 - 2)
R31 : 100K (1 - 0 - 0 - 3 - 1)
(1 - 0 - 0 - 3 - 2)
R32 : 100K (1 - 0 - 0 - 3 - 1)
(1 - 0 - 0 - 3 - 2)
R33 : 100K (1 - 0 - 0 - 3 - 1)
(1 - 0 - 0 - 3 - 2)
R34 : 100K (1 - 0 - 0 - 3 - 1)
(1 - 0 - 0 - 3 - 2)
4. Metal film resistors
R...

6

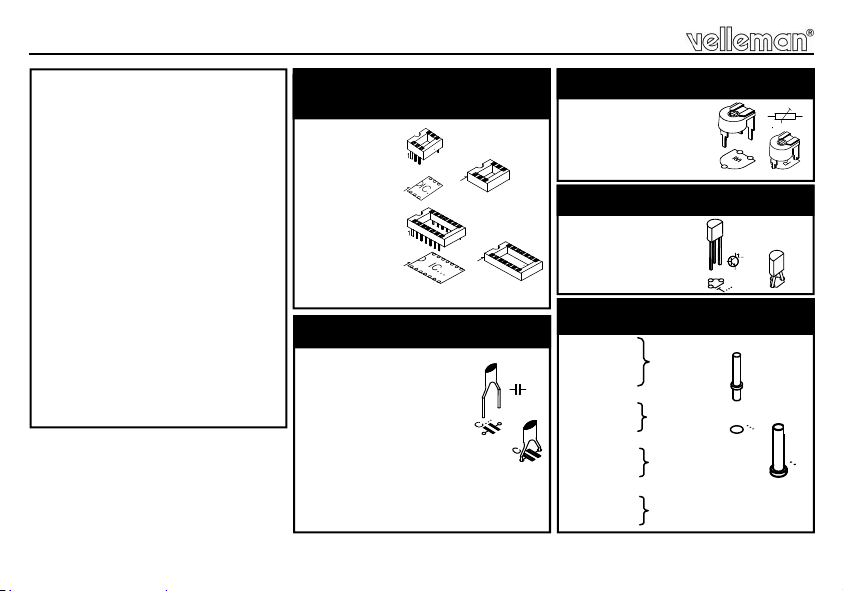

Construction
C1 : 100pF (101)
C2 : 10nF (103)
C3 : 10nF (103)
C4 : 3,9nF (392)
C5 : 47nF (473)
C6 : 47nF (473)
C9 : 100nF (104)
C10 : 100nF (104)
C11 : 100nF (104)
6. Capacitors.
RV2 : 2M2 Time
RV3 : 100K Tone
7. Resistor trimmers
RV1
IC1 : 14p
IC2 : 14p
IC3 : 16p
IC4 : 28p
IC5 : 16p
IC6 : 14p
IC7 : 8p
5. IC sockets. Watch the
position of the notch!
T1 : BC547
T2 : BC557
8. Transistors
A
GND
B
+
-
+
-
+
-
9. PCB tabs.
R35 : 100K (1 - 0 - 0 - 3 - 1)
(1 - 0 - 0 - 3 - 2)
R36 : 100K (1 - 0 - 0 - 3 - 1)
(1 - 0 - 0 - 3 - 2)
R37 : 100K (1 - 0 - 0 - 3 - 1)
(1 - 0 - 0 - 3 - 2)
R38 : 100K (1 - 0 - 0 - 3 - 1)
(1 - 0 - 0 - 3 - 2)
R39 : 51K (5 - 1 - 0 - 2 - 1)
(5 - 1 - 0 - 2 - 2)
R40 : 51K (5 - 1 - 0 - 2 - 1)
(5 - 1 - 0 - 2 - 2)
R41 : 51K (5 - 1 - 0 - 2 - 1)
(5 - 1 - 0 - 2 - 2)
R42 : 51K (5 - 1 - 0 - 2 - 1)
(5 - 1 - 0 - 2 - 2)
R43 : 51K (5 - 1 - 0 - 2 - 1)
(5 - 1 - 0 - 2 - 2)
R44 : 51K (5 - 1 - 0 - 2 - 1)
(5 - 1 - 0 - 2 - 2)
R45 : 51K (5 - 1 - 0 - 2 - 1)
(5 - 1 - 0 - 2 - 2)
C...
VAC
TRIG
MIC
LS

7

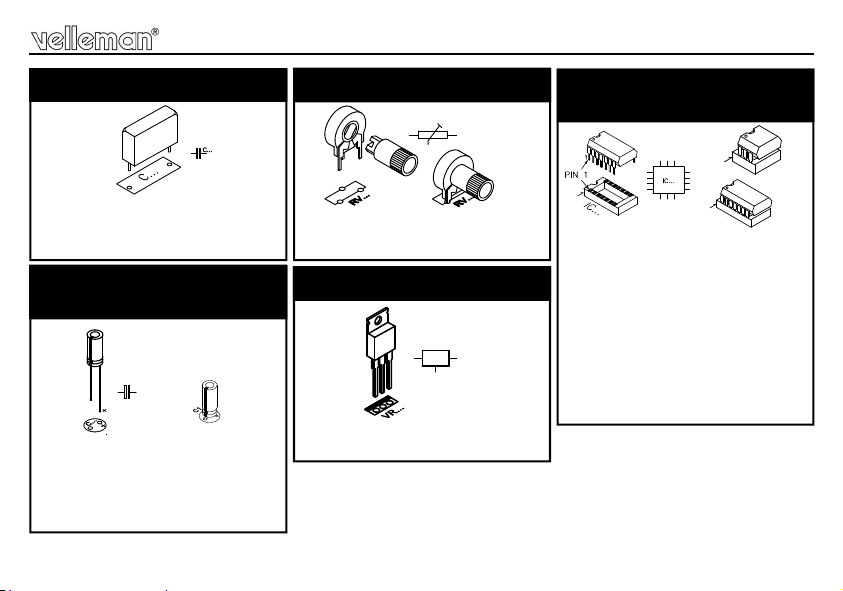

C12 : 10µF / 35V
C13 : 10µF / 35V
C14 : 220µF / 16V
C15 : 1000µF / 16V
11. Electrolytic Capacitors.
Watch the polarity !
C...
Construction
RV1 : 4K7 TRIG level
RV4 : 470K Volume
12. Big trimmers.
C7 : 100nF / 250V
C8 : 100nF / 250V
10. Capacitors
RV...

VR1 : UA7805
13. Voltage regulator
VR...
IC1 : LM324 or eq.
IC2 : CD4093 or eq.
IC3 : CD4040 or eq.
IC4 : VK2655
(programmed Eprom 2764C25)
IC5 : CD4015 or eq.
IC6 : CD4077 or eq.
IC7 : LM386 or eq.
14. IC’s. Watch the position
of the notch!

8
Construction

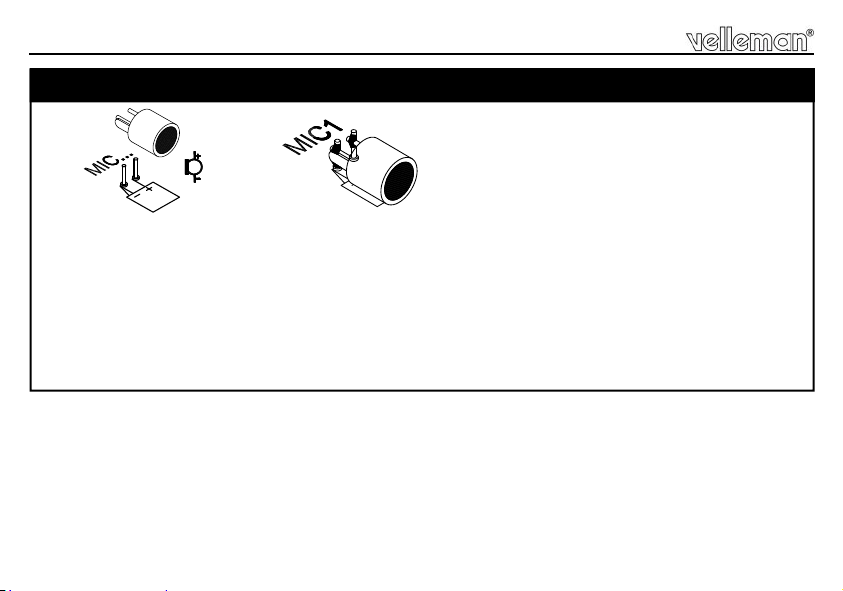

MIC
Attention : the negative connection is the one closest to the earth lip of the microphone housing.
Solder them both together. The remaining pin is the positive connection. Twist the connection wires in order
to avoid interferences and noise.
Tip : use screened cable (Screen connected to the negative should the connection be too long (0,5m or 2ft).
15. Microphone
MIC...

9
B
GND
A
2x8V/0.5A
Red
Black
Min. 4 ohm
1. Hook up when using a transformer
Connecting
16. CONNECTING
Fig. 1.0

10
Connecting
Black
Red
Black
Red
Min. 4 ohm
9Vbattery
Fig. 2.0
2. Hook when using a battery :

11
Turn all the trimmers to their centre position.
Connect a loudspeaker of at least 4 ohm to the points LS.
Connect the transformer (8V-0-8V) to the points VAC (Fig. 1.0). The center tap (0) should be connected
to ground (GND, the middle one of the three VAC pins). The circuit can also be powered with direct cur-
rent (9 to 12V, unregulated): in this case the negative goes to GND (the middle pin), the positive to one of
the two outmost pins A or B (Fig. 2.0)
Make some noise, your loyal servant will promptly start barking.
With RV1 (TRIG LEVEL) you can adjust the sensitivity of the detector. In case the circuit is too sensitive
you may replace R20 by a 1M (brown, black, green, gold) or 470K (yellow, violet, yellow, gold).
RV4 is the volume potentiometer.
With RV3 you can adjust the pitch of the barking. Remove J1 and install J2 to select the other dog.
After each triggering, the circuit continues barking for a while. With RV2 you can adjust that period.
The circuit can also be triggered by other detectors if you like: to make the dog bark, you only have to short-
circuit the TRIG points with a relay contact, push-button, etc...
Test & use
17. TEST & USE

12
Capacitor C3 takes care that the dog does not go on barking as long as the TRIG contacts are closed. To
enable barking the whole time (e.g. with smoke detection), you may replace capacitor C3 by a wire link.
With a 4 ohm horn-type loudspeaker, the volume usually will appear sufficient. Should you still want a more
powerful amplifier, you may connect it to AF OUT. Pay attention to the polarity! Fit a 100nF MKM capacitor
for C16. If you are sure that the power amplifier already has a capacitor at the input, then you may fit a wire
link for C16.
Test & use

13

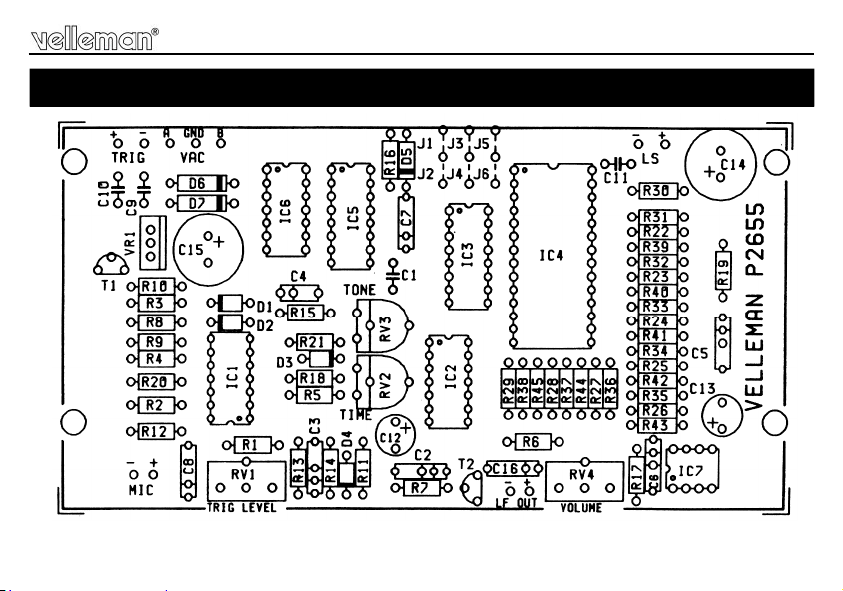

18. PCB layout.
PCB

14

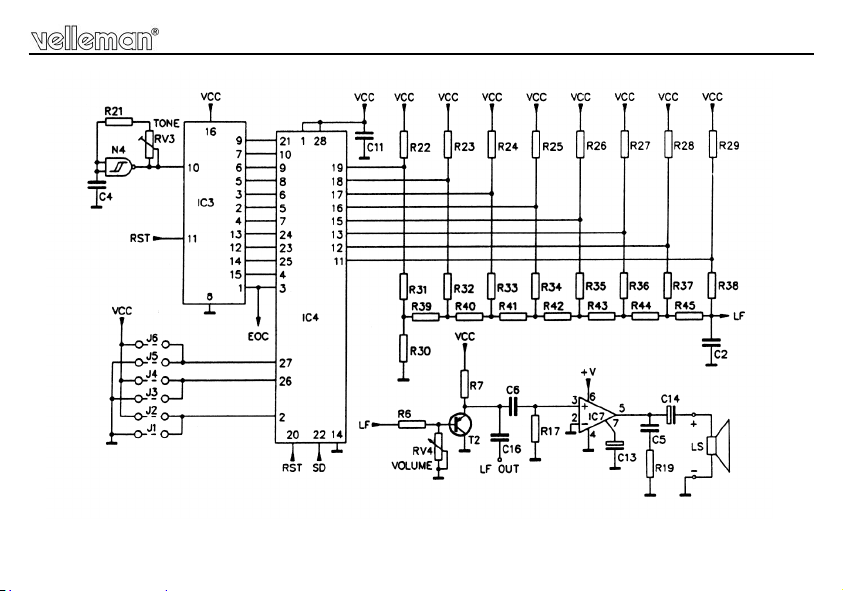

19. Diagram
Diagram

15
Diagram

5
4
1
0
3
2
9
2
9
1
9
2
1
