Velleman-Kit K8403 User manual
RGB LED ADD-ON FOR K8400 - VERTEX 3D PRINTER
WWW.VELLEMANPROJECTS.EU
K8403
USER MANUAL
usermanual_k8403_en.indd 1 28/12/2015 13:30:38
All manuals and user guides at all-guides.com
all-guides.com

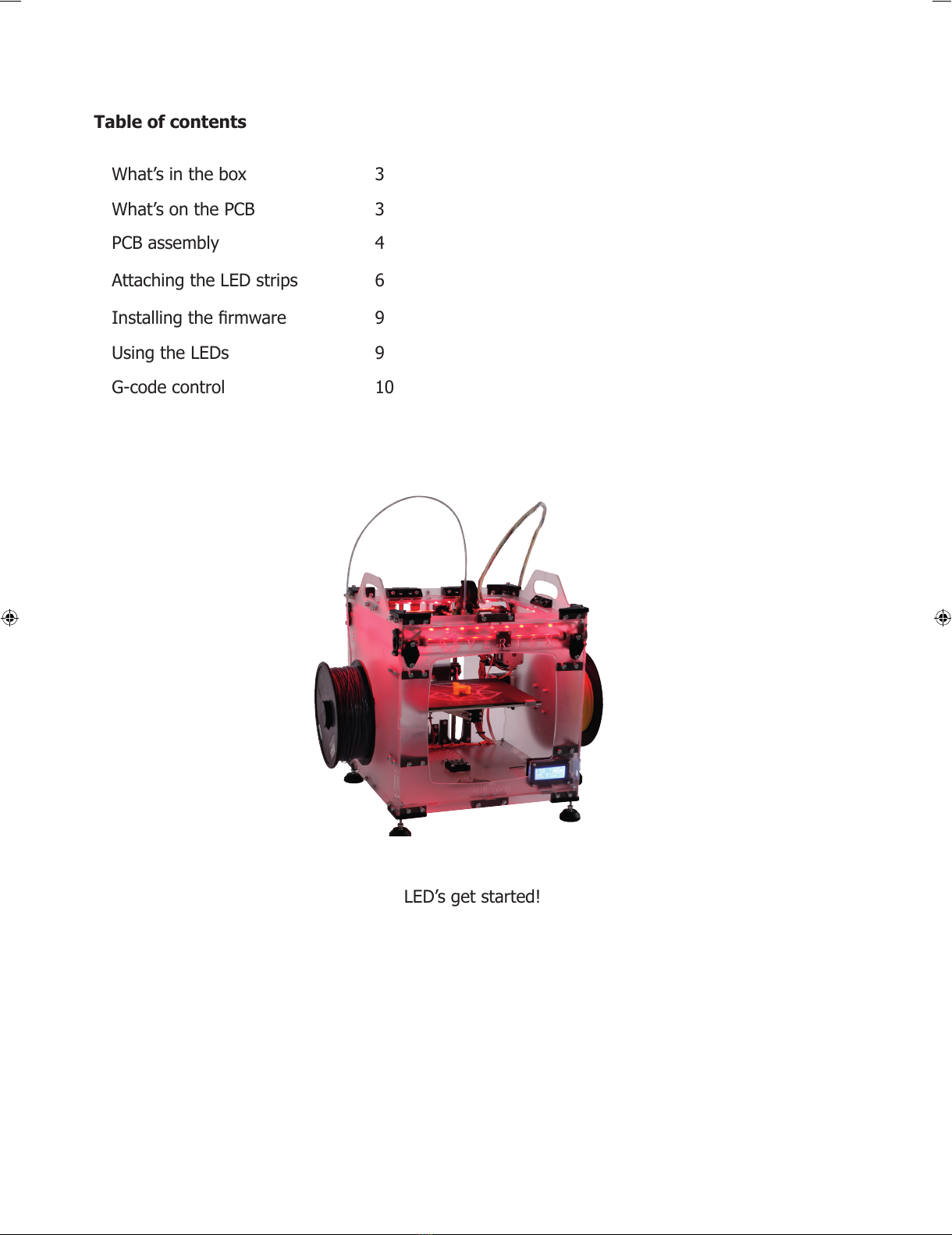

Table of contents
LED’s get started!
What’s in the box 3
What’s on the PCB 3
PCB assembly 4
Attaching the LED strips 6
Installing the rmware 9
Using the LEDs 9
G-code control 10
usermanual_k8403_en.indd 2 28/12/2015 13:30:39
All manuals and user guides at all-guides.com
3
K8403USER MANUAL
What’s in the box
1.
2.
3.
4.
5.
1. 4x LED strip 20 cm
2. 8x clips
3. 8x double-sided tapes
4. 3x short cables (2 connectors)
g. 1
What’s on the PCB
1.2.
3.
4.
5.
1. 3x 330 Ω resistors
2. 3x 2V7 1.3 W zener diodes
3. 3x BUK9535-55 logic level FETs
4. 2x 2 pole screw terminals
5. 2x 6P female headers (14.5 mm pins)
g. 2
6. 2x 6P female headers (5 mm pins)
for connection on the motherboard
6.
5.
5. 1x long white cable
(1 connector)
6. 1x long coloured cable
(no connector)
7. 4x shrink tubes
usermanual_k8403_en.indd 3 28/12/2015 13:30:40
All manuals and user guides at all-guides.com
4
K8403USER MANUAL
PCB assembly
Solder the resistors:
R1, R2, R3: 330 Ω
Orange, Orange, Brown
Solder the zener diodes:
ZD1, ZD2, ZD3: 2V7 - 1.3 W
Mind the polarity marks!
Solder the logic level FETs:
T1, T2, T3: BUK9535-55
Solder the screw terminals:
SK2, SK3: screw terminal, 2 pole, 2.54 mm pitch
g. 3
g.6
g. 5
g.4
usermanual_k8403_en.indd 4 28/12/2015 13:30:43
All manuals and user guides at all-guides.com
5
K8403USER MANUAL

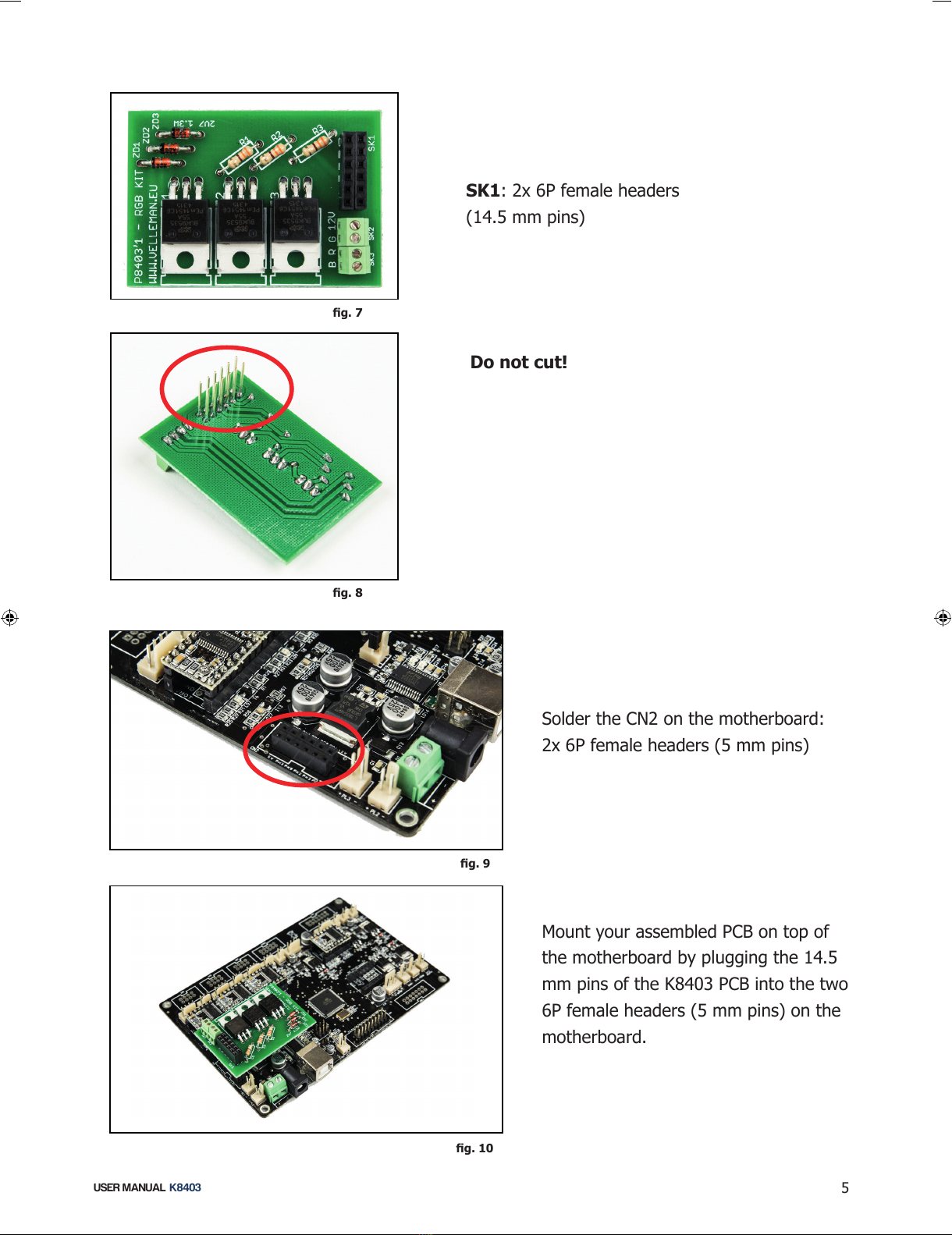

SK1: 2x 6P female headers
(14.5 mm pins)
Mount your assembled PCB on top of
the motherboard by plugging the 14.5
mm pins of the K8403 PCB into the two
6P female headers (5 mm pins) on the
motherboard.
g. 9
g. 8
g. 7
g. 10
Do not cut!
Solder the CN2 on the motherboard:
2x 6P female headers (5 mm pins)
usermanual_k8403_en.indd 5 28/12/2015 13:30:45
All manuals and user guides at all-guides.com
6
K8403USER MANUAL

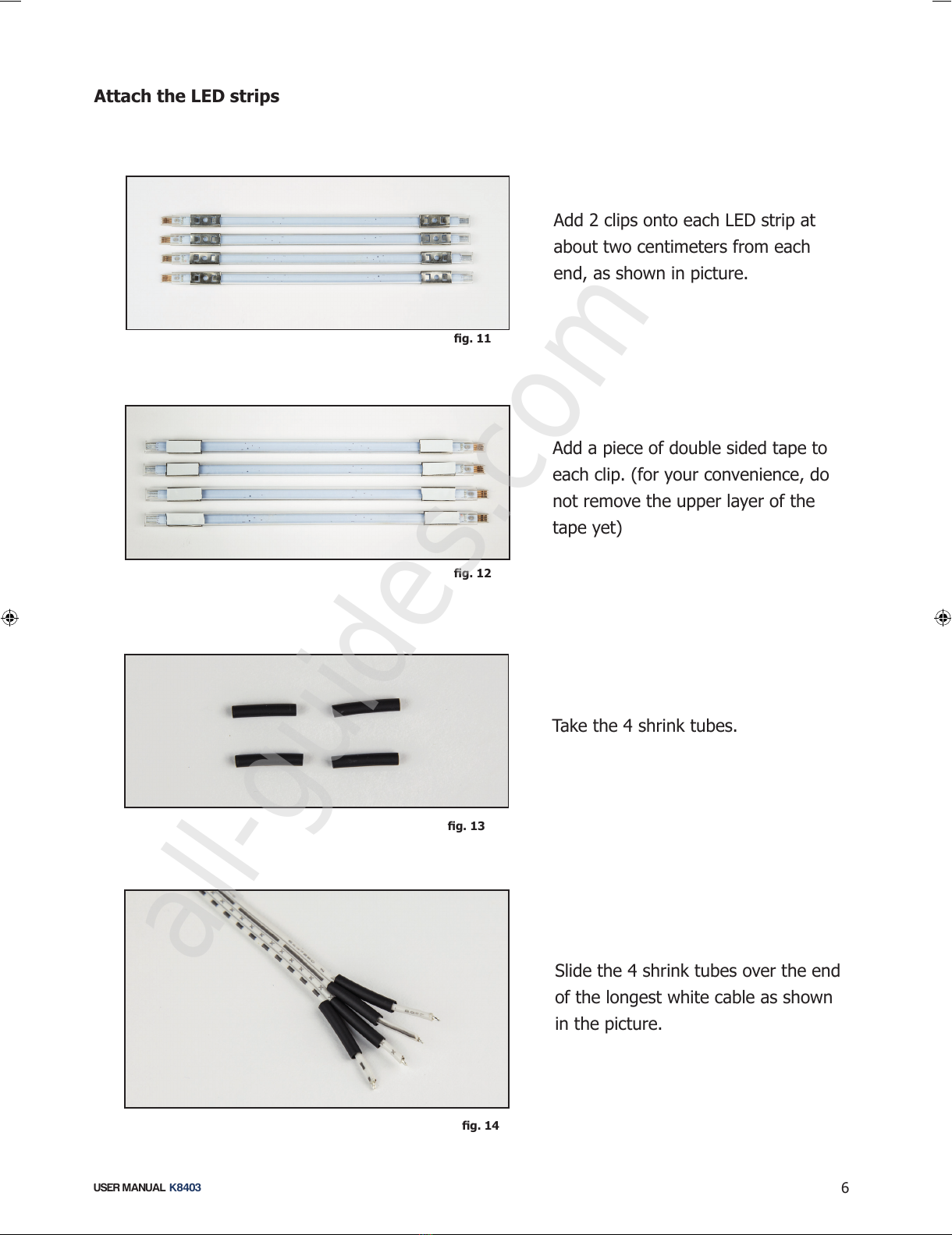

Attach the LED strips
Add 2 clips onto each LED strip at
about two centimeters from each
end, as shown in picture.
Add a piece of double sided tape to
each clip. (for your convenience, do
not remove the upper layer of the
tape yet)
g. 12
g. 11
g. 13
Take the 4 shrink tubes.
Slide the 4 shrink tubes over the end
of the longest white cable as shown
in the picture.
g. 14
usermanual_k8403_en.indd 6 28/12/2015 13:30:48
All manuals and user guides at all-guides.com
all-guides.com
7
K8403USER MANUAL
g. 15
Solder the white cables to the coloured
cable as shown in the picture.
Slide the shrink tubes over the solder-
ing and heat them with a hairdryer or
heatgun to make them shrink.
Connect the LED strips with the 4
white cables, as shown in the picture.
g. 17
Mind which cable is soldered to the
other!
-green wire to white wire with
full black line
- red wire to white wire with Xs
- blue wire to white wire with dotted line
- black wire to white wire with symbols
g. 16
usermanual_k8403_en.indd 7 28/12/2015 13:30:50
All manuals and user guides at all-guides.com
8
K8403USER MANUAL

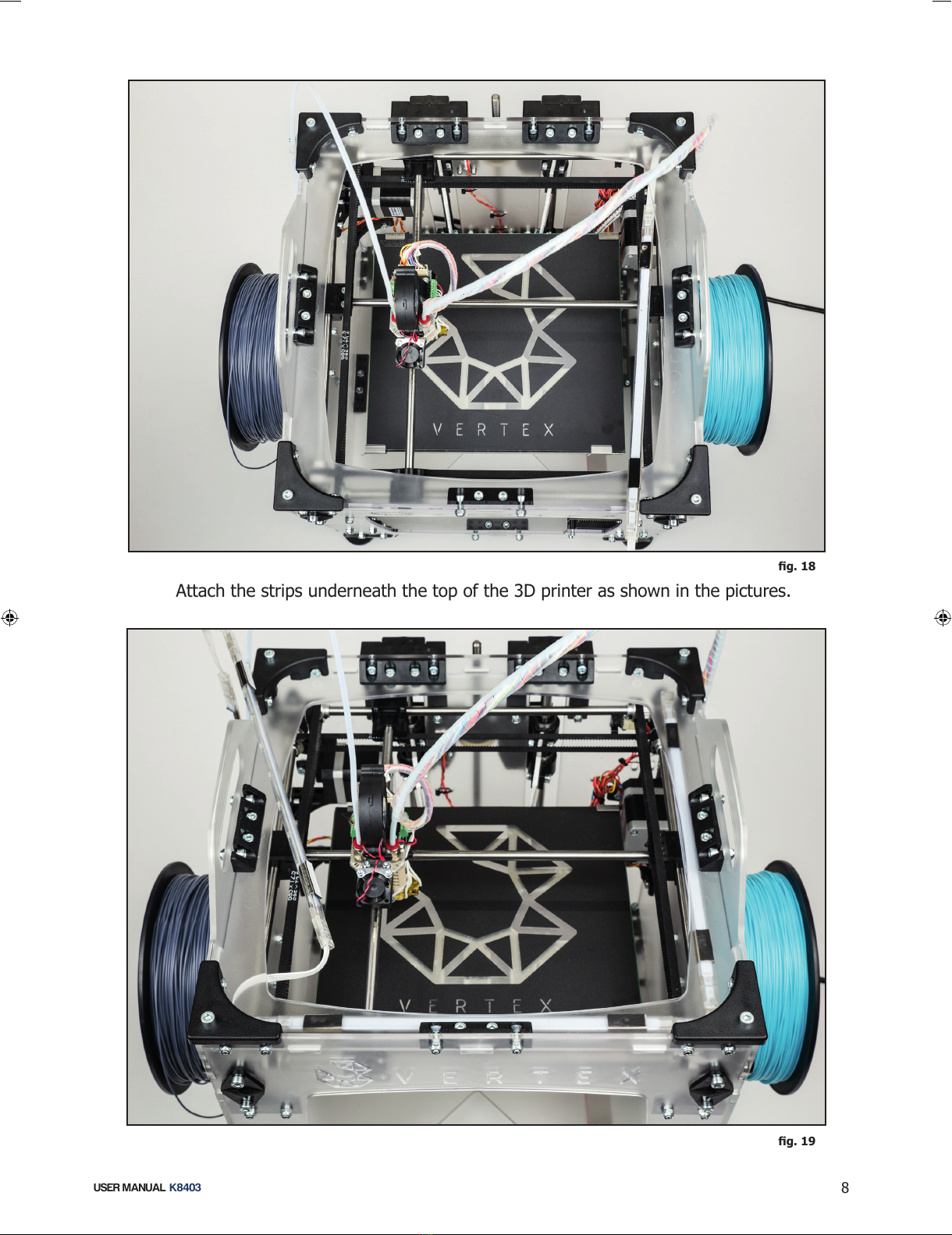

Attach the strips underneath the top of the 3D printer as shown in the pictures.
g. 19
g. 18
usermanual_k8403_en.indd 8 28/12/2015 13:30:54
All manuals and user guides at all-guides.com
9
K8403USER MANUAL
Route the long cable down to the motherboard.
Connect the leads in the terminals.
Mind the polarity marks!
g. 22
g. 21
g. 20
usermanual_k8403_en.indd 9 28/12/2015 13:30:58
All manuals and user guides at all-guides.com
10
K8403USER MANUAL

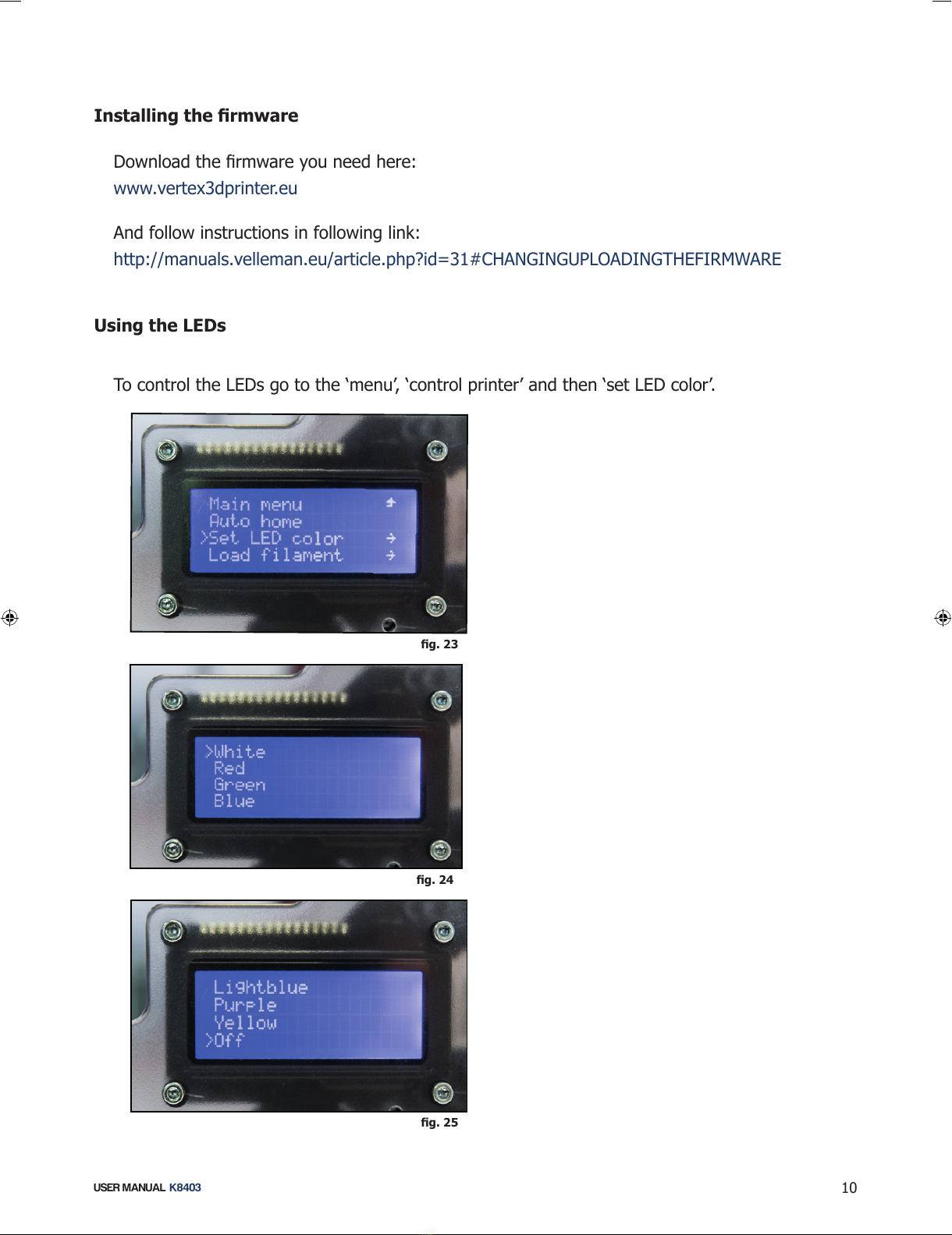

Installing the rmware
And follow instructions in following link:
http://manuals.velleman.eu/article.php?id=31#CHANGINGUPLOADINGTHEFIRMWARE
Using the LEDs
To control the LEDs go to the ‘menu’, ‘control printer’ and then ‘set LED color’.
g. 25
g. 24
g. 23
Download the rmware you need here:
www.vertex3dprinter.eu
usermanual_k8403_en.indd 10 28/12/2015 13:30:58
All manuals and user guides at all-guides.com
11
K8403USER MANUAL

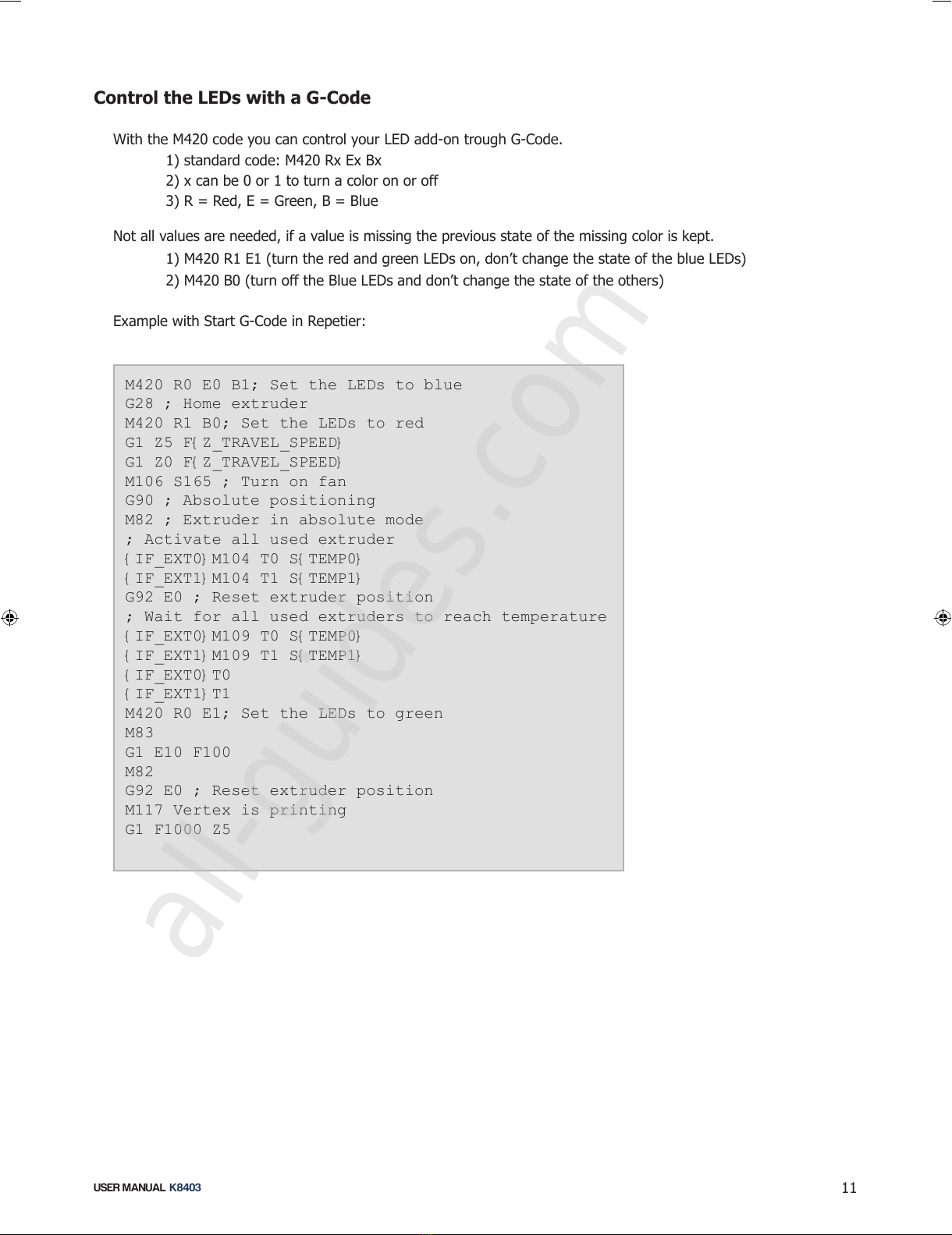

Control the LEDs with a G-Code
With the M420 code you can control your LED add-on trough G-Code.
1) standard code: M420 Rx Ex Bx
2) x can be 0 or 1 to turn a color on or off
3) R = Red, E = Green, B = Blue
Not all values are needed, if a value is missing the previous state of the missing color is kept.
1) M420 R1 E1 (turn the red and green LEDs on, don’t change the state of the blue LEDs)
2) M420 B0 (turn off the Blue LEDs and don’t change the state of the others)
M420 R0 E0 B1; Set the LEDs to blue
G28 ; Home extruder
M420 R1 B0; Set the LEDs to red
G1 Z5 F{Z_TRAVEL_SPEED}
G1 Z0 F{Z_TRAVEL_SPEED}
M106 S165 ; Turn on fan
G90 ; Absolute positioning
M82 ; Extruder in absolute mode
; Activate all used extruder
{IF_EXT0}M104 T0 S{TEMP0}
{IF_EXT1}M104 T1 S{TEMP1}
G92 E0 ; Reset extruder position
; Wait for all used extruders to reach temperature
{IF_EXT0}M109 T0 S{TEMP0}
{IF_EXT1}M109 T1 S{TEMP1}
{IF_EXT0}T0
{IF_EXT1}T1
M420 R0 E1; Set the LEDs to green
M83
G1 E10 F100
M82
G92 E0 ; Reset extruder position
M117 Vertex is printing
G1 F1000 Z5
Example with Start G-Code in Repetier:
usermanual_k8403_en.indd 11 28/12/2015 13:30:58
All manuals and user guides at all-guides.com
all-guides.com
12
K8403USER MANUAL

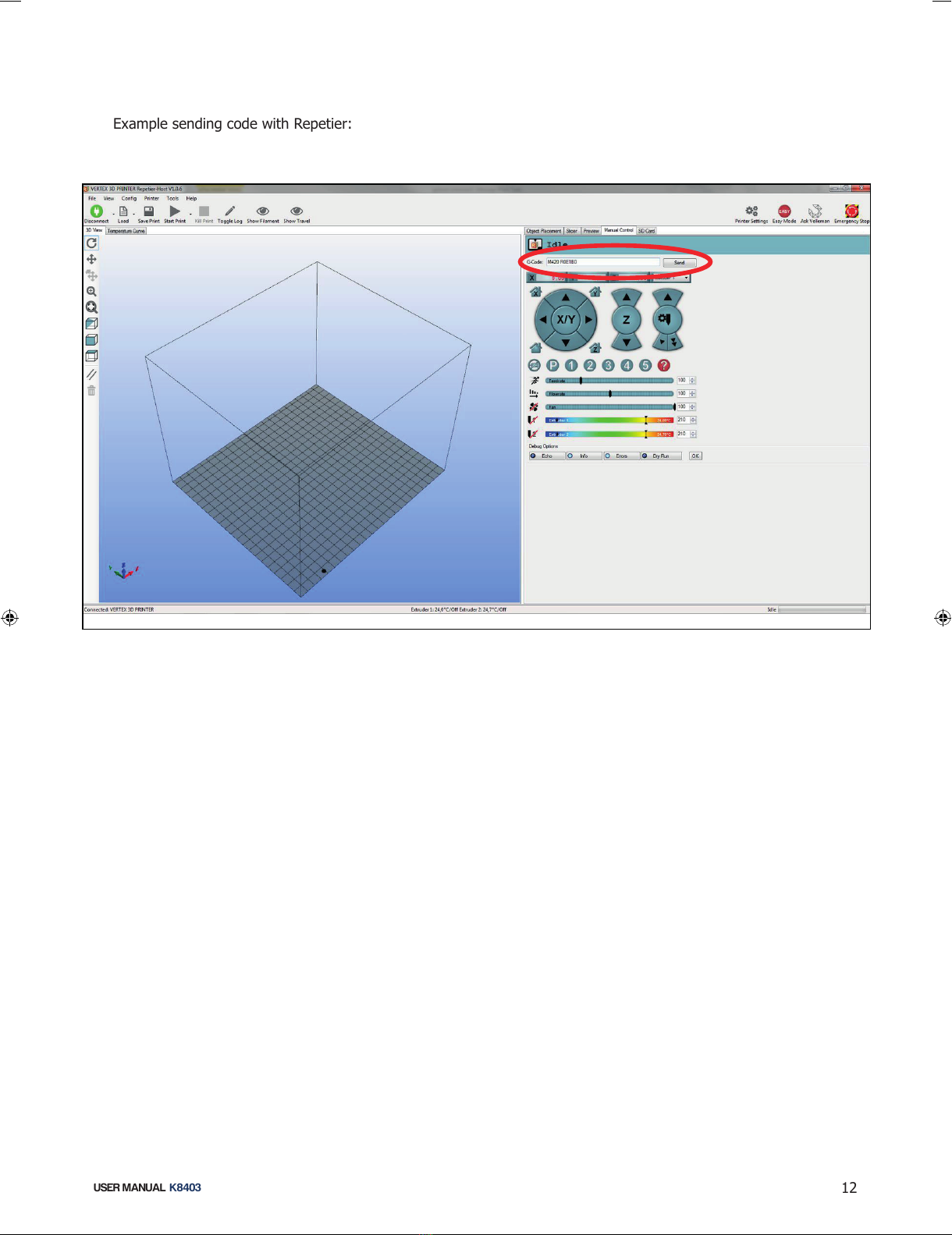

Example sending code with Repetier:
usermanual_k8403_en.indd 12 28/12/2015 13:30:58
All manuals and user guides at all-guides.com
Velleman nv, Legen Heirweg 33 - Gavere (Belgium)
Vellemanprojects.com
/Velleman-nv @Velleman_RnD ORDERCODE: K8403
REVISION: HK8403’1
UPC
EUR
usermanual_k8403_en.indd 13 28/12/2015 13:30:59
