Velleman Rikomagic MK802IIIS User manual

PCTV2
RIKOMAGIC MK802IIIS
MINI PC - ANDROID 4.2 - DUAL CORE
USER MANUAL 3
GEBRUIKERSHANDLEIDING 28
MODE D'EMPLOI 53
MANUAL DEL USUARIO 78
BEDIENUNGSANLEITUNG 103
MANUAL DO UTILIZADOR 128

PCTV2
V. 02 – 12/09/2013 2 ©Velleman nv

PCTV2
V. 02 – 12/09/2013 3 ©Velleman nv
USER MANUAL
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that
disposal of the device after its lifecycle could harm the
environment. Do not dispose of the unit (or batteries) as
unsorted municipal waste; it should be taken to a
specialized company for recycling. This device should be
returned to your distributor or to a local recycling service. Respect
the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Velleman! Please read the manual thoroughly
before bringing this device into service. If the device was damaged in
transit, don't install or use it and contact your dealer.
2. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last
pages of this manual.
•Indoor use only. Keep this device away from rain, moisture,
splashing and dripping liquids.
•Keep this device away from dust and extreme heat.
•Protect this device from shocks and abuse. Avoid brute force when
operating the device.
•Familiarise yourself with the functions of the device before actually
using it.
•All modifications of the device are forbidden for safety reasons.
•Only use the device for its intended purpose. Using the device in
an unauthorised way will void the warranty.
•Damage caused by disregard of certain guidelines in this manual
is not covered by the warranty and the dealer will not accept
responsibility for any ensuing defects or problems.
•Do not disconnect the device during formatting or upgrading.
Disconnecting the device may cause system errors.
•Clean the device with a dry, lint-free cloth. Do not use alcohol or
solvents.

PCTV2
V. 02 – 12/09/2013 4 ©Velleman nv
3. Overview
Refer to the illustrations on page 2 of this manual.
1
HDMI port
4
USB OTG port
2
reset button
5
micro USB power port
3
micro SD port
6
USB port
4. Connecting the device
The device has the following ports and buttons:
1 HDMI port Plug the HDMI port of the device directly to
the HDMI port of your TV, monitor or
beamer, no cable needed.
2
Reset button
Press to reset the device.
3
Micro SD port
Expand the memory of the device with a
micro SD card (max. 32 GB)
4 USB port Use the USB OTG port to connect the device
to your pc (for example for data transfer) or
any USB device (mouse, keyboard…).
5 Micro USB
power port
Connect the device with the included to USB
power cable to your TV for charging.
6
USB port
Connect any USB device to this port
(mouse, keyboard…).
5. Start using the device
To start using the device:
1. Connect the device on the HDMI port of your TV, monitor or
beamer.
2. (For TV only): Use your TV remote control to select the mini
computer as the HDMI source (as you would do with another
HDMI source).
The start screen of the mini computer will appear.
6. Shutting down the device
To shut down the device:
1. In the toolbar at the bottom, click the button and press OK.
2. Wait until the device has shut down to disconnect it.

PCTV2
V. 02 – 12/09/2013 5 ©Velleman nv
7. Mouse
To use the mini computer, you at least need a USB mouse (not
included).
Use the mouse controls as follows:
Left button
•OK
•Press and hold the left mouse button to drag an
icon or a file.
Right button
•
Back or Cancel
Scroll wheel
•Use the scroll wheel to move left to right (on the desktop) or up and down (in settings,
browser…).
•Press and hold the scroll wheel to display file
properties.
8. Keyboard
•If you do not connect an external keyboard, the device will
automatically show the software keyboard.
•If you connect an external keyboard, the software keyboard will
not be shown.
9. The home screen
The device displays the following screen during startup.
When done, the home screen appears. The home screen contains
several pages on which you can add, move or remove icons, apps
and widgets. You can browse through the home pages using the
scroll wheel.

PCTV2
V. 02 – 12/09/2013 6 ©Velleman nv
Icons
Click this icon in the upper left corner of the
home screen to start searching the internet.
Click the apps icon in the upper right corner of
the home screen to display all apps available on
the device.
Move an icon on the desktop
Click and hold the icon and drag it to the position you want.
You can also move an icon to another page of the home screen.
Delete an icon on the desktop
Click and hold the icon you want to delete and drag it to the x
symbol in the upper middle of the home screen.
Changing the desktop wallpaper
1. Press and hold the cursor on the desktop paper.
2. Choose from which source you want to use a wallpaper (Gallery,
Live Wallpaper or Wallpaper).
3. Click the wallpaper you want to set and click the Set wallpaper
button to confirm.
9.2 Toolbar
The device's toolbar is always visible. It contains the following icons:
Back
Home
Displays the apps that are currently running
Decrease volume
Increase volume
Shut down the device
Hides the toolbar (or keyboard)

PCTV2
V. 02 – 12/09/2013 7 ©Velleman nv
9.3 Status bar
The status bar is located on the bottom right of the screen.
Depending on your situation, it can display various items:
USB connection, download status, time, signal strength….
Click the status bar to enlarge it. Click an icon to access the function
directly in the Settings.
9.4 Apps
Click the apps icon in the upper right corner of
the home screen to display all apps available on
the device.
If the apps are listed on multiple pages, you can browse through the
pages using the scroll wheel.
To start an app
Click the app you want to use.
To add an app to the home screen
Press and hold the app icon.
The home screen will appear.
Release the icon where you want it to be.
9.5 Widgets
Click the apps icon in the upper right corner of the home screen.
In the apps overview, open the Widgets tab.
To start a widget
Click the widget you want to use.

PCTV2
V. 02 – 12/09/2013 8 ©Velleman nv
To add a widget to the home screen.
Press and hold the widget icon.
The home screen will appear.
Release the icon where you want it to be.
10. Settings
To access settings, click the Settings icon (on the desktop or in the
app list).
WIFI Setting
Ethernet
Settings > Ethernet

PCTV2
V. 02 – 12/09/2013 9 ©Velleman nv
You can connect the device to a wired network (Ethernet) using a
UBS LAN adapter. To enable ethernet:
•Click Use Ethernet.
Data usage
Settings > Data usage
Shows the data usage of every app.
Portable hotspot
Settings > More > Portable hotspot
If your device is connected to an ethernet connection, you can use
your device as a wireless access point.
•Click Set up Wi-Fi hotspot, enter the appropriate settings and click
Save to confirm.
PPPoE
Settings > More > PPPoE
If you need PPPoE (Point-to-Point Protocol over Ethernet), you can
enter these settings as follows:
•Click PPPoE account to enter your account details.
USB
Settings > USB
You can connect the device to your computer to copy files between
both.
Use the included micro USB to USB cable to connect the device to
your computer.
Make sure the device is connect to your HDMI display.
•Click Connect to PC.
You can now copy files from your computer to the device or vice-
versa.
Sound
Settings > Sound
The available settings are: volume, vibration and sound devices (if
connected).
Display
Settings > Display
The Display option allows setting the font size.

PCTV2
V. 02 – 12/09/2013 10 ©Velleman nv
Screen
Settings > Screen
The possible options are:
•Screen scale: slide the button to increase or reduce the screen
scale
•Output interface (default is HDMI).
•HDMI mode: allows setting resolution depending on the resolution
on your TV. The device detects the most appropriate resolution.
Storage
Settings > Storage
Shows the disk size of various types of data and the amount of space
left.
You can also unmounts or erase an SD card.
The Android system partitions are not shown in this window.
Apps
Settings > Apps
Allows managing the apps installed on the device and on the SD
card.
The apps are grouped in several lists: Downloaded - On SD card -
Running – All. Click a list name to open it.
Click the app to open its detail window.
Depending on the type of app, the available functions are:
•Force stop
•Uninstall
•Uninstall updates
•Move to SD card
•Clear data
•Clear cache
•Clear defaults
The Settings icon in the upper right corner opens more options:
•Sort by size
•Reset app preferences
Security
Settings > Security
Contains settings for:

PCTV2
V. 02 – 12/09/2013 11 ©Velleman nv
•Installing apps from unknown sources
•Installing certificates.
Note: The Device Administrator option has no function on this device.
Language & input
Settings > Language & input
Contains settings for:
•user display language
•spell checker (click the button for more options)
•personal dictionary
•keyboard input settings
•Android keyboard settings (click the button for more
options). These options are relate to input language, auto-
correction, key sound and vibration, etc.
•mouse pointer speed: slide the button to increase or reduce
pointer speed
Backup & reset
Settings > Backup & Reset
•Back up my data: allows backing up application data and settings
to a Google account. You can also set options for Automatic
restore.
•Factory data reset: Erases all data on your device, including your
account data. Data on the SD card can be erased as well.
Accounts
Settings > Accounts
Allows adding an account and managing existing accounts.
1. Click Add account, then select Google.
oTo add an existing account, click the button Existing and follow
the instructions on the screen.
oTo create a new account, click the button New and follow the
instructions on the screen.
10.2 Date & time
Settings > Date & time
Contains settings for:
•automatic date and time setting

PCTV2
V. 02 – 12/09/2013 12 ©Velleman nv
•manual date and time setting
•time zone
•time and date format
10.3 Accessibility
Settings > Accessibility
Contains settings for:
•Talkback (turn spoken feedback on or off)
•Text-to-speech output
•Web accessibility
10.4 Developer options
Settings > Developer options
Contains useful options for developing.
USB debugging: Select this option to set debug mode when
exchanging data between the device and your computer.
10.5 About device
Settings > About device
Displays data relating to
•system updates
•system status (battery, network…)
•model number, android version…
11. File management
The Explorer allows viewing and working with files on your device.

PCTV2
V. 02 – 12/09/2013 13 ©Velleman nv
To open the explorer:
1. Click the Explorer icon on the home screen.
The Explorer opens.
2. Click a media source (Internal Flash, SD card…) to view its
contents.
•In the Explorer, you can copy, delete, move, paste, rename and
share files and folders.
•To do so, press and hold the item you want until the menu pops
up and select the action you want.
•For example, click Internal flash to view the device's internal disk.
Buttons
The buttons in the Explorer are:
Name
Function
Home
returns to the upper level
LevelUp
goes up one level in the file structure
Multi Use this button to select multiple files or folders.
Click the Multi button.
Click the files or folders you want.
To deselect, click the Multi button again.
Editor The editor contains the same options as the pop-
up menu.
Back
Returns to the previous location in the file
explorer history
Next
Goes to the next location in the file explorer
history
Exit
Closes the file explorer
12. Installing an app
You can install an app:
•From Google Play, using your Google account, or any other
website supplying Android apps.
•From a local disk (for example a memory stick on which you
downloaded an app)
Google Play
1. Login to Google Play and download the app you want.
2. After download, the device will ask if you want to install the app.

PCTV2
V. 02 – 12/09/2013 14 ©Velleman nv
Local installation
Connect the minicomputer to the external drive containing the app.
In the file explorer, browse to the app and click it to start
installation.
Uninstall an app
To uninstall an app:
1. Open the Settings and click Apps.
2. Click the app you want to uninstall.
3. Click the button Uninstall and click OK to confirm.
13. Airplay/DLNA
While the mini computer is connected to a wireless broadband
module, you can also use it to
14. Remote control
You can remote control the mini-c from your Android phone or
tablet:
•Download and install the MK802 remote control app from Google
Play on your phone or tablet.
•You can now use your phone as a remote for the mini computer.
•The app uses your wireless network to control the mini computer.
15. System recovery/update
If some cases, you may need to update the device to the latest
firmware. For example:
•The device runs very slowly or crashes often.
•The device cannot find or connect to the wireless network.
•After installing an app, the device stops and does not restart.
•When starting, the device only shows the start screen.
•The device cannot read the SD card.
Before you start
Make sure you have the following at hand:
•the included micro USB to USB cable
•a tiny metal point (for example a needle).
To download the latest firmware:

PCTV2
V. 02 – 12/09/2013 15 ©Velleman nv
1. On your computer, go to www.rikomagic.com and download the
recovery / update software for your device.
2. Make sure to download the correct version for your device:
Rikomagic MK802 IIIS.
3. Decompress the downloaded file.
4. In the decompressed folder, decompress the file Batch Tool
1.5.zip (version number may vary).

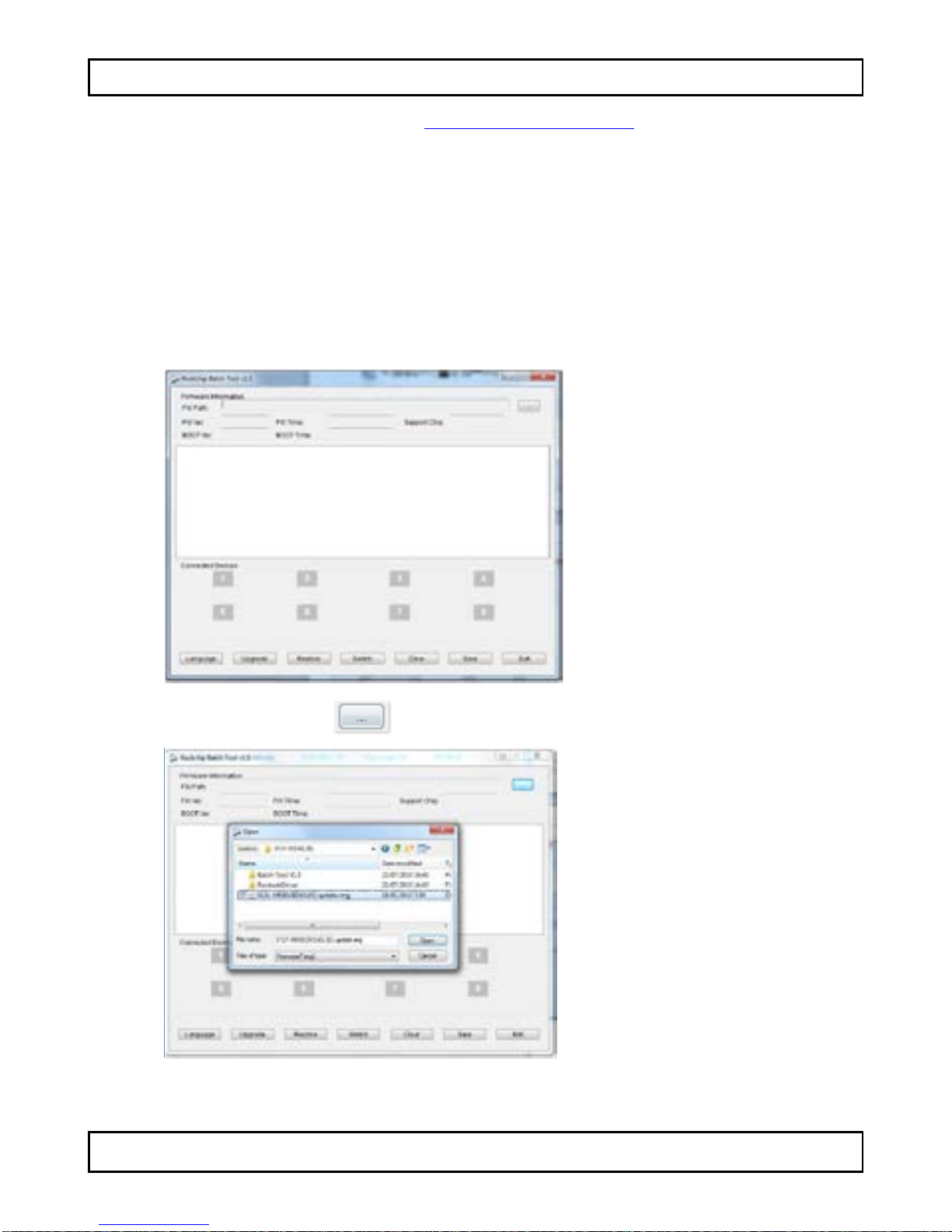

15.2 Loading the image file
1. Launch the file RKBatchTool.exe.
2. Click the button .
3. Select the .img file and click Open.
The tool loads the firmware.

PCTV2
V. 02 – 12/09/2013 16 ©Velleman nv

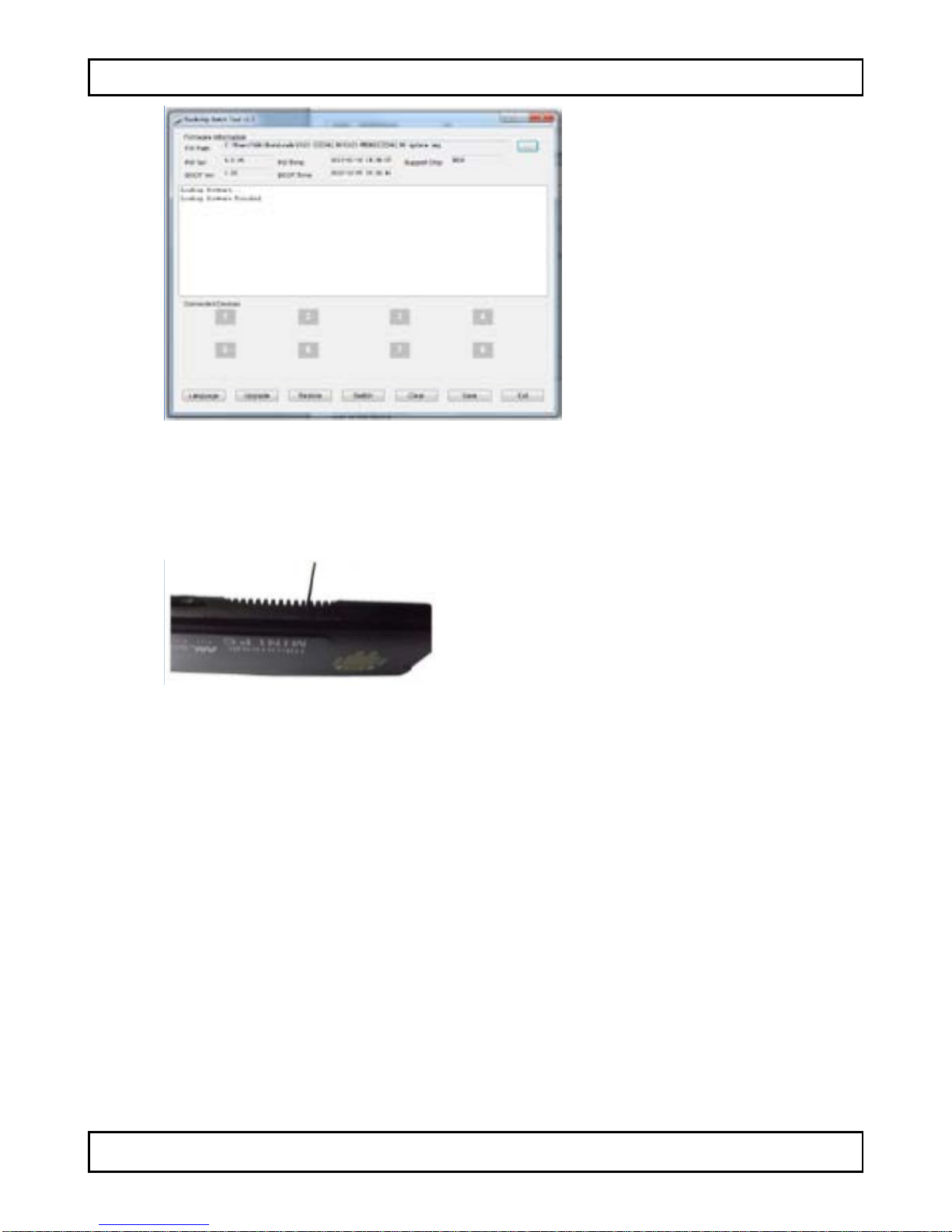

15.3 Connecting the device
1. Connect the cable to a USB port of your computer.
2. Use the needle to gently press and hold the reset button on the
device, as shown.
3. While holding the needle, plug the micro USB cable to the USB
OTG port of the device.
4. Remove the needle after 3 to 5 seconds.
The next steps depend on the operating system you are using. The
manual describes the steps for Windows XP (next section) and
Windows 7 (page 19).
15.4 Windows XP
On your computer, the following window will open:

PCTV2
V. 02 – 12/09/2013 17 ©Velleman nv
1. Select Install from a list or specific location and click Next.
2. Click the button Browse and select the folder containing the
driver.
Click Next.
The driver starts installing.

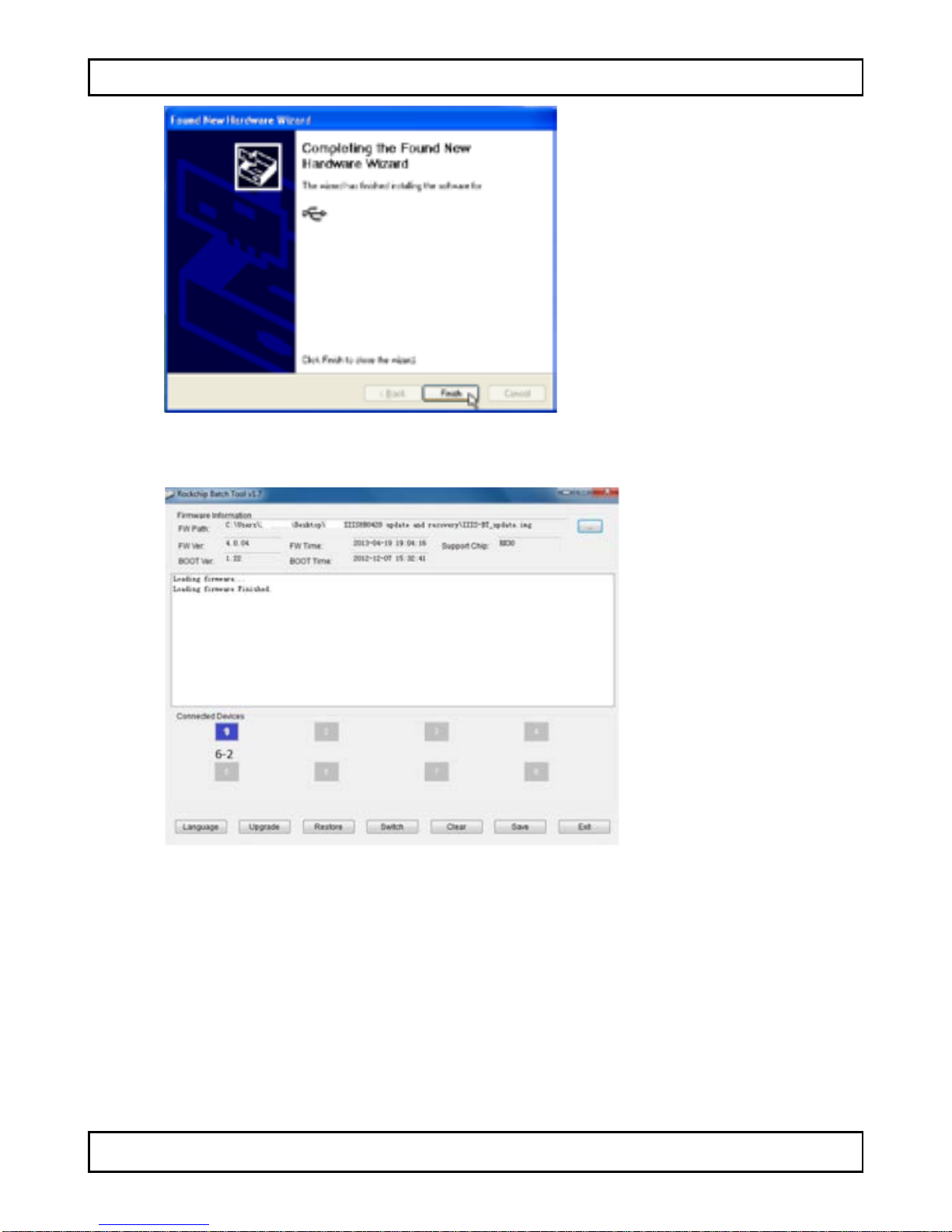

3. When installation is finished, the following window appears.

PCTV2
V. 02 – 12/09/2013 18 ©Velleman nv
4. Click Finish.
5. In the Batch Tool, the colour of the Connected devices changes.
6. Click the button Upgrade.
The upgrade takes about 3 minutes. Do not disconnect the
device during upgrade.

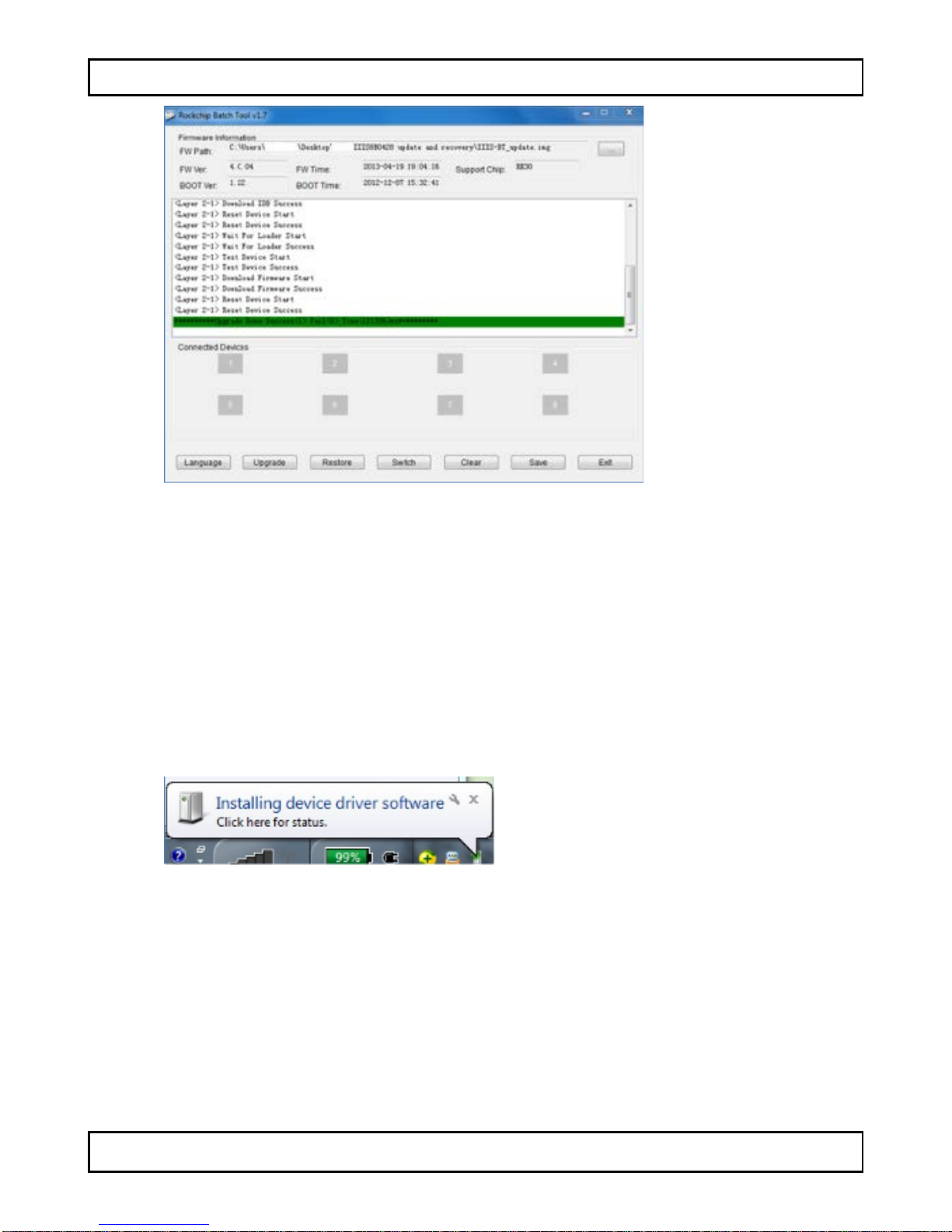

When the installation is successful, the following window
appears:

PCTV2
V. 02 – 12/09/2013 19 ©Velleman nv
7. Click Exit.
If necessary, safely remove the device before unplugging it (see
section Safely remove the device from your computer below).
Note
When running the device for the first time after a firmware update,
the device may run low or take more time to start.
15.5 Windows 7
1. On your computer, the following notification will appear:
2. Click this notification.
The following message appears.

PCTV2
V. 02 – 12/09/2013 20 ©Velleman nv
3. Click the link Skip obtaining driver software from Windows
Update.
4. Open My computer (key combination + e).
5. Right-click Computer and select Manage.
6. Open Device Manager > Other device.
