Velodyne DIGITAL DRIVE - REV H User manual

Digital Drive®
USER’S
MANUAL
Featuring Software Version 2.2.0

Caution!
i
.www.velodyne.com Digital Drive User’s Manual

Attention!
ii
.www.velodyne.com Digital Drive User’s Manual

Vorsicht!
iii
.www.velodyne.com Digital Drive User’s Manual

Attenzione!
iv
.www.velodyne.com Digital Drive User’s Manual

Table of Contents
v
.www.velodyne.com Digital Drive User’s Manual
Congratulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Before you Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Product Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
–Subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
–Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
–Digital Drive Accessory Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
–Subwoofer Controls and Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Installation Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Installation Step-by-Step . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
–Subwoofer Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
–AWord About Subwoofer Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
–AWord About Interconnect Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
–A Word About Connecting More Than One Subwoofer . . . . . . . . . . . . . . . . . . . . . .10
–AWord About Setting Up Your Receiver/Processor For Optimal
Subwoofer Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Subwoofer Setup -OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
–ON-SCREEN Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Onscreen Programming and Setup – Step by Step . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Restoring Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Runtime Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
About Room Equalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Protection Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Care of Your Digital Drive Subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Troubleshooting and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Appendix A: RS-232 Serial Overview and Commands . . . . . . . . . . . . . . . . . . . . . . . . .43
Appendix B: Summaryof Special Remote Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Appendix C: Important Subwoofer Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Congratulations!
1
.www.velodyne.com Digital Drive User’s Manual
Congratulations on your purchase of a Velodyne Digital Drive subwoofer system! Digital Drive
technology, universally acknowledged as the state-of-the-art in bass reproduction, is the result
of years of research and development, combining advanced Digital Signal Processing (DSP),
software, equalizer, audio filter, digital amplifier, digital servo control, and high-pressure
loudspeaker technologies. The result is a new subwoofer design that takes our traditionally
accurate low-frequency sound reproduction to new levels of precision, eliminates room
anomalies, and resolves many tradeoffs that encumber lesser subwoofer products.
This exceptional subwoofer will provide you with years of unparalleled listening pleasure. Enjoy!
Please observe the following instructions to insure safe and proper system operation.
Warning!
To prevent fire or shock hazard, do not expose this equipment to rain or moisture. To avoid
electrical shock, do not open speaker enclosure or amp chassis cover. Please observe all
warnings on the equipment itself. There are no user serviceable parts inside. Please refer all
service questions to your authorized Velodyne dealer.
Prior to Installation
Please unpack the system carefully! This unit is heavy. Use caution when lifting or moving to
avoid injury.Remove all staples if used to seal the carton as they can scratch the cabinet.
Please save the carton and all packaging materials for future use. Packing this unit in any other
carton may result in severedamage when shipping. Please take a moment to recordthe serial
number and date/location of purchase in the space provided on the warranty cardfor future
reference or register on-line at www.velodyne.com.
Caution!
This subwoofer has electronics built into the cabinet. Do not place the cabinet next to
sources of heat such as furnace registers, radiators, etc. Do not place the unit near
sources of excessive moisture, such as evaporative coolers, humidifiers, etc. The power
cordshould be routed in such a way that it will not be walked on, pinched, or
compressed in any way that could result in damaging the insulation or wire.
Regardless of where you install your Velodyne subwoofer, it must remain in an upright position
(woofer facing forward). Using, shipping, or otherwise storing the subwoofer in any other
position for an extended period of time may result in damage to the unit not covered
by warranty.
Certain types of televisions areparticularly sensitive to stray magnetic fields. If your television
produces distorted colors after installing your subwoofer, simply increase the distance between
your television and the subwoofer,until normal color and operation is returned.
Important Note: Turn your subwoofer off before moving it!
Before you begin

Package Contents
2
.www.velodyne.com Digital Drive User’s Manual
Your Velodyne Digital Drive Subwoofer consists of the following components:
•Digital Drive Subwoofer
•Power Cord
•Remote Control
•Digital Drive Accessory Kit, consisting of:
-Calibrated precision microphone
-Microphone windscreen cover
-Tabletop microphone stand
-Microphone stand adapter
-25-foot video cable
-25-foot audio cable
-20-foot XLR microphone cable
SUBWOOFER
Prominent features of your new Digital Drive Subwoofer include:
•Cone and Motor sizes:
-10” (8” Piston Diameter) or 12” (9.7” Piston Diameter) cone with 310 oz. magnet or,
-15” (12.7” piston diameter) or 18” (15.2” piston diameter) cone with 380 oz. magnet
•Built-in 1250 watt (RMS), 3,000 watt peak power high-efficiency Class-Damplifier
•Tandem 3” voice coil
•Multi-layer resin laminate cone
•High-excursion rubber surround
•Gain compression, anti-clipping circuit to prevent over excursion and amp clipping
•Fixed 80Hz high-pass crossover (RCA output)
•Balanced (XLR) input
•Line-level (RCA) inputs and thruputs
•Speaker-level inputs
•Variable volume control
•Frequency response of 20Hz -120Hz +/-3dB
•Detachable 6-foot AC power cord
•Four rubber 1/4 --20 threaded support feet (aluminum with rubber inserts
on 15” and 18” models)
•On-screen controls:
-Auto-EQ/Self-EQ
-Graphic or Parametric Equalizer controls for room EQ
-Adjustable (15Hz -199Hz) low-pass crossover (defeatable)
-Multiple staggered low pass crossovers (6dB/octave, initial to 36dB/octave, ultimate)
-Adjustable (15Hz -35Hz) subsonic filter (defeatable)
-Multiple staggered subsonic filters (12dB/octave, initial to 24dB/octave, ultimate)
-Variable volume control
-Adjustable phase control (0° -180° in 15° increments)
-Selectable polarity (+/-)
Product Features and Controls

3
.www.velodyne.com Digital Drive User’s Manual
-Theater/Music selection indicator (servo gain control)
-Signal sensing auto turn on/off/12 Volt trigger (defeatable)
-6presets for customized listening modes and EQ defeat
-Selectable default preset
-Switchable Velodyne logo indicator
-Night Mode maximum volume setting
-Save settings indicator
-Daisy chain feature
REMOTE CONTROL
The Velodyne Digital Drive infrared remote control allows you to set up, adjust, and reset your
subwoofer when connected to a television or a video monitor. You will also use your remote to
activate preset listening values, set the subwoofer’s volume up or down, mute the subwoofer,
or set a night operational mode.
Take care not to lose or misplace your remote control as adjustments to the subwoofer (with
the exception of volume control) can only be done using the remote.
NOTE: Two 1.5V AA batteries are required and included for operation of the
remote control.
External IR receivers may be ordered from either Velodyne or your local Velodyne audio
equipment dealer.

4
.www.velodyne.com Digital Drive User’s Manual
REMOTE CONTROL BUTTONS
Abrief description of each button on the remote control follows:
•PWR –Causes woofer to stand by if in “Active”
standby mode.
•NUMERIC KEYPAD –Used to enter SETUP mode
and for other functions.
•SET (+/-) –Increases or decreases the Q value
for a parametric EQ, or sets values on the
settings page.
•LIGHT –Turns the subwoofer’s front panel Velodyne
logo indicator on or off.
•NIGHT –Limits the peak output of the subwoofer,
and illuminates the logo’s amber underlining to
signify that the subwoofer is in night mode.
•VOL (+/-) –Raises or lowers the volume of your
subwoofer. The blue (Velodyne) light flashes more
quickly as the volume increases, and the light blinks
out the volume level after you stop adjusting it. For
example, for a volume of 34, you would see three
long blinks followed by four shorter ones.
•MUTE –Mutes and unmutes the subwoofer.
•TEST –Used to toggle between the settings screen
and the system response screen during setup.
•EXIT –To exit SETUP mode. The unit will ask if you
want to save settings beforeexiting.
•SELECT –Totoggle field values.
•RESET –Used to reset volume to the last saved
setting on the main screen, and to defeat
crossovers on the settings screen.
•MENU –Enters SETUP mode from the
introductory screen.
•PRESETS –To access the five preset and one EQ
defeat listening modes. Initially set at the factory,
they are fully user adjustable. The blue (Velodyne)
light flashes the appropriate number of times to
indicate which preset you have selected (e.g. twice
for preset 2).
NOTE: The button in the upper left is not used.
Figure1: Velodyne Digital Drive remote control

Installation Overview
5
.www.velodyne.com Digital Drive User’s Manual
DIGITAL DRIVE ACCESSORY KIT
The Velodyne Digital Drive Accessory Kit contains the following six components:
•Calibrated precision microphone
•Microphone windscreen cover
•Tabletop microphone stand
•Microphone stand adapter
•25-foot video cable
•25-foot audio cable
•20-foot XLR microphone cable
Your new Velodyne servo subwoofer provides for a number of installation options. Read all the
installation information below in order to determine which installation option is best for your
system. Remember to perform all installation procedures with subwoofer unplugged
until instructed to activate it!
SUBWOOFER CONTROLS AND PORTS
The Velodyne Digital Drive subwoofer is set up, configured, and adjusted by the controls, inputs,
and connections located on the rear panel of the unit. Figure 2 shows the location of each of
these important operational interfaces. Brief descriptions of each interface follow.

6
.www.velodyne.com Digital Drive User’s Manual

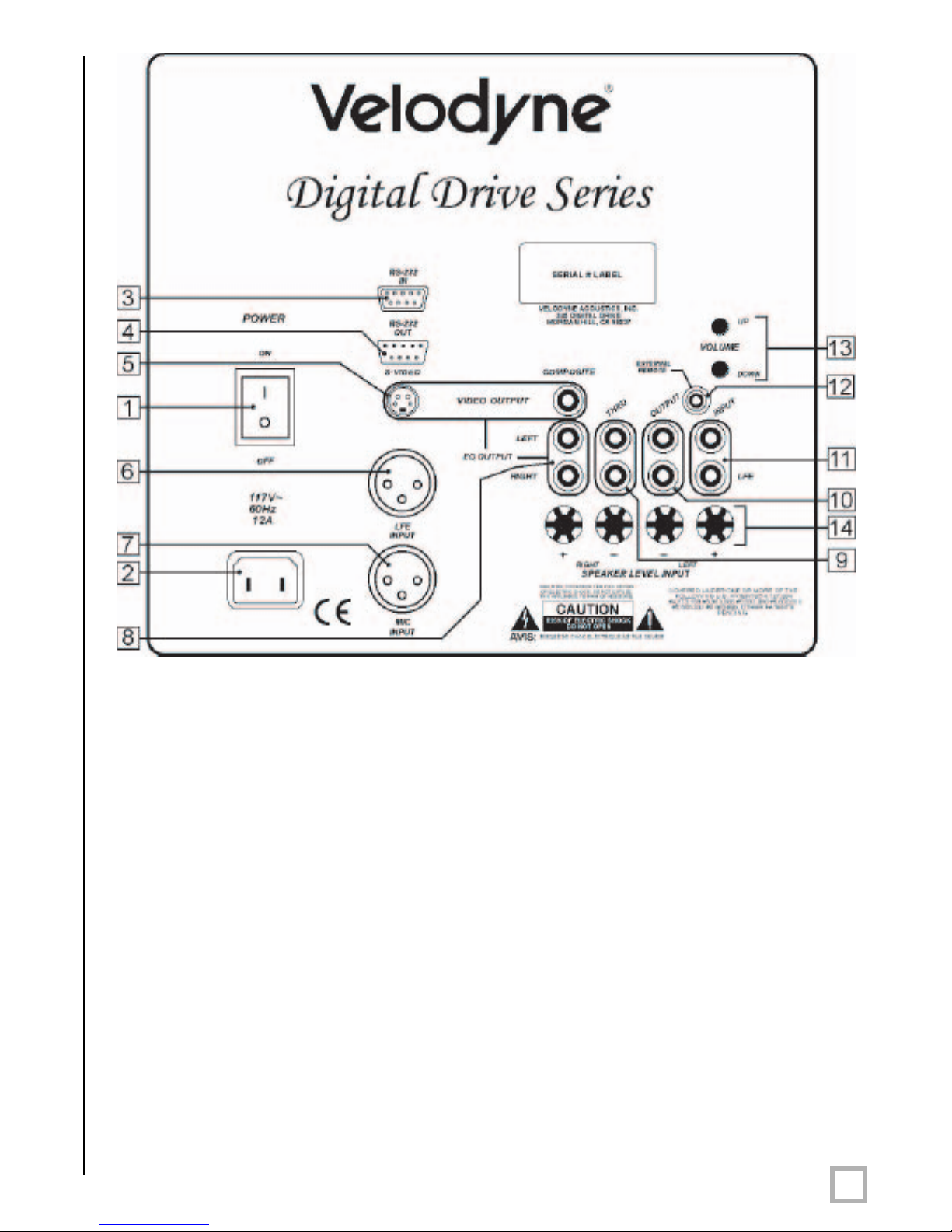

Figure2: Digital Drive Rear Panel Connections
(1) POWER –Press the POWER switch to the ON position to activate the subwoofer. If
the unit is to be left unused for an extended period of time, move this switch to the
OFF position to prolong the life of the subwoofer.
(2) POWER RECEPTACLE –Connect your detachable AC power plug to this male
interface connection. The detachable cord allows for easy replacement should the
original be damaged.
(3) RS-232 IN –Use this port to communicate with your computer (for software
updates), a touch panel remote control, or another upstream Digital Drive subwoofer.
See Appendix A for an explanation of the use of the serial port, available commands,
and their formats.
(4) RS-232 OUT –Use this port to communicate with a second “daisy-chained” Digital
Drive subwoofer.Also, the 12V trigger featurerequires a 12V trigger signal (polarity
irrelevant) across pins 7 and 9 of this port.
(5) EQ VIDEO OUTPUT –Used to display the video generated by the subwoofer. S-Video
or composite connections are available (composite cable included). NOTE: Only
connect to a single video output at a time.

7
.www.velodyne.com Digital Drive User’s Manual
(6) LFE INPUT –This XLR input jack receives the balanced LFE signal from your receiver
or processor.
(7) MIC INPUT –This XLR input jack is for your XLR microphone cable.
(8) EQ OUTPUT LEFT/RIGHT –Connect the audio cable from your accessory kit to these
jacks: white plug to LEFT, and red plug to RIGHT.
(9) THRU –These RCA connectors are for sharing the same signal that goes into your
subwoofer with a second “daisy-chained” subwoofer. RCA input comes out of the
THRU jack.
(10) OUTPUT –These RCA connectors incorporate the use of an 80Hz 6dB/octave slope
high pass crossover.
(11) LFE INPUT –This RCA input jack is for line-level connection.
(12) REMOTE SENSOR –This connection allows for hook-up of the optional remote control
receiver. With the optional receiver plugged in you will be able to utilize all functions
of the remote. Place the infrared receiver within direct line of sight from your usual
listening position.
(13) VOLUME UP/DOWN –Press the black UP pushbutton to incrementally raise your
subwoofer’ssystem volume; press the black DOWN pushbutton to incrementally
lower your subwoofer’s system volume. Note the use of these buttons during
software update.
(14) SPEAKER LEVEL INPUT RIGHT/LEFT –This speaker-level connector allows either
banana plug/jack or exposed wire/terminal connections.

Installation – Quick Start
8
.www.velodyne.com Digital Drive User’s Manual
Toset up and take advantage of the EQ features in your new Digital Drive subwoofer in the least
amount of time, perform the following steps:
1. Unpack the subwoofer and connect the power cable.
2. Connect an LFE input cable from your receiver/processor to the input jack.
For other hookup options, see step 2, on the following page.
3. Power up the unit and ensure that it is receiving signal from your receiver
(i.e. playing bass).
4. Connect the microphone (in the accessory kit) and place it in your favorite listening
position. Then press 3-2-1on the remote.
5. The unit should emit 25 “sweep” tones then restart and play normally. The subwoofer
has now automatically EQ’d itself to your room.
6. Adjust the subwoofer’s volume to taste.
7. Enjoy!

Installation – Step-by-Step
9
.www.velodyne.com Digital Drive User’s Manual
Toensure a quick and flawless installation of your Velodyne Digital Drive unit, follow these
numbered setup instructions in their exact order.
SUBWOOFER CABLE CONNECTIONS
Make all necessary cable connections between the applicable subwoofer connector port and
your particular home electronics equipment in the following order:
1. Insert the detachable AC power cord into the 117V~, 60Hz, 15A power interface port on
the rear panel of your subwoofer. Plug the male end of the cord into a convenient wall outlet.
2. Provide signal to your subwoofer through one or more of the following connections (refer to
your receiver/processor owner’s manual for available inputs to the subwoofer):
a. LFE INPUT (RCA, the RED jack at location 11 on Figure 2) –This is the most common
input cable connection. Make a connection between this input and the LFE output or
the subwoofer output of your receiver or processor; OR
b. LFE INPUT (XLR, location 6 on Figure 2) –Make a connection between this input and
the balanced LFE outputs of your receiver or processor; OR
c. INPUT, LEFT and RIGHT (location 11 on Figure 2) –Make a connection between these
inputs and the stereo outputs of your receiver or processor; OR
d. SPEAKER-LEVEL INPUT (location 14 on Figure 2) –Make a connection between these
inputs and the left and right speaker connections on your receiver or processor.Make
this connection by either inserting speaker wire into the correct binding post terminals
or by removing the banana plug jack caps and inserting banana plug wireinto the jacks.
NOTE: Refrain from routing connections permanently at this time to accommodate subwoofer
room placement as described below.
3. Establish the line-level connection (optional). Connect to a pre-amplifier’s main outputs and
returning them to your amplifier inputs. When installed in this fashion, your satellite speakers
will be crossed over at 80Hz, which removes the lower bass from your amplifier and
speakers, enabling them to do a better job reproducing high frequencies. By utilizing this
method, you will have a bi-amplified system, gaining improved power and headroom for
your system.
AWord About Subwoofer Outputs
The Velodyne subwoofer is designed to operate using the full range audio signal for input when
using the digital built-in crossover.Most processors/receivers have a “subwoofer out” jack that
is internally filtered and designed to be used with a conventional amplifier and speaker. In some
rarecases, combining both an external crossover and the one internal to the subwoofer may
result in low output and increased noise. In these installations you may need to bypass the
internal crossover in either the processor or Velodyne subwoofer. In some installations, simply
setting one crossover to a higher frequency (such as 120Hz) will restore maximum
performance. To bypass the subwoofer’s internal crossover when the unit is being fed a low
pass signal from another crossover, refer to the SETUP instructions at step 14 (page 24).
Note: If not using an external crossover
,you should use the built-in crossover for
optimal performance.

10
.www.velodyne.com Digital Drive User’s Manual
4.Referring to Figure 2, Locations 5 and 8, connect the audio/video cable between your
subwoofer (EQ OUTPUT VIDEO/LEFT/RIGHT yellow, white, and red respectively) and your
electronics (receiver, processor, TV, etc.). Insert the color-coded cable plugs into the correct
EQ OUTPUT receptacle – the yellow plug into the VIDEO jack, the white plug into the LEFT
jack, and the red plug into the RIGHT jack. The opposite ends of this cable should be
connected to your receiver/processor. The yellow VIDEO cable goes to an available
composite video input (e.g. aux), and the white/red AUDIO (L&R) cables go to a
corresponding audio input. Consult your receiver/processor and/or TV owner’s manual for
more information.
NOTE: Make sure the audio output goes into your AUDIO system, not your TV! The subwoofer
will generate test tones used to match the subwoofer to your satellites and to correct for room
anomalies that need to be played over your main audio system.
5. Insert the XLR microphone cable’s 3-pin male plug into the MIC INPUT jack (location 7 on
Figure 2) on the back panel of the subwoofer. For DD-15 and DD-18 units, a microphone
jack is also located on the front of the unit for convenience.
6. Slide the microphone (male connector end first) down through the open, circular sleeve of
the tabletop microphone stand. Position this assembly at a desired listening position from
your subwoofer.
NOTE: The Digital Drive Accessory Kit includes a microphone stand adapter (1/2”-27 thread)
for use with professional mounting stands. Be sure to first remove the inner thread piece
(3/8”-16) before using.
7. Connect the XLR microphone cable’s female jack end with the male connector end of
the microphone.
8. Sheath the microphone pickup with the foam windscreen cover as a protection against dirt
and airborne contaminants.
AWord About Interconnect Cables
When installing your new Velodyne subwoofer using the line level connections, you should always
use shielded phono cables. There are many quality cables available today, most any of which
will work perfectly well. We do recommend that you keep the length of cable as short as
possible to avoid any potential noise problems.
When routing cables, try to keep them away from equipment that generates significant noise
such as industrial or digital equipment.
AWord About Connecting More Than One Subwoofer
If you are connecting more than one DD subwoofer to your system, you will connect them
together in a “daisy-chain.” Choose one sub for all the connections described below (we’ll call
this the “master” sub), and then connect an RCA jack from the THRU RCA jacks of the “primary”
to the input jacks of the “slave” sub. You will also need to obtain a “Mouse Extension” serial
cable (available at any computer store, from your Authorized Velodyne dealer, or from Velodyne
directly) and connect the RS-232 OUT port of the primary sub to the RS-232 IN port of the
secondary sub. Then, all runtime commands directed at the primary sub (such as volume) will
be communicated to the secondary sub automatically through the serial cable. If you have more
than two subs in your setup, simply continue the daisy chain from the secondary sub to the next
sub in the line (using both RCA and serial connections) and so on.

11
.www.velodyne.com Digital Drive User’s Manual
NOTE: When a DD subwoofer detects an incoming RS-232 command, it reverts to “Slave
Mode.” This means that the subwoofer will no longer accept IR commands. To reestablish
normal operations, remove the RS-232 cable and power cycle the unit.
Note that the daisy chain connection ONLY allows the woofers to communicate basic “run-time”
commands such as volume and preset. We recommend the following sequence when setting
up daisy-chained subs.
1. First, connect only the master sub to the system. Do not connect the thru or serial
cables at this time.
2. Establish the crossover, phase, and other settings EXCEPT the EQ on the master sub
(see setup steps 1 –17 starting on page 17). Note the low pass crossover, phase
and polarity settings, then save.
3. Connect the video out of the slave subwoofer, go to the settings screen, establish the
low pass crossover, slope, phase, polarity, and night mode settings from the master
subwoofer, then save settings. Repeat for each slave subwoofer in your system.
4. Connect the microphone to the slave subwoofer and use the “self-EQ” feature
(described on page 12) to establish room EQ for that subwoofer.
5. Repeat steps 3 and 4 for each slave subwoofer in your system.
6. Reconnect the video out to the master subwoofer, and reconnect the thru and serial
cables so that the master and slave subwoofer(s) are daisy chained.
7. EQ the primary subwoofer (see steps 8-25 starting on page 20). Self-EQ is NOT
recommended for the primary subwoofer.
8. Setup is complete!
AWord About Setting Up Your Receiver/Processor For Optimal
Subwoofer Performance
It is important that your receiver/processor (from now on we’ll refer to this as your “receiver” for
simplicity) be set up correctly to work in concert with your DD subwoofer. In the receiver’s “speaker
set up” menu you will enter the number of speakers and indicate whether or not you have a
subwoofer. In addition you will enter the speaker size, usually “large” or “small.” It is almost always
advantageous to use the “small” setting. Most full-range speakers use smaller woofers for the
bass section and typically do much better in the upper bass and lower midrange if relieved of deep
bass duties. Your DD subwoofer, with its 1250 Watt RMS amplifier, large magnet and voice coil,
and servo control, can play 80Hz and below moreaccurately, with more power and with lower
distortion than a full range loudspeaker can. This is often referred to as “bi-amping” a system.
Setting your speakers to “small” in your receiver also means the receiver’s bass management will
send bass to the subwoofer in all playback modes, 2-channel or surround.
When you choose “small” you activate the receiver’s crossover. Some receivers will offer crossover
choices. In this case a good rule of thumb is double the low number of the stated frequency
response of your main speakers. So if a speaker’s response is rated from 40Hz –18KHz, then
doubling the 40Hz low frequency number equals 80Hz. In this example 80Hz would be a good
crossover point. When in doubt, 80Hz is always a good starting point. Those that do not offer
choices normally crossover at 80Hz, which is an excellent crossover point, and is also the
THX™standard.
If you use this “small” speaker set up recommendation go into the DD’s “SYSTEM SETTINGS”
screen and turnthe DD’s crossover “OFF” (see page 26).

Subwoofer setup – Overview
12
.www.velodyne.com Digital Drive User’s Manual
BEFORE YOU BEGIN: Once the installation has been completed, note that you can use your
subwoofer without performing ANY of the setup steps below. Simply use the remote to set the
volume, and select the preset that most closely matches your listening material, and enjoy!
However, to reap the maximum benefits of Digital Drive technology, read on!
Special note for 230V users with video problems
For 230-volt Digital Drive subwoofers, the default video mode is NTSC video format. If your TV
is NTSC compatible, you will have no trouble with this mode. However, certain TVs (especially
older ones) may require PAL or SECAM video. To switch from NTSC to PAL/SECAM mode,
press the DOWN ARROW four times followed by RESET. The subwoofer will restart in
PAL/SECAM video mode. To revert back to NTSC, restore defaults by pressing 8-9-0while on
the cover screen.
SELF-EQ
To perform an abbreviated setup of your Digital Drive subwoofer using the self-EQ function,
position the microphone in your listening position and connect it to the subwoofer as shown in
the installation instructions. Then, press 3-2-1on the remote. The subwoofer emits 25
“sweep tones” that are detected by the microphone and then automatically EQs your subwoofer
accordingly. After the sweep tones are completed, the unit automatically saves settings and
returns to normal operation. Once the self-EQ process starts, pressing the RESET button can
interrupt it.
Caution: Self-EQ resets all EQs for all presets to their default values. DO NOT use the self-EQ
featureif you plan to adjust the DD subwoofer manually as described below.
ON-SCREEN Setup
This section describes adjusting the onscreen settings of your Digital Drive subwoofer. You will
be performing all the setup functions using the buttons of your Velodyne-supplied remote control
and seeing the results on your TV screen. Words in all uppercase letters in the setup
instructions (e.g., SELECT, MENU, etc.) identify the specific remote button to be pressed or
selected, or the field on the screen you should be paying attention to. Remember to point the
remote control at the subwoofer, not your TV!
Use the UP, DOWN, RIGHT, and LEFT directional arrow buttons that surround SELECT to
navigate the fields of the setup screens. Settings are typically changed using the SELECT key,
followed by the UP and DOWN arrow keys. Alternatively, the SET +/- buttons can be used to
change settings. A screen field highlighted in reverse video indicates your current location on
the screen. Holding down the UP, DOWN, RIGHT, or LEFT arrow keys causes the remote to
repeat and you can then rapidly move through fields to arrive at the desired one. You should
be able to perform most of the setup process by using the four arrow keys and the
SELECT button.
Following is an overview of the screens you will be using to set up your
Velodyne Digital Drive subwoofer.

13
.www.velodyne.com Digital Drive User’s Manual
Figure 3: Introductory Screen
See Figure3. This the Introductoryscreen. Notice that as you change settings (such as preset,
volume, etc.) they areshown on this screen.
You enter setup mode by pressing MENU and entering the code 12345. Upon successful entry
of this code, the system takes you to the EQ Setup screen, as shown in Figure4.
HINT: You do not need to press MENU to begin entering the setup code. You can begin the
12345 sequence by pressing the number 1 on the remote.

14
.www.velodyne.com Digital Drive User’s Manual
Figure 4: EQ setup screen
The EQ setup screen includes a “SYSTEM RESPONSE” “sweep” window and a graphic equalizer
.
You use these settings to equalize your room. The graphic equalizer features eight bands, each
of which can be used at its current frequency, or can be infinitely adjusted to the frequency and
EQ you desire. Each preset can have its own EQ settings.
By navigating the cursor to the NEXT field and pressing SELECT, the following screen appears:
