Velovolt City Ebike User manual

Ebike Operating Instructions
This is an important instruction, please make sure you read this carefully before you try your first ride.
If you are in doubt about any information inside this instruction,please contact us or your local distributor.

1
2
3
4
5
6
7 8 9 10 11
12
13
14
15
16
17
18

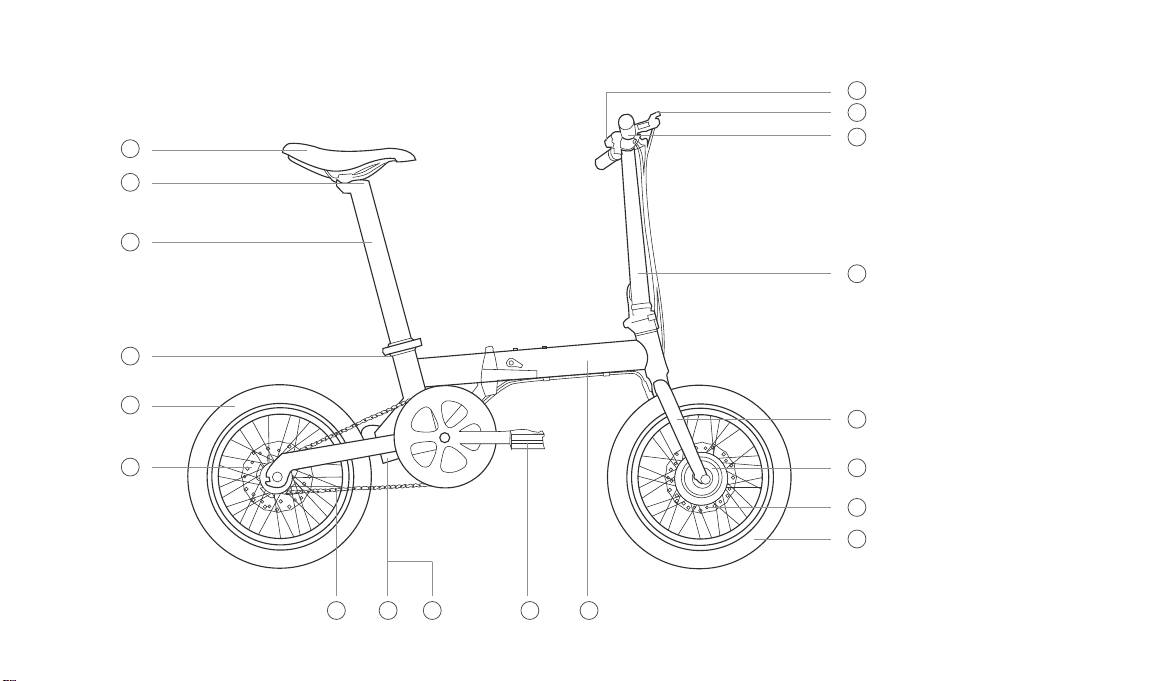

19 1 Saddle
2 Charging Port
3 Seatpost Battery
4 Seatpost Clamp
5 Rear Wheel
6 Rear Disc Brake
7 Chain
8 Controller
9 Power Interface
10 Foldable Pedal
11 Frame
12 Front Wheel
13 Front Disc Brake
14 Motor
15 Front Fork
16 Foldable Head Stem
17 Handlebar
18 Brake Lever
19 LCD Display
Meet your Ebike

Parameters
Product name: CITY Ebike
Model name:VVEB1-BLK/WHI
Size: 1320*580*980mm
Folded size: 710*360*630mm
Wheel base: 930mm
Net weight: 14kg
Range: PAS>50KM
Standard load: 100KG
Top speed: <25KM/H
Charge time: 3 Hrs
Battery type: Lithium-ion
Battery capacity: 36V 5.2Ah
Noise : ≤62db(A)
Motor : 250W brushless geared DC motor
Rated output power: 250W
Motor efficiency: ≥80%
Rated RPM: 300 RPM
Rated voltage: 36V
Max torque: 40N.m
Overcurrent protection: 12±1A
Low-voltage protection30±1V
Kwh≤1.2Kw.h
Ride system: 5 classes PAS+cruise
Tyre Diameter: 16 inch
Frame: 16 inch 6061 Al-Alloy foldable
Front fork: 16 inch inch 6061 Al-Alloy
Brake: 160mm disc brake
Rim: 16 inch Al-Alloy 13G36H
Tire: Kenda 16*2.125
Chain wheel: Prowheel 52T
Fly wheel: 14T
Rear hub: Sigma Al-Alloy
Chain: KMC
Handle bar:EVA
Display: Kunteng LCD
Controller: Kunteng sine wave FOC
Brake lever: Al-Alloy ebike lever
Saddle: KNUS
Pedal: foldable pedal

①
③
④
②
⑥
⑤
⑦
⑧
Folding your Ebike
1. Hold the seat post(impor
tant). loosen the clamp.
2. Push the seatpost to the
ground slowly,tighten the
seatpost clamp.
5. Release the lock clamp,
fold the head tube.
6. Fold the pedal by pushing
it level.
3. Loosen the handle bar
clamp4. Turn the handlebar clockwise
until vertical ,tighten the clamp.
7. Release the safety cap.
8. Pull the lock bar ,fold the
main tube.

Press & hold power button for 3 sec,LCD shows screen A,data shows as :single riding time- PAS class-speed-single range;
Press power button,LCD Shows sceen B,data shows as: total riding time - PAS class  Average speed - total range;
Press power button twice,LCD shows sceen C,data shows as: total riding time - max speed - voltage
1.Walk mode:press&hold DOWN button till flicker,your Ebike will slide at a fixed speed of 6KM/H,release to quit.
2.Cruise mode: Pedal your Ebike to your wanted speed (must be over 7KM/H) ,then press & hold DOWN button for 3 sec to enter cruise mode,
take a break or press any button to quit.
3.LCD backlight: press & hold UP button to turn on backlight,press & hold UP button again to turn off.
4.PAS mode: press UP or DOWN button to choose PAS classes from 0~5.
Pedestrian/ Walk Mode
00:48
KM / H
VOL
28
5
.9
TTM
MAX
0036.8 KM
00:48
KM / H
ODO
18
5
.7
TTM
AVS
0008.4 KM
00:18
KM / H
DST
00
3
.0
TTM
0001.8
Operating your Ebike
Ⅰ
Ⅰ
Ⅱ
Ⅱ
Ⅲ
Ⅲ
Press & hold power button to turn off
Up DownPower LCD backlight

Charging your Ebike
Charging port is located beneath the
saddle, covered by a rubber
dust-free cover, uncover it, plug
the charger into the port. Cover
the port again when charged.
If you want to charge your
battery separately, unscrew the
power port ,release the seatpost
clamp,pull out the seatpost
battery, then repeat the steps
above.
1 Front mud guard
2 Rear mud guard
3 Reflectors
4 Bell
Please mount accessories according to your needs.
Accessory list

Attention
Ride & MaintenanceBattery & Charge rrr
1.Red indicator on the charger means charging.When it turns green ,please stop
charging your battery;
2Do not expose to temperature -20or 35Fully charge the battery and store
separately if not used for over 30 days. Fully charge it every 90days, or the battery may
self-discharge and be damaged. This damage is not covered by the Limited Warranty;
3.Never expose your battery to damp environment or soak into water,never short
circuit the battery terminals, This damage is not covered by the Limited Warranty;
4.Charge with the original charger only;
5.Do not disassemble/punch battery pack.Do not place it in fire or drop from
height ,Avoid contact with electrical contacts;
6.Turn off Ebikes power before charging. Plug the charger port in first then the
AC plug;
7.Do not cover any items on the charger during charging;
8.Pull out charger port before the AC plug;
9.Please keep battery out of reach of children.
10.The capacity of Li-battery will decrease when <-10℃.
11.Recycle or dispose of in accordance with local regulations.
1.Always wear your helmet when riding and follow the local
laws and regulations.
2.Read this instruction manual carefully before riding your Ebike.
3.Start your ride with the 3rd PAS class.
4.Keep the lamp on at night.
5.Fully check brake system ,tyre pressure ,and remaining battery
charge before riding.
6.PLEASE do use front brake FIRST.
7.Do not ride aggressively.
8.Do not ride into water over 15cm deep!
9.Replace the quick-wear parts (like brake pads) in time.
10.Children, Pregnant Women, Intoxicated are not allowed to ride Ebike ；
11.Keep your Ebike away from damp, high temperature or
corrosive environment；
12.Do not leave in direct sunlight or rain .
13.Check screws ,chain and other parts regularly.

Standards and Conformity
Velovolt City is an electric power assisted cycle developed in accordance with:
2006/42/EC The Machinery Directive
2004/108/EC The Electromagnetic Compatibility Directive
and is in conformity with the applicable requirements of the following documents:
EN 15194:2009 + A1 Cycles - Electrically power assisted cycles - EPAC bicycles
EN 14764:2005 City and Trekking bicycles - Safety requirements and test methods
Original Instructions, Translations and Updates
Original instructions are produced in English language. Translations of the original instructions to other languages may take place, however
Velovolt LLP accepts no responsibility for any errors or misinterpretation of information as a result of such translation.
Disclaimer
The specifications, information and performance of the Velovolt City and other products manufactured by or sold under license granted by
Velovolt LLP and featured in this document may change without notice. The use of this information or products and the conditions under which
the products are used are the sole responsibility of the buyer and/or the rider. It is the buyer’s and/or rider’s responsibility to determine the
correct and safe selection of settings and conditions of use of the products and to periodically check the products for secure and proper
operation. To the extent that the law permits, any liability which may be incurred as a result of the use of a product manufactured by or sold
under license granted by Velovolt LLP is limited to the cost of repairing or replacing the failed product or component at the discretion of Velovolt
LLP, either within or outside of warranty periods, and does not extend to any loss or damage which may be caused as a consequence of
misuse or failure of the products. Damages to the product, other property or any persons are the responsibility of the buyer and/or rider. By
using this product manufactured by or sold under license granted by Velovolt LLP, you are stating that you have read this disclaimer and agree
to hold Velovolt LLP, its owner/s and any of its employees or directors free from all liabilities, that you agree you are using and operating the
product at your own risk, and that no warranties or guarantees are made by Velovolt LLP, expressed or implied, on performance or operation.

Intended Use
The Velovolt City is an electric bicycle developed and designed for commuting usage and/or simple riding in fair weather and at speeds
relevant to safe and appropriate travel in an urban or suburban environment. Where applicable, the product meets the minimum requirements
outlined in EN 14764:2005 and EN 15194. Abusive riding styles or inappropriate use will invalidate any warranty protection offered in this
agreement. WARNING! Understand your Velovolt City and its intended use. Using your Velovolt City in the wrong manner or for the wrong
purpose can be dangerous and may impact the service life of the product. The Velovolt City is a power-assisted bicycle intended for sensible
use by physically competent riders. If you have any concerns or doubts about your use or enjoyment of such a product due to a medical
condition, an illness or if you are recovering from treatment for a condition or illness, you should consult your doctor regarding the suitability of
the product for you. If you are the user of an implanted medical device such as a pacemaker or defibrillator, you agree to seek appropriate
advice from the manufacturer of such device prior to the usage of Velovolt LLP products.
