Venset TS600B User manual

Electric TV Lift, TS600B
1
INSTALLATION INSTRUCTIONS
CONTENT:
1. Important safety instructions
2. Specifications and main dimensions
3. Parts included
4. Control box
5. Installation
6. Adjusting the stroke length of the lift
7. Operation modes
8. RF/IR remote learning
9. Declarations of conformity
WARNING
WARNING: FAILURE TO COMPLY WITH OR OBSERVE ALL
ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS
AND WARNINGS REGARDING THE USE OF THIS PRO-
DUCT MAY RESULT IN SERIOUS BODILY INJURY.
No. #338390.4

Electric TV Lift, TS600B
2
1. Important safety Instructions
Use the following safety guidelines to help protect your lift from potential damage and to en-
sure your own personal safety.
Read all the installation instructions before testing or installing your lift.
Read and follow all safety instructions.
Keep control switch out of reach of children.
To prevent bodily injury keep hands and clothing away from the lift while the lift is in
operation.
Before installing the lift or working with its connections, unplug the lift from the elec-
tricity main supply.
Do not install the lift or power supply in places subject to high temperatures for exam-
ple near a radiator, or heating vent.
The TV lift must only be mounted in a dry area and it must be ensured before use that
the lift is safe or protected from liquid contact or spillage.
To avoid damaging the power supply and power cord, do not put anything on it or
place it where it could become damaged.
Unplug the lift in the following conditions:
When the power cord or plug is damaged or frayed.
If the lift or power supply has been exposed to rain or water or any liq-
uid contamination whatsoever.
If the lift exhibits a distinct change in performance, indicating a need
for attention.
Venset lifts are sold as a component to combine with other products, eg. With a flat
screen television on its own or combined with a cabinet, both examples would be
common usage. It is the responsibility of the installer of the lift to decide if the lift is
suitable for their purpose and for any safety aspects concerning their overall product
and installation.
CAUTION: Before you begin any of the Installation procedures (5. Installation.),
read and follow the warnings and safety instructions on this page.
WARNING ! THIS IS NOT A TOY !
WARNING ! CHILDREN SHOULD NOT OPERATE LIFT !

Electric TV Lift, TS600B
3
2. Specifications and main dimensions
Materials and weights:
Steel, black powder coated - Weight ~ 6,2 kg
Max. working loads:
12 kg (by standard installation)
15 kg peak load
Duty cycle:
10% by 50% of working load or max 2 min. continuously
Operation:
Rocker switch
Voltage:
100-240 VAC / 50/60Hz
Main dimensions, TS600B [mm]:

Electric TV Lift, TS600B
4
3. Parts included
Lift unit ( #1 )
Rocker switch ( #2 )
Rubber washer ( #3 )
Control box ( #4 )
Power supply ( #5 )
AC input wire, country configured ( #6 )
Lift unit ( #1 )
AC input wires, coun-
try configured ( #6 )
Power supply
( #5 )
Rocker switch ( #2 )
Control box ( #4 )
Rubber washer ( #3 )

Electric TV Lift, TS600B
5
4. Control box
Learner button
Blue light
Red light
IR sensor input
TV lift output
DC power input
Rocker switch input

Electric TV Lift, TS600B
6
5. Installation
1) Remove all contents from packaging and compare with parts list.
2) Place the lift unit (#1) onto your straight mounting surface e.g. the back panel of the cabi-
net* in a location that will allow full up and down movement of the lift.
3) Connect the plug from lift unit (#1) to the TV lift output port of the control box (#4), rocker
switch (#2) to the Input port and the power supply (#5) to the DC Input port of the control
box (#4) like shown below.
4) To mount the lift onto your own board or flat wall with normal screws, first screw through
the 2 lower brackets using suitable screws. Place a rubber washer ( #3 ) between each
bracket and the mounting surface. Then run the lift to its top position using the rocker
switch. Then repeat the screw fixing for the 2 upper brackets.
5) If using the M5 threaded hole for mounting then screw into this from the back side of your
mounting board with suitable length Allen screws, when using these holes you will not
need to raise the lift to secure to the upper brackets. Place a rubber washer ( #3 ) be-
tween each bracket and the mounting surface.
6) Mount rocker switch (#2) in an easy location by cutting a ø30 hole and pressing the
switch into place. Secure excess wire to keep away from moving parts.
7) Plug the power cord ( #6 ) into main electrics and operate manual rocker switch. If the op-
tional RF or IR transmitter has been purchased, the control box needs to be linked to the
transmitter before use. See troubleshooting guide on www.venset.com, click “support”.
Helpful hint: Mount TV lift and electronics to a plywood panel and attach to inside back of cabi-
net using appropriate number of screws. This allows all components to be removed from the cab-
inet if necessary. If this is not possible, create an access panel to the electronics.
* Aim to create easy access for wear and tear replacement stroke service.
Optional RF emitter R315290
Optional IR eye and emitter R137380
To code the RF or IR see page 11

Electric TV Lift, TS600B
7
MB600 –VESA mount adapter kit (optional)
The optional MB600 –VESA mount adapter kit can be mounted in two different mounting direc-
tions to fit either VESA 100x100 or VESA 200x200 and 200x100 standard.
VESA 100x100
VESA 200x100 and VESA 200x200
For VESA 400x200, order bracket MB003 B1 and fit this combined with the MB600 bracket.
R131770 –Lid lifter (optional)
The loading impact to the lift by lifting a
hinged lid must be calculated in the total
load and the total including the TV (or any
item being lifted) and the VESA bracket
must not exceed 12kg which is the maxi-
mum working load.
Always adjust the travel position/height
range of the lift so that the lid lifter is
touching the lid or within 3mm of the lid
underside when the lift is closed otherwise
the auto-stop system may operate when
the lid lifter contacts the lid to open it.
The cabinet should always be designed to
minimize the load from the lid, the hinge
line distance to the lid lifter contact point
has a significant affect on this.

Electric TV Lift, TS600B
8
6. Adjusting the stroke length of the lift
Adjust these 2 end stop sliders
downwards to increase the
height of the lifts lowest position.
2,5mm Allen key required. Make
sure to tighten the screws
properly.
Adjust these 2 end stop sliders
upwards to decrease the maxi-
mum height of the lifts upper posi-
tion. 2,5mm Allen key required.
Make sure to tighten the screws
properly.

Electric TV Lift, TS600B
9
7. Operation modes
Depending on the mounting direction of the TS600B the matching operation mode must be se-
lected by setting four jumpers (M/L, Off, Rev, Aux) inside the control box.
The jumper: M/L switches between Momentary or Latching behavior for both the rocker switch
and RF/IR remote. When Momentary mode is chosen the TS600B only operates as long as the
rocker switch or a button of the RF remote is held down. In latching mode, only a single push is
required to start or stop operation of the TS600B.

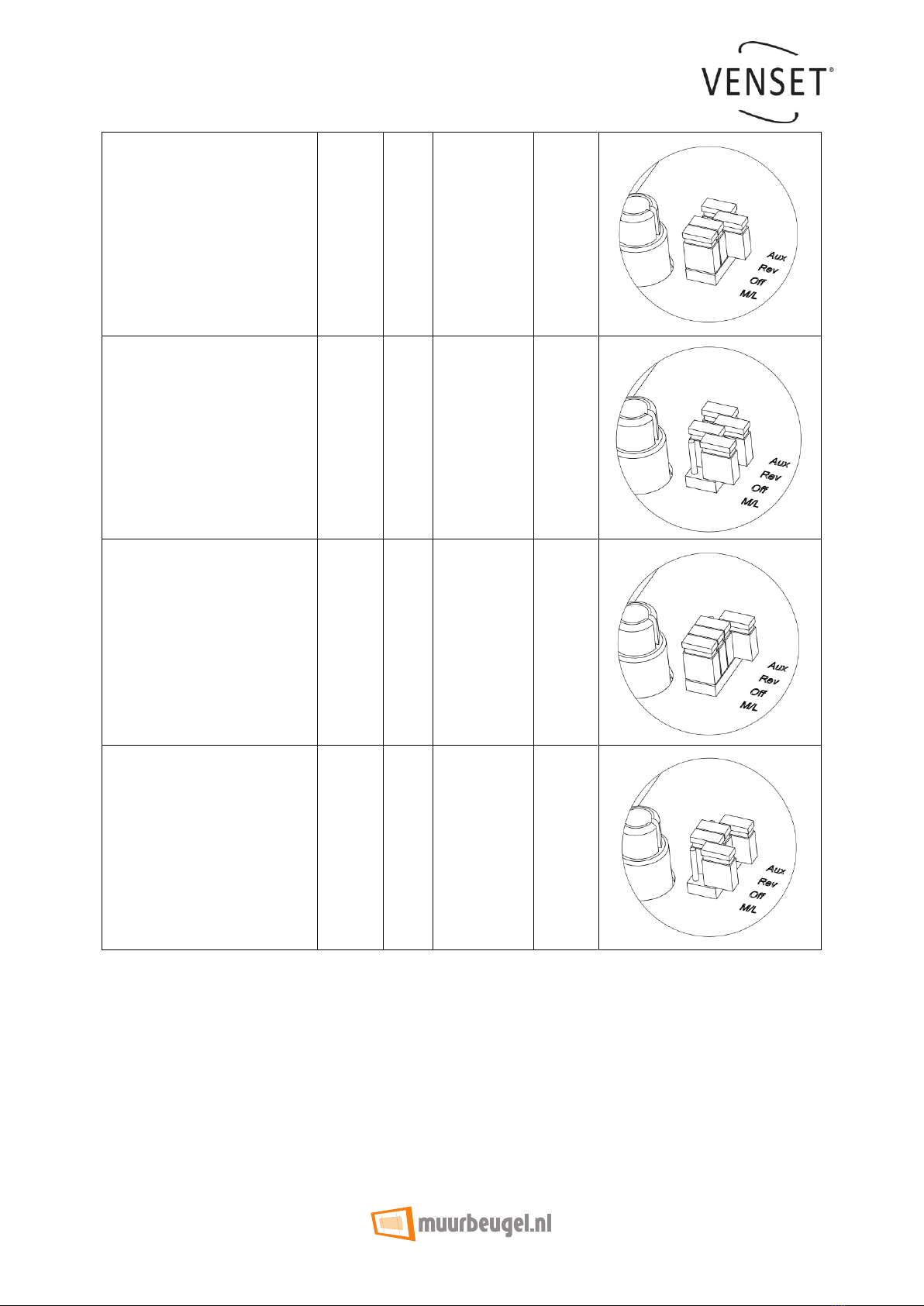

Operation Mode
Jumper
M/L**
Off
Rev
Aux
Jumper position
Upside up –momentary
(default setting)
Set
Set
Set
Set
Upside up –latching
Open
Set
Set
Set

Electric TV Lift, TS600B
10
Upside down –momentary
Set
Set
Open
Set
Upside down –latching
Open
Set
Open
Set
Horizontal - momentary
Set
Set
Set/Open*
Open
Horizontal - momentary
Open
Set
Set/Open*
Open
* If the TS600B is mounted horizontal the jumper Rev can be used to select if the TS600B pull
out (jumper Rev: set) or pull in (jumper Rev: open) when pressing the up button of the RF/IR re-
mote.
** The momentary mode is not useable for the optional IR remote.

Electric TV Lift, TS600B
11
8. RF/IR remote learning
If the control box does not respond when pushing the emitter buttons, they need to be paired.
oPush the Learner button on the control box for less than 1 sec.
oThe red LED will turn on
oPush one of the RF/IR emitter buttons
oThe red LED will start flashing
oWhen the red LED stops flashing, the units now are coded together with a unique code
oTo abort a learning operation push the Learner button once more. The red LED will turn
off and the control box is back into normal operation mode.
9. Declaration of conformity
We hereby declare, under our sole responsibility that the following products:
-VENSET TV-lift product type TS600B
is in accordance with
-Directive 2006/42/EF of the European Parliament and of the Council of 17 May 2006 on
machinery and on changes of directive 95/16/EF
With reference to the above please be aware that:
-the TV-lift is considered a partly completed machinery and
-the TV-lift may not be used until it has been assembled and installed
according to the instructions.
Manufacturer:
VENSET A/S
Industrivej 23
DK-6900 Skjern
Denmark
Tel: [phone], Fax: [phone]
The information in this document is subject to change without notice.
