USER MANUAL
Heat (energy) recovery
ventilation unit
Frigate HRV 120 SR
Frigate ERV 120 SR

2
CONTENTS
Safety requirements .................................................................................................. 3
Introduction ................................................................................................................. 5
Use ................................................................................................................................... 5
Included in the box .................................................................................................... 5
Designation key .......................................................................................................... 5
Technical data ............................................................................................................. 6
Design and operation ............................................................................................... 7
Mounting and installation guidelines ................................................................ 8
Condensate Drainage ............................................................................................... 8
Connection to power supply ................................................................................. 9
Unit Control System .................................................................................................. 10
Maintenance ................................................................................................................ 14
Troubleshooting ......................................................................................................... 16
Storage and transportation .................................................................................... 17
Warranty ........................................................................................................................ 17

3
SAFETY REQUIREMENTS
• During installation and operation, observe all codes and safety standards for your locale.
• Safe grounding must be provided!
• Check the unit for possible damages prior to connecting it to power supply. Make sure the unit does
• not contain any foreign objects inside the case.
• Electrical connections should only be done by a qualified electrician.

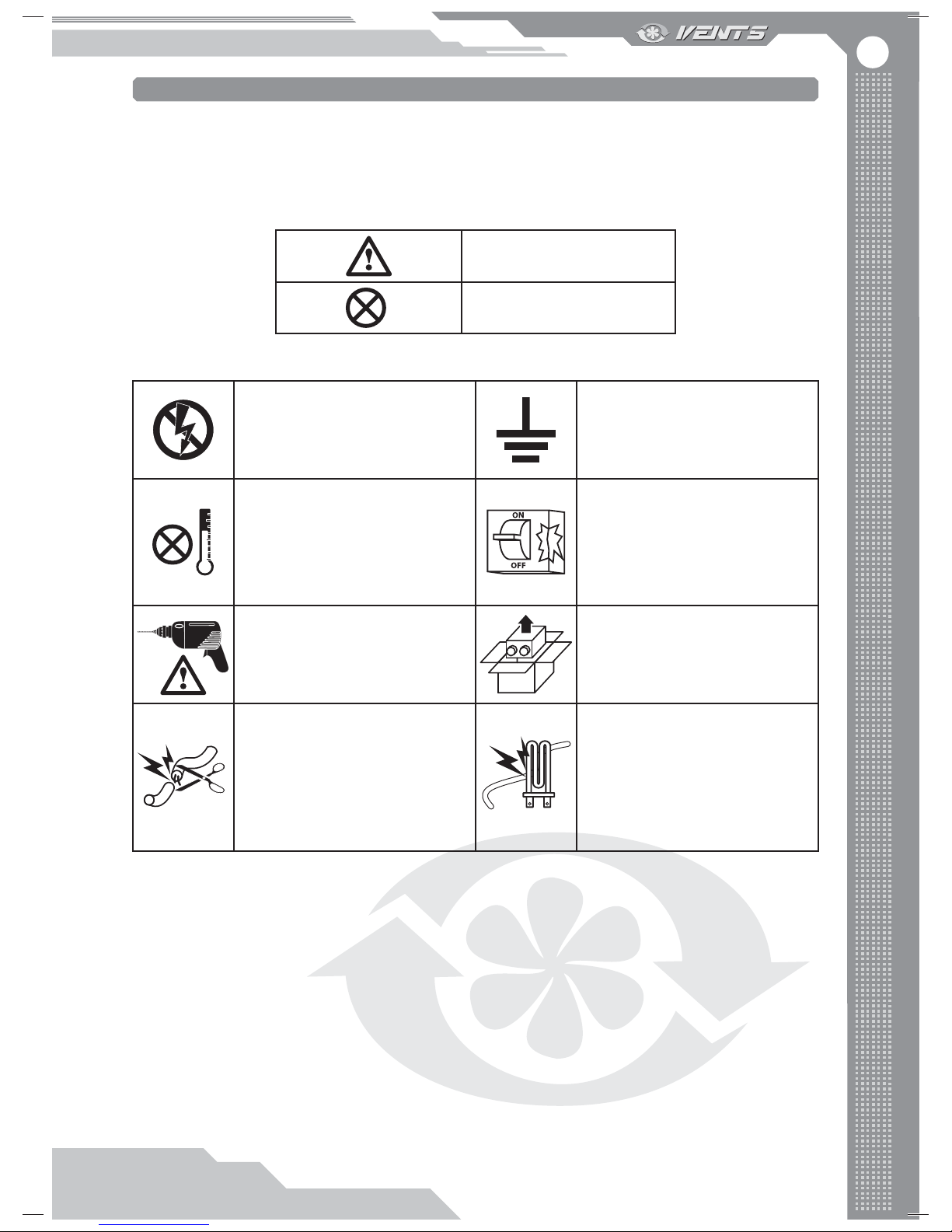

Symbol legend:
WARNING!
DO NOT!
UNIT MOUNTING AND OPERATION SAFETY PRECAUTIONS
Disconnect the unit from power
supply prior to any installation
operations.
The unit must be grounded!
Do not operate the unit outside
the temperature range stated in
the user's manual. Do not operate
the unit in aggressive or explosive
environments.
Do not use damaged equipment
or cables when connecting the
unit to power supply.
While installing the unit follow
the safety regulations specific to
the use of electric tools.
Unpack the unit with care.
Do not change the power cable
length at your own discretion.
Do not bend the power cable.
Avoid damaging the power
cable. Do not put any foreign
objects on the power cable.
Do not lay the power cable of
the unit in close proximity to
heating equipment.

4

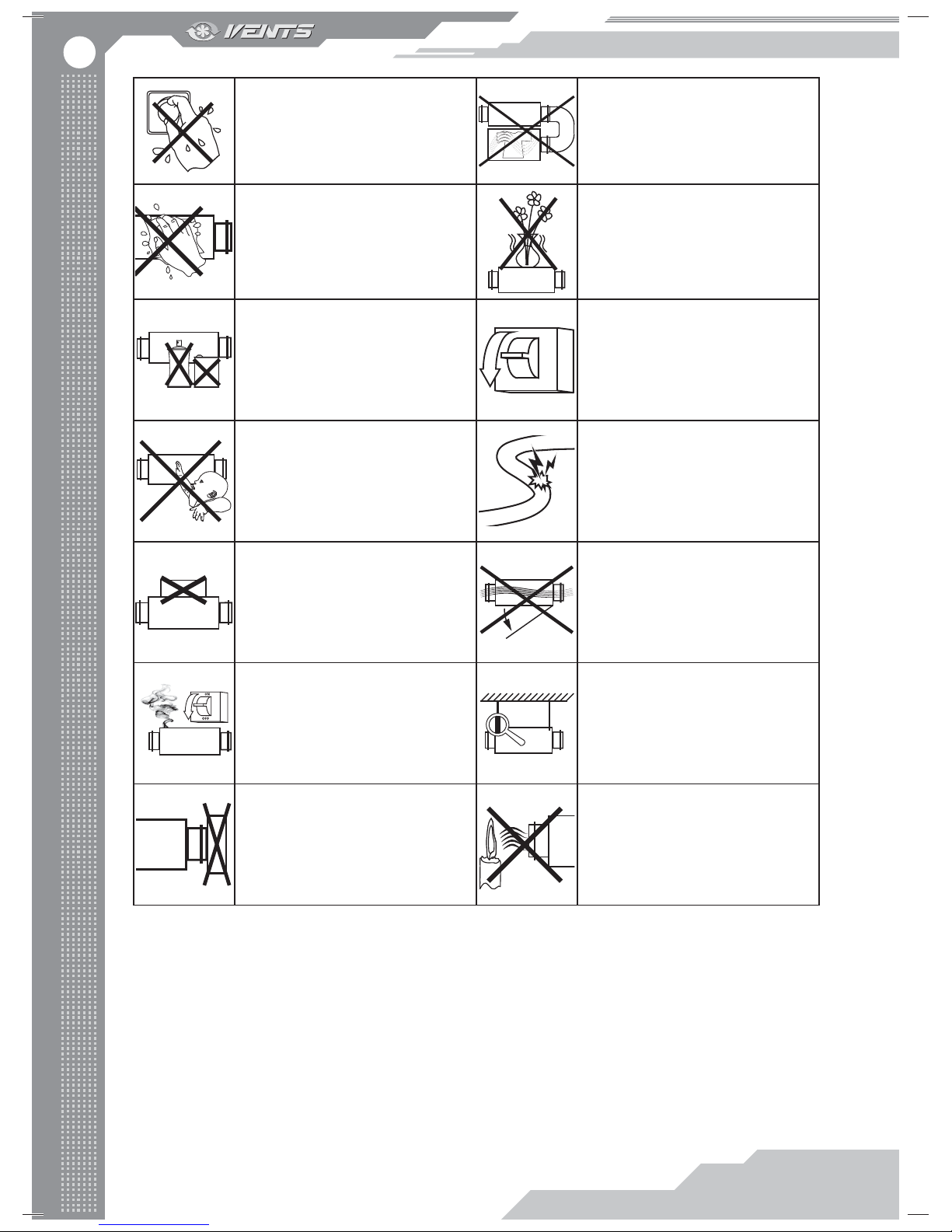

Do not touch the unit controls
with wet hands. Do not carry out
theinstallationandmaintenance
operations with wet hands.
Use the unit only for its intended
purpose. Do not connect clothes
dryers or similar equipment to
the ventilation system.
Do not wash the unit with water.
Protect the electric parts of the
unit against ingress of water.
Do not sit on the unit and avoid
placing objects on it.
Do not store any explosive or
highly flammable substances in
close proximity to the unit.
OFF
ON
Disconnect the unit from power
supply prior to any technical
maintenance.
Do not allow children to operate
the unit.
Avoid damaging the power
cable. Do not put any foreign
objects on the power cable.
Do not sit on the unit and avoid
placing foreign
objects on it.
Do not open the unit during
operation.
When the unit generates
unusual sounds, odor or emits
smoke disconnect it from power
supply and contact the Seller.
In case of continuous operation
of the unit periodically check the
security of mounting.
Do not block the air duct when
the unit is switched on.
Do not direct the air flow
produced by the unit towards
open flame or ignition sources.

5
INTRODUCTION
This manual will provide you with installation, operation, service instructions as well as technical data of the heat (energy)
recovery ventilation unit Frigate HRV (ERV) 120 SR, hereinafter the unit.
USE
The unit is used for whole-house mechanical ventilation of cottages, offices, hotels, cafes, conference halls and other residential
and public premises.
INCLUDED IN THE BOX
One ventilation unit
One user manual
One packing box
DESIGNATION KEY
Frigate HRV 120 SR
Unit type
HRV: Heat recovery ventilation
ERV: Energy recovery ventilation
Air capacity [CFM]
Spigot orientation
S: suspended mounting
R: recirculation dam
p
er

6
TECHNICAL DATA
The unit is designed for indoor installation and
operation at the ambient air temperature ranging from
+34 °F (+1 °C) up to +122 °F (50 °C) and RH max. 80 %.
Ingress Protection rating:
• IP44 for the unit motors;
• IP 22 for the assembled unit connected to air ducts.
The product design is periodically updated. Your unit
may slightly dier from the model described here.
Frigate HRV 120 SR Frigate ERV 120 SR
RPM, min-1 2885
Noise level, 9Ft (3 m), (Sones) 2
Max. transported air
temperature, °F (°C) -22 up to +140 (-30 up to +60)
Housing material Aluzinc
Insulation, '' (mm) 1C (25 mm) rockwool
Extract lter MERV 8 (G4)
Supply lter MERV 8 (G4)
Connected air duct
diameter, '' (mm) 5 (125)
Weight, lbs. (kg) 44 (20)
Heat recovery core type Counterow
Heat recovery core material Polystyrene Polymer membrane
OVERALL AND CONNECTION DIMENSIONS
31 1/8"
26 9/16"
23 1/4"
9 13/16"
Ø 5"
BACKDRAFT DAMPER

7

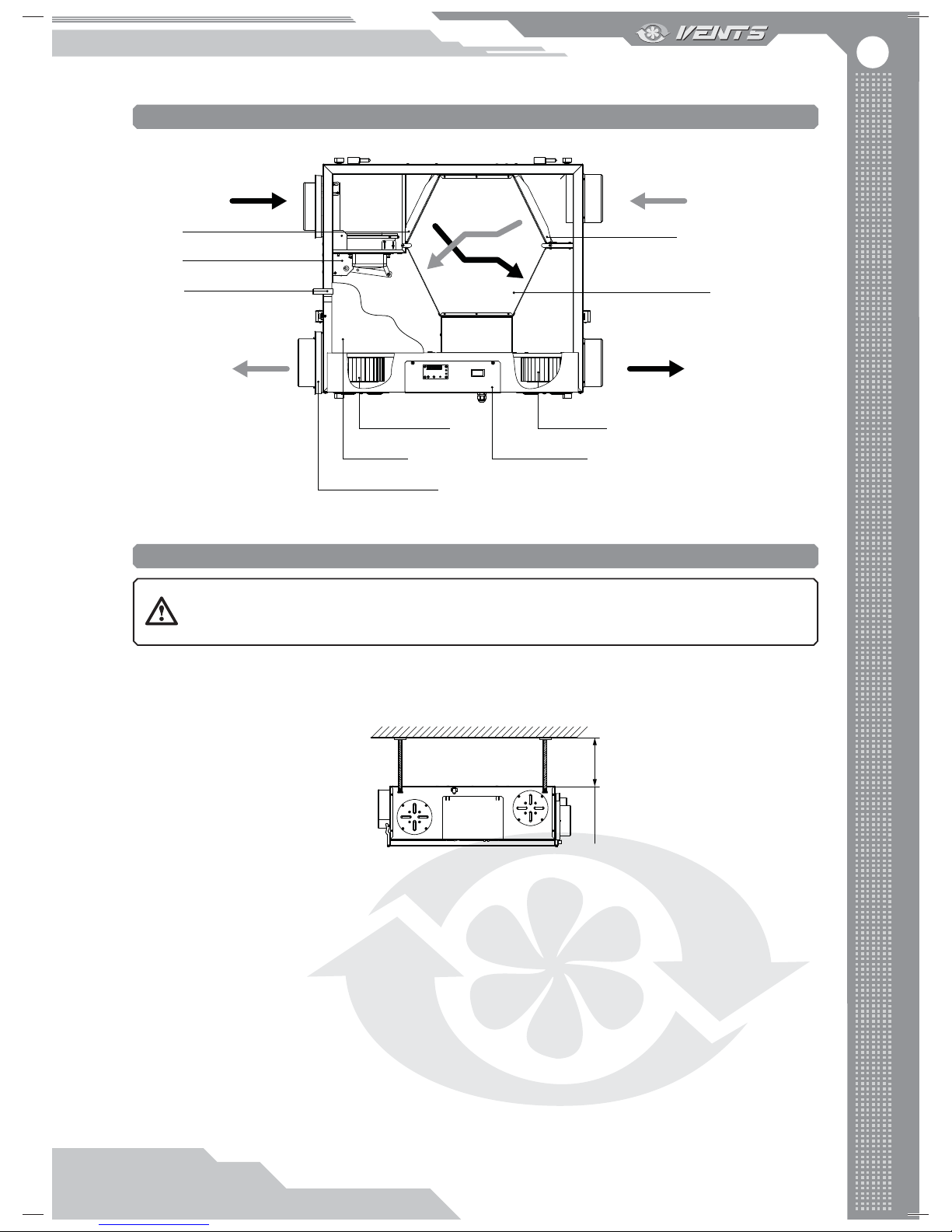

DESIGN AND OPERATION
DRAIN PAN
RECIRCULATION DAMPER
HEAT RECOVERY CORE
EXTRACT FILTER
BACKDRAFT DAMPER
EXHAUST FAN SUPPLY FAN
CONTROL PANEL
SUPPLY FILTER
FRESH COLD
AIR FROM OUTSIDE
UTILIZED
EXHAUST AIR
STALE AND WARM
AIR FROM ROOM
AIR SUPPLIED TO ROOM
DRAIN PIPE
MOUNTING AND INSTALLATION GUIDELINES
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED PERSONNEL
POSSESSING REQUIRED TOOLS AND MATERIALS AFTER APPROPRIATE BRIEFING.
Be sure to provide sucient service access while installing the unit.
Fix the unit to the ceiling by means of the belts to be rigidly xed to a horizontal plane or by means of the threaded rods
and expansion anchors to be inserted in the ceiling.
min 100mm
Belts, threaded rods and expansion anchors are not included in the delivery package.

8
1.
2. 3.

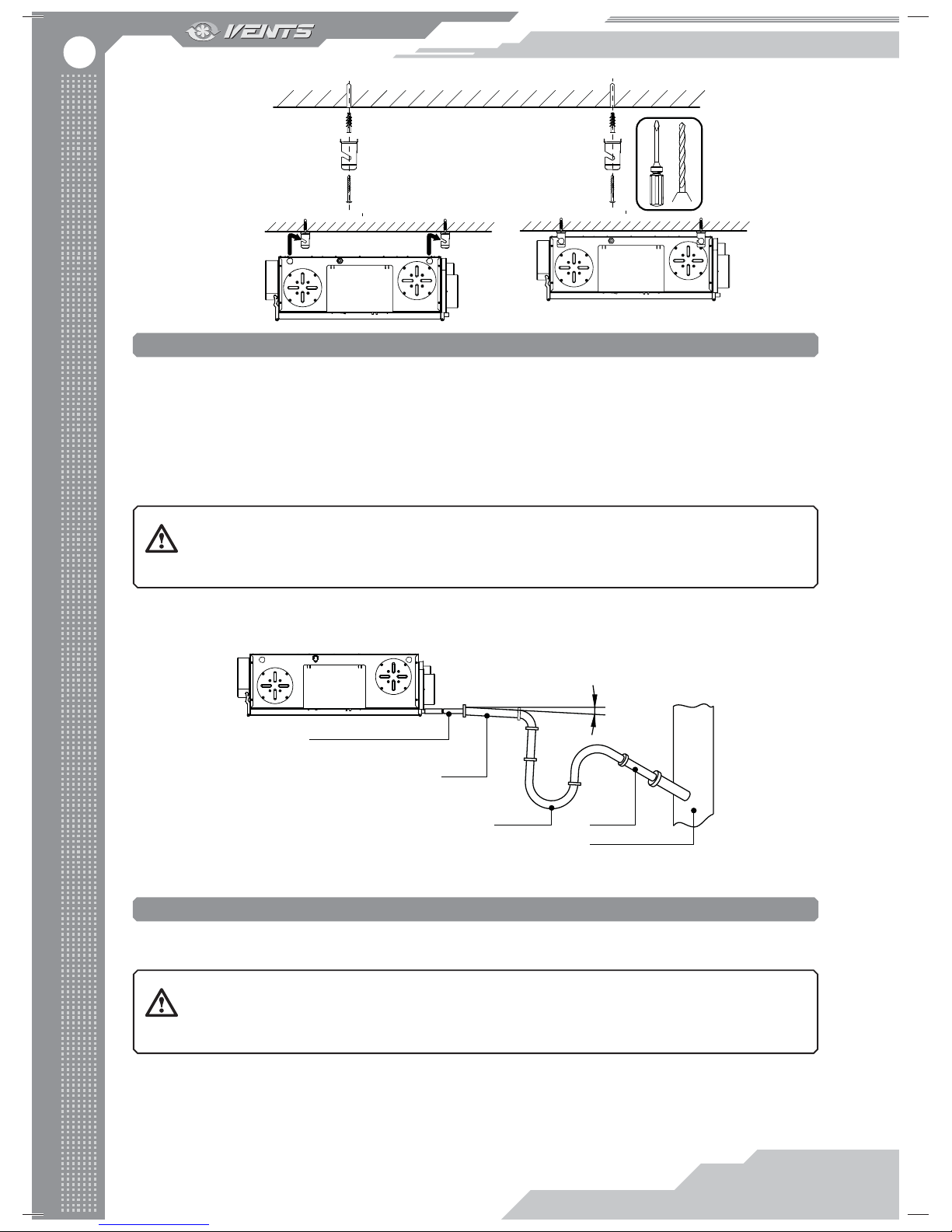

CONDENSATE DRAINAGE
HRV 120 SR must be connected to sewage system. Connect the drain pipe, the U-trap (not included) and the sewage system with
metal, plastic or rubber hoses with the minimum hose slope angle 3°.
Fill the system with water prior to connecting the unit to power supply and make sure the U-trap is always lled with water. Check
the drain system for correct operation and unhampered drainage to prevent condensed water accumulation and overow.
The unit is designed for indoor installation and operation at the temperatures above 32 °F (0 °C).
If the expected ambient temperatures are below 32 °F (0 °C), the drain system must be heat-insulated and frost protected.
DO NOT CONNECT SEVERAL DRAIN PIPES FROM SEVERAL UNITS TO ONE UTRAP!
DIRECT CONDENSATE DRAINAGE OUTSIDE WITHOUT CONNECTION TO SEWAGE SYSTEM IS NOT
ALLOWED.
U-TRAP
min 3 °
HOSE
DRAIN PIPE
PIPE
SEWAGE
CONNECTION TO POWER SUPPLY
DISCONNECT THE UNIT FROM POWER SUPPLY PRIOR TO ANY ELECTRIC INSTALLATION
OPERATIONS. ELECTRICALWIRING SHALL ONLY BE PERFORMED BY A QUALIFIED ELECTRICIAN.
THE NOMINAL ELECTRIC PARAMETERS ARE SHOWN ON THE NAME PLATE.

9
WARRANTY WILL NOT COVER EQUIPMENT DAMAGE OR FAILURE THAT IS CAUSED BY IMPROPER
INSTALLATION.
The unit is rated for connection to single-phase ac 120 V/ 60 Hz power supply source.
The unit is equipped with a power cable and a plug and can be connected to any standard grounded outlet. The power cable is
pre-wired to the terminal by default.
The unit must be connected to power supply via the external automatic circuit breaker with magnetic trip integrated into the
xed wiring system. The trip current of the automatic circuit breaker must be not below the rated current consumption (minimum
3 A).
Mounting place of the circuit breaker must ensure sucient access for emergency shutdown of the unit.
The cutout fuse is used for overload protection in case of an overload or a short circuit. To replace the cutout fuse disconnect
the unit from power supply source, troubleshoot an overload or a short circuit and then replace the cutout fuse. Check the unit for
operation.
WIRING DIAGRAM
exhaust fan
8
7
1
10
29
C1
28
M1 (L)
27
M1 (C)
26
M1 (N) C1
30 33 32 31 22 21 23
black
brown
blue
Y/G
PE
M2 (L) M2 (C) M2 (N)
13
25
C2
24
C2
34 35 36
9 11 12
6
14 15 16 17
2 3 4 5
~120 V, 60 Hz
PE
Green
~120V
~12V ~12V
GND12V;24V
L120VAC
N 120VAC
12VAC
24VAC
L
N
SW1
SW1
SW1
1
2
3
20
19
18
SW2
Low
Stanby
Med
24VAC
LOW
MED
Rb Ud1
Ud2
GND
Vcc
Vcc
Ut
GND
3
1
2
OUT
A GND
temperature sensor
white
brown
EA2/Z
EA1
EA2/O N
black
white
10
11
12
white
brown
10
12
11
black
brown
blue
31
32
34
TR1
supply fan
black
brown
blue
Y/G
PE
black
brown
blue
control board A1
BH16
37-52
0-16 BH16
external connections
interface A2
12345678910111213141516
red
blackyellow
SW3
1
2
3
SW4
1
2
3
34
32
31
black
M1
M2
M3
C2
C1
C3
+E
UNIT CONTROL
Operation modes of the unit:
• Permanent operation or standby mode;
• High-speed ventilation mode.
The unit is controlled using a three-position switch. It enables operation of the unit in the Low Speed Mode, Medium Speed
Mode or Standby Mode, thus providing total air quality control.
The unit changes to HIGH speed mode on a signal from external connected control units.
The LED2 indicator glows during the unit standstill and active power supply.
The LED2 indicator goes down and the LED1 indicator goes on.
Enter the Speed Setup Mode to adjust supply and exhaust fan speed. Individual speed adjustment for each fan is possible over

10
the range from 25 % up to 100 %.

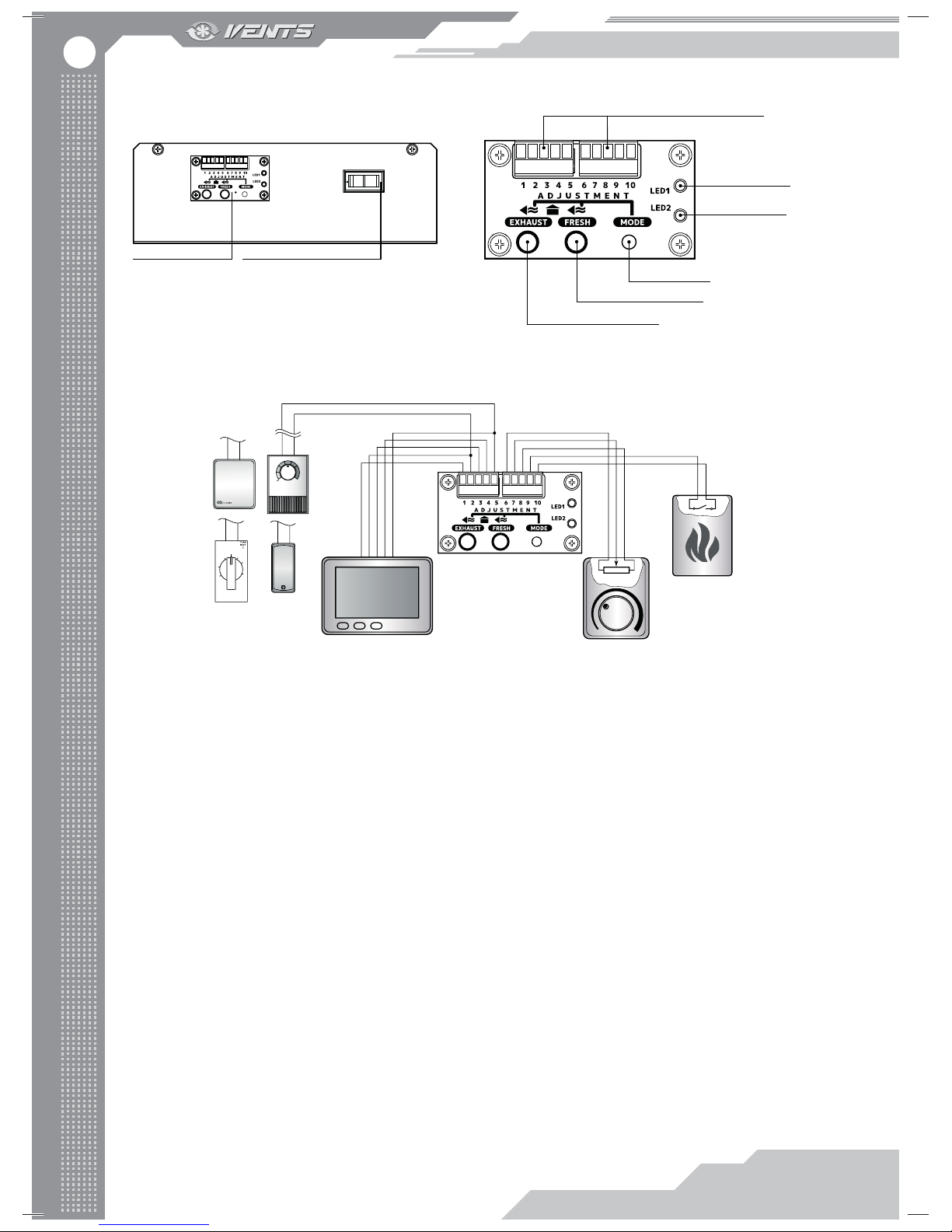

SPEED CONTROL
STANDBY
LOW MED
Setup and external
connection panel
Three-position mode switch
12345 678910
Exhaust fan speed control button
Supply fan speed control button
Mode button switch
Connection terminals for connection of external controls
Power supply indicator
Operation LED indicator
12345 678910
Connection of external controls.
Five external controls may be connected to the terminals 2 and 5. The unit changes to high speed mode once the connected
control unit is activated.
10%
20%
30%
40%
max
OFF
60
50
40
10
20
ON
OFF
12345 678910
+12V
Uout
GND
GND VAC
HIGH
MED
LOW
24V AC
HIGH
24V AC
+12V
com
ThermostatThermostatThermostatThermostat
External controlsExternal controlsExternal controlsExternal controls
Speed controllerSpeed controllerSpeed controllerSpeed controller
0-10 V0-10 V0-10 V0-10 V
Fire alarm panelFire alarm panelFire alarm panelFire alarm panel
12345 678910
External controls compatible with the unit:
1. Remote control panel (thermostat).
Remote control panel (thermostat) functions:
• Turning the unit on/o
• Speed control
• Displaying room temperature
• Programming scheduled operation
2. CO2sensor.
Recommended for use in oce buildings and public premises. When carbon dioxide concentration exceeds the set point, the unit
changes to the High Speed Mode.
3. Humidistat.
The humidistat is used for indoor humidity control. When indoor humidity increases above the set point, the unit switches to the
High Speed Mode and runs with the high speed until the humidity falls down below the set point. The humidity set point is adjustable.
4. Mechanical.
In case of the timer activation the unit changes into the High Speed Mode.
5. Switch.
As the switch is turned ON the unit changes into the High Speed Mode and reverts to the permanent Low Speed Mode when the
switch in turned OFF.
6. Speed controller 0-10 V.
Connect the speed controller to the external terminals 6, 7 and 8. The speed controller enables smooth fan speed control and
speed setting. The fan speed is directly proportional to the control voltage in the range of 20% up to 100%.
The control signal from the speed controller has the priority over all other controls, expect for the re control alarm panel.
7. Fire control alarm panel.
Connect the re control alarm panel to the external terminals 9 and 10. Once the dry contacts are closed the unit has an emergency
shutdown.
8. External control.

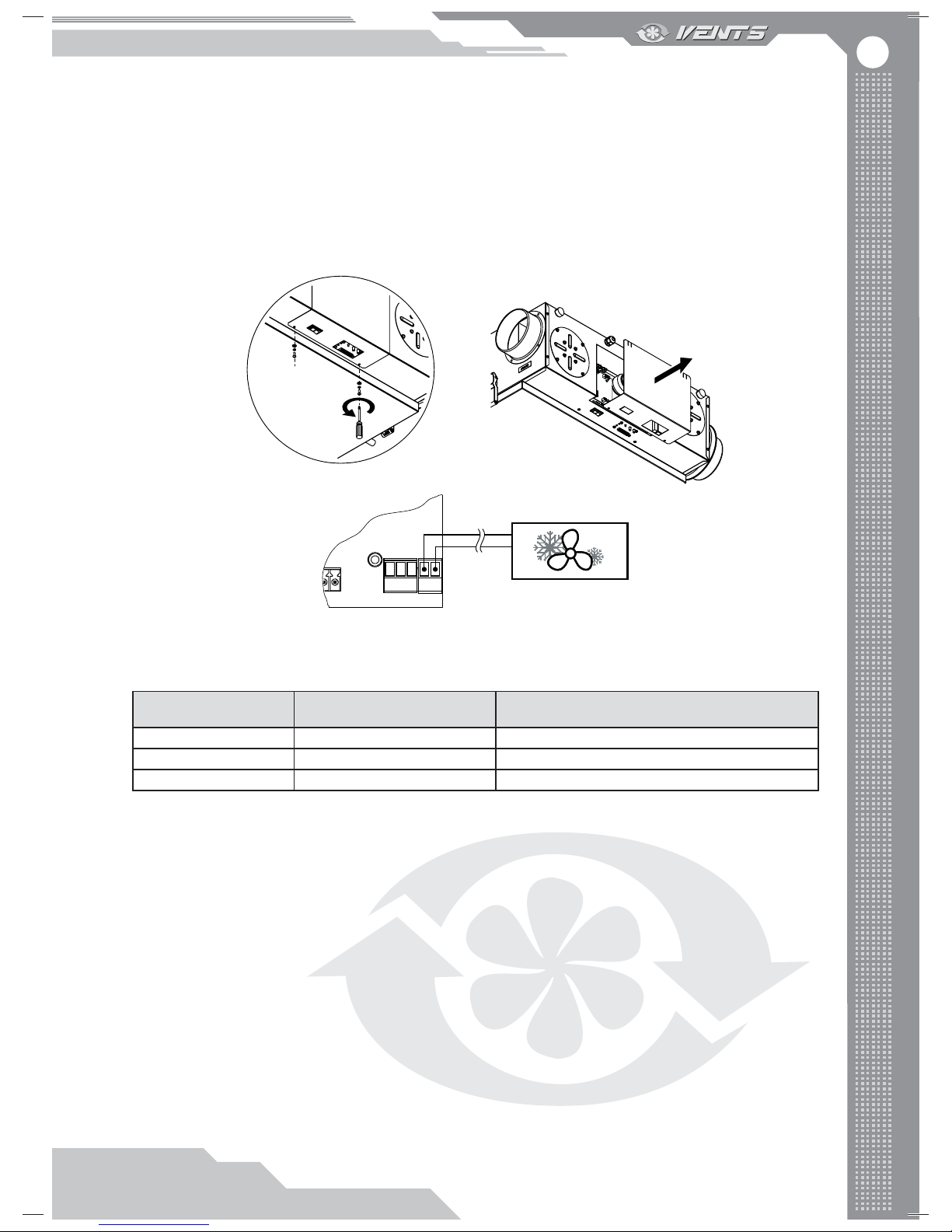

The terminals 35 and 36 for external equipment are located on the control panel. The terminals are connected to the contacts that
are closed during the unit activation and are closed during its deactivation.
This way the enabling signal for activation of the fan coil, the compressor and condensing unit, the electric actuator of the external

11
air damper or any other compatible climatic equipment is sent.
Control signal parameters:
• maximum current 1A;
• maximum voltage 250 V.
Access to the control circuit board and connection of the external control equipment:
• unscrew the front part of the control panel;
• remove the cover;
• connect the external control unit to the control board;
• assemble the control panel in the reverse order.
32 33 34
3536
1. 2.
3.
ExternalExternalExternalExternal
controlcontrolcontrolcontrol
unitunitunitunit
SPEED CONTROL
1. Set the speed switch in STANDBY position. LED2 glows.
2. Enter the setup mode for exhaust and supply fan by pressing the MODE button quickly.
Speed Times required to press MODE
button Indication of LED1 and LED2 during mode activation
LOW 4 four-time synchronous blinking
MED 5 ve-time synchronous blinking
HIGH 6 six-time synchronous blinking
3. Adjust the fan speed using the EXHAUST and FRESH speed controllers.
4. Save the settings by pressing and holding MODE button, till the LED1 and LED2 indicators go out.
To leave the speed setup mode without editing press shortly the MODE button.
Example: adjust the MED speed.

12
Press the MODE button three times.
LED1 and LED2 indicators start blinking three times as you enter the setup mode.
Adjust the exhaust and supply fan speed.
Press and hold the MODE button. After that the LED1 and LED2 indicators light up and the speed setting is saved.
DEFROSTING MODE.
The defrosting mode is used for freeze protection of the heat recovery core.
The freeze protection mode is activated by default and may not be deactivated. There are two ways to activate the defrosting
mode by pressing the MODE button:
• In recirculation mode the the supply operates with the maximum speed, the exhaust fan is o and the recirculation damper is
open.
• In ventilation mode without recirculation the exhaust fan operates with maximum speed, the supply fan is o and the
recirculation damper is open.
RecirculationRecirculationRecirculationRecirculationNo recirculation (air exhaust only)No recirculation (air exhaust only)No recirculation (air exhaust only)No recirculation (air exhaust only)
ON OFF
OUTDOOR
INDOOR
OFF ON
OUTDOOR
INDOOR
MAINTENANCE
DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE
OPERATIONS!
Regular maintenance should be performed every 3 months as follows:
1. Filter maintenance.
Dirty filters increase air resistance and reduce supplied air volume to the room. Clean the filters as often as required, but at least 3-4
times per year. Clean the filter with a vacuum cleaner. Replace the filter after the second cleaning. For new filters, contact the product
Seller.

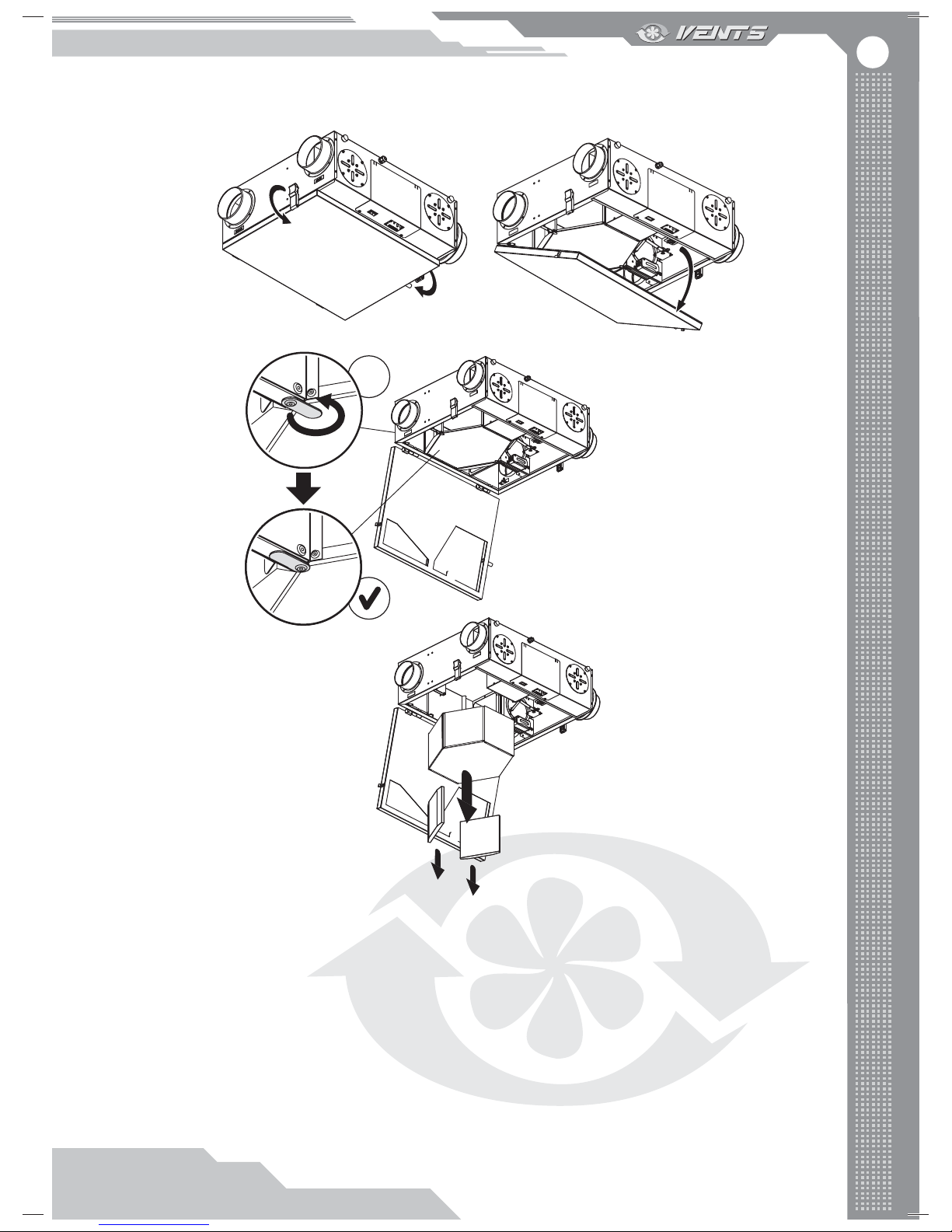

2. Heat recovery core maintenance (once per year).
The regular filter maintenance may not completely prevent dust ingress into the heat recovery core. The heat recovery core must
be regularly cleaned to maintain high heat recovery efficiency. Remove the heat recovery core from the unit and wash it with soap

13
water solution. Let the heat recovery core dry out and re-install it into the unit.
1b. 2b.
3b.
4b.
!
3. Fan maintenance (once per year).
Regular filter and heat recovery core maintenance may not completely prevent dust ingress into the unit fans. Clogged filter
reduce supplied air volume to the room.
Clean the fans with a soft cloth or a brush. No water and abrasive detergent, sharp objects or solvents are allowed for cleaning to
prevent the impeller damage.
4. Drain line maintenance (once per year).
The drain line may get clogged by extracted particles. Check the drain line functioning by filling the drain pan with water and
clean the drain line if required.
5. Air ductworks maintenance (once in 5 years).
If degraded performance is still noticeable after following all maintenance guidelines it is
recommended that the ductwork be checked and cleaned if necessary.
6. Inspection of exhaust louver shutters and supply diffusers (as required).
Remove the disc valves and the louver shutters and wash those with warm detergent solution. Do not change the positions of the
disc valves and the louver shutters.

14
TROUBLESHOOTING
Trouble Probable reason Remedy
The fan is not started.
No power supply.
Have a qualied electrician check for
connections and troubleshoot a connection
error if required.
Motor jam, contaminated impeller blades. Turn the unit o. Troubleshoot the motor
jamming. Clean the blades. Restart the unit.
The unit is not started, the
1-E01 and І.E02 LED lights
glow.
Temperature sensor break or short circuit. Have a qualied electrician check.
Circuit breaker tripping
during starting the unit.
Overcurrent as a result of short circuit in the
electric circuit.
Turn the unit o. Have a qualied electrician
check.
Low air ow.
Contaminated extract lter. Set a higher speed.
Dirty lters, impellers, heat recovery core. Clean or replace the lters. Clean the fans and
the heat recovery core.
Clean or replace the ventilation system
components, such as air ducts, diusers, louver
shutters, grilles.
Clean or replace the air ducts, diusers, louver
shutters, grilles.
Air dampers, air disc valves or louver shutters
are closed.
Make sure the air dampers, disc valves or the
louver shutters are opened.
Noise, vibration
Dirty impeller. Clean the fan impeller.
Loose screw connection. Tighten the screws connections against stop.
No anti vibration mounts are installed. Install vibration absorbing mounts (not
included on the delivery package).
Water leakage. Object stuck in the drain line, damaged or
wrong mounted drain line.
Clean the drain line if required. Check the drain
slope, U-trap and matching the temperature
conditions.
STORAGE AND TRANSPORTATION
There exist a risk of injury when lifting and installing the unit.
Get a mounting assistant and wear eye protection.
Keep the unit a dry, weather protected premise in the manufacturer’s original packing box in a clean environment.
Protect the unit against possible harmful environmental impact until it is finally mounted. We do not recommend storing of the unit
longer than one year.
Keep the duly temperature and humidity conditions in the stock environment.
Keep the unit in an premise with the room temperature for at least 2 hours before connecting it to power supply.

15
MANUFACTURER’S WARRANTY
Production meets standard operating requirements in the USA and Canada.
VENTS US warrants to the original purchaser of the Frigate HRV 120 SR / Frigate ERV 120 SR unit that it will be free from defects
in materials or workmanship for a period of 60 months from the date of original purchase. The VENTS US warrants to the original
purchaser of the HRV 120 SR / Frigate ERV 120 SR unit that the integrated control unit will be free from defects in materials and
workmanship for a period of 24 months from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During
the stated warranty period, VENTS US will, at its option, repair or replace, without charge, any product or part which is found to be
defective under normal use and service. This warranty does not cover (a) normal maintenance and normal service or (b) any products
or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by VENTS US), faulty
installation or negligence, accident, improper maintenance or repair (other than by VENTS US), faulty installation or installation
contrary to recommended installation instructions. Labor to remove and replace products is not covered. The duration of any
implied warranty is limited to the time period specified for the express warranty. Some states do not allow limitations on how long
an implied warranty lasts, so the above limitation may not apply to you. VENTS US OBLIGATION TO REPAIR OR REPLACE, AT VENTS US
OPTION, SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. VENTS US SHALL NOT BE LIABLE FOR
INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
Some states do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties. If proof of sales date is absent, warranty period is calculated from the production date.
The unit can be exchanged at the following address:
Bodor Vents, LLC DBA: VENTS-US
11013 Kenwood Road Cincinnati, Ohio 45242
Phone: [phone]
e-mail: [email protected]
Please follow guidelines in this manual for product problem-free operation.

V-US102(FRIGATE_HRV-ERV120SR)EN-02
