Vents KP-2 PKP Series User manual

USER’S MANUAL
Fire-resisting duct damper
KP
PL10

2
KP/PL-10
www.ventilation-system.com
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the KP/PL-10 unit and
all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
Safety requirements..................................................................................................................................................................... 2
Purpose................................................................................................................................................................................................ 4
Delivery set........................................................................................................................................................................................ 4
Designation key.............................................................................................................................................................................. 5
Technical data.................................................................................................................................................................................. 6
Design and operating principle........................................................................................................................................... 14
Mounting and set-up.................................................................................................................................................................. 15
Connection to power mains .................................................................................................................................................. 19
Technical maintenance.............................................................................................................................................................. 20
Storage and transportation regulations.......................................................................................................................... 20
Manufacturer’s warranty........................................................................................................................................................... 21
Certificate of acceptance.......................................................................................................................................................... 22
Seller information.......................................................................................................................................................................... 22
Installation certificate.................................................................................................................................................................. 22
Warranty card................................................................................................................................................................................... 22
CONTENTS

3
www.ventilation-system.com
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS
SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE
SAFETY REQUIREMENTS
All operations described in this manual must be performed by qualified personnel only, properly
trained and qualified to install, make electrical connections and maintain ventilation units.
Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.
This is unsafe and impossible without special knowledge.
Disconnect the power supply prior to any operations with the unit.
All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and
repair operations.
Connection of the unit to power mains is allowed by a qualified electrician with a work permit
for the electric units up to 1000 V after careful reading of the present user’s manual.
Check the unit for any visible damage of the impeller, the casing, and the grille before starting
installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
While mounting the unit, avoid compression of the casing! Deformation of the casing may result
in motor jam and excessive noise.
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous
materials.
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration
of its products at any time in order to incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.
BEFORE INSTALLING ADDITIONAL EXTERNAL DEVICES, READ THE RELEVANT USER MANUALS.

4
KP/PL-10
www.ventilation-system.com
DELIVERY SET
NAME NUMBER
Damper 1 pc.
User’s manual 1 pc.
Packing box 1 pc.
The KP/PL-10 series fire dampers are intended for automatic closing of process openings and air duct penetrations in intermediate floors,
walls and partitions, as well as closing of openings in supply and exhaust ducts of smoke ventilation systems.
The dampers of this particular design are not suitable for installation in air ducts and ducts of premises with rated explosion and fire safety
category A and B and in flammable and explosive mixture intakes.
The KP/PL-10 fire dampers are designed, manufactured and tested in accordance with the following standards:
EN 15650:2019 Ventilation for buildings.
Fire dampers (EN 15650:2010, IDT);
EN 13501-3:2016 Fire classification of construction products and building elements.
Part 3: Classification using data from fire resistance tests on products and elements used in building service installations:
fire resisting ducts and fire dampers (EN 13501-3:2005+A1:2009, IDT).
Product performance has been confirmed by tests in accordance with EN 1366-2:2013 Fire resistance tests for service installations.
Fire dampers (EN 1366-2:1999, IDT).
PURPOSE

5
www.ventilation-system.com
DESIGNATION KEY
Designation example: KP 2250x250-1 72S VN 1
Series
Fire-resisting damper for square and rectangular ventilation ducts
Fire resistance
1 − 1 hour
2 − 2 hours
Damper ow area width
200; 250; 300; 400; 500; 600; 800; 1000
Damper ow area height
200; 250; 300; 400; 500; 600; 800; 1000
Number of anges
1 − one
2 − two
Actuator type
72S − thermal fuse and return spring (manual actuation)
PNP24T – 24 V NENUTEC electric actuator with a return spring and a thermal breaker
PNP230T – 230 V NENUTEC electric actuator with a return spring and a thermal breaker
PVP24T – 24 V BELIMO electric actuator with a return spring and a thermal breaker
PVP230T – 230 V BELIMO electric actuator with a return spring and a thermal breaker
PSP24T – 24 V SIEMENS electric actuator with a return spring and a thermal breaker
PSP230T – 230 V SIEMENS electric actuator with a return spring and a thermal breaker
Actuator location
SN − outside
VN − inside (except for dampers with a height and width of less than 300 mm)
Design variant
_ − ordinary damper design
1 − simplified damper design (for KP-2 only)
Designation example: PL-10 -1A -DN100/EI120
Series
Normally open fire-resisting duct damper with a thermal fuse and a return spring or electric
actuator, a return spring and thermoelectric breaker
Actuator type
1A − thermal fuse (72 °C), return spring (manual actuation)
PNP 24T – 24 V NENUTEC electric actuator with a return spring and a thermal breaker
PNP 230T – 230 V NENUTEC electric actuator with a return spring and a thermal breaker
PVP 24T – 24 V BELIMO electric actuator with a return spring and a thermal breaker
PVP 230T – 230 V BELIMO electric actuator with a return spring and a thermal breaker
PSP 24T – 24 V SIEMENS electric actuator with a return spring and a thermal breaker
PSP 230T – 230 V SIEMENS electric actuator with a return spring and a thermal breaker
Rated damper diameter [mm]
DN100; DN125; 150; DN160; DN180; DN200; DN225; DN250; DN315; DN355; DN400
Fire resistance
EI60 – 1 hour
EI120 – 2 hours

6
KP/PL-10
www.ventilation-system.com

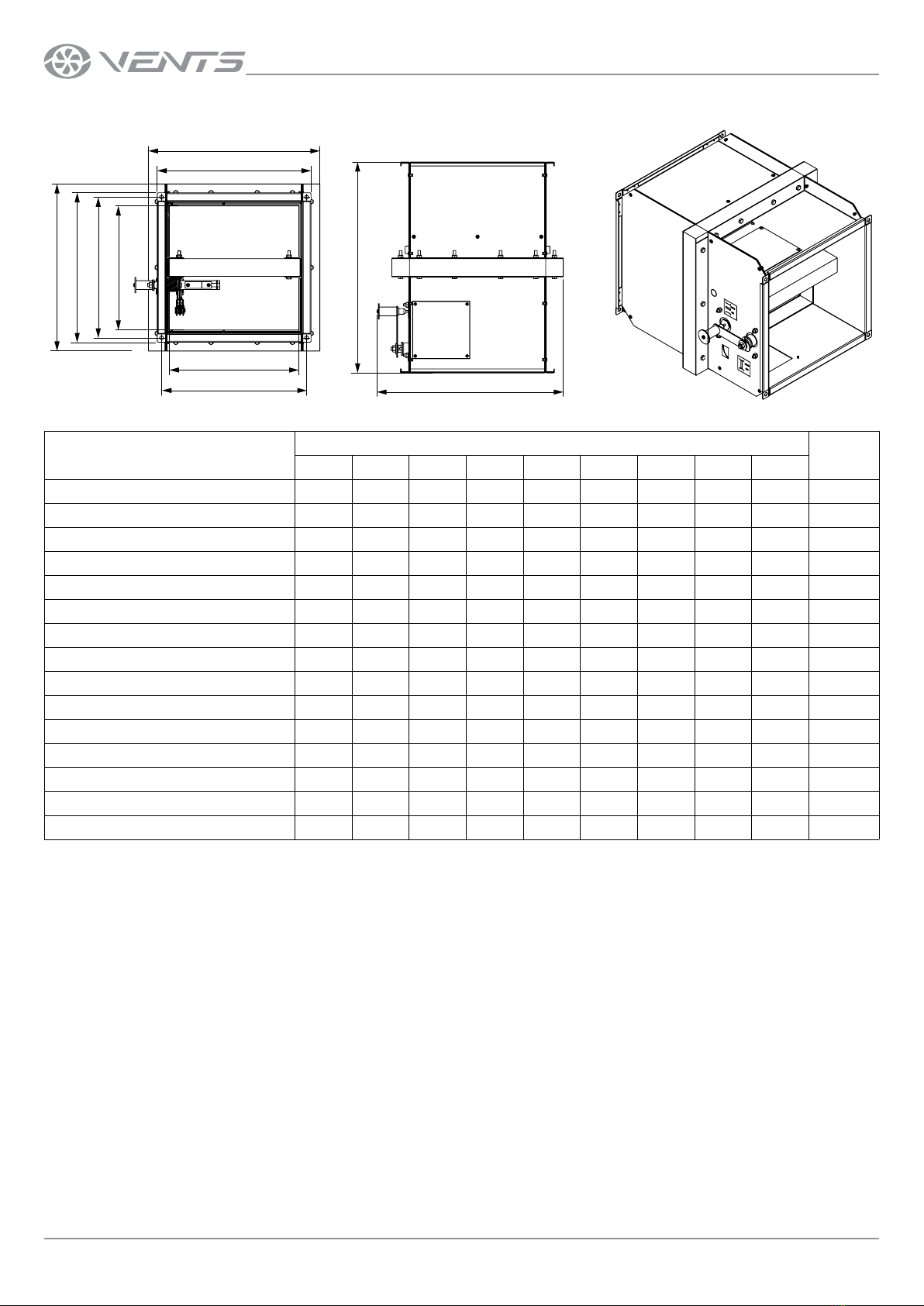

Overall and connecting dimensions of KP-1...72S dampers with a return spring
350
А
А1
А2
В
В2
В1
TECHNICAL DATA
The dampers are designed for operation in spaces with non aggressive environment, the air temperature ranging from 0 °C to +60 °C and
relative humidity up to 80 %.
Durability test:
• 50 cycles / manual actuation;
• 10,000 cycles / electric actuator with return spring.
Ingress protection rating against access to hazardous parts and water ingress is IPX4.
In terms of electric shock hazard the products belong to the following categories of electrical appliances:
• Class III (low voltage) for the dampers with 24 V electric actuator power supply.
• Class II (complete insulation) for the dampers with 230 V electric actuator power supply.
The dampers may not be integrated:
• Into air ducts and on premises rated explosion and fire safety category A and B.
• Into air ducts of local intakes for flammable and explosive mixtures.
• Into systems which do not undergo periodic cleaning pursuant to an approved schedule to prevent the build-up of combustible
deposits.
The damper undergoes continuous improvement. Therefore, some models may slightly differ from the ones described herein.
Model Dimensions [mm] Weight
[kg]
AA1 A2 BB1 B2
KP-1-200x200-2-72S-SN 200 220 240 200 220 240 3.5
KP-1-250x200-2-72S-SN 250 270 290 200 220 240 4
KP-1-250x250-2-72S-SN 250 270 290 250 270 290 4.5
KP-1-300x200-2-72S-SN 300 320 340 200 220 240 4.5
KP-1-300x250-2-72S-SN 300 320 340 250 270 290 5.1
KP-1-300x300-2-72S-SN 300 320 340 300 320 340 5.8
KP-1-400x250-2-72S-SN 400 420 440 250 270 290 6.3
KP-1-400x300-2-72S-SN 400 420 440 300 320 340 7.1
KP-1-400x400-2-72S-SN 400 420 440 400 420 440 8.7
KP-1-500x300-2-72S-SN 500 520 540 300 320 340 8.5
KP-1-500x400-2-72S-SN 500 520 540 400 420 440 10.3
KP-1-500x500-2-72S-SN 500 520 540 500 520 540 12
KP-1-600x400-2-72S-SN 600 620 640 400 420 440 11.9
KP-1-600x500-2-72S-SN 600 620 640 500 520 540 13.8
KP-1-600x600-2-72S-SN 600 620 640 600 620 640 16.1
Dampers with dimensions not included in the table can be produced on request.

7
www.ventilation-system.com

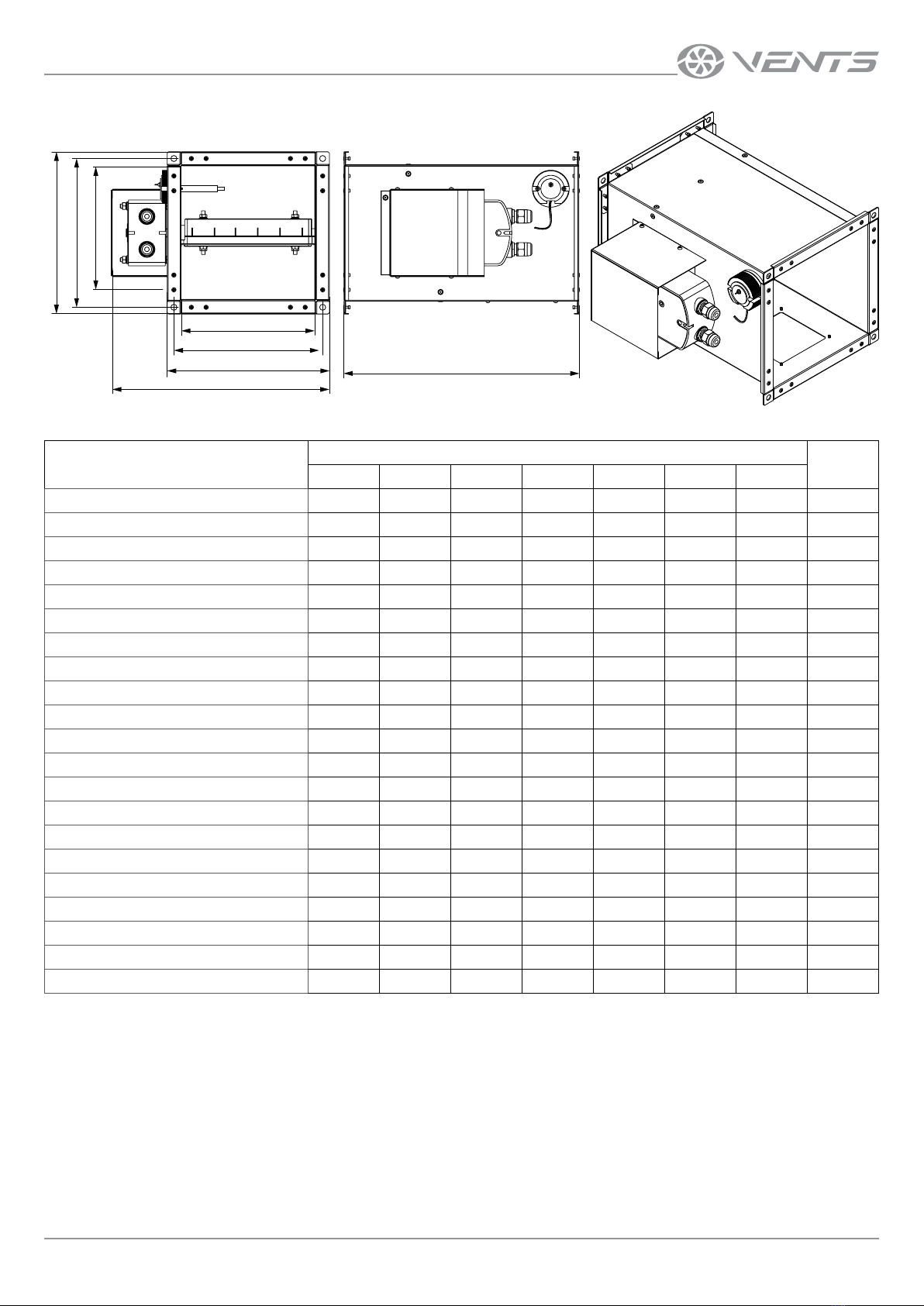

Overall and connecting dimensions of KP-1...PNP/KP-1...PVP/KP-1...PSP dampers with electric actuators
350
В
В2
В1
А
А1
А2
А3
Model Dimensions [mm] Weight
[kg]
AA1 A2 A3 BB1 B2
KP-1-200x200-2-...-SN 200 220 240 325 200 220 240 6.2
KP-1-250x200-2-...-SN 250 270 290 375 200 220 240 6.8
KP-1-250x250-2-...-SN 250 270 290 375 250 270 290 7.3
KP-1-300x200-2-...-SN 300 320 340 425 200 220 240 7.3
KP-1-300x250-2-...-SN 300 320 340 425 250 270 290 7.9
KP-1-300x300-2-...-SN 300 320 340 425 300 320 340 8.5
KP-1-400x250-2-...-SN 400 420 440 525 250 270 290 9.1
KP-1-400x300-2-...-SN 400 420 440 525 300 320 340 9.8
KP-1-400x400-2-...-SN 400 420 440 525 400 420 440 11.3
KP-1-500x300-2-...-SN 500 520 540 625 300 320 340 10.7
KP-1-500x400-2-...-SN 500 520 540 625 400 420 440 12.9
KP-1-500x500-2-...-SN 500 530 560 635 500 530 560 16.6
KP-1-600x400-2-...-SN 600 620 640 725 400 420 440 14.5
KP-1-600x500-2-...-SN 600 630 660 735 500 530 560 18.4
KP-1-600x600-2-...-SN 600 630 660 735 600 630 660 20.6
KP-1-800x500-2-...-SN 800 830 860 935 500 530 560 22.3
KP-1-800x600-2-...-SN 800 830 860 935 600 630 660 24.8
KP-1-800x800-2-...-SN 800 830 860 935 800 830 860 30.1
KP-1-1000x600-2-...-SN 1000 1030 1060 1135 600 630 660 29
KP-1-1000x800-2-...-SN 1000 1030 1060 1135 800 830 860 35.4
KP-1-1000x1000-2-...-SN 1000 1030 1060 1135 1000 1030 1060 41.7
Note: The values given in the table for dampers with 230 V actuators are identical for those equipped with 24 V actuators.
Dampers with dimensions not included in the table can be produced on request.

8
KP/PL-10
www.ventilation-system.com

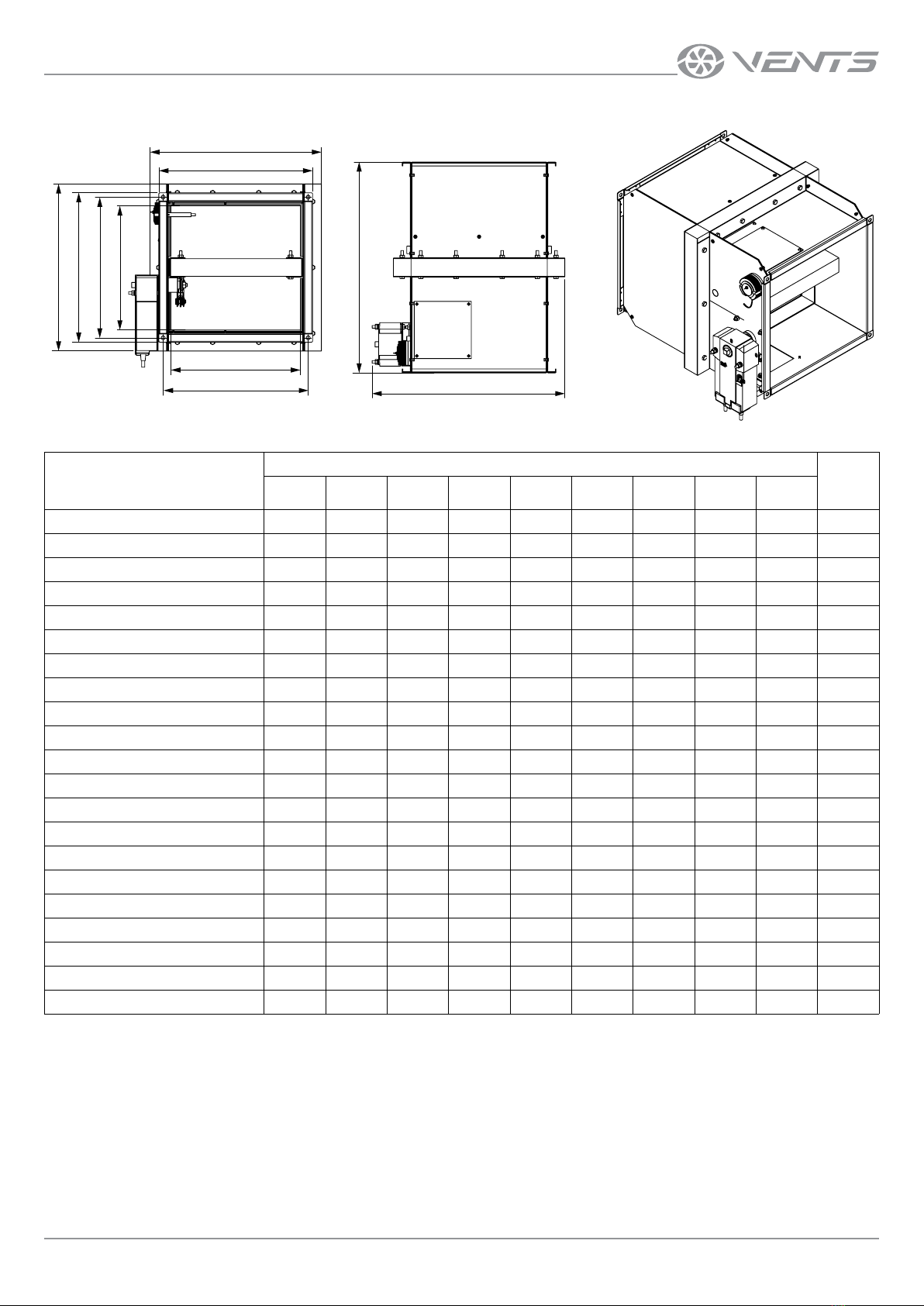

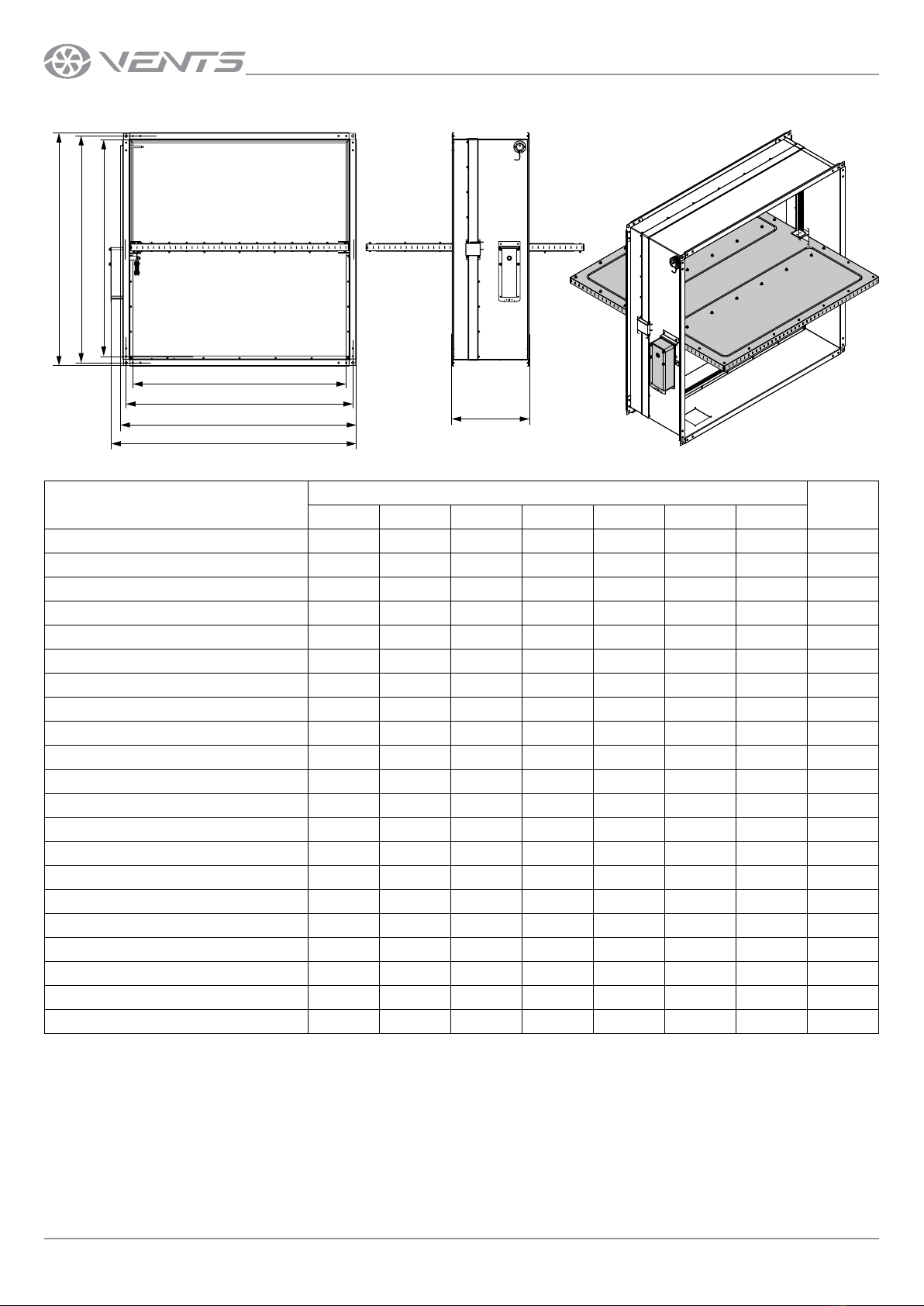

Overall and connecting dimensions of KP-2...72S dampers with a mechanical actuator
S
В
В2
В3
В1
А
А1
А2
А3
380
Model Dimensions [mm] Weight
[kg]
AA1 A2 A3 BB1 B2 B3 S
KP-2-200x200-2-72S-SN 200 220 240 280 200 220 240 280 315 12
KP-2-250x200-2-72S-SN 250 270 290 330 200 220 240 280 365 13
KP-2-250x250-2-72S-SN 250 270 290 330 250 270 290 330 365 14.1
KP-2-300x200-2-72S-SN 300 320 340 380 200 220 240 280 415 14
KP-2-300x250-2-72S-SN 300 320 340 380 250 270 290 330 415 15.3
KP-2-300x300-2-72S-SN 300 320 340 380 300 320 340 380 415 18.8
KP-2-400x250-2-72S-SN 400 420 440 480 250 270 290 330 515 19.2
KP-2-400x300-2-72S-SN 400 420 440 480 300 320 340 380 515 19.7
KP-2-400x400-2-72S-SN 400 420 440 480 400 420 440 480 515 22
KP-2-500x300-2-72S-SN 500 520 540 580 300 320 340 380 615 22.5
KP-2-500x400-2-72S-SN 500 520 540 580 400 420 440 480 615 24.7
KP-2-500x500-2-72S-SN 500 520 540 580 500 520 540 580 615 29.8
KP-2-600x400-2-72S-SN 600 620 640 680 400 420 440 480 715 29.7
KP-2-600x500-2-72S-SN 600 620 640 680 500 520 540 580 715 36
KP-2-600x600-2-72S-SN 600 620 640 680 600 620 640 680 715 38
Dampers with dimensions not included in the table can be produced on request.

9
www.ventilation-system.com
Overall and connecting dimensions of KP-2...PNP/KP-2...PVP/KP-2...PSP dampers with electric actuators
S
В
В2
В3
В1
А
А1
А2
А3
380
Model
Dimensions [mm] Weight
[kg]
AA1 A2 A3 BB1 B2 B3 S
KP-2-200x200-2-...-SN 200 220 240 280 200 220 240 280 340 13.3
KP-2-250x200-2-...-SN 250 270 290 330 200 220 240 280 390 14.3
KP-2-250x250-2-...-SN 250 270 290 330 250 270 290 330 390 15.4
KP-2-300x200-2-...-SN 300 320 340 380 200 220 240 280 440 15.3
KP-2-300x250-2-...-SN 300 320 340 380 250 270 290 330 440 16.6
KP-2-300x300-2-...-SN 300 320 340 380 300 320 340 380 440 20.1
KP-2-400x250-2-...-SN 400 420 440 480 250 270 290 330 540 20.5
KP-2-400x300-2-...-SN 400 420 440 480 300 320 340 380 540 21
KP-2-400x400-2-...-SN 400 420 440 480 400 420 440 480 540 23.3
KP-2-500x300-2-...-SN 500 520 540 580 300 320 340 380 640 23.8
KP-2-500x400-2-...-SN 500 520 540 580 400 420 440 480 640 26
KP-2-500x500-2-...-SN 500 530 560 580 500 530 560 580 650 33
KP-2-600x400-2-...-SN 600 620 640 680 400 420 440 480 740 32.7
KP-2-600x500-2-...-SN 600 630 660 680 500 530 560 580 750 38.4
KP-2-600x600-2-...-SN 600 630 660 680 600 630 660 680 750 43
KP-2-800x500-2-...-SN 800 830 860 880 500 530 560 580 950 47
KP-2-800x600-2-...-SN 800 830 860 880 600 630 660 680 950 52
KP-2-800x800-2-...-SN 800 830 860 880 800 830 860 880 950 63
KP-2-1000x600-2-...-SN 1000 1030 1060 1080 600 630 660 680 1150 63
KP-2-1000x800-2-...-SN 1000 1030 1060 1080 800 830 860 880 1150 75
KP-2-1000x1000-2-...-SN 1000 1030 1060 1080 1000 1030 1060 1080 1150 87
Note: The values given in the table for dampers with 230 V actuators are identical for those equipped with 24 V actuators.
Dampers with dimensions not included in the table can be produced on request.

10
KP/PL-10
www.ventilation-system.com
Overall and connecting dimensions of KP-2...PNP...-1/KP-2...PVP...-1/KP-2...PSP...-1 dampers with electric actuators
А
А1
А2
А3
В
В2
В1
350
Model Dimensions [mm] Weight
[kg]
AA1 A2 A3 BB1 B2
KP-2-200x200-2-...-SN-1 200 220 240 340 200 220 240 5.7
KP-2-250x200-2-...-SN-1 250 270 290 390 200 220 240 6.2
KP-2-250x250-2-...-SN-1 250 270 290 390 250 270 290 6.9
KP-2-300x200-2-...-SN-1 300 320 340 440 200 220 240 6.8
KP-2-300x250-2-...-SN-1 300 320 340 440 250 270 290 7.5
KP-2-300x300-2-...-SN-1 300 320 340 440 300 320 340 9.2
KP-2-400x250-2-...-SN-1 400 420 440 540 250 270 290 9
KP-2-400x300-2-...-SN-1 400 420 440 540 300 320 340 10.8
KP-2-400x400-2-...-SN-1 400 420 440 540 400 420 440 12.6
KP-2-500x300-2-...-SN-1 500 520 540 640 300 320 340 12.3
KP-2-500x400-2-...-SN-1 500 520 540 640 400 420 440 14.3
KP-2-500x500-2-...-SN-1 500 530 560 650 500 530 560 23
KP-2-600x400-2-...-SN-1 600 620 640 740 400 420 440 16.2
KP-2-600x500-2-...-SN-1 600 630 660 750 500 530 560 25.6
KP-2-600x600-2-...-SN-1 600 630 660 750 600 630 660 28.6
KP-2-800x500-2-...-SN-1 800 830 860 950 500 530 560 31.3
KP-2-800x600-2-...-SN-1 800 830 860 950 600 630 660 34.7
KP-2-800x800-2-...-SN-1 800 830 860 950 800 830 860 42
KP-2-1000x600-2-...-SN-1 1000 1030 1060 1150 600 630 660 40.7
KP-2-1000x800-2-...-SN-1 1000 1030 1060 1150 800 830 860 50.2
KP-2-1000x1000-2-...-SN-1 1000 1030 1060 1150 1000 1030 1060 58
Note: The values given in the table for dampers with 230 V actuators are identical for those equipped with 24 V actuators.
Dampers with dimensions not included in the table can be produced on request.

11
www.ventilation-system.com
The PL-10-1A re safety damper with a mechanical
actuating unit, a thermal fuse and a return spring
В
D
L

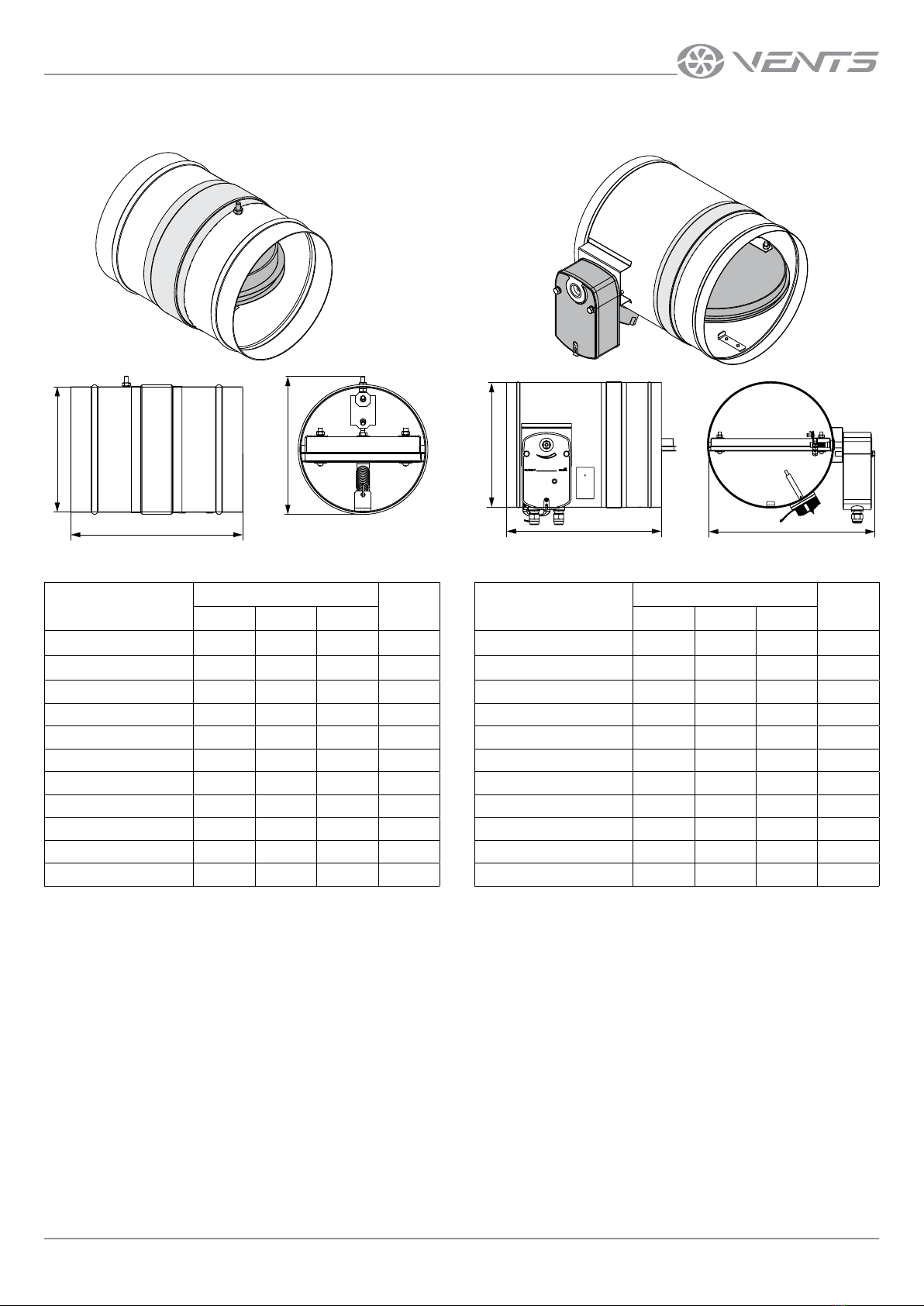

The PL-10...PNP/PL-10...PVP/PL-10...PSP re safety damper
with an electric actuator and a thermally sensitive breaker
D
LB
Model Dimensions [mm] Weight
[kg]
Ø D L B
PL-10-1A-DN100 99 170 112 1
PL-10-1A-DN125 124 170 137 1.2
PL-10-1A-DN150 149 170 162 1.5
PL-10-1A-DN160 159 170 172 1.6
PL-10-1A-DN180 179 170 192 1.8
PL-10-1A-DN200 199 170 212 2
PL-10-1A-DN225 224 170 237 2.2
PL-10-1A-DN250 249 190 262 2.5
PL-10-1A-DN315 314 190 327 3.6
PL-10-1A-DN355 354 190 367 4.4
PL-10-1A-DN400 399 240 412 6
Model Dimensions [mm] Weight
[kg]
Ø D L B
PL-10-...-DN100 99 300 195 2.9
PL-10-...-DN125 124 300 215 3.1
PL-10-...-DN150 149 300 245 3.4
PL-10-...-DN160 159 300 255 3.5
PL-10-...-DN180 179 300 275 3.8
PL-10-...-DN200 199 300 295 4
PL-10-...-DN225 224 300 325 4.4
PL-10-...-DN250 249 310 345 4.7
PL-10-...-DN315 314 310 415 6.5
PL-10-...-DN355 354 310 455 8.3
PL-10-...-DN400 399 310 505 9.9
Dampers with dimensions not included in the table can be produced on request.

12
KP/PL-10
www.ventilation-system.com
Main technical specications of Belimo electric actuators with a return spring and a thermal breaker
Technical data Basic models Models with increased torque Models with the highest torque
Rated operation voltage AC/DC 24 V AC 230 V AC/DC 24 V AC 230 V AC/DC 24 V AC 230 V
Permissible operating voltage tolerance AC 19.2…28.8 V
DC 21.6…28.8 V AC 198…264 V AC 19.2…28.8 V DC 21.6…28.8 V AC 198…264 V AC 19.2…28.8 V DC 21.6…28.8 V AC 198…264 V
AC mains frequency 50/60 Hz
Power consumption at rest [W] 0.8 1.1 1.4 2.1 2 3
Power consumption in operation [W] 2.5 3.5 4 5 7 8.5
Maximum design capacity [VA] 4 6.5 6 10 10 11
Motor torque [Nm] 4 9 18
Spring torque [Nm] 3 7 12
Protection class III II III II III II
Ingress protection rating IP54
Auxiliary switches 2 pcs., single-pole, reversible
1 mA…3 (0.5) A, AC 250 V
2 pcs., single-pole, reversible,
1 mA…6(3)A, AC 250 V
Electric motor connection cable 1 m, 2 x 0.75 mm² (halogen-free)
Auxiliary switch connection cable 1 m, 6 x 0.75 mm² (halogen-free)
Running time spring 20 seconds at -10…+55 °C
< 60 seconds at -30…-10 °C 16 seconds at +20 °C
Running time motor < 60 s/90° < 120 s/90°
Response temperature of thermal breaker sensors Duct sensor 72 °C
Outdoor sensor 72 °C
Technical maintenance Not required
Main technical specications of Nenutec electric actuators with a return spring and a thermal breaker
Technical data Basic models
KP-1/KP-2
Models with increased torque
KP-1//KP-2
Basic models
PL-10
Rated operation voltage AC/DC 24 V AC 230 V AC/DC 24 V AC 230 V AC/DC 24 V AC 230 V
Permissible operating voltage tolerance AC/DC
21,8..26,4 V AC 209...253 V AC/DC 21,8..26,4 V AC 209...253 V AC/DC 21,8..26,4 V AC 209...253 V
AC mains frequency 50/60 Hz 50/60 Hz
Power consumption at rest [W] 2,5 22,5
Power consumption in operation [W] 710 7
Maximum design capacity [VA] 10 10 10
Motor torque [Nm] 5 8 5
Spring torque [Nm]
Protection class III II III II III II
Ingress protection rating IP54 IP54
Auxiliary switches 2 pcs.., single-pole, reversible, 3 (1.5) A, AC 250 V 2 pcs.., single-pole, reversible,
3 (1.5) A, AC 250 V
Electric motor connection cable 1 m, 2 х 0,75 mm² (halogen-free) 1 m, 2 х 0,75 mm² (halogen-free)
Auxiliary switch connection cable 1 m, 6 х 0,75 mm² (halogen-free) 1 m, 6 х 0,75 mm² (halogen-free)
Running time
50...70 s (return spring < 20 c)
(fixed) - (return spring
<20 s)
75…90 s(return spring < 25 s) 50...70 s (return spring < 20 s)
(fixed) - (return spring
<20 s)
Response temperature of thermal breaker sensors Duct sensor 72 °C
Outdoor sensor 72 °C

13
www.ventilation-system.com
Main technical specications of Siemens electric actuators with a return spring and a thermal breaker
Technical data Basic models Models with increased torque Models with the highest torque
Rated operation voltage AC 24 V/
DC 24…48 V AC 230 V AC 24 V/ DC 24…48 V AC 230 V AC 24 V/ DC 24…48 V AC 230 V
Permissible operating voltage tolerance AC/DC ±20 % AC ±15 % AC/DC ±20 % AC ±15 % AC/DC ±20 % AC ±15 %
AC mains frequency 50/60 Hz
Power consumption at rest [W] 2 3.5 2 3.5 3 4
Power consumption in operation [W] 3.5 4.5 3.5 4.5 5 6
Maximum design capacity [VA] 5 7 5 7 7 8
Motor torque [Nm] 4 9 18
Spring torque [Nm] 4 7 18
Protection class III II III II III II
Ingress protection rating IP54
Auxiliary switches 2 pcs., single-pole, reversible,
6(2)A, AC 24...250 V
Electric motor connection cable 0.9 m, 2 x 0.75 mm² (halogen-free)
Auxiliary switch connection cable 0.9 m, 6 x 0.75 mm² (halogen-free)
Running time spring 15 seconds
< 60 seconds at -30…-10 °C
Running time motor 90 s/90°
Response temperature of thermal breaker sensors Duct sensor 72 °C
Outdoor sensor 72 °C
Service life 10 000 emergency positions
Technical maintenance Not required

14
KP/PL-10
www.ventilation-system.com

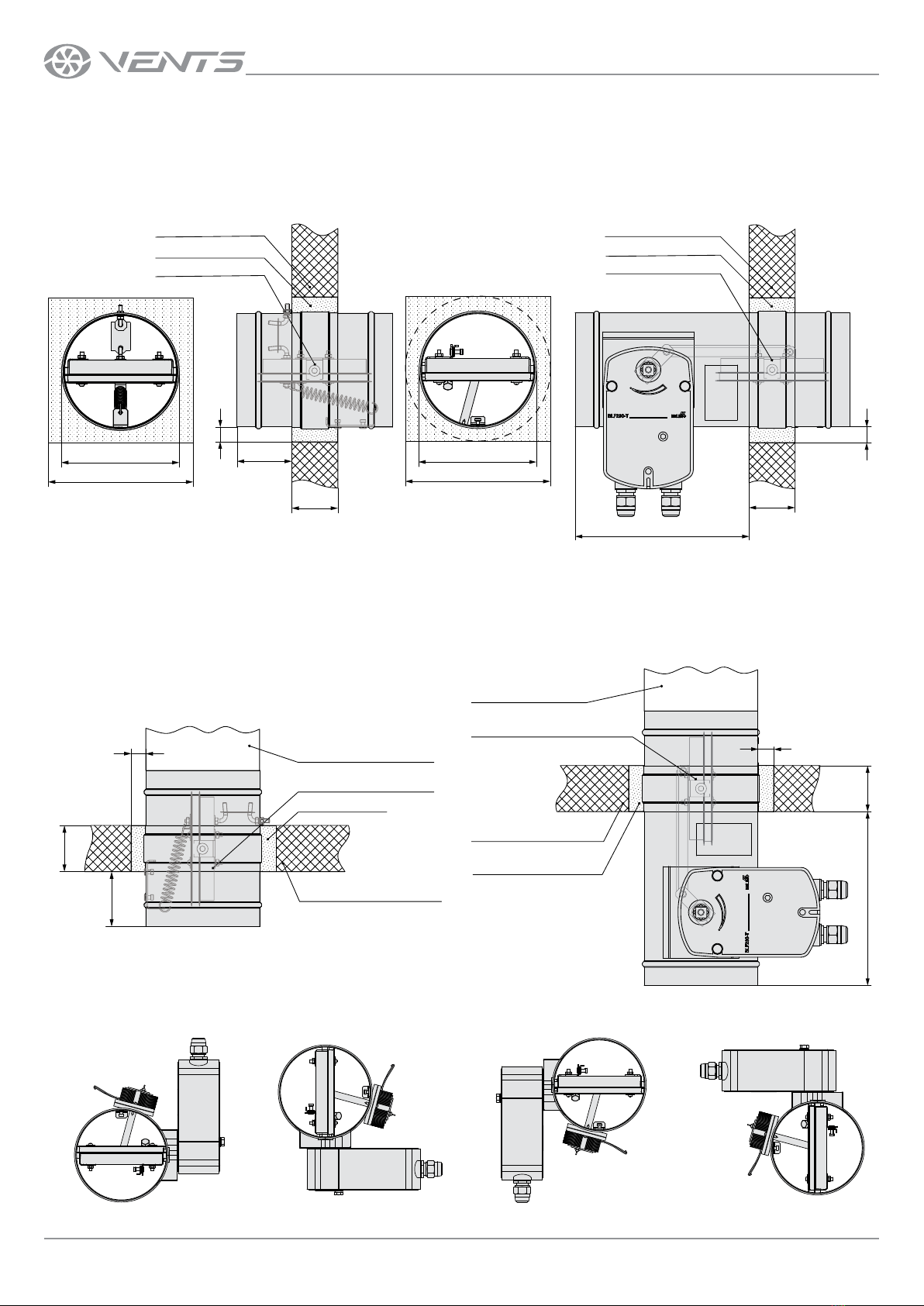

KP-1...72S re safety damper with a mechanical actuating
unit with a thermal fuse and a return spring
Casing
Return spring
Thermal fuse
Air damper
KP-1...PNP/KP-1...PVP/KP-1...PSP re safety damper with
electric actuator and a thermoelectric breaker
Electric actuator
Casing
Thermoelectric breaker Air damper
The KP-2...72S re safety damper with a mechanical actuating unit with a thermal fuse and a return spring
Flap gate mechanism
Casing
Handle
Seal
Hot and cold
zone baffle
Thermal fuse
Lock
Air damper
The KP-2...PNP/KP-2...PVP/KP-2...PSP re safety damper with electric actuator and thermoelectric breaker
Casing
Electric actuator
Seal
Hot and cold zone baffle
Damper swing
mechanism
Air damper
Thermoelectric breaker
The KP-2...PNP...-1/KP-2...PVP...-1/KP-2...PSP...-1 re safety damper with a Belimo electric actuator and thermoelectric reaker
Casing
Electric actuator
Damper swing
mechanism
Air damper
Thermoelectric breaker Casing perforation
Ceramic fibre and
aluminium foil tape
Casing
The PL-10...-1A re safety damper with a mechanical ctuating
unit, a thermal fuse and a return spring
Casing
Thermal fuse
Air damper
Return spring
Hot and cold zone
baffle*
*Only for dampers with a fire-resistance level of 2 hours (EI 120).
The PL-10...PNP/PL-10...PVP/PL-10...PSP re safety damper
with an electric actuator and a thermoelectric breaker
Casing
Air damper
Thermoelectric breaker
Electric actuator
Hot and cold zone
baffle*
*Only for dampers with a fire-resistance level of 2 hours (EI 120).
DESIGN AND OPERATING PRINCIPLE

15
www.ventilation-system.com
The dampers are installed into square or rectangular (KP-1, KP-2 series) and round (PL-10 series) air ducts of ventilation
systems, and the apertures of ventilation shafts, division walls and re partitions.
The installation of the dampers into ventilation systems must be carried out in consideration of the air ow direction.
While installing electrically actuated dampers provide for sucient space for the actuator inspection.
When preparing the fire-safety dampers for installation the damper casing must be fitted with wooden spreader bars to prevent
deformation, torsional twisting or geometry perturbation of the casing which may result in flap jamming and, eventually, loss of the
damper functionality.
Following the damper installation into the shaft, wall or ceiling filler structure section and upon complete curing (immobilization) of the
mortar make sure to remove the wooden spreader bars. The damper must open and close freely without excessive friction.
To install the dampers into the apertures of wall or ceiling slabs fill up the gaps between the damper casing and the aperture. The gaps
are filled with fire-resistant mortar.
The damper design enables its attachment to air ducts and other ventilation system components by means of flanges as well as its
installation into filler structures. Under any installation scenario the mating structure fire-resistance level must be upgraded by using extra
fire insulation to at least match that of the filler structure of the respective fire-safety zone.
According to EN 15650, each re damper must be installed in accordance with the mounting instructions provided by the
manufacturer!
KP-1, KP-2 DAMPER INSTALLATION
The dampers can be installed in any position into vertical and horizontal channels of fire-protection structures. The damper installation
openings must be made in such a way so as to prevent the transfer of loads caused by the fire-protection structures to the damper casing.
The adjoining air duct must be suspended in such a way so as to prevent the transfer of air duct load to the damper flange. There must
be at least 350 mm of unrestricted clearance for accessing the control elements. Make sure to arrange an inspection hole. While carrying
out the installation mind size K. When two or more dampers are installed into the same fire-protection separation structure the distance
between the two adjacent dampers must be at least 200 mm.
The damper must be installed in such a way that the damper flap lies in the fire-protection divider structure plane while closed. If
such installation is not possible, the damper casing part between the fire-protection separation structure and the damper flap must be
insulated with a suitable material pursuant to the applicable standards.
The damper control mechanism must be protected against damage and contamination. Avoid damper casing deformation during the
embedding. After the installation the flap must not catch against the damper casing while opening or closing.
Fire-safety dampers can be integrated into a tight wall structure – e.g. made of conventional concrete work of minimum width
W = 100 mm or into a plasterboard wall of the necessary fire resistance class or into a tight ceiling structure – e.g. made of conventional
concrete of minimum width W = 150 mm.
The recommended values for construction openings are given below.
MOUNTING AND SETUP

16
KP/PL-10
www.ventilation-system.com

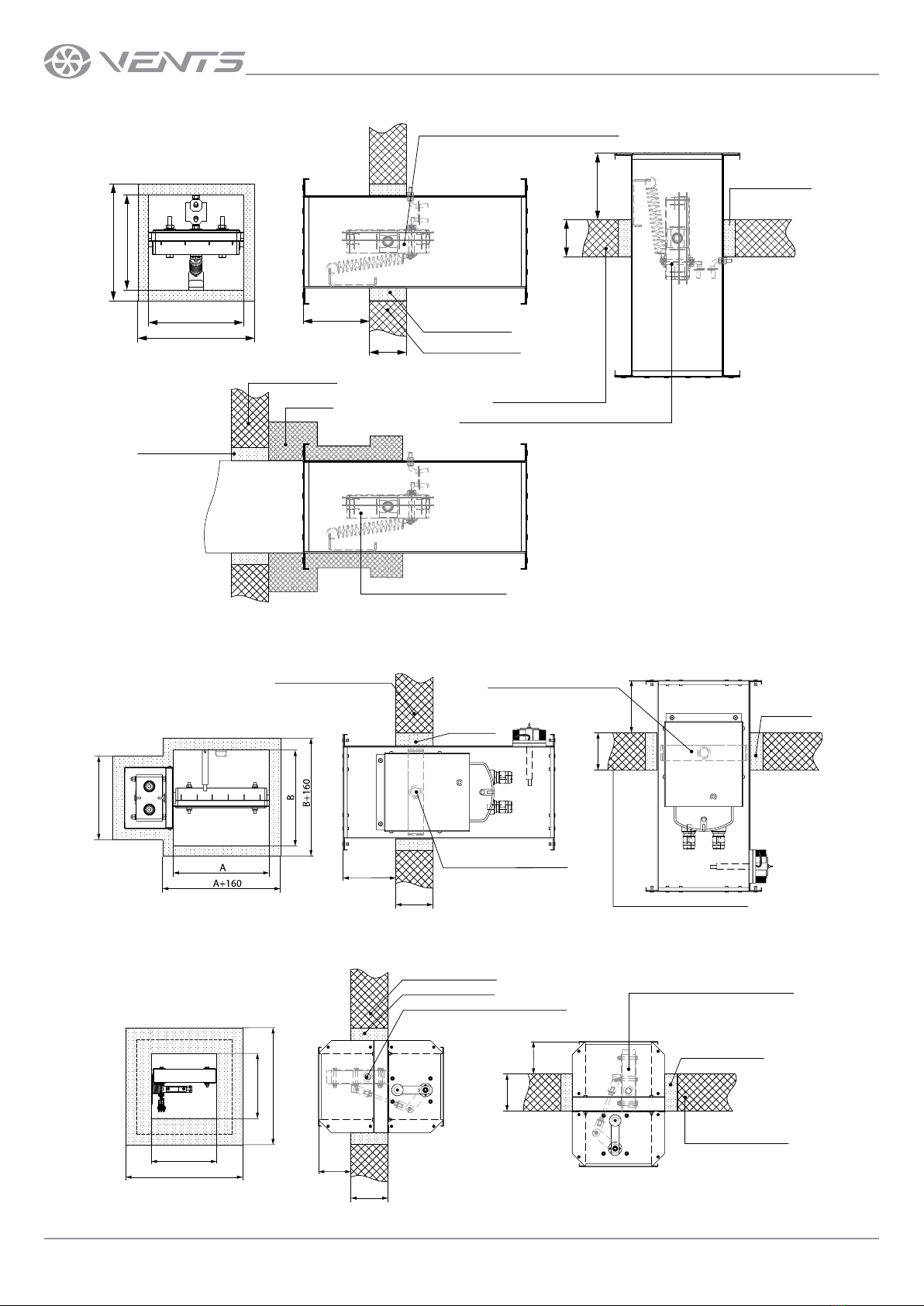

INSTALLATION RECOMMENDATIONS FOR KP1...72S DAMPERS WITH A THERMAL FUSE AND A RETURN SPRING
А
А+160
В
В+160
Wall (re separation)
Wall (re separation)
Insulation
Fire-resisting damper with a thermal link
and return spring
Fire-resisting damper with a thermal link
and return spring
Fire-resisting damper with a thermal link
and return spring
K
W
K
W
Ceiling (re separation)
Intermediate Layer
Intermediate layer
Intermediate layer

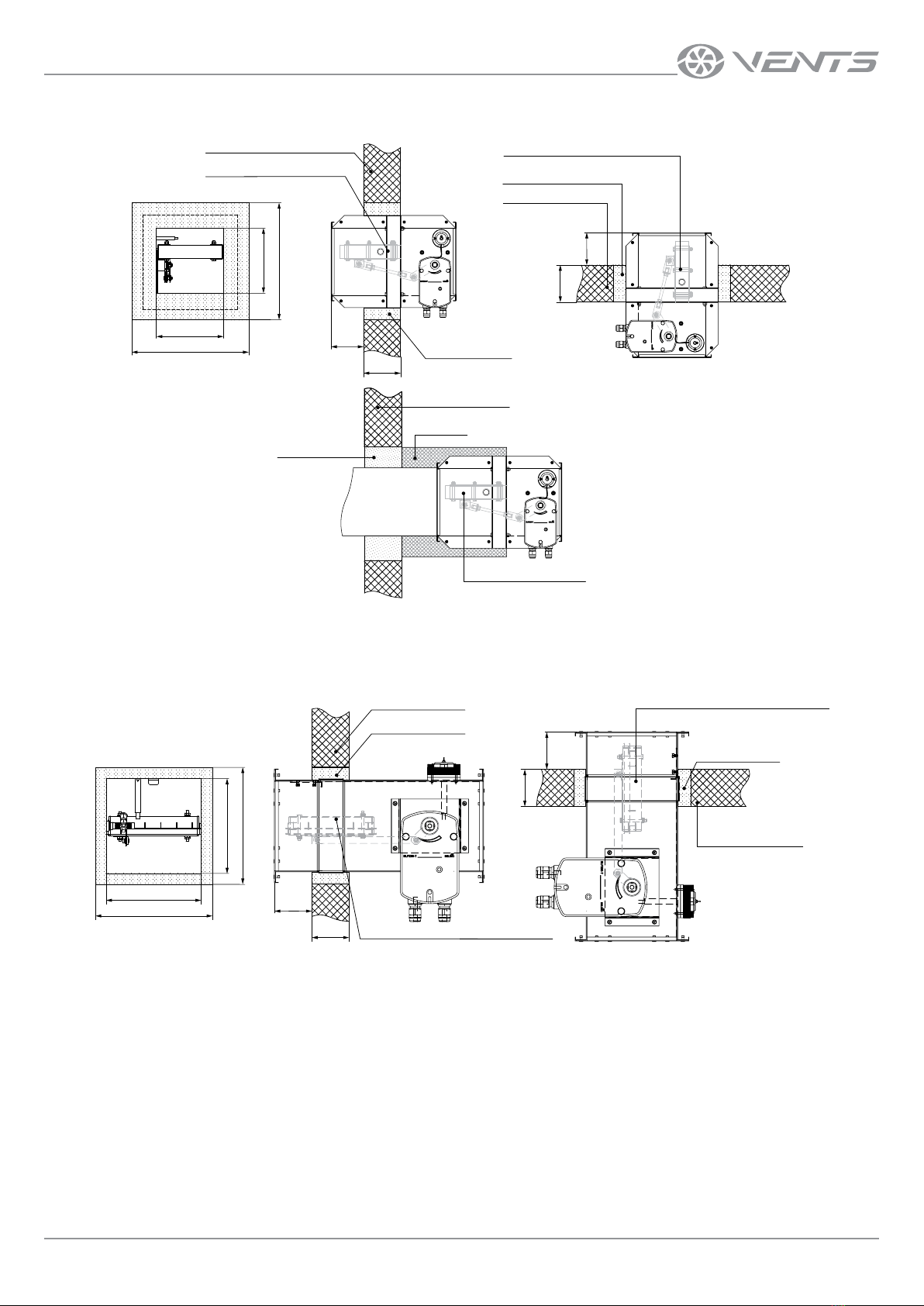

INSTALLATION RECOMMENDATIONS FOR KP1...PNP/KP1...PVP/KP1...PSP FIRE SAFETY DAMPERS
WITH ELECTRIC ACTUATOR
K
W
270
K
W
Wall (re separation)
Intermediate
Layer
Ceiling (re separation)
Fire-resisting damper
with an electrical actuator
Fire-resisting damper
with an electrical actuator
Intermediate
layer
INSTALLATION RECOMMENDATIONS FOR KP2...72S DAMPERS WITH A THERMAL FUSE AND A RETURN SPRING
А
А+160
В
В+160
K
W
Wall (re separation)
Intermediate layer
Intermediate layer
Fire-resisting damper with a thermal link
and return spring
Fire-resisting damper
with a thermal link and return spring
K
W
Ceiling (re separation)

17
www.ventilation-system.com
INSTALLATION RECOMMENDATIONS FOR KP2...PNP/KP2...PVP/KP2...PSP FIRE SAFETY DAMPERS
WITH ELECTRIC ACTUATOR
А
А+160
В
В+160
K
W
Intermediate layer
Intermediate layer
Intermediate layer
Wall (re separation)
Wall (re separation)
Fire-resisting damper
with an electrical actuator
Fire-resisting damper
with an electrical actuator
Fire-resisting damper
with an electrical actuator
K
W
Ceiling (re separation)
Insulation
INSTALLATION RECOMMENDATIONS FOR KP2...PNP...1/KP2...PVP...1/KP2...PSP...1 FIRE SAFETY DAMPERS
WITH ELECTRIC ACTUATOR
А
А+160
В
В+160
K
W
Wall (re separation)
Intermediate layer
Intermediate layer
K
W
Ceiling (re separation)
Fire-resisting damper, light-weight
version with an electrical actuator
Fire-resisting damper, light-weight
version with an electrical actuator

18
KP/PL-10
www.ventilation-system.com
PL-10 DAMPER INSTALLATION
Fire-safety dampers can be installed into solid walls with the minimum width of W = 150 mm, into both round and square apertures,
minimum intermediate layer thickness S = 50 mm. The walls can be made of concrete, brick or foam concrete blocks. The intermediate
layer can be made of concrete or mortar. While carrying out the installation mind size K. When installing the dampers into thicker walls
add an extender section on one of the damper sides.
The electric actuator can be positioned freely on either side of the fire control sector (space) wall.
Wall (re separation)
Intermediate layer
Fire-resisting damper
K
W
S
D
D+2S
D
D+2S
K
W
S
Wall (re separation)
Intermediate layer
Fire-resisting damper
with an electrical actuator
Fire-safety dampers can be installed into solid ceiling panels with the minimum thickness of W = 150 mm, minimum intermediate
layer thickness S = 50 mm. The ceiling panels are made of concrete. The intermediate layer can be made of concrete or mortar. While
carrying out the installation mind size K.
When installing the dampers into thicker walls add an extender section on one of the damper sides.
The electric actuator can be positioned freely above or below the ceiling panel of the fire control sector (space).
Ceiling panel (re separation)
Intermediate layer
Fire-resisting damper
K
W
SExtender section (if necessary)
K W
S
Ceiling panel (re separation)
Intermediate layer
Fire-resisting damper
with an electrical actuator
Extender section
(if necessary)
Permissible positions for re-safety damper installation
The damper axle and actuation mechanism can be installed in any position – from horizontal to vertical.

19
www.ventilation-system.com
CONNECTION TO POWER MAINS
The actuators featuring a return spring are designed to control fire-resisting dampers and smoke-extraction dampers installed in
ventilation and air-conditioning systems.
The return spring is cocked upon setting the damper flap to the horizontal position. In case of a power failure, the damper flap is re-set
to the protective position by the energy stored in the spring.
The damper does not require any limit switches and is overload-proof.
The thermally sensitive breaker Tf1 actuates upon ambient temperature exceeding 72 °C. The renewable thermally sensitive breakers Tf2
and Tf3 actuate upon the air duct temperature exceeding 72 °C. The operation of the renewable thermally sensitive breakers interrupts
the electric power supply in such a way that it prevents actuator re-activation without their replacement.
The button on the thermally sensitive breaker body enables testing the damper functionality.
The actuator is equipped with two fixed microswitches which signal the end positions.
Intermediate positions of the damper are shown by the mechanical indicator (needle).
The BF24-T and BFN24-T actuators are connected via an insulated transformer unit .
The damper can also be controlled manually and fixed in any position. The unit can be unlocked either manually using a hex wrench
(included) or automatically upon power-up.
The actuator connections (cables and wires) must be durable, insulated and heat-resistant.
The recommended minimum conductor cross-section is 0.75 mm.The conductor cross-section selection must account for the maximum
permissible wire heating which depends on the wire type, its insulation, length and installation method (i.e. overhead, in cable channels
or inside walls).
Electrical connection of the basic models of Belimo and Nenutec electric
actuators, as well as Belimo and Nenutec models with increased torque
1 2 S1 S2 S3 S4
M
S5 S6
< 5° < 80°
< 25°< 145°
Tf1 Tf2 Tf3 LED
–+
T
~
NL1
AC 24 V
AC 230 V
DC 24 V
Thermal breaker
Connection via transformer
Several wires may be
connected with respect
to power consumption
Electrical connection of Belimo electric actuators with the highest torque, as
well as Siemens electric actuators
1 2 S1 S2 S3 S4
M
S5 S6
< 5° < 80°
Tf1 Tf2 LED
–+
T
~
NL1
Connection via transformer
AC 230 V
DC 24 V
AC 24 V
Thermal breaker

20
KP/PL-10
www.ventilation-system.com
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed with temperature range from -20 °C to +50 °C.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least
3-4 hours.
The damper technical maintenance includes routine inspections and functionality checks.
The damper technical maintenance frequency must comply with the established technical maintenance frequency of the fire safety
equipment complex of the facility.
Recommended inspection steps according to EN 15650:
1. Identification of the damper.
2. Date of the inspection.
3. Check the electrical connection of the actuating mechanism (if any).
4. Check the damper for cleanliness and the need for cleaning (if necessary).
5. Check the condition of the blade and seal, perform correction and registration actions (if necessary).
6. Check that the damper is able to close properly.
7. Check the functionality of the damper: opening and closing using the control system, physical inspection of the blade behaviour,
perform correction and registration actions (if necessary).
8. Check the functionality of the limit switches in the open and closed position, perform correction and registration actions if necessary.
9. Check that the damper is operating as intended as part of the control system (if necessary).
10. Check the standard operating position of the damper.
11. The damper usually operates as a part of the system.
In this case, it is necessary to check the entire system as described in the requirements for its operation defined by the system developer.
TECHNICAL MAINTENANCE
