Ventum NS1 User manual

USER MANUAL
NS1

WELCOME 2
Congratulations on the purchase of the Ventum NS1, your Aero Performance Road
Bike! Get ready to experience a bike that is totally unlike any other on the road today.
Your new Ventum NS1 combines forward thinking design with the most advanced
technologies available, to shatter the notion that a road bike can be either lightweight
or aerodynamic.
This document will guide you through the process of setting up your new bike and
getting out on the road. Of course, if you have any questions or if we can be of
assistance in any way, please contact the Ventum Concierge team at
[e-mail].
Before you hit the road, please also take a moment to register your bike purchase via
our website.
https://ventumracing.com/support/#registerBike

FRAME DIAGRAM
UNBOXING
WHEEL REMOVAL
SEAT POST INSTALLATION
FRAME UNBOXING
WHEEL INSTALLATION
FINAL CHECKS & ROAD TEST
6
8
10
12
16
18
22
CONTENTS 4

Please carefully inspect the image. It gives you a thorough break down of the names
of the tubes that the frame/fork consist of and the components that this bike uses.
Please refer back to this image as needed.
1Top Tube Handle Bar 13
2Fork Brake Lever
14
3Head Tube Rear Derailleur
15
4Down Tube Cassette
16
5Chain Stay Chain
17
6Seat Stay Crank
18
7Seat Tube Front Derailleur
19
8Seat Post Brake Caliper
20
9Saddle Brake Rotor
21
10 Seat Post Clamp Tire
22
11 Headset Spacer Rim
23
12 Stem
FRAME DIAGRAM 6
3
4
5
67
8
9
10
11
12
13
2
16
19
14
1
17
20
22
18
21
23
15

Remove the parts box and support cover Remove the top tube foam blocks and shifter blocks
UNBOXING UNBOXING
89

Remove the straps and foam blocks from the wheels Remove the wheels from the box and remove the hub guards
WHEEL REMOVAL 10 WHEEL REMOVAL 11

1. Detach the seat post and remove the protective foam
2. Undo the strap around the bottom bracket
SEAT POST INSTALLATION 12 SEAT POST INSTALLATION 13

1. Plug both Di2 cables into the seat post battery--you should hear them click into place.
The battery has three ports. Be sure to plug one of the Di2 cables into the center
port. Plug the 2nd Di2 cable into an empty port.
*Step #1 only required for Shimano Ultegra or Dura Ace Di2 builds.
2. Insert the seat post into the frame. Ensure the minimum dept of depth of 10 cm is
achieved. Carbon paste is not necessary. If you choose to use carbon paste, only apply
to the back and/or sides of the seatpost, making sure to avoid the front side and seat
post clamp.
3. Torque the seat post clamp bolt to a minimum of 6 N.m. Temperature, moisture, and
contaminants can affect the seat post clamp. If necessary, it can be torqued
up to 8 N.m.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD LEAD TO SERIOUS INJURY OR DEATH.
WARNING
SEAT POST INSTALLATION 14 SEAT POST INSTALLATION 15

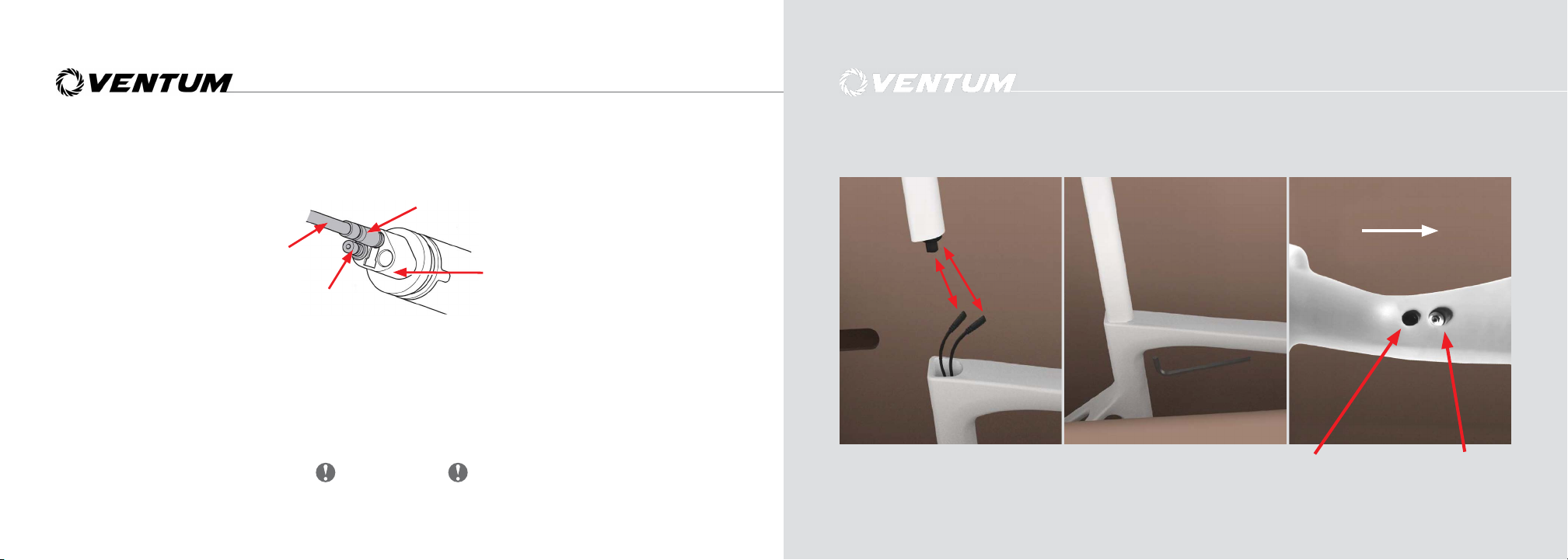

Step 1 Step 2 Step 3
Black Seatpost Clamp bolt
(5mm hex). Torque to 6N.m.,
loosen to raise/lower seatpost
Shimano Di2 builds only Silver retaining bolt
(DO NOT ADJUST)
Towards handlebar
Center E-TUBE port
(Always connect the electric wire during use)
E-TUBE port
Dummy plug
Electric wire
EW-SD300

Remove the straps from the handlebar 1. Lift the frame out of the box
2. Detach the strap and foam block from the crank arm
FRAME UNBOXING 16 FRAME UNBOXING 17

Unscrew the thru axles from the frame and fork using a 6mm hex tool Remove the spacers from the brake calipers
WHEEL INSTALLATION 18 WHEEL INSTALLATION 19

Install the wheels ensuring the rotor lines up between the brake pads Secure the wheels by re-installing the thru axles. Torque to 10 N.m.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD LEAD TO SERIOUS INJURY OR DEATH.
WARNING
WHEEL INSTALLATION 20 WHEEL INSTALLATION 21
NOTE: Maximum re size is 700C x 35mm

1. Install your pedals as per the manufacturer’s instructions.
2. Check the tire pressure and inate as per the wheel manufacturer’s
recommendation. If the wheel and tire manufacturers recommend different
pressure ranges, use the lower of the two.
3. Adjust the saddle height as necessary. Ensure the seat post minimum insertion
depth of 10cm is achieved. Torque the seatpost clamp bolt to 6 N.m.
4. Put on your shoes and helmet and take your new bike out for a road test. Always
wear a helmet when you ride your bicycle.
5. Check the operation of the brakes, derailleurs, and steering.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD LEAD TO SERIOUS INJURY OR DEATH.
WARNING
FINAL CHECKS & ROAD TEST 24
VENTUMRACING.COM
QUICK REFERENCE SPECS
SEAT POST
CLAMP
Torque Spec: 6 N.m.
Use a torque wrench with 5mm
hex attachment
Torque Spec: 10 N.m.
Use a 6mm Hex Tool
THRU
AXLES
Torque Spec: 5-6 N.m. depending
on stem make and model. Check
stem for torque spec indications or
check with manufacturer.
STEM
BOLTS
60-73 PSI
Adjust as conditions and
equipment allow
TIRE
PRESSURE
Max 700C x 35mm
Tire clearance varies based on
internal rim width
TIRE
SIZING
ENJOY YOUR
NEW RIDE!
