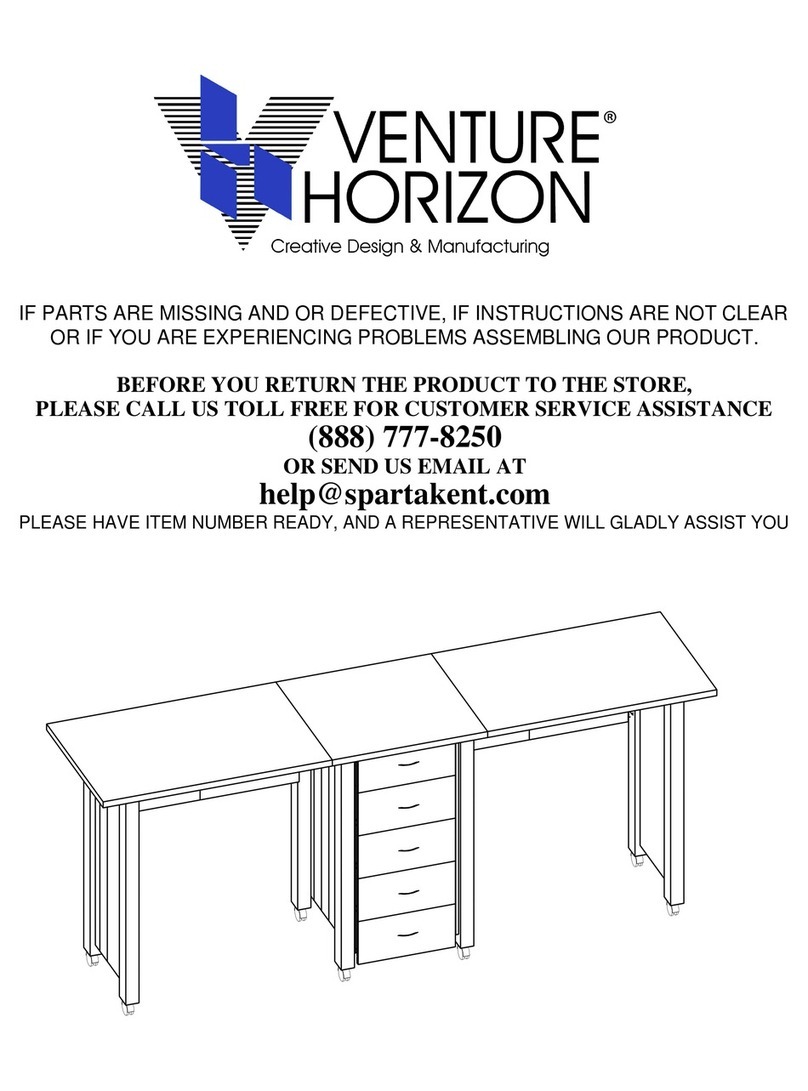

venture horizon 1010 User manual

IF PARTS ARE MISSING AND OR DEFECTIVE, IF INSTRUCTIONS ARE NOT CLEAR
OR IF YOU ARE EXPERIENCING PROBLEMS ASSEMBLING OUR PRODUCT.
BEFORE YOU RETURN THE PRODUCT TO THE STORE,
PLEASE CALL US TOLL FREE FOR CUSTOMER SERVICE ASSISTANCE
[phone]
OR SEND US EMAIL AT
[e-mail]
PLEASE HAVE ITEM NUMBER READY, AND A REPRESENTATIVE WILL GLADLY ASSIST YOU
SPARTAK ENTERPRISES, INC.
FOLD DOWN DESK
Model #1010-11WH
LOT #1908
SPARTAK ENTERPRISES, INC. 841 E. FRANCIS STR. ONTARIO, CA. 91761 TEL; 909/930-0670 FAX; 909/930-9921

IF PARTS ARE MISSING AND OR DEFECTIVE, IF INSTRUCTIONS ARE NOT CLEAR
OR IF YOU ARE EXPERIENCING PROBLEMS ASSEMBLING OUR PRODUCT.
BEFORE YOU RETURN THE PRODUCT TO THE STORE,
PLEASE CALL US TOLL FREE FOR CUSTOMER SERVICE ASSISTANCE
[phone]
OR SEND US EMAIL AT
[e-mail]
PLEASE HAVE ITEM NUMBER READY, AND A REPRESENTATIVE WILL GLADLY ASSIST YOU
SPARTAK ENTERPRISES, INC.
FOLD DOWN DESK
Model #1010-33OA
LOT #1909
SPARTAK ENTERPRISES, INC. 841 E. FRANCIS STR. ONTARIO, CA. 91761 TEL; 909/930-0670 FAX; 909/930-9921

HARDWARE PART # DESCRIPTION QTY
PHILIPS SCREWDRIVER HAMMER
HARDWARE LIST

K
PARTS IDENTIFICATION
H
1010A-Left front upright
1010B-Back panel
1010C-Shelf
1010D-Drawer back
1010E-Drawer bottom
1010F-Drawer mt. fold
1010G-Right front upright
1010H-Right rear upright
1010I-Top
1010J-Left rear upright
1010K-Back brace
1010L-Sliding side
1010M-Leaf
1010N-Bottom
NOTE: FIRST MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED ON THIS SHEET. IF YOU ARE MISSING ANY
PIECE(S), DO NOT ASSEMBLE THE UNIT. INSTEAD, CALL CUSTOMER SERVICE NUMBER AT: [phone]. WE
WILL BE HAPPY TO ASSIST YOU.
1pc
1pc
4pcs
5pcs
5pcs
5pcs
1pc
1pc
1pc
1pc
2pcs
1pc
1pc
1pc

1
F
F
F
E E
D
We recommend you do one drawer at the time.
Allow glue to set at least for 2 hours. Repeat this step for the other four
drawers. Make sure drawer back fits snug and there are no gaps. Leave
drawers on their side until glue has set. You may put weight on it, like
couple of books to apply pressure. In the mean time you can complete
assembly of the frame of the workstation.
The excess of glue can be wiped off with a
damp cloth. Also, once glue sets it will turn
translucent and it will not stick to laminated
surface and can be easily peeled off.
E E
D
Press down

2
N
DOWM525
UNLOCKED
POSITION
DOWM518
C

3
DOWW830
CAMBT16
CAMBT16
Apply one drop of glue inside each of the dowel holes. Next, gently tap
each dowel into place using a small hammer.
J
H
A
G
J
H
A
G

4Do not overtighten the screws as you may strip the wood. It will be a
good idea not to use power drill.
SPB1012BL
I
M
Turn camlock
clockwise to
lock the bolt on
parts A, G and H
Make sure
lip on parts
C and N is
on top
A
G
H
CCCCN
NOTE: The center part of
the hinge that sticks out
should point up when you
attach hinge in this step.

5
J
A
B
Apply thick coat of glue in the grooves
of parts H and J and one drop in each
hole. The excess of glue can be wiped
off with a damp cloth later. Also, once
glue sets it will turn translucent and it
will not stick to laminated surface and
can be easily peeled off.
Carefully lift the assembly holding by
the bottom legs H and G to avoid it
coming apart. Align dowels with holes
and back panel B with groove in the
top . Press down onto the legs and
make sure leave no gap between
connecting parts. Do not push down
onto the bottom N to avoid breakage.
JPress down onto
parts A and J and
turn camlock to
lock bolt on part J

6
SF1025BL
UCHAN58
SP12PR
Locking casters
install in the front.
Use block provided
in hardware kit.
UCHAN58
Make sure don't forget plastic spacer.
Otherwise the screw puncher through
the top. Also, you will be using the
larger U-Channels in this step.

7
SFH825A
Laminated edge
Use block provided
in hardware kit.
L
NOTE: The center part of
the hinge that sticks out
should point up when you
attach hinge in this step.
SFH825A
K
With six wood screws, attach the two part (K)'s together using the
hinge. Make sure that the laminated edges are aligned as illustrated.
L
K
UCHAN12

With six wood screws, attach part (K) onto part (J), once again using a
hinge.
8
SFH825A

9
DOWM525
The purpose of the 2 Metal Pins on the Sliding Side is to prevent
movement of Sliding Side under the Leaf. The U-Channel on the
Leaf is meant to clamp down on the edge of the Leaf to prevent
side-to-side movement . The 2 Metal Pins act as
stops to prevent front-to-back movement.

First, lift the top panel slightly. (NOTE: Lift just
enough so that the boards will not get
damaged).
10
Next, push side panel in. Make sure you push it
in as far as it will go.
Finally, gently let the top panel down. Voila!!!
