Verily Life Sciences Liftware Starter Kit User manual

Liftware Starter Kit
Product Handbook

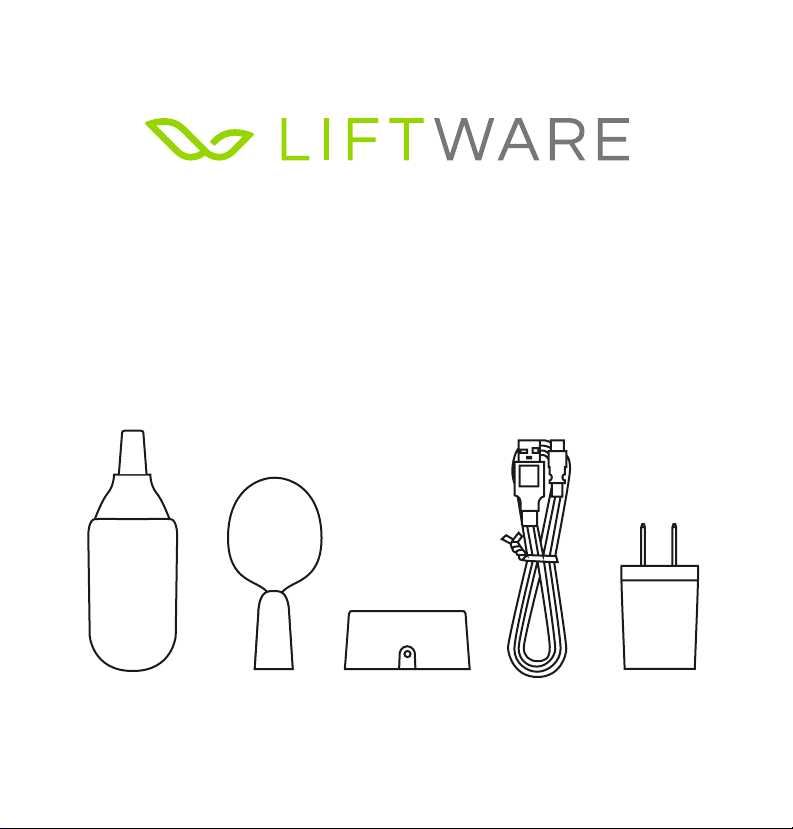

What’s Inside:
Soup Spoon
Attachment
Stabilizing
Handle
Micro USB
Cable
USB Wall
Adapter
Charging
Cradle

2
Important safety notes
To reduce the risk of damage or physical injury:
• Do not immerse the Liftware stabilizing handle in water.
• Do not wash the Liftware stabilizing handle in the dishwasher.
• Always keep the charging cradle at a safe distance from water.
• Unplug the charging cradle immediately if it falls into water. Do not use
the charging cradle or the USB wall adapter if either has been dropped in
water.
• Do not put the Liftware stabilizing handle in or near any heating or cooking
device.
• Never use a charging cradle or a USB wall adapter with a damaged cable or
plug.
• This product contains no user-serviceable parts. Refer to “Limited Warranty”
if the appliance no longer works properly or needs repair.
• Warning: No modication of the equipment is allowed. Modication will void
the warranty.
• The Liftware stabilizing handle and utensil attachments contain small magnets
similar in strength to ordinary household magnets. If you have a cardiac
pacemaker or other implantable medical electronic device, follow your device’s
directions for use regarding magnets. The standard recommendation is
to keep your implantable device at least 6 inches from Liftware because it
contains small magnets. If you have concerns about your implantable device,
consult your healthcare provider.

3
Getting started
When you’re ready to try the Liftware stabilizing handle for the rst time, take a
few deep breaths and relax. Since anxiety can increase tremor, you may want to
try it without other people watching.
It may take a few days to get used to eating with Liftware. The spoon attachment
moves, so at rst it might feel funny in your hand – that’s normal. Allow your
hand tremor to happen naturally, and let Liftware do the work of steadying the
spoon.
Try these tips:
• Watch “Getting Started with the Liftware Spoon” at
www.liftware.com/start
• Try dierent hand positions until you nd a comfortable grip.
• If the handle gets in the way, try using a larger, shallower bowl.
We recommend trying Liftware for at least a week to decide if it’s right for you.

4
Liftware basics
• The Liftware Starter Kit comes with a stabilizing handle and a soup spoon
attachment. Other utensil attachments, including a fork and an everyday
spoon, are available separately.
• To connect the soup spoon or other utensil attachment to the Liftware
stabilizing handle, place them on the table for stability. Slide the attachment
onto the handle until they click together. The handle will turn on automatically.
• Hold the base of the stabilizing handle and allow your hand tremor to
happen naturally.
• Keep your ngers clear of the narrow area where the handle connects to
the attachment. This part of the handle needs to move freely.
• It’s normal for the Liftware stabilizing handle to gently hum and wiggle. This
motion is how Liftware stabilizes the movements of the hand.
• When you nish your meal, remove the attachment to turn the handle o
and conserve battery power.
Sleep mode
Between bites, you can turn your Liftware over on the table so the logo on the
handle faces the table. This puts the handle to sleep.
The handle still draws power from the battery when it’s asleep, so be sure to
remove the attachment between meals.

5
Cleaning
• To prevent damage, the Liftware stabilizing handle should never be
submerged in water or cleaned in the dishwasher.
• Wipe the handle clean with a damp sponge or antibacterial wipes.
• To clean the exible membrane in the handle, use a cotton swab with warm
water and mild detergent. Never clean this area with toothpicks, tweezers,
or anything sharp.
• The soup spoon or other utensil attachments can be washed in the dish-
washer or cleaned by hand with a sponge, mild detergent, and warm water.
Storing
• Store the Liftware stabilizing handle in a cool, dry place with the attachment
detached. The handle can also be stored in the charging cradle when not in
use.
• Store the handle out of direct sunlight.

6
Charging
Always remove the attachment from the Liftware stabilizing handle before you
charge.
To charge the Liftware stabilizing handle:
1. Plug the large end of the micro USB cable into the USB wall adapter.
2. Plug the small end of the micro USB cable into the charging cradle.
3. Place the handle in the charger with the logo facing the same direction as
the LED indicator on the cradle.
Charging notes:
It takes up to three hours to fully charge the handle.
On newer Liftware charger cradles, the light blinks while charging and glows
solid when fully charged. On earlier models, the light glows solid while charging
and turns o when fully charged. If the light turns o right away, then the
battery is fully charged. (Newer charger models are marked “Liftware Charger
1.1” underneath the cradle, and early models have no markings.)
Depending on how long your meals last, Liftware is designed to last for three to
six meals between charges.
Disposal
Liftware is powered by a rechargeable lithium ion polymer battery that should
not be disposed of in a landll. Dispose according to local laws and regulations.

7
Please note that the battery should only be removed at the end of the product’s
life. Removing the battery will destroy Liftware and void the product warranty
Returns & Limited Warranty
To view our full return policy and the Liftware Limited Warranty, please visit
www.liftware.com/policies. To make a return or if you need more information,
contact [email protected] or [phone].
License
Liftware uses open-source software under the following license:
Portions of avr-libc are Copyright (c) 1999-2010
Keith Gudger, Bjoern Haase, Steinar Haugen, Peter Jansen, Reinhard Jessich, Magnus Johansson, Artur Lipows-
ki, Marek Michalkiewicz, Colin O’Flynn, Bob Paddock, Reiner Patommel, Michael Rickman, Theodore A. Roth,
Juergen Schilling, Philip Soeberg, Anatoly Sokolov, Nils Kristian Strom, Michael Stumpf, Stefan Swanepoel, Eric
B. Weddington, Joerg Wunsch, Dmitry Xmelkov, The Regents of the University of California. All rights reserved.
Redistribution and use in source and binary forms, with or without modication, are permitted provided that
the following conditions are met:
• Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the copyright holders nor the names of contributors may be used to endorse or
promote products derived from this software without specic prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANT-
ABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.

• Liftware is designed by Lift Labs (of Verily Life Sciences LLC) in Mountain View,
California.
• Assembled in the USA.
• This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules.
• These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates,
uses and can emit radio frequency energy and, if not installed and used
in accordance with the instructions, may cause interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation.
• The latest version of the user guide can be accessed at
www.liftware.com/faqs.
© 2016 Lift Labs of Verily Life Sciences LLC. All rights reserved.
Liftware and related logos are trademarks of Verily Life Sciences LLC
990-00299-00 Rev D
Liftware
Model 1.0
Additional information
