Veris HW2T Series User manual

Z207935-0G Page 1 of 9 ©2023 Veris Industries USA 800.354.8556 or +1.503.598.4564 / suppor[email protected] 0423
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Other companies’ trademarks are hereby acknowledged to belong to their respective owners.
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classied locations.
•
Read and understand the instructions before installing this product.
• Turn o all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
If this product is used in a manner not specied by the manufacturer, the protection
provided by the product may be impaired. No responsibility is assumed by the
manufacturer for any consequences arising out of the use of this material.
Installation Guide
Humidity
Product Identication
Product Overview

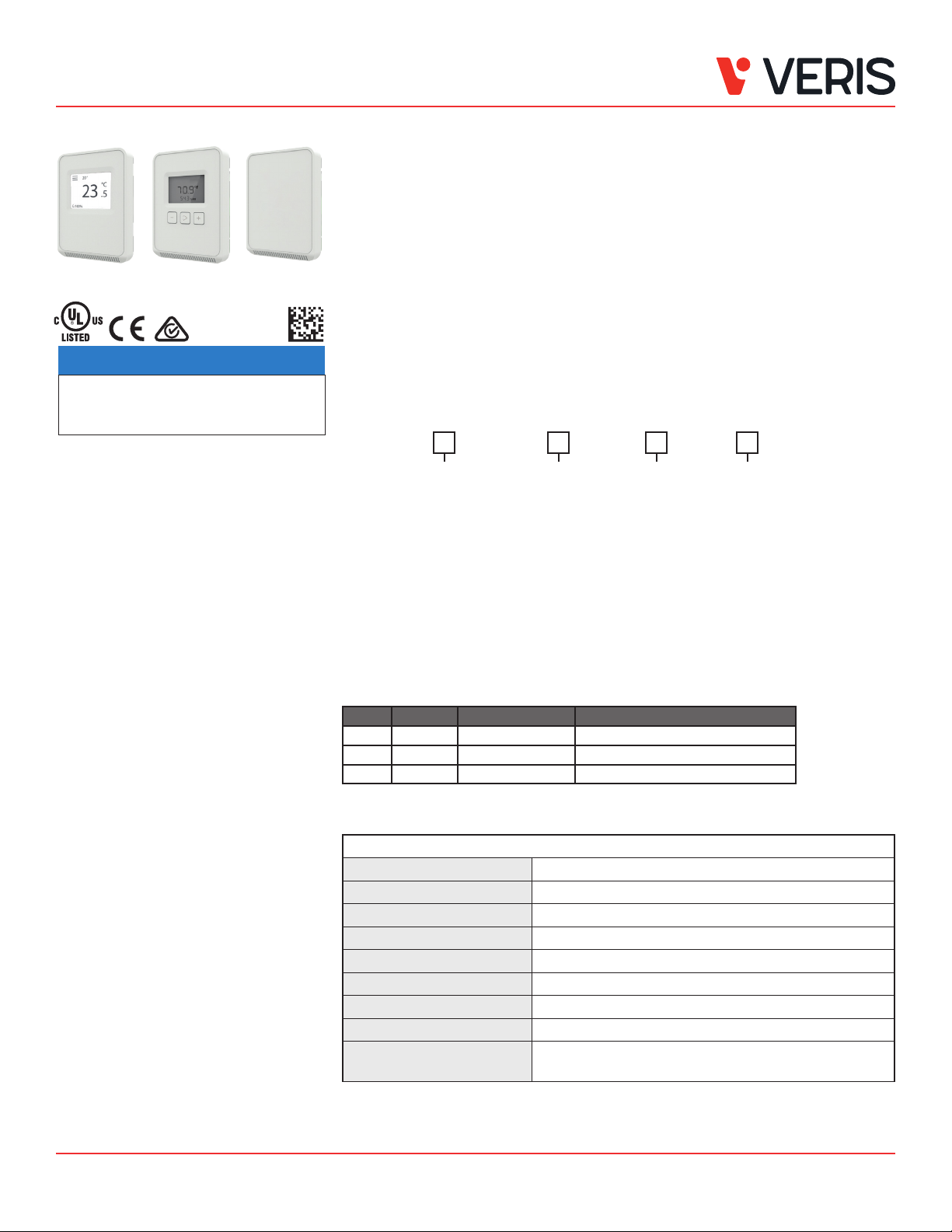

The HW2 Series of humidity sensors for living space is a exible multisensor platform for use with BAS controllers
designed to accept 4 to 20mA, 0 to 5Vdc or 0 to 10Vdc outputs. HW2 Series sensors are available with three user
interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included
with all HW2 Series sensors.
* Replaceable RH module available to be ordered separately per table below.
** Available in HW2XA2G only.
*** Available in HW2XA2R only.
HW2 Series
Wall Mount Humidity Sensors
Specications
OPERATING ENVIRONMENT
Input Power Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz
Analog Output Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V
Operating Temp. Range 0 to 50 °C (32 to 122 °F)
Operating Humidity Range 0 to 95% RH non-condensing
Housing Material High-impact ABS plastic
Terminal Block Torque 0.5 to 0.6 N-m (0.37 to 0.44 in-lbf)
IP Rating IP 30
Mounting Location For indoor use only. Not suitable for wet locations.
Surface Mount The device can be surface mounted on Single Gang J-Box, British Standard and
CE60 wall boxes
HW2Txxxx HW2Lxxxx HW2Xxxxx
HW2
User Interface Output RH Accuracy* Temperature
T = Color touchscreen
L = 3-button LCD display
X = None
A = Analog output 2 = 2% A =Transmitter only
C = 1000 PT RTD
D = 10KT2 thermistor
G = 10K CPC thermistor**
H = 10KT3 thermistor
K = 10K curve G/11K shunt
M = 20K NTC thermistor
N = 1.8KTAC thermistor
R = 10K curve G***
Model RH Accuracy Calibration Certificate Description
HS1N ±1% XReplaceable RH sensor, 1% with NIST certication
HS2N ±2% XReplaceable RH sensor, 2% with NIST certication
HS2X ±2% Replaceable RH sensor, 2%
Replaceable RH Elements

Z207935-0G Page 2 of 9 ©2023 Veris Industries USA 800.354.8556 or +1.503.598.4564 / suppor[email protected] 0423
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Other companies’ trademarks are hereby acknowledged to belong to their respective owners.
HW2 Series Installation Guide
Specications (cont.) RH TRANSMITTER
HS Sensor Thin-lm capacitive, replaceable
Accuracy ±2% from 10 to 80% RH @ 25°C (77 °F)
Hysteresis 1.5% typical
Stability ±1% @ 20°C (68 °F) annually for 2 years
Output Range 0 to 100% RH
Temperature Coecient ±0.1% RH/°C above or below 25 °C (77 °F) typical
TEMPERATURE TRANSMITTER OPTION
Sensor Type Solid state, integrated circuit
Accuracy ±0.2 °C (±0.4 °F) typical
Resolution 0.1 °C (0.1 °F)
Range 0 to 50 °C (32 to 122 °F)
DISPLAY MODELS
Touchscreen 61 mm (2.4 in), color, backlit, capacitive, 240x300 px
Setpoint: 0-10Vdc. Temperature, humidity or fan speed selectable
Timeout override: Display timeout*
Lockout override: Touchscreen/button lockout*
LCD 52mm (2.05 in), segmented with 3 buttons
Setpoint: 0-10Vdc. Temperature, humidity or fan speed selectable
Timeout override: Display timeout*
Lockout override: Touchscreen/button lockout*
SETPOINTS**
Temperature Setpoint 0 to 10V output
Scale: 10 to 35 °C (50 to 95 °F) / 0 to 50 °C (32 to 122 °F)
Humidity Setpoint 0 to 10V output
Scale: 0 to 100% RH
Fan Speed Setpoint 0 to 10V output
O 0V, Auto 1.5V, Low 3.3V, Med. 6.7V, High 10.0V
OVERRIDE
Override Button Display models feature a momentary-to-ground override button
WIRING TERMINALS
Terminal Blocks Screw terminals, 18-24 AWG
Screw Terminal Torque 0.2 N-m (2.0 in-lbF) max.
WARRANTY
Limited Warranty 5 years
COMPLIANCE INFORMATION
Agency Approvals UL 916, European conformance CE: EN61000-6-2,
EN61000-6-3, EN61000 Series - industrial immunity,
EN 61326-1
FCC Part 15 Class B, REACH, RoHS, RCM (Australia), ICES-003 (Canada)
*DIP switch selectable.
** One setpoint type is selectable via DIP switch on display models only.

Z207935-0G Page 3 of 9 ©2023 Veris Industries USA 800.354.8556 or +1.503.598.4564 / suppor[email protected] 0423
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Other companies’ trademarks are hereby acknowledged to belong to their respective owners.
HW2 Series Installation Guide

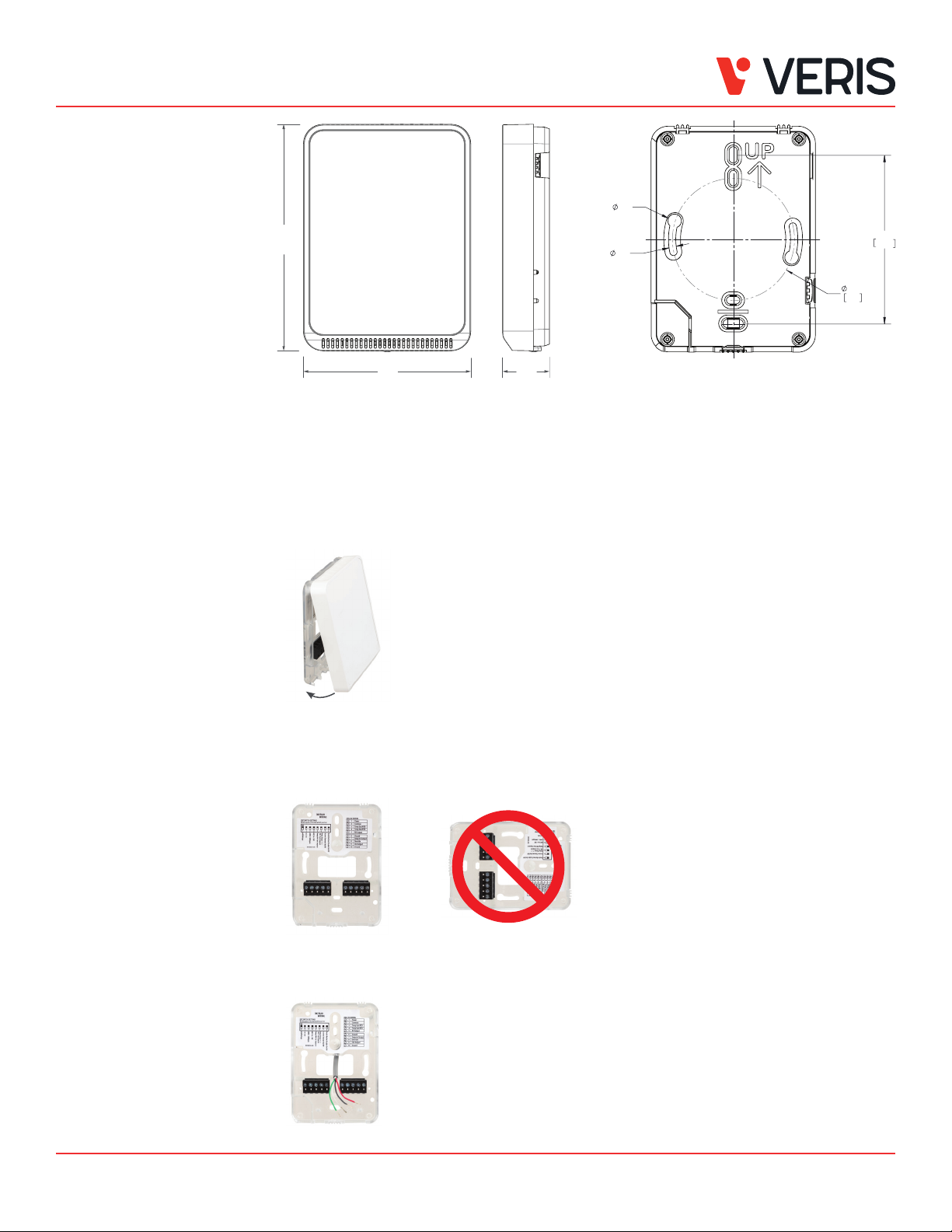

Dimensions
1. Remove the cover from the base at the bottom of the device.
2. Position the sensor base vertically on the wall 1.35 m (4.5 ft.) above the oor with the “UP” arrow facing upward. Locate away
from windows, vents and other sources of draft. If possible, do not mount on an external wall, as this may cause inaccurate
temperature readings.
3. Pull 18 or 22 AWG cable(s) through the hole in the backplate.
Installation
Functions The HW2 Series sensor measures the RH and temperature in a room and provides analog outputs to a controller.
115
(4.5)
85
(3.3)
24
(0.9)
2.374
60.3
3.28
83.32
2X
.264
[6.7]
2X
.142
[3.6]

Z207935-0G Page 4 of 9 ©2023 Veris Industries USA 800.354.8556 or +1.503.598.4564 / suppor[email protected] 0423
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Other companies’ trademarks are hereby acknowledged to belong to their respective owners.
HW2 Series Installation Guide
Installation (cont.) 4. Mount the backplate onto the wall using the screws provided.
Six screw holes available. Use a minimum of
two for secure mounting.
5. Connect the wires to the screw terminals. Do not over-tighten the screws.
Wiring for models with temperature transmitter:.
10 9876 5432 1
OVERRIDE*
SETPOINT OUT**
RH OUT
TEMP OUT
COMMON
POWER SUPPLY 20-30 Vdc, 24 Vac
CONTROL SYSTEM
COMMON
+
-
POWER (+24)
Wiring for models with RTD/thermistor:
10 9876 5432 1
OVERRIDE*
SETPOINT OUT**
RH OUT
RTD/THERMISTOR OUT
RTD/THERMISTOR OUT
POWER SUPPLY 20-30 Vdc, 24 Vac
CONTROL SYSTEM
COMMON
COMMON
+
-
POWER (+24)
* Momentary to ground.
** 0-10V DIP switch selectable for temperature, RH or fan speed (o, 0V, Auto 1.5V, Low 3.3V, Medium 6.7V or high 10V).

Z207935-0G Page 5 of 9 ©2023 Veris Industries USA 800.354.8556 or +1.503.598.4564 / suppor[email protected] 0423
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Other companies’ trademarks are hereby acknowledged to belong to their respective owners.
HW2 Series Installation Guide
Installation (cont.) Set the DIP switches.
ON
1
2345678
Temp / RH-Fan Setpoint Temp Range 1 / 2 RH / Fan Setpoint Screen Timeout On/Off
Touch-Button Disable On/Off
mA / Voltage
5V / 10V Unused Unused
Switch Function Description
1 Output mode ON - 4-20mA output mode enabled
OFF - Voltage output mode enabled
2 Voltage output range* ON - 0-5V output range enabled
OFF 0-10V output range enabled
3 Unused Unused
4 Unused Unused
5 Setpoint output type ON - Temperature setpoint enabled (temp range selected on DIP switch 6)
OFF - RH or Fan Speed setpoint enabled (specic setpoint output type to be
selected on DIP switch 6)
Models without RH option select only temp or fan setpoint
6 Setpoint output temperature range or
RH/Fan Speed output type
Temperature setpoint (must be enabled on DIP switch 5)
ON - Temp range 1, 50 to 95 °F (10 to 35 °C) enabled
OFF - Temp range 2, 32 to 122 °F (0 to 50 °C) enabled
RH or Fan Speed setpoint (must be enabled on DIP switch 5)
ON - RH setpoint enabled
OFF - Fan Speed setpoint enabled
Models without RH option, set to OFF
7 Display times out and turns o after
6-10 seconds of touchscreen/button
press
ON - Display Timeout enabled
OFF - Display Timeout disabled
8 Touchscreen touch functions and
buttons are disabled
ON - Touchscreen touch/button functions disabled
OFF - Touchscreen touch/button functions enabled
* Only used with voltage output mode enabled. Not applicable to setpoint output. Setpoint is 0-10V xed.
6. With sensor base fully installed, align top of cover to mounting tabs on top of sensor base. Swing cover downward until it
latches at the bottom.

Z207935-0G Page 6 of 9 ©2023 Veris Industries USA 800.354.8556 or +1.503.598.4564 / suppor[email protected] 0423
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Other companies’ trademarks are hereby acknowledged to belong to their respective owners.
HW2 Series Installation Guide
7. Install locking screw to secure cover in closed position.
Main Screen
The touchscreen user interface displays applicable sensor output values (temperature and RH), setpoint value and menu button.
Setpoint value (temperature setpoint shown)
RH value
Fahrenheit/Celsius
Temperature value
Menu button
Menu Screen
The menu screen opens when pressing the Menu button on the main screen. Integrator’s submenu, occupancy/override,
Fahrenheit/Celsius, settings and setpoint submenu (temp, RH or fan, determined by DIP switch settings) are displayed on the
menu screen.
Temperature setpoint
DIP switch selected
RH setpoint
DIP switch selected
Fan Speed setpoint
DIP switch selected
Menu Button Functions
Integrator’s Submenu
Press this icon to access the
Integrator’s menu.
Submenu Only
Occupied Override Button
Press this icon to provide
momentary ground output to
the controller
Signals occupied/override
call to controller.
Single Press Only
Fahrenheit/Celsius Switch
Press this icon to display either
°C or °F.
Changes units to
Fahrenheit when pressed.
Changes units to
Celsius when pressed.
Single Press Only
Installation (cont.)
Touchscreen Operation

Z207935-0G Page 7 of 9 ©2023 Veris Industries USA 800.354.8556 or +1.503.598.4564 / suppor[email protected] 0423
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Other companies’ trademarks are hereby acknowledged to belong to their respective owners.
HW2 Series Installation Guide

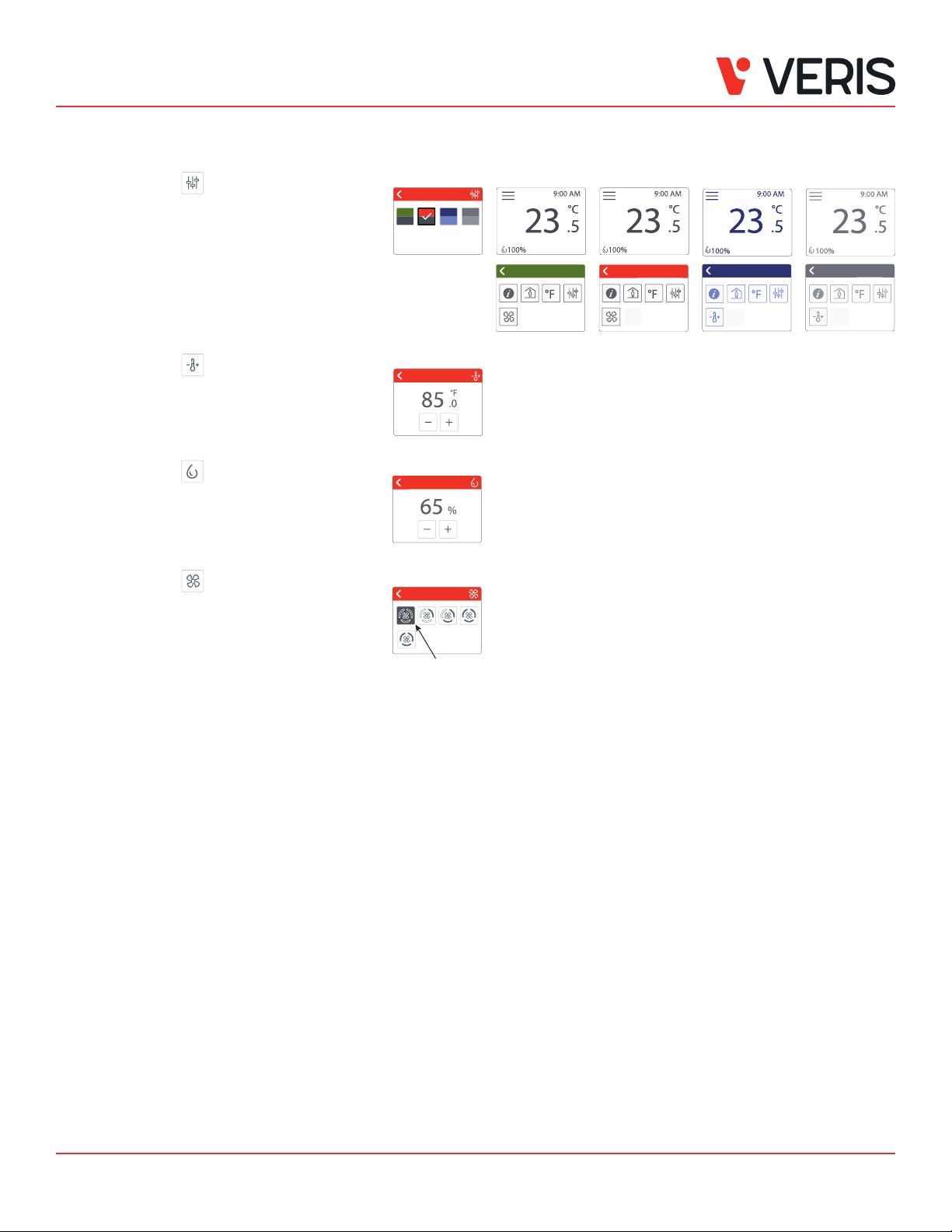

Touchscreen Operation
(cont.)
Menu Button Functions (cont.)
Submenu Only
Selected
Fan Speed
Click this icon to access the fan
speed menu. Mutually exclusive
with humidity and fan speed. Set
by DIP switch.
Submenu Only
Submenu Only
Submenu Only
Settings
This icon provides the ability to
change the color scheme of the
display.
Temp Setpoint Adjustment
Click this icon to access the setpoint
change menu. Mutually exclusive
with fan speed, set by DIP switch.
Humidity Setpoint Adjustment
Click this icon to access the setpoint
change menu. Mutually exclusive
with humidity and fan speed. Set
by DIP switch.
A

Z207935-0G Page 8 of 9 ©2023 Veris Industries USA 800.354.8556 or +1.503.598.4564 / suppor[email protected] 0423
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Other companies’ trademarks are hereby acknowledged to belong to their respective owners.
HW2 Series Installation Guide

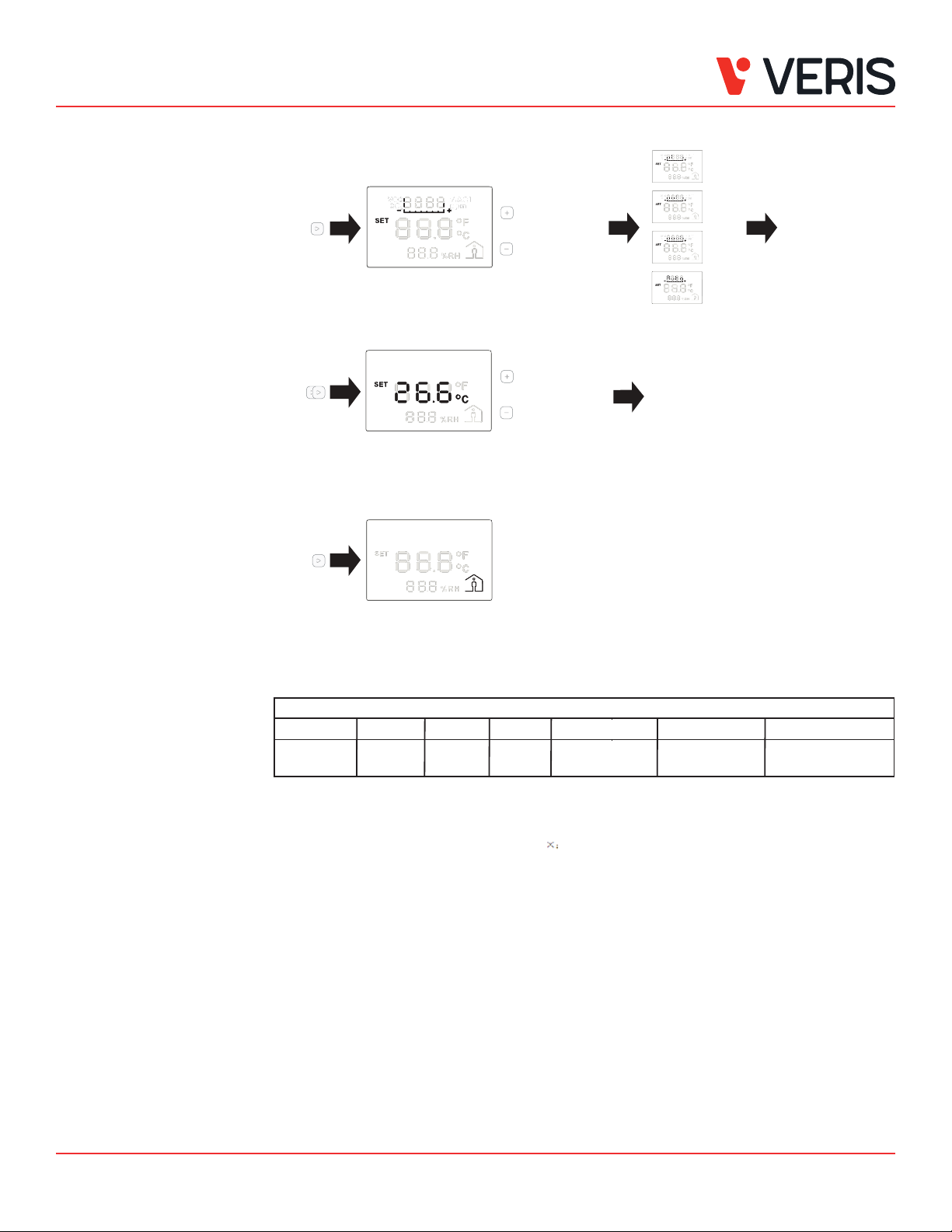

LCD Display Operation
Setpoint Function
Button Functions
Display Icons
The main screen displays sensor values for RH, temperature and Celsius/Fahrenheit.
A single 0-10V setpoint (temperature, RH or fan speed) can be selected via DIP switch.
Temperature Setpoint Adjustment
RH Setpoint Adjustment
Change Values
Menu Advance
Change Values
Adjusts setpoint up
Adjusts setpoint down
Note: Numeric information will ash while in S
et mode.
Press the Menu
Advance button
After adjustment, wait 6 seconds or press the Menu Advance button.
Setpoint is accepted and main screen appears.
Adjusts setpoint up
Adjusts setpoint down
Press the Menu
Advance button
Note: Numeric information will ash while in S
et mode.
After adjustment, wait 6 seconds or press the Menu Advance button.
Setpoint is accepted and main screen appears.
Humidity Value
Temperature Value
Override Press
Indicator

Z207935-0G Page 9 of 9 ©2023 Veris Industries USA 800.354.8556 or +1.503.598.4564 / suppor[email protected] 0423
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Other companies’ trademarks are hereby acknowledged to belong to their respective owners.
HW2 Series Installation Guide
China RoHS
Compliance
Information
本表格依据SJ/T11364的规定编制。
O: 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572规定的限量要求以下。
X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572规定的限量要求。
（企业可在此处，根据实际情况对上表中打 的技术原因进行进一步说明。）
This table is made according to SJ/T 11364.
O: indicates that the concentraon of hazardous substance in all of the homogeneous materials
for this part is below the limit as spulated in GB/T 26572.
X: indicates that concentraon of hazardous substance in at least one of the homogeneous
X O O O O O
materials used for this part is above the limit as spulated in GB/T 26572
Z000057-0B
部件名称
Part Name
有害物质-Hazardous Substances
铅(Pb) 汞(Hg) 镉(Cd) 六价铬(Cr (VI)) 多溴联苯 (PBB) 多溴二苯醚(PBDE)
电子件
Electronic
Environment-Friendly Use Period (EFUP) Table
Fan Speed Setpoint Adjustment
Changing Celsius and Fahrenheit Scales
Setpoint Function
(cont.)
Occupied/Override Button
Press and hold the Menu
Advance button for 1
second
Override Press Indicator illuminates for 6 seconds, indicating a momentary
output to ground.
Adjusts from ºF to ºC
Adjusts from ºC to ºF
Press the Menu
Advance button 2
times
After adjustment, wait 6 seconds or press
the Menu Advance button to return to the main screen.
2x
Note: ºF or ºC te
xt will ash while in Set mode.
Adjusts setpoint up
Adjusts setpoint down
Press the Menu
Advance button
After adjustment, wait
6 seconds or press the
Menu Advance button.
Setpoint is accepted and
the main screen appears.
Low
Medium
High
Auto
Note: F
an speed scale ashes when in Set mode. O setting is default.
