VERITAS 05J67.02 User manual

1/4-20 × 30 mm Bolts
Side
Back
Flanged Cross Dowels
Connectors
Spacers
Cord Holder
1/4-20 × 40 mm Bolts
Base for Table Top for Compact Routers 05J67.02
Caution: To use this product safely, always follow the safety
instructions that came with your power tool. As with any power
tool accessory, always wear eye protection and hearing protection. Blades are
extremely sharp; handle with care.
Assembly
Note: Assembly hardware includes eight flanged cross dowels, eight
1/4-20 × 30 mm bolts, two 1/4-20 × 40 mm bolts, two spacers, two connectors,
and one hex key.

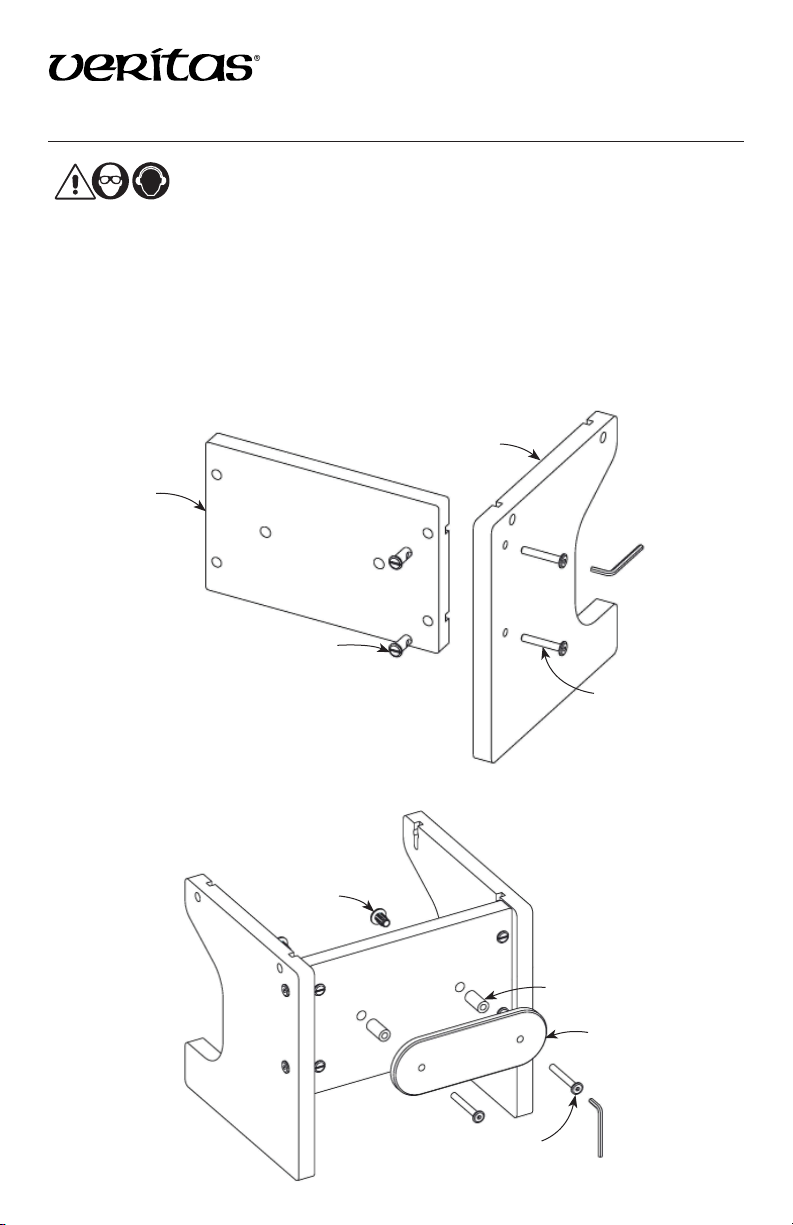

1. Attach one side panel to the back panel using two flanged cross dowels and
two 1/4-20 × 30 mm bolts as shown.
2.Repeat to attach the other side panel.
3. Press the two connectors into the holes
in the inside back panel.
4. Attach the cord holder using two spacers
and two 1/4-20 × 40 mm bolts.

Flanged Cross Dowels
1/4-20 × 30 mm Bolts
Secure the base to a
workbench with clamps.
Veritas Tools Inc. Ottawa ON K2H 1C2 Canada veritastools.com
© Veritas Tools Inc. 2019 974 INS-751_A
Installing the Table Top
1. Use the four remaining flanged cross dowels and four 1/4-20 × 30 mm bolts
to secure the table top (not included) to the base.
