Verity Audio ADD60S User manual
Please read this manual completely
before operating the system.
A division of
Component Solution Services, LLC.
56600 Twin Branch Dr.,
Mishawaka, IN 46545
wwwVeritysafe.com
Verity Rear Vision Systems
All rights reserved
THINK SAFETY FIRST –
Read before installing or operating.
Most likely, your system came preinstalled so the
installation section would be for reference.
Thank you for your purchase of our Verity®products. When
installed and used properly, your ADD60S is designed to
deliver you years of trouble-free operation. This manual
contains important information required to properly install
and operate the unit. Verity systems are designed for quick
installation by trained professionals in proper installation
environments. Our designs are based on decades of
working with vehicle manufacturers.
Verity products are intended to be installed as a
supplement and our observation systems and/or products
are not intended for use as substitutes for rear-view mirror
devices, or for any other standard motor vehicle equipment
which may be required to be installed on vehicles by law.
Verity products promote improving the vehicle operator’s
field of view. Our products are no substitute for proper
defensive driving techniques, observance of traffic laws and
motor vehicle safety regulations.
Installation Location
It is unlawful in most locals for any person to drive a motor
vehicle equipped with a television viewer/screen located at
any point forward of the back of the driver’s seat (or in any
location that is visible, directly or indirectly), to the driver
while operating the vehicle. Our systems are designed to be
used primarily as a rear observation device.
DO NOT OPEN ANY COMPONENT. There are no
serviceable parts inside any of the components of the Verity
products. Opening the product will break the tamper
indicators and void the warranty.
FUNCTIONS
•Ultra-long detecting distance, detecting range 0m to 3m.
•The sensor will remember fixed back obstacle distance (for
example, grab rails), and avoid the consecutive alarm.
•Numeral display.
•Adjustable buzzer volume.
•The maximum installation space of the sensor is 31
inches.
SPECIFICATIONS
•Operating voltage: 12-32 V
•Rated current: 60 mA
•Sensor distance coverage: <11 inches to 9 feet , </>
•Working temperature: -4ºF to +158ºF
•Blind area: <11 inches
COMPONENTS
CPU
4 Sensors
Adjustable Buzzer
4) 2m. Sensor
Extension Cables
Sensor Harness
59” CPU Power Cable
2-pin Buzzer Cable
10 m. Camera Cable
DISPLAY
Display / Buzzer Indicators
Distance /
Distance
Displayed
Number of White
Boxes Per Side
Tone
0-0.5
5
Solid
06-1.2
4
Beep.Beep.Beep
1.2-1.8
3
Beep.Beep.Beep
1.8-2.4
2
Beep.Beep
2.4-3
1
Beep…Beep
In Cab Buzzer: Placed in the cab of the truck
Not by the back bumper
The buzzer is the only 2-pin connection in the system.
This makes it impossible for wrong connections. The buzzer
has a volume switch. Settings are Off / Lo / Hi. Turning off
the buzzer should not be an option because it removes the
functionality of the system. The buzzer has 3M adhesive
tape for quick installation. Be sure to mount in a place
where it can clearly be heard. Under the seat against the
back wall of the truck is not a good location.
Off is for maintenance propose only.
SENSOR INSTALLATION

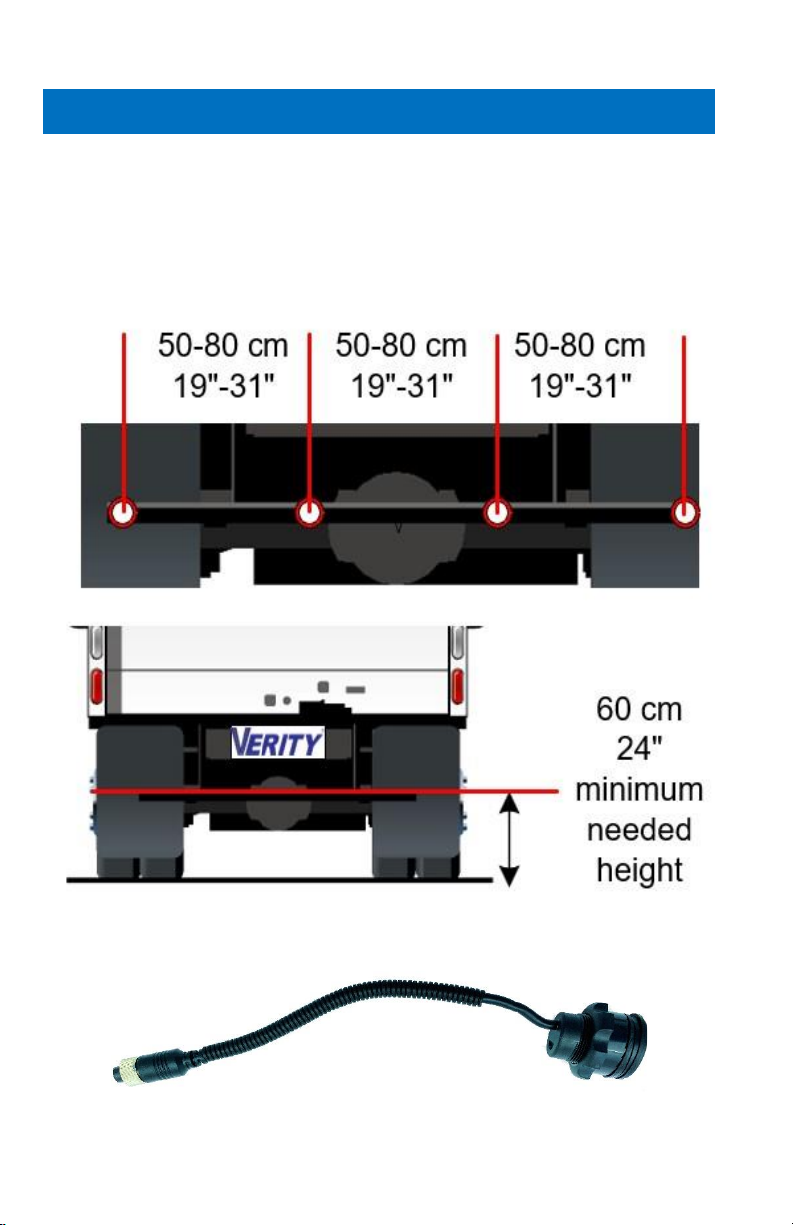

Distance between Sensors 50-80 cm / 19" –31"
The minimum height of the ground is 60 cm –24"
Sensors will not detect the first 20 cm –8"
The Sensors are 4-pin waterproof aviation
connections. They are universal and can be attached
to any of the four connections on the sensor harness.
Sensor hole size: 24.43mm to 25.4 mm
123/128" .in –1"

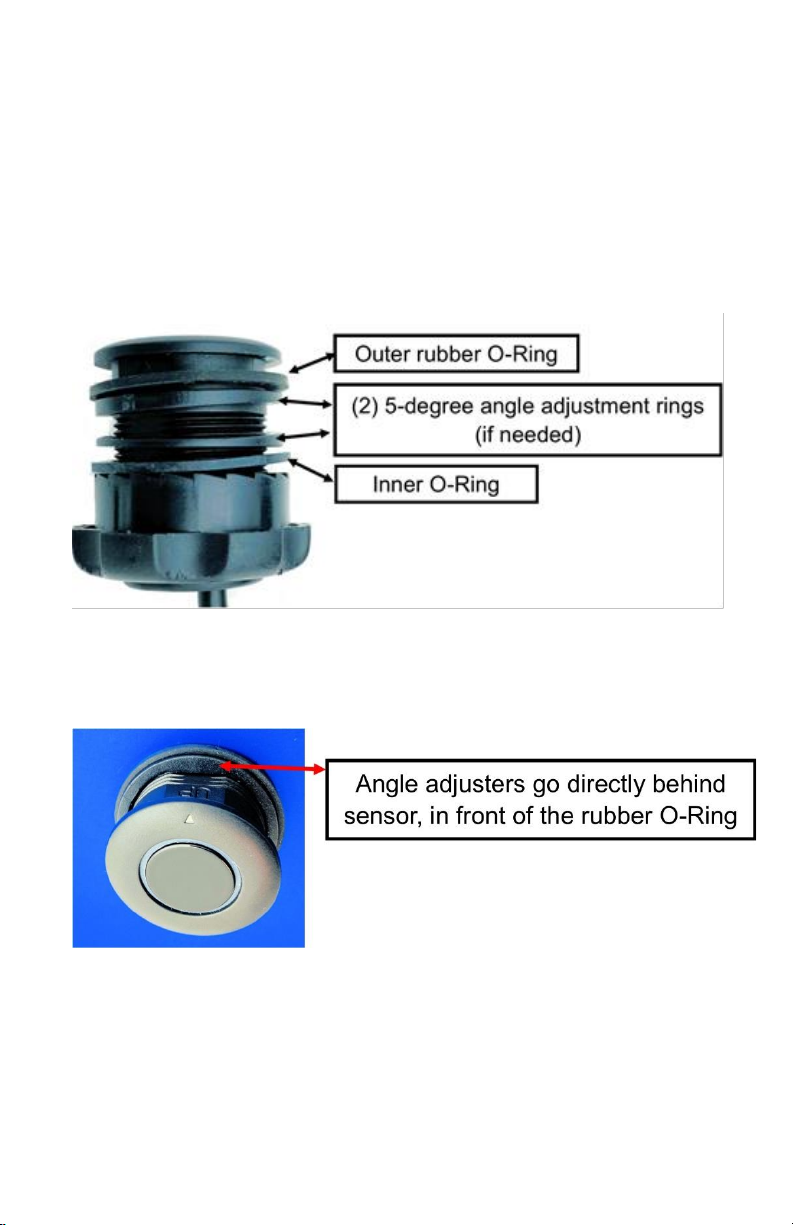

O-rings and angle adjusters
5-degree adjustment rings are supplied to counter up
to a 10-degree angle in the mounting surface.

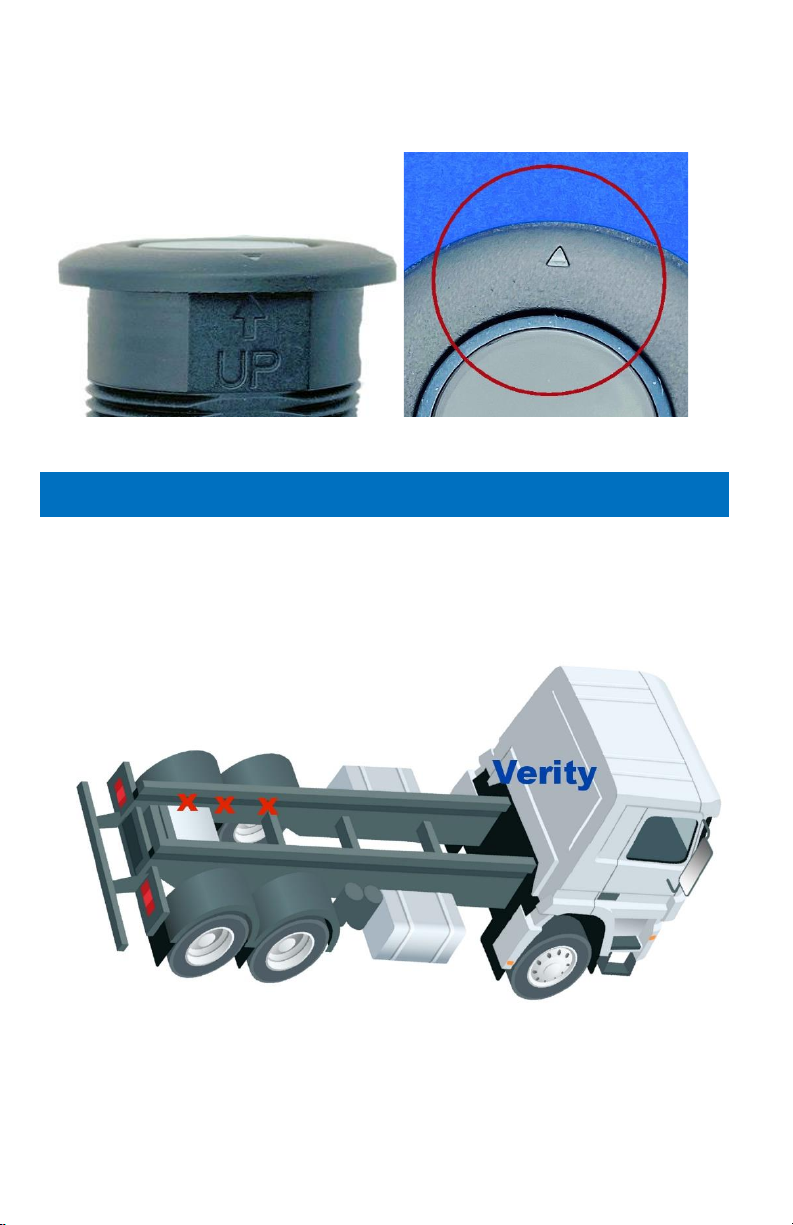

The sensors have an upside and downside. The
arrows need to point UP.
CPU INSTALLATION
Inside the LEFT rail area is the suggested location.
Location is determined by the installation location's
availability of your install.
WIRING DIAGRAM
Verity Rear Vision Systems
A division of
COMPONENT SOLUTION SERVICES (CSS)
LIMITED ONE (1) YEAR WARRANTY
1. CSS products’ warranties are not transferable. The warranties apply to the retail consumer for one
(1) year and covers against defects in material and workmanship on cameras and monitors. We do
not warranty our cables which are QC tested at three different stations before shipping. All
components must be installed in compliance with all Federal, State, and Local government
requirements. Warranty is limited to the United States of America and Canada.
2. Defective components will be replaced or repaired, based on a CSS evaluation of the component.
In-bound shipping charges, based on the CSS rate allocated in the RMA (returned merchandise
agreement), will be covered once the component has been deemed defective at the CSS warranty
facility. The pre-assigned in-bound freight will be supplied upon return of product. All
repaired/replaced warranty parts shall be for the remaining duration of the original warranty time
period.
3. CSS takes pride in our products and will aid in the processing of your components:
a) All warranty claimants must have consulted our technical support department for trouble
shooting and the acquiring of an RMA.Contact can be made via email at
b) When the warranty claim is made, the consumer must establish the warranty start dates by
presenting documentation regarding the date of retail purchase (e.g., bill of sale).
c) Service performed by non-authorized service personnel may void all warranty claims.
d) CSS will make no payments for system removal / system re-installing, mileage allowance, or
transportation expenses.
The limited warranty does not cover damage resulting from misuse, accident, modification or alteration
to hardware or software, tampering, unsuitable physical or operating environment beyond product
specifications, improper maintenance, or failure caused by a product for which CSS is not responsible.
There is no warranty for any product with removed or altered identification labels. CSS DOES NOT
PROVIDE ANY OTHER WARRANTIES OF ANY KIND, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OF IMPLIED
WARRANTIES, SO THIS LIMITATION MAY NOT APPLY TO YOU.
4. This warranty gives you specific legal rights, and you may also have other rights that vary from state
to state.
Technical Support
A service ticket can be filled out online to supply the
quickest service. The service ticket can be easily found on
our website www.veritysafe.com or use the code to the
right. Please have the Purchase Data available (page 8)
when contacting the service department. We take great
pride in delivering the most
dependable product in the industry.
Each item was 100% QC tested and
then we randomly recheck another up
to 10% before it leaves our hands to
you. We have a .034% issue rate with
this product.
Phone Tech Support: 574-807-6002
Note: if you are a fire/rescue customer in need of tech
support after hours or on weekends, leave a message and
a technician will return your call as soon as one becomes
available.
a division of
Component Solution Services
56600 Twin Branch Drive
Mishawaka, IN 46545
574-807-6002
Toll-Free 844-875-4799
We at Verity would like to personally thank you
for purchasing our product. Our company
strives to supply the best products at a fair
price. We care that you enjoy a safe driving
experience.
© 2023 Verity Rear Vision
