Decorative Gas Appliance For Installation In Solid Fuel Burning Fireplaces
3311857 12/05 Rev. 5
Carbon Monoxide Poisoning May Lead To Death
When used without fresh air, gas logs may give off carbon monoxide, an odorless, poisonous gas. Some
people such as pregnant women, people with heart or lung disease, and persons at high altitudes are
more affected by carbon monoxide than others.
Early signs of carbon monoxide poisoning resemble the flu: Headache, dizziness, and/or nausea. If
you have these signs, the gas logs may not be installed or working properly. Get fresh air at once!
Have the gas log set and chimney serviced before using it again.
Certified to ANSI Z21.60
and CGA 2.26 Standards
CERTIFIED
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
WARNING
If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
Installation and Operating
Instructions for Vented Gas Log
Sets - Remote Hearth Kits
Models:
SA18SHKRN, SA18SHKRP,
SA24SKHRN, SA24SHKRP,
SA30SKHRN, SA30SKHRP
ATTENTION
Installation, service, and repair of this ap-
pliance must be performed by a qualified
installer, service agency, company or gas
supplier experienced with this type of gas
appliance.
INSTALLER:
Read these instructions completely and care-
fully prior to beginning installation. After instal-
lation, leave these instructions with the owner.
OWNER:
Read these instructions and follow the warn-
ings. Save this manual for future reference.
Check local codes before installing this log set.
In some areas of the country, gas log sets are
restricted.
The installation and the provisions for combus-
tion and ventilation air must conform with the
National Fuel Gas Code, ANSI Z223.1/NFPA 54.
— Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
Please record your gas log’s model number for
future reference here:
Note: This model # can be found on the box or
the label attached to the back of the burner pan.

23311857
WARNING
Do not use this appliance or any part that has
been under water. Immediately call a qualified
service technician to inspect the appliance and
to replace any part of the control system and any
gas control which has been under water.
WARNING
Young children are not allowed to operate this
unit and must be supervised when they are in
the same room as the appliance.
Children and adults should be alerted to the
hazards of high surface temperature and should
stay away to avoid burns or clothing ignition.
Technical Information
The operation of a gas log set, and the provision for combustion and ventilation air must conform with
the National Fuel Gas Code, ANSI Z223.1/NFPA 54 and applicable codes.
Gas Pressure Testing: This gas log set and its individual shut-off valve MUST be disconnected from
the gas supply piping system during any pressure testing of that system at test pressures in excess
of 1/2 psig (3.5 kPA). The gas log set must be isolated from the gas supply piping system by closing
its individual manual shut-off valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa)
Component Parts: Only factory authorized components listed in these instructions may be used in
accordance with the manufacturer’s instructions and all codes and requirements of the authority hav-
ing jurisdiction. Any modifications to this kit, or use of unauthorized components or accessory items will
void the manufacturer’s warranty, and may result in a hazardous condition.
WARNING
Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies. In addition, clothing or other flammable material should not be placed on or near the appli-
ance.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or
property damage. Read these directions thoroughly before installation. For assistance or additional
information, consult your gas log dealer, qualified installer, service agency or
gas supplier.
WARNING
A properly sized, unobstructed chimney will normally vent all fumes and products of combustion. Any
odor or smoke detected in the room is an indication that the flue is not properly removing the combustion
products. Turn off the gas supply valve immediately! The cause of the venting problem must be discov-
ered and corrected before using this gas log set. Disregarding this warning can cause illness as well as
soot damage to your fireplace, room, and furnishings.

33311857
Before You Begin -- Attention!
A. The appliance should be inspected before use and at least annually by a professional service person.
More frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of the appli-
ance be kept clean.
B. Your fireplace must include a chain mesh or similar screen. The screen must remain fully closed
while operating your log set. Any safety screen or guard removed for servicing this appliance must be
replaced prior to operation.
C. If your fireplace includes glass doors, they must remain fully open to allow for combustion air during
operation, and to prevent overheating of the gas valve.
D. Your log set must be installed in a solid fuel burning fireplace constructed of noncombustible material
with a working flue.
E. Solid fuels shall not be burned in the fireplace where your gas log set is installed.
F. If this log set is to be used with propane gas, your propane supply tank MUST include a high to low
gas pressure regulator, and must be located outside. DO NOT place supply tanks inside any structure
.
G. Never use sand or other dense pan material with propane gas: use vermiculite only.
H. Be sure to apply pipe joint compound to all non-flared, threaded connections involved in this installa-
tion to avoid possible gas leaks. Compounds used in liquid propane applications must be resistant to
the action of that gas.
I. Always test for leaks using a soapy solution. NEVER USE OPEN FLAME.
J. The manufacture and shipping of your log set involves compounds which may cause detectable yet
harmless odors during initial operation. Provide extra ventilation to the room for the initial 2-3 hour
break-in period.
K. This gas log set may be installed in the approved fireplace in an aftermarket* manufactured (mobile)
home where not prohibited by state or local codes. *Aftermarket: Completion of sale, not for purpose
of resale, from the manufacturer.
L. The fireplace damper MUST be fully open when operating this log set.
Fireplace Specifications
Before installation, the chimney flue, venting system, and firebox must be cleaned of all soot, creosote,
ashes and loose paint, by a qualified chimney cleaner.
Your Fireplace Must Include:
• A working flue and venting system with the minimum openings indicated on page 8.
• A gas supply shut off valve. If your fireplace does not have such a valve, one must be installed

43311857
CAUTION: If you answered “NO” to any item, or have any questions regarding your installation, please
contact your dealer/distributor for assistance.
Is the gas supply inlet pressure correct?
NG: Min. 5.5” w.c./Max. 14.0” w.c. LP: Min. 11” w.c./Max. 14.0” w.c.
Does the firebox meet the minimum size dimensions below?
Is your fireplace plumbed with gas on the right side (facing) of the fireplace?
If not, refer to ee Page 5
Is the gas supply line sized properly (Minimum 1/2” iron pipe)?
Do you have a solid fuel (wood burning) fireplace with a vented flue?
Do you have a manual gas supply valve installed at your fireplace? If not, a licensed
plumber, gas company technician or other qualified installer must install one.
Have you checked local building codes? (Check with your local building department)
Does your fireplace have a wire mesh screen in place?
Pre-Installation Checklist Yes No
Minimum Clearances & Specifications
Natural Gas Units
Propane Gas Units
Size Btu/hr Back Front Depth Height Size Minimum Maximum”
18” 45,000 16” 33” 15” 18” 51 sq.in. 5.5”w.c. 14.0”w.c. 3.5”w.c.
24” 60,000 20” 36” 15” 18” 51 sq.in. 5.5”w.c. 14.0”w.c. 3.5”w.c.
30” 60,000 27” 39” 15” 18” 51 sq.in. 5.5”w.c. 14.0”w.c. 3.5”w.c.
Minimum Firebox Dimensions Minimum Gas Fuel Line Manifold
Set Input Width Flue Pressure Pressure
Size Btu/hr Back Front Depth Height Size Minimum Maximum
18” 40,000 16” 33” 15” 18” 51 sq.in. 11.0”w.c. 14.0”w.c. 10.0”w.c.
24” 45,000 20” 36” 15” 18” 51 sq.in. 11.0”w.c. 14.0”w.c. 10.0”w.c.
30” 60,000 27” 39” 15” 18” 51 sq.in. 11.0”w.c. 14.0”w.c. 10.0”w.c.
Minimum Firebox Dimensions Minimum Gas Fuel Line Manifold
Set Input Width Flue Pressure Pressure
NOTE: All dimensions are minimums.
NOTE: All dimensions are minimums.

53311857
This Damper Stop is designed to work on all CFM
Corporation BR, BC, SR, SC, TF and TL series
fireplaces. For all other fireplaces, refer to Page 6.
When installing a decorative gas appliance in a
fireplace, some local codes require this Damper
Stop to be used so the Damper will not close com-
pletely. To install the Damper Stop:
The Damper Locking Bracket is already installed
on all BR, BC, SR, SC, TF and TL fireplaces. Lo-
cate the Damper Locking Bracket on the left side
of the fireplace’s Combustion Dome. (Fig. 1)
With the Damper open, align the two slots on
either side of the cut-out on the Damper Stop with
the two small holes on the angled portion of the
Damper Locking Bracket. Attach the Damper Stop
with the Screws provided, as shown in Figure 2.
NOTE: Some of the early fireplace units may not
have the holes in the end of the Damper Lock-
ing Bracket. If this is the case, use the Damper
Stop as a template to drill two (2) 1/8” holes in the
Damper Locking Bracket to mount the Damper
Stop.
NOTE: Your gas log set is assembled at the factory to be installed in a fireplace plumbed with the gas on
the right side (facing). If your fireplace is plumbed with the gas on the left side, you will need to run a flex-
ible connector (or as per local codes) along the back wall of the fireplace to bring your gas line to the right
hand side. You can then place the set in front of the flexible connector.
Gas Plumbed on Left Hand Side of Fireplace
8” adjustable crescent wrench ; Pipe thread sealant compound or teflon tape ; 12” pipe wrench or channel
lock pliers.
Tools Required
Damper Stop Installation:
For Use with BR, BC, SR, SC, TF and TL Series CFM Corporation Fireplaces
DP100
Damper locking bracket
3/19/99 djt
Figure 1
Damper
Plate
Damper Locking Bracket
DP100
DP101
Damper stop
3/19/99 djt
Figure 2
Damper Locking Bracket
Damper Stop Screw
Damper Stop DP101

63311857

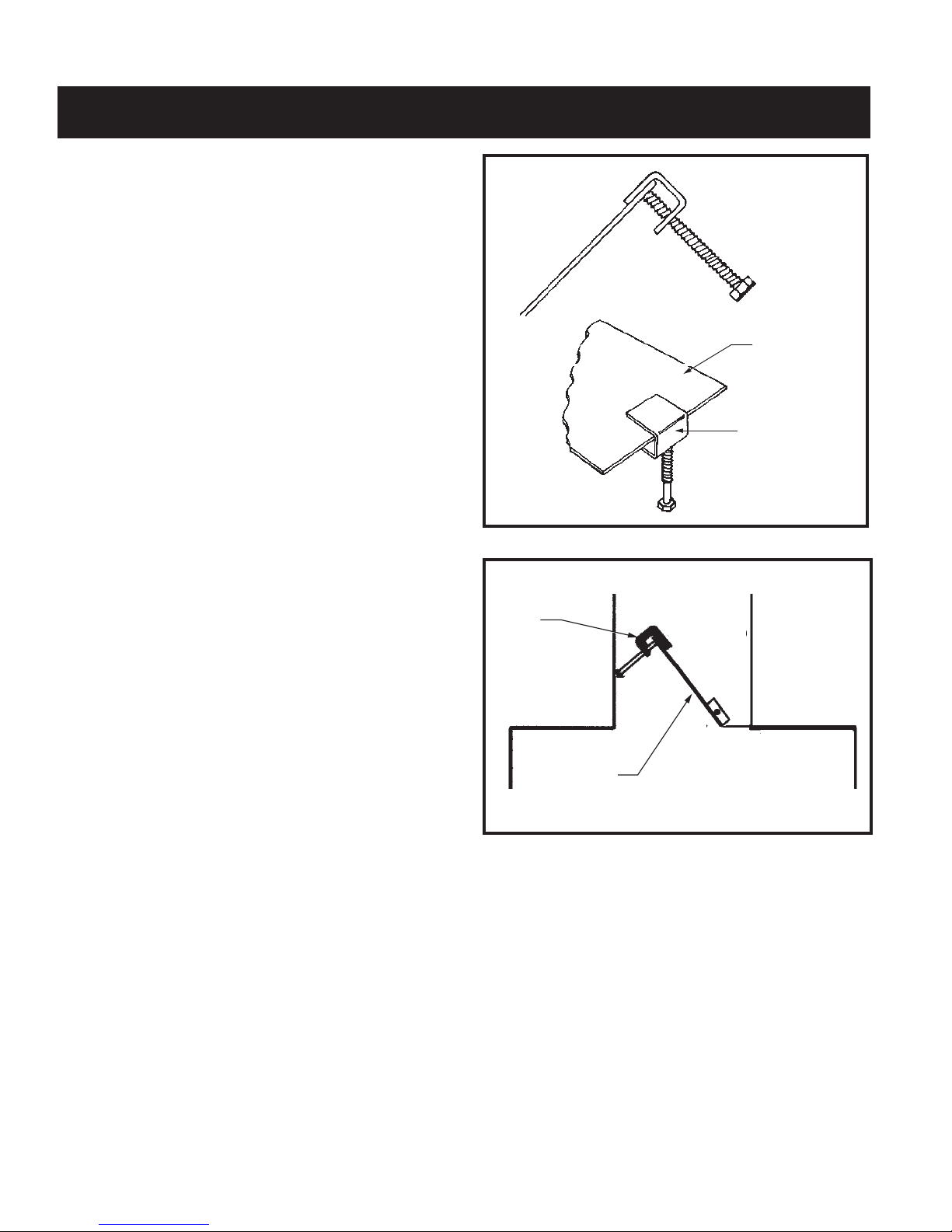

The Damper Clamp provided keeps your damper
from accidentally closing during operation of your
set. This Damper Clamp must be installed
onto your Damper at all times. NOTE: The
damper clamp is designed to hold the damper
plate open 3 inches. However, the damper
must be fully open when the log set is in op-
eration.
Install the Damper Clamp onto the edge of the
damper plate. Attach by securing the bolt provid-
ed to the damper plate with an adjustable wrench.
(Fig. 3)
If the Damper Clamp does not fit, drill a 1/4” hole
into the damper plate and install an anchor bolt
with nut, at a 90 degree angle, so that the damper
plate will remain fully open.
The proper finished installation of the Damper
Clamp is shown in Figure 4. If the bolt fails to
block the damper in an open position, the damper
should be removed from the chimney.
To check your vent for proper drafting: Light a
tightly rolled newspaper on one end and place it at
the inside front edge of the fireplace. Observe the
smoke and be sure the vent is properly drawing it
up the chimney. If the smoke is drawn back into
the room, extinguish the flame and remove any
obstruction until proper venting is achieved. If that
fails, check with a qualified chimney sweep.
Damper Stop Installation:
For Use With All Other Fireplaces
DP104
Damper clamp
Harris
Figure 3
Damper Plate
Damper Clamp
DP104
DP103
Damper clamp
Harris
Figure 4
Chimney
Clamp
Damper
DP103

73311857
Adding Pan Material
1. Open the bag of Vermiculite and spread it
evenly across the Burner Pan, to the top, as
shown in Figure 5. You may overflow the front
and sides of the pan to cover the entire pan
and connecting hardware.
2. Next, open the bag of Glowing Embers and
place them on top of the Vermiculite, evenly
across the Burner Pan. Be sure to separate
the Glowing Embers into very small pieces
before placing them.
Connection To Gas Supply
1. Hook the U-Shaped part of the Grate Clips over
the back horizontal bar of the Grate, as shown
in Figure 6. Repeat with the other Clip.
2. Slide the rear edge of the burner pan into the
three-pronged slot in the front edge of the grate
clip, as shown in Figure 6.
1. Center the burner pan from left to right in the
fireplace and with the back of the grate against
the back wall of the fireplace.
2. Attach the Gas Supply Fitting onto your fire-
place’s gas supply pipe. Remember to use pipe
thread sealant or teflon tape on this connection.
3. Attach one end of the Flexible Gas
4. Connector to the brass fitting on the back of
the control valve, as shown in Figure 7.
5. Attach the other end of the Gas Connector to
the flared side of the Gas Supply Fitting.
Grate Clip Installation
LG216
ASHK
pan material
11/29/01 djt
Figure 5 Vermiculite
Glowing Embers
LG216
LG216
grate clip
11/29/01 djt
Figure 6
Grate Clip
Back Bar Of Grate
LG217
Flexible Gas
Connector
Figure 7
Gas Supply Fitting
LG218

83311857
Leak Test Procedures
Create a mixture of equal parts soap and water. Apply to all the joints of the pipe fittings from the gas sup-
ply pipe to the burner. Turn on the gas supply valve for no longer than 3-5 seconds. If bubbles appear
in the soap solution applied to the joints, there is a leak. Turn off the gas supply valve and tighten those
fittings. Repeat the above procedure until no bubbles appear in the soap solution. Remember to test all
joints.
WARNING: DO NOT USE AN OPEN FLAME TO TEST FOR LEAKS!
NOTE: Always perform a leak test any time the appliance has been moved or disconnected from the gas
supply line.
Remote Installation
Connect remote (GWSK or MRC 1, 2, 3) wires to
ON/OFF/RS switch. (Fig. 8) If the MRC (remote) is
used, the receiver can be placed to the front right
of the gas valve to ensure safe operation.
O
F
F
O
N
TP
TH TH/TP
Lg188
AGa pilot wiring
Thermo Generator
(“T(“Thermopile”)
Pilot
Assembly
On/Off/Rs
Switch
Remote
Switch
LG188
Figure 8

93311857

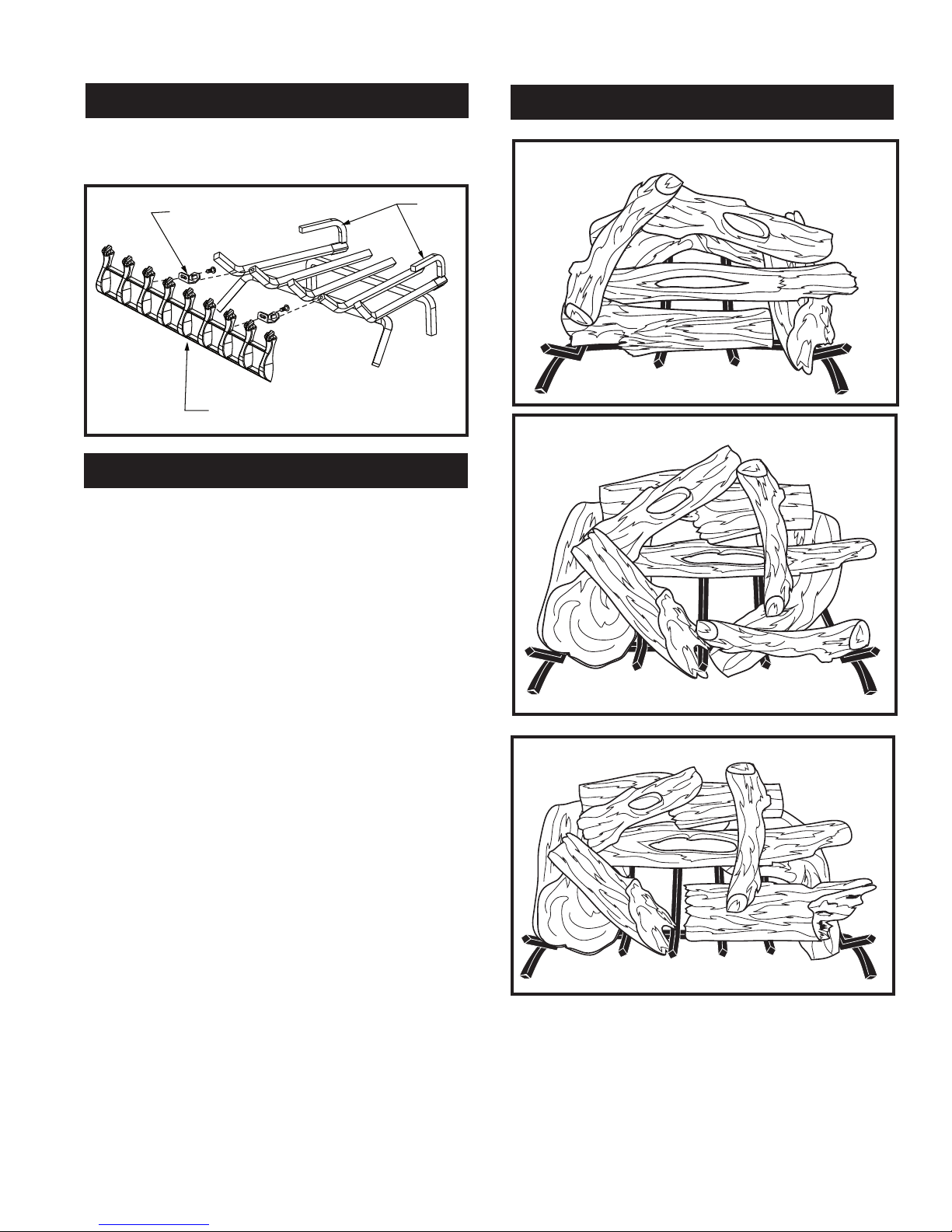

Optional Fettel Cast Front Grate
Attach the fettel to the front of the grate as shown
in Figure 9.
Log Placement
1. Place the larger bottom logs onto the grate,
leaving as much space between them as pos-
sible. When burning, the flames should come
up directly between the logs.
2. Place the smaller top logs diagonally onto the
bottom logs. The top logs can be arranged to
achieve your desired flame pattern. Be sure
you leave as much open space between the
logs as possible to minimize flame impinge-
ment and sooting.
3. Open the bag of lava rock and spread the rocks
onto the fireplace floor around the burner pan
for decorative purposes.
Available Log Sets
LG330
18" Standard
round log set
4/04 djt
LG330
18” Standard Round Log Set
24” Standard Round Log Set
LG331
LG331
24" Standard
round log set
4/04 djt
LG332
30" Standard
round log set
4/04 djt
30” Standard Round Log Set
LG332
LG204
Grate Enhance kit
11/01
Grate Clip
Fettel Cast Front Grate
Grate
Figure 9 LG204

10 3311857
LG333
18" Standard
split log set
4/04 djt
18” Standard Split Log Set
LG333
LG334
24" Standard
split log set
4/04 djt
24” Standard Split Log Set
LG334
LG335
30" Standard
split log set
4/04 djt
30” Standard Split Log Set
LG335
LG336
18" Standard
combo log set
4/04 djt
18” Standard Combination Log Set
LG336
LG337
24" Standard
combo log set
4/04 djt
24” Standard Combination Log Set
LG337
LG338
30" Standard
combo log set
4/04 djt
30” Standard Combination Log Set
LG338

113311857
The pilot will resist lighting on new installa-
tions due to air in the gas supply line. It may
take several minutes to bleed air completely
out of the gas plumbing system through the
pilot line.
This appliance has a pilot which is lit by a spark
ignition device (piezo). If the piezo fails, then light
the pilot using matches following the Match Light-
ing instructions below.
1. STOP! Read the safety information above.
2. Push in gas control knob slightly and turn clock-
wise to “OFF”.
3. NOTE: Knob cannot be turned from “PILOT”
to “OFF” unless knob is pushed in slightly.
Do not force.
4. Wait five (5) minutes to clear out any gas. If
you then smell gas, STOP! Follow the safety
information above. If you don’t smell gas, go on
to the next step.
5. Turn the control knob counterclockwise to
“PILOT” and push in. Continue to hold the con-
trol knob in and push the piezo igniter button in
until the pilot lights.
6. Continue to hold the control knob in for about
one (1) minute after the pilot is lit. Release the
knob and it will pop back up. Pilot should re-
main lit. If it goes out, repeat steps 3 and 4.
7. If the knob does not pop out when released,
stop and call your service technician or gas
supplier. If the pilot will not stay lit after several
tries, turn the gas control knob to “OFF’ and call
your service technician or gas supplier.
8. Turn gas control knob counterclockwise
to “ON”. CAUTION: Be sure ON/OFF/RS switch
is in the off (middle) position. Also, the GWSK
should be in the “OFF” position and/or the
remote should be in the “OFF” position before
turning the control knob “ON”. If pilot goes out,
repeat steps 4 and 5.
9. Turn ON/OFF/RS switch to “ON” or remote po-
sition. Turn remote switch to “ON”.
10. Flame is adjustable by rotating the “HI/LO”
knob.
Lighting the Pilot
Before operating, smell all around the appliance area for gas odor. Be sure to smell near the floor because
some gases (propane) are heavier than air and will “pool” on the floor.
Use only your hand to push or turn the gas control dial. NEVER USE TOOLS. If the knob will not push in
or turn by hand, don’t try to repair it, call a qualified technician. Force or attempted repair may result in a
fire or explosion.
What To Do If You Smell Gas
• Do not try to light any appliance
• Do not touch any electrical switch, do not use any phone in your build-
ing
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions
• If you cannot reach your gas supplier, call the fire department
For Your Safety Read Before Lighting
WARNING: If you do not follow these directions exactly, a fire or explosion may result
causing property damage, personal injury, or loss of life.

12 3311857
Troubleshooting
Log Set Is Smoking/Sooting Excessively
It is natural and unavoidable for vented gas log sets (especially propane) to produce moderate levels of
carbon (soot) where flame contacts the logs. The logs can be cleaned using a soft-bristle brush. How-
ever, if soot is produced where there is no flame impingement, one of the following may be the cause:
Fireplace venting system not drafting properly: Make sure the damper is wide open at all times.
Preheat the flue in very cold weather by burning the log set at a very low level, then slowly increas-
ing the flame height over a matter of hours. Have the fireplace and the venting system professionally
cleaned.
Excessive flame impingement or blockage: Make sure there is proper spacing between the logs so
they are not smothering the flame. Rearrange the logs so they are touched less by the flames.
Excessive gas supply/pressure: Make sure the gas pressure coming into the fireplace does not ex-
ceed the maximum pressure allowed with this gas set (refer to tables on Page 4).
Incorrect Orifice used: Check the orifice size on Page 15 to see if you installed the correct orifice into the
set.
Burner Is Excessively Noisy
Please note: The movement and combustion of gas will create low, unavoidable levels of noise.
Passage of air/gas across irregular surfaces: There may be burrs, paint, or other blockages on the
burner bar ports. Check these ports and remove any blockage.
Excessive gas pressure: Make sure the gas pressure coming into the fireplace does not exceed the
maximum pressure allowed with this gas set (refer to tables on Page 4).
Flexible Gas Connector: Relieve any tight bends or kinks in the Flexible Gas Connector. Switch to a
less flexible gas connector, which can be purchased at any hardware or home improvement store.
Incorrect Orifice used: Check the orifice size on Page 15 to see if you installed the correct orifice into
the set.
Match Lighting
1. Follow the “Lighting the Pilot” instructions steps 1 thru 4 above.
2. Push the control dial in all the way and hold. Immediately light the pilot with a match. Continue to hold
the pilot for about one minute after the pilot is lit. Pilot should remain lit. If the pilot goes out, repeat
Lighting the Pilot steps 1 thru 4 above and this step 2.

133311857
Troubleshooting
Pilot Will Not Light
Upon initial installation, the pilot may be difficult to light, due to air in the gas line, valve, and pilot tubing.
If the pilot does not light for several minutes, try using a match to ignite it for the first few times. Initialing
lighting the pilot may take up to five minutes of bleeding the line.
Piezo Igniter Out of Position: First make sure that, when the igniter button is pushed in, the igniter
electrode at the Pilot Assembly is sparking. If it is, make sure the Igniter Electrode’s tip sits directly over
the pilot’s hood. If it doesn’t, adjust it carefully into position.
Piezo Igniter Not Sparking: If the electrode is not sparking, first make sure the wire which connects
the electrode to the Piezo Push Button is not loose on either side. If the Piezo wire is not loose, call our
customer service line.
Incorrect Pilot Orifice: Make sure the correct Pilot Orifice is installed: green for Natural Gas, red for
propane.
Incorrect gas supply pressure: Make sure your gas pressure meets the specifications outlined on
Page 4.
Flames at the Air Mixer (Flashback)--Propane Gas Only
Correct Orifice used: Check the chart on Page 15 to see if you used the correct Orifice. Also, be sure
you only used the Orifices that came with this pilot kit. Do not use the Orifice that came with your gas
log set!
Incorrect gas supply pressure: Make sure your gas line meets the specifications outlined on Page 4.
Burner Flame Is Too High (8-12” Above Top Logs) Or Too Low:
Incorrect gas supply, pressure, or burner orifice used: Make sure the gas pressure coming into the
fireplace falls between the minimum and maximum pressures allowed with this gas set (refer to tables on
Page 4). Make sure you installed the correct orifice into the set.
Blocked ports (low flame only): Free the main burner orifice and burner bar ports of any burrs, paint, or
other blockage.

14 3311857

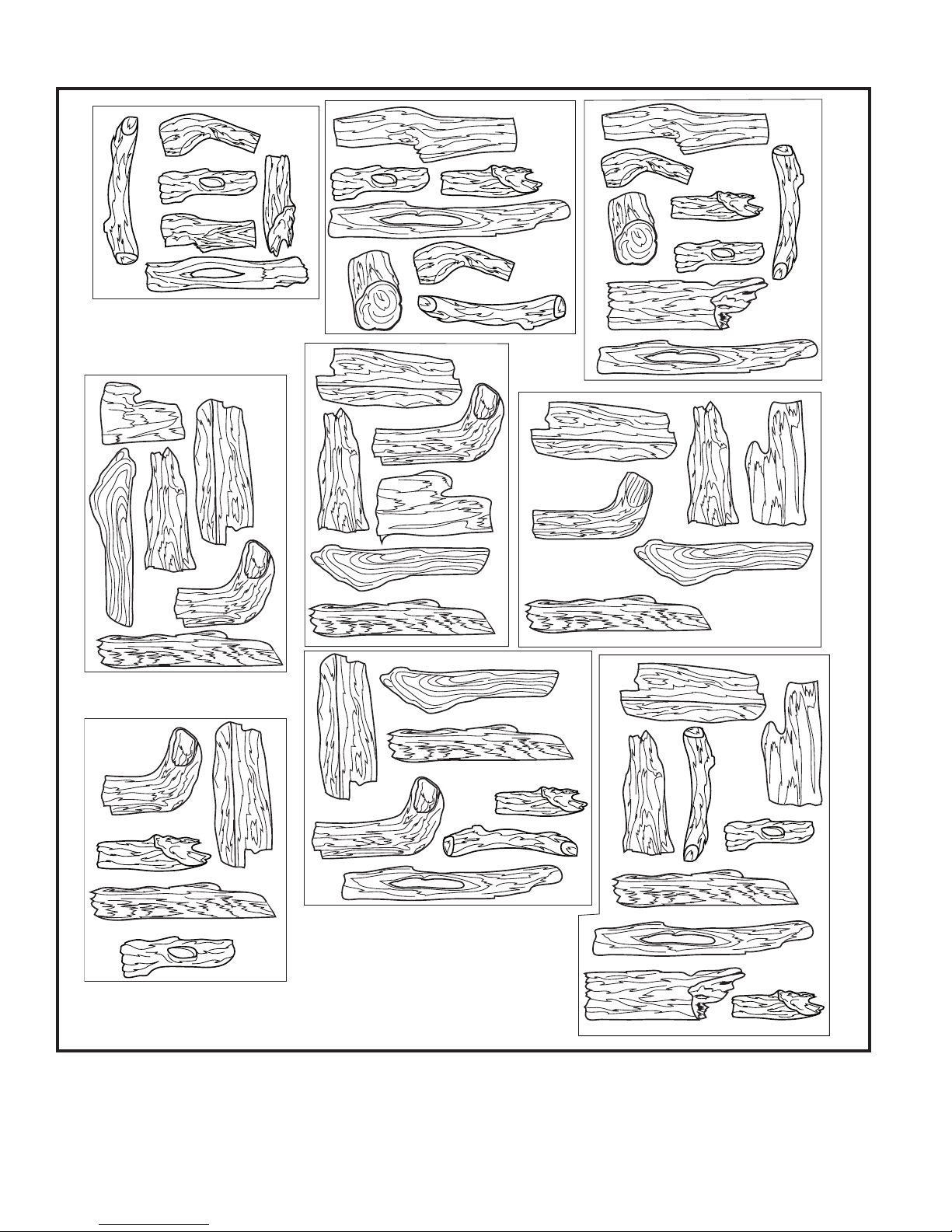

857
ASHKRN/P
parts
4/04 djt
1
2
345
4
6
7a,b
8
10
9
11
13
14
12
18a,b
20
21
19
15
17
16a,b
22
24
23
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
SA18/24/30SHK Series Vented Gas Logs - Remote Hearth Kit
Ref. Description 18” 24” 30”
1. Log Grate 20000924 20000925 20000926
2. Burner Assembly 20007267 20007268 20007269
3. Cast Front Grate w/Clips CIGF 18” CIGF 24” CIGF 30”
4. Grate Clip - Fettel 3304311 3304311 3304311
5. Screw - Grate Clip 3309078 3309078 3309078
6. Bag of Lava Rock (8lbs.) 4310010 4310010 4310010
7a. Bag of Sand (Natural Gas Models ONLY) 4310006 4310006 4310006
7b. Bag of Vermiculite 4310008 4310008 4310008
8. Bag of Glowing Embers 4310001 4310001 4310001
9. Damper Stop for CFM Corporation
Fireplaces ONLY (BR/BC, SR/SC, TF/TL) 3030176 3030176 3030176
10. Damper Stop for use with all other fireplaces 4304045 4304045 4304045
11. Damper Stop Screws 7521901 7521901 7521901
12. Grate Clips 20000962 20000962 20000962
Optional
Cast Fettel

153311857
SA18/24/30SHK Series Vented Gas Logs - Remote Hearth Kit (Continued)
Ref. Description 18” 24” 30”
13. Gas Supply Fitting 3304145 3304145 3304145
14. Flexible Gas Connector 3304176 3304176 3304176
15. Pilot Bracket 4303232 4303232 4303232
16a. Natural Gas Pilot Assembly 20000540 20000540 20000540
16b. Propane Gas Pilot Assembly 20000971 20000971 20000971
17. Pilot Mounting Screws 3309075 3309075 3309075
18a. Control Valve - NG 20000965 20000965 20000965
18b. Gas Valve - Propane 20000966 20000966 20000966
19. On/Off/RS Switch 7522355 7522355 7522355
20. Gas Supply Tube 20001240 20001240 20001240
21a. Brass Elbow/Orifice Holder - NG 3304006 3304006 3304006
21b. Brass Elbow/Orifice Holder - Propane 3304146 3304146 3304146
22. Short Stem Orifice for Natural Gas 20001574 (#23) 20000961 (#15) 20000961 (#15)
23. Brass Air Mixer/Orifice Holder 20000012 20000012 20000012
24. Long Stem Orifice for Propane Gas 20001281 (#49) 20007346 (#46) 20001279 (#41)
Log Set Replacement Parts
Ref. Description Log Sets
1. 18” Standard Round Log Set 20007854
1a. 24”/30” Round Right Front 20007833
1b. 18” Round Left Front 20007835
1c. 24”/30” Round Front Cross Log 20007834
1d. 18”/24”/30” Cross Log 20007837
1e. 18” Cross Log 20007836
1f. Top Log 20008335
2. 24” Standard Round Log Set 20007855
2a. 24”/30” Round Left Front 20007839
2b. 24”/30” Round Right Front 20007838
2c. 24”/30” Back Log 20007841
2d. 18”/24”/30” Cross Log 20007705
2e. 24”/30” Round Front Cross Log 20007704
2f. 24”/30” Cross Log 20007840
2g. Top Log (2 per set) 20008335
3. 30” Standard Round Log Set 20007856
3a. 24”/30” Round Left Front 20007839
3b. 24”/30” Round Right Front 20007842
3c. 30” Middle Front Log 20007706
3d. 24”/30” Back Log 20007841
3e. 18”/24”/30” Cross Log 20007705
3f. 24”/30” Round Front Cross Log 20007704
3h. Top Log 20008335
4. 18” Standard Split Log Set 20007857
4a. 18”/24”/30” Back Log 20007820
4b. 18”/24”/30” Cross Log 20007699
4c. 18” Split Right Front 20007823
4d. 18” Split Left Front 20007825
4e. Top Log #3 (2 per set) 20008337
4f. Top Log 20008336
5. 24” Standard Split Log Set 20007858
5a. 18”/24”/30” Back Log 20007820
5b. 18”/24”/30” Cross Log 20007699

16 3311857
5a
5b
5c
5d
5e
5f
956
Log parts
4/04
1a
1b
1c
1d
1e
1f
1
2a
2b
2c
2d
2e
2f
2g (2)
2
3a
3b
3c
3e
3f
3g
3d
3h
3
4a
4b
4c
4d
4e
4f
4
5
6a
6b
6c
6d
6e (2)
6f (2)
6
7a
7b
7c
7d
7e
7
8a
8b
8c
8d
8e
8f
8g
8
9a
9b
9c
9d
9e (2)
9f
9g
9h
9j
9
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
SA18/24/30SHK Series Vented Gas Logs - Remote Hearth Kit

173311857
5c. 24” Split right Front 20007828
5d. 24” Split Left Front 20007830
5e. Top Log #3 (2 per set) 20008337
5f. Top Log (2 per set) 20008336
6. 30” Standard Split Log Set 20007859
6a. 18”/24”/30” Back Log 20007820
6b. 18”/24”/30” Cross Log 20007699
6c. 30” Split Right Front 20007831
6d. 30” Split Left Front 20007832
6e. Top Log #3 (2 per set) 20008337
6f. Top Log (2 per set) 20008336
7. 18” Standard Combination Log Set 20007860
7a. 18” Split Right Front 20007805
7b. 18”/24”/30” Back Log 20007804
7c. Top Log 20008336
7d. 24”/30” Round Front Cross Log 20007806
7e. 18”/24”/30” Cross Log 20007705
8. 24” Standard Combination Log Set 20007861
8a. 18”/24”/30” Back Log 20007807
8b. 24” Split Right Front 20007808
8c. Top Log #3 20008337
8d. Top Log 20008336
8e. Top Log 20008335
8f. 24”/30” Cross Log 20007810
8g. 24”/30” Round Front Cross Log 20007809
9. 30” Standard Combination Log Set 20007862
9a. 18”/24”/30” Back Log 20007818
9b. 30” Split Left Front 20007816
9c. 18”/24”/30” Cross Log 20007813
9d. Top Log 20007811
9e. Top Log (2 per set) 20008335
9f. 24”/30” Cross Log 20007812
9g. 24”/30” Round Front Cross Log 20007814
9h. 18”/24”/30” Cross Log 20007705
9j. 30” Middle Log 20007815
SA18/24/30SHK Series Vented Gas Logs - Remote Hearth Kit (Continued)
Ref. Description Log Sets

THE FOREGOING EXPRESS EXCLUSION) REMAIN IN
EFFECT AFTER EXPIRATIONS OF THE WARRANTIES
SET FORTH IN PARAGRAPHS A AND B.
A. Gas Appliances, electrical and manual compo-
nents, glass panels, all sealants or adhesives and op-
tional accessories (exclusive of CFM Corporation supplied
decorative logs which are covered by a separate warranty
under paragraph B below):
Within two years from the date of manufacture of the gas
appliance, CFM Corporation will repair, or replace (at our
option) a defective part without charge.
B. Cement or ceramic fiber log components:
Within two years from the date of manufacture of the gas
appliance, CFM Corporation will replace a defective part
without charge. Within years three through twenty from the
date of manufacture of the gas appliance, CFM Corporation
will provide a replacement for a defective part to the hom-
eowner, but assumes no liability for incurred labor cost.
The foregoing warranties gives you specific legal rights
and you may also have other rights which vary from state to
state. Some states do not allow limitations on how long an
implied warranty may last, so the limitation specified above
on the duration of any implied warranty prescribed by law
may not apply to you. Similarly, some states do not permit
the exclusion or limitation of incidental or consequential
damages, so the above exclusion of such damages may not
apply to you.
In order to obtain performance of any of the above war-
ranty obligations, write to CFM Corporation at this address:
CFM Corporation
410 Admiral Blvd
Mississauga, Ontario Canada L5T 2N6
Attention: Manager of Warranty Services
Since local building requirements may vary greatly
throughout the country, users of CFM Corporation products
should determine in advance whether there are any building
code restrictions on the use of a specified product.
CFM CORPORATION MAKES NO REPRESENTATION OR
WARRANTY REGARDING, AND SHALL NOT BE RE-
SPONSIBLE FOR, ANY BUILDING CODE COMPLIANCE.
The foregoing warranties give you specific legal rights and you may
also have other rights which vary from state to state.
CFM Corporation extends the warranties specified in
paragraphs A and B below with respect to its Vermont
Castings Decorative Gas Appliances (the “Gas Appliance”),
including CFM Corporation supplied accessories and
components referred to in those paragraphs, subject to the
following conditions and limitations:
(1) These warranties are extended only to the Gas Ap-
pliance installed in the continental United States, including
Alaska, and Canada; only if and so long as the accordance
with the installation and operating instructions furnished
therewith; and only if and so long as Gas Appliance is not
removed from its original installation.
(2). These warranties are limited to only the component
parts manufactured and supplied by CFM Corporation. The
use of components manufactured by others with the Gas Ap-
pliance (except for a listed Type B venting system as defined
in the installation instructions) could create serious safety
hazard, may result in the denial of certification by recog-
nized national safety agencies, and could be in violation of
local building codes.
(3). The Gas Appliance must be operated at all times in
accordance with the operating instruction furnished there-
with. The Gas Appliance is designed to burn either natural or
propane gas only. Burning conventional fireplace fuels such
as wood, coal, or any other solid fuel will cause damage to
the Gas Appliance, will produce excessive temperatures and
will result in a fire hazard.
(4). These warranties are limited to repair, replacement or
furnishing a replacement for sale, as specified in Paragraphs
A and B, for a part found to CFM Corporation satisfaction,
after examination, to be defective in materials or workman-
ship under normal conditions, use and service.
(5). All obligations with respect to these warranties may
be fully discharged by CFM Corporation refunding the whole-
sale price of a defective part.
(6) Except as otherwise expressly specified in Para-
graphs A and B. NONE OF THESE WARRANTIES COVER,
AND CFM CORPORATION SHALL NOT BE RESPON-
SIBLE FOR, ANY CONSTRUCTION, INSTALLATION,
LABOR, TRANSPORTATION OR OTHER COSTS OR
EXPENSES ARISING FROM A DEFECTIVE PART, ITS RE-
PAIR OR REPLACEMENT OR OTHERWISE, NOR SHALL
CFM CORPORATION IN ANY EVENT BE RESPONSIBLE
FOR ANY INDIRECT, INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES. EXCEPT TO THE EXTENT PROVIDED
BY LAW, THERE ARE NO IMPLIED WARRANTIES WITH
RESPECT TO THE GAS APPLIANCE, ITS COMPONENTS
AND ACCESSORIES (INCLUDING IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICU-
LAR PURPOSE), ALL OF WHICH ARE HEREBY EX-
PRESSLY INCLUDED. IN NO EVENT SHALL ANY IMPLIED
WARRANTY PRESCRIBED BY LAW (NOTWITHSTANDING
LIMITED 2/20 YEAR WARRANTY
For VERMONT CASTINGS Decorative Gas Appliances

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
CFM Corporation
