ADDISON
Freestanding
Electric
Stove Models:
ACSB
ACSG
ACSM
10003646
11/01 Rev. 1
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
®
C US

2
The Vermont Castings Majestic Products Company
Installation Instructions ................................................................................................................3
General ..............................................................................................................................3
Locating Your Fireplace .....................................................................................................3
Fireplace Dimensions.........................................................................................................4
Clearance to Combustibles ................................................................................................5
Hearth ..............................................................................................................................5
Electrical Specifications .....................................................................................................5
Electrical Connections........................................................................................................6
Service Instructions..........................................................................................................................6
Firebox Removal ................................................................................................................6
Glass Information ...............................................................................................................6
Replacing Light Bulbs..................................... ...................................................................6
Maintanence of Motors.......................................................................................................6
Electrical Wiring Diagram...................................................................................................7
Operating Instructions ..................................................................................................................7
On/Off Switch .....................................................................................................................7
Heater Control....................................................................................................................7
Replacement Parts List .................................................................................................................8
Replacement Parts Pictorial...............................................................................................8
Door Glass Replacement Parts and intallation ..................................................................9
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS
BEFORE USING THIS APPLIANCE.
Thank you and congratulations on your purchase of a VERMONT CASTINGS fireplace.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible electric shock, fire hazard and will void the warranty.
TABLE OF CONTENTS

3
The Vermont Castings Majestic Products Company
1. Read all instructions before using this appliance.
2. This appliance is hot when in use. To avoid
burns, do not let bare skin touch hot surfaces. If
provided, use handles when moving this
appliance. Keep combustible materials,such as
furniture, pillows, bedding, papers, clothes, and
curtains at least 3 feet (1 m.) from the front of
this appliance.
3. CAUTION: Extreme caution is necessary
when any heater is used by or near children
or invalids and whenever the heater is left
operating unattended.
4. If possible, always unplug this appliance when
not in use.
5. Do not operate any heater with a damaged cord
or plug or after the appliance malfunctions, has
been dropped or damaged in any manner.
6. Any repairs to this fireplace should be carried
out by a qualified service person.
7. Under no circumstances should this fireplace be
modified. Parts having to be removed for
servicing must be replaced prior to operating
this fireplace again.
8. Do not use outdoors.
9. This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never
locate this appliance where it may fall into a
bathtub or other water container.
10. Do not run cord under carpeting. Do not cover
cord with throw rugs, runners or the like.
Arrange cord away from traffic areas and where
it will not be tripped over.
11. To disconnect this appliance, turn controls to
the off position, then remove plug from outlet.
12. Connect to properly grounded outlets only.
13. This appliance, when installed must be
electrically grounded in accordance with local
codes, with the current CSA C22.1 Canadian
Electrical codes or for USA installations, follow
local codes and the National Electrical Code,
ANSI/NFPA NO. 70.
INSTALLATION INSTRUCTIONS
14. Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may
cause an electric shock, fire, or damage the
appliance.
15. To prevent possible fire, do not block air intakes
or exhaust in any manner. Do not use on soft
surfaces, like a bed, where openings may
become blocked.
16. This appliance has hot and arcing or sparking
parts inside. Do not use it in areas where
gasoline, paint, or flammble liquids are used or
stored. This fireplace should not be used as a
drying rack for clothing, nor should Christmas
stockings or decorations be hung on or near it.
17. Use this appliance only as described in this
manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or
injury to persons.
18. Avoid the use of an extension cord because the
extension cord may overheat and cause a risk
of fire. However, if you have to use an extension
cord, the cord shall be No. 16 AWG minimum
size and rated not less than 1900 Watts. The
extension cord must be a three wire cord with
grounding type plug and cord connector.
19. SAVE THESE INSTRUCTIONS.
LOCATING YOUR FIREPLACE
Your new freestanding electric fireplace may be
installed virtually anywhere in your home. However,
when choosing a location for your new fireplace,
ensure that the general instructions are followed.
Also, for best effect, install the fireplace out of direct
sunlight.
GENERAL

4
The Vermont Castings Majestic Products Company
FIREPLACE DIMENSIONS
A Width of Stove Top 565 mm 22-1/4 in
B Width at Legs 600 mm 23-3/8 in
C Depth at Legs 390 mm 15-3/8 in
D Depth at Apron 430 mm 17 in
E Depth at Stove Top 400 mm 15-3/4 in
F Total Height 635 mm 25 in
A
BC
D
E
F

5
The Vermont Castings Majestic Products Company
HEARTH
CLEARANCE TO COMBUSTIBLES
ELECTRICAL SPECIFICATIONS
Back...........................0”/0 mm
Sides..........................0”/0 mm
Floor...........................0”/0 mm
Top...........................12”/305 mm
WARNING: This fireplace comes with an
optional manual circuit breaker reset near
the power cord supply. In case the
fireplace is not operating check the circuit
breaker and reset the button at the
breaker. If the fireplace is still not
operating immediately call a qualified
service technician to inspect the fireplace.
Voltage..........................120VAC/60Hz
Total Amps....................11.9 Amps
Total Watts....................1430 Watts
Heater Ratings..............1300 Watts
ELECTRICAL CONNECTION
A 15 AMP, 120 Volt, 60 Hz circuit with a properly
grounded outlet is required. Preferably, the fireplace
will be on a dedicated circuit as other appliances on
the same circuit may cause the circuit breaker to trip or
the fuse to blow when the heater is in operation.
The unit comes standard with a 6’ (1828 mm) long
three wire cord, exiting from the rear of the fireplace.
Plan the installation to avoid the use of an extension
cord. If an extention cord must be used, it must be a
minumum 16AWG, three wire with grounding type plug
connector and rated not less than 1900 Watts.
WARNING: Electrical outlet wiring must
comply with local building codes and
other applicable regulations to reduce
the risk of fire, electrical shock and
injury to persons.
WARNING: Do not use this fireplace if
any part of it has been under water.
Immediately call a qualified service
technician to inspect the fireplace and
replace any part of the electrical system.
A hearth is not mandatory but it is recommended for
aesthetic purposes. We recommend a non-combustible
hearth which does not obstruct heater openings.

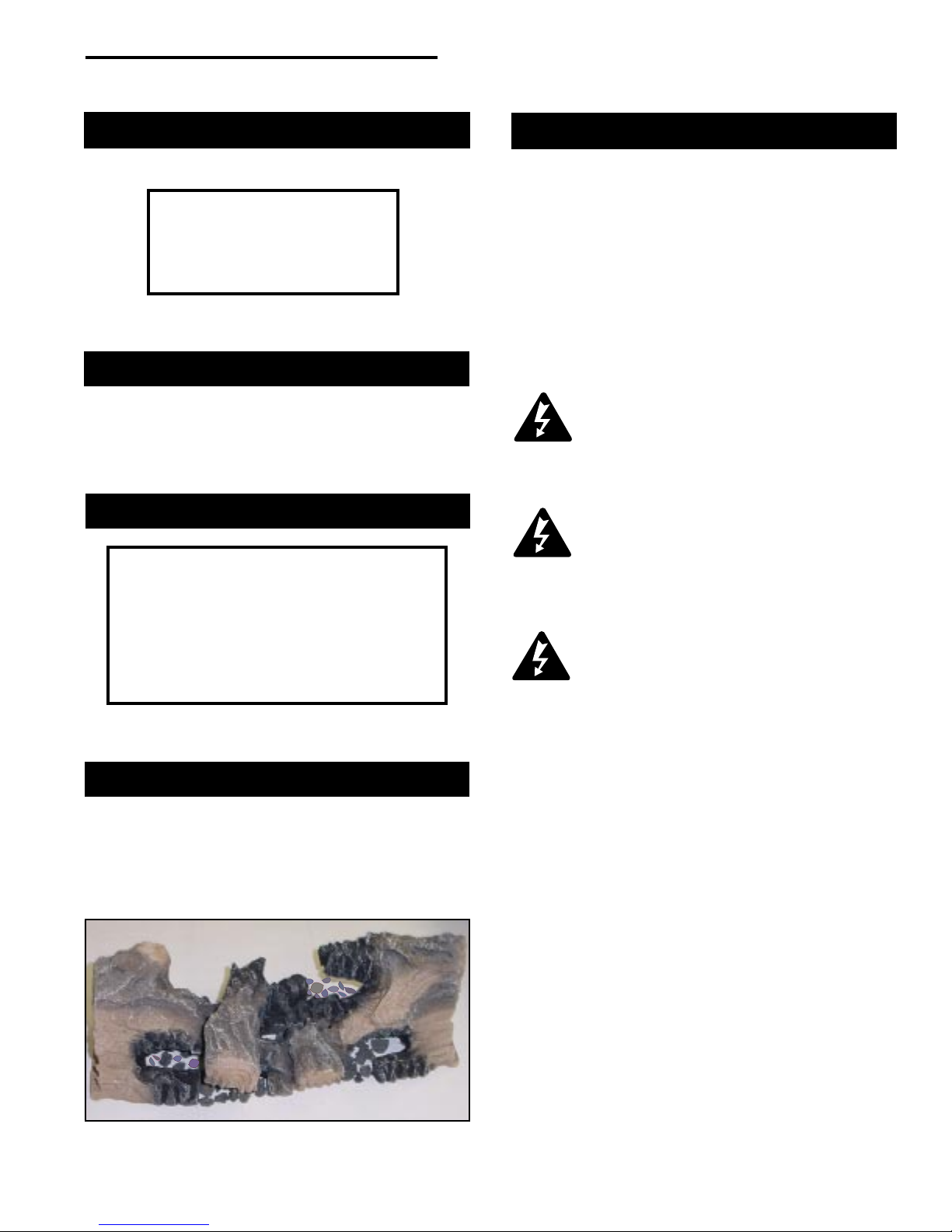

LAVA ROCK MATERIAL PLACEMENT
A bag of decorative lava rock is included with this unit.
To place the lava rock in the stove, follow the direc-
tions for removing the firebox (page 6, step 1 through
7). Spread lava rock evenly on exposed area of the
orange ember bed.

6
The Vermont Castings Majestic Products Company

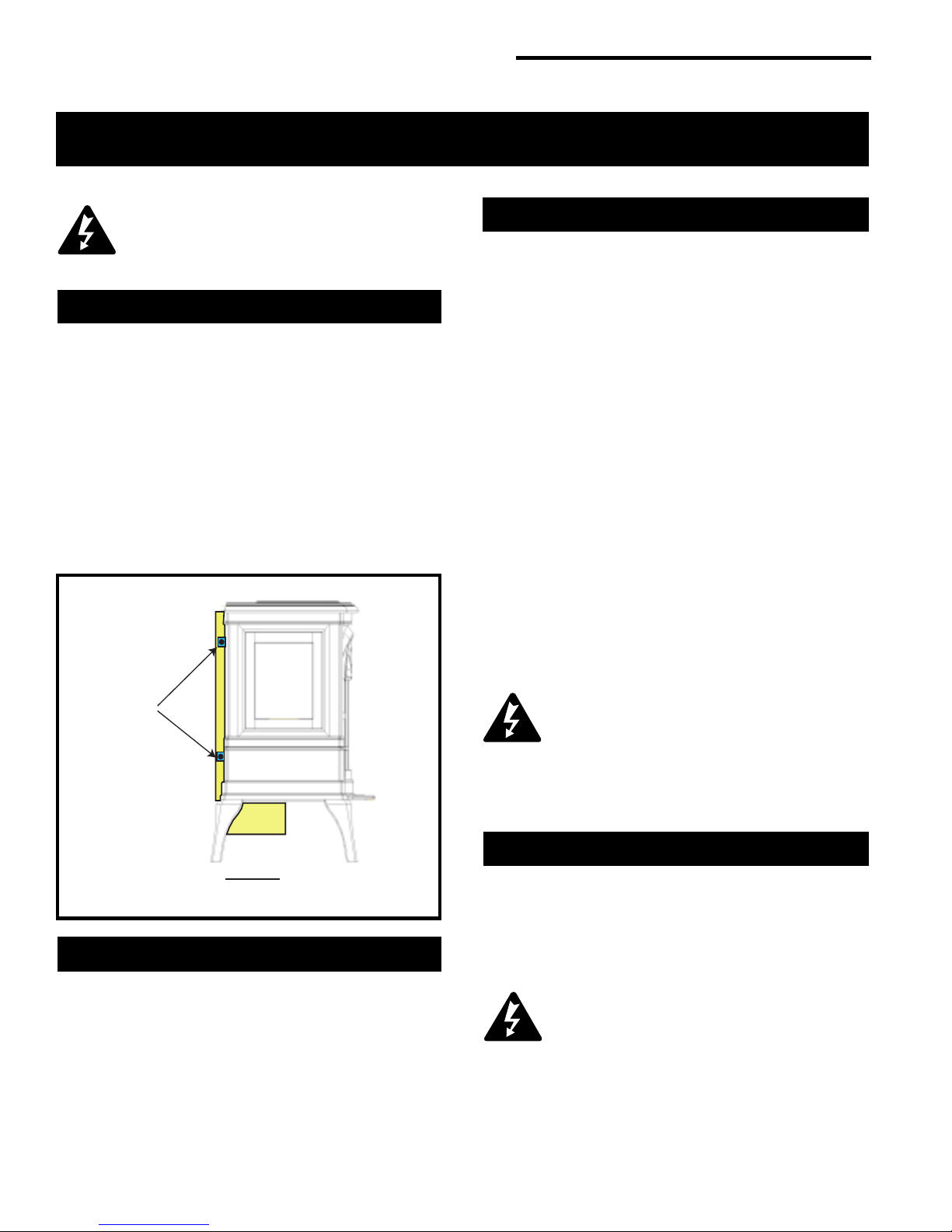

Figure 1: Side view of the firepl
a
showing the firebox mounting b
r
Mounting
Brackets
(2 per side)
FIREBOX REMOVAL
GLASS INFORMATION
WARNING: Disconnect power before
attempting any maintenance or cleaning
to reduce the risk of fire, electrical
shock or personal injury
1. Unplug the electrical supply to the unit.
2. Let the fireplace cool if it has been operating.
3. Move the fireplace away from wall to gain access
to the rear of the unit.
4. Locate the firebox mounting brackets on the side of
the firebox. Remove the screws securing the firebox
to the mounting brackets. (Figure 1).
5. Remove firebox by sliding it rearward out of
the casing.
6. Gently place firebox on its back on the floor.
7. To reinstall firebox, follow the above procedure
in reverse.
1. Under no circumstances should this product be
operated with missing or broken glass.
2. Do not strike or slam the glass.
3. Do not use abrasive cleaners to clean the glass.
4. This product uses tempered glass. Replacement
glass (with gasket) is available from the
manufacturer and replacement should be carried
out by a qualified service person.
REPLACING LIGHT BULBS
This fireplace uses two clear 120 Volt, 60 Watt, E-12
socket base light bulbs (small base, chandelier candle
type). The 60 Watt bulbs are located under the log set/
ember bed. For convenience, if one of the bulbs burns
out, it may be a good idea to replace both of the light
bulbs.
1. Turn off power to the unit by unplugging the
power cord.
2. Let fireplace cool if it has if it has been operating.
3. Remove firebox from casing. (See Firebox removal)
4. Remove the two screws securing the ember bed
and log set in position. One screw is located on
either side of the ember bed near the front.
5. Examine the bulbs to determine which bulbs need
to be replaced.
6. While holding the socket, unscrew defective bulb(s).
7. Install the new light bulb(s) by screwing in while
holding the socket.
8. Reinstall ember bed and log set.
9. Reinstall firebox.
WARNING: Do not exceed 60 watts per
bulb for lights beneath the ember bed.
Use of higher rated bulbs may result in a
fire, causing property damage or
personal injury.
MAINTENANCE OF MOTORS
The motors used on the fan and the flame generator
assembly are prelubricated for extended bearing life and
require no further lubrication. However, periodic cleaning/
vacuuming of the fan/heater unit is recommended.
WARNING: Make sure that the power is
turned off before proceeding.
SERVICE INSTRUCTIONS

7
The Vermont Castings Majestic Products Company
Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national
and local codes.
If repairing or replacing any electricial component or wiring, the original wire routing, color coding
and securing locations must be followed.

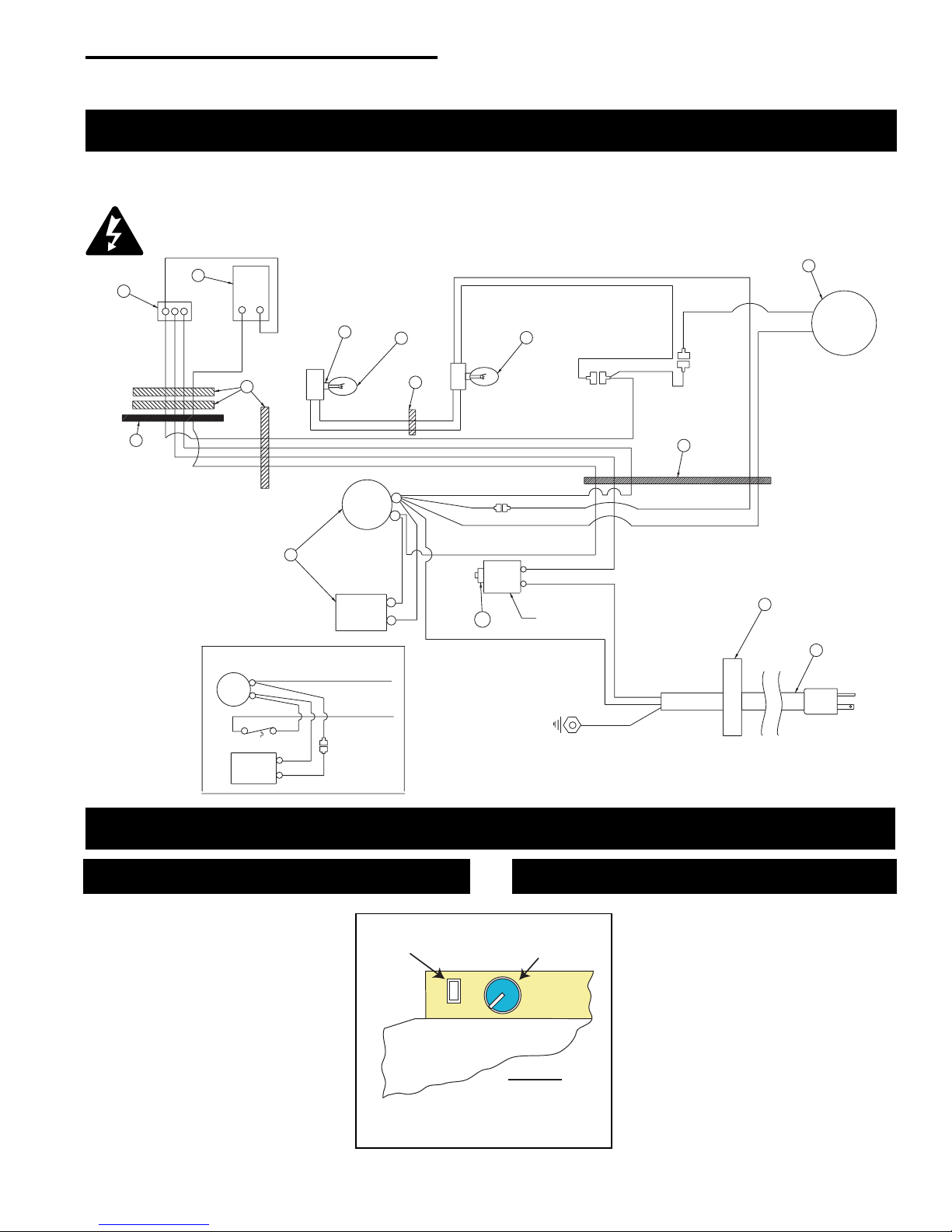

ELECTRICAL WIRING DIAGRAM
OPERATING INSTRUCTIONS
MAIN ON/OFF SWITCH
The On/Off switch supplies power to
all of the functions of the fireplace. It
is located on the top of the firebox at
the rear of the unit.
WARNING: During any service of
this appliance, the power to the
unit must be turned off. It is not
acceptable to use the “On/Off”
switch to meet this requirement.
The Heater Control acts to turn the
heater on and off as well as setting the
comfort level in the room. Turning the
knob clockwise from the off position
will place the heater into operation.
The further the knob is rotated
clockwise, the higher the set point
temperature. Turning the knob
counterclockwise will lower the set
point temperature. Turning it all the
way counterclockwise will turn the
heater function off.
HEATER CONTROL
7
BLACK
1 WHITE
1 WHITE
WHITE
5 BLACK
6
5
BLACK
WHITE
3 RED
2 BLACK
4 BROWN
BLACK
7 WHITE
(OPTIONAL)
BREAKER CIRCUIT
4
BOMAX FAN/HEATER WIRING DIAGRAM
ELEMENT
HEATER
3 RED
7 WHITE
MOTOR
FAN
10
8
6 BLACK
LIMIT
8
60 WATT 60 WATT
7
SWITCH
12
9
1
6
2
3
ELEMENT
HEATER
3 RED
5 BLACK
4 BROWN
BLACK
7 WHITE
BLACK
WHITE
WHITE
WHITE
7 WHITE
MOTOR
FAN
THERMOSTAT
MOTOR
FLAME
Temperature
Control
ON/OFF
Switch
Figure 2:
Control locations at
the top rear corner of
the fireplace.
1. 120v Motor AC
2. Rocker Switch
3. Thermostat
4. Fan/Heater
5. Light Socket w/ Wiring Assy (2 Lamp)
6. Light Bulb 60 W
7. Nylon Cable Tie 6 -1/8 Black
8. Busing Snap Hole
9. Busing Strain Relief
10. Power Cord
11. CFM-Majestic Factory Wire
12. Breaker Circuit Manual Reset

8
The Vermont Castings Majestic Products Company
Item # Part Description Part Number
1 Log Set 10003645
2 Fan/Heater Asembly 10002175
3 Flame Generator Motor -120 Volt AC w/Terminal 10003587
4 Cord Power 16/3 HPN w/Terminals 10003095
5 ON/OFF Switch 10001393
6 Heater Control (Thermostat) 10001971
7 Heater Control Knob 10001639
8 Door Glass, with gasket (not shown) 0003442
9 Flame Generator Assembly 10003566
10 Light filter (Ember Bed) (not shown) 10002159
11 Light Diffuser (rear screen) (not shown) 10002150
12 Tinted Screen (not shown) 10002151
13 Light Bulb Socket w/Wiring Assembly 10003568
14 Front - Addison 30000621
15 End, Right/Left - Addison 30000622
16 Leg - Addison 30000623
17 Top - Addison 30000624
18 Glass - Addison 30000664
19 Gasket, 3/4” Flat Window - Blk 30000776
20 Mounting Bracket 10003524
21 Front - Addison - Mdnt 30000787
22 End, Right/Left - Addison - Mdnt 30000788
23 Leg - Addison - Mdnt 30000789
24 Top - Addison - Mdnt 30000790
25 Front - Addison - Fgrn 30000791
26 End, Right/Left - Addison - Fgrn 30000792
27 Leg - Addison - Fgrn 30000793
28 Top - Addison - Fgrn 30000794
29 Breaker Circuit Manual Reset 10003093
29
REPLACEMENT PARTS LIST
2
3
4
5
6
7
9
13
1
20
17
24
28 15
22
26
18
19
14
21
25
16
23
27
15
22
26

9
The Vermont Castings Majestic Products Company
Door Glass Replacement Parts
Glass - Addison 30000664
Gasket, 3/4” Flat Window-Blk 30000776
Clip 1601396
Knob, Therm-Maple 1600660
Stub, Control Door 1601981
1. Unplug the electrical supply to the unit.
2. Let the fireplace cool if it has been operating.
3. Move the fireplace away from the wall to gain access
to the rear of the unit.
4. Locate the firebox mounting brackets on the side of
the firebox. Remove the screws securing the firebox to
the mounting brackets (Figure 1).
5. Remove firebox by sliding it rearward out of the casing.
6. Gently place firebox on its back on the floor.
7. Locate the glass clips on the inside surface of the
front casting. Remove the glass, and clear the area of
any glass fragments (Figure 3).
8. Secure new glass (with gasket) to the inside surface of
the front casting, reversing the process above, making
sure the glass is placed with gasket covering the bottom
and sides of the glass. (Figure 3).
9. Reinstall firebox into casing, by reversing steps 1
through 6.
DOOR GLASS REPLACEMENT INSTRUCTIONS
Figure 3: Door assembly
Glass
Clips
Glass
Gasket
