Vermont Castings ACSB User manual

Installation Instructions and Homeowner's Manual
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS OR LIQUIDS
IN THE VICINITY OF THIS OR ANY
OTHER APPLIANCE.
ADDISON
Freestanding
Electric Stove
Models: ACSB
ACSG
ACSM
10004324 3/04 Rev. 3
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
C US
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
CFM Specialty Home Products

2
Addison Electric Stove
10004324
Installation Instructions
General ..............................................................................................................................3
Locating Your Stove...........................................................................................................3
Stove Dimensions ..............................................................................................................4
Clearance to Combustibles ................................................................................................5
Hearth ..............................................................................................................................5
Electrical Specifications .....................................................................................................5
Electrical Connections........................................................................................................6
Service Instructions
Firebox Removal ................................................................................................................6
Glass Information ...............................................................................................................6
Replacing Light Bulbs ........................................................................................................6
Maintenance of Motors.......................................................................................................6
Electrical Wiring Diagram...................................................................................................7
Operating Instructions
On/Off Switch .....................................................................................................................7
Heater Control....................................................................................................................7
Replacement Parts.........................................................................................................................8
Door Glass Replacement Parts and Installation ................................................................9
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS
BEFORE USING THIS APPLIANCE.
Thank you and congratulations on your purchase of a Vermont Castings electric stove.
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible electric shock, fire hazard and will void the warranty.
Table of Contents

3
Addison Electric Stove
10004324
1. Read all instructions before using this appliance.
2. This appliance is hot when in use. To avoid
burns, do not let bare skin touch hot surfaces. If
provided, use handles when moving this appliance.
Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at
least 3’ (1m) from the front of this appliance.
3. CAUTION: Extreme caution is necessary when
any heater is used by or near children or inva-
lids and whenever the heater is left operating
unattended.
4. If possible, always unplug this appliance when not
in use.
5. Do not operate any heater with a damaged cord or
plug or after the appliance malfunctions, has been
dropped or damaged in any manner.
6. Any repairs to this stove should be carried out by a
qualified service person.
7. Under no circumstances should this stove be
modified. Parts having to be removed for servicing
must be replaced prior to operating this stove
again.
8. Do not use outdoors.
9. This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never
locate this appliance where it may fall into a bath-
tub or other water container.
10. Do not run cord under carpeting. Do not cover cord
with throw rugs, runners or the like. Arrange cord
away from traffic areas and where it will not be
tripped over.
11. To disconnect this appliance, turn controls to the
off position, then remove plug from outlet.
12. Connect to properly grounded outlets only.
13. This appliance, when installed must be electrically
grounded in accordance with local codes, with the
current CSA C22.1 Canadian Electrical codes or
for USA installations, follow local codes and the
National Electrical Code, ANSI/NFPA NO. 70.
Installation Instructions
14. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause
an electric shock, fire, or damage the appliance.
15. To prevent possible fire, do not block air intakes or
exhaust in any manner. Do not use on soft
surfaces, like a bed, where openings may become
blocked.
16. This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint,
or flammable liquids are used or stored. This stove
should not be used as a drying rack for clothing,
nor should Christmas stockings or decorations be
hung on or near it.
17. Use this appliance only as described in this
manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or
injury to persons.
18. Avoid the use of an extension cord because the
extension cord may overheat and cause a risk of
fire. However, if you have to use an extension
cord, the cord shall be No. 14 AWG minimum size
and rated not less than 1875 Watts. The extension
cord must be a three wire cord with grounding type
plug and cord connector.
The extension cord shall
not be more than 20 feet in length.
19. SAVE THESE INSTRUCTIONS.
Locating Your Stove
Your new freestanding electric stove may be installed
virtually anywhere in your home. However, when
choosing a location for your new stove, ensure that the
general instructions are followed. Also, for best effect,
install the stove out of direct sunlight.
General

4
Addison Electric Stove
10004324
Stove Dimensions
A
BC
D
E
F
AWidth of Stove Top 565mm 22¹⁄₄”
BWidth at Legs 600mm 23³⁄₈”
CDepth at Legs 390mm 15³⁄₈”
DDepth at Apron 430mm 17”
EDepth at Stove Top 400mm 15³⁄₄”
FTotal Height 635mm 25”
4324
Fig. 1 Addison dimensions.

5
Addison Electric Stove
10004324
Hearth
Clearance to Combustibles
Electrical Specifications
WARNING: This stove comes with a
manual circuit breaker reset near the
power cord supply. In case the stove is
not operating, check the circuit breaker
and reset the button at the breaker. If the
stove is still not operating immediately
call a qualified service technician to
inspect the stove.
Voltage ..................................... 120VAC/60Hz
Total Amps ............................... 12.20 Amps
Total Watts ............................... 1460 Watts
Heater Ratings ......................... 1300 Watts
Electrical Connection
A 15 AMP, 120 Volt, 60 Hz circuit with a properly
grounded outlet is required. Preferably, the stove will
be on a dedicated circuit as other appliances on the
same circuit may cause the circuit breaker to trip or the
fuse to blow when the heater is in operation.
The unit comes standard with a 6’ (1828 mm) long
three wire cord, exiting from the rear of the stove. Plan
the installation to avoid the use of an extension cord. If
an extension cord must be used, it must be a
minumum 14AWG, three wire with grounding type plug
connector and rated not less than 1875 Watts.
The
extension cord shall not be more than 20 feet in
length.
WARNING: Electrical outlet wiring must
comply with local building codes and
other applicable regulations to reduce
the risk of fire, electrical shock and
injury to persons.
WARNING: Do not use this stove if any
part of it has been under water. Immedi-
ately call a qualified service technician
to inspect the stove and replace any part
of the electrical system.
A hearth is not mandatory but it is recommended for
aesthetic purposes. We recommend a noncombustible
hearth which does not obstruct heater openings.

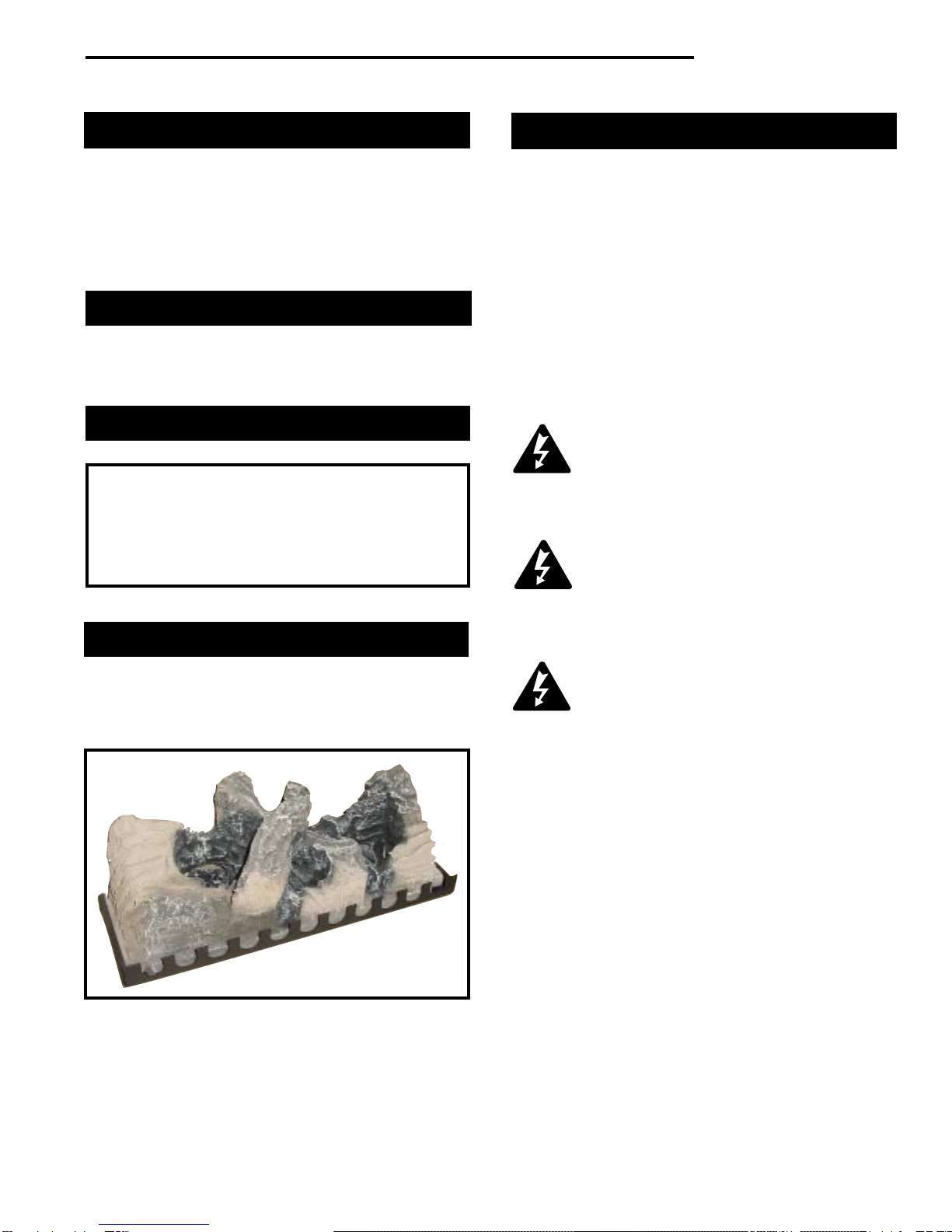

Installation of Logs
1. Turn off power to the unit.
2. Follow the directions for removing the firebox. Refer
to Page 6, Steps 1 through 7.
Back ...............................................................0” (0mm)
Sides ..............................................................0” (0mm)
Floor...............................................................0” (0mm)
Top...........................................................12” (305mm)
LG240
Fig. 2 Addison logset.

6
Addison Electric Stove
10004324

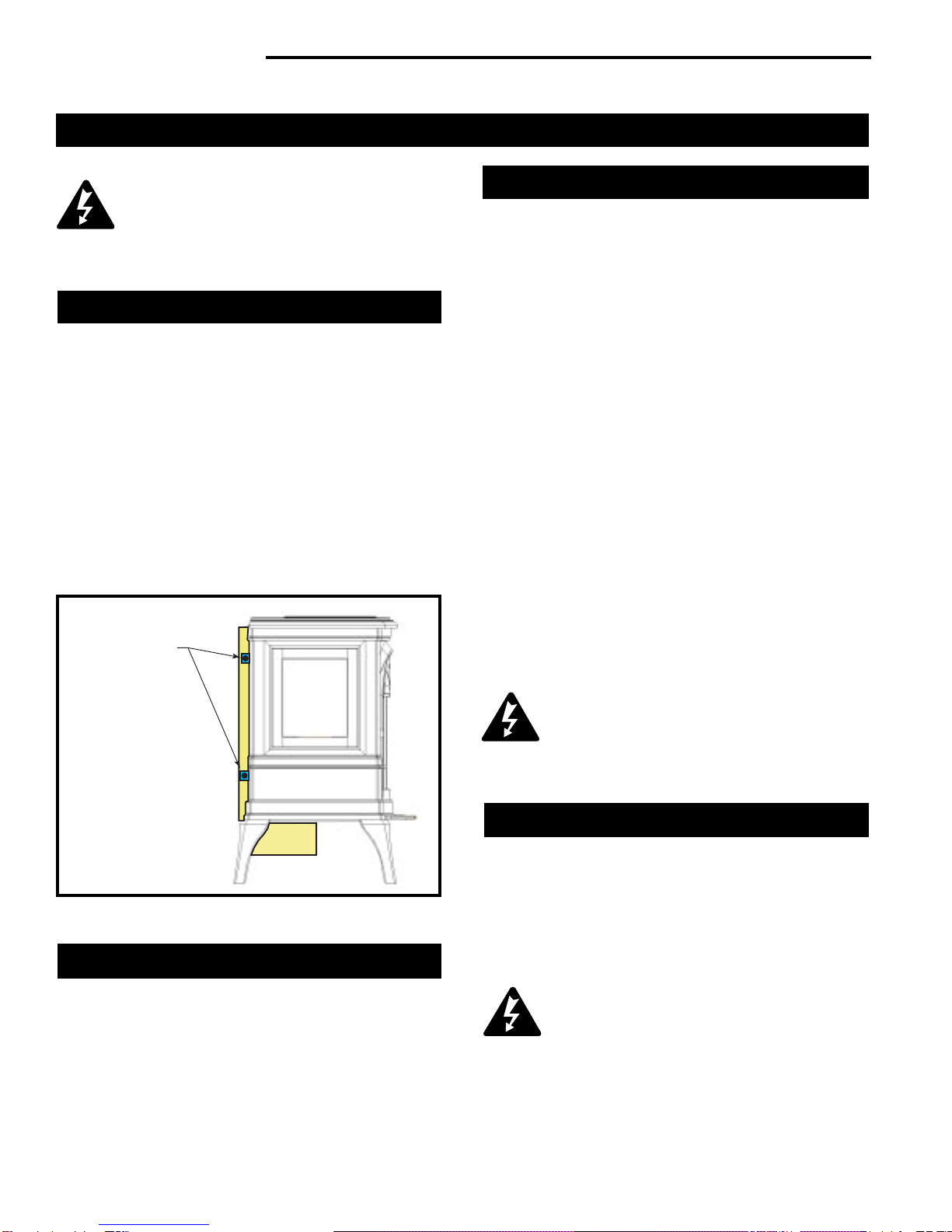

Firebox Removal
Glass Information
WARNING: Disconnect power before
attempting any maintenance or cleaning
to reduce the risk of fire, electrical shock
or personal injury
1. Unplug the electrical supply to the unit.
2. Let the stove cool if it has been operating.
3. Move the stove away from wall to gain access
to the rear of the unit.
4. Locate the firebox mounting brackets on the side of
the firebox. Remove the screws securing the firebox
to the mounting brackets. (Fig. 3)
5. Remove firebox by sliding it rearward out of the
casing.
6. Gently place firebox on its back on the floor.
7. To reinstall firebox, follow the above procedure in
reverse.
1. Under no circumstances should this product be
operated with missing or broken glass.
2. Do not strike or slam the glass.
3. Do not use abrasive cleaners to clean the glass.
4. This product uses tempered glass. Replacement
glass (with gasket) is available from the manufac-
turer and replacement should be carried out by a
qualified service person.
Replacing Light Bulbs
This stove uses two clear 120 Volt, 60 Watt, E-12
socket base light bulbs (small base, chandelier candle
type). The 60 Watt bulbs are located under the log set/
ember bed. For convenience, if one of the bulbs burns
out, it may be a good idea to replace both of the light
bulbs.
1. Turn off power to the unit by unplugging the power
cord.
2. Let stove cool if it has been operating.
3. Remove firebox from casing. (See Firebox removal)
4. Remove the two screws securing the ember bed and
log set in position. One screw is located on either
side of the ember bed near the front.
5. Examine the bulbs to determine which bulb(s) need
to be replaced.
6. While holding the socket, unscrew defective bulb(s).
7. Install the new light bulb(s) by screwing in while
holding the socket.
8. Reinstall ember bed and log set.
9. Reinstall firebox.
WARNING: Do not exceed 60 watts per
bulb for lights beneath the ember bed.
Use of higher rated bulbs may result in a
fire, causing property damage or per-
sonal injury.
Maintenance of Motors
The motors used on the fan and the flame generator
assembly are prelubricated for extended bearing life
and require no further lubrication. However, periodic
cleaning/vacuuming of the fan/heater unit is recom-
mended.
WARNING: Make sure that the power is
turned off before proceeding.
Service Instructions
Mounting
Brackets
(2 per side)
HS106
Fig. 3 Side view of the stove showing the firebox mounting
brackets.

7
Addison Electric Stove
10004324
Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national
and local codes.
If repairing or replacing any electricial component or wiring, the original wire routing, color coding
and securing locations must be followed.
Electrical Wiring Diagram
Operating Instructions
Main On/Off Switch
The On/Off switch supplies power to
all of the functions of the stove. It is
located on the top of the firebox at
the rear of the unit.
WARNING: During any service of
this appliance, the power to the
unit must be turned off. It is not
acceptable to use the “On/Off”
switch to meet this requirement.
The Heater Control acts to turn the
heater on and off as well as setting
the comfort level in the room. Turning
the knob clockwise from the off
position will place the heater into
operation. The further the knob is
rotated clockwise, the higher the set
point temperature. Turning the knob
counterclockwise will lower the set
point temperature. Turning it all the
way counterclockwise will turn the
heater function off.
SWITCH ON/OFF
1 BLACK
FAN
MOTOR
HEATER
ELEMENT
6 WHITE
3 BLACK
2 BLACK
BLACK
BLACK
FLAME
MOTOR
BREAKER
CIRCUIT
2
3
10
6
10 11
8
9
7
4
10
5
1
11
5 WHITE
8 BLACK
2 BLACK
7 WHITE
HS103
1. 120v Motor AC
2. Rocker Switch
3. Thermostat
4. Fan/Heater
5. Light Socket w/ WiringAssy (2 Lamp)
6. Light Bulb 60 W
7. Breaker Circuit Manual Reset
8. Power Cord
9. Bushing Strain Relief
10. Nylon Cable Tie 6¹⁄₈ Black
11. Bushing Snap Hole
12. CFM Corporation Factory Wire
ON/OFF
Switch Temperature
Control
HS101
Fig. 4 Control locations at the top rear
corner of the stove.
Heater Control

8
Addison Electric Stove
10004324
1
19
15
13
17
18
14
16
14
2
3
4
5
6
7
9
12
20
4324
CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products
at any time, without notice.
Addison Freestanding Electric Stove
Models ACSB (2905), ACSG (2906), ACSM (2907)

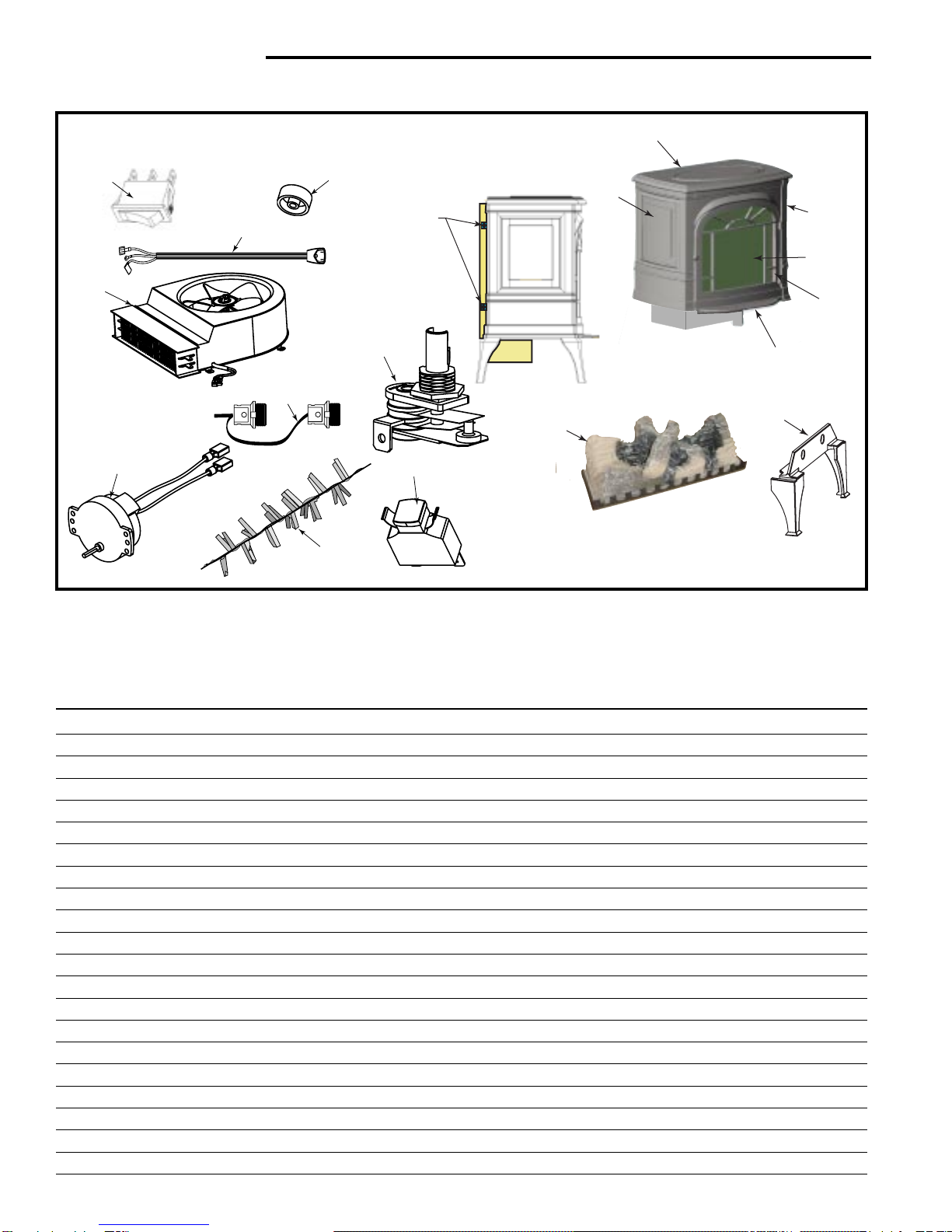

Ref. Description Part Number
1. Log Set Complete 10004456
2. Fan/Heater Assembly 10004198
3. Flame Generator Motor-120 Volt AC w/Terminal 10004262
4. Cord Power 16/3 HPN w/Terminals 10003095
5. ON/OFF Switch 10001393
6. Heater Control (Thermostat) 10004199
7. Heater Control Knob 10001639
8. Door Glass, with gasket (not shown) 0003442
9. Flame Generator Assembly 10003566
10. Light Diffuser (rear screen) (not shown) 10002150
11.Tinted Screen (not shown) 10002151
12. Light Bulb Socket w/Wiring Assembly 10003568
13. Front - Addison See Chart Page 9
14. End, Right/Left - Addison See Chart Page 9
15. Leg - Addison (2 per stove) See Chart Page 9
16. Top - Addison See Chart Page 9
17. Glass - Addison 30000664
18. Gasket, 3/4” Flat Window - Blk 30000776
19. Mounting Bracket 10003524
20. Breaker Circuit Manual Reset 10003093

9
Addison Electric Stove
10004324
1. Unplug the electrical supply to the unit.
2. Allow the stove to cool if it has been operating.
3. Move the stove away from the wall to gain access to
the rear of the unit.
4. Locate the firebox mounting brackets on the side of
the firebox. Remove the screws securing the firebox
to the mounting brackets. (Fig. 3)
5. Remove firebox by sliding it rearward out of the
casting.
6. Gently place firebox on its back on the floor.
7. Locate the glass clips on the inside surface of the
front casting. Remove the glass, and clear the area
of any glass fragments. (Fig. 5)
8. Secure new glass (with gasket) to the inside surface
of the front casting, reversing the process above,
making sure the glass is placed with gasket covering
the bottom and sides of the glass. (Fig. 5)
9. Reinstall firebox into casting, by reversing steps 1
through 6.
Door Glass Replacement Instructions
Fig. 5 Door assembly.
Glass
Glass
Clips
Gasket HS107
Door Glass Replacement Parts
Glass - Addison 30000664
Gasket, 3/4” Flat Window-Blk 30000776
Clip 1601396
Knob, Therm-Maple 1600660
Control Door Handle Assy 10004442
Shell Enamel Part Numbers - Addison ACSB, ACSG, ACSM
Color Top Front End, Leg
Right, Left (2 per stove)
Classic 30000624 30000621 30000622 30000623
Midnight 30000790 30000787 30000788 30000789
Green 30000794 30000791 30000792 30000793

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
CFM Specialty Home Products
