Verona VEFSEE 304 P SERIES User manual

FOR INSTALLER ONLY
THIS RANGE IS FOR RESIDENTIAL USE ONLY
ELECTRIC RANGE
for residential use only
Models: VEFSEE 304 P..
INSTALLATION INSTRUCTIONS
IMPORTANT - PLEASE READ AND FOLLOW
• Beforebeginning,pleasereadtheseinstructionscompletelyandcarefully.
• Donotremovepermanentlyafxedlabels,warnings,orplatesfromtheproduct.Thismay
voidthewarranty.
• Pleaseobservealllocalandnationalcodesandordinances.
• Pleaseensurethatthisproductisproperlygrounded.
• The installer should leave these instructions with the consumer who should retain
for local inspector’s use and for future reference.
ElectricalinstallationmustbeinaccordancewiththeNationalElectricalCode,ANSI/NFPA70
-latesteditionand/orlocalcodes.
IN CANADA: Electrical installation must be in accordance with the current CSA C22.1
CanadianElectricalCodesPart1and/orlocalcodes.
Some models are supplied with a protective lm on steel and aluminium
parts.Thislmmustberemovedbeforeinstalling/usingtheappliance.
R

2

3
WARNING !
Toreducetheriskoftippingtheappliance,
theappliancemustbesecuredbyproperly
installed anti-tip device packed with the
appliance.
• ALL RANGES CAN TIP
• INJURY TO PERSONS COULD RESULT
• INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
• SEE INSTALLATION INSTRUCTIONS
This appliance is designed and manufactured solely for the cooking of domestic (household)
foodandinnotsuitableforanynonedomesticapplicationandthereforeshouldnotbeusedina
commercialenvironmement.
Theappliancewarrantywillbevoidiftheapplianceisusedwithinanonedomesticenvironmement
i.e.asemicommercial,commercialorcommunalenvironment.

4
INSTALLATION INSTRUCTIONS
WARNING!
THIS APPLIANCE MUST BE INSTALLED BY A QUALIFIED INSTALLER.
Installation must conform with local codes.
Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage. Consult a
qualiedinstalleroraserviceagent.
Screwdriver 2 - Wrench
T-handle
wrench
Tape
measurePencil
Adjustable
pliers
Adjustable
wrench
Suitable protective
gloves Drill
Hammer
TOOLS NEEDED FOR INSTALLATION (NOT SUPPLIED WITH THE APPLIANCE)
IMPORTANT:Theuseofsuitableprotectiveclothing/glovesis
recommendedwhenhandling,installingofthisappliance.

5
GENERAL INFORMATION
1.  WARNING!!
 Thisapplianceshallnotbeusedforspaceheating.This
informationisbasedonsafetyconsiderations.
2. AlIopeningsinthewallbehindtheapplianceandintheoor
undertheapplianceshallbesealed.
3. Keep appliance area clear and free from combustible
materials,gasoline,andotherammablevapors.
4. Donotobstructtheowofventilationair.
5. Disconnect the electrical supply to the appliance before
servicing.
6. Whenremovingapplianceforcleaningand/orservice;
A. DisconnectACpowersupply.
B. Carefullyremovetherangebypullingoutward.
CAUTION:Rangeisheavy;usecareinhandling.
7. Electrical Requirement
Electrical installation should comply with national and local
codes.
8. Themisuseofovendoor(e.g.stepping,sitting,orleaningon
them)canresultinpotentialhazardsand/orinjuries.
9. Wheninstallingorremovingtherangeforservice,arollinglift
jackshouldbeused.Donotpushagainstanyoftheedgesof
therangeinanattempttoslideitintooroutoftheinstallation.
Pushingorpullingarange(ratherthanusingaliftjack)also
increases the possibility of bending the leg spindles or the
internalcouplingconnectors.
WARNING!!
ELECTRICAL GROUNDING INSTRUCTIONS
Therangemustbeelectricallygroundedinaccordancewith
localcodesor,intheabsenceoflocalcodes,withtheNational
Electrical Code,ANSI/NFPA No. 70-latest edition, in Canada
Canadian Electrical Code. Installation should be made by a
Iicensed electrician.
InstallationshouldbemadebyaIicensedelectrician.
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
If an external electrical source is utilized, the installation must
be electrically grounded in accordance with local codes or, in
the absence of local codes, with the national Electrical Code,
ANSI/NFPA70.
REPLACEMENT PARTS
Only authorized replacement parts may be used in performing
serviceontherange.Replacementpartsareavailablefromfactory
authorizedpartsdistributors.Contactthenearestpartsdistributor
inyourarea.

6
PROXIMITY TO SIDE CABINETS
1. Thisrangemaybeinstalleddirectlyadjacenttoexisting36”(914mm)
highbasecabinets.
Rangedimensions:
• width:29”7/8(759mm)
• depth:24”13/64(614.9mm)
• height (without backguard): MIN 35” 21/32 (905.5 mm) - MAX 36”
11/32(923mm)
• backguard(height):3”(76mm)
Grounded outlet:shouldbelocatedfromthelefttotherightsideofthe
range;from5”7/16(138mm)to6”1/8(155.5mm)[dependingonfeet
regulation]fromtheoor.
2. The range CANNOT be installed directly adjacent to sidewalls, tall
cabinets,tallappliances,orothersideverticalsurfacesabove36”(914
mm)high.
Theremustbeaminimumof2”(50mm)sideclearancefromtherange
tosuchcombustiblesurfacesTOTHELEFTorTOTHERIGHTabove
the36”(914mm)highcountertop.
 IMPORTANT:Oneside(leftorright)abovethe36”(914mm)high
countertopmustalwaysbekeptclear.
Island installation: Theremustbeaminimumof12”(305mm)clearance
fromtherearofthebackguardtosuchcombustiblesurfaceontheback
oftherangeabovethe36”(914mm)highcountertop.
3. Themaximumuppercabinetdepthrecommendedis13”(330mm).Wall
cabinetabovetherangemustbeaminimumof30”(762mm)abovethe
countertopforawidthofminimum30”(762mm):ithastobecentered
withtherange.Sidewallcabinetsabovetherangemustbeaminimum
of18”(457mm)abovethecountertop.
installation
1
Fig. 1.1
3”
(76mm)
MIN35”21/32(905.5mm)
MAX36”11/32(923mm)
24”13/64
(614.9mm)
29”7/8
(759mm)

7
AA
B
ASSEMBLING THE BACKGUARD
Itismandatorytoinstallthebackguard.
Assemblethebackguardasshowningure1.3:
• Screwthe2screws“A”interposingthespacers.
• Screwthecentralscrew“B”.
1
Fig. 1.3
GAS AND ELECTRIC CONNECTION
Fig. 1.2
Dottedlineshowingtheposition
oftherangewheninstalled
Areafor
ELECTRICAL
connection
A
Ref. inch mm
A5”7/16-6”1/8(*) 138-155.5(*)
(*):Dependingonfeetregulation

8
B
G
E
D
C
F
A
A
B
C
E
D
F
G
A
A
PROXIMITY TO SIDE CABINETS
STANDARD INSTALLATION
Fig. 1.4b
Fig. 1.4a Ref. inch mm
A0” 0
B36” 914
C2” 50
D30”minimum 762minimum
E18”minimum 457minimum
F13”maximum 330maximum
G20”minimum 500minimum
1

9
PROXIMITY TO SIDE CABINETS
ISLAND INSTALLATION
A
A
B
G
E
D
F
C
H
A
A
B
G
E
D
F
C
H
Fig. 1.5b
Fig. 1.5a Ref. inch mm
A0” 0
B36” 914
C2” 50
D30”minimum 762minimum
E18”minimum 457minimum
F13”maximum 330maximum
G20”minimum 500minimum
H12”minimum 305minimum
1

10
1
LEVELLING THE RANGE
Therangeisequippedwith4LEVELLINGFEETandmaybelevelledbyscrewingor
unscrewingthefeet(gs.1.6-1.7).
Itisimportanttoobservethedirectionsofgures1.6,1.8a,1.8b.
Fig. 1.8bFig. 1.8a
Fig. 1.7
Fig. 1.6
Suppliedwiththerange
inaseparatekit
Suppliedwiththerange
inaseparatekit
0”
0mm
+5/16”
+8mm
+5/16”
+8mm
+11/16”
+17.5mm
Fig. 1.9
Dotted line showing the position
oftherangewheninstalled
ANTI-TIPSTABILITY
DEVICEFIXING
Anti-tipstability
device
Rearleft
feetofrange
11”11/16
(297mm)
YOU MUST USE STABILITY
ANTI TIP BRACKET TO
PREVENT UNIT FROM
TIPPING.
ANTI-TIP STABILITY DEVICE INSTALLATION INSTRUCTIONS
1. Theanti-tipbrackethastobeattachedasshownongurebelow(onlyrearleftside),
ithastobexedontheoorORontherearwallbyno.4(four)suitablescrews(not
supplied).Alternativelytheanti-tipbracketcanalsobexedontheoorANDonthe
rearwallbyno.8(eight)suitablescrews(notsupplied).
2. Afterxingtheanti-tipbracket,sliderangeintoplace.Besuretherearleftfootslides
undertheanti-tipbracketattached.

11
2
WARNING
TO AVOID ELECTRICAL SHOCK
HAZARD, BEFORE INSTALLING
THEAPPLIANCE, SWITCH POWER
OFF AT THE SERVICE PANEL AND
LOCK THE PANEL TO PREVENT
THE POWER FROM BEING
SWITCHED ON ACCIDENTALLY.
ELECTRICAL REQUIREMENTS
• This appliance must be properly installed and grounded by a qualied technician
inaccordancewiththeNationalElectrical CodeANSI/NFPA No.70 (latest edition)
andlocalelectricalcoderequirements.INCANADA:Electricalinstallationmustbe
inaccordancewiththecurrentCSAC22.1CanadianElectricalCodesPart1and/or
localcodes.
• Thisappliancemaybeconnectedbymeansofpermanent“HardWiring”or“Power
SupplyCordKit”.Powersupplycordisnotsupplied,butitisavailablethroughyour
localelectricsupplyhouse.
• Useonly3-conductoror4-conductorCSA/ULlistedrangecordratedat50ampswith
250Vminimumandprovidedwithringterminals.Thesecordsshouldbeprovided
withstrainrelieforconduitconnector.
Warning:Framegroundedthroughneutrallead.Ifusedin,
–Newbranch-circuitinstallations(1996NEC),
–Mobilehomes,
–Recreationalvehicles,or
–In an area where local codes prohibit grounding through neutral, use a 4
conductorcordorconduit.
• The range must be connected to the proper electrical voltage and frequency as
speciedontheratingplate.
• Therangecanbeconnecteddirectlytothefuseddisconnect(orcircuitbreakerbox)
throughexible,armouredornon-metallicsheathed,coppercable(withgrounding
wire).Allowtwotothreefeetofslackinthelinesothatitcanbemovedifservicing
isevernecessary.
VoltageandPowerConsumption
AC120/240V 60Hz 10350WMAX 43.51AMAX
AC120/208V 60Hz 7800WMAX 37.82AMAX
ELECTRICAL CONNECTION WITH POWER CORD
Usea3-wirepowersupplycordkitratedfor50amps-125/250voltswithclosedloop
terminalsandmarkedforusewithranges.Wherelocalcodesdonotpermitgrounding
throughneutral,usea4-wirepowersupplycordkit.
The cord must be secured to the range with a suitable strain relief. The electrical
connection is made at the terminal block, which is located behind the terminal block
accessplateonthebackoftherange.
ELECTRICAL CONNECTION WITH CONDUIT
Use 3/4” trade size CSA/UL-listed conduit with a conduit clamp, 10 AWG/600 volt
copperconductorcoloredredforline1andblackforline2and12AWG/600voltcopper
conductor(or10AWG/600Voltcopperconductorifgroundingthroughneutral)colored
whiteforneutralwithclosedloopterminalsmarkedforusewithranges.
Wherelocalcodesdonotpermitgroundingthroughneutral,useagreen10AWGcopper
conductorasdirectedinthe4-wireconnectordirections.Theconduitmustbesecuredto
therangewiththestrainreliefbracket.Theelectricalconnectionismadeattheterminal
blockwhichislocatedbehindtheterminalblockaccessplateonthebackoftherange.
Electrical Shock Hazard
Electrically ground range.Failure to
follow these instruc-tions can result
indeath,re,orelectricalshock.
LocationofNameplate
electrical connection

12
2
3-Wire Power Cord Installation(Seegures2.1,2.2)
1. RemovetheTerminal Block Access Plateonthebackofthe
rangebyunscrewingthe4xingScrews(gure2.1).
2. Check the correct positioning of the Power Cord Bracket as
pergure2.2.
3. Insert the Power Cord through the hole in the Power Cord
Bracket;thentightenthePower CordbyusingasuitableStrain
Relief.Allowenoughslacktoeasilyattachthecordterminalsto
theTerminal Block.
4. Removethe3wireterminalnutsandwashersfromtheTerminal
Block.
5. PlugtheterminalholesofPower Cord.TheNeutral or Ground
Wire of the Power Cord must be connected to the neutral
terminal located in the center of Terminal Block.The Power
Wiresmustbeconnectedtotheoutsideterminals.
6. Plugwashersandtightennutssecurely.
DonotremoveGround strap.
7. AssembletheTerminal Block Access Plate.
4-Wire Power Cord Installation (Seegure2.1,2.3)
1. RemovetheTerminal Block Access Plateonthebackofthe
rangebyunscrewingthe4xingScrews(gure2.1).
2. Check the correct positioning of the Power Cord Bracket as
pergure2.3.
3. Insert the Power Cord through the hole in the Power Cord
Bracket;thentightenthePower CordbyusingasuitableStrain
Relief.Allowenoughslacktoeasilyattachthecordterminalsto
theTerminal Block.
4. Removethe3wireterminalnutsandwashersfromtheTerminal
Block.
5. RemovetheGround Strapfromtheframeofrangeandterminal
byremovingitsscrewandcuttingitasshowningure2.3.
6. PlugtheterminalholesofPower Cord.
TheNeutral WireofthePower Cordmustbeconnectedtothe
neutral terminal located in the center of Terminal Block; the
Power Wiresmustbeconnectedtotheoutsideterminals;the
Ground Wiremustbeattachedtotheframeofrangebyusing
the (Ground)identiedGroundingScrew.
7. Plugwashersandtightennutssecurely.
8. AssembletheTerminal Block Access Plate.
Terminal Block
Ground strap
Terminal block
fixing bracket
Power Cord
Bracket
Hole D 1" 3/8
(35 mm)
Neutral Wire
Power Wires
Power Cord
Terminal Block
Cut Ground Strap
Terminal block
fixing bracket
Power Cord
Bracket
Hole D 1" 3/8
(35 mm)
Neutral Wire
Power Wires
Power Cord
Grounding Wire
Grounding
Screw
Terminal Block
Access Plate
Screws
Screws
Fig. 2.1
Fig. 2.2
Fig. 2.3

13
2
3-Wire Conduit Installation (Seegures2.4and2.5)
1. RemovetheTerminal Block Access Plateonthebackofthe
rangebyunscrewingthe4xingScrews(gure2.4).
2. Check the correct positioning of the Conduit Bracket as per
gure2.5.
3. Feed3/4”tradesizeConduitthroughtheholeintheConduit
Bracket and secure to the Conduit Bracket with a Conduit
Clamp.
4. Removethe3wireterminalnutsandwashersfromtheTerminal
Block.
5. Plugtheterminalholesofconductors.
The Neutral or Ground Wire of the Power Cord must be
connected to the neutral terminal located in the center of
Terminal Block.
ThePower Wiresmustbeconnectedtotheoutsideterminals.
6. Plugwashersandtightennutssecurely.
DonotremoveGround strap.
7. AssembletheTerminal Block Access Plate.
4-Wire Conduit Installation (Seegure2.4and2.6)
1. RemovetheTerminal Block Access Plateonthebackofthe
rangebyunscrewingthe4xingScrews(gure2.4).
2. Check the correct positioning of the Conduit Bracket as per
gure2.6.
3. Feed3/4”tradesizeConduitthroughtheholeintheConduit
Bracket and secure to the Conduit Bracket with a Conduit
Clamp.
4. Removethe3wireterminalnutsandwashersfromtheTerminal
Block.
5. RemovetheGround Strapfromtheframeofrangeandterminal
byremovingitsscrewandcuttingitasshowningure2.6.
6. Plugtheterminalholesofconductors.
TheNeutral WireofthePower Cord mustbeconnectedtothe
neutral terminal located in the center of Terminal Block; the
Power Wiresmustbeconnectedtotheoutsideterminals;the
Ground Wiremustbeattachedtotheframeofrangebyusing
the (Ground)identiedGroundingScrew.
7. Plugwashersandtightennutssecurely.
8. AssembletheTerminal Block Access Plate.
Terminal Block
Ground strap
Terminal block
fixing bracket
Counduit
Bracket Neutral Wire
Power Wires
Hole D 1" 3/32
(28 mm)
Conduit
Conduit Clamp
Terminal Block
Cut Ground Strap
Terminal block
fixing bracket
Counduit
Bracket Neutral Wire
Power Wires
Hole D 1" 3/32
(28 mm)
Conduit
Conduit Clamp
Grounding Wire
Grounding
Screw
Terminal Block
Access Plate
Screws
Screws
Fig. 2.4
Fig. 2.5
Fig. 2.6

14
2

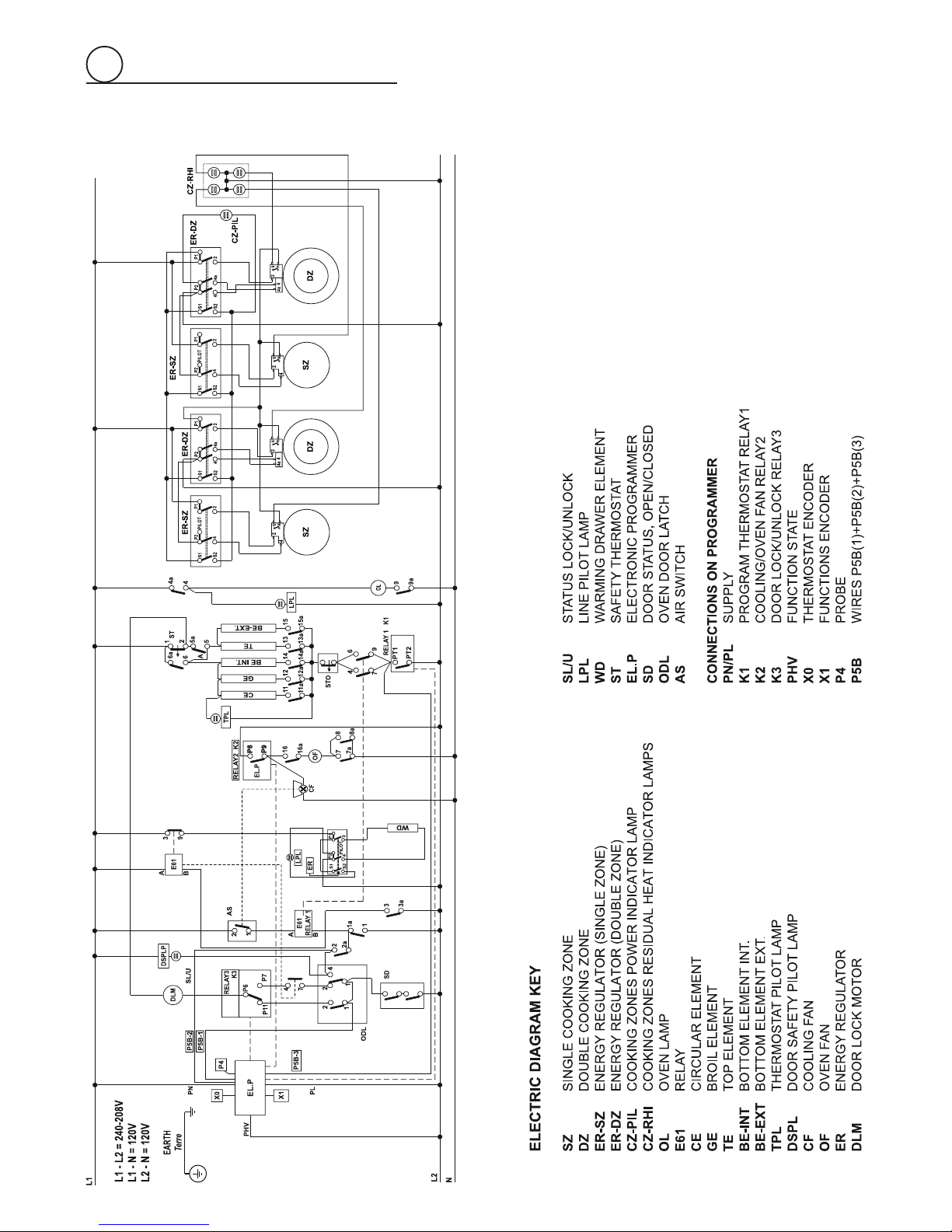

WIRING DIAGRAM

15

Themanufacturercannotbeheldresponsibleforpossibleinaccuraciesduetoprintingortranscriptionerrors
inthepresentbooklet.
The manufacturer reserves the right to make all modications to its products deemed necessary for
manufacture or commercial reasons at any moment and without prior notice, without jeopardising the
essentialfunctionalandsafetycharacteristicsoftheappliances.
Cod.1104875-ß2
