Verona VEFSGE486DGP Sreis Operation instructions

• USERS OPERATING INSTRUCTIONS
IMPORTANT - PLEASE READ AND FOLLOW
IMPORTANT - PLEASE READ AND FOLLOW
✓Before beginning, please read these instructions completely and carefully.
✓Do not remove permanently affixed labels, warnings, or plates from the product. This
may void the warranty.
✓Please observe all local and national codes and ordinances.
✓Please ensure that this product is properly grounded.
✓The installer should leave these instructions with the consumer who should retain
for local inspector's use and for future reference.
Installation must conform with local codes or in the absence of codes, the National Fuel
Gas Code ANSIZ223.1 - Iatest edition. Electrical installation must be in accordance with the
National Electrical Code, ANSI/NFPA70 - latest edition and/or local codes. IN CANADA:
Installation must be in accordance with the current CAN/CGA-B149.1 National Gas
Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian
Electrical Codes Part 1 and/or local codes.
INSTALLATION IN MANUFACTURED (MOBILE) HOME: The installation must conform with
the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 [for-
merly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD (Part
280)] or, when such standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1, or with local codes where applicable.
INSTALLATION IN RECREATIONAL PAR TRAILERS: The installation must conform with
state or other codes or, in the absence of such codes, with the Standard for Recreational
Park Trailers, ANSI A119.5.
Installation of any gas-fired equipment should be made by a Iicensed plumber. A manual
gas shut-off valve must be installed in the gas supply line ahead of the appliance in the gas
stream for safety and ease of service.
If an external electrical source is utilized, the appliance, when installed, must be electrical-
ly grounded in accordance with local codes or, in the absence of local codes, with the
national Electrical Code, ANSI/NFPA 70.
DUAL FUEL SELF CLEANING RANGE
for residential use only
Model: VEFSGE486DGP..
This range is supplied with a protective film on steel and aluminium parts.
This film must be removed before installing/using the appliance.
THIS RANGE IS FOR RESIDENTIAL USE ONLY

2
✓Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
✓WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• lmmediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
✓Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT
FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
WARNING
• ALL RANGES CAN TIP

• INJURY TO PERSON COULD RESULT

• INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE

• SEE INSTALLATION INSTRUCTIONS

3
Dear Customer,
Thank you for having purchased and given your preference to our
product.
The safety precautions and recommendations reported below are for
your own safety and that of others. They will also provide a means by
which to make full use of the features offered by your appliance.
Please preserve this booklet carefully. It may be useful in future, either
to yourself or to others in the event that doubts should arise relating to
its operation.
This appliance must be used only for the task it has explicitly been
designed for, that is for cooking foodstuffs. Any other form of usage is
to be considered as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event of damage
caused by improper, incorrect or illogical use of the appliance.
This applianc is d sign d and manufactur d sol ly for th cooking of dom stic (hous hold)
food and in not suitabl for any non dom stic application and th r for should not b us d
in a comm rcial nvironm m nt.
Th applianc guarant will b void if th applianc is us d within a non dom stic
nvironm m nt i. . a s mi comm rcial, comm rcial or communal nvironm nt.

4
USER INSTRUCTIONS
GENERAL INFORMATION
WARNING!!
1. This appliance shall not be used for space heating. This
information is based on safety considerations.
2. AlI openings in the wall behind the appliance and in the floor
under the appliance shall be sealed.
3. eep appliance area clear and free from combustible
materials, gasoline, and other flammable vapors.
4. Do not obstruct the flow of combustion and ventilation air.
5. Disconnect the electrical supply to the appliance before
servicing.
6. When removing appliance for cleaning and/or service;
A. Shut off gas at main supply.
B. Disconnect AC power supply.
C. Disconnect gas line to the inlet pipe.
D. Carefully remove the range by pulling outward.
CAUTION: Range is heavy; use care in handling.
7. Electrical Requirement
Electrical installation should comply with national and local
codes.
8. Air Supply and Ventilation
The installer must refers to local/national codes.
9. Gas Manifold Pressure
Natural gas - 4.0” W.C.P.
LP/Propane - 11.0” W.C.P.
10. The misuse of oven door (e.g. stepping, sitting, or leaning
on them) can result in potential hazards and/or injuries.
11. When installing or removing the range for service, a rolling
lift jack should be used. Do not push against any of the
edges of the range in an attempt to slide it into or out of
the installation. Pushing or pulling a range (rather than using
a lift jack) also increases the possibility of bending the leg
spindles or the internal coupling connectors.
WARNING!!
ELECTRICAL GROUNDING INSTRUCTIONS
The range must be electrically grounded in accordance
with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA No. 70-latest edition.
Installation should be made by a Iicensed electrician.
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
If an external electrical source is utilized, the installation must
be electrically grounded in accordance with local codes or, in
the absence of local codes, with the national Electrical Code,
ANSI/NFPA 70.
REPLACEMENT PARTS
Only authorized replacement parts may be used in performing
service on the range. Replacement parts are available from
factory authorized parts distributors. Contact the nearest parts
distributor in your area.

5
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental rules.
In particular:
✓ Never touch the appliance with wet hands or feet;
✓ Do not operate the appliance barefooted;
✓ Do not allow children or disabled people to use the appliance without your supervision.
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or unreasonable use of the appliance.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified tech-
nician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not
be left around within easy reach of children, as these may cause serious injuries.
The packaging material is recyclable and is marked with the recycling symbol
.
✓
Do not attempt to modify the technical characteristics of the appliance as this may
become dangerous to use.
✓ Do not carry out cleaning or maintenance operations on the appliance without
having previously disconnected it from the electric power supply.
✓ After use, ensure that the knobs are in OFF position.
✓ Do not allow children or other incapable people to use the appliance without
supervision.
✓ During and after use of the range, certain parts will become very hot. Do not touch
hot parts.
✓ eep children away from the range when it is in use.
✓ This range is supplied with a protective film on steel and aluminium parts. This film
must be removed before installing/using the appliance.
✓ Fire risk! Do not store flammable material in the ovens, and in the warming drawers.
✓ Make sure that electrical cables connecting other appliances in the proximity of the
range cannot come into contact with the hob or become entrapped in the oven
doors.
✓ Do not line the oven walls with aluminium foil. Do not place shelves, broiling pan,
pans or other cooking utensils on the base of the oven chamber.
✓ The manufacturer declines all liability for injury to persons or damage to property
caused by incorrect or improper use of the appliance.
✓ To avoid any possible hazard, the appliance must be installed by qualified personnel
only. Any repairs by unqualified persons may result in electric shock or short circuit.
In order to avoid possible injuries to your body or to the appliance, do not attempt
any repairs by yourself. Such work should be carried out by qualified service
personnel only.
✓ Danger of burns! The oven and cooking accessories may become very hot during
operation. Make sure children are kept out of reach and warn them accordingly. To
avoid burns use kitchen clothes and gloves when handling hot parts or utensils.
✓ Stand away from the range when opening oven door. Hot air or steam which
escapes can cause burns to hands, face, and/or eyes.
✓ Never clean the range, ovens and warmer drawers with a high-pressure steam
cleaning device, as it may provoke a short circuit.
✓ This appliance is intended for use in your household. Never use the appliance for
any other purpose!
✓ If you should decide not to use this appliance any longer (or decide to substitute an
older model), before disposing of it, it is recommended that it be made inoperative in
an appropriate manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous parts be made
harmless, especially in relation to children who could play with old appliances.
Remove the doors and drawers before disposal to prevent entrapment.

6
CAUTION:
If the burner is accidentally extinguished, turn the gas off
at the control knob and wait at least 1 minute before
attempting to relight.
CAUTION:
Gas appliances produce heat and humidity in the environ-
ment in which they are installed.
Ensure that the cooking area is well ventilated following
national/local codes.
features
쐃
COO ING HOB
1. Rapid burner (R) - 10000 BTU/hr
2. Triple-ring burner (TR) - 12000 BTU/hr
3. Dual burner (D) - 16000 BTU/hr (Natural gas),
15000 BTU/hr (LP/Propane)
4. Griddle burner - 12000 BTU/hr
Note:
- The electric gas-lighting device is incorporated into the
knobs.
- The appliance has a safety valve system fitted, the flow of
gas will be stopped if and when the flame should acciden-
tally go out.
1111
2222
33
11
22
3
4
Fig. 1.1
WARNING - VERY IMPORTANT NOTICE
Never obstruct the slots on the backguard / island trim.
Backguard fitted
Island trim fitted

7
CONTROLS DESCRIPTION
Gas cooking hob controls:
1. Front left burner (2) control knob
2. Rear left burner (1) control knob
3. Central left dual burner (3) control knob
4. Central right griddle burner (4) control knob
5. Rear right burner (1) control knob
6. Front right burner (2) control knob
Left self cleaning oven controls:
7. Function selector control knob
8. Electronic programmer
9. Heating pilot light
10. Oven on pilot light
11. Door locked pilot light
Right self cleaning oven controls:
12. Function selector control knob
13. Electronic programmer
14. Heating pilot light
15. Oven on pilot light
16. Door locked pilot light
Left warming drawer controls:
17. Warming drawer control knob
18. Warming drawer on pilot light
Right warming drawer controls:
19. Warming drawer control knob
20. Warming drawer on pilot light
A
U
T
O
A
U
T
O
1
87
10 18 20119 15 1614
2 3
17 19
4 5 6
13 12
햲
Fig. 1.2

8
Fig. 2.2
Fig. 2.1
GAS BURNERS (Rapid and triple ring)
Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2.1) which
control the valves.
Turning the knob so that the symbols printed on itself point to the symbol printed on
the control panel achieves the following functions:
The maximum aperture position permits rapid boiling of liquids, whereas the minimum
aperture position allows simmer warming of food or maintaining boiling conditions of
liquids.
To reduce the gas flow to minimum, rotate the knob further anti-clockwise to point the
indicator towards the position.
Other intermediate operating adjustments can be achieved by positioning the
indicator between the maximum and minimum aperture positions, and never between
the maximum aperture and positions.
N.B. When the range is not being used, set the gas knobs to their positions
and also close the gas shut-off valve placed on the main gas supply line.
how to use the top burners
쐇
Knob
position Function RAPID burn r TRIPLE RING burn r
closed
valve
maximum
rate
minimum
rate

9
Caution!
The range becomes very hot during operation.
eep children well out of reach.
LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE
SAFETY DEVICE
(Rapid and triple ring)
In order to light the burner, you must:
1 – Push and turn the knob in an anti-clockwise direction up to the position
(maximum rate), push in and hold the knob until the flame has been lit (fig. 2.2).
The sparks produced by the lighter situated inside the relative burner will light the
flame.
In the event that the local gas supply conditions makes it difficult to light the burn-
er in position, try again with the knob in position.
If there is no mains electrical supply, bring a lighted match close to the burner.
2 – Wait for about ten seconds after the gas burner has been lit before letting go the
knob (safety device activation delay).
3 – Adjust the gas valve to the desired position.
If the burner flame should go out for some reason, the safety valve will automatically
stop the gas flow.
To re-light the burner, return the knob to the closed position, wait for at least 1
minute and then repeat the lighting procedure.
If your local gas supply makes it difficult to light the burner with the knob set to maxi-
mum, set the knob to minimum and repeat the operation.
햳

10
Fig. 2.3
햳
Fig. 2.4

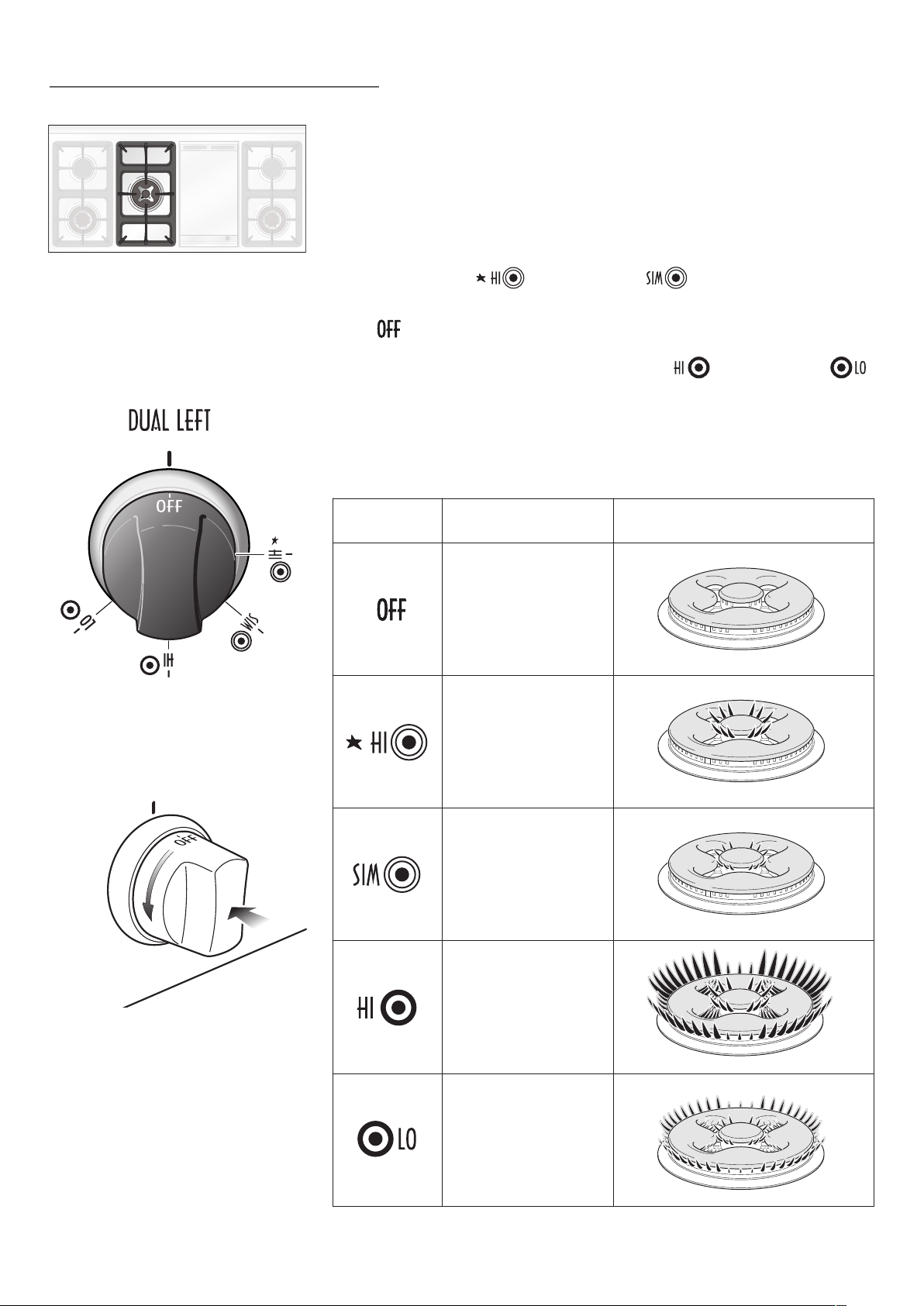

GAS BURNER (Dual)
The Dual Burner is a very flexible burner which allows different regulations and optimal
cooking.
It is composed by one inner and two outer crowns; the flame of the inner crown can be
regulated separately from the flames of the outer crowns.
The Dual Burner can be used:
- as a small burner (flame produced only by the inner crown) which can be adjusted
from the maximum ( )to the minimum ( )position. Intermediate oper-
ating adjustments can be achieved by positioning the indicator between the maxi-
mum and minimum opening positions, and never between the maximum opening
and position.
- as a high-power burner (all flames produced simultaneously by inner and outer
crowns) which can be adjusted from the maximum ( )to the minimum ( )
position.
Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2.3) which
control the valves.
Turning the knob so that the symbols printed on itself point to the symbol printed on
the control panel achieves the following functions:
Knob
position Function DUAL burn r
closed
valve
maximum rate
of inner crown
(only inner flame
at the maximum)
minimum rate
of inner crown
(only inner flame
at the minimum)
maximum rate of
inner + outer crowns
(inside and outside
flames in
simultaneously
at the maximum)
minimum rate of
inner + outer crowns
(inside and outside
flames in
simultaneously
at the minimum)

11
햳
LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE
SAFETY DEVICE (Dual Burner)
In order to light the burner, you must:
1 – Push and turn the knob in an anti-clockwise direction up to the position
(maximum rate of inner crown); push in and hold the knob until the flame has been
lit.
The sparks produced by the lighter situated inside the relative burner will light the
flame.
In the event that the local gas supply conditions makes it difficult to light the burn-
er in position, try again with the knob in position.
If there is no mains electrical supply connection, bring a lighted match close to the
burner.
2 – Wait for about ten seconds after the gas burner has been lit before letting go the
knob (safety device activation delay).
3 – Adjust the gas valve to the desired position.
If the burner flame should go out for some reason, the safety valve will automatically
stop the gas flow.
To re-light the burner, return the knob to the closed position ( ), wait for at least 1
minute and then repeat the lighting procedure.
N.B. When the range is not being used, set the gas knobs to their positions
and also close the gas shut-off valve placed on the main gas supply line.
CAUTION!
The range becomes very hot during operation. eep children well out of reach.

12
햳

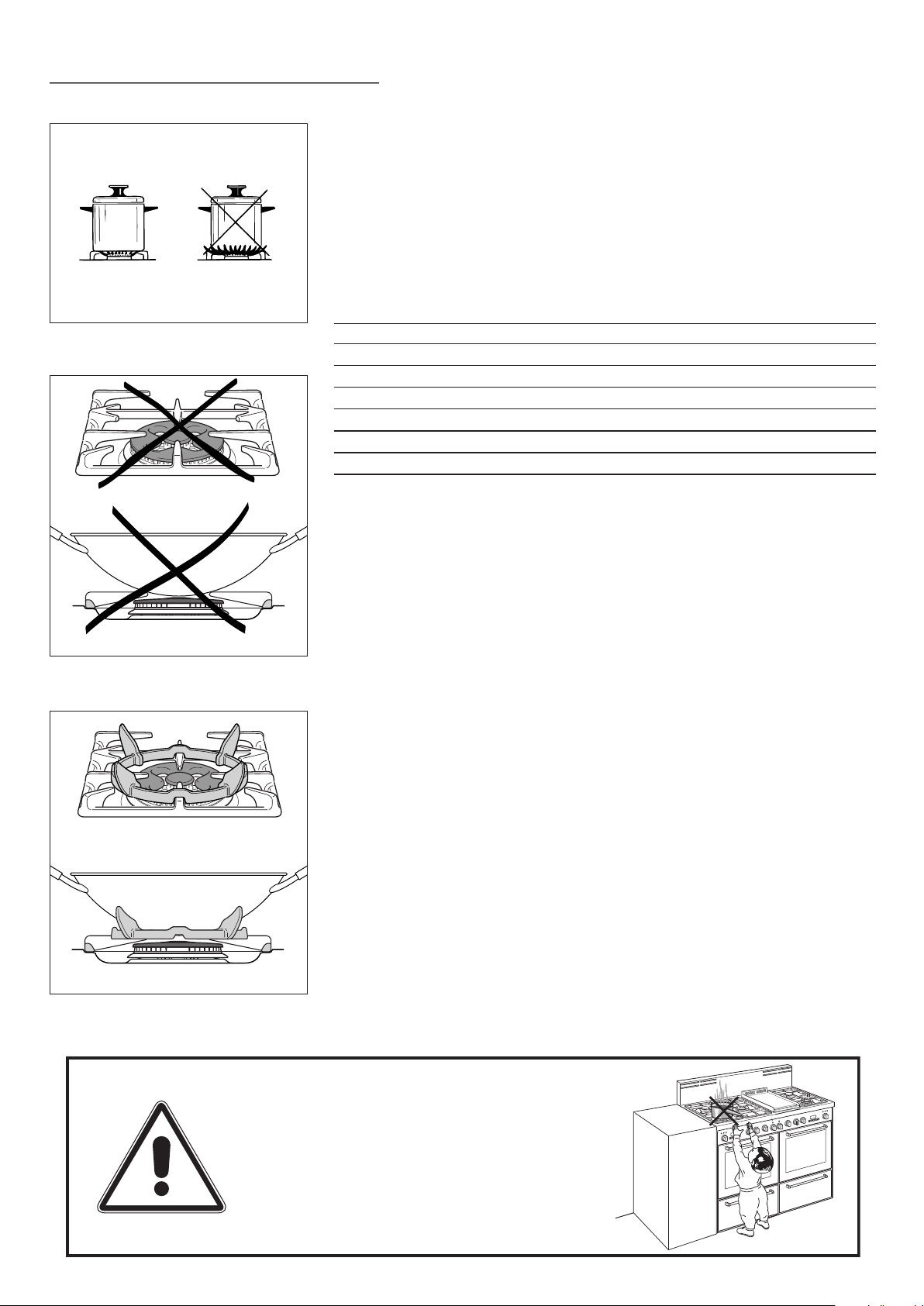

CORRECT USE OF DUAL BURNER (Fig. 2.6a - 2.6b)
The flat-bottomed pans are to be placed directly onto the pan-support.
When using a WO you need to place the supplied stand in the burner to avoid any
faulty operation of the dual burner (Figs. 2.6a - 2.6b).
IMPORTANT:
The special grille for wok pans (fig. 2.6b) MUST BE PLACED ONLY over the pan-rest
for the dual burner.
Fig. 2.6a
WRONG
Fig. 2.6b
CORRECT
CHOICE OF BURNER (fig. 2.5)
The symbols printed on the panel above the gas knobs indicate the correspondence
between the knob and the burner.
The most suitable burner is to be chosen according to the diameter and volume capac-
ity of the container to be warmed.
It is important that the diameter of the pots or pans suitably match the heating poten-
tial of the burners in order not to jeopardise the efficiency of the burners, bringing about
a waste of gas fuel.
A small diameter pot or pan placed on a large burner does not necessarily mean that
boiling conditions are reached quicker.
Fig. 2.5
DIAMETERS OF PANS WHICH MAY BE USED ON THE HOB BURNERS
BURNER MINIMUM MAXIMUM
Rapid 24 cm (9" 7/16) 26 cm (10" 3/16)
Triple-ring 26 cm (10" 3/16) 28 cm (11" 1/16)
Dual 26 cm (10" 3/16) 28 cm (11" 1/16)
Wok pans max 36 cm (14" 3/16)
Do not use pans with concave or convex bases
Make sure that the handles of
cookware do not stick out over the
edge of the range, to avoid them
being knocked over by accident.
This also makes it more difficult
for children to reach the cooking
vessels.

13

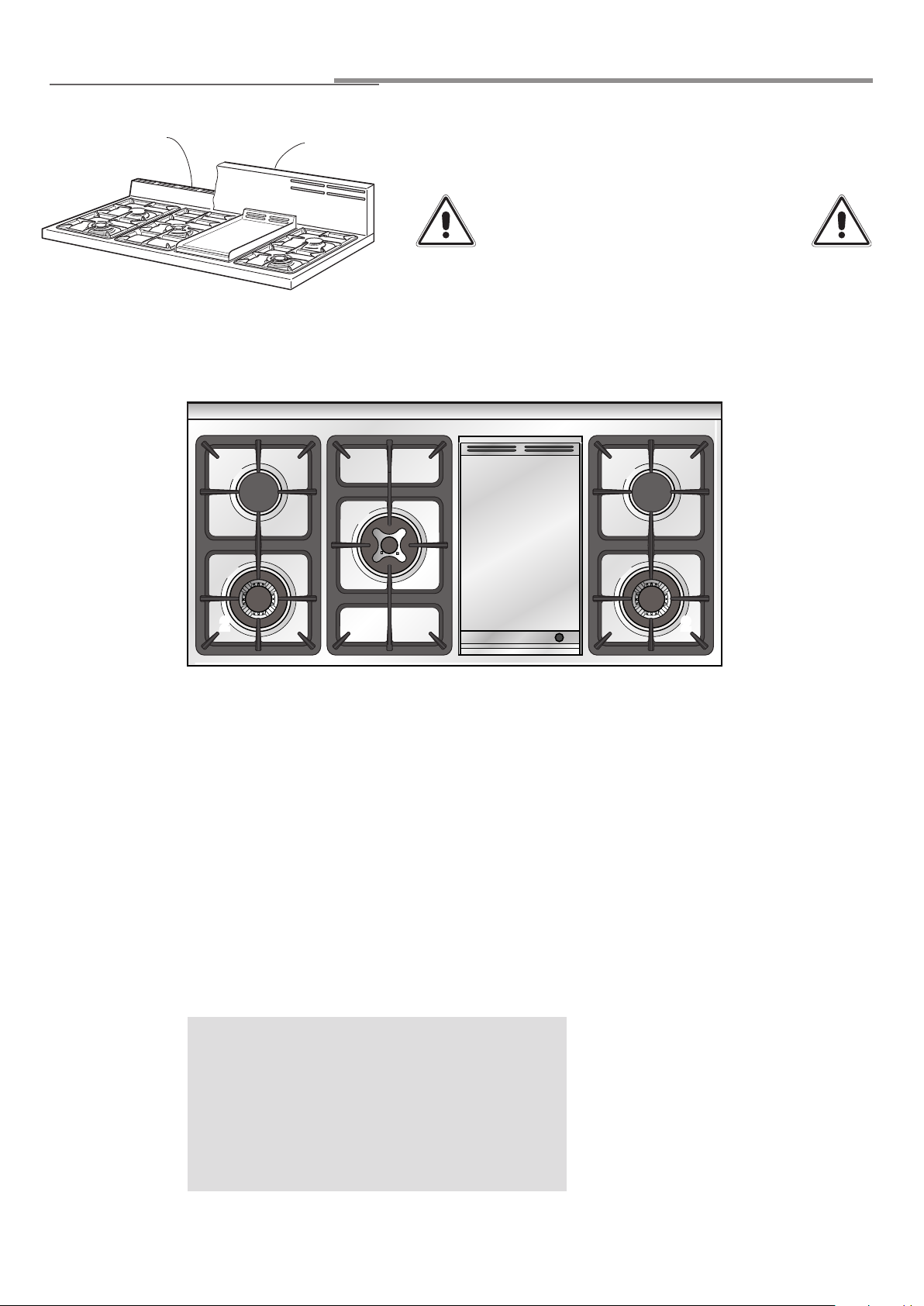

GAS GRIDDLE
■The griddle plate, supplied with this range, is made of stainless steel. It shall
be installed before using the range.
■Never use the griddle without using the supplied griddle plate. Do not use other
griddle plates or cookware on the griddle burner.
■Never use the griddle plate in combination with the rapid, triple-ring or dual
burners. It shall be used only in combination with the griddle burner.
■Never use the supplied griddle plate in combination with other ranges / products.
■Do not use the griddle plate for baking or grilling.
■Do not use cookware on the griddle plate. Do not put aluminium foils.
■Do not remove the griddle plate immediately after use; let it to cool down. We
suggest to use always suitable protective gloves.
■Do not pour cold water on the hot griddle plate. This may warp the griddle plate,
producing an uneven cooking surface.
■ATTENTION: the griddle cooking plate is designed with a front integrated cup
to settle the cooking juices and then to drain these juices (through a hole) to
the bottom grease tray. To avoid burns or scalds take care not to spill the hot
juices.
eep special attention when handling / moving the griddle plate.
■For safety reasons the gas griddle does not operate when one oven is
setted in the self cleaning mode (never operate both ovens of the range in
self cleaning mode at the same time): a safety device disconnects the gas
flow to the griddle burner. We remark that this safety device operates when
the oven selector knob becomes turned in self cleaning mode; this means
that the griddle burner does not work also if the self cleaning mode has
not been started by mean of the digital programmer.
how to use the gas gridd e 
IMPORTANT WARNINGS:
■USE ONLY THE GRIDDLE STAINLESS
STEEL PLATE SUPPLIED WITH THE
RANGE.
■WARNING: NEVER OPERATE THE
GAS GRIDDLE, WITH ONE OF THE
OVENS SET IN THE SELF CLEANING
MODE, BY EEPING THE GAS
GRIDDLE CONTROL NOB PRESSED.
■THE GRIDDLE AND ITS PARTS ARE
HOT. USE CARE WHEN OPERATING,
CLEANING OR SERVICING TO AVOID
BURNS OR SCALDS. EEP CHILDREN
OR INFIRM PERSONS AWAY. USE
ALWAYS SUITABLE PROTECTIVE
GLOVES.
■THE GRIDDLE PLATE IS HEAVY. EEP
ATTENTION WHEN HANDLING.
ALWAYS OPERATE BY USING BOTH
HANDS.
■THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF
DAMAGE CAUSED BY IMPROPER,
INCORRECT OR ILLOGICAL USE OF
THE GAS GRIDDLE.
■DO NOT OBSTRUCT THE GRIDDLE
BURNER VENTS.
■DO NOT STORE MATERIAL INSIDE
THE BURNER HOUSING.
■FIRE HAZARD: REMOVE ANY
SPILLAGES FROM THE BURNER
HOUSING / GRIDDLE BURNER
BEFORE OPERATION. PAY SPECIAL
ATTENTION NOT TO SPILL GREASE
OR COO ING JUICES WHEN
REMOVING FOR CLEANING THE
GRIDDLE PLATE AND THE GREASE
TRAY.
■PAY ATTENTION NOT TO SPILL
WATER OR DETERGENTS INSIDE THE
BURNER HOUSING / GRIDDLE
BURNER WHEN CLEANING THE
RANGE COO TOP
Burner
housing
Griddle burner vents
Griddle stainless steel plate
Griddle integrated
front grease tray
Grease drain hole
Griddle gas burner
Bottom grease tray
Griddle gas burner igniter
(spark plug)
Griddle gas
burner
safety valve
(thermocouple)
Fig. 3.1

14
햴

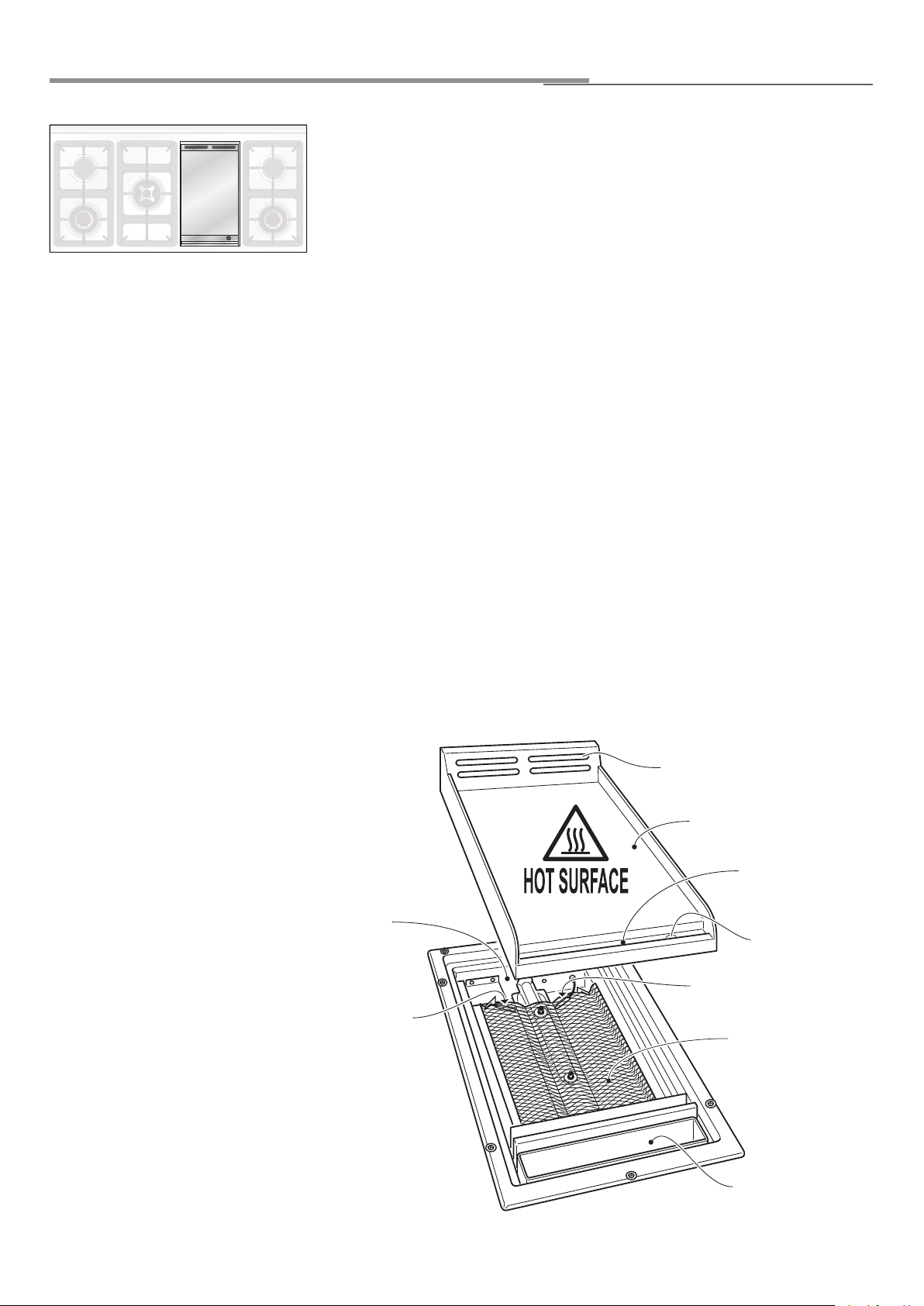

GRIDDLE STAINLESS STEEL PLATE POSITION-
ING
1 - Before installing the griddle plate fit the empty bottom grease
tray.
2 - The griddle plate must be correctly placed to operate properly.
The integrated grease tray for cooking juices shall be positioned
towards the front of the range.
3 - Check the correct positioning of the griddle plate: it shall be flat
and stable. When correctly installed it must not be possible to
move it horizontally.
GREASE TRAY
Cooked-off grease drains from the griddle plate to the integrated
front grease tray; then, through the drain hole, the grease is accu-
mulated in the bottom grease tray.
Remove and clean both grease trays after each use: if grease is per-
mitted to accumulate, fire hazard could occur. Wash in hot soapy
water or with an antibacterial cleaner. (USE CAUTION WHEN FILLED
WITH HOT GREASE).
Warning:
Before cleaning the grease trays, turn control knob to OFF posi-
tion and allow griddle to cool. Use care when cleaning the
grease trays so that the contents are not spilled.
Front side
Rear side
Fig. 3.3
Fig. 3.2
WRONG
WRONG
WRONG
WRONG
CORRECT

15
Fig. 3.5
Fig. 3.4
GRIDDLE BURNER
The griddle burner generates the infra-red rays which ensure an uniform cooking on the
griddle cooking plate. Gas flow to the burner is adjusted by turning the knob (illustrat-
ed in fig. 3.4) which controls the valve. The following functions are achieved by turning
the knob:
To reduce the gas flow to minimum, rotate the knob further anti-clockwise to point the
indicator towards the position. Other intermediate operating adjustments can be
achieved by positioning the indicator between the maximum and minimum aperture
position and never between the maximum aperture and position.
N.B. When the range is not being used, set the gas knobs to their posi-
tions and also close the gas shut-off valve placed on the main gas supply
line.
Knob
position Function T mp ratur GRIDDLE burn r
closed
valve
maximum
rate
minimum
rate About 392 °F (200 °C)
햴
About 716 °F (380 °C)
_

16
햴
LIGHTING THE GAS GRIDDLE BURNER FITTED WITH FLAME
FAILURE SAFETY DEVICE
In order to light the burner, you must:
1 - With the griddle plate correctly installed push and turn the knob in an anti-clock-
wise direction up to the position (maximum rate), push in and hold the knob
until the flame has been lit (fig. 3.5).
The sparks produced by the lighter positioned on the burner will light the flame.
Check the ignition of the burner by looking through the opening between the bot-
tom side of the griddle plate and the cooktop.
In the event that the local gas supply conditions makes it difficult to light the burn-
er in position, try again with the knob in position.
Never continue this operation for more than 15 seconds. If the burner has still not
ignited, wait for about 1 minute prior to repeating the ignition.
If after 2-3 times the burner has still not ignited do not repeat the lighting proce-
dures but remove the griddle plate (if hot, let it to cool) from the range cooktop (by
using suitable protective gloves) and wait for about 10 minutes prior to repeating
the ignition starting from above step 1.
2 - Wait for about ten seconds after the gas burner has been lit before letting the knob
go (safety device activation delay).
3 - If there is no mains electrical supply:
a - Remove the griddle plate (if hot, let it to cool) from the cooktop by using suit-
able protective gloves.
b - Push and turn the knob in an anti-clockwise direction up to the position
(maximum rate) and bring a lighted match close to the right and left side of the
burner. Pay special attention to burner flames: do not lean over the burner.
c- In the event that the local gas supply conditions makes it difficult to light the
burner in position, try again with the knob in position.
d - eep the knob pressed (fig. 3.5).
Never continue this operation for more than 15 seconds. If the burner has still
not ignited, wait for about 1 minute prior to repeating the ignition.
If after 2-3 times the burner has still not ignited do not repeat the lighting pro-
cedures but wait for about 10 minutes prior to repeating the ignition starting
from above step 3-a.
e - Wait for about ten seconds after the gas burner has been lit before letting go
the knob (safety device activation delay).
f - Re-fit the griddle plate in its housing by using suitable protective oven gloves.
Pay special attention to burner flames.
g - Check the operation of the burner by looking through the opening between the
bottom side of the griddle plate and the cooktop.
4 - Adjust the flame to the desired position.
If the burner flame should go out for some reason, the safety valve will automatically
stop the gas flow.
To re-light the burner, return the knob to the closed position, wait for at least 1 minute
and then repeat the lighting procedure. If your local gas supply makes it difficult to light
the burner with the knob set to maximum, set the knob to minimum and repeat the
operation.
Caution!
The range becomes very hot during operation.
eep children well out of reach.

17
USING THE GRIDDLE
Before using the griddle the griddle plate cooking surface shall be seasoned.
Seasoning is an important process which keeps food from sticking during cook-
ing and avoid surface corrosion. Once the griddle plate is seasoned, it can be used
with or without additional grease or shortening. This shall also be done after every
cleaning.
Seasoning the griddle cooking surface:
1 - Clean the griddle surface thoroughly.
2 - Pour onto the center of the griddle plate a small amount of cooking oil (about one
ounce per square foot of surface).
Do not use corn oil. Spread oil over entire surface with a paper towel or coarse
cloth to create a thin film.
3- Turn the control knob to the position (minimum rate); when the oil begins to
smoke, turn the control knob to the position.
Allow griddle to cool.
Wipe off excessive oil with paper towel or cloth.
4 - Repeat the above procedure (steps 2 and 3) two to three times until the griddle
plate has a slick, mirror-like surface.
5 - When the griddle is cool, wipe it clean with a paper towel. Apply a very thin layer
of vegetable oil. The griddle cooking plate is now ready to use.
Do not place another utensil on the seasoned griddle plate to simmer or keep food
warm.
Metallic taste or discolored foods are signs of improper or inadequate seasoning
or may result from cooking acidic foods. If this occurs, wash thoroughly and sea-
son.
When using the griddle:
1 - Check that the bottom grease tray is empty, clean and correctly fitted.
2 - Check the right positioning of the griddle cooking plate. The integrated front grease
tray shall be empty and clean.
3 - Turn on the griddle burner.
4 - Allow 10 to 15 minutes for the griddle to preheat.
5 - Place the food on the griddle and cook to desired doneness.
6 - Remove food particles with a metal spatula (not supplied) during cooking to make
the clean up easier and to avoid including those particles in the cooked food. Be
sure to keep the spatula flat. The corners can scratch. Direct the flow of grease to
the center of the front integrated grease tray. Pay attention not to spill the cook-
ing juices.
7 - Do not overheat the griddle cooking plate. Turn it off when not in use, or lower heat
between cooking loads.
Do not overheat or leave empty griddle plate on burner. Do not use high heat when
cooking. High, intense or uneven heat may warp your griddle. Since steel heats
evenly, you will not need to use extremely high cooking temperatures.
It is normal for the griddle to darken with use. Variations in color are normal and
should be expected.
Remove and clean the grease trays (one integrated in the front portion of the grid-
dle plate and one positioned below the griddle plate, in the front part - see
"GREASE TRAY" chapter) after every use. Use care when cleaning the grease
trays so that the contents are not spilled.
The griddle and its parts are hot.
Use care when operating, cleaning or servicing to avoid burns or scalds. keep
children or infirm persons away. Use always suitable protective gloves.
햴

18
햴
GRIDDLE CARE
After using the griddle, always pour grease from the grease trays (one integrated in the
front portion of the griddle plate and one positioned below the griddle plate, in the front
part - see "GREASE TRAY" chapter).
Use a dry cloth to wipe up any accumulation and wash in hot soapy water or with an
antibacterial cleaner. The grease trays need to be cleaned after each use of the griddle:
if grease is permitted to accumulate, a fire hazard could occur.
It takes very little time and effort to keep the griddle attractive and performing at top effi-
ciency. If grease is permitted to accumulate, it will form a gummy cake and then car-
bonize into a hard substance, which is extremely difficult to remove. To prevent this con-
dition, the following suggestions for proper cleanliness should be followed:
1 - After each use, scrape the griddle with a scraper or a flexible spatula to remove
excess fat and food. If there is an accumulation of burned on fat and food, the grid-
dle should be thoroughly scoured and re-seasoned. Use pumice or griddle stone
while the griddle is warm. Do not use steel wool because of the danger of steel sliv-
ers getting into the food.
2 - Daily, use a clean cloth and a good non-abrasive cleaner to clean the stainless steel
body of the griddle.
3 - Once a week, clean the griddle surface thoroughly. If necessary, use a griddle
stone, screen or Scotch Bright pad on the surface. Rub with the grain of the metal
while the griddle is still warm. A detergent may be used on the plate surface to help
clean it, but be sure the detergent is thoroughly removed. After removal of the
detergent, the griddle must be reseasoned.
If the griddle usage is very high, consider going through the weekly cleaning pro-
cedures more often than once a week.
Never put the hot griddle into cold water. This may warp the griddle plate, pro-
ducing an uneven cooking surface.
After each cleaning, wipe the griddle surface with a light film of cooking oil to pro-
tect the finish. Do not use corn oil. Do not wash griddle in dishwasher.
WARNING. VERY IMPORTANT.
Before any operation of maintenance disconnect the appliance from the elec-
trical mains supply. Before cleaning the griddle, turn control knob to OFF and
al low griddle to cool.

19
how to use the warmer drawer
USING THE WARMING DRAWER FOR THE FIRST TIME
•Switch on the warming drawer empty at maximum power ( ) for about 2 hours to
remove traces of grease and smells from the components.
• When the warming drawer has cooled down and unplugging the range, clean the
inside of the drawer with a cloth soaked in water and neutral detergent and dry it per-
fectly.
WARNING: The drawer is hot during operation, use the handle.
WARNING:
The warming drawer is for keep-
ing hot food hot. Never use it to
warm or heat a room or to warm-
ing plates.
IMPORTANT:
During the self-cleaning cycle the
warming drawers do not operate.
If during self-cleaning cycle the
warming drawer control knob has
been turned ON return the knob
to the OFF position. Otherwise at
the end of the self-cleaning cycle
and after having turned the oven
selector control knob to the OFF
position, the warming drawer will
operates.
CORRECT USE OF THE WARMING DRAWER
• The warming drawer will keep hot cooked foods at serving temperature.
• Always start with hot food.
• DO NOT use to heat cold food other than proofing yeast dough, crisping crackers,
chips, and dry cereal, or warming dishes or plates.
• Use care when opening the drawer. Open door a crack and let hot air or steam
escape before re-moving or replacing food.
• Do not place food in unopened containers in the drawer. Pressure could build up and
cause container to burst.
• Do not put directly the food inside the warming drawer but always use suitable con-
tainers/pans.
• Do not touch the interior surface of the drawer while it is in use. The interior of the
drawer could become hot enough to cause burns.
• Use only dry potholders. Moist or damp potholders on hot surfaces may cause burns
from steam. Do not use a towel or other bulky cloth in place of potholders. Do not let
potholders touch hot heating element located upper the drawer.
• Do not use aluminum foil to line the drawer. Foil is an excellent heat insulator and will
trap heat beneath it. This will upset the performance of the drawer and it could dam-
age the interior finish.
• Do not store flammable materials in the drawer.
• Do not use plastic containers. Do not use no heat resistant containers.
• Do not use the warming drawer as a storage drawer.
GENERAL FEATURES
The warming drawer is fitted with an heating element (500 W) placed on the top.
The heating can be regulated from 86 °F (30 °C) [ position] to 248 °F (120 °C) [
position].
On the top part of the drawer a moisture selector is fitted. For correct use see the
“MOISTURE SELECTOR” chapter.
Fig. 4.1
TO USE THE WARMING DRAWER
• Push and turn the control knob to a temperature setting: LO, HI or between LO and
HI position.
• Slide the Moisture selector to a Moist or Dry position. Intermediate positions can be
setted (fig. 4.2) (see the “MOISTURE SELECTOR” chapter).
• Allow time for the drawer to be preheated.
• Preheat with rack in place if using that arrangement.
• Preheat empty serving dish while preheating drawer.
• Add cooked, hot food in cooking utensil or to heat-safe serving dishes.
• Food may be kept hot in its cooking container or transferred to a heat-safe serving
dish.
• Aluminum foil may be used to cover food.
CAUTION: Plastic containers or
plastic wrap can melt if in direct
contact with the drawer or a hot
utensil. If it melts onto the drawer,
it may not be removable.
쐏

20
햵
REVERSIBLE RAC
The rack shall be positioned as per fig-
ures 4.3 and 4.4.
MOISTURE SELECTOR (fig. 4.2)
MOIST position: Vents closed
DRY position: Vents opened
To keep foods moist, slide the moisture
selector to the left. This closes the vents
and the moisture remains inside the
drawer.
In this setting condensation may occur
around the inside edge of the drawer.
To keep foods crisp, slide the moisture
selector to the right. This opens the vents
and allows the moisture to escape. With
the vents open, it is normal for moisture
to collect on surfaces above the warming
drawer.
MOIST
DRY
Moisture selector
Fig. 4.2
Fig. 4.3
Fig. 4.5 Fig. 4.6
Fig. 4.4
WARNING LIGHT
The signal light is located above the con-
trol knob and turns “ON’ when the warm-
ing is set. It stays on until the knob is
turned back to the “OFF” position.
TEMPERATURE SELECTOR
The setting can be anywhere between
LO and HI position.
nob position °F °C
LO 86 30
between LO and HI from 87 to 247 from 31 to 119
HI 248 120
