Verona VEFSEE 244 P Series User manual

IMPORTANT - PLEASE READ AND FOLLOW
✓ Before beginning, please read these instructions completely and carefully.
✓ Do not remove permanently affixed labels, warnings, or plates from the product. This
may void the warranty.
✓ Please observe all local and national codes and ordinances.
✓ Please ensure that this product is properly grounded.
✓ The installer should leave these instructions with the consumer who should retain
for local inspector's use and for future reference.
Electrical installation must be in accordance with the National Electrical Code, ANSI/
NFPA70 - latest edition and/or local codes.
IN CANADA: Electrical installation must be in accordance with the current CSA C22.1
Canadian Electrical Codes Part 1 and/or local codes.
This range is supplied with a protective film on steel and aluminium parts.
This film must be removed before installing/using the appliance.
FOR INSTALLER ONLY
THIS RANGE IS FOR RESIDENTIAL USE ONLY
• INSTALLATION INSTRUCTIONS
IMPORTANT - PLEASE READ AND FOLLOW
ELECTRIC RANGE
for residential use only
Model: VEFSEE 244 P..

2
WARNING
• ALL RANGES CAN TIP
• INJURY TO PERSON COULD RESULT
• INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
• SEE INSTALLATION INSTRUCTIONS
This appliance is designed and manufactured solely for the cooking of domestic (household)
food and in not suitable for any none domestic application and therefore should not be used
in a commercial environmement.
The appliance guarantee will be void if the appliance is used within a none domestic
environnement i.e. a semi commercial, commercial or communal environment.

3
WARNING!
THIS APPLIANCE HAS TO BE INSTALLED BY A QUALIFIED INSTALLER.
Installation must conform with local codes.
Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage. Consult a
qualified installer or a service agent.
IMPORTANT: The use of suitable protective clothing/gloves is recommended when handling, installing of this appliance.
INSTALLATION INSTRUCTIONS
TOOLS NEEDED FOR INSTALLATION (NOT SUPPLIED WITH THE APPLIANCE)
Screwdriver Wrench
Tape
measurePencil
Adjustable
pliers
Adjustable
wrench
Suitable protective
gloves Drill
Hammer

4
WARNING!!
ELECTRICAL GROUNDING INSTRUCTIONS
The range must be electrically grounded in accordance
with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA No. 70-latest edition.
Installation should be made by a Iicensed electrician.
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
If an external electrical source is utilized, the installation must
be electrically grounded in accordance with local codes or, in
the absence of local codes, with the national Electrical Code,
ANSI/NFPA 70.
REPLACEMENT PARTS
Only authorized replacement parts may be used in performing
service on the range. Replacement parts are available from
factory authorized parts distributors. Contact the nearest parts
distributor in your area.
GENERAL INFORMATION
WARNING!!
1. This appliance shall not be used for space heating. This
information is based on safety considerations.
2. AlI openings in the wall behind the appliance and in the floor
under the appliance shall be sealed.
3. Keep appliance area clear and free from combustible
materials, gasoline, and other flammable vapors.
4. Do not obstruct the flow of ventilation air.
5. Disconnect the electrical supply to the appliance before
servicing.
6. When removing appliance for cleaning and/or service;
A. Disconnect AC power supply.
B. Carefully remove the range by pulling outward.
CAUTION: Range is heavy; use care in handling.
7. Electrical Requirement
Electrical installation should comply with national and local
codes.
8. The misuse of oven door (e.g. stepping, sitting, or leaning
on them) can result in potential hazards and/or injuries.
9. When installing or removing the range for service, a rolling
lift jack should be used. Do not push against any of the
edges of the range in an attempt to slide it into or out of
the installation. Pushing or pulling a range (rather than using
a lift jack) also increases the possibility of bending the leg
spindles or the internal coupling connectors.

5
installation 
PROXIMITY TO SIDE CABINETS
1. This range may be installed directly adjacent to existing 36" (914 mm) high base
cabinets.
Range dimensions:
• width: 23” 7/8 (606.5 mm)
• depth: 24” 11/64 (614.1 mm)
• height (without backguard): MIN 35” 17/32 (902.5 mm) - MAX 36” 7/32
(920 mm)
• backguard (height): 4” 7/16 (113 mm)
Grounded outlet should be located 7” 9/32 (185 mm) from the floor and from the
rear left to the rear right side of the range.
2. The range CANNOT be installed directly adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical surfaces above 36” (914 mm) high.
There must be a minimum of 3” (76 mm) side clearance from the range to such
combustible surfaces TO THE LEFT above the 36” (914 mm) high countertop; or
there must be a minimum of 3” (76 mm) side clearance from the range to such
combustible surfaces TO THE RIGHT above the 36” (914 mm) high countertop.
IMPORTANT: One side (left or right) above the 36” (914 mm) high countertop
must always be kept clear.
3. The maximum upper cabinet depth recommended is 13” (330 mm). Wall cabinet
above the range must be a minimum of 30” (762 mm) above the countertop for a
width of minimum 24” (609.6 mm): it has to be centred with the range. Side wall
cabinets above the range must be a minimum of 18” (457 mm) above the coun-
tertop.
4" 7/16
(113 mm)
(606.5 mm)
23" 7/8
24" 11/64
MIN 35" 17/32 (902.5 mm)
MAX 36" 7/32 (920 mm)
(614.1 mm)
Fig. 1.1
Fig. 1.2
ELECTRIC CONNECTION
(185 mm)
7" 9/32
Dotted line showing the position
of the range when installed
Area for electric connection

6

A
A
B
(914 mm)
36" 30" min.
(762 mm)
(457 mm)
18" min.
0"
0"
(0 mm)
(0 mm)
20" min. (500 mm)
3"
min. (76 mm)
13" max. (330 mm)
0"
(0 mm)
3"
min. (76 mm)
13" max. (330 mm)
(914 mm)
36"
0"
(0 mm)
20" min. (500 mm)
30" min.
(457 mm)
18" min.
(762 mm)
PROXIMITY TO SIDE CABINETS
Fig. 1.4
ASSEMBLING THE BACKGUARD
It is mandatory to install the backguard
Assemble the backguard as shown in figure 1.5:
• Screw the 2 screws “A” interposing the spacers.
• Screw the central screw “B”.
Fig. 1.3
Fig. 1.5

7
LEVELLING THE RANGE
The range is equipped with 4 LEVELLING FEET (supplied in a separate kit) and may be
levelled by screwing or unscrewing the feet (fig. 1.8).
It is important to observe the directions of figures 1.6, 1.7a, 1.7b.
+ 5/16"
+ 8 mm
+ 5/16"
+ 8 mm
0 mm
0"
+ 11/16"
+ 17.5 mm
Fig. 1.6
Fig. 1.7a Fig. 1.7b
Fig. 1.8
ANTI-TIP STABILITY DEVICE INSTALLATION INSTRUCTIONS
1. The anti-tip bracket has to be attached as shown on figure below (only rear right
side), it has to be fixed on the floor and on the rear wall by no. 4 (four) suitable screws
(not supplied).
2. After fixing the anti-tip bracket, slide range into place. Be sure the rear right foot
slides under the anti-tip bracket attached.
Supplied with the range
in a separate kit
Supplied with the range
in a separate kit
YOU MUST USE STABILITY
ANTI TIP BRACKET TO
PREVENT UNIT FROM
TIPPING.
=
=
(223 mm)
8" 25/32
Dotted line showing the position
of the range when installed
ANTI-TIP STABILITY
DEVICE FIXING
Rear right
feet of range
Fig. 1.9
Anti-tip stability
device


8
electrical connection

ELECTRICAL REQUIREMENTS
• This appliance must be properly installed and grounded by a qualified technician in
accordance with the National Electrical Code ANSI/NFPA No.70 (latest edition) and
local electrical code requirements. IN CANADA: Electrical installation must be in
accordance with the current CSA C22.1 Canadian Electrical Codes Part1 and/or local
codes.
• This appliance may be connected by means of permanent “Hard Wiring” or “Power
Supply Cord Kit”. Power supply cord is not supplied, but it is available through your
local electric supply house.
• Use only 3-conductor or 4-conductor CSA/UL listed range cord rated at 55 amps
with 250 V minimum and provided with ring terminals. These cords should be pro-
vided with strain relief or conduit connector.
Warning: Frame grounded through neutral lead. If used in,
- New branch-circuit installations (1996 NEC),
- Mobile homes,
- Recreational vehicles, or
- In an area where local codes prohibit grounding through neutral, use a 4 conductor
cord or conduit.
• The range must be connected to the proper electrical voltage and frequency as
specified on the rating plate.
• The range can be connected directly to the fused disconnect (or circuit breaker box)
through flexible, armoured or non-metallic sheathed, copper cable (with grounding
wire). Allow two to three feet of slack in the line so that it can be moved if servicing
is ever necessary.
ELECTRICAL CONNECTION WITH POWER CORD
Use a 3-wire power supply cord kit rated for 55 amps - 125/250 Volts with closed loop
terminals and marked for use with ranges. Where local codes do not permit grounding
through neutral, use a 4-wire power supply cord kit.
The cord or CSA/UL-listed conduit must be secured to the range with the strain relief
supplied or with a suitable strain relief. The electrical connection is made at the terminal
block, which is located behind the access door on the back of the range.
ELECTRICAL CONNECTION WITH CONDUIT
Use 3/4” (1.90 cm) trade size conduit with a conduit clamp, 10 AWG/600 Volt cop-
per conductor colored red for line 1 and black for line 2 and 12 AWG/600 Volt copper
conductor (or 10 AWG/600 Volt copper conductor if grounding through neutral) colored
white for neutral with closed loop terminals marked for use with ranges.
Where local codes do not permit grounding through neutral, use a green 10 AWG
copper conductor as directed in the 4-wire connector directions. The conduit must be
secured to the range with the strain relief bracket. The electrical connection is made at
the terminal block which is located behind the access door on the back of the range.
TO AVOID ELECTRICAL SHOCK
HAZARD, BEFORE INSTALLING THE
APPLIANCE, SWITCH POWER OFF AT
THE SERVICE PANEL AND LOCK THE
PANEL TO PREVENT THE POWER
FROM BEING SWITCHED ON
ACCIDENTALLY.
WARNING

9


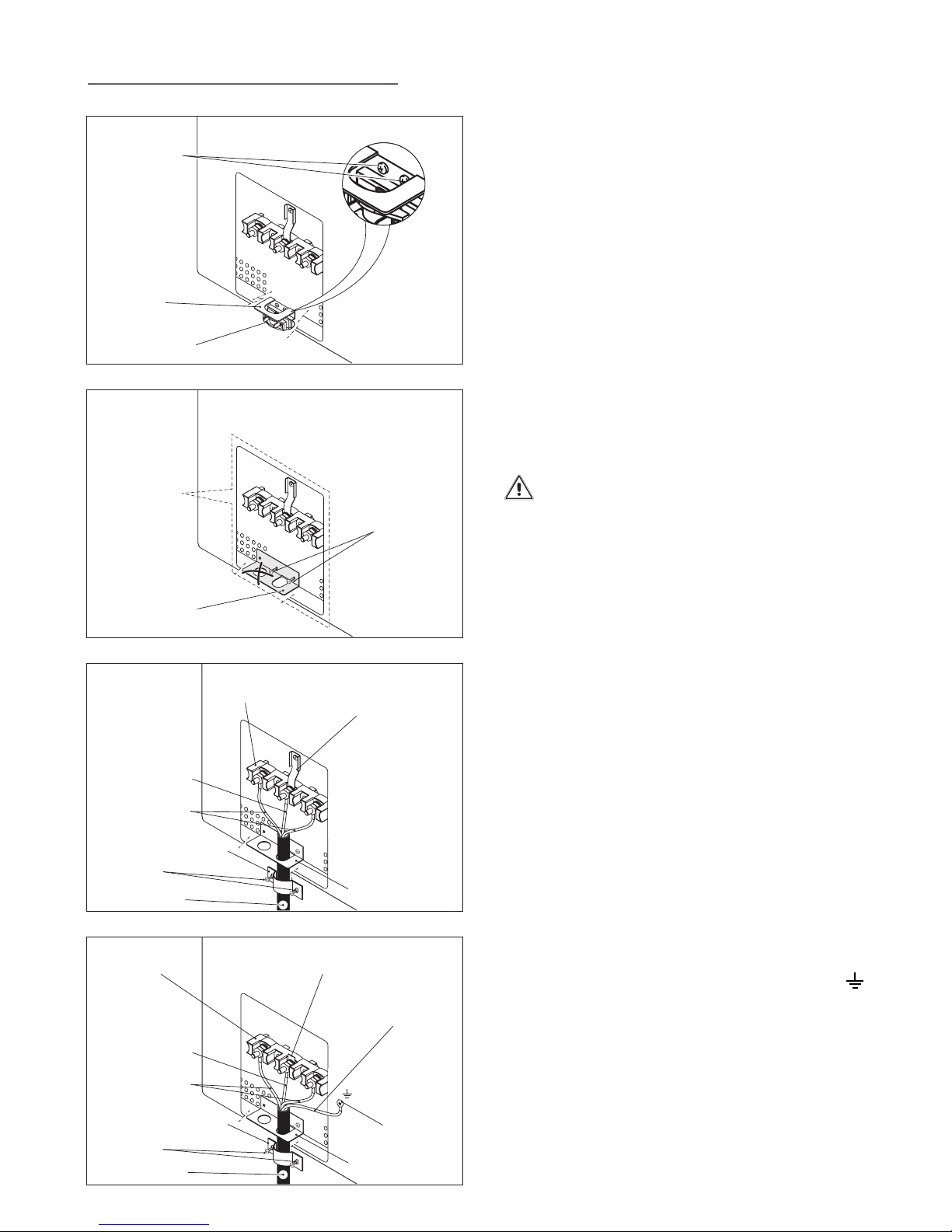

3-Wire Flat Power Cord Installation
(See Figures 2.1 and 2.2)
1. Remove the Terminal Block Access Plate on the back of the
range by unscrewing the 4 fixing Screws.
2. Insert the Flat Power Cord through the Bracket; then
tighten the Flat Power Cord by using the Strain Relief.
Allow enough slack to easily attach the cord terminals to the
Terminal Block.
3. Remove the 3 wire terminal nuts and washers from the
Terminal Block.
4. Plug the terminal holes of Flat Power Cord. The Neutral or
Ground Wire of the Flat Power Cord must be connected to
the neutral terminal located in the center of Terminal Block.
The Power Wires must be connected to the outside termi-
nals.
5. Plug washers and tighten nuts securely.
Do not remove Ground strap.
6. Assemble the Terminal Block Access Plate.
Terminal Block
Access Plate
Screws
Neutral Wire
Power Wires
Bracket
Flat
Power Cord
Terminal Block
Ground strap
Strain Relief
Fig. 2.1
Fig. 2.2

10

3-Wire Power Cord Installation
(See Figures 2.1, 2.3, 2.4 and 2.5)
1. Remove the Terminal Block Access Plate on the back of the
range by unscrewing the 4 fixing Screws (fig. 2.1).
2. Remove the Bracket and Strain Relief group by unscrewing
the Bracket Fixing Screws (fig. 2.3).
3. Mount the Power Cord Bracket (supplied with the range in
a separate kit) inside the Opening For Electrical Connection
by screwing the 2 Fixing Screws (as indicated in Figure 2.4).
4. Insert the Power Cord through the Power Cord Bracket;
then tighten the Power Cord by using the Power Cord Strain
Relief Bracket (fixed by 2 screws). Allow enough slack to
easily attach the cord terminals to the Terminal Block.
5. Remove the 3 wire terminal nuts and washers from the
Terminal Block.
6. Plug the terminal holes of Power Cord. The Neutral or
Ground Wire of the Power Cord must be connected to the
neutral terminal located in the center of Terminal Block. The
Power Wires must be connected to the outside terminals.
7. Plug washers and tighten nuts securely.
Do not remove Ground strap.
8. Assemble the Terminal Block Access Plate.
4-Wire Power Cord Installation
(See Figures 2.1, 2.3, 2.4 and 2.6)
1. Remove the Terminal Block Access Plate on the back of the
range by unscrewing the 4 fixing Screws (fig. 2.1).
2. Remove the Bracket and Strain Relief group by unscrewing
the Bracket Fixing Screws (fig. 2.3).
3. Mount the Power Cord Bracket (supplied with the range in
a separate kit) inside the Opening For Electrical Connection
by screwing the 2 Fixing Screws (as indicated in figure 2.4).
4. Insert the Power Cord through the Power Cord Bracket;
then tighten the Power Cord by using the Power Cord Strain
Relief Bracket. Allow enough slack to easily attach the cord
terminals to the Terminal Block (fig. 2.6).
5. Remove the 3 wire terminal nuts and washers from the
Terminal Block.
6. Remove the Ground Strap from the frame of range and
terminal by removing its screw and cutting it as shown in
figure-2.6.
7. Plug the terminal holes of Power Cord. The Neutral Wire of
the Power Cord must be connected to the neutral terminal
located in the center of Terminal Block; the Power Wires
must be connected to the outside terminals; the Ground Wire
must be attached to the frame of range by using the
(Ground) identified Grounding Screw.
8. Plug washers and tighten nuts securely.
9. Assemble the Terminal Block Access Plate.
Strain Relief
Bracket
Bracket
Fixing Screws
Power Cord
Bracket
Opening For
Electrical
Connection
Fixing Screws
Power Cord
Neutral Wire
Power Wires
Terminal Block
Ground strap
Power Cord
Bracket
Power Cord
Strain Relief Bracket
Screws
Power Cord
Neutral Wire
Power Wires
Terminal Block
Power Cord
Bracket
Grounding Wire
Cut Ground Strap
Grounding Screw
Power Cord
Strain Relief Bracket
Screws
Fig. 2.3
Fig. 2.4
Fig. 2.5
Fig. 2.6

11
4-Wire Conduit Installation
(See Figures 2.1, 2.7, 2.8 and 2.10)
1. Remove the Terminal Block Access Plate on the back of the
range by unscrewing the 4 fixing Screws (fig. 2.1).
2. Remove the Bracket and Strain Relief group by unscrewing
the Bracket Fixing Screws (fig. 2.7).
3. Mount the Conduit Bracket (supplied with the range in a
separate kit) inside the Opening For Electrical Connection
by screwing the 2 Fixing Screws (as indicated in figure 2.8).
4. Feed 3/4” (1.90 cm) trade size Conduit through the hole in the
Conduit Bracket and secure to the Conduit Bracket with a
Conduit Clamp (fig. 2.10).
5. Remove the 3 wire terminal nuts and washers from the
Terminal Block.
6. Remove the Ground Strap from the frame of range and
terminal by removing its screw and cutting it as shown in
figure-2.10.
7. Plug the terminal holes of conductors. The Neutral Wire of
the Power Cord must be connected to the neutral terminal
located in the center of Terminal Block; the Power Wires
must be connected to the outside terminals; the Ground Wire
must be attached to the frame of range by using the
(Ground) identified Grounding Screw.
8. Plug washers and tighten nuts securely.
9. Assemble the Terminal Block Access Plate.
Conduit
Neutral Wire
Power Wires
Terminal Block
Conduit
Bracket
Grounding Wire
Cut Ground Strap
Grounding Screw
Conduit Clamp
Fig. 2.10
Conduit
Neutral Wire
Power Wires
Terminal Block
Ground strap
Conduit
Bracket
Conduit Clamp
Fig. 2.9

3-Wire Conduit Installation
(See Figures 2.1, 2.7, 2.8 and 2.9)
1. Remove the Terminal Block Access Plate on the back of the
range by unscrewing the 4 fixing Screws (fig. 2.1).
2. Remove the Bracket and Strain Relief group by unscrewing
the Bracket Fixing Screws (2.7).
3. Mount the Conduit Bracket (supplied with the range in a
separate kit) inside the Opening For Electrical Connection
by screwing the 2 Fixing Screws (as indicated in Figure 2.8).
4. Feed 3/4” (1.90 cm) trade size Conduit through the hole in the
Conduit Bracket and secure to the Conduit Bracket with a
Conduit Clamp (fig. 2.9).
5. Remove the 3 wire terminal nuts and washers from the
Terminal Block.
6. Plug the terminal holes of conductors. The Neutral or
Ground Wire of the Power Cord must be connected to the
neutral terminal located in the center of Terminal Block. The
Power Wires must be connected to the outside terminals.
7. Plug washers and tighten nuts securely.
Do not remove Ground strap.
8. Assemble the Terminal Block Access Plate.
Strain Relief
Bracket
Bracket
Fixing Screws
Conduit
Bracket
Fixing Screws
Opening For
Electrical
Connection
Fig. 2.7
Fig. 2.8

12

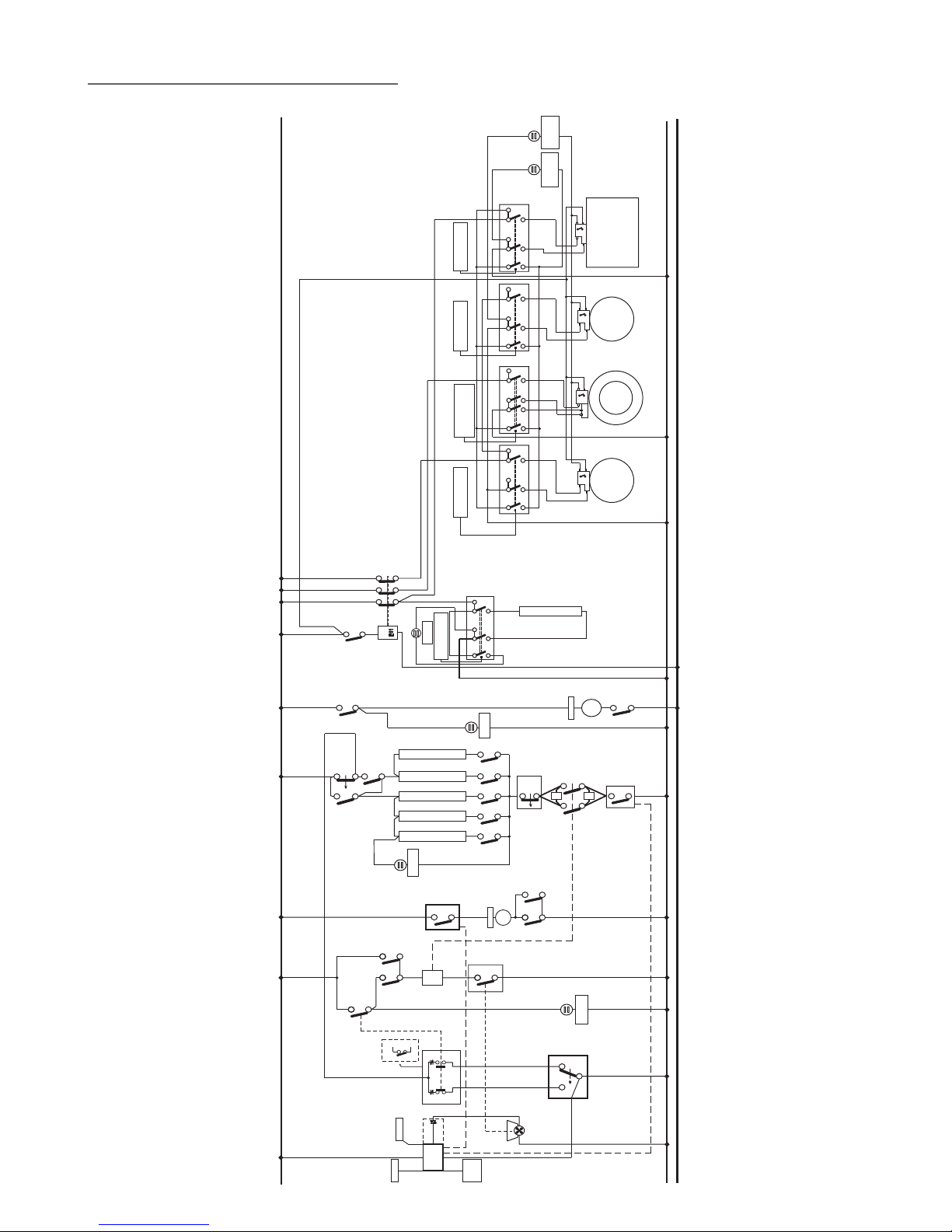

WIRING DIAGRAM

RELAY SWITCH
E61
S1 P2 PILOT
S2 2
4
P1 S1 P2
S2 2
4 4a
P1 S1 P2 PILOT
S2 2
4
P1
2
4
4a
H
S
2
4
2
4
S1 P2 PILOT
S2 2
4
P1
H
S
2
4
H
S
H
S
1200W 240V
1200W 240V
1700W 240V
2100W 240V
Energy Regulator Energy Regulator
(Double Zone)
Energy Regulator Energy Regulator
Cooking Zones Power Indicator Lamp
Cooking Zones Residual Heat Indicator
S1 P2 PILOT
S2 2
4
P1
Energy Regulator
VARMING DRAWER
RELAY
E61
6 6a
LINE PILOT LAMP
A
B
L1
EL 1000
SIEBE
ST1 PROBE
°C+/- ST2
ST4
ENCODER
COOLING FAN
ETA
OVEN DOOR LATCH
AUX ETA
AUX ETA
ST3
EL 1000
EL1000
LOCK/UNLOCK
RELAY 3
3 ETA
ETA ETA
4 2
3
45
Safety Thermal overload
GRILL ELEMENT
BOTTOM ELEMENT INT.
11 11a
12 12a
TOP ELEMENT
13 13a
14 14a
15 15a
6 7
RELAY 2
EL 1000
RELAY 1
EL 1000
RELAY SWITCH
E61
5a
5
16 16a
1
Safety Thermostat
33 ETA
34 ETA
AIR SWITCH
3a
3
RELAY
E61
2 2a
1 1a
LINE PILOT LAMP
THERMOSTAT PILOT LAMP
BOTTOM ELEMENT EXT.
DOOR SAFETY PILOT LAMP
Door opened/closed
control device
Oven door
latch switch
THERMOSTAT
2
A
B
B
120
8 8a
7 7a
LF
9 9a
OVEN LAMP
CIRCULAR ELEMENT
OVEN FAN
V
A B
2
1
1
2
46
79
L2 N

13

14

15

Cod. 1103638 - ß2
The manufacturer cannot be held re spon sible for possible inaccuracies due to printing or transcription errors in
the present booklet.
The manufacturer re serves the right to make all modifications to its products deemed necessary for manufacture
or commercial reasons at any moment and without prior notice, without jeopardising the es sential functional and
safety characteristics of the appliances.
