1. Introduction
The PWC-2000 line of point of use coolers are designed to give years of reliable service
The cooler has 3 spigots that dispense filtered water at 3 different temperature levels –
room temperature, hot, and cold temperature water. The main (room-temp) tank holds
2.2 gallons of water and is constructed of bacteria resistant plastic. The main tank can be
accessed for servicing the float mechanism and for cleaning by removing the cooler main
top cover and then the room temperature tank cover (see section 4).
The cold tank is made of stainless steel and holds ½ gallon. The tank is not serviceable in the
field as it has the compressor evaporator coils wound tightly around it. If the cold tank
needs service, please call the factory or consult with a local refrigeration specialist.
The hot tank is made of stainless steel and holds ½ gallon. It is important not to turn on the
hot tank when there is no water in it as this will damage the heating element. There are two
types of hot tanks in the PWC-2000 PureWaterCooler. The heating band style utilizes a
heating element that wraps around the outside of the hot tank. This hot tank style does not
have insulation on the tank. This version was produced up until November 2002.
The “heating pipe” style of hot tank is recognized by the foam insulation on the
circumference of the tank. The heating element is inside this sealed tank with the two
electrical connections for the heating element protruding from the bottom of the tank. This
version is available on all PWC-2000 coolers produced after November 2002.
The compressor is a sealed unit and is not serviceable in the field. The compressor can be
replaced by a qualified refrigeration technician with proper tools and equipment.
Please consult the factory if the compressor needs servicing.
The cooler makes clean water by filtration or the reverse osmosis process. Water enters the back
of the cooler and then passes through the filtration system. A feed water ball valve is located
near the filters and must be turned to the on position to allow the unit to make water. When the
cooler is plugged in, the feed water solenoid valve is activated, allowing clean water to fill the
tanks. When the tanks are full, the float valve in the main tank deactivates the feed water
solenoid valve, and water production is stopped. CAUTION: The carbon filtration versions of
the cooler (PWC-2000F) should not be used with water hardness over 7 grains because of
lime scale build up on the heating element. If hardness is higher than 7 grains, softening of the
water is recommended.

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
2. Cooler Set-Up (for new cooler installation)

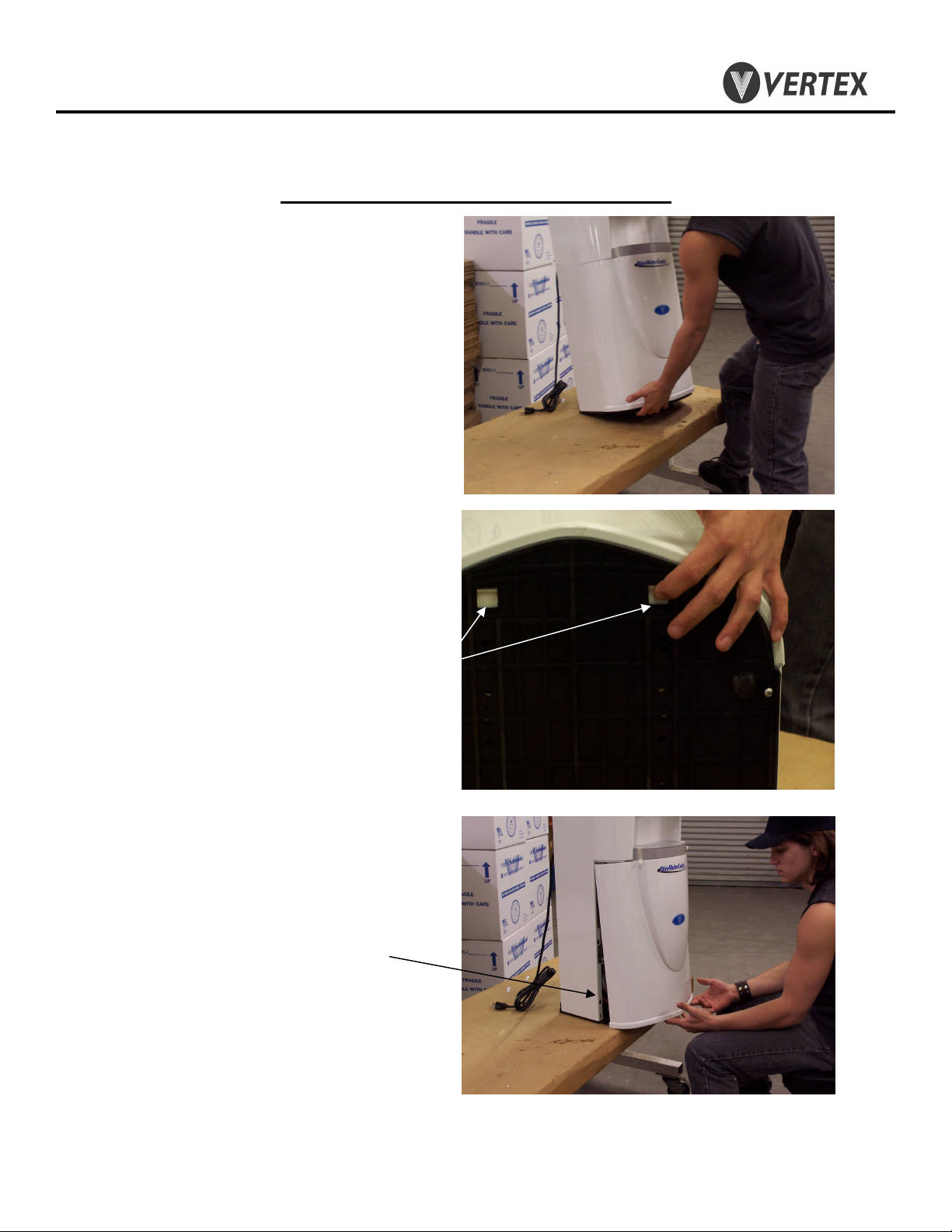

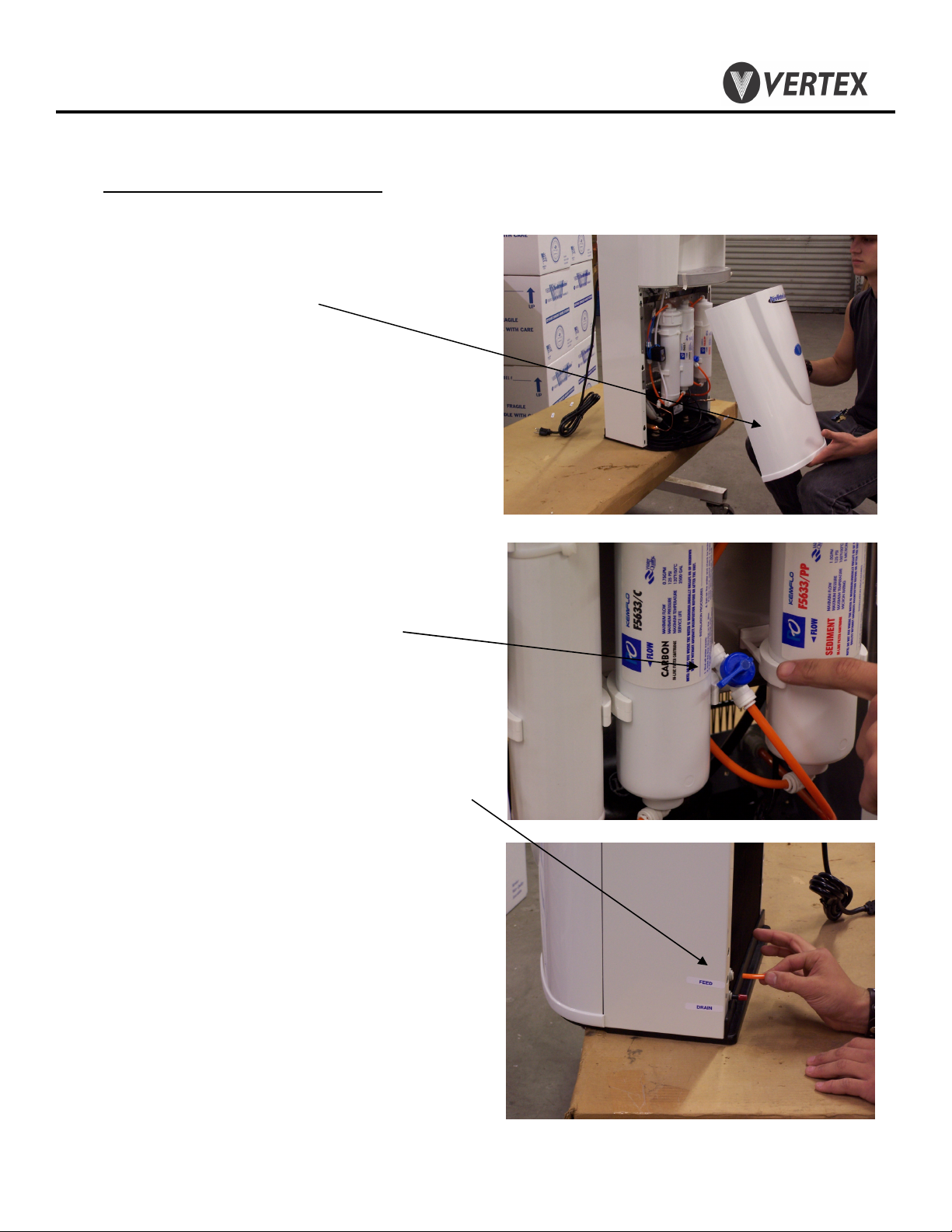

Remove Lower Front Panel/Access Filters
2.1 Tilt cooler back
(NOTE: For model PWC-3000 grab
lower panel at bottom mid-point and
simply pull forward)
2.2 Depress on of the tabs under the base
2.3 Pull panel forward and off

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
Feedwater/Drain Connections
-Feed Connection
2.3 Pull panel forward and off
2.4 Turn plastic ball valve to on position
(handle in line with tubing)
2.5 Remove feed water plug (orange) from back of
cooler.
2.6 Connect supplied orange feed water tubing to
feed connector on back of cooler.
2.7 Connect orange line to cold water line (figure 2.7).
A self- piercing saddle valve is provided to be the
cold water line connection. The self-piercing
valve is designed to be used on copper pipe only.
2.8 Caution: Filter only units (PWC-2000F) can only
be used on water that is soft (less than 10 grains)
or has a water softener installed to treat the water.
2. Cooler Set-Up cont.

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
-Drain Connection
2.9 Drain Connection (for units equipped
with RO)
2.10 Remove drain plug (black) from back of
cooler
2.11 Connect supplied black water tubing to
drain connector on back of cooler
2.12 Attach supplied drain saddle to a
standard 1 ½” drain pipe see fig. 1 below
2.13 Turn on feed water at cold water line
2.14 Turn on feed water ball valve at filters
2.15 Plug in cooler (Do not turn on hot tank at
this time)
2.16 Feed water solenoid valve will open
2.17 Water will start to flow through the filters
into the main tank
Feed water Solenoid Valve activates
when cooler is plugged in.
Drain saddle connection method
Drain connection required only for cooler with reverse osmosis filtration
Figure 1
2. Cooler Set-Up cont.
Figure 2.7

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
3.1 To replace front panel – install bottom section
on cooler base
3.2 Install center of upper section (near drip tray)
3.3 With palm of hand, hit left and right side
of upper panel to finish installation. This
will snap the tabs into place.
3. Front Cover Installation

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
4. Remove top cover and back cover
4.1 Remove the round top cover
4.2 Firmly pull up on the main top cover to remove it
(NOTE: on PWC-3000 model remove 2 holddown
screws rear of main top cover first.)

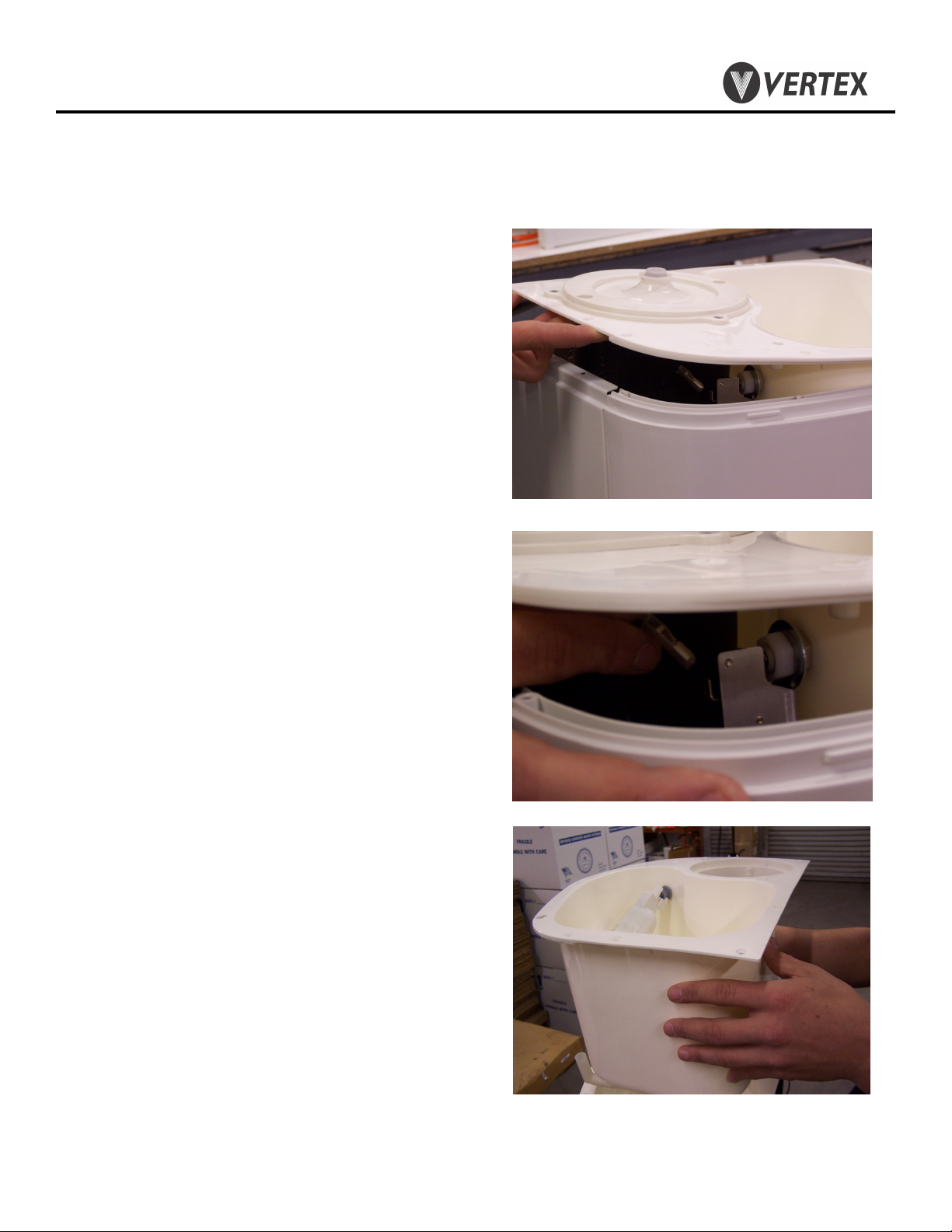

4.2 Lift off Main Tank inner cover

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products

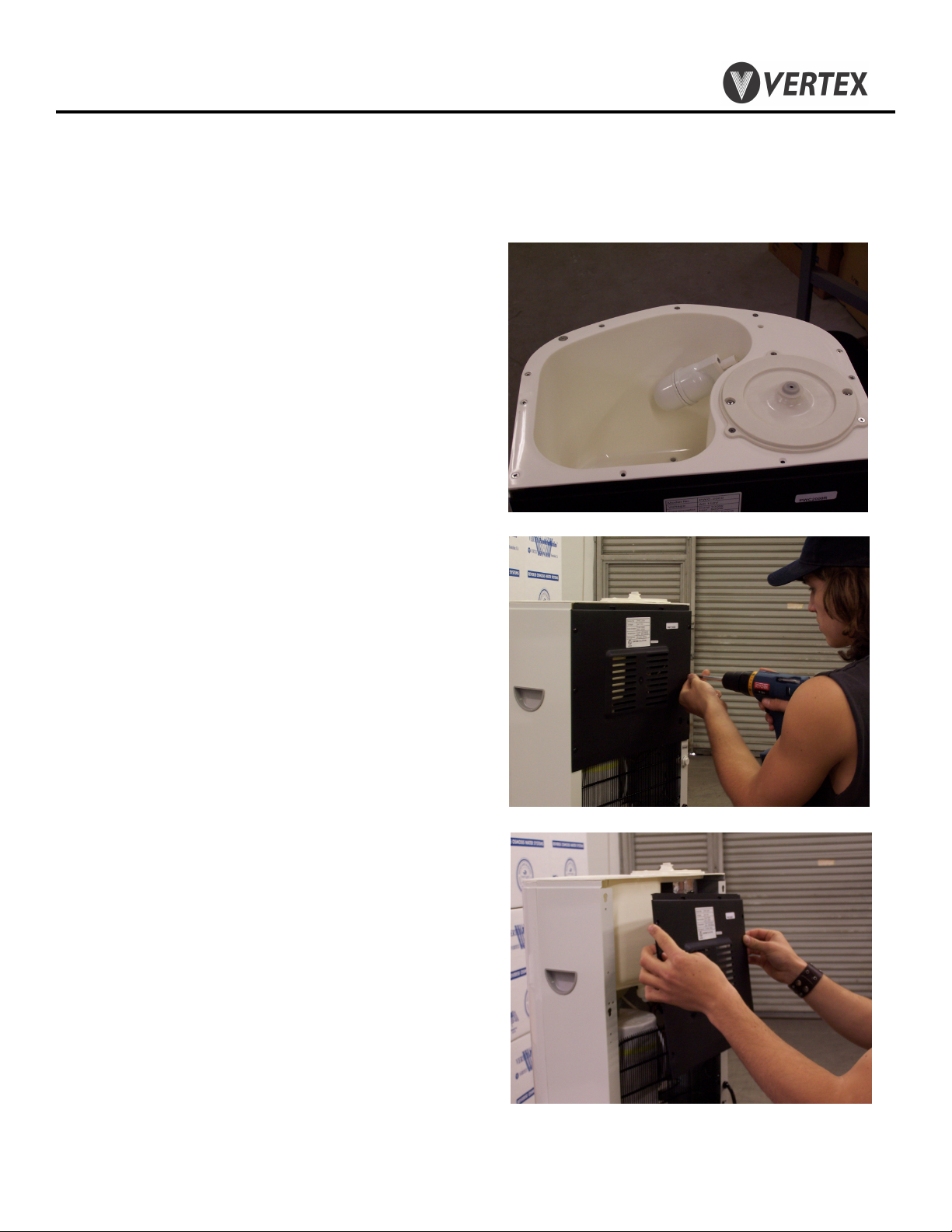

4.3 The Main Tank and float are now accessible
4.5 Back Cover
4.6 Remove 6 screw from back cover and lift off
4. Remove top cover and back cover
continued

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
5.0 Push down firmly on the top portion of the
faucet cover.
5.1 The top part of the cover
will disengage from the cooler.
5.2 Carefully pivot the top of the cover forward
and clear the 3 faucets.
5. Removing/Replacing Faucet Cover and Circuit Board

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products

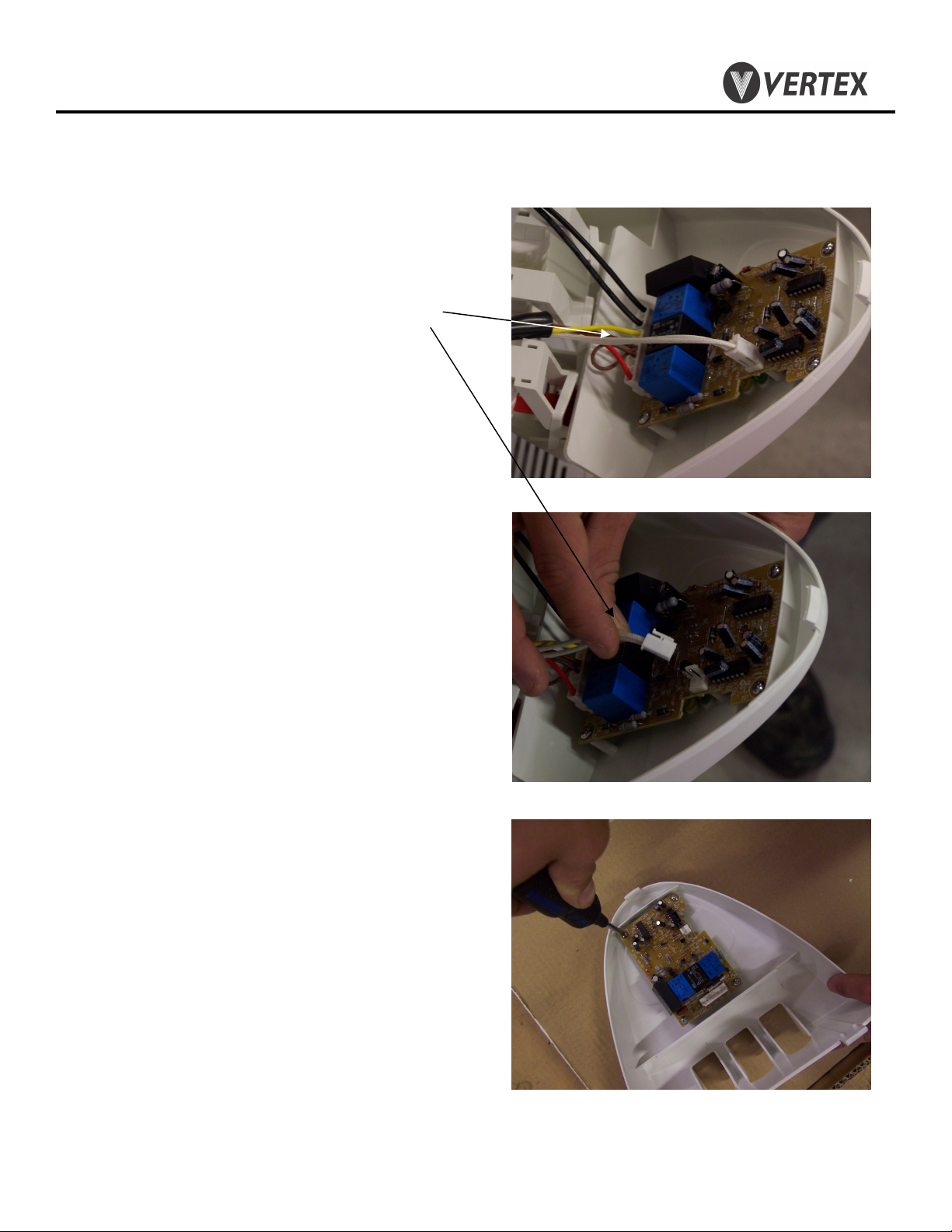

5.3 The circuit board has 3 wire assemblies
connected to it. Remove the 3 different
connectors from the circuit board
5.4 The cover should now be free from the
cooler and can be placed on a work bench.
5.5 Remove 4 screws that hold the circuit
board to the faucet cover. Lift off circuit
board from the faucet cover.
5.6 Reverse above process to reinstall circuit
board and faucet cover.
5. Removing/Replacing Faucet Cover and Circuit Board
Cont.

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
6. Remove/Replace Float Switch
6.1 Remove top lids from cooler
6.2 Remove main tank cover
6.3 Remove hot tank as described
in this manual (sec. 7)
6.4 Remove back panel
6.4 Remove (9) screws holding main
tank to frame
6.5 Disconnect silicon tubing from
main tank (5 places). Access
silicon tubing from back of
cooler.

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
6.6 Tilt up edge of main tank to gain access
to micro-switch assembly
6.6 Disconnect electrical terminals from micro-
switch
6.7 Lift main tank out of cooler
6.8 Place main tank on work bench to remove
float assembly
6. Remove/Replace Float Switch
Cont.

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
6.9 Remove micro switch by loosening
and removing plastic nut.
6.10 Remove washer and activator rod
6.11 Remove metal nut and silicon washer
6. Remove/Replace Float Switch
Cont.

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products

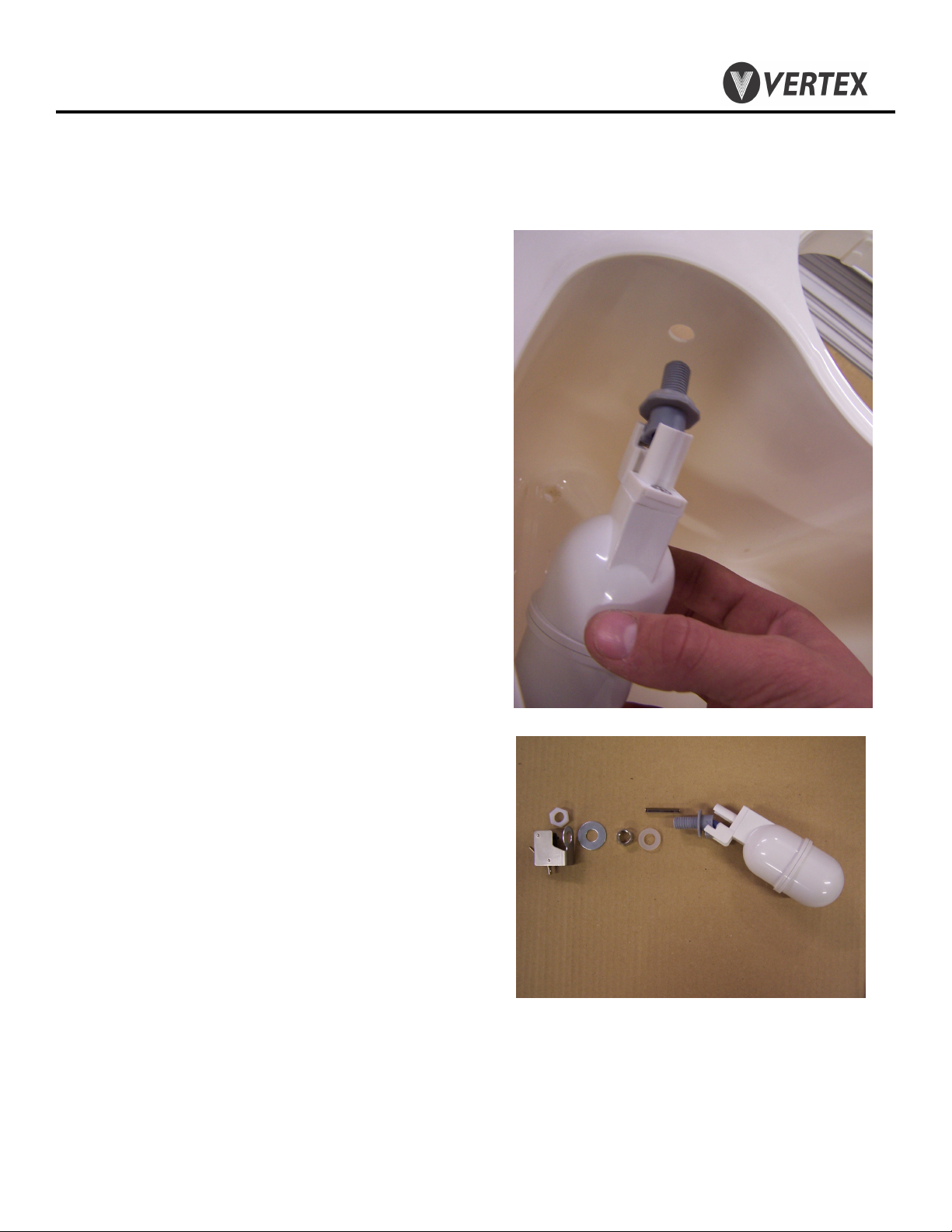

6.12 Remove float mechanism from main housing
6.13 Complete Float assembly (removed)
6.14 Replace new float assembly in reverse order
6. Remove/Replace Float Switch
Cont.

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
7. Remove/Replace Hot Tank
(for coolers built after 10/02)

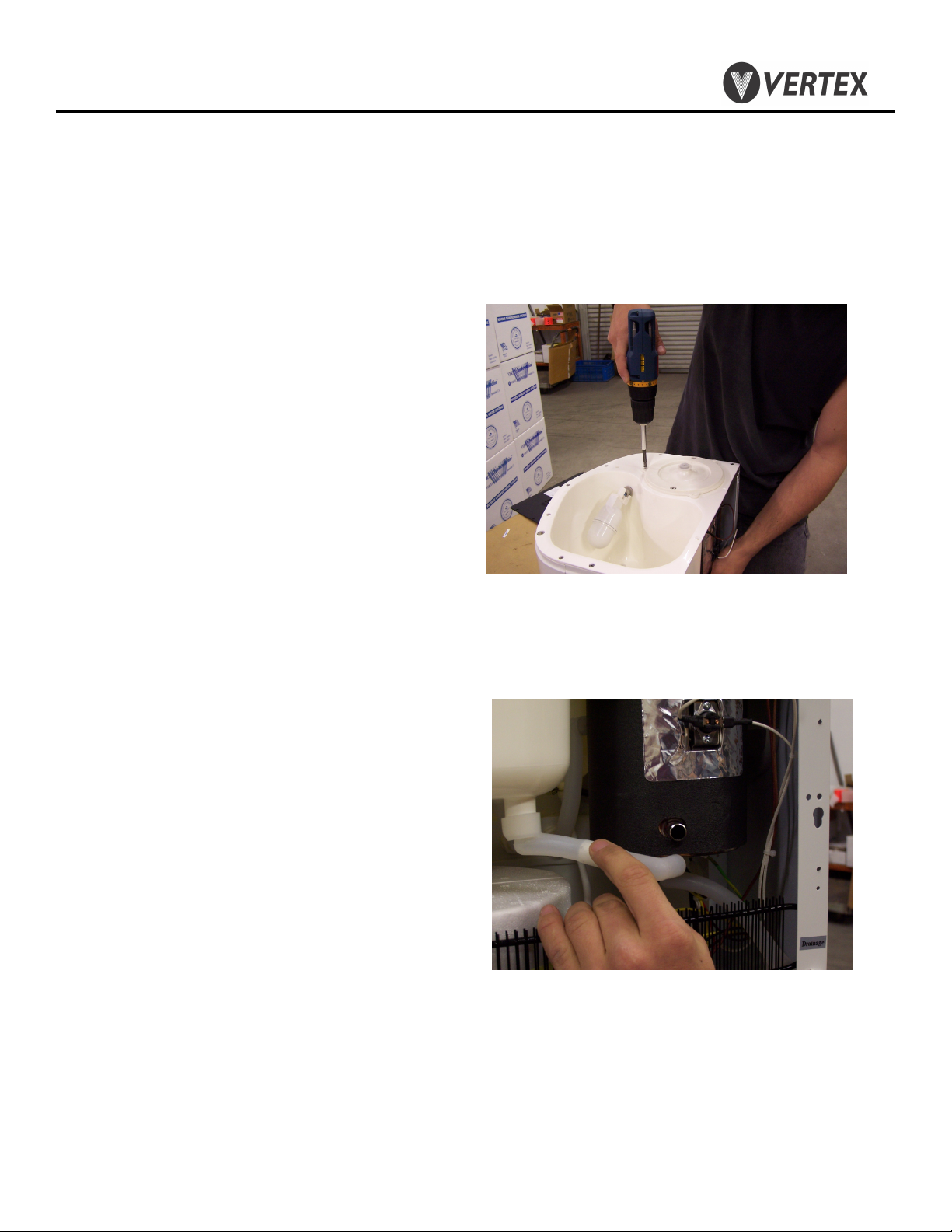

7.1 With cooler top cover off, and back removed,
remove screws (5 places) holding hot tank
to main reservoir assembly.
7.2 Remove silicon tubing from hot tank
(4 places)

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
7.3 Remove electrical contactors from thermal
sensors (4 places). See Figure 2 for wiring
schematic
7.4 Lower hot tank and remove
7.5 Disconnect 2 electrical connectors at
bottom of tank
7.6 To install hot tank, reverse the above steps
7. Remove/Replace Hot Tank
(for coolers built after 10/02)
cont.

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
8.0 Remove back cover (as shown in section 4 )
8.1 Remove faucet cover (as shown in section 5)

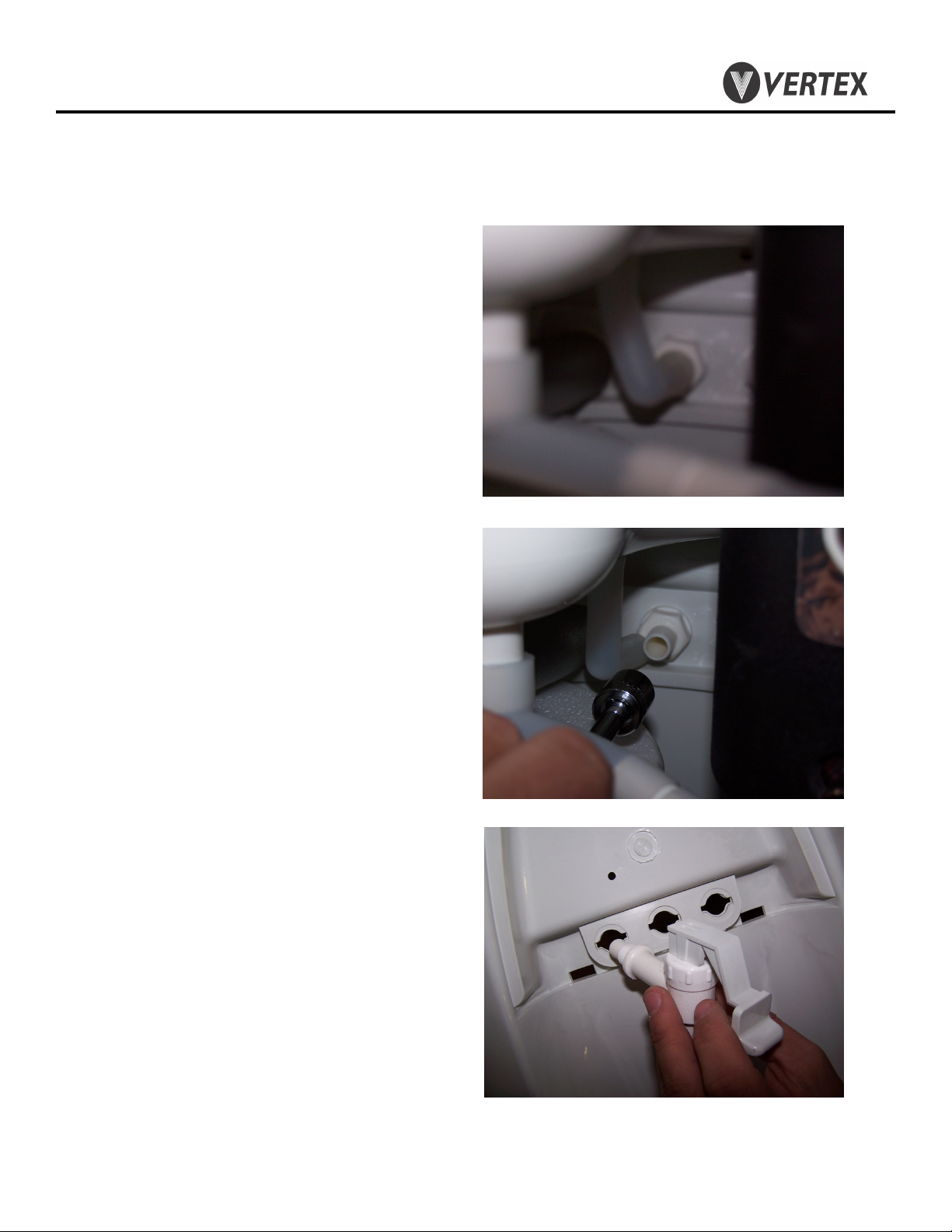

8.2 Remove silicon tubing from back of faucet by
pulling and working it off
8.3 Remove plastic nut from rear of faucet
using 7/8” socket.
8.4 Once the nut is removed, faucet can with-
drawn from the front.
8.5 Reverse the above process to replace faucet.
8. Remove/Replace Faucet

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products

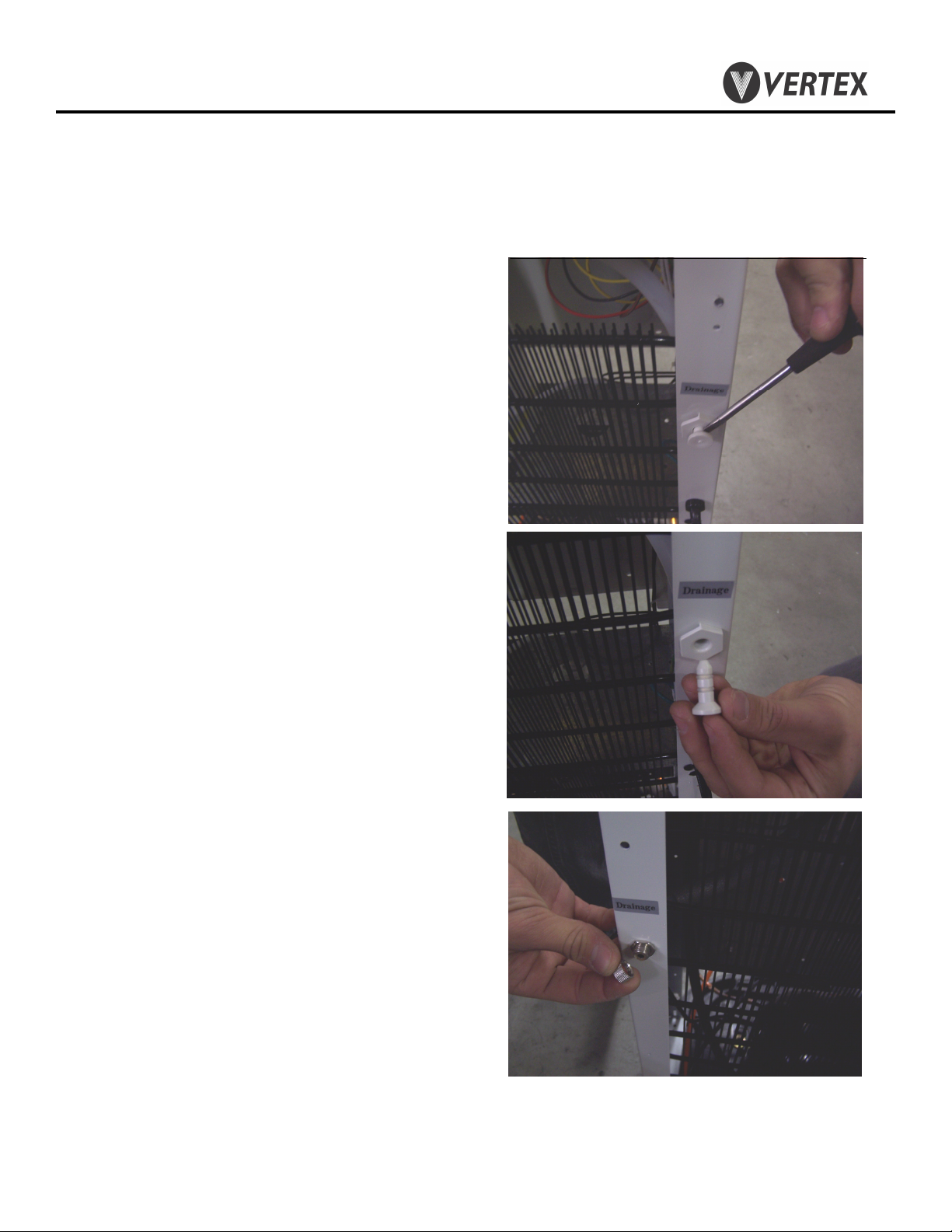

Completely draining the tanks is required when shipping the cooler
or when on the of the tanks needs replacing. This procedure will
allow you to remove all the water from the cooler.
9.0 Hot Tank Drain: Using a flat head screw
driver, pry the hot tank plug out until you
can grasp it with your fingers.
9.1 Remove the plug with fingers.
Water will pour from the port
9.2 Cold Tank (and Main Tank) Drain: On
the left rear of the cooler, unscrew the
metal cap. Water will pour from this port.
Don’t forget to replace the cap and the
plug after the tanks are empty.
9.3 Drain any remaining water in the
system by depressing the faucets.
9. Draining Cooler Tanks

PWC – 600/2000
PureWaterCooler
Copyright 2004 Vertex Water Products
10. Remove/Replace Hot Tank Sensor
There are two thermal sensors on the hot tank. The lower sensor controls the heating
element function and the upper sensor is for high temperature cut out. If the hot tank
Is not working one or both of the sensors may have failed in the open position. To
Check for this condition, unplug the cooler from main power, disconnect one of the
Electrical terminals on the sensor. Using an ohm meter, check for continuity. IF there
Is no continuity, the sensor is bad and must be replaced.

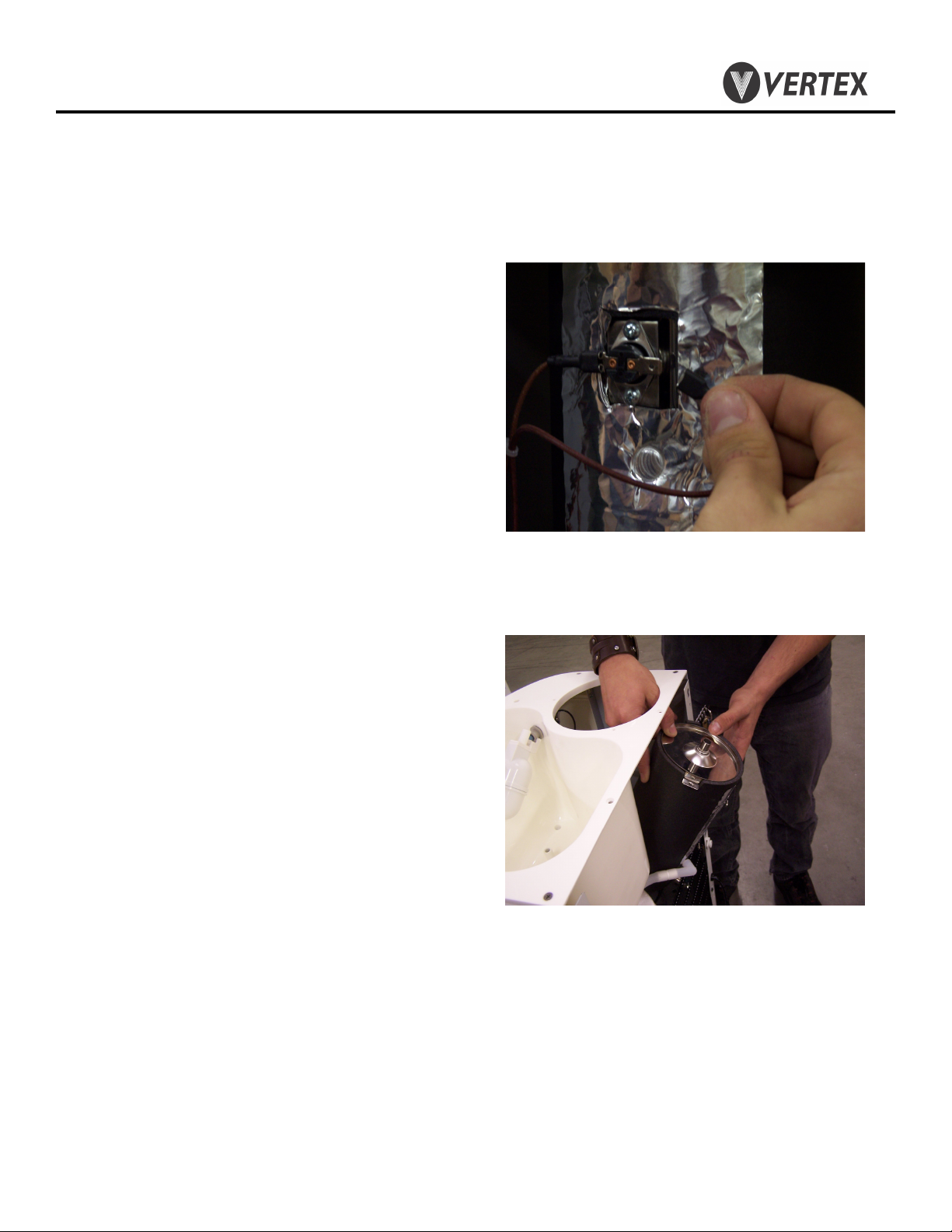

10.0 Remove the top and back of the cooler per
section 4 to gain access to the hot tank.
10.1 The hot tank does not have to be removed
from the cooler to change the sensors
10.2 Remove the electrical terminals from the sensor
10.3 Remove the two screws that hold the sensor
to the tank. The sensor can now be removed
10.4 Reverse the above procedure to replace the sensor
