Liebert® M icroPO D ™ 230V
Installer/User Guide

Technical Support Site
If you encounter any installation or operational issues with your product, check the pertinent section of this manual to see if
the issue can be resolved by following outlined procedures. Visit https://www.VertivCo.com/en-us/support/ for additional
assistance.

T A BLE O F C O N TEN T S
1 Im po rtant Safety Instructions 1
2 G lo ssa ry o f S ym b ols 3
3 Introd uction and System D escription 4
3.1 System Description 4
4 Installation 7
4.1 Installation on a Liebert GXT UPS 7
4.2 Rack Mount Installation 8
5 Startup Procedure 10
5.1 Pluggable Connections 10
6 Ind icator L am ps 11
6.1 Mains Indicator Lamp 11
6.2 UPS Indicator Lamp 11
7 O p er ation 12
7.1 Transfer to Maintenance Bypass 12
8 Specifications 13
9 Troublesh ooting 15
9.1 Product Warranty Registration 15
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | i

V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | ii

1 IMPORTANT SAFETY INSTRUCTIONS
W A R N IN G ! D o n ot a tte m p t to s erv ic e th is p ro du ct y ou rs elf. O p en in g or re m ovin g the co ver
m a y e xp os e y ou to d an gero us v oltages, ev en w h en th e A C c ord is d is con nec te d from th e
electrical outlet. Refer all servicing to qualified service p erso nnel.
SAVE THESE INSTRUCTIONS
This manual contains important instructions that should be followed during installation and operation of the Liebert
MicroPOD.
This product is not intended for use with life support or other U.S. FDA designated “critical” devices.
Read all safety and operating instructions before operating the Liebert MicroPOD and the connected UPS system. Adhere to
all warnings on the unit and in this manual. Follow all operating and user instructions.
Turn the UPS off and unplug the Liebert MicroPOD before cleaning. Use only a soft cloth, never liquid or aerosol cleaners.
The UPS and Liebert MicroPOD are designed for data processing equipment. Do not plug laser printers or appliances, such as
hair dryers, heaters, vacuum cleaners or electric drills, into the UPS output receptacles.
W A R N IN G ! D o n ot m o d ify th e c ab le s in a ny w a y. C on su lt y ou r lo cal V e rtiv re pre se nta tive if
the A C cords do not m atch th e m ains rece ptacle. The Liebert M icroPO D m u st b e g rounde d at
all tim es w hile in u se. T u rn O ff th e U P S b efo re u nplu gg in g L ie be rt M ic ro PO D .
The UPS and the Liebert MicroPOD are equipped with grounded plugs (plug types vary depending on model). Do not defeat
the safety purpose of this plug. If unable to fully insert the plug into the designated receptacle, contact a qualified electrician
or your local dealer or Vertiv representative for assistance.
Route power supply cords so they are not walked on or pinched in anyway.
C A U T IO N : R is k o f e le ctric s ho ck , d o n ot re m ov e c ov er, n o u se r se rvice ab le p ar ts in sid e. R efe r
servicing to qualified service personn el.
C A U T IO N : T h is d ev ic e r ece iv es p ow e r fro m m u ltip le so urc es . B efo re se rv ic in g th is d ev ic e,
rem ove all conn ections. B efore serv icing the U PS , follo w “M ainten ance of U PS” in structions
in the user m a nual fo r y our U PS.
C AUT IO N : For use in a con tro lled environm ent. Refer to m anu al sp ecifications for
en viron m enta l con ditions.
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 1

W A RN IN G ! W hen the Liebert M icroPO D is in m ains position (m ainten ance bypa ss m ode), the
p ow er to the con ne cte d lo ad is n ot filte re d o r c on ditio ne d b y the U P S.
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 2

2 GLOSSARY OF SYMBOLS
Indicates AC Input.
Indicates AC Output.
Consult the manual for additional information.
MAINS MAINS lamp indicates local power is available and the load may be transferred to bypass the UPS.
UPS UPS lamp indicates UPS power is available and the load may be transferred to the UPS to provide
computer-grade power to the load.
Table 2 .1 Sym b ols
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 3

3 INTRODUCTION AND SYSTEM DESCRIPTION
The Liebert MicroPOD provides maintenance bypass capability as well as power output distribution. The Liebert MicroPOD
can be used on UPSs in either rack mount or tower configuration.
The Liebert MicroPOD provides an isolated path of power for your UPS system for preventive maintenance or service.
3.1 System Description
The Liebert MicroPOD has two modes of operation: UPS (UPS available) and MAINS (maintenance bypass).
•In UPS mode, the power is routed through the UPS system delivering conditioned power to the load, as shown
in Figure 3.1 below.
Figure 3.1 UPS m o de of operatio n
IT E M D E SC R IP T IO N
1 Utility
2 POD
3 UPS
4 Connected Load
Table 3.1 U PS M ode D escription
•In Mains mode, power is routed around (bypassing) the UPS system (see Figure 3.2 on the next page). Mains
power is supplied directly to the load through the Liebert MicroPOD.
N O T E: B a tte ry b acku p a nd c on ditio ne d p ow e r a re N O T a va ila ble d urin g th e M a in s m o de o f o p era tio n.
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 4

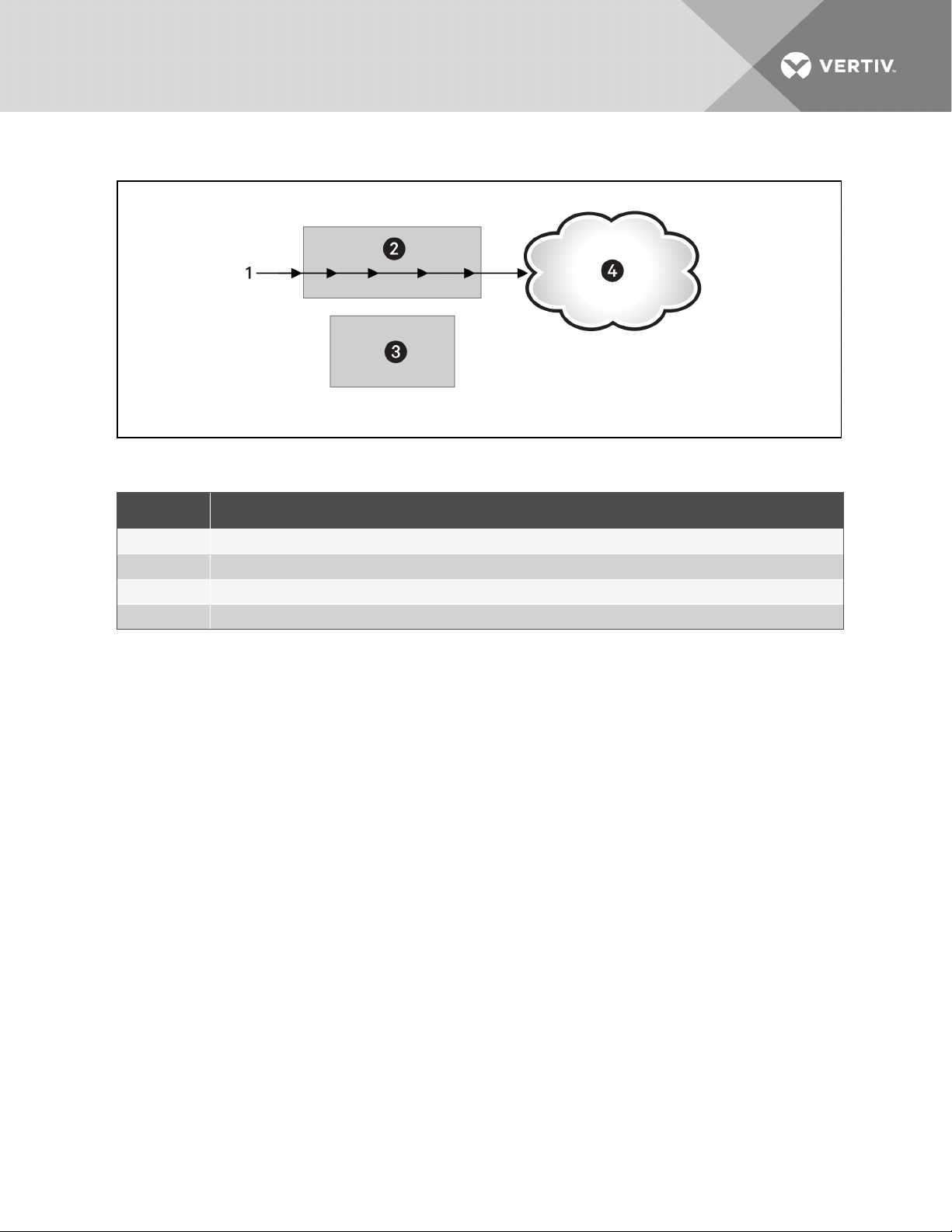

Figure 3.2 M ains/M ainte nance B ypass m ode
IT E M D E SC R IP T IO N
1 Utility
2 POD
3 UPS
4 Connected Load
Table 3.2 M ains M ode D escrip tio n
•The UPS may be turned off and removed without affecting the load. See Figure 3.3 on the facing page.
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 5

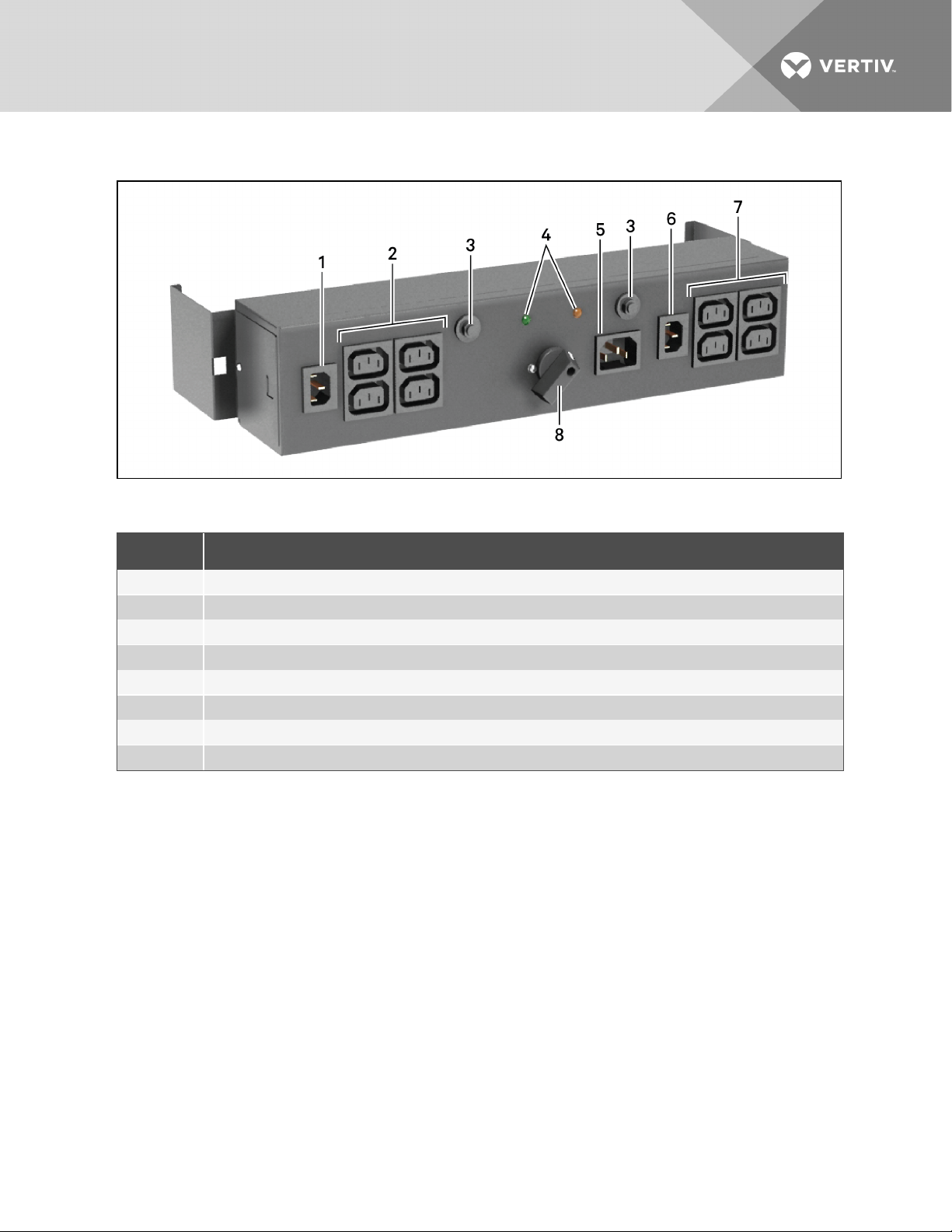

F ig ure 3.3 L ie bert M icro P O D c on ne ctio ns
IT E M D E SC R IP T IO N
1 UPS Input - Connect to load receptacle on rear of UPS
2 Connect Loads
3 Output Circuit Breaker
4 Power Indicator Lamps
5 Connect UPS Input Cord
6 Utility Input - Connect to Mains Wall Receptacle
7 Connect Loads
8 Rotary Switch
T ab le 3 .3 M icro P O D C o nn ec tio ns D e scrip tions
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 6

4 INSTALLATION
4 .1 In sta lla tio n on a L ieb ert G X T U P S
N O T E: T h is m a nu al p ro vid es in stru ctio ns fo r th e L ie be rt M icro P O D o nly . R efer to y our U P S m a nu al
for UPS operation and installation instructions.
1. Unpack the Liebert MicroPOD carefully, noting the packing method. Retain the box and packing material for
possible future shipments.
2. Inspect the Liebert MicroPOD for freight damage. Report any damage to the carrier and your local dealer or
Liebert representative.
3. Verify that the Liebert MicroPOD input cord, UPS input cord and receptacle for the UPS have the same type of
configuration.
4. If you already have a UPS installed, turn off all connected loads and unplug them from the UPS. Turn off the UPS
and disconnect the input cord.
5. Attach the two Liebert MicroPOD securing brackets (optional for Liebert GXT series UPS) to the rear of the UPS
(see top of Figure 4.1 below). You will need a long M3 Phillips head screwdriver for this procedure (the torque is
7 in-lb, or 0.79 Nm). The Liebert MicroPOD brackets have a hole to allow the screwdriver to reach the screw.
6. Next attach the Liebert MicroPOD to the securing brackets (see Figure 4.1 below). The Liebert MicroPOD can
be installed to face one of three different directions utilizing the same mounting procedures.
F ig ure 4 .1 A tta chin g L ie be rt M icro P O D to th e U P S w ith se cu rin g b ra ckets
IT E M D E SC R IP T IO N
1 Step 5 - Attach bracket to rear of UPS
2 Step 6 - Attach Liebert® MicroPOD to brackets
3 UPS
4 Liebert® MicroPOD
T ab le 4 .1 A tta ch in g L ie be rt M ic ro PO D to U P S w ith S ecu rin g B ra ck ets D e scrip tions
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 7

4.2 Rack M ount Installation
1. Rack mount installation of the Liebert MicroPOD is possible with the use of the rack mounting brackets (shipped
with the Liebert MicroPOD). See Figure 5.1 below.
2. The rack mount brackets allow you to rack mount the Liebert MicroPOD in a 19" enclosure.
3. The Liebert MicroPOD can be mounted to face one of four directions depending on your application, utilizing the
rack mount brackets provided.
4. Determine the desired position and direction for the Liebert MicroPOD, face it in that direction, then attach the
brackets to the Liebert MicroPOD with the screws provided.
5. Consult your rack/enclosure manufacturer’s recommendations for specific rack mounting hardware that will be
required.
6. The holes on the rack mount bracket are notched for easy installation. Tighten the Liebert MicroPOD securely to
the rails and then follow the startup directions for the Liebert MicroPOD in Installation on a Liebert GXT UPS on
page 7.

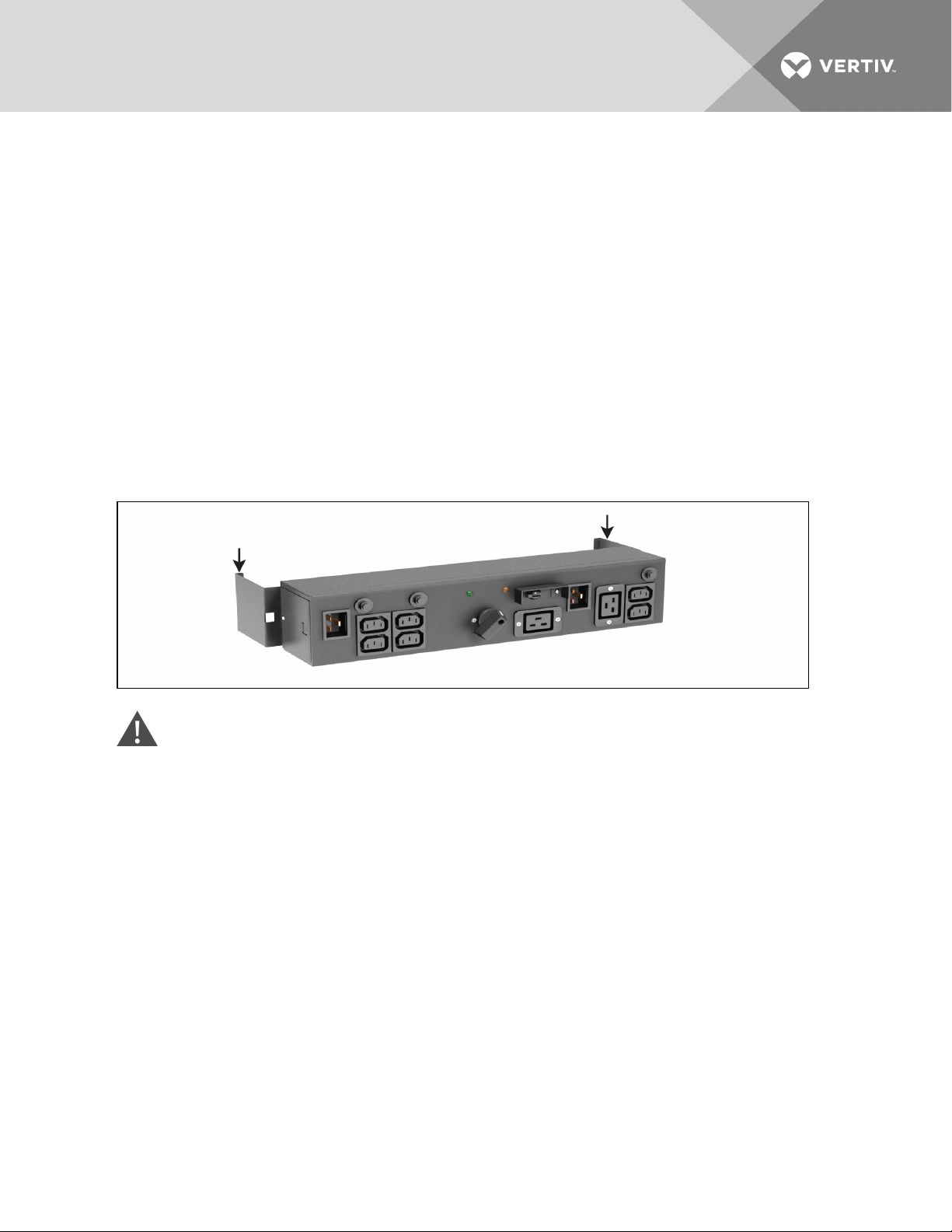

F ig ure 5.1 L iebe rt M ic ro PO D m o un tin g b ra ck et lo ca tio n
C A U T IO N : B efo re in sta llin g , ope n a ll b ranc h ra te d circ uit b re ak ers at th e n ea re st d isc on n ect,
turn UPS off and disconnect all cords to and from the UP S.
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 8

V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 9
This page intentionally left blank.

5 STARTUP PROCEDURE
CA U TIO N : T his U P S m ust be installed by properly trained and qualified personnel and w ired
in ac co rd an ce w ith lo cal, n ationa l a nd regiona l e le ctric al c od es.
C A U TIO N : T h e m a in s in pu t s up ply to th e L ie be rt M icro P O D m u st b e p ro te cte d b y a b ra nc h
rate d circuit b rea ke r. T he U PS o utp ut m u st also b e p rote cte d w ith a c irc uit b rea ke r
connected to the load , rated to carry the input cu rrent and be capab le of breaking the
m ax im u m exp ecte d short circuit c urrent of th is b ranch circuit. T he b reak er is to be m ounted
w ithin 6 feet (1.8m ) of the Liebert M icro P O D and be readily accessible to the operator.
5.1 Pluggable C onnections
1. Make sure the Liebert Micro POD rotary switch is in the MAINS position. Plug the Liebert MicroPOD input cord
(labeled MAINS) into the mains outlet (wall receptacle).
W A R N IN G ! T h e M ic ro P O D is n ow e le ctric ally liv e. T he M a in s la m p (a m ber) sh ould b e
illum inated.
2. Plug the 10-foot long (3m) UPS input cord (factory-provided) into the receptacle on top of the Liebert MicroPOD
(labeled:CONNECT UPS LINE CORD HERE).
W A R N IN G ! T h e U P S s ys te m is n o w e lectrica lly live.
3. Plug the 6-foot long (1.8m) UPS system output cord (factory-provided ) into the receptacle on top of the Liebert
MicroPOD (labeled: UPS).
4. Plug in all loads to the output distribution receptacles, distributing them evenly on the Liebert MicroPOD. The
Liebert MicroPOD is powering the equipment in Mains mode.
5. Turn ON the loads following the manufacturer’s instructions; ensure all are operating according to specification.
6. Start the UPS according to its user manual.
7. Verify that the UPS lamp (green) on the Liebert MicroPOD is illuminated. If so, transfer the rotary switch from
MAINS to UPS. The load is now being supplied with conditioned power through the UPS.
8. Before any operation or procedure, always verify that both the UPS lamp (green) and the Mains lamp (amber) are
illuminated before changing the rotary switch.
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 10

6 INDICATOR LAMPS
6.1 M ains Ind icator Lam p
This amber lamp is illuminated when mains power is present (see Figure 7.1 below). It signals that loads can be transferred to
maintenance bypass (Mains mode) operation via the rotary switch. If mains power is not present, this lamp will be off and the
UPS will supply battery backup power to connected loads.
6.2 U PS Indicator Lam p
This green lamp is illuminated when output power is available from the UPS (see Figure 7.1 below). It signals that it is safe to
transfer connected loads from mains power back to UPS output power.
F ig ure 7.1 In dica to r la m p s o n L ieb ert M ic ro PO D
IT E M D E SC R IP T IO N
1 Green lamp: Output Power Available from UPS
2 Rotary Switch
3 Amber Lamp: Mains Power Present
Table 7.1 In dicato r Lam p D escriptions
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 11

7 OPERATION
7.1 Transfer to M ain tenance Bypass
To transfer to maintenance bypass (mains) from UPS, use the following steps:
1. Ensure the Mains lamp (amber) is illuminated. If the lamp is not illuminated, refer to Troubleshooting on page 15.
2. Transfer the rotary switch from UPS to MAINS, provided the Mains lamp is illuminated on the Liebert MicroPOD.
3. Turn the UPS off.
4. Disconnect the two cables connecting the UPS to the Liebert MicroPOD.
5. The UPS is prepared for servicing.
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 12

8 SPECIFICATIONS
M O D E L #
P O W E R D IS T R IB U T IO N B O X M O D E L #
M P 2-2 10 K M P 2-2 20 L P D5 -20 AC 20
U S ED W / L IE B E RT G X T R A T IN G , V A 3 00 0 3 00 0
Dimensions, W x D x H, in (mm)
Unit 15.51 x 3.03 x 3.46 (394 x 77 x 88)
Shipping 18.5 x 8.27 x 6.49 (470 x 210 x 165)
Weight, lb (kg)
Unit 4.4 (2.0)
Shipping 6.2 (2.8) 6.6 (3.0)
Electrical Specifications
AC Input EN60320/C14
receptacle
EN60320/C20
receptacle EN60320/C20
Connection to UPS Input EN60320/C13
receptacle
EN60320/C19
receptacle EN60320/C19
Connection to UPS Output EN60320/C14
receptacle
EN60320/C20
receptacle EN60320/C20
Output Receptacles/ Protection
(4) EN60320/C13 with
10A circuit breaker
(4) EN60320/C13 with
10A circuit breaker
(2) EN60320/C13 with
10A circuit breaker
(2) EN60320/C13 with
10A circuit breaker
(2) EN60320/C13 with
10A circuit breaker
(1) EN60320/C19 with
16A circuit breaker
(2) EN60320/C13 with
10A circuit breaker
(2) EN60320/C13 with
10A circuit breaker
(2) EN60320/C13 with
10A circuit breaker
(1) EN60320/C19 with
20A circuit breaker
Table 9.1
Specifications—Liebert MicroPOD units
U N IT D E SC R IP T IO N
Transfer Time (to and from maintenance bypass) < 6 milliseconds
Operating Ambient Temperature 32°F to 104°F (0°C to +40°C)
Storage Ambient Temperature -4°F to 140°F (-20°C to +60°C)
Humidity 0 to 95% non-condensing
Agency/Standards UL 1778, c-UL, ISTA Procedure 1A
Table 9.2
General characteristics—Liebert MicroPOD units, pluggable and hardwire
This Liebert MicroPOD is intended for use with a UPS meeting all the following requirements:
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 13

•UPS input cord is compatible with the rating and type of receptacle on the Liebert MicroPOD labeled CONNECT
UPS LINE CORD HERE.
•UPS output cord is compatible with the rating and type of receptacle on the Liebert MicroPOD labeled UPS.
•Available mains receptacle is compatible with the Liebert MicroPOD input power connector labeled MAINS.
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 14

9 TROUBLESHOOTING
P R O BL E M C A U S E S O LU T IO N
Mains lamp (amber) not illuminated.
Mains not present. Call qualified service personnel to restore power to
receptacle.
Liebert MicroPOD input cord not
connected to mains.
Refer to Liebert MicroPOD installation instructions in this
manual:
•Installation on a Liebert GXT UPS on page 7 and
•Rack Mount Installation on page 8.
UPS Available lamp (green) not illuminated.
UPS output power not present. Turn on UPS. Refer to UPS user manual.
UPS input and/or output cord not
connected to Liebert MicroPOD.
Refer to Liebert MicroPOD installation instructions in this
manual:
•Installation on a Liebert GXT UPS on page 7 and
•Rack Mount Installation on page 8.
Liebert MicroPOD will not start some / all
connected loads.
Liebert MicroPOD output circuit breaker
has tripped. Reset Liebert MicroPOD circuit protectors.
Liebert MicroPOD circuit protectors trip after
resetting.
Overcurrent on Liebert MicroPOD
receptacle.
Recalculate load requirements, distribute load among other
Liebert MicroPOD receptacles.
9.1 Product W arran ty Registration
To register for warranty protection, visit the Quick Links section of the Vertiv™ site at:
http://www.VertivCo.com
Click on Product Warranty Registration and complete the form.
If you have any questions, contact Vertiv™ Channel Support at:
North America: 800-222-5877
Outside North America: 00-800-1155-4499
E-mail: [email protected]
V e rtiv | Vertiv Liebert® MicroPOD ™ Installer/User Guide | 15
