Vesta EF-12L User manual

2013.A
EF-12L
EF-12L-2
Countertop Electric Fryer
User’s Manual

2013.A
Dear User & Client,
Firstly, thanks for purchasing and using our product. All the information and guidelines of
this user’s manual comply with certain applicable regulations, which come out from our
long-term accumulated knowledge and experience as well as current project development
situations.
Limited to some special structures, additional specified items or new technology changes,
the actual usage situation might be some different from what stated in this user’s manual.
Should you have any question, please do not hesitate to contact the manufacturer via the
method shown in back cover page of this manual.
For safety purpose and efficient operation, please make this document available to users
for reference. Do have them to read this manual carefully before carry out any action on
this device, especially when starting.
This manual is not applicable for those who have physical or mental disabilities,
insufficient experience, and/or insufficient knowledge, including children.
The manufacturer declines any responsibility in the event users do not follow the
instructions or guidelines stated here.
The user’s manual should be placed close to the device, in convenience of users’ reading
before operation. We have the full authority to reserve the further technical changes of the
device, in the scope of further performance improvement characteristic development.

2013.A
Warning
◆Any self-modification, wrong installation, adjustment or maintenance can lead to
property loss or casualty. Please contact the manufacturer for any adjustment or
maintenance, and have the work done by a trained & qualified person.
◆For your safety sake, please keep the machine away from any liquid, gas or other
object, which is flammable or explosive.
◆This appliance should not be operated by those who have physiological, perceptual
or mental disabilities or those who have insufficient experience or knowledge
(including children). Only in conditions of being given sufficient supervise & guarantee
of personal safety, as well as proper instructions & guidance, those who were
mentioned above can make some particular operation of this device.
◆Keep children away from the device.
◆Preserve this manual safely. When passing on/selling the device to a third party, the
manuals must be handed over along with the device. All users must operate the
device complying with the user’s manual and related safety guidelines.
◆Do not store or use gas, liquid or object that is flammable or explosive in the vicinity of
the mounting position of the appliance.
◆If this appliance is placed near walls, partitions or kitchen furniture and the like, it is
advisable to make these facilities with non-combustible material, otherwise cover
them with non-combustible heat-resistant material, and pay attention to fire
prevention regulations.
◆Do not use extra power supply that not marked on the product. Before using, ground
the appliance reliably to ensure safety.
◆Do not destroy the surfaces of furnace body and heating element(s) with hard or
sharp objects.

2013.A
Contents
1. Functional Introduction…………………………………..........…1
2. Structure Schematic Diagram & Working Principle…..........…1
3. Basic Features & Parameters………………………….........…3
4. Precautions & Recommendations …………………….........…4
5. Working Instructions & Operation Flow……………..........……5
6. Routine Inspection …………………………………….......…..6
7. Cleaning & Maintenance…………………………….......….….7
8. Failure Analysis & Trouble Shooting…………………...........….7

2013.A
1
1. Functional Introduction
This product is manufactured by our company, which is combined with advantages from
home and abroad. It is novel in design, reasonable in structure, easy in operation, durable
in using, fast in heating up, saving in energy and convenient in maintenance. The
thermostatic control makes the temperature freely adjustable at a certain range according
to food requirement. Therefore, it is the ideal equipment for hotel, supermarket, restaurant,
western restaurant, fast-food restaurant and food industry.
2. Structure Schematic Diagram & Working Principle

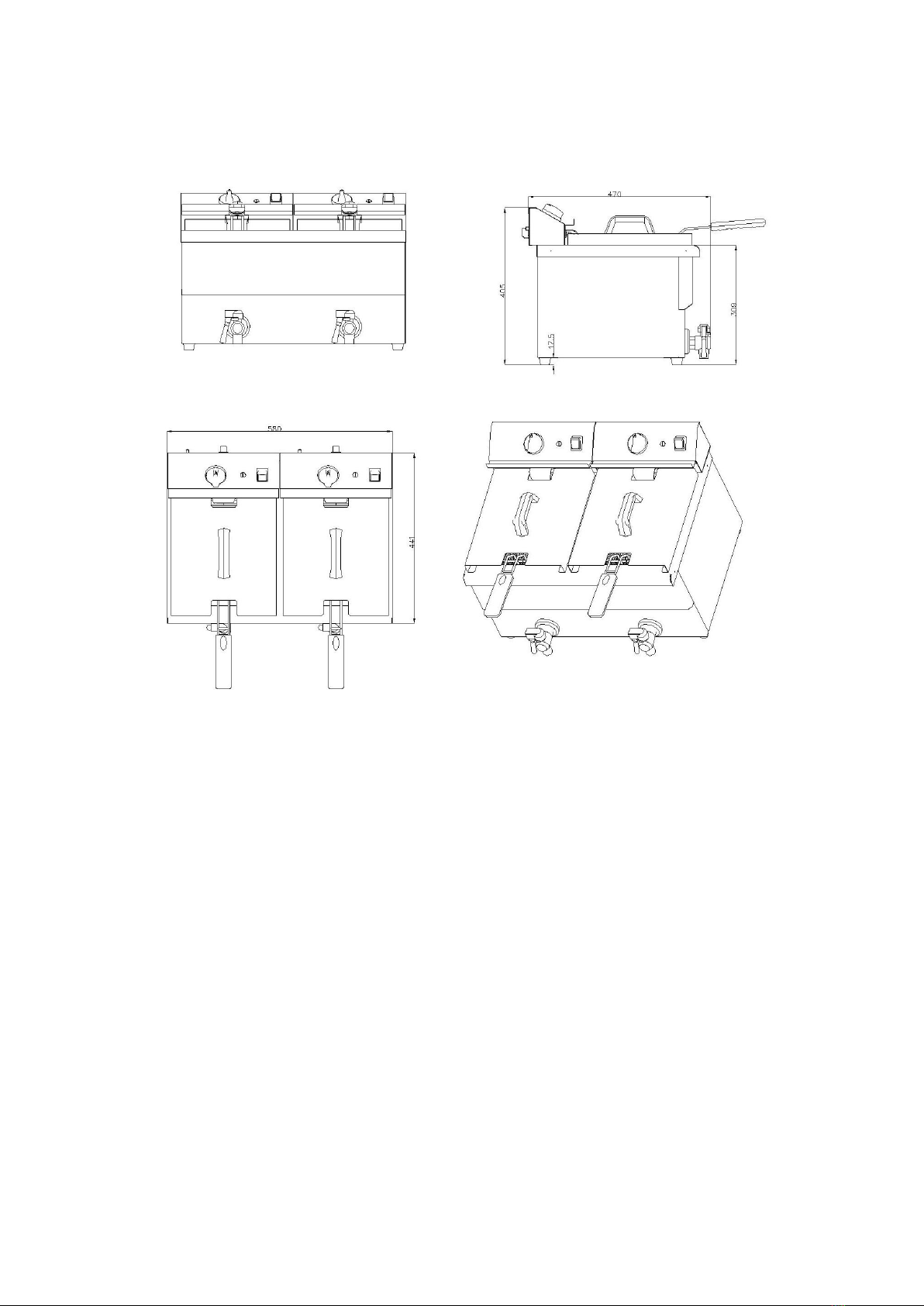

2.1 Structure Schematic Diagram:
EF-12L

2013.A
2
EF-12L-2
2.2 Structural & Functional Features
1. This series is divided into two types: 1-tank and 2-tank. The 2-tank model can fry two
totally different flavors of food simultaneously without any interaction to their own
taste.
2. Equipped with thermostat, used for desired fry temperature setting, adjustable. Also,
it is provided with power indicator and heating indicator for heating condition
observing.
3. Equipped with thermal breaker protector. If the oil temperature exceeds the limited
value, it can cut off the power supply automatically to protect the appliance. (manual
reset)
4. Equipped with micro safety switch. When the electrical box is lifted, the micro switch
activates to cut off the power supply to ensure personal safety and prevent dry heat
of the heating elements.
5. The basket, equipped with foldable and removable handle, combined with stainless
steel oil tank (with level notch) and drain valve, easy to operate and clean.
6. The heating elements, equipped with a guard board, are easily removed with the
whole electrical box from the slot of bottom box, separating with the oil tank,
convenient for heating elements and tank body cleaning.

2013.A
3
2.3 Electrical Diagram:
3. Basic Features & Parameters
Name
Countertop Electric 1-Tank
Fryer (1-Basket)
Countertop Electric 2-Tank
Fryer (2-Basket)
Model
EF-12L
EF-12L-2
Voltage（V）
220-230
220-230
Power（kW）
2.96~3.25
(2.96~3.25)×2
Set Temperature
50℃～200℃
50℃～200℃
Tank
1
2
Tank Size（mm）
240×300×200
240×300×200
Capacity（L）
8
8+8
Basket
1
2
Basket Size（mm）
185×230×140
185×230×140
Dimension（mm）
285×470×410
580×470×410
Net Weight
10kg
17.5kg

2013.A
4
4. Precautions & Recommendations
4.1 Transportation and Storage
During transportation, the machine should be carefully handled and do not put it upside
down to prevent from damaging to the shell and inside. The packaged machine should be
stored in a ventilated warehouse without corrosive gas. If it needs to be stored in open air
temporarily, measurement against raining is needed.
4.2 Notice for Installment
1. The supply voltage should comply with the working voltage of the appliance.
2. The appliance should be positioned at a stable area with a minimum clearance of
10cm away from non-combustible substances (e.g. walls, windows etc.) on both sides,
and 20cm at back side.
3. The appliance is equipped with equipotential terminals at lower part of the its back,
which shall be reliably connected with copper wire that no less than 1.5mm2according
to provisions.
4. After installation, check that whether the connection is loose, whether the voltage is
normal and whether the safety grounding is reliable.
5. Temperature of vicinity of the fryer should not exceed 300℃, preventing fire hazard
causing by hot oil splashing.6. Installation of the appliance should be done by professional technicians.
7. When connecting the appliance to the power supply, an all-pole disconnecting device
(residual current circuit breaker) with contact opening of 3mm should be connected
first.
8. Keep your hands dry during installation and operation. The plugs and switches etc.
shall be in dry contact.
4.3 Special Notice
1. This product should be operated by trained cook.
2. Do not dismantle or self-modify the machine. Dismantlement and self-modification
may cause casualty.
3. Before cleaning, unplug and cut off the power supply.
4. During cleaning, do not aim at the appliance with water jet.
5. Water may conduct electricity, that may cause electric shock due to leakage.
6. Do not pat the product or put any heavy objects onto it. Abnormal operation may
cause damage and danger.
7. High temperature may cause scald.

2013.A
5
8. Do not touch the tank body with hands directly due to high temperature during or after
operation, especially the high-temperature area of tank.
9. Do not use extra power supply that not marked on the product.
10. Do not use residual current circuit breaker that not conforming to safety provision.
11. To prevent damage, turn off the switch ASAP when near the thunder zone.
12. Do not destroy the furnace surfaces with hard or sharp objects.
13. After working, turn off the switch.
14. Circuit installation and maintenance should be done by qualified technicians.
15. If the power cord is damaged, replace it with original or dedicated components that
bought from manufacturer or its maintenance department. Substitution should be
done by professional personnel.
16. Used oil may lower the flash point and cause excessive ebullition more easily. Also,
food that is overloaded or too wet may cause excessive ebullition either.
5. Working Instructions & Operation Flow
1. Check that whether the power installation is correct. Making sure that the supply
voltage complies with the working voltage of the appliance.
2. There are level notches on the wall of tank. During using, keep the oil in proper level.
Users can regulate the oil capacity between “MIN”and “MAX”according to actual
requirement.
3. Plug in to power on and turn on the switch, the green indicator illuminates, at this time,
the appliance is energized. Rotate the thermostat knob clockwise to make desired
temperature value align with the white dot, the yellow indicator illuminates, which
indicates that the heating elements start heating up the oil in tank.
4. When the set point is reached, the thermostat will cut off the power supply
automatically with the yellow indicator off. The heating elements stop working. Once
the temperature drops a bit, the thermostat will connect the power supply
automatically. The yellow indicator illuminates and the heating elements restart
working, the oil temperature rises. The procedure circulates to ensure the oil
temperature keep constant in the set range.
5. The cover is designed for tank cleaning and heat preservation. When covering, pay
attention that there should not be any water on the cover. Because, if the water drops
into the hot oil in tank, it may cause injuries due to splashing.
6. Equipped with dedicated baskets for smaller food. There is a hook and handle on the
basket. During operation, immerse the basket body into the oil. When the food is
cooked, lift up the basket and hang it to the slot up front the tank to drain off the
excessive oil. For larger food, put it directly into the tank to fry.
7. After working, turn the thermostat knob counterclockwise to off position and cut off
the power supply to ensure safety.

2013.A
6
8. To remove the used oil in tank, have the work done after the oil temperature cools
down to room temperature. Cut off the power supply first, then position the drip pan
under the drain valve and turn on the valve with automatic lock catch to remove the
used oil.
9. For safety and durability sake, users should remove the residues in tank and dirt on
heating elements regularly to keep the tank and elements in long-term clean state.
10. The oil separating net in tank is designed for heating element protection. During frying,
the net should be put into the tank.
11. There is a thermal breaker in the electrical box, whose operating temperature is
230℃while the manual reset temperature is ＜170℃. It activates to disconnect the
circuit if the oil exceeds 230℃. For reuse, press the “overheat protection reset button”
at lower part of the box exterior to reset, then the appliance can be used normally. If
the thermal breaker activates continuously and repeatedly, call professional
personnel to check and repair. Note:
◆It may cause fire hazard if the oil level is lower than the MIN level.
◆Food that is overloaded or too wet may have an effect on excessive ebullition.
◆MAX load of food for a time should not exceed 1 kg per tank.
◆Used oil may lower the flash point and cause excessive ebullition more easily.
6. Routine Inspection
It is necessary to check the machine daily.
Check the machine regularly can avoid serious accident happens.
Stop using if user feels that there are some problems in the circuit or machine.
Check the situation of the machine before or after using every day.
Before using: Whether the machine is tilted?
Whether the control panel is damaged?
Whether the power cord is aging, cracking or damaged?
During using: Whether there is strange odor or vibration noise?
Whether the micro switch is in bad contact?
Whether the temperature is out of control or any electric leakage?

2013.A
7
7. Cleaning & Maintenance
1. Before cleaning, cut off the power supply first to prevent unexpected accidents.
2. After working everyday, clean the furnace plate, body surfaces and power cord with
wet towel containing non-corrosive detergent. Do not aim at the appliance with water
jet directly. Water infiltration may damage the electric performance and cause
electricity safety accident.
3. If not going to use the appliance at any time, turn off the thermostat and power switch.
4. If not going to use the appliance for a long period of time, clean it completely and
store it in a well-ventilated warehouse without any corrosive gases.
8. Failure Analysis &Trouble Shooting
Symptoms
Causes
Solutions
Power on, but the power
indicator is not on and the
appliance does not heat up.
1. The plug is not in place.
2. The micro switch is in bad
contact. It is disconnected.
1. Plug in again.
2. Regulate the limit
distance of the switch.
The heating indicator is on,
but the oil temperature does
not rise.
1. Connection of heating
element is loose or falls
off.
2. The heating element is
burnt out.
1. Fasten the connecting
wires and screws on
both end.
2. Replace the heating
element.
The power indicator is on,
after having the temperature
set, the temperature does not
rise.
1. The thermostat is burnt
out.
1. Replace the thermostat.
Oil temperature control is
normal, but the indicator is
not on.
1. The indicator is burnt out.
1. Replace the indicator.
After circulating heating up to
high temperature, the heating
element does not heat up
again.
1. The thermal breaker
activates.
1. Manual reset “overheat
protection reset button”.
Oil temperature keeps rising
and out of control.
1. The thermal breaker is
malfunctioning.
1. Replace the thermal
breaker.
Aforementioned troubles are just for reference. If any failure occurs,
please stop using and inform the professional technicians to check and
repair.
