Vesta EF-6L User manual

2015.A
EF-6L
EF-6L-2
Electric Fryer
User’s Manual

2015.A
Dear User & Client,
Firstly, thanks for purchasing and using our product. All the information and guidelines of
this user’s manual comply with certain applicable regulations, which come out from our
long-term accumulated knowledge and experience as well as current project development
situations.
Limited to some special structures, additional specified items or new technology changes,
the actual usage situation might be some different from what stated in this user’s manual.
Should you have any question, please do not hesitate to contact the manufacturer.
For safety purpose and efficient operation, please make this document available to users
for reference. Do have them to read this manual carefully before carry out any action on
this device, especially when starting.
This manual is not applicable for those who have physical or mental disabilities,
insufficient experience, and/or insufficient knowledge, including children.
The manufacturer declines any responsibility in the event users do not follow the
instructions or guidelines stated here.
The user’s manual should be placed close to the device, in convenience of users’ reading
before operation. We have the full authority to reserve the further technical changes of the
device, in the scope of further performance improvement characteristic development.
Key to symbols:
In this manual, symbols are used to highlight important safety instructions and any advice
relating to the device. The instructions should be followed very carefully to avoid any risk
of accident, personal injury or property loss.

2015.A
Warning
◆Any self-modification, wrong installation, adjustment or maintenance can lead to
property loss or casualty. Please contact the manufacturer for any adjustment or
maintenance, and have the work done by a trained & qualified person.
◆For your safety sake, please keep the machine away from any liquid, gas or other
object, which is flammable or explosive.
◆This appliance should not be operated by those who have physiological, perceptual
or mental disabilities or those who have insufficient experience or knowledge
(including children). Only in conditions of being given sufficient supervise & guarantee
of personal safety, as well as proper instructions & guidance, those who were
mentioned above can make some particular operation of this device.
◆Keep children away from the device.
◆Preserve this manual safely. When passing on/selling the device to a third party, the
manuals must be handed over along with the device. All users must operate the
device complying with the user’s manual and related safety guidelines.
◆Do not store or use gas, liquid or object that is flammable or explosive in the vicinity of
the mounting position of the appliance.
◆If this appliance is placed near walls, partitions or kitchen furniture and the like, it is
advisable to make these facilities with non-combustible material, otherwise cover
them with non-combustible heat-resistant material, and pay attention to fire
prevention regulations.
◆Housing of the appliance shall be grounded to ensure safety. Thanks for your
cooperation!
◆To reduce the risk of fire or electric shock. Do not remove cover. No user serviceable
parts inside. Repair should be done by authorized service personnel only.
CAUTION –THIS GROUP OF APPLIANCES HAS TWO POWER SUPPLY CORDS.
DISCONNECT ALL POWER SUPPLY CORDS BEFORE MOVING OR SERVICING
THIS APPLIANCE.
CAUTION –THIS PRODUCT HAS TWO POWER SUPPLY CORDS. CONNECT EACH
PLUG TO A RECEPTACLE THAT IS CONNECTED TO AN INDIVIDUAL BRANCH
CIRCUIT.
CAUTION –TO REDUCE THE RISK OF ELECTRIC SHOCK, CONNECT THE
APPLIANCE TO A BRANCH CIRCUIT WITH A 20 AMPERES OVERCURRENT
PROTECTIVE DEVICE.

2015.A
Table Of Contents
1. Functional Introduction…………………………………............…1
2. Structure Schematic Diagram & Working Principle….............…1
2.1 Structure Schematic Diagram……………………...…………1
2.2 Working Principle……………………………………....………2
2.3 Copyright Protection…………………………………...………2
3. Technical Parameters…………..............………………...........…3
4. Precautions & Recommendations ……………………..........…..4
4.1 Operation Tips………....................................…........………4
4.2 Storage & Transport……………………………………...……4
4.3 Installation………………………………………….......………5
5. Working Instructions & Operation Flow……………...........…..…5
5.1 Operation…………………………………................…………5
5.2 Function…………………………………..................…………6
6. Routine Inspection …………………………………….........….....6
7. Cleaning & Maintenance………………………….…...........….....6
8. Trouble Shooting………………….........................................…..7
8.1 Electrical Diagram………………………………....…..………7
8.2 Common Fault…………………………………......……..……7

2015.A
1
1. Functional Introduction
This product is manufactured by our company, which is combined with advantages from
home and abroad. It is novel in design, reasonable in structure, easy in operation, durable
in using, fast in heating up, saving in energy and convenient in maintenance. The
thermostatic control makes the temperature freely adjustable at a certain range according
to food requirement. Therefore, it is the ideal equipment for hotel, supermarket, restaurant,
western restaurant, fast-food restaurant and food industry.
2. Structure Schematic Diagram & Working Principle
2.1 Structure Schematic Diagram:
1-Tank Fryer
英联斯特(广州)餐饮设备有限公司
Vesta (Guangzhou) Catering
Equipment Company Limited
C
A
B
17.5
326
标记 处数 更改文件号 签 名 日期
设计 标准化
审核
工艺 批准
材
料
投 影 EF-4L6L8L11L
单缸电炸炉
版本号 重量(g) 比例
1:5
EF-8L-00-00
共 张 第 张

2015.A
2

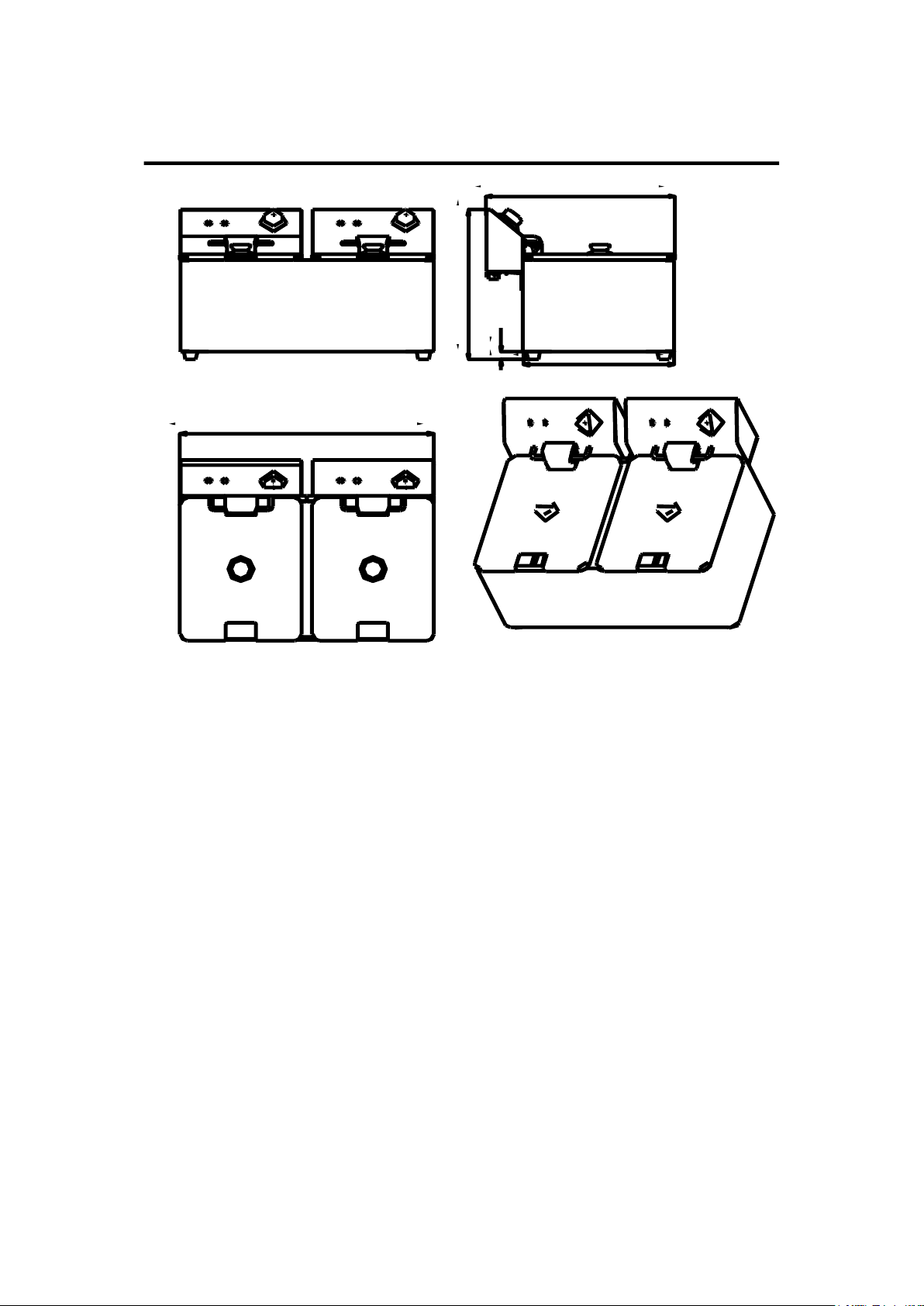

2-Tank Fryer
英联斯特(广州)餐饮设备有限公司
vesta (Guangzhou) Catering
Equipment Company Limited
F
326
D
17.5
E
标记 处数 更改文件号 签 名 日期
设计 标准化
审核
工艺 批准
材
料
投 影 EF-4L6L8L11L-2
双缸电炸炉
版本号 重量(g) 比例
1:5
EF-8L-2-00-00
共 张 第 张
2.2 Working Principle
Heat produced by energization of heating element(s) in the oil is transferred to the oil to
rise the temperature. When the oil temperature set point is reached, the thermostat will cut
off the power supply automatically and the heating element stops working. Once the
temperature drops a bit, the thermostat will connect the power automatically. The heating
element restarts working and the oil temperature rises. The procedure circulates to keep
the oil temperature constant within the set range.
2.3 Copyright Protection
The device complies with the current standards and directives of the countries allowing
the sale of the product. The instruction manual including any texts, drawings, images or
other illustrations is copyright. No part of this publication may be reproduced, transmitted
or used in any form or by means without permission in writing from the manufacturer. Any
person who commits any unauthorized act in relation to this publication shall be liable to
claims for damages. All rights reserved.

2015.A
3
3. Technical Parameters
Load for frying at one time should not exceed the following data in table (for meat):
EF-6L/6L-2
0.9kg / tank
Note：
①Load of non-meat for once shall be less, as a limit, no hot oil should spill over during
frying.
②Food that is overloaded or too wet may have an effect on excessive ebullition.
③Load for frying in the table is based on normal oil capacity.
Name
Electric 1-Tank
Fryer (1-Basket)
Name
Electric 2-Tank
Fryer (2-Basket)
Model
EF-6L
Model
EF-6L-2
Voltage（V）
120
Voltage（V）
120
Power（kW）
1.75
Power（kW）
1.75×2
Set Temperature
122℉(50℃) ～374
℉(190℃)
Set Temperature
122℉(50℃) ～374
℉(190℃)
Tank
1
Tank
2
Tank Size (mm)
240×300×150
Tank Size (mm)
240×300×150
Capacity
5L
Capacity
2×5L
Basket
1
Basket
2
Basket Size (mm)
185×210×115
Basket Size (mm)
185×210×115
Dimension (mm)
A×B×C
310×410×285
Dimension (mm)
D×E×F
550×410×285
N/W
5.5kg
N/W
12kg

2015.A
4
4. Precautions & Recommendations
4.1 Operation Tips
1. Installation and maintenance shall be done by professional technicians. If necessary,
contact the technicians. Grounding connection of the device must comply with the
local regulations. (Warning: Improper operation, installation or maintenance may
cause property damage, injury or death etc.. Read this instruction manual thoroughly
before installing, operating or servicing this equipment.)
2. This product is a commercial machine that needs to be operated by trained cook. Do
not dismantle or self-modify the machine. Dismantlement and self-modification may
cause casualty.
3. Before cleaning, unplug and cut off the power supply. During cleaning, do not aim at
the appliance with water jet. Water may conduct electricity, that may cause electric
shock due to leakage.
4. Do not pat the product or put any heavy objects onto it. Abnormal operation may
cause damage and danger. Do not touch the appliance with hands directly due to
high temperature during or after operation, especially the hot area with high
temperature which may cause scald.
5. Do not use extra power supply that not marked on the product.
6. Do not use power knife that not conforming to safety standard.
7. To prevent damage, turn off the switch ASAP when near the thunder zone.
8. Do not destroy the furnace surface with hard or sharp objects.
9. After working, turn off the switch.
10. Circuit installation and maintenance shall be done by qualified technicians.
11. If the power cord is damaged, to avoid hazard, substitution should be done by
manufacturer or its maintenance department or similar professional personnel.
12. Do not aim at the electrical box with water directly, nor do immerse it into water for
cleaning.
4.2 Storage & Transport
1. The packaged device should be stored in a well-ventilated warehouse without any
corrosive gas instead of exposing to the open air. Should any temporary storage
needed, please take measurement against raining.
2. For safety sake, this device has already been checked by qualified personnel before
transportation. Please take care when handling it. Please check the delivery upon
completeness and transport damage immediately after receipt. In case of visible
damage, do not accept. The carrier takes full responsibility for the damages caused
during transportation. Hidden damages should be reclaimed immediately after notice,
as claims for damages can only asserted within the effective period for complaints.
3. During transportation, the machine should be carefully handled, do not put it upside
down to prevent from damaging the shell and inside.

2015.A
5
4.3 Installation
1. The supply voltage should comply with the working voltage of the appliance. After
installation, check that whether the connection is loose, whether the voltage is normal
and whether the safety grounding is reliable. The fixed arrangement of wire should be
equipped with an all-pole disconnecting switch with a contact opening of 3mm on its
poles. It is advisable to install a grounding leakage protection switch or relay that with
a leakage peak of 10mA. Mounting space for the device shall be at least: 1500 ×850
×530 mm (L ×W ×H). Unpack the device and place it on the floor.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, CONNECT THE APPLIANCE TO A
BRANCH CIRCUIT WITH A 20 AMPERES OVERCURRENT PROTECTIVE DEVICE,
5. Working Instructions & Operation Flow
5.1 Operation
1. Check that whether the power installation is correct. Making sure that the supply
voltage complies with the working voltage of the appliance.
2. There are level notches on inner wall of tank. During using, keep the oil in proper
level. Users can regulate the oil capacity between “MIN”and “MAX”according to
actual requirement.
3. Power on, the green indicator illuminates, at this time, the appliance is energized.
Rotate the thermostat clockwise to make desired temperature value align with the red
dot, the yellow indicator illuminates, which indicates that the heating elements start
heating up the oil in tank.
4. When the set point is reached, the thermostat will cut off the power supply
automatically with the yellow indicator off. The heating elements stop working. Once
the temperature drops a bit, the thermostat will connect the power supply
automatically. The yellow indicator illuminates and the heating elements restart
working, the oil temperature rises. The procedure circulates to ensure the oil
temperature keep constant within the set range.
5. The cover is designed for tank cleaning and heat preservation. When covering, pay
attention that there should not be any water on the cover. Because, if the water drops
into the hot oil in tank, it may cause injuries due to splashing.
6. Equipped with dedicated baskets for smaller food. There is a hook and handle on the
basket. During operation, immerse the basket body into the oil. When the food is
cooked, lift up the basket and hang it to the slot up front the tank to drain off the
excessive oil. For larger food, put it directly into the tank to fry.
7. After working, turn the thermostat counterclockwise to limit position and cut off the
power supply to ensure safety.
8. To remove the used oil in tank, have the work done after the oil temperature cools
down to room temperature. First, cut off the power supply and take out the oil partition

2015.A
6
in tank. Then, pull out the electrical box from the slot at rear of the bottom case. At
this moment, the heating elements are separated from the tank body completely with
the electrical box, put it on a clean area. Then lift out the tank for a thorough cleaning.
9. For safety and durability sake, users should remove the residues in tank and dirt on
heating elements regularly to keep the tank and elements in long-term clean state.
10. The oil partition in tank is designed for heating element protection. During frying, the
partition shall be put into the tank.
11. The electrical box is equipped with a thermal breaker, whose operating temperature
is 446℉(230℃) while the manual reset temperature is <330℉(165℃). Also, an
“overheat protection reset button”is provided at lower part of the box exterior. It
activates to protect the appliance once the oil is over-temperature. For reuse, press
the reset button to reset, only then can the appliance be used normally.12. There is a micro limit switch in the electrical box, which is connected when the box is
inserted into the slot in the bottom case, and disconnected while the box is lifted from
the slot.
13. Fresh vegetable oil (or pastry oil) should be used instead of used oil which may lower
the flash point and cause excessive ebullition.
5.2 Function:
Main function of the fryer is to fry food in a constant temperature. Cook temperature could
be set by the thermostat in according to food type with a range of 122℉(50℃) ～374℉
(190℃).
6. Routine Inspection
1. Stop using if user feels that there are some problems in the pipeline or machine.
2. Check the situation of the machine before or after using everyday.
3. Check that whether the machine is tilted before using.
4. Check that whether the control panel is damaged.
5. Check that whether there is strange odor or smell during using.
6. Check that whether there is vibration noise.
7. Cleaning & Maintenance
1. Before cleaning, cut off the power supply first to prevent unexpected accidents.
2. After working everyday, clean the furnace surfaces and power cord with wet towel
containing non-corrosive detergent. Do not aim at the appliance with water jet directly.
Water infiltration may damage the electric performance and cause electricity safety
accident.
3. If not going to use the appliance at any time, turn off the thermostat and power switch.
4. If not going to use the appliance for a long period of time, clean it completely and
store it in a well-ventilated warehouse without any corrosive gases.

2015.A
7
8. Trouble Shooting
8.1 Electrical Diagram
8.2 Common Fault
thermostat heating element micro switch indicator TEMP. limiter

2015.A
8
Symptoms
Causes
Solutions
Power on, but the power
indicator is not on and the
appliance does not heat
up.
1. The plug is not in
place.
2. The micro switch is in
bad contact. It is
disconnected.
1. Plug in again.
2. Regulate the limit
distance of the switch.
The heating indicator is
on, but the oil temperature
does not rise.
1. Connection of heating
element is loose or falls
off.
2. The heating element is
burnt out.
1. Fasten the connecting
wires and screws on
both end.
2. Replace the heating
element.
The power indicator is on,
after having the
temperature set, the
temperature does not rise.
1. The thermostat is burnt
out.
1. Replace the thermostat.
Oil temperature control is
normal, but the indicator is
not on.
1. The indicator is burnt
out.
1. Replace the indicator.
After circulating heating
up to high temperature,
the heating element does
not heat up again.
1. The TEMP limit
protector activates.
1. Manual reset “overheat
protection reset button”.
Oil temperature keeps
rising and out of control.
1. The TEMP limit
protector is defective.
1. Replace the protector.
Aforementioned troubles are just for reference. If any failure occurs,
please stop using, and inform the professional technicians to check and
repair.
