Index
BEFORE USING THE APPLIANCE ................................................... 2
General warnings ........................................................................................ 2
Old and out-of-order fridges or freezer ........................................................ 4
Safety warnings ........................................................................................... 4
Installing and operating your fridge ............................................................. 5
Before Using your Fridge............................................................................. 5
Fixing the appliance to the wall ................................................................... 6
Information on No-Frost Technology ...........................................................7
USAGE INFORMATION...................................................................... 8
Display and control panel ............................................................................8
Operating your fridge...................................................................................9
On / Off button ............................................................................................................. 9
Super freeze mode ...................................................................................................... 9
Super cool mode ....................................................................................................... 10
Economy mode........................................................................................................... 10
Holiday mode.............................................................................................................. 11
Drink cool mode.......................................................................................................... 11
Screen saver mode..................................................................................................... 12
Function of Child lock ................................................................................................ 12
Freezer temperature settings ..................................................................... 13
Cooler temperature settings .......................................................................13
Warnings about temperature adjustments.................................................. 14
Accessories ................................................................................................14
Icemaker..................................................................................................................... 14
Quickfreezer Partition ................................................................................................. 15
Breakfast / Chilled room Partition .............................................................................. 15
Fresh Dial ................................................................................................................... 16
FOOD PLACEMENT.......................................................................... 17
Cooling Compartment................................................................................. 17
Deep Freeze Compartment ........................................................................ 18
CLEANING AND MAINTENANCE .................................................... 22
Replacing The Light Led............................................................................23
Repositioning the Door ...............................................................................24
BEFORE CALLING THE SERVICE................................................... 25
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ... 28

EN - 2 -
PART- 1.
General warnings
WARNING: Keep ventilation openings, in the appliance enclo-
sure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those recom-
mended by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: In order to avoid any hazards resulting from the in-
stability of the appliance, it must be xed in accordance with the
following instructions:
• If your appliance uses R600a as a refrigerant (this informa-
tion will be provided on the label of the cooler) you should
take care during transportation and installation to prevent
the cooler elements from being damaged. R600a is an en-
vironmentally friendly and natural gas, but it is explosive. In
the event of a leak due to damage of the cooler elements,
move your fridge away from open ames or heat sources
and ventilate the room where the appliance is located for a
few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
• This appliance is intended to be used in household and do-
mestic applications such as:
- staff kitchen areas in shops, ofces and other working en-
vironments.
BEFORE USING THE APPLIANCE

EN - 3 -
- farm houses and by clients in hotels, motels and other resi-
dential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, a service agent or similarly
qualied persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with a
specially grounded socket of 16 amperes. If there is no such
socket in your house, please have one installed by an au-
thorised electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualied
persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.

EN - 4 -
Old and out-of-order fridges or freezer
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC.
Therefore, take care not to harm environment when you are discarding your old fridges.
Please ask your municipal authority about the disposal of the WEEE reuse,
recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specied purposes. It is not suitable for commercial or com-
mon use. Such use will cause the guarantee of the appliance to be cancelled and our
company will not be responsible for losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
food. It is not suitable for commercial or common use and/or for storing substances except
for food. Our company is not responsible for losses to be incurred in the contrary case.
Safety warnings

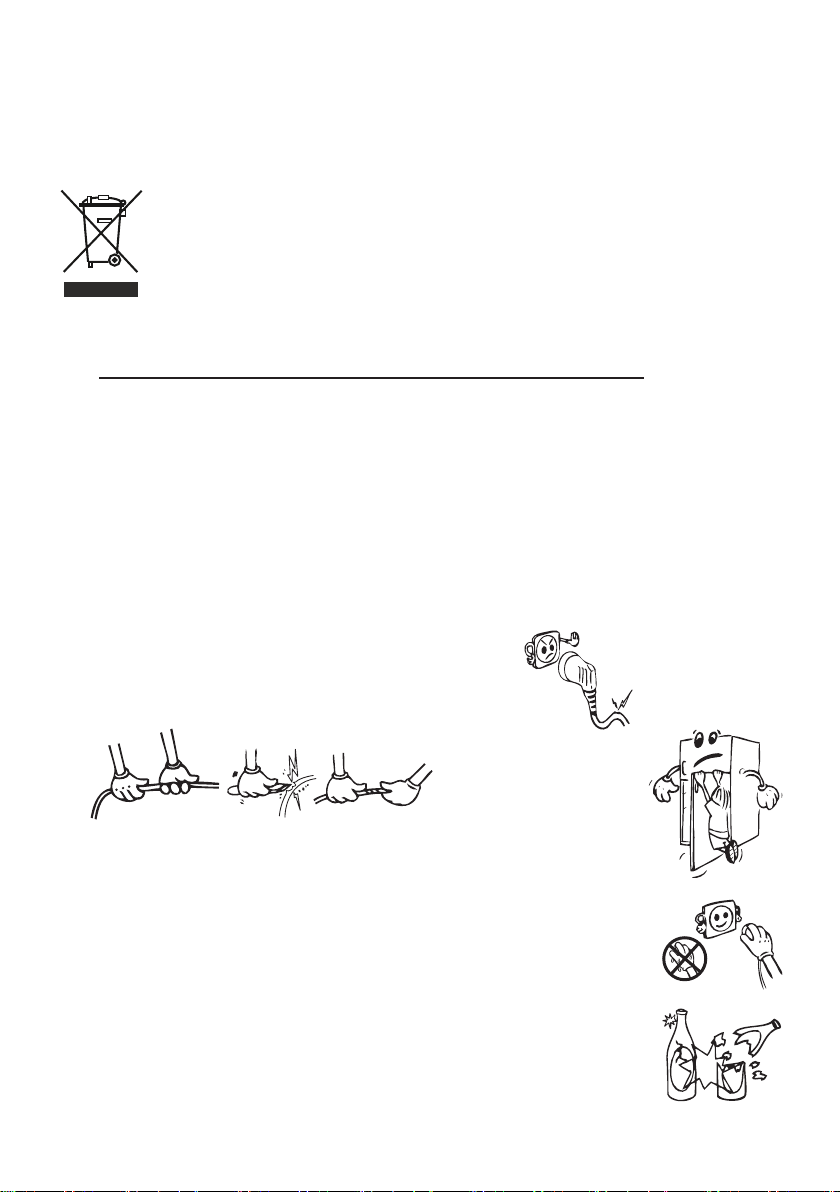

• Do not connect your Fridge Freezer to the mains
electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to
play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could
cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making
compartment as they can burst as the contents freeze.
• Do not place explosive or ammable material in your fridge. Place drinks
with high alcohol content vertically in the fridge compartment and make
sure that their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it.
Ice may cause frost burns and/or cuts.

EN - 5 -
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately
after you have taken them out of the ice-making compartment.
• Do not re-freeze frozen goods after they have melted. This may cause health issues
such as food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance
of your fridge.
• Secure any accessories in the fridge during transportation to prevent damage
to the accessories.
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• WARNING: To avoid a hazard due to instability of the appliance, it must be xed in
accordance with the instructions.
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, gas ovens and
heater cores, and at least 5 cm away from electrical ovens.
• Your fridge should never be used outdoors or exposed to rain.
• When your fridge is placed next to a deep freezer, there should be at least
2 cm between them to prevent humidity forming on the outer surface.
• Do not place heavy items on the appliance.
• Do not place anything on your fridge, and install your fridge in a suitable place so that at
least 15 cm of free space is available above it.
• Use the adjustable front legs to make sure your appliance is level and stable. You can
adjust the legs by turning them in either direction. This should be done before placing
food in the fridge.
• Before using your fridge, wipe all parts with a solution of warm water and
a teaspoon of sodium bicarbonate, then rinse with clean water and dry.
Place all parts in the fridge after cleaning.
• Install the plastic distance guide (the part with black vanes at the rear)
by turning it 90° as shown in the gure to prevent the condenser from
touching the wall.
• Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.
Before Using your Fridge
• When using your fridge for the rst time, or after transportation, keep
it in an upright position for at least 3 hours before plugging into the
mains. This allows efcient operation and prevents damage to the
compressor.
• Your fridge may have a smell when it is operated for the rst time. This is normal and the
smell will fade away when your fridge starts to cool.

EN - 6 -
Fixing the appliance to the wall
Note: This xing part should be used for in the case of , the appliance is out off ballance
when then the inside of the appliance is fully empty but the door shelves are full with stuffs.
For usage please follow the below instructions:
1.Check the kit to locate the following parts.
2.Prepare a star-tip screwdriver for xing the screws.
3.Prepare a driller for making hole to the wall.
4.Put the refrigerator, where you will use it.
5.Refere the holes, which has been drilled before on the top of the refrigerator, and mark
the hole places on the wall.
6.Drill the holes on the wall with Ø 8 mm.
7.Put screw grommet (Part no: 1) in to the hole.
8.Assemble the xing part (no: 2) to the wall by using the plastic screw (part no:3).
9.With the screw M4 (Part no: 4) assemble the xing bracket to the refrigerator.
10. If your appliance is Tropical class then x Screw M4 to the “T” hole on the bracket; if your
appliance is Normal class the x Screw M4 to the “N” hole on the bracket.
11. Do the same actions to the 2nd xing part.
TN
4321
TN
HOLE
Figure -1 Figure -2
Part No Description Quantity Used
4 Screw M4 No:4 2 pcs For xing Bracket (Part no: 2) to the appliance
3Screw for plastic
No:3 (Ø 3,5mm) 2 pcs For xing Bracket (Part no: 2) to the wall
2 Fixing Bracket 2 pcs Main part for xing
1 Screw grommet 2 pcs For xing Plastic screw (Part no: 3) to the
wall.

EN - 7 -

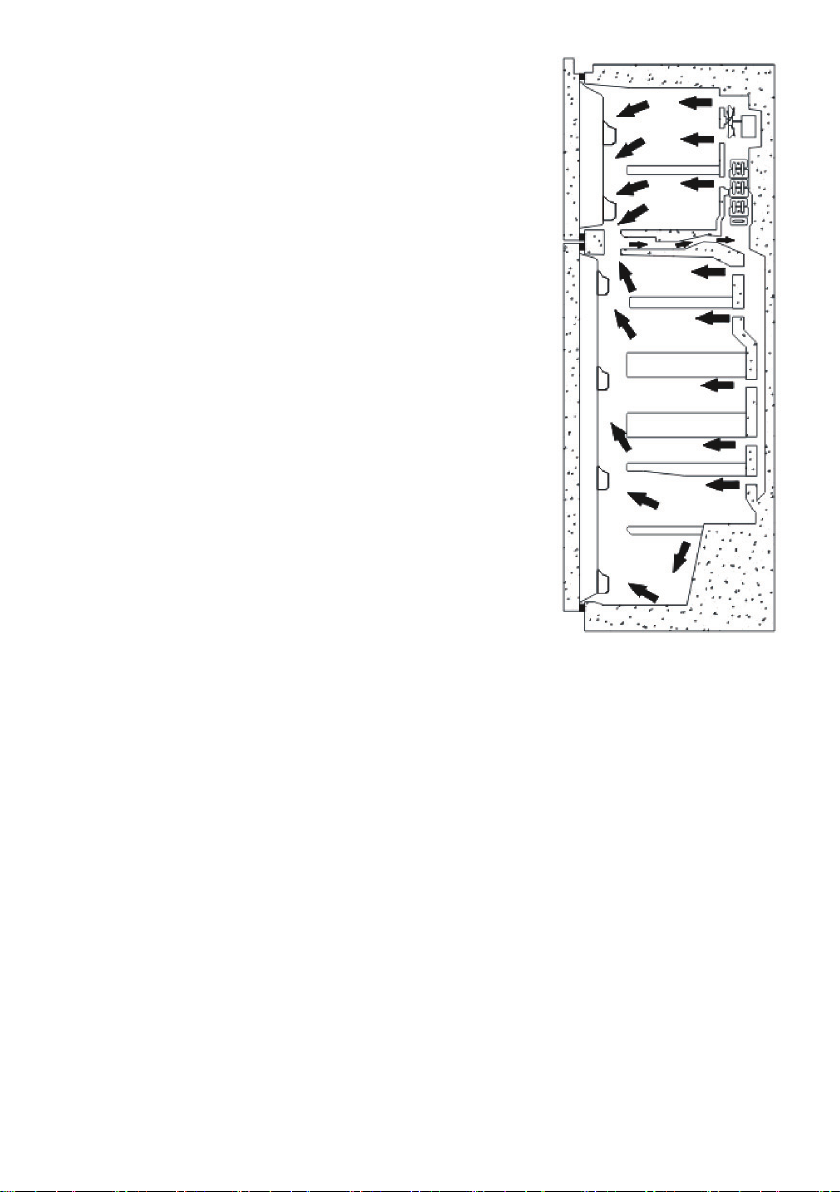

Information on No-Frost Technology
No-frost fridges differ from other static fridges in their
operating principle.
In normal fridges, the humidity entering the fridge due to
opening the door and the humidity inherent in the food causes
freezing in the freezer compartment. To defrost the frost and
ice in the freezer compartment, you are periodically required
to turn off the fridge, place the food that needs to be kept
frozen in a separately cooled container and remove the ice
gathered in the freezer compartment.
The situation is completely different in no-frost fridges. Dry
and cold air is blown into the fridge and freezer compartments
homogeneously and evenly from several points via a blower
fan. Cold air dispersed homogeneously and evenly between
the shelves cools all of your food equally and uniformly, thus
preventing humidity and freezing.
Therefore your no-frost fridge allows you ease of use, in
addition to its huge capacity and stylish appearance.

EN - 8 -
USAGE INFORMATION
Display and control panel
1
2
3
4
5
6
7
8
9
10
11

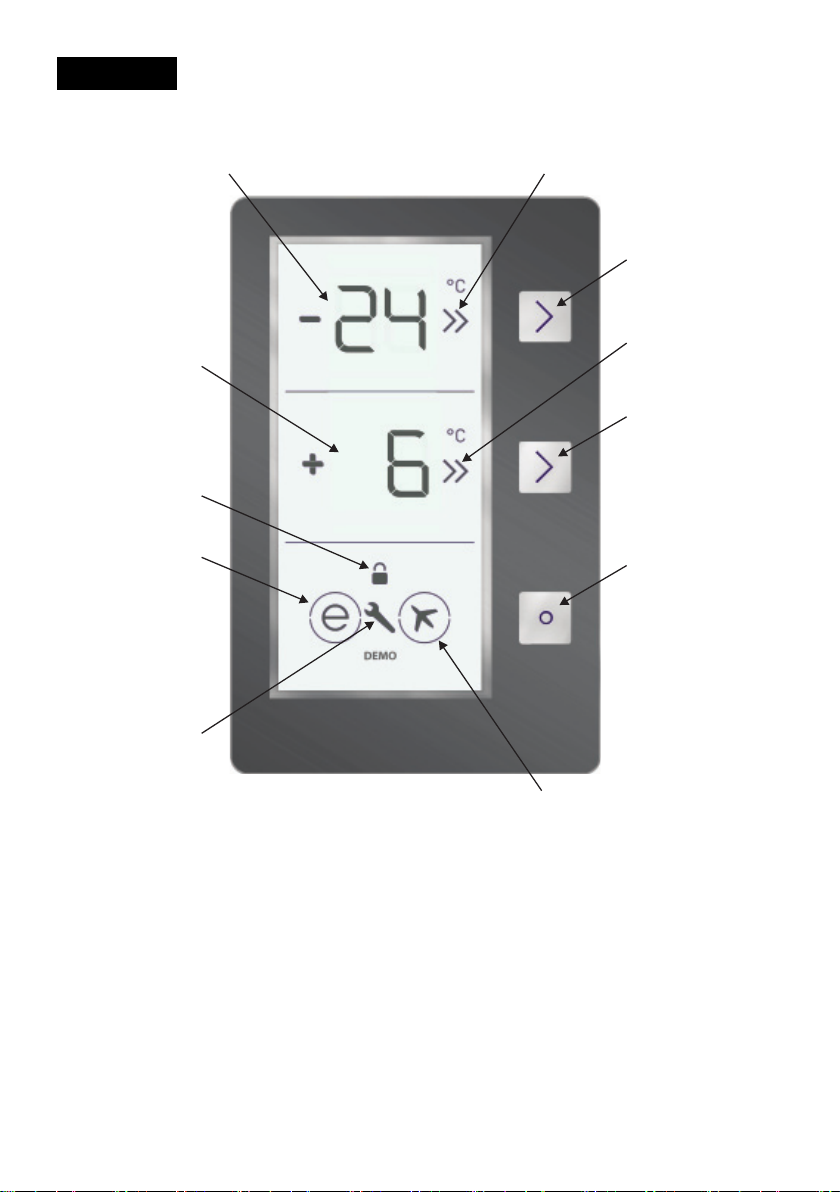

1. Enables the setting of the freezer to
be modied and super freeze mode
to be activated if desired. The Freezer
may be set to -16, -18, -20, -22, -24
°C, SF.
2. Enables the setting value of cooler to
be modied and super cool mode to
be activated if desired. The Cooler
maybe set to 8, 6, 5, 4, 2 °C, SC.
3. It enables the modes (economy,
holiday…) to be activated if desired.
4. Freezer set value screen.
5. Cooler set value screen.
6. Super freeze indicator
7. Super cooling indicator
8. Holiday mode symbol
9. Child-lock symbol
10. Economy mode symbol
11. Alarm symbol
PART- 2.

EN - 9 -
Operating your fridge
On / Off button

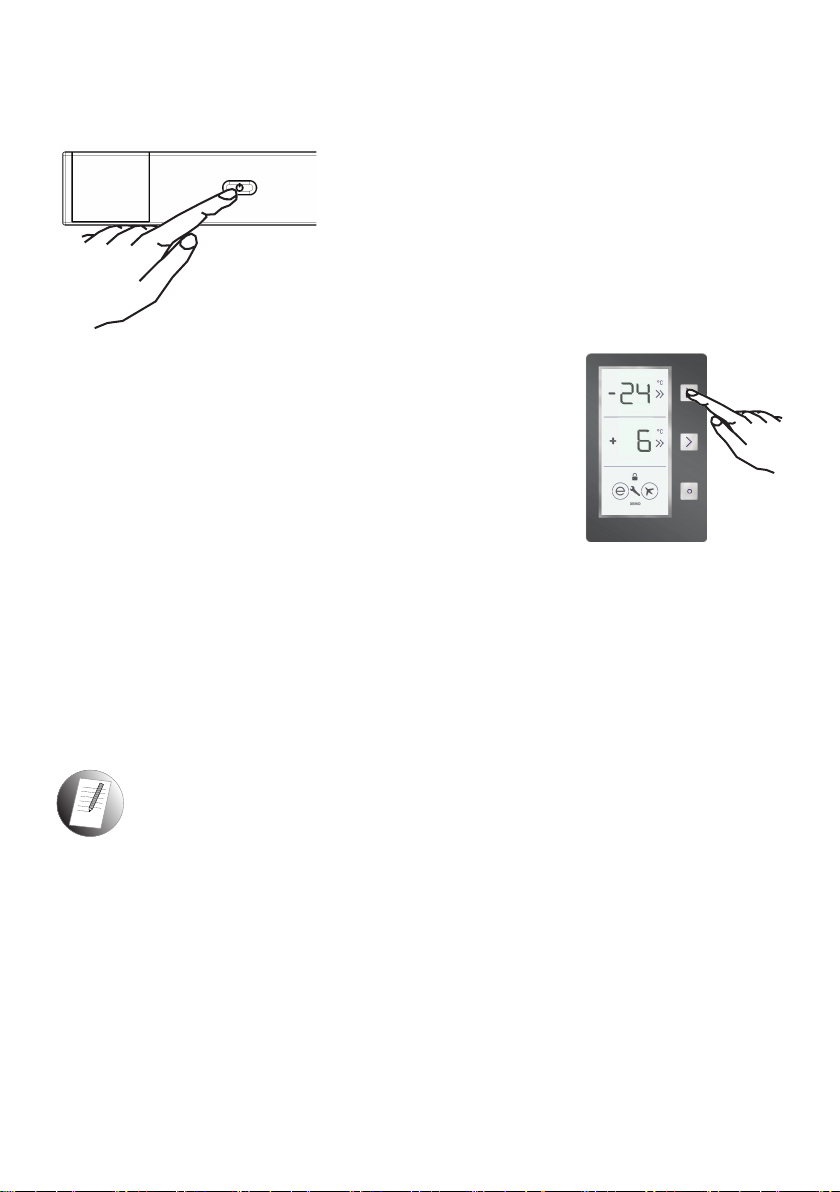

• It cuts the power of appliance by pushing on-off switch.
• After the appliance is plugged, all symbols will appear
for 2 seconds, and then the startup values will appear
as -18°C on freezer setting indicator and +4°C on
cooler setting indicator.
All buttons on the control panel are touch-operated.
(Only press to activate the button you want to operate.)
Super freeze mode
How would it be used?

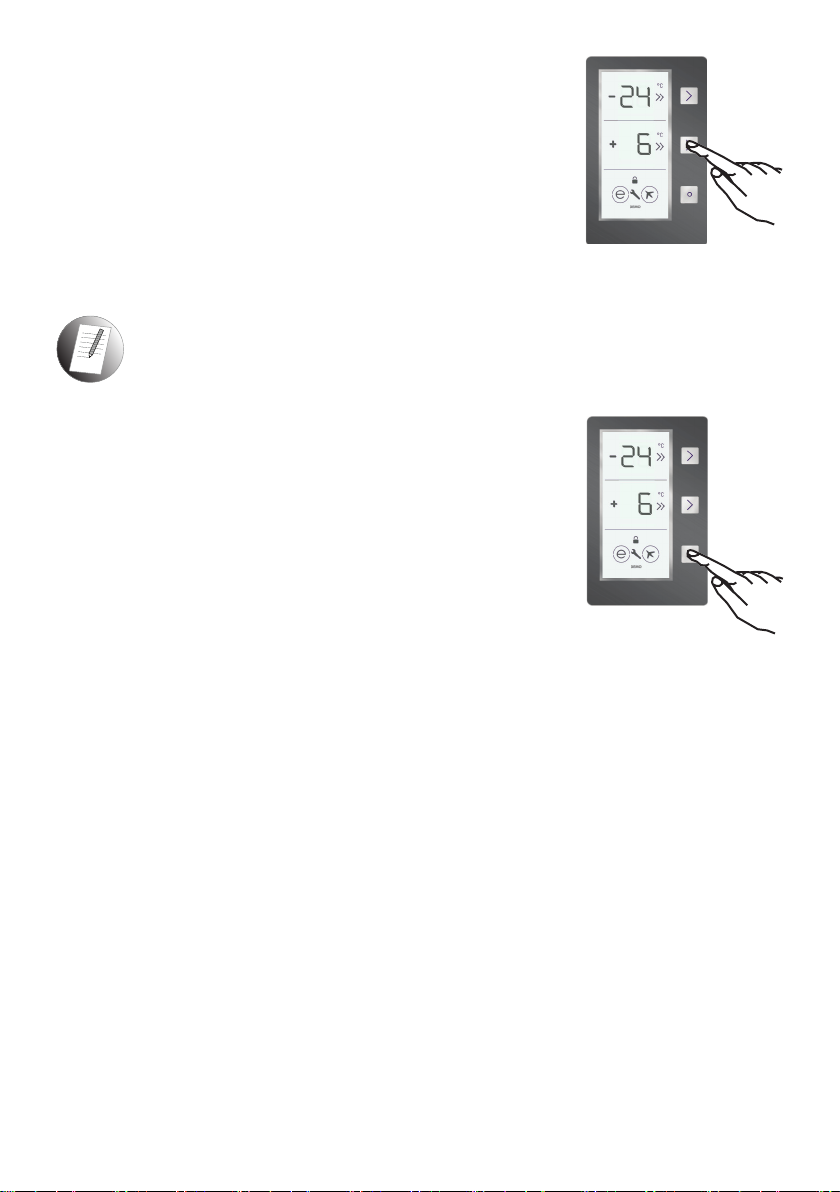

• Press the Freezer Set Button until SF is shown on the screen.
The buzzer will sound twice and the mode will be set.
• Freezer temperature segment will show "SF".
During this mode:
• The temperature of the Cooler and Super Cool Mode may be
adjusted. In this case, Super Freeze Mode continues.
• Economy and Holiday mode cannot be selected.
• Super Freeze Mode can be cancelled in the same way that it was selected.
Note:
• The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is
shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, set the appliance to
active SF mode 3 hours before you put the fresh food into the freezer.
• At the end of this period, the fridge will sound an audible alarm notifying that it is ready.
Super Freeze mode will be automatically cancelled after 24 hours or when freezer
sensor temperature drops beneath -32 °C.
