CONTENTS PAGE
1. ASSEMBLE & DISASSEMBLE
* Changing the door swing direction 1-3
* Changing the freezer door swing direction 4
* Changing the thermostat 5
* Thermostat knob 5
3. REFRIGERANT CYCLE DIAGRAM 6
4. COMPRESSOR AREA VIEW 7
5. CIRCUIT DIAGRAM 7
6. INTERIOR PARTS 8
7. INTERIOR PARTS LIST 9-10
8. DOOR ASSY. PARTS 11
9. DOOR ASSY. PARTS LIST 12
10. UNIT PARTS 13
11.UNIT PARTS LIST 14

1
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
Printed Date : 24 / 04 / 2004 Document No : 52000615
VESTEL WHITE GOODS CUSTOMER
SUPPORT
APRIL
2004
ASSEMBLE & DISASSEMBLE
Figure - 1
Figure - 2

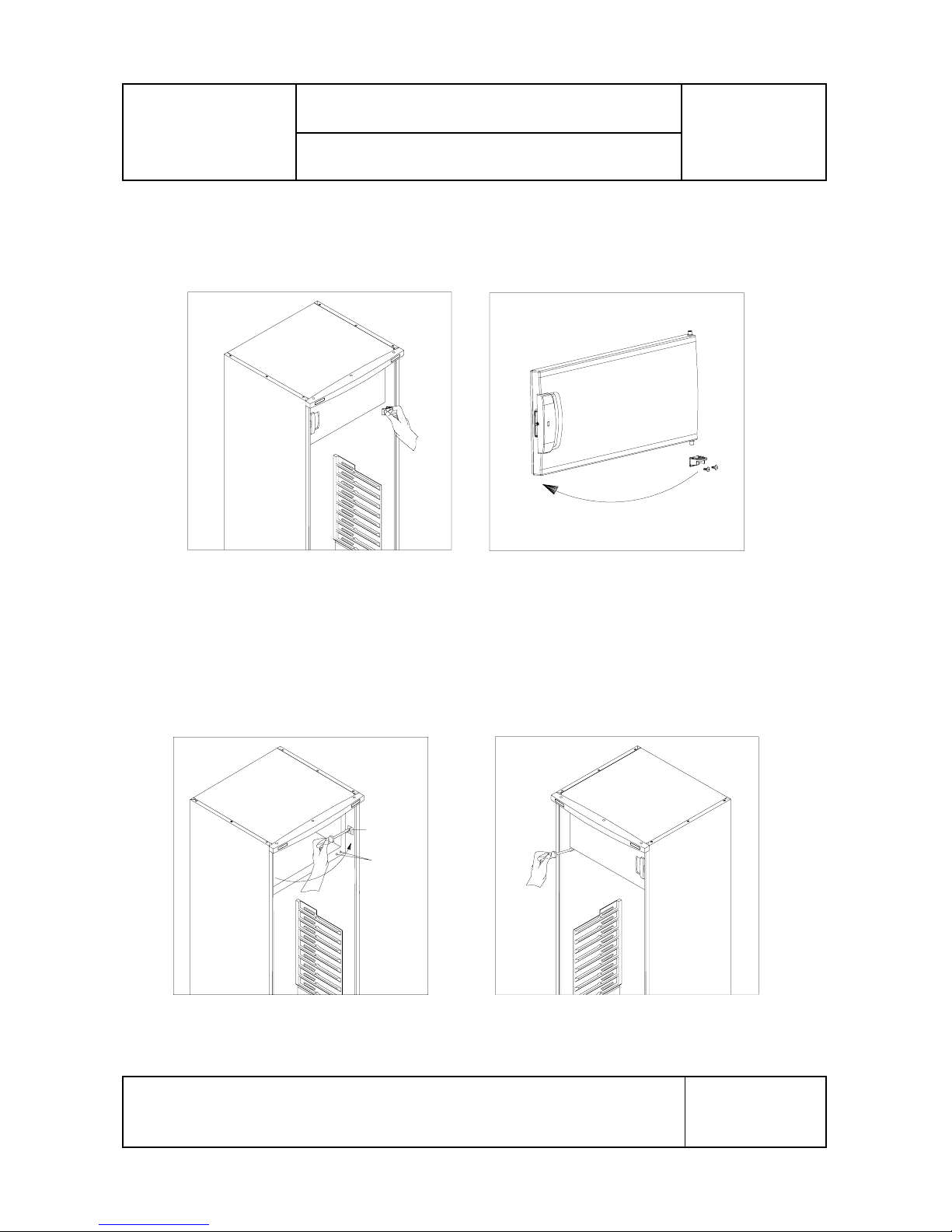

A- Changing The Door Swing Direction :
1- Remove the head panel hinge covers and unscrew the two screws fixing the top
hinge and remove it. (FIG-1)
2- Dismantle the door from bottom hinge by pulling the door upwards. (FIG-2)
Hinge covers

VESTEL
WHITE GOODS
APRIL
2004
VESTEL WHITE GOODS CUSTOMER
SUPPORT
VESTEL REFRIGERATOR
2
Printed Date : 24 / 04 / 2004 Document No : 52000615
ASSEMBLE & DISASSEMBLE
Figure - 3
3- Remove the kick plate by pulling forward. Unscrew the bottom hinge fixing screws
and remove it. Unscrew the pin of bottom hinge from Hole 1, rotate the bottom hinge
900and screw the pin to Hole 2. Dismantle stationary foot of bottom hinge from Hole 3
and screw the stationary foot to Hole 4. (See Detail A) Then remove the stationary foot
from the left side and assemble it to the right side. Screw the hinge to bottom left side
of the cabinet. (FIG-3)
Screw
Kick Plate
Hole 4
Hole 1 Hole 2
Stationary
Foot
Hole 3
Detail A
Bottom
Hinge
Figure - 4
Turn the
top hinge
180°
4- Unscrew the pin of the top hinge. Turn the top hinge by 1800then screw the pin of
the top hinge. (FIG-4)

3
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
Printed Date : 24 / 04 / 2004 Document No : 52000615
VESTEL WHITE GOODS CUSTOMER
SUPPORT
APRIL
2004
ASSEMBLE & DISASSEMBLE
Figure - 5
5- Remove the top bushing and insert it into left side hole. (FIG-5)
Remove the bottom bushing and bottom stopper and reassemble them to the
left side. (FIG-5)
6- Assemble the door by repeating the reverse operation of items 1 and 2.
( Screw the top hinge to left hand side. ) Fix the hinge covers by replacing the right and
left one. Finally, by using a knife cut left side of the kick plate and assemble it.

VESTEL
WHITE GOODS
APRIL
2004
VESTEL WHITE GOODS CUSTOMER
SUPPORT
VESTEL REFRIGERATOR
4
Printed Date : 24 / 04 / 2004 Document No : 52000615
ASSEMBLE & DISASSEMBLE
1. Remove the freezer door hinge cover. (FIG-1) Unscrew the two screws fixing the
freezer door hinge and remove the freezer door (FIG-2)
2. Unscrew the one screw fixing the freezer door holder and remove it. Then screw it
to the right side. Remove the two small caps on the left side and insert them to right
side as shown in the figure. (FIG-3) Assemble the freezer door and fix the freezer
door hinge by tighting the screws. (Reverse operation of item 1) (FIG-4) Finally,
insert the freezer door hinge cover.
Freezer Door
Holder
insert the two
small caps
Figure - 1 Figure - 2
Figure - 3 Figure - 4
Changing The Freezer Door Swing Direction :

5
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
Printed Date : 24 / 04 / 2004 Document No : 52000615
VESTEL WHITE GOODS CUSTOMER
SUPPORT
APRIL
2004
ASSEMBLE & DISASSEMBLE
B - Changing The Thermostat :
1) Remove the lamp cover and unscrew the fixing screw.
2) Remove the thermostat box by pulling it and disconnecting the cable terminals.
3) Remove the thermostat knob by pulling forward. Loosen the nut which is fixing the thermostat.
4) Pull out the thermostat bulb from the housing.
5) Replace the thermostat with a new one and assemble the thermostat box following the steps
backwards.
C - Thermostat Knob
vThis knob is used to control the temperature of the freezer and refrigerator parts automatically. It can
be set to any value between “0“ and “5“positions.
v“ 0 ” position indicates that the thermostat is “off ”.The refrigerator is “off ” on this setting.
vBy turning the knob between “1” and “5”, you can increase or decrease the cooling degree.
vThe refrigerator is designed to get optimum performance when the thermostat knob is set between
position “2” to “4”.

VESTEL
WHITE GOODS
APRIL
2004
VESTEL WHITE GOODS CUSTOMER
SUPPORT
VESTEL REFRIGERATOR
6
Printed Date : 24 / 04 / 2004 Document No : 52000615

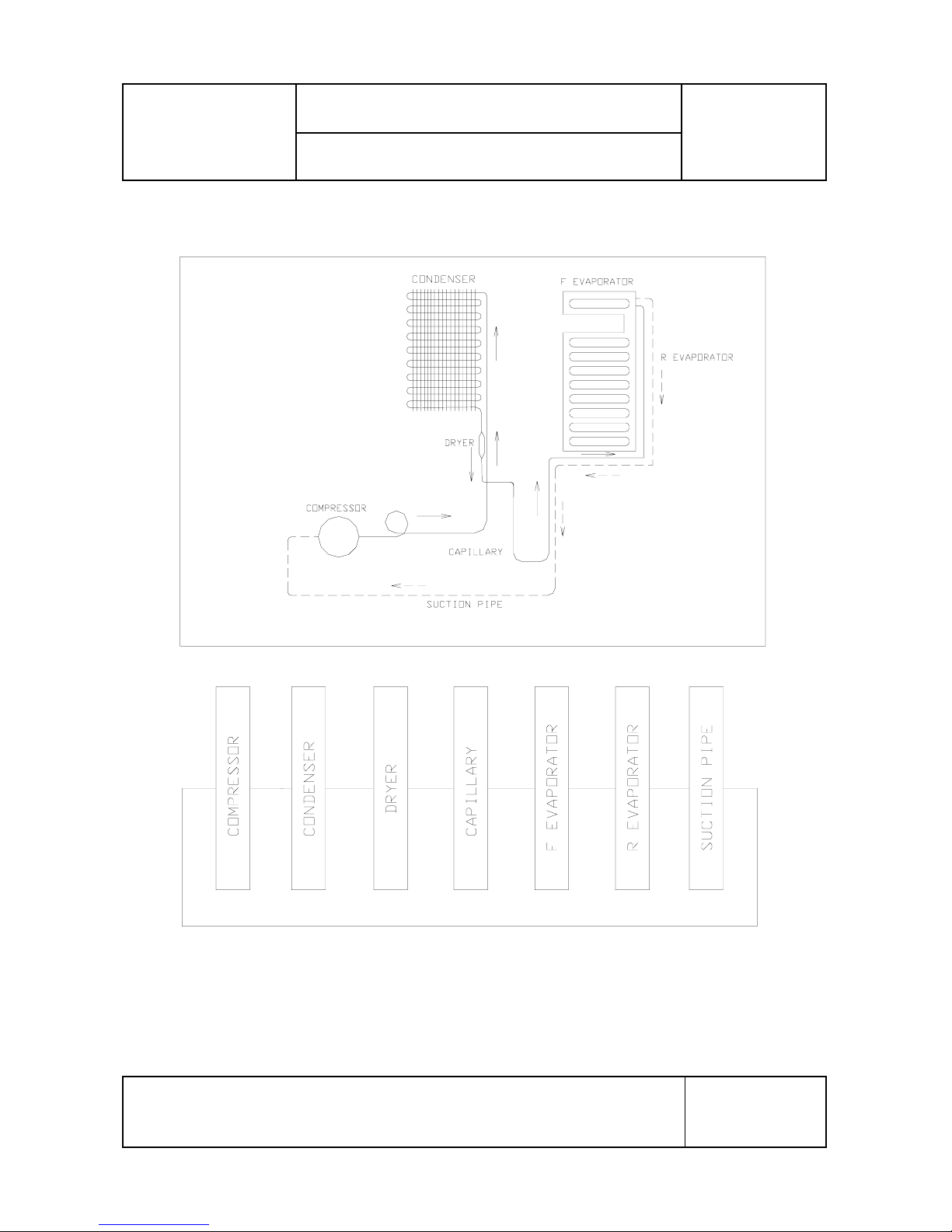

REFRIGERANT CYCLE DIAGRAM

7
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
Printed Date : 24 / 04 / 2004 Document No : 52000615
VESTEL WHITE GOODS CUSTOMER
SUPPORT
APRIL
2004
COMPRESSOR AREA VIEW & CIRCUIT DIAGRAM
COMPRESSOR AREA VIEW
CIRCUIT DIAGRAM

VESTEL
WHITE GOODS
APRIL
2004
VESTEL WHITE GOODS CUSTOMER
SUPPORT
VESTEL REFRIGERATOR
8
Printed Date : 24 / 04 / 2004 Document No : 52000615

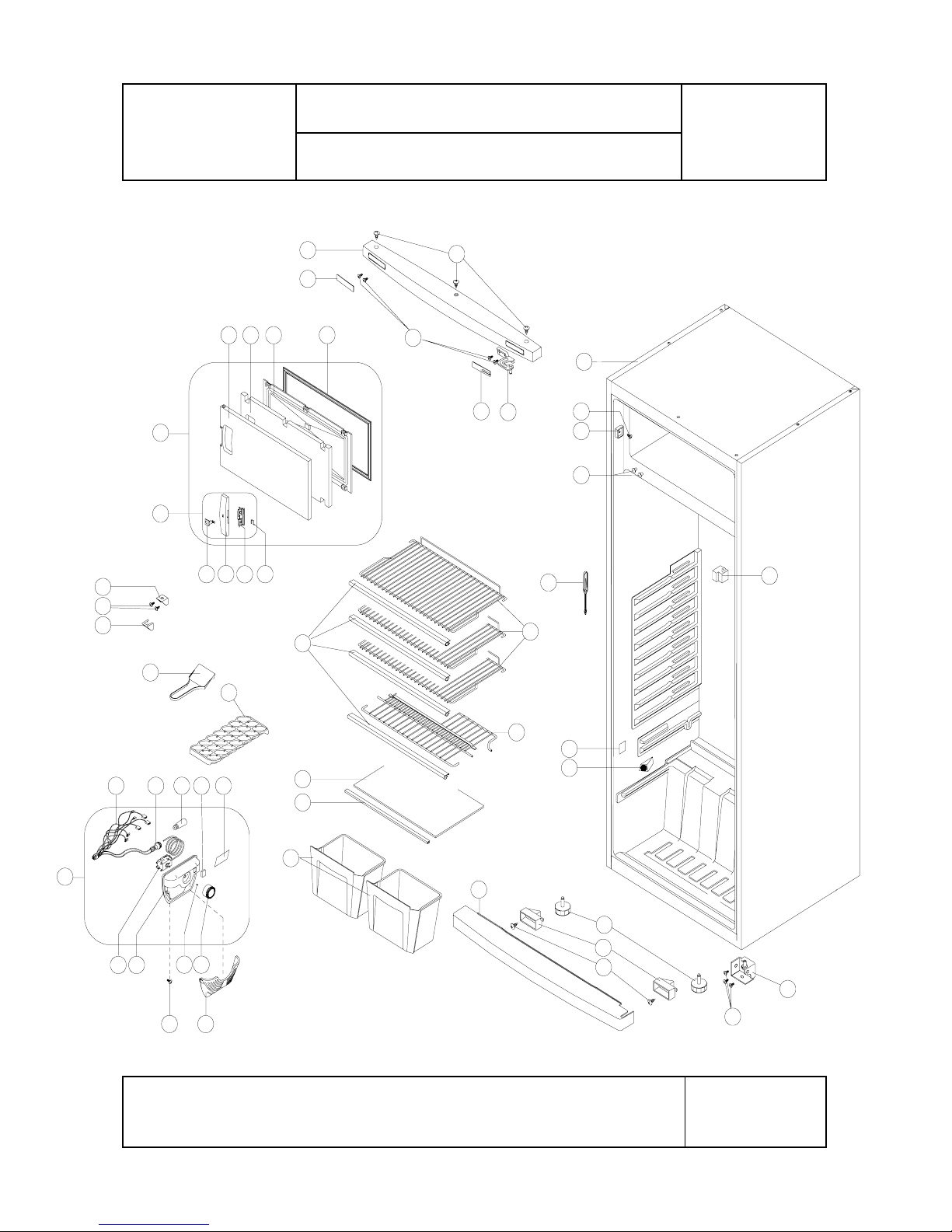

INTERIOR PARTS
16
15
14
13
5
12
4
6
23
7
5
98
1
11
10
17
18
192021
22
23 24 25 26
28
27
29
30
31
32
33
34
35
36
37
38
39
40
41
42
4344
45
4647
4849505152

9
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
Printed Date : 24 / 04 / 2004 Document No : 52000615
VESTEL WHITE GOODS CUSTOMER
SUPPORT
APRIL
2004
INTERIOR PARTS LIST
NO CODE PART NAME SMP 420.05
120133937 ASSY URT CAB/425 (WITH SERPENTINE) (ICE WHITE) 1
240018688 HEAD PANEL ASSY/455 (ICE WHITE) 1
335000743 SCREW 4.2*9.5 DIN 7981 YSB 3
435004874 TOP HINGE DYED/345P (PÇ.6,9) 1
5 35000714 SCREW M5*14 WN 1342-H EJOT 7
640018649 HEAD PANEL CAP/RIGHT (ICE WHITE) 1
740018650 HEAD PANEL CAP/LEFT (ICE WHITE) 1
8 30007915 DOOR LAMP SWITCH 1
940019311 TUNNEL DRAIN PLUG (ICE WHITE) 1
10 40010922 INDICATOR GR 1
11 50028825 INDICATOR LABEL 1
12 35006201 BOTTOM HINGE/425 1
13 45000563 STATIONARY FOOT 2
14 40019313 KICK PLATE HOLDER (ICE WHITE) 2
15 35000707 SCREW 3.5*13 DIN 7981 YSB 2
16 40018734 KICK PLATE/455P (ICE WHITE) 1
17 40019695 F DOOR GR/425 (ICE WHITE) 1
18 40014741 F DOOR GASKET/425 (STR) 1
19 40019643 F DOOR BACK/425 (ICE WHITE) 1
20 50038999 F DOOR PAD/425 1
21 40019709 F DOOR FRONT/425 SRGF (ICE WHITE) 1
22 40019017 F DOOR HANDLE ASSY/340 (ICE WHITE) 1
23 40002238 F DOOR LOCK INDICATOR COVER/340 1
24 40018980 F DOOR HANDLE (ICE WHITE) 1
25 40002233 F DOOR LOCK 1
26 35005861 F DOOR SPRING/340 (U) 1
27 40002226 F DOOR HINGE 1
28 35000744 SCREW KA 40*18 WN 1411(INOX ) EJOT 2
29 40018979 F DOOR HINGE COVER (ICE WHITE) 1
30 35003482 SCREW PLS KA 40*13(INOX-S.UÇ)SUS 430 1
31 40002230 F DOOR HOLDER 1
32 40018479 CAP SMALL (ICE WHITE) 2
33 40018989 ICE SCRAPER (ICE WHITE) 1
34 40002236 ICE TRAY 1
35 47000098 R COMPARTMENT SHELF/455 (ICE WHITE) 3
36 40020567 R COMPARTMENT SHELF TRIM/455 (EXT) (ICE WHITE) 4
37 47000078 MAGIC SHELF/455 (ICE WHITE) 1
38 45001946 CRISPER COVER SRGF/425 (WHIRLPOOL) 1
39 40020577 CRISPER COVER TRIM/455 (EXT) (ICE WHITE) 1
40 40019101 CRISPER/465 (ICE WHITE) 2

VESTEL
WHITE GOODS
APRIL
2004
VESTEL WHITE GOODS CUSTOMER
SUPPORT
VESTEL REFRIGERATOR
10
Printed Date : 24 / 04 / 2004 Document No : 52000615
INTERIOR PARTS LIST
NO CODE PART NAME SMP 420.05
41 30029616 THERMOSTAT BOX GR/340-425 (ICE WHITE) 1
42 40002255 LAMP COVER/345 1
43 40018997 THERMOSTAT KNOB SRGF/345 (ICE WHITE) 1
44 35000730 THERMOSTAT KNOB SPRING 1
45 35001678 SCREW KA 40*14 WN 1411(INOX)EJOT 1
46 40018981 THERMOSTAT BOX/345 (ICE WHITE) 1
47 30007921 THERMOSTAT (DNFS077B6575,R2070-K59-1) 1
48 45000560 HEAT REFLECTOR FOIL 1
49 40019016 THERMOSTAT BOX PLUG (ICE WHITE) 1
50 30007906 LAMP (E14/220-240V/15W) 1
51 30007907 LAMP HOLDER-E14 1
52 30014148 WIRING ASSY/THERMOSTAT/425T-340T 1

11
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
Printed Date : 24 / 04 / 2004 Document No : 52000615
VESTEL WHITE GOODS CUSTOMER
SUPPORT
APRIL
2004
DOOR ASSY. PARTS
11
4
5
2
10
9
8
7
6
2
3
1

VESTEL
WHITE GOODS
APRIL
2004
VESTEL WHITE GOODS CUSTOMER
SUPPORT
VESTEL REFRIGERATOR
12
Printed Date : 24 / 04 / 2004 Document No : 52000615
DOOR ASSY. PARTS LIST
NO CODE PART NAME SMP 420.05
145002323 LOGO STARFROST (BIG) 1
2 40002242 BUSHING/345P 2
320149441 DOOR ASSY/425S (BIG) (ICE WHITE CAP) 1
4 35000712 R DOOR STOPPER 1
5 35000714 SCREW M5*14 WN 1342-H EJOT 2
640002307 SHELF SEPERATOR/425 (BLUE) 1
740019005 SMALL SHELF SRGF/425 (ICE WHITE) 4
840007082 EGG HOLDER(I+II)455 (TRANSP-BLUE) 1
940019007 EGG SHELF SRGF/455 (ICE WHITE) 4
10 40018985 BOTTLE HOLDER (ICE WHITE) 1
11 40019008 BOTTLE SHELF SRGF/455 (ICE WHITE) 1

13
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
Printed Date : 24 / 04 / 2004 Document No : 52000615
VESTEL WHITE GOODS CUSTOMER
SUPPORT
APRIL
2004
UNIT PARTS
8
10
16
17
15
13
12
14
18
5
2
2
3
1
6
7
21
20 19
4
9
11

VESTEL
WHITE GOODS
APRIL
2004
VESTEL WHITE GOODS CUSTOMER
SUPPORT
VESTEL REFRIGERATOR
14
Printed Date : 24 / 04 / 2004 Document No : 52000615
UNIT PARTS LIST
NO CODE PART NAME SMP 420.05
135004223 MAIN CONDANSER/425N (D50) 1
2 35001817 SCREW 4.2*9.5 WITH WASHER 4
3 40002180 SPACER 2
440002210 ANTI-VIBRATION (COND.) 2
5 35001697 DRYER (XH9,10GR) 1
640009952 EVAPORATING TRAY/345 1
7 35000743 SCREW 4.2*9.5 DIN 7981 YSB 2
830023391 COMPRESSOR (ECU75HLP, 220-240V/50HZ) 1
940007341 COMPRESSOR RUBBER 4
10 20020023 COMPRESSOR FIXING BRACKET 2
11 20020016 COMPRESSOR BASEMENT/425 1
12 30007904 GROUNDING WIRE 1
13 35000721 NUT M4*3.2 DIN 934 ZNK 2
14 35000722 WASHER 4.3*8*0.9 DIN 6798 ZNK 2
15 35000723 SCREW M4*16 DIN 933 ZNK 1
16 40002217 WHEEL 2
17 35000738 REAR WHEEL PIN 2
18 35000728 SCREW KA 50*14 WN 1412 EJOT 2
19 30023761 POWER CORD GR. ECU75HLP 1
20 30007911 POWER CORD (2.1m) 1
21 30023452 OVER LOAD RELAY.ECU75HLP 1
50029533 USER'S MANUAL-FR 1
50029435 CIRCUIT DIAGRAM/340-425 (WHITH RESISTANCE) 1
20602725 NAME PLATE/425N STARFROST-FR (SMP 420.05) 1
20602727 ENERGY LABEL/425S(GST) LADEN (AM170) 1
50008045 C-PENTAN LABEL 1
20602726 PACKAGE LABEL/425S(N)STARFROST-FR (SMP420.05) 2
20100687 PACKAGE GR/425 (CARTOON STANDARD) 1
50019978 PACKAGE CARTOON/425 (STANDARD) 1
50014044 PACKAGE BAG (1425*2000*0,05)425 0,272 kg. (1)
50019386 STYROFOAM UPPER/455 (CARTOON) 1
50019384 STYROFOAM BOTTOM/455 (CARTOON) 1
50019297 STYROFOAM FRONT CORNER/345 (CARTOON) 4
50019298 STYROFOAM BACK CORNER/345 (CARTOON) 4

PRINTED DATE : 24 APRIL 2004
DOCUMENT NO : 52000615
PREPARED BY : Poyraz DOGACI
APPROVED BY : Deniz SPORER
REVISION SHORT HISTORY:
NO: REV. NO: REV. DATE: PAGE NO: REV. REASON
01 00 24.04.2004 All First publication
DISTRIBUTION :
France – Vestel France Date: 24.04.2004
