VESTEL RT 345S User manual

VESTEL REFRIGERATOR
SERVICE MANUAL
TECHNICAL DEPARTMENT WHITE GOODS TECHNICAL DOCUMENT : 50024370
VESTELMODEL: MODEL: CODE :
RT 345S RD 36T ( GREECE / CARAD ) 10010455
RT 400S RD 40T ( GREECE / CARAD ) 10010451
RT 455S RD 46T ( GREECE / CARAD ) 10010450
VESTEL WHITE GOODS
CONSUMER SERVICE

CONTENTS PAGE
1. SPECIFICATIONS 1-2
2. ASSEMBLE & DISASSEMBLE
A - Changing the doorway direction to right hand 3-5
B - Changing the thermostat 5
C - Thermostat knob 6
3. REFRIGERANT CYCLE DIAGRAM 7
4. MACHINE ROOM VIEW 8
5. CIRCUIT DIAGRAM 9
6. EXTERIOR PARTS 10
7. EXTERIOR PARTS LIST 11
8. INTERIOR PARTS 12
9. INTERIOR PARTS LIST 13
10. DOOR ASSY. PARTS 14
11. DOOR ASSY. PARTS LIST 15
12. UNIT PARTS – RD 36T-RD 40T 16
13. UNIT PARTS – RD 46T 17
14. UNIT PARTS LIST 18-19
Printed Date : 21 / 12 / 2001 Document No : 50024370

VESTEL
WHITE GOODS CONSUMER SERVICE
1
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
TECHNICAL
DEPARTMENT
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
SPECIFICATIONS
RD 36T - RD 40T - RD 46T
SPECIFICATIONS -RD 36T - RD 40T - RD 46T
RD 36T
RD 40T
RD 46T
CLIMATE TYPE
N
N
N
DOOR COLOR
WHITE
WHITE
WHITE
DOOR
2 SIDE AVAILABLE
2 SIDE AVAILABLE
2 SIDE AVAILABLE
DOOR INSULATION
CYCLOPENTAN
CYCLOPENTAN
CYCLOPENTAN
INSULATION
CYCLOPENTAN
CYCLOPENTAN
CYCLOPENTAN
LEVELLING FOOT
2
2
2
REFRIGERATOR GASKET
WHITE
WHITE
WHITE
FREEZER GASKET
WHITE
WHITE
WHITE
ELECTRICAL SPECIFICATIONS
RD 36T
RD 40T
RD 46T
VOLTAGE/FREQUENCY
220-240 V / 50Hz
220-240 V / 50Hz
220-240 V / 50Hz
POWER OUTPUT
215 W
245 W
290 W
LAMP TYPE
E14
E14
E14
POWER CONSUMPTION
1.29 kWh / 24h
1.9 kWh / 24h
1.72 kWh / 24h
CURRENT
1.3 A
1.5 A
1.8 A
ENERGY CLASS
C
C
C
COMPRESSOR
RD 36T RD 40T RD 46T
COMPRESSOR
FG75HAK,NL7FT
FG75HAK,NL7FT
FG85HAK,NL9FT
OVERLOAD RELAY
RD 36T
RD 40T
RD 46T
RELAY TYPE
PTC 8EA 501
PTC 8EA 501
PTC 8EA 501
THERMIC TYPE
4TM276RFBYY-53
4TM276RFBYY-53
4TM276RFBYY-53
REFRIGERATING SYSTEM
RD 36T RD 40T RD 46T
PERFORMANCE ( Star Rating )
4
4
4
FREEZING CAPACITY
3.5 kg / 24 h
3.5 kg / 24 h
5.0 kg / 24 h
THERMOSTAT TYPE DNFS077B6575 DNFS077B6575 DNFS077B6575
DRYER
10 gr.
10 gr.
10 gr.
DEFROST TYPE
Semi - automatic
Semi - automatic
Semi - automatic
CAPILLARY TUBE
0.71x3500 mm
0.71x3500 mm
0.71x3500 mm
REFRIGERANT
R 134a
R 134a
R 134a
REFRIGERANT CHARGE
155 gr
140 gr
180 gr

VESTEL
WHITE GOODS
VESTEL
WHITE GOODS CONSUMER SERVICE TECHNICAL
DEPARTMENT
VESTEL REFRIGERATOR
2
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
SPECIFICATIONS
RD 36T - RD 40T - RD 46T
TEMPERATURE CONTROL MAX.
RD 36T
RD 40T
RD 46T
CUT - IN
+ 3.5 C
+ 3.5 C
+ 3.5 C
CUT - OUT
- 29 C
- 29 C
- 29 C
TEMPERATURE CONTROL MIN.
RD 36T
RD 40T
RD 46T
CUT - IN
+ 3.5 C
+ 3.5 C
+ 3.5 C
CUT - OUT
- 16.7 C
- 16.7 C
- 16.7 C
DIMENSIONS
RD 36T RD 40T RD 46T
REFRIGERANT PART CAPACITY GROSS (l)
258
282
348
FREEZER PART CAPACITY GROSS (l)
74
74
101
WEIGHT (kg)
59.3
61.7
69.2
HEIGHT (mm)
1713
1813
1818
DEPTH (mm)
600
600
620
WIDTH (mm) 595 595 700
PACKAGED DIMENSIONS
RD 36T
RD 40T
RD 46T
WEIGHT (kg)
62.2
65.1
73.3
HEIGHT (mm)
1795
1895
1895
DEPTH (mm)
667
668
701
WIDTH (mm)
665
665
770
FREEZER ACCESSORY
RD 36T
RD 40T
RD 46T
ICE SCRAPER
1
1
1
ICE TRAY
2
2
2
SHELF
1
1
1
REFRIGERANT ACCESSORY
RD 36T RD 40T RD 46T
CRISPER
1
1
2
CRISPER COVER
1
1
1
SHELF
4
4
4
TUNNEL DRAIN PLUG
1
1
1
DOOR ACCESSORY
RD 36T
RD 40T
RD 46T
SHELF
6
6
7
SHELF SECTION
9
9
9
SHELF COVER
1
1
1
EGG HOLDER
1
1
1

VESTEL
WHITE GOODS CONSUMER SERVICE
3
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
TECHNICAL
DEPARTMENT
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
ASSEMBLE & DISASSEMBLE
RD 36T - RD 40T - RD 46T
A- Changing The Doorway Direction to Right Hand
1- Unscrew the two screws which are fixing the middle hinge and one screw where
located near the middle hinge. (FIG-1)
Figure - 1
Figure - 2
3- Take off the kick plate by pulling forward.Unscrew the bottom hinge fixing screws
and remove it.Unscrew the pin of hinge and screw again changing the direction.(See
Detail A)Then assemble the hinge to bottom left side of refrigerator. (FIG-
Figure - 3
DETAIL-A
Bottom hinge
and Kick plate

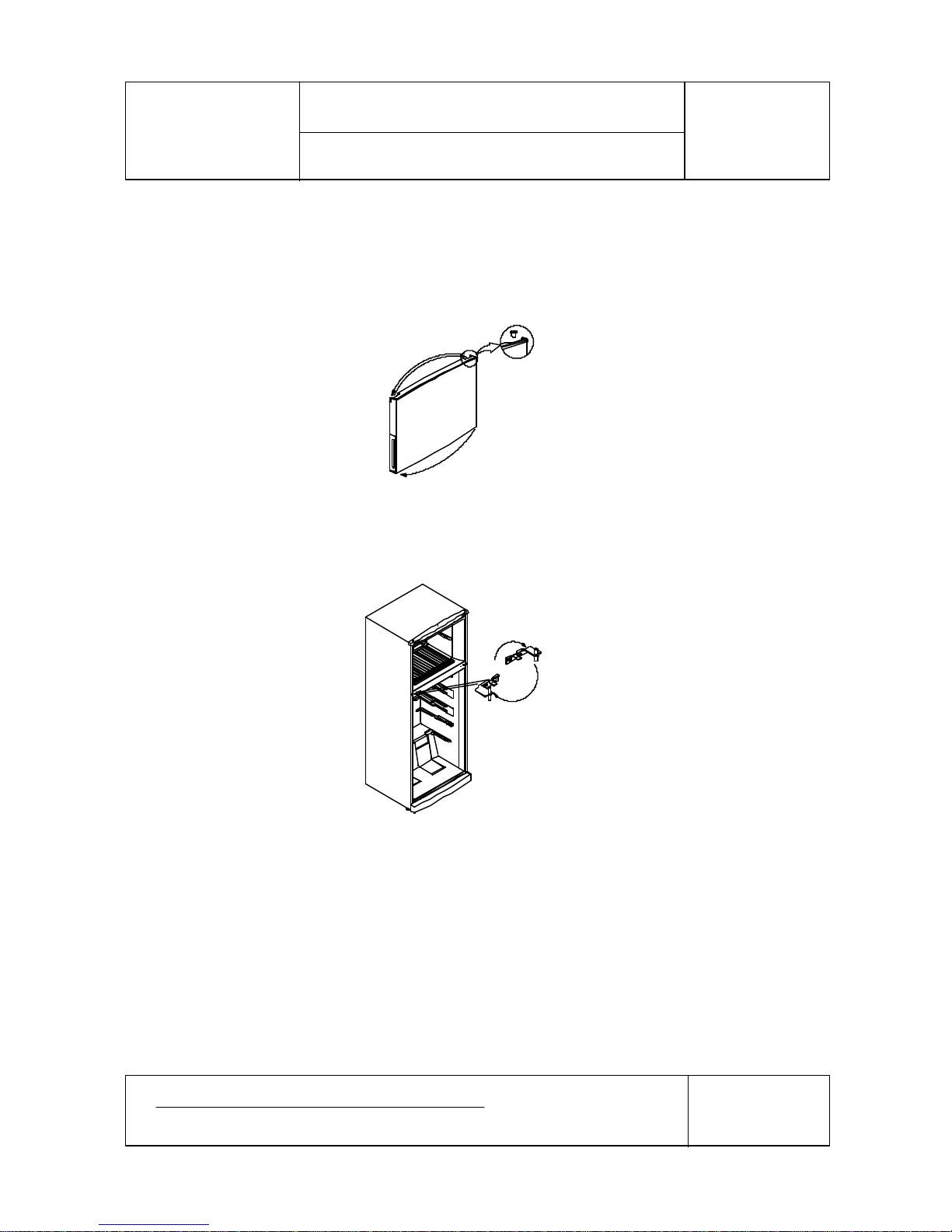

2- Dismantle the refrigerator and freezer door from cabinet by pulling towards to you
together with the middle hinge. (FIG-2)
Cap holes

VESTEL
WHITE GOODS
VESTEL
WHITE GOODS CONSUMER SERVICE TECHNICAL
DEPARTMENT
VESTEL REFRIGERATOR
4
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
ASSEMBLE & DISASSEMBLE
RD 36T - RD 40T - RD 46T
4- Remove the head panel hinge cover and dismantle the upper hinge then unscrew
the pin of hinge and screw again changing the direction and then unscrew the three
screws which are fixing the head panel. (FIG-4)
Figure - 4
A- Changing The Doorway Direction to Right Hand
5- Assemble the upper hinge to the left side and assemble the head panel and take out
the caps and reassemble them by changing their places. (FIG-5)
Figure - 5
Head panel
screws
Hinge covers
Turn the top
hinge 180°
clockwise
direction.
6- Take out the bushing and bushing caps and reassemble they by changing their
places. (FIG-6)
Take out bush and stopper and reassemble them changing their places. (FIG-6)
Figure - 6

VESTEL
WHITE GOODS CONSUMER SERVICE
5
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
TECHNICAL
DEPARTMENT
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
B - Changing The Thermostat :
1) Take off the lamp cover and unscrew the fixing screw.
2) Take off the thermostat box by pulling it and take off the wire connector.
3) Pull out the thermostat bulb from the cabinet.
4) Take off the thermostat knob pulling forward. Loosen the nut which is fixing the thermostat.
5) Replace the thermostat with the new one and assemble the thermostat box following the steps
backwards.
ASSEMBLE & DISASSEMBLE
RD 36T - RD 40T - RD 46T
7- Take out the bushing and bushing caps and reassemble they by changing their
places. (FIG-7)
Take out the bush and reassemble it by changing it places and remove the right stop-
per and reassemble it to the left side by using left stopper. (FIG-7)
A- Changing The Doorway Direction to Right Hand
Figure - 7
8- Assemble the freezer door and refrigerant door together with middle hinge and fix
the middle hinge by tighting the screws finally,by using a knife cut left side of the kick
plate and assemble it. (FIG-8)
Figure - 8
Turn the middle hinge 180°
clockwise direction.

VESTEL
WHITE GOODS
VESTEL
WHITE GOODS CONSUMER SERVICE TECHNICAL
DEPARTMENT
VESTEL REFRIGERATOR
6
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
ASSEMBLE & DISASSEMBLE
RD 36T - RD 40T - RD 46T

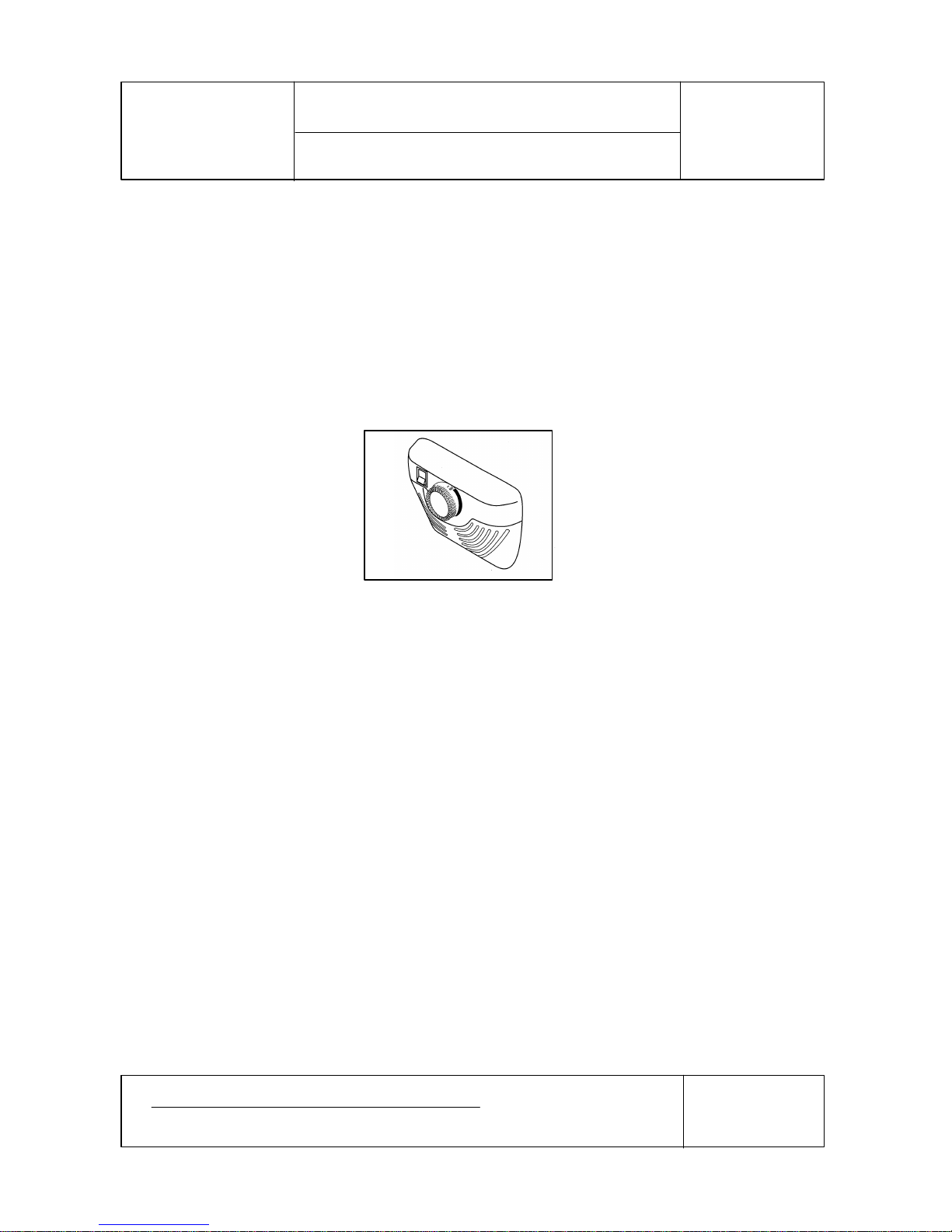

C - Thermostat Knob
vThis knob is used to control the temperature of the freezer and refrigerant parts automatically. It can be
set to any value between the “1“ and “5“positions.
v“ 0 “ position indicates that the thermostat is off and so in this position no cooling is done.
vBy turning the knob from “1“ to “5”, you can increase the cooling degree.
vThe refrigerator is designed to get optimum perforformance when the thermostat knob is set in the
middle position (between “1” and “5” . )

VESTEL
WHITE GOODS CONSUMER SERVICE
7
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
TECHNICAL
DEPARTMENT
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
REFRIGERANT CYCLE DIAGRAM
RD 36T - RD 40T - RD 46T
DRYER
DRYER
F EVAPORATOR CONDENSER HOT PIPE
R EVAPORATOR
COMPRESSOR
COMPRESSOR
HOT PIPE
CONDENSER
CAPILLARY
F EVAPORATOR
R EVAPORATOR

VESTEL
WHITE GOODS
VESTEL
WHITE GOODS CONSUMER SERVICE TECHNICAL
DEPARTMENT
VESTEL REFRIGERATOR
8
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001

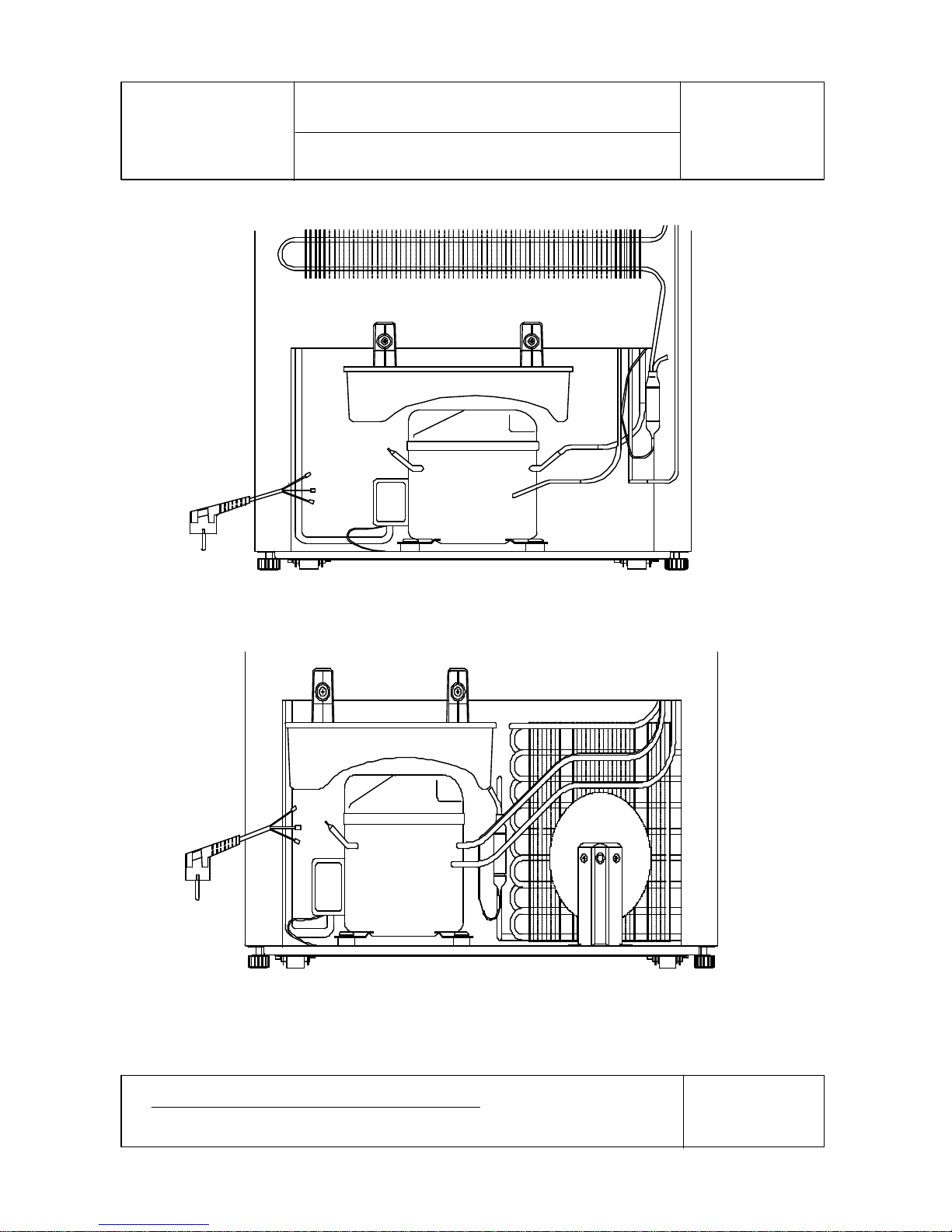

MACHINE ROOM VIEW
RD 36T - RD 40T - RD 46T
RD 36T - RD 40T
RD 46T

VESTEL
WHITE GOODS CONSUMER SERVICE
9
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
TECHNICAL
DEPARTMENT
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001

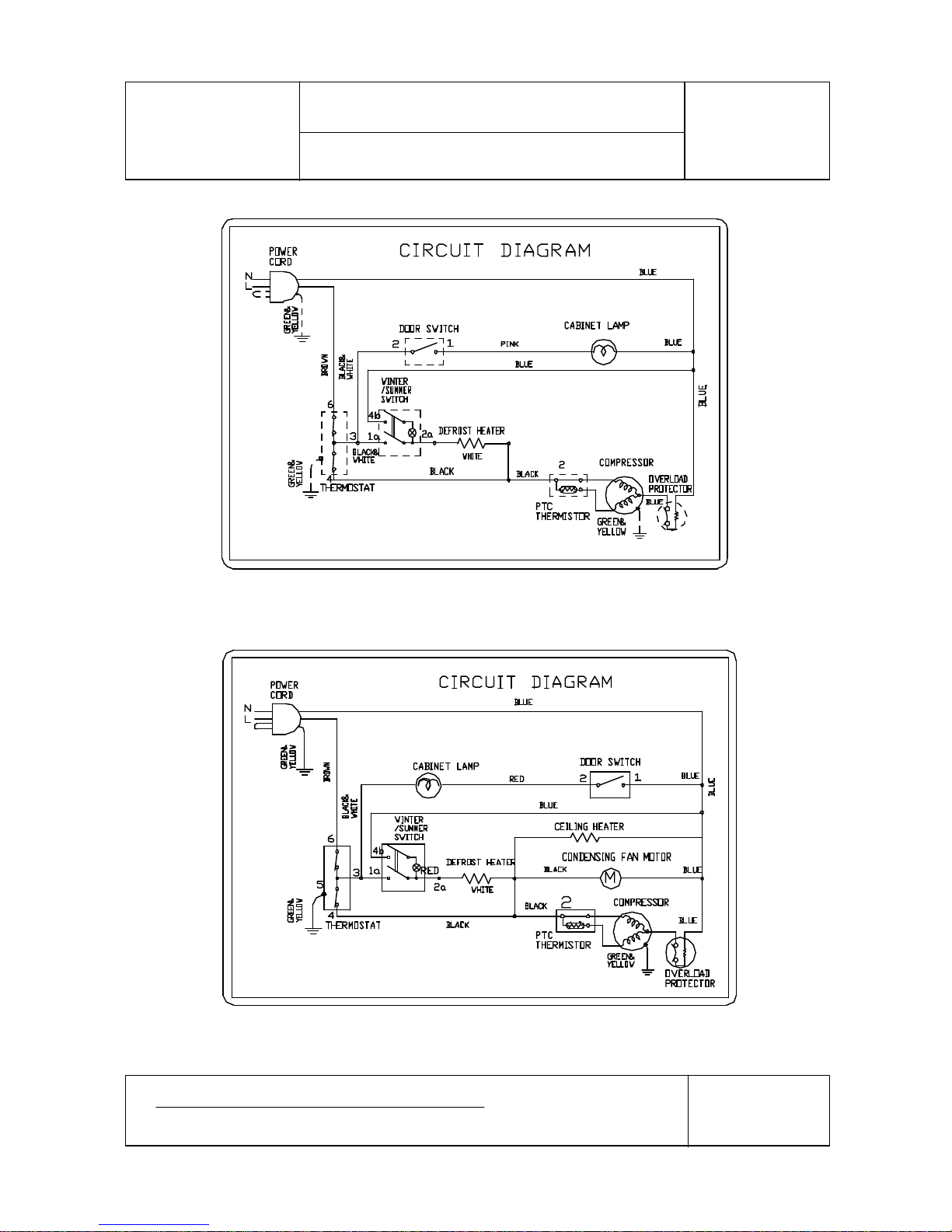

CIRCUIT DIAGRAM
RD 36T - RD 40T - RD 46T
RD 46T
RD 36T - RD 40T

VESTEL
WHITE GOODS
VESTEL
WHITE GOODS CONSUMER SERVICE TECHNICAL
DEPARTMENT
VESTEL REFRIGERATOR
10
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001

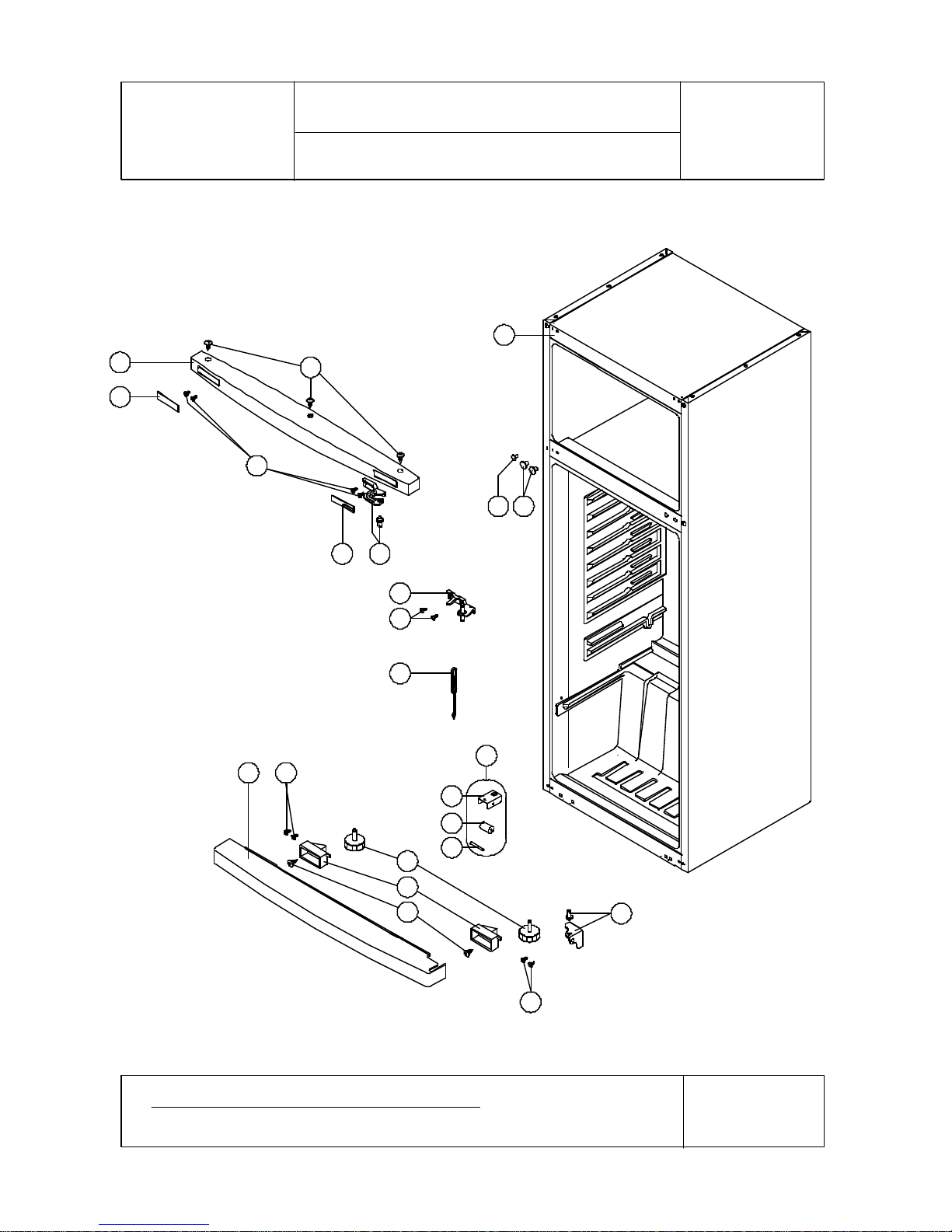

EXTERIOR PARTS
RD 36T - RD 40T - RD 46T
1
8 9
6
3
5
2
4
20 7
18
19
7
12
10
11
17
14
16
15
13
7
21

VESTEL
WHITE GOODS CONSUMER SERVICE
11
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
TECHNICAL
DEPARTMENT
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
EXTERIOR PARTS LIST
RD 36T - RD 40T - RD 46T
NO CODE PARTS NAME RD 36T RD 40T RD 46T
120025108 ASSY URT CAB/345T 1
120030891 ASSY URT CAB/400T 1
120056049 ASSY URT CAB/455T(HEATING RESIST.) 1
240007001 HEAD PANEL ASSY./345 1 1
240007004 HEAD PANEL ASSY./455 1
335000743 SCREW DYED 4.2*9.5 DIN 7981 YSB 333
440002258 HEAD PANEL CAP LEFT 111
540002257 HEAD PANEL CAP RIGHT 111
635001710 TOP HINGE DYED/345P 111
735000714 SCREW M5*14 WN 1342-H EJOT 888
840004842 CAP SMALL 111
940004843 CAP BIG 222
10 35003181 MIDDLE HINGE/345S 111
11 35001709 SCREW M5*14 WN 1342-H EJOT DYED 222
12 40002216 TUNNEL DRAIN PLUG 111
13 35003056 FRONT WHEEL GR. 2
14 35000732 FRONT WHEEL HOLDER 2
15 40002217 WHEEL 2
16 35000733 FRONT WHEEL PIN 2
17 45000563 STATIONARY FOOT 222
18 40002262 KICK PLATE HOLDER 222
19 35000707 SCREW 3.5*13 DIN 7981 YSB 222
20 40002292 KICK PLATE/345P 1 1
20 40002261 KICK PLATE/455P 1
21
35000735
BOTTOM HINGE/345
1
1
1

VESTEL
WHITE GOODS
VESTEL
WHITE GOODS CONSUMER SERVICE TECHNICAL
DEPARTMENT
VESTEL REFRIGERATOR
12
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001

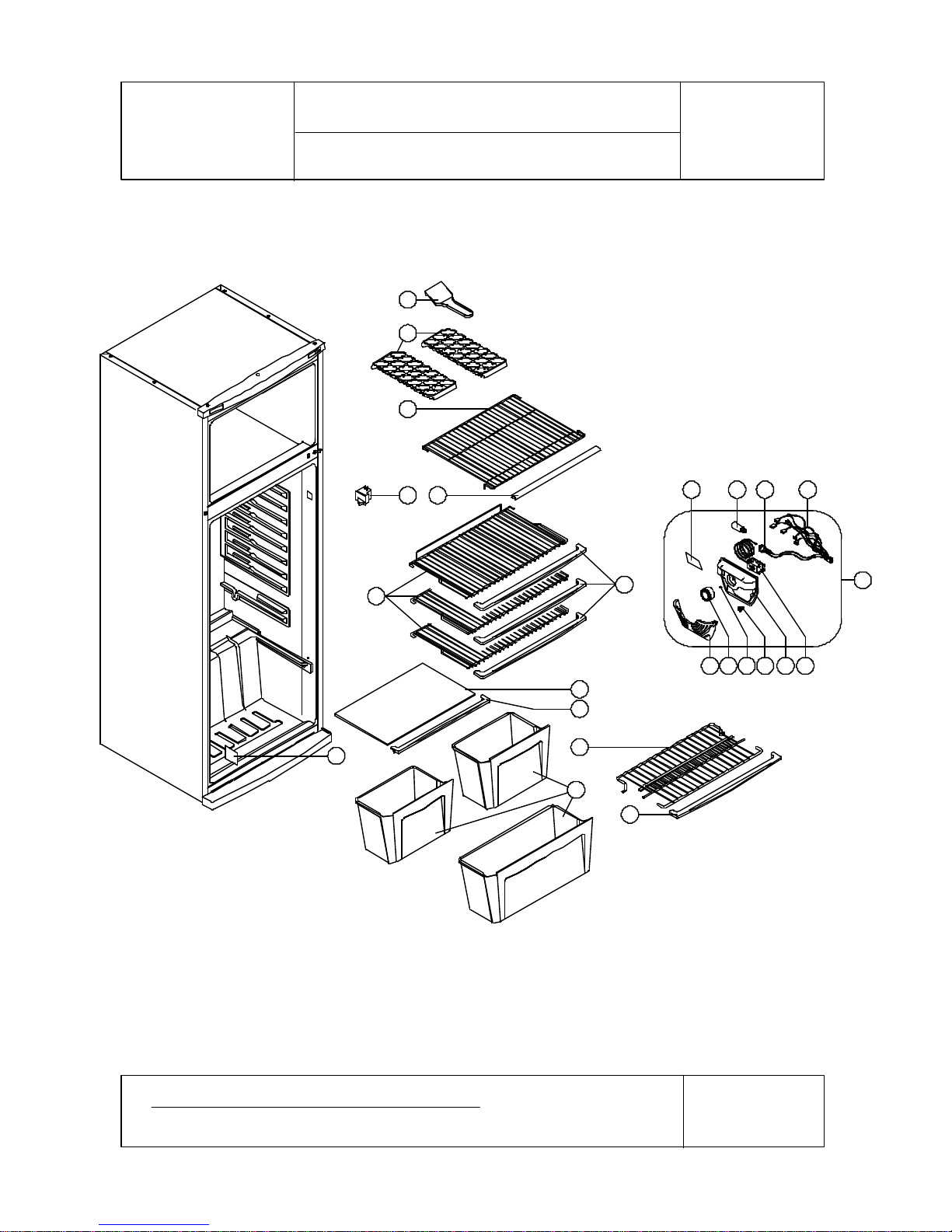

INTERIOR PARTS
RD 36T - RD 40T - RD 46T
11
6
2
5 4
3
1
23
10
7
12
9
8
7
24 20 22 21 19
13
14 16 17 18

VESTEL
WHITE GOODS CONSUMER SERVICE
13
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
TECHNICAL
DEPARTMENT
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
INTERIOR PARTS LIST
RD 36T - RD 40T - RD 46T
NO CODE PARTS NAME RD 36T RD 40T RD 46T
140002276 ICE SCRAPER 111
240002236 ICE TRAY 222
345000572 F COMPARTMENT SHELF/345 1 1
345000567 F COMPARTMENT SHELF/455 1
440002224 SHELF TRIM F/345 1 1
440002274 SHELF TRIM F/455 1
530007915 DOOR LAMP SWITCH 111
645000571 R COMPARTMENT SHELF/345 3 3
645000566 R COMPARTMENT SHELF/455 3
740002204 SHELF TRIM R/345 4 4
740002205 SHELF TRIM R/455 4
845000573 CRISPER COVER SRGF/345 1 1
845000561 CRISPER COVER SRGF/455 1
940002297 CRISPER COVER TRIM/345 1 1
940002275 CRISPER COVER TRIM/455 1
10 40002295 CRISPER SRGF/345 1 1
10 40002272 CRISPER SRGF/455 2
11 20073529 NAME PLATE/345T CARAD-ENG 1
11 20073140 NAME PLATE/400T CARAD-ENG 1
11 20073139 NAME PLATE/455T CARAD-ING(RD46T) 1
12 45000574 MAGIC SHELF/345 1 1
12 45000565 MAGIC SHELF/455 1
13 30007919 THERMOSTAT BOX GR./345T 1 1
13 30014340 THERMOSTAT BOX GR./455T 1
14 45000560 HEAT REFLECTOR FOIL 111
16 30007906 LAMP 111
17 30007907 LAMP HOLDER 111
18 30007908 WIRING ASSY./THERM./345T 1 1
18 30014361 WIRING ASSY./THERM./455T 1
19 30007921 THERMOSTAT(DNFS077B6575) 111
20 40002254 THERMOSTAT BOX/345 111
21 35000743 SCREW 4.2*9.5 DIN 7981 YSB 111
22 35000730 THERMOSTAT KNOB SPRING 111
23 40002300 THERMOSTAT KNOB SRGF / 345 111
24
40002255
LAMP COVER
1
1
1

VESTEL
WHITE GOODS
VESTEL
WHITE GOODS CONSUMER SERVICE TECHNICAL
DEPARTMENT
VESTEL REFRIGERATOR
14
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
DOOR ASSY. PARTS
RD 36T - RD 40T - RD 46T
11
10
9
14
8
7
6
122 13
5
2
15
1
2
4
3
4

VESTEL
WHITE GOODS CONSUMER SERVICE
15
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
TECHNICAL
DEPARTMENT
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
DOOR ASSY. PARTS LIST
RD 36T - RD 40T - RD 46T
NO CODE PARTS NAME RD 36T RD 40T RD 46T
120051058 F DOOR ASSY./345S SRGF 1
120062053 F DOOR ASSY./400S SRGF 1
120051055 F DOOR ASSY./455S SRGF 1
240002242 BUSHING / 345P 333
345002336 LOGO CARAD 111
440002243 BUSHING CAP 222
520051059 R DOOR ASSY./345S 1
520062052 R DOOR ASSY./400S 1
520051075 R DOOR ASSY./455S 1
640002298 SHELF COVER/345 1 1
620048146 SHELF COVER/455 (BLUE) 1
740002310 SHELF/BUTTER/345 1 1
720026196 SHELF/BUTTER/455 1
840007081 EGG HOLDER(I+II)345 1 1
840007082 EGG HOLDER(I+II)455 1
940002299 EGG SHELF SRGF/345 4 4
940002265 EGG SHELF SRGF/455 4
10 20026197 BOTTLE SHELF SRGF/345 1 1
10 20026195 BOTTLE SHELF SRGF/455 1
11 40002316 BOTTOM SHELF SRGF/455 1
12 35000714 SCREW M5*14 WN 1342-H EJOT 222
13 35000712 R DOOR STOPPER 111
14 40002267 BOTTLE HOLDER 111
15
40006640
BUSHING/345S
1
1
1

VESTEL
WHITE GOODS
VESTEL
WHITE GOODS CONSUMER SERVICE TECHNICAL
DEPARTMENT
VESTEL REFRIGERATOR
16
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001

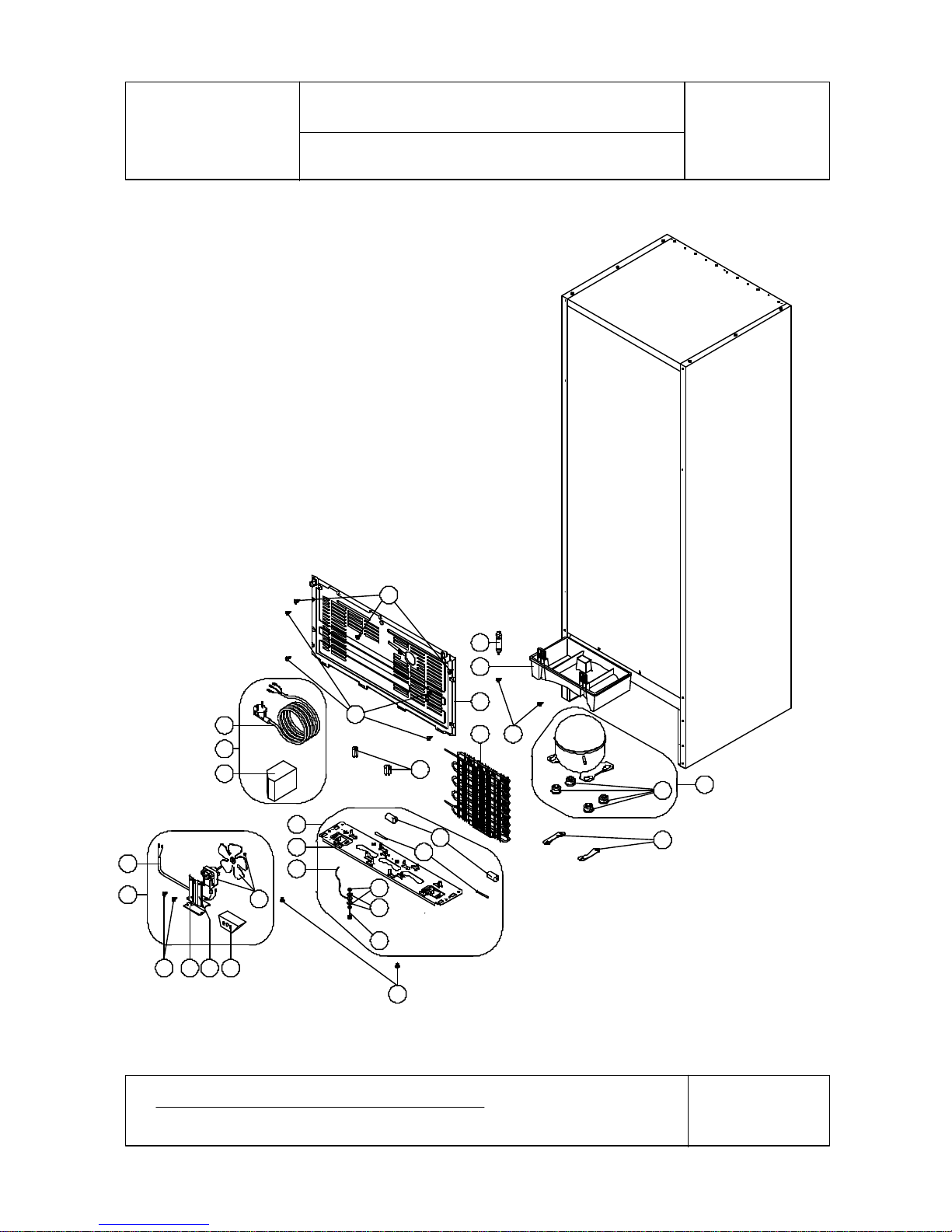

UNIT PARTS
RD 36T- RD40T
3
3
18
15
13
14
17
12
10
11 16 9
7
5
46
8
29
30 21
19
20
21

VESTEL
WHITE GOODS CONSUMER SERVICE
17
VESTEL
WHITE GOODS
VESTEL REFRIGERATOR
TECHNICAL
DEPARTMENT
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001

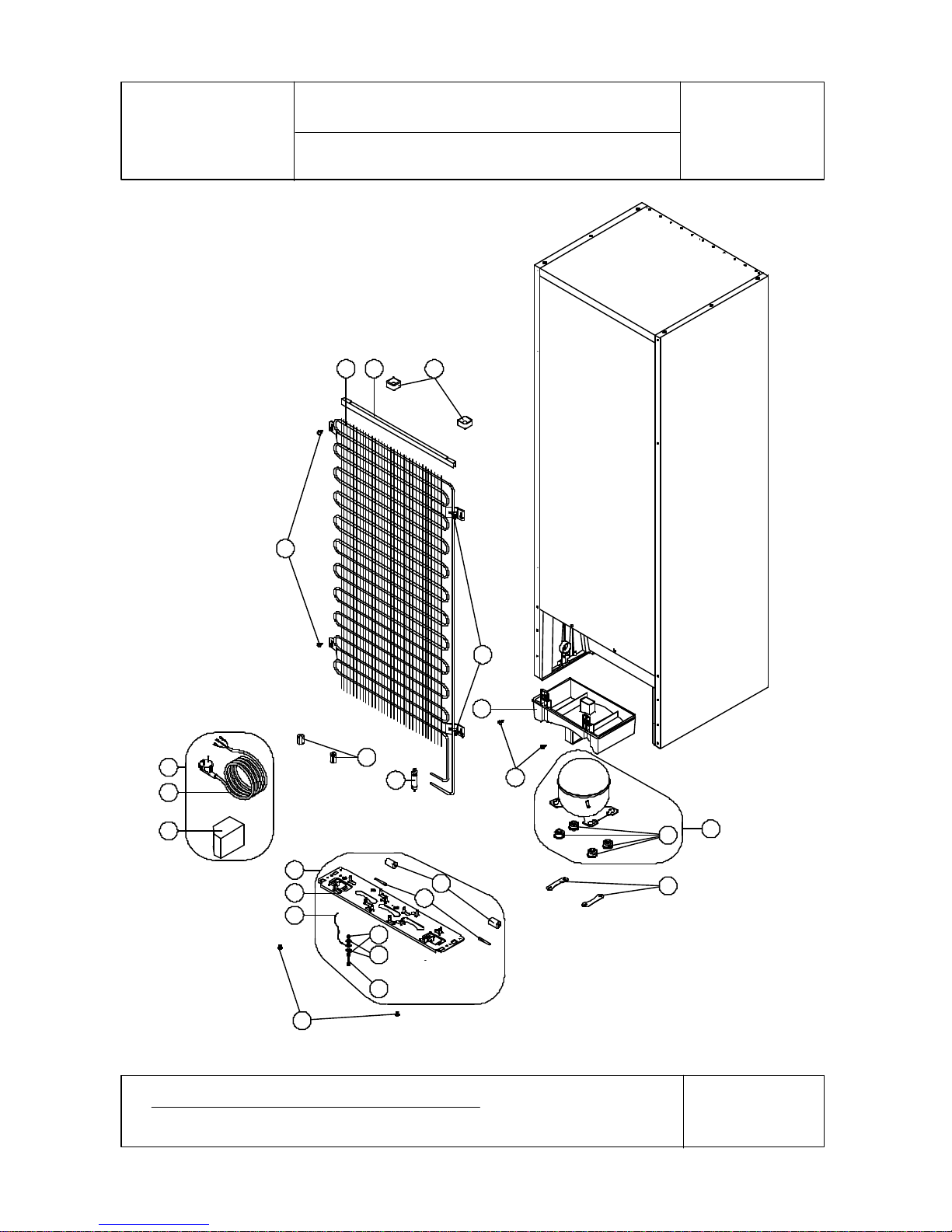

UNIT PARTS
RD 46T
6
2
7
9
18
20
5
21
19
15
14
13
12
8
1716
3
4
1 6
22
23
2624 25 28
27
11
10
29

VESTEL
WHITE GOODS
VESTEL
WHITE GOODS CONSUMER SERVICE TECHNICAL
DEPARTMENT
VESTEL REFRIGERATOR
18
Printed Date : 21 / 12 / 2001 Document No : 50024370
DECEMBER
2001
UNIT PARTS LIST
RD 36T - RD 40T - RD 46T
NO CODE PARTS NAME RD 36T RD 40T RD 46T
135004210 MAIN CONDANSER/345(D50) 1 1
135000751 MAIN CONDANSER/455 1
240002180 SPACER 2 2
240002263 UNIT COVER 1
335001817 SCREW 4.2*9.5 WITH WASHER 4 4
335000728 SCREW KA 50*14 WN 1412 EJOT 4
435001697 DRYER(XH9,10GR) 111
540002264 EVAPORATING TRAY 111
635000743 SCREW 4.2*9.5 DIN 7981 YSB 225
730007916 COMPRESSOR (FG75HAK,NL7FT) 1 1
730007910 COMPRESSOR (FG85HAK,NL9FT) 1
840007341 COMP.RUBBER 444
920020023 COMP FIXING BRACKET 222
10 20020103 COMP.BASEMENT GROUP/345 1 1
10 20020050 COMP.BASEMENT GROUP/455 1
11 20020108 COMP BASEMENT/345 1 1
11 20020020 COMP BASEMENT/455 1
12 30007904 GROUNDING WIRE 111
13 35000721 NUT M4*3.2 DIN 934 ZNK 222
14 35000722 WASHER 4.3*8*0.9 DIN 6798 ZNK 222
15 35000723 SCREW M4*16 DIN 933 ZNK 111
16 40002217 WHEEL 222
17 35000738 REAR WHEEL PIN 222
18 35000728 SCREW KA 50*14 WN 1412 EJOT 222
19 30007918 POWER CORD GR.FG85HAK/455-345 111
20 30007911 POWER CORD (2.1m) 111
21 30007909 OVER LOAD RELAY GR.FG85HAK/455-345 111
22 20020051 FAN MOTOR GR./455 1
23 30007905 WIRING HARNESS/FAN MOTOR/455 1
24 35002921 SCREW M4*10 DIN 7985 YSB 2
25 40002214 FAN BRACKET RUBBER 1
26 35000725 FAN MOTOR BRACKET 1
27 30007901 FAN MOTOR ASSY./455 1
28 40004182 COVER FAN MOTOR 1
29 40002210 ANTI - VIBRATION COND. 222
30
40004702
CONDENSER TRIM/345
1
1
