Vestfrost CVKS 611-670-671 User manual

CVKS 611-670-671 CFKS 411-470-471
Instructions for use

2
US

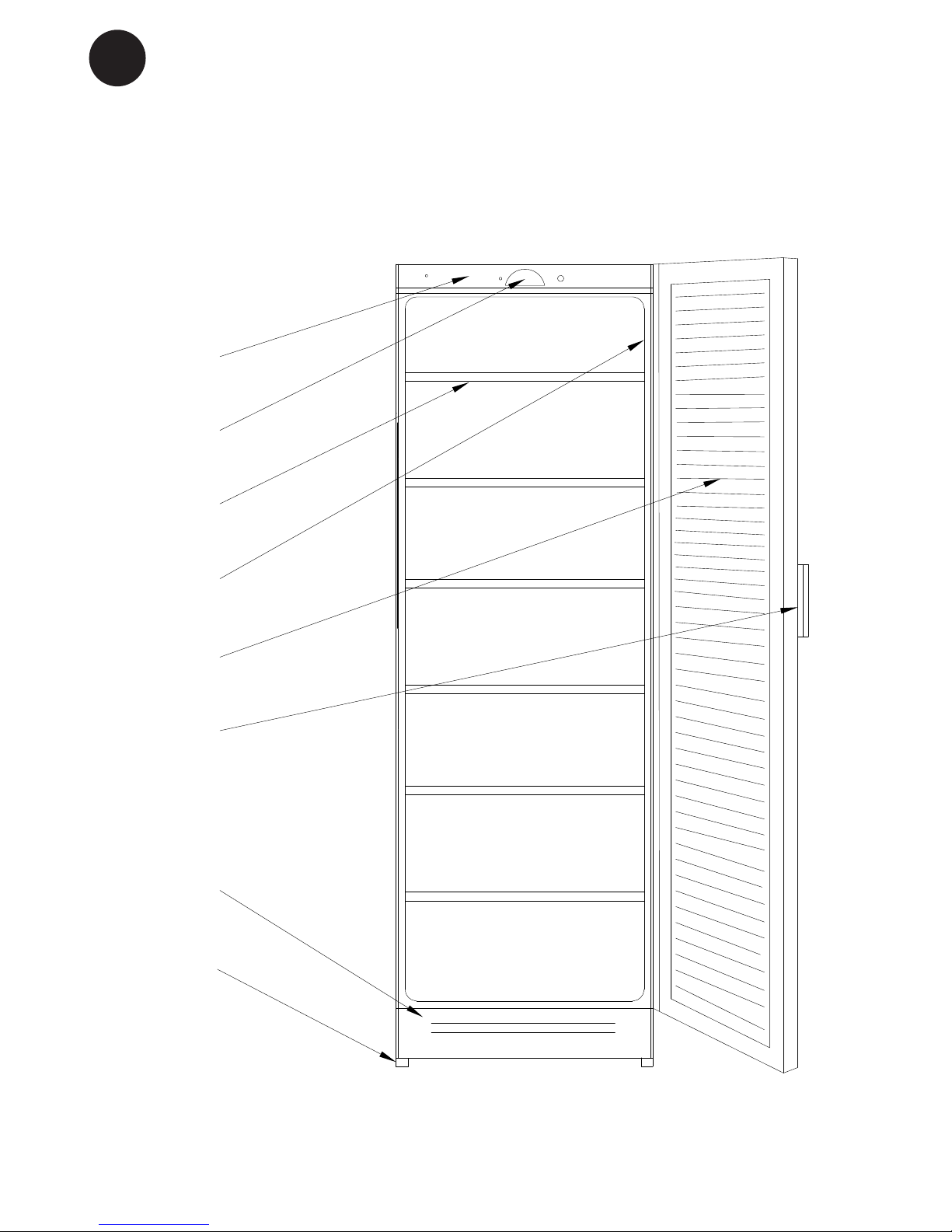

Get to know your wine or bottle cooler.
Control panel.
Toplight.
Shelf
Name plate.
Door.
Door handle.
Kick plate.
Adjustable feet

3
US
Switch off the appliance and pull out the
plug when cleaning the cabinet.
Only use an unscented detergent when
clea ning the cabinet inside.
You may remove the top panel and wash it
when cleaning the cabinet inside.
The skirting board can be removed to facili-
ate a vacuum-cleaning of the oor.
To make the cooling system work at its
optimum it is necessary from time to time
Maintenance
Get to know ............................................2
Before use ..............................................3
Maintenance ...........................................3
Warning ..................................................4
Installation ..............................................5
Electrical connection...............................5
Control panel ..........................................6
Has the appliance stopped working?......6
General advice .......................................6
Change of hinge side..............................7
Lock ........................................................8
Disposal ..................................................8
Warranty, spare parts and service ..........9
Contents Before use.
This appliance is only for indoor use.
On receipt, check to ensure that the appli-
ance has not been damaged during trans-
port. Transport damage should be reported
to the local distributor before the appliance
is put to use.
Wash the cabinet and inner lining with a
mild unscented detergent and wipe it dry.
Do not use abrasive scouring powder, steel
wool or similar.
Before operating your new appliance,
please read the following instructions care-
fully as they contain important information
on safety, installation, operation and main-
tenance. Keep the instructions for future
reference.
If during transport the appliance has been
laid down, or if it has been stored in cold
surroundings (colder than +41°F), it must be
allowed to stabilise in an upright position for
at least an hour before being switched on.
to clean the wire condensator and the com-
pressor at the back of the cabinet by means
of a brush or a vacuum cleaner. Remember
to clean the drain.
Defrosting
The evaporator is automatically defrost. The
defrosted water is led to a tray on top of the
compressor where it evaporates.

4
US
Warning.
Max. 36 kg
Shelf
In case this appliance contains hydrocar-
bon refrigerant please refer to guidelines
listed below.
As the appliance contains a ammable
refrigerant, it is essential to ensure that the
refrigerant pipes are not damaged.
Standard EN378 species that the room in
which you install your appliance must have
a volume of 1m³ per 8 g of hydrocarbon
refrigerant used in the appliances. This is
to avoid the formation of ammable gas/
air mixtures in the room where the appli-
ance is located in the event of a leak in the
refrigerant circuit. The quantity of the refrig-
erant used in your appliance is indicated on
the rating plate.
WARNING: Keep ventilation openings in
the appliance’s cabinet or in
the built-in structure clear of
obstruction
WARNING: Do not use other mechanical
devices or other means to ac-
celerate the defrosting process
than those recommended by
the manufacturer
WARNING: Do not damage the refrigerant
system
WARNING: Do not use electrical appli-
ances inside the refrigerated
storage compartment, unless
they are of a type recommend-
ed by the manufacturer
WARNING: Do not expose the appliance
to rain
WARNING: This appliance is not intended
for use by young children or
inrm persons unless they have
been adequately supervised
by a responsible person to ensure
that they can use the appliance
safely. Young children should be
supervised to ensure that they do
not play with the appliance
● Always keep the keys in a separate place
and out of reach of children
● Before servicing or cleaning the appliance,
unplug the appliance from the mains or
disconnect the electrical power supply
● If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in order
to avoid a hazard
● Relevant for Australia: Supply cord tted
with a plug complies with AS/NZS 3112.
● Frost formation on the interior evaporator
wall and upper parts is a natural phenom-
enon. Therefore, the appliance should
be defrosted during normal cleaning or
maintenance
● Directions for replacing the illuminating
lamps are to be included in the instruction
● Please note that changes to the appliance
construction will cancel all warranty and
product liability
●WINE COOLER (CVKS) This appliance is
intended to be used exclusively for the stor-
age of wine

5
US
Installation.

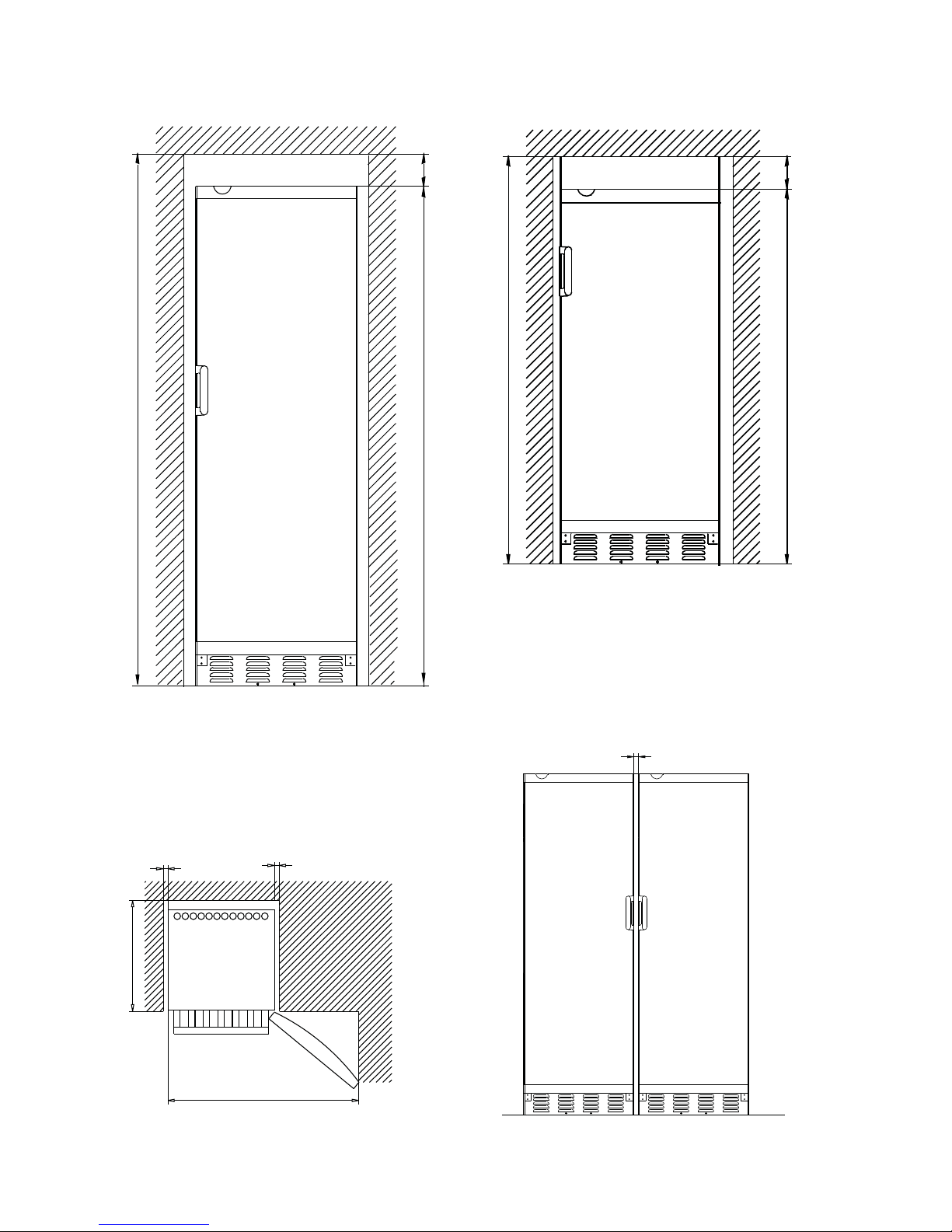

See drawings - page A and B.
Install the cabinet in a dry place and so that
it is not exposed to direct sunlight or any
other sour ce of heat.
Place the cabinet in a level position. This is
easily achieved by adjusting the adjustable
feet at the front edge of the base.
The cabinet may not rest against a wall on
its hinged side. When placing the cabinet
on a carpet or on a wooden oor you should
adjust it once more after some time as the
cabinet might settle in soft foundati ons.
If you want to build the appliance into a
cupboard you must consider 3 factors:
1. There must be space above the appli-
ance in order to make the cooling system
work satisfactorily.
2. When the door is opened the appliance
takes up more room in the width and
therefore the door must either be placed
outside the cupboard or there must be
a space of at least 0,6 inch at the hinge
side.
3. The distance to the wall at the hinge side
must be of a sufcient size.
.
Furthermore it is possible to build together
two appeliance. If one of these is a wine
cabinet please observe a min. distance of
25mm between the cabinet in order to keep
cooling performance intact.
It is safest to place the earthed wall socket
abo ve the appliance and at least 79 inch
above the oor. Any local installation rules
for appliances of this kind must be ob-
served.
Electrical connection.
The technical marking of the appliance can
be seen from the rating plate.
Important: Wiring and connections in
power supply systems must been all appli-
cable (local and national) electrical codes.
Consult these codes lengths and sizes prior
to cabinet installation.
Power supply:According to UL 471 this
equipment is intended for connection to a
maximum 15 ampere 120v olt single-phase
branch circuit.
Maximum fuse size 10 Amps.
This appliance is equipped with a three-
prong (ANSI type 5-15P grounded) plug for
your protection against shock hazards. The
appliance should bee plugged in to properly
grounded three-prong receptacle
Do not under any circumstances cut or
remove the round grounding prong from the
appliance plug.
Do not under any circumstances use exten-
sion cords
Max. 36 kg

6
US
Control panel.
1. Lamp.
2. Thermostat knob.
3. Indicator for the connection to the elec-
tricity supply (green).
31 2
The thermostat knob is adjustable from 0
(stop) to 7 (coldest). Find the position of
the thermostat which gives you the desired
temperature. Start at position 4.
Before calling a repairman, check that
● The plug is properly plugged into the wall
socket.
● The fuse is intact.
● The power has not been cut off.
● All controls are correctly set.
● Switch off the cabinet for 15 minutes (for
instance at the thermostat). Switch it on
again and after 5 minutes check whether
frost has formed on the evaporator.
● Do not open the cabinet unnecessary.
Has the appliance
stopped working?
If the unit is not used for more than two
days it should be switched off and the doors
should be left open for ventilation to prevent
a bad smell in the unit.
The appliance is equipped with a high
quality skin condenser. Therefore, a slight
heating of the sidewalls is quite normal.
Lighting
This appliance is equipped with a device
which causes the light to switch off if the
door is open / left on for abnormally long
time.
When the door has been closed for a
couple of minutes, the device is cut off and
the light switches back on.
General advice.

7
US

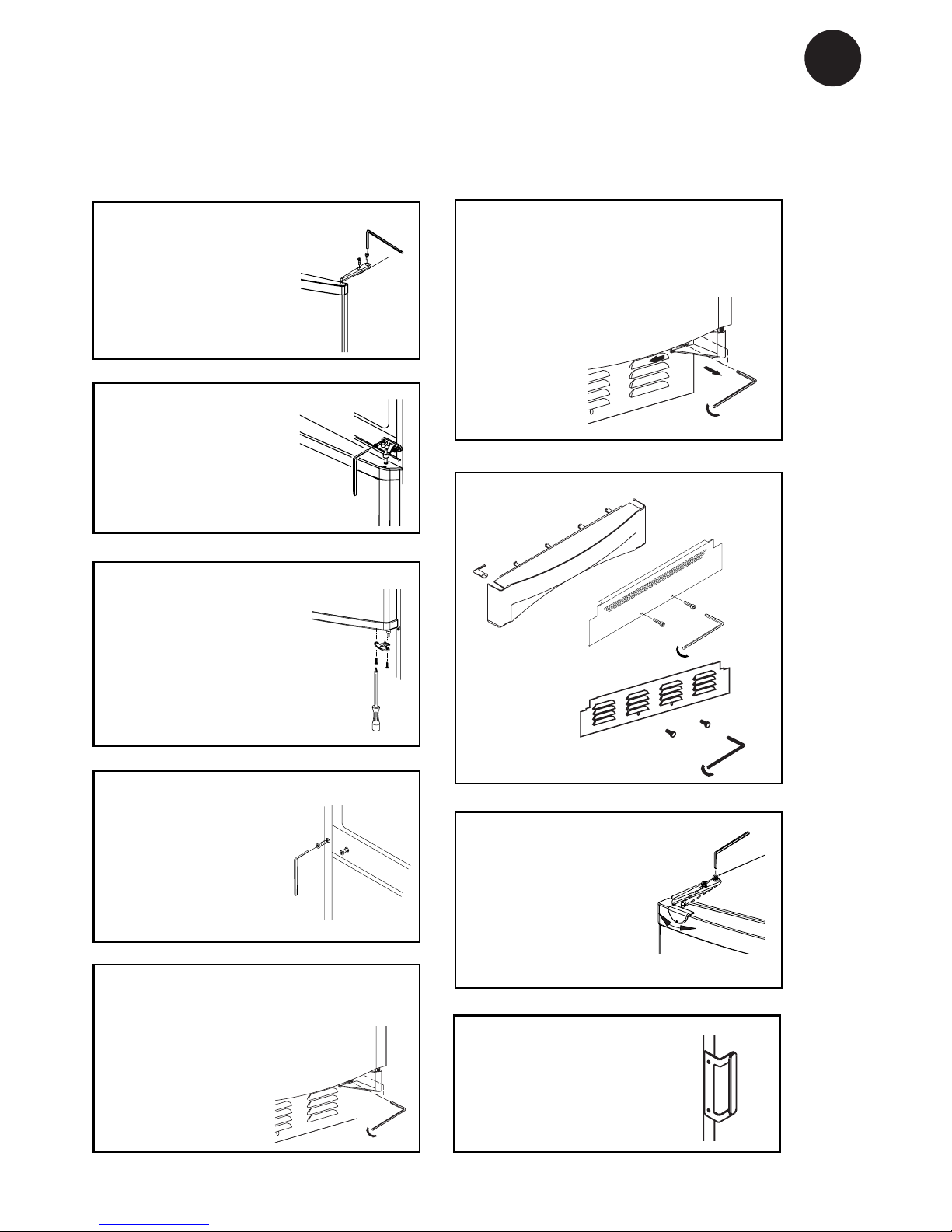

Change of hinge side.
1) Dismantle the top hinge. The hinge is to
be used later as top hinge at the
opposite side. Lift off the door..
2) (For too doors) Dismantle the middle
hinge. Lift off the bottom door.
Mount the hinge screws
again.
3) (For too doors) On appliances with a
door closer on the upper door, this door
closer should be
removed and remounted
on the opposite side.
8) Move the handle.
4) (For too doors) Dismantle the screws in
the middle of the new hinge
side. Mount the bottom door
and screw on the
middle hinge.
5) Remove the kick plate. The bottom hinge
is dismounted at the 3 screws. The hinge is
turned 180° and mounted on the opposite
side.
6) Adjusting the bottom door: Loosen the
3 screws in the bottom hinge and push
the bottom hinge to the required side.
Tighten the screws and mount the kick
plate
The kick plate.
7) Ajustment of the top door:
loosen the screws in the hinge
above the door, loosen the hinge
above the door and turn
the hinge to the wanted
side. Tighten the screws.

8
US

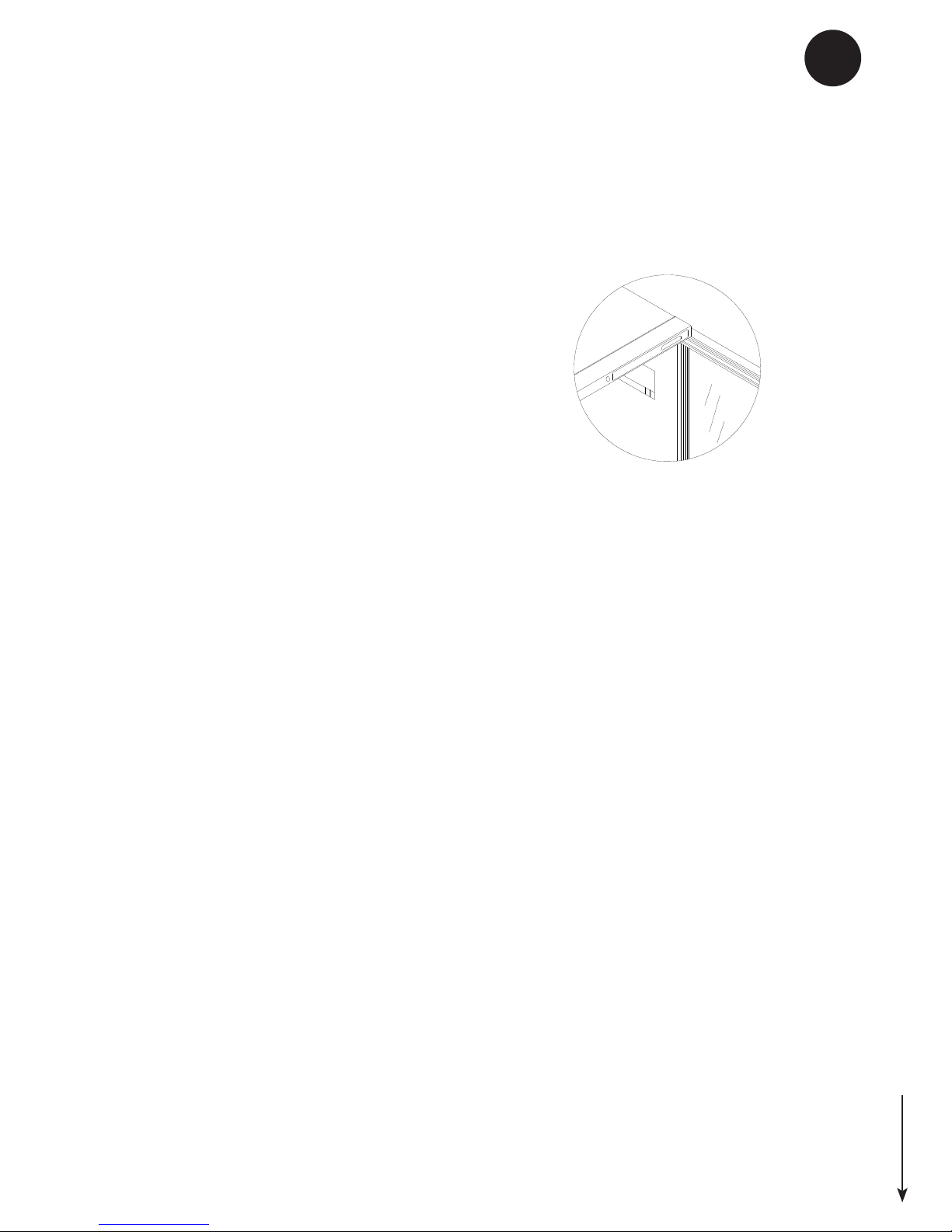

Mounting of lock.
Environmental regulations on disposal must
also be observed. When disposing of the
appliance you should contact your local au-
thority technical department who will inform
you of how collection and recycling of such
units take place in your area.
By ensuring that this product is disposed
of correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this product.
Disposal must be carried out in accordance
with local environmental regulations for
waste disposal.
For more detailed information about treat-
ment, recovery and recycling of this prod-
uct, please contact your local city ofce,
your household waste disposal service or
the shop where you purchased the product.
Disposal

9
US
Disposal
Warranty, spare parts and service.
Warranty disclaimer
Faults and damage caused directly or
indirectly by incorrect operation, misuse,
insufcient maintenance, incorrect building,
installation or mains connection. Fire, ac-
cident, lightening, voltage variation or other
electrical interference, including defective
fuses or faults in mains installations.
Repairs performed by others than approved
service centres and any other faults and
damage that the manufacturer can sub-
stantiate are caused by reasons other than
manufacturing or material faults are not
covered by the warranty.
Please note that changes to the construc-
tion of the appliance or changes to the
component equipment of the appliance will
invalidate warranty and product liability, and
the appliance cannot be used lawfully. The
approval stated on rating plate will also be
invalidated.
Transport damage discovered by the buyer
is primarily a matter to be settled between
the buyer and the distributor, i.e. the dis-
tributor must ensure that such complaints
are resolved to the buyer’s satisfaction.
Before calling for technical assistance,
please check whether you are able to
rectify the fault yourself. If your request for
assistance is unwarranted, e.g. if the appli-
ance has failed as a result of a blown fuse
or incorrect operation, you will be charged
the costs incurred by your call for technical
assistance.
Spare parts
When ordering spare parts, please state
the type, serial and production numbers of
your appliance. This information is given on
the rating plate. The rating plate contains
various technical information, including type
and serial numbers.

A
150
1850
min. 2000
Fig. 2
Fig. 3
25
min. 1040
min. 15
600
Fig. 4
25 mm
1550 150
min. 1700
CFKS 411
CVKS 611
CFKS 470-471
CVKS 670-671
min. 787 inch
728 inch 59
236
10 inch
min. 6
10
min 590 inch
min. 449 inch
531 inch 59

B

91.93.121-02
Reserves the right to alter specications without prior notice.
