Vestfrost VR-FB373-2H0I User manual

No Frost Fridge-Freezer
Operation manual
Chłodziarko-zamrażarka
No Frost
Instrukcja obsługi
Vestavná chladnička
No Frost s mrazákem
Návod k obsluze
Vstavaná chladnička
No Frost s mrazničkou
Návod na obsluhu
VR-FB373-2H0I
VR-FB373-2H0B
VR-FB373-2H0P
VR-FB373-2H0H
VR-FB383-2H0P
VR-FB383-2H0B
VR-FB383-2H0I
VR-FB383-2H0H

The operating instructions apply to several models. Differences may therefore occur.
FIRE
Warning; Risk of fire / flammable materials

EN-3
EN
INDEX
BEFORE USING THE APPLIANCE ......................................................... 5
General warnings ............................................................................................. 5
Old and out-of-order refrigerators..................................................................... 8
Safety warnings................................................................................................ 8
Installing and operating your refrigerator.......................................................... 9
Before using your refrigerator......................................................................... 10
THE VARIOUS FUNCTION AND POSSIBILITIES ................................. 10
Information about New Generation Cooling Technology ................................ 10
Display and control panel ............................................................................... 11
Operating your refrigerator ............................................................................. 12
Super freeze mode..................................................................................................12
Super cool mode .....................................................................................................12
Economy mode .......................................................................................................13
Holliday mode .........................................................................................................14
Drink cool mode ......................................................................................................15
Screen saver mode .................................................................................................15
Function of Child lock..............................................................................................16
Light cancelling mode .............................................................................................16
Freezer temperature settings ..................................................................................17
Fridge temperature settings ....................................................................................17
Temperature Adjustment Warnings ................................................................ 18
Accessories .................................................................................................... 19
Ice Tray ...................................................................................................................19
The Freezer Box .....................................................................................................19
The Chiller Shelf......................................................................................................19
The Fresh Dial.........................................................................................................20
Adjustable Glass Shelf ............................................................................................20
Purebeam Technology ...........................................................................................20
Maxi-fresh ..............................................................................................................21
ARRANGING FOOD IN THE APPLIANCE ............................................ 22
Fridge compartment ....................................................................................... 22
Freezer compartment ..................................................................................... 23
CLEANING AND MAINTENANCE ......................................................... 27
Defrosting................................................................................................................27

EN-4
EN
TRANSPORTATION AND CHANGING OF INSTALLATION
POSITION ............................................................................................... 28
Repositioning the Door................................................................................... 28
BEFORE CALLING YOUR AFTER SALES SERVICE........................... 29
Tips for saving energy .................................................................................... 32
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ........ 33
Dimensions..................................................................................................... 35
Dimensions..................................................................................................... 36

EN-5
EN
BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: When positioning the appliance, ensure the
supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
WARNING: In order to avoid any hazards resulting from the
instability of the appliance, it must be fixed in accordance with
the following instructions:
If your appliance uses R600a as a refrigerant (this information
will be provided on the label of the cooler) you should take care
during transportation and installation to prevent the cooler
elements from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In the event of a leak
due to damage of the cooler elements, move your fridge away
from open flames or heat sources and ventilate the room where
the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with
PART - 1.

EN-6
EN
a flammable propellant in this appliance.
• This appliance is intended to be used in household and
domestic applications
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, a service agent or similarly
qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with
a specially grounded socket of 16 amperes. If there is no
such socket in your house, please have one installed by an
authorised electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use
of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances. Children are not expected
to perform cleaning or user maintenance of the appliance,
very young children (0-3 years old) are not expected to use
appliances, young children (3-8 years old) are not expected to
use appliances safely unless continuous supervision is given,
older children (8-14 years old) and vulnerable people can
use appliances safely after they have been given appropriate
supervision or instruction concerning use of the appliance.
Very vulnerable people are not expected to use appliances
safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualified

EN-7
EN
persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.
To avoid contamination of food, please respect the
following instructions:
• Opening the door for long periods can cause a significant
increase of the temperature in the compartments of the
appliance.
• Clean regularly surfaces that can come in contact with food
and accessible drainage systems
• Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto other
food.
• Two-star frozen-food compartments are suitable for storing
pre-frozen food, storing or making ice cream and making ice
cubes.
• One-, two- and three-star compartments are not suitable for
the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods,
switch off, defrost, clean, dry, and leave the door open to
prevent mould developing within the appliance.

EN-8
EN
Old and out-of-order refrigerator
If your old refrigerator has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old refrigerator contain isolation material and refrigerant with CFC. Therefore, take care
not to harm environment when you are discarding your old appliance.
Disposal of your old appliance
The symbol on the product or on its packaging indicates that this product may not
be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
Notes:
• Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual
in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specified purposes. It is not suitable for commercial or common
use. Such use will cause the guarantee of the appliance to be cancelled and our company
will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing
foods. It is not suitable for commercial or common use and/or for storing substances
except for food. Our company is not responsible for the losses to be occurred in the
contrary case.
Safety warnings
• Do not connect your refrigerator to the mains electricity supply using an
extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to
play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short
circuit or electric shock.

EN-9
EN
• Do not place glass bottles or cans in the ice-making compartment as
they will burst when the contents freeze.
• Do not place explosive or flammable material in your fridge. Place drinks
with high alcohol content vertically in the fridge compartment and make
sure their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may
cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes
immediately after they are removed from the ice-making compartment.
• Do not re-freeze thawed frozen food. This may cause health issues such as food
poisoning.
Installing and operating your fridge freezer
Before using your fridge freezer for the first time, please pay attention to the following points:
• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your refrigerator may have an odour when it is operated for the first time. This is normal
and the odour will fade when your refrigerator starts to cool.
• Before connecting your fridge freezer, ensure that the information on the data plate
(voltage and connected load) matches that of the mains electricity supply. If in doubt,
consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no
ground contact or the plug does not match, we recommend you consult a qualified
electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power
supply (AC) and voltage at the operating point must match with the details on the name
plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.
• Your appliance freezer must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores,
and at least 5 cm away from electrical ovens.
• If your fridge freezer is placed next to a deep freezer, there must be at least 2 cm between
them to prevent humidity forming on the outer surface.
• Do not cover the body or top of fridge freezer with lace. This will affect the performance
of your fridge freezer.
• Clearance of at least 150 mm is required at the top of your appliance. Do
not place anything on top of your appliance.
• Do not place heavy items on the appliance.
• Use the adjustable front legs to make sure your appliance is level and stable.
You can adjust the legs by turning them in either direction. This must be
done before placing food in the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).

EN-10
EN
• Before using your fridge freezer, wipe all parts with a solution of warm water and a
teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts
to the fridge freezer after cleaning.
• Install the two plastic distance guides (the parts on the black vanes
-condenser- at the rear) by turning it 90° (as shown in the figure) to
prevent the condenser from touching the wall.
• The distance between the appliance and back wall must be a maximum
of 75 mm.
Before using your refrigerator
• When using your appliance for the first time, or after transportation, keep
it in an upright position for at least 3 hours before plugging into the mains.
This allows efficient operation and prevents damage to the compressor.
• Your refrigerator may have a smell when it is operated for the first time. This
is normal and the smell will fade away when your appliance starts to cool.
THE VARIOUS FUNCTION AND POSSIBILITIES
Information about New Generation Cooling Technology
Refrigerators with new-generation cooling technology have a different
operating system to static refrigerators. Other (static) refrigerators may
experience a build up of ice in the freezer compartment due to door
openings and humidity in the food. In such refrigerators, regular defrosting
is required; the refrigerator must be switched off, the frozen food moved
to a suitable container and the ice which has formed in the freezer
compartment removed.
In refrigerators with new-generation cooling technology, a fan blows dry
cold air evenly throughout the fridge and freezer compartments. The
cold air cools your food evenly and uniformly, preventing humidity and
ice build-up.
In the fridge compartment, air blown by the fan, located at the top of the
fridge compartment, is cooled while passing through the gap behind the
air duct. At the same time, the air is blown out through the holes in the
air duct, evenly spreading cool air throughout the fridge compartment.
There is no air passage between the freezer and fridge compartments,
therefore preventing the mixing of odours.
As a result, your refrigerator, with new-generation cooling technology,
provides you with ease of use as well as a huge volume and aesthetic
appearance.
PART - 2.

EN-11
EN
Display and control panel
1. Freezer Set Button
2. Mode Button
3. Fridge Button
4. Drink Cool & Mute Button
5. Freezer Set Value Screen
6. Fridge Set Value Screen
7. Super Freeze Symbol
8. Super Cool Symbol
9. Holiday Mode Symbol
10. Economy Mode Symbol
11. Low Voltage Symbol
12. Child Lock Symbol
13. Alarm (SR) Symbol
14. Sound Off Symbol
15. Drink Cool Value Screen (Active Symbol May Change According to Language(Min-
Dk.))
1911 10 7a 5 8a 6 15 3
212 14 4 7b 138b

EN-12
EN
Operating your refrigerator
Super freeze mode
How would it be used?
• Press freezer set button until SF letters will be seen on the screen. Buzzer will
sound beep beep. Mode will be set.
• Freezer temperature segment will show "SF".
During this mode:
• Temperature of fridge and super cool mode may be adjusted. In this case super
freeze mode continues.
• Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same operation of selecting.
Super cool mode
How would it be used?
• Press fridge set button until SC letters will be seen on the screen. Buzzer will
sound beep beep. Mode will be set.
• Fridge temperature segment will show "SC".

EN-13
EN
During this mode:
• Temperature of freezer and super freeze mode may be adjusted. In this case
super cool mode continues.
• Economy and Holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation of selecting.

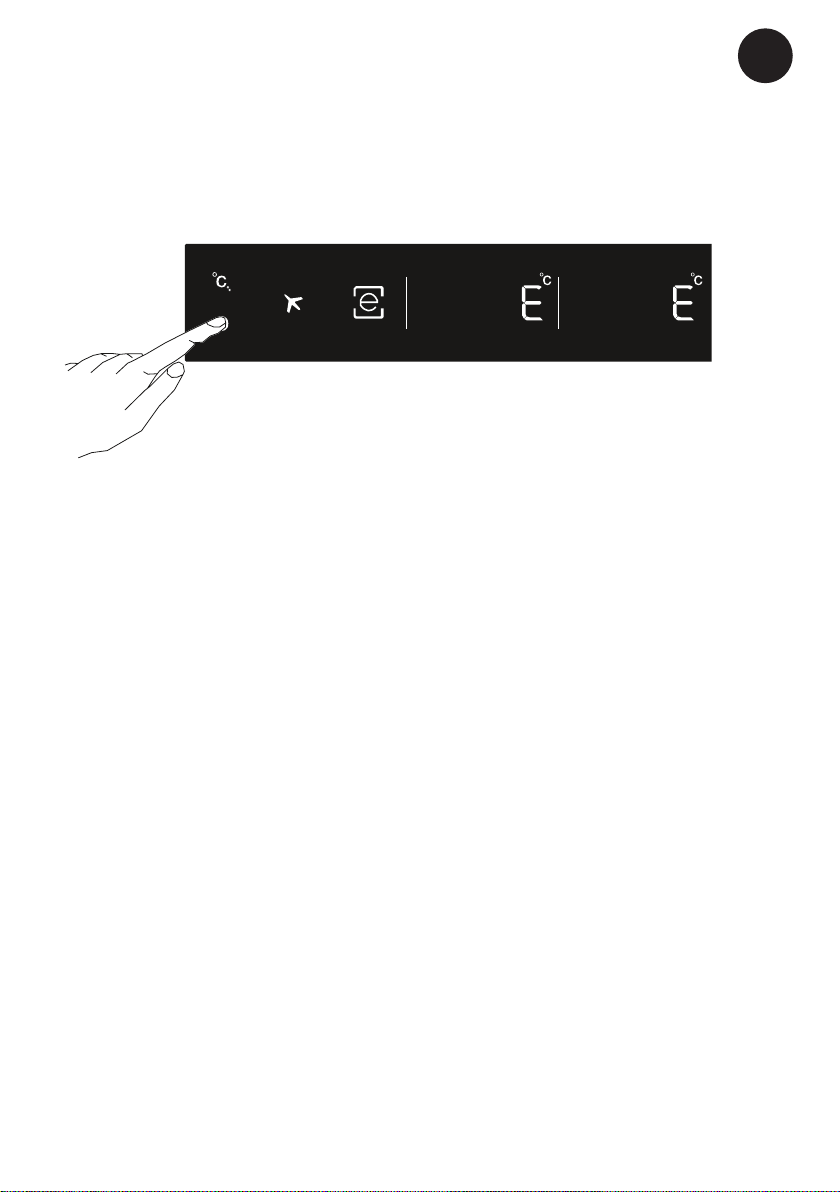

Economy mode
How would it be used?
• Push "mode button" till a circle appears around economy symbol.
• If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times.
When mode is set, buzzer will sound beep beep.
• Freezer and fridge temperature segments will show "E".
• Circle of economy symbol and "e" will light till mode finishes.
During this mode:
• Freezer may be adjusted. When economy mode will be cancelled, the selected
setting values will proceed.
• Fridge may be adjusted. When economy mode will be cancelled, the selected
setting values will proceed.
• Super cool and super freeze modes can be selected. Economy mode is
automatically cancelled and the selected mode is activated.
• Holiday mode can be selected after cancelling the economy mode. Then the
selected mode is activated.
• To cancel, you will just need to press on mode button.

EN-14
EN

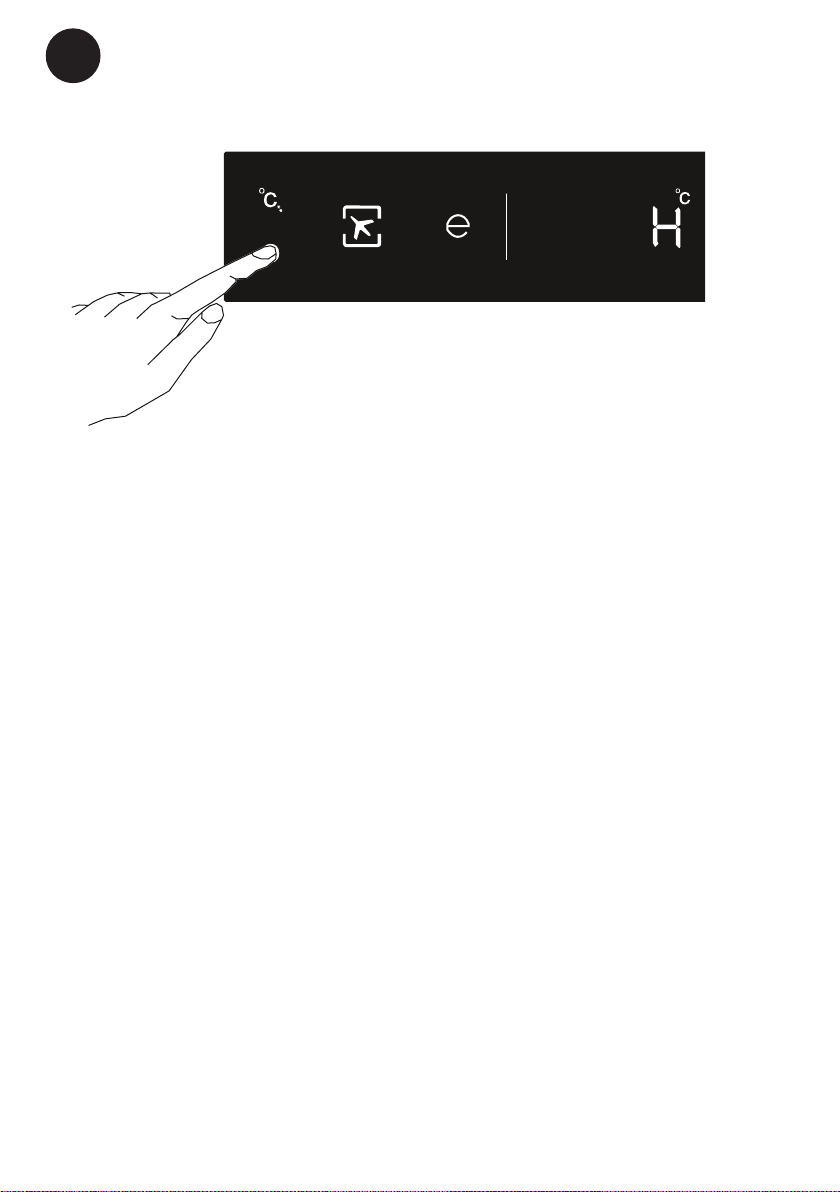

Holliday mode
How would it be used?
• Push "mode button" till a circle appears around plane symbol.
• If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times.
When mode is set, buzzer will sound beep beep.
• Freezer temperature segment will show "H".
• Circle of plane symbol and H will light till mode finishes.
During this mode:
• Freezer may be adjusted. When holiday mode will be cancelled , the selected
setting values will proceed.
• Fridge may be adjusted. When holiday mode will be cancelled, the selected
setting values will proceed.
• Super cool and super freeze modes can be selected. Holiday mode is
automatically cancelled and the selected mode is activated.
• Economy mode can be selected after cancelling the holiday mode. Then the
selected mode is activated.
• To cancel, you will just need to press on mode button.

EN-15
EN

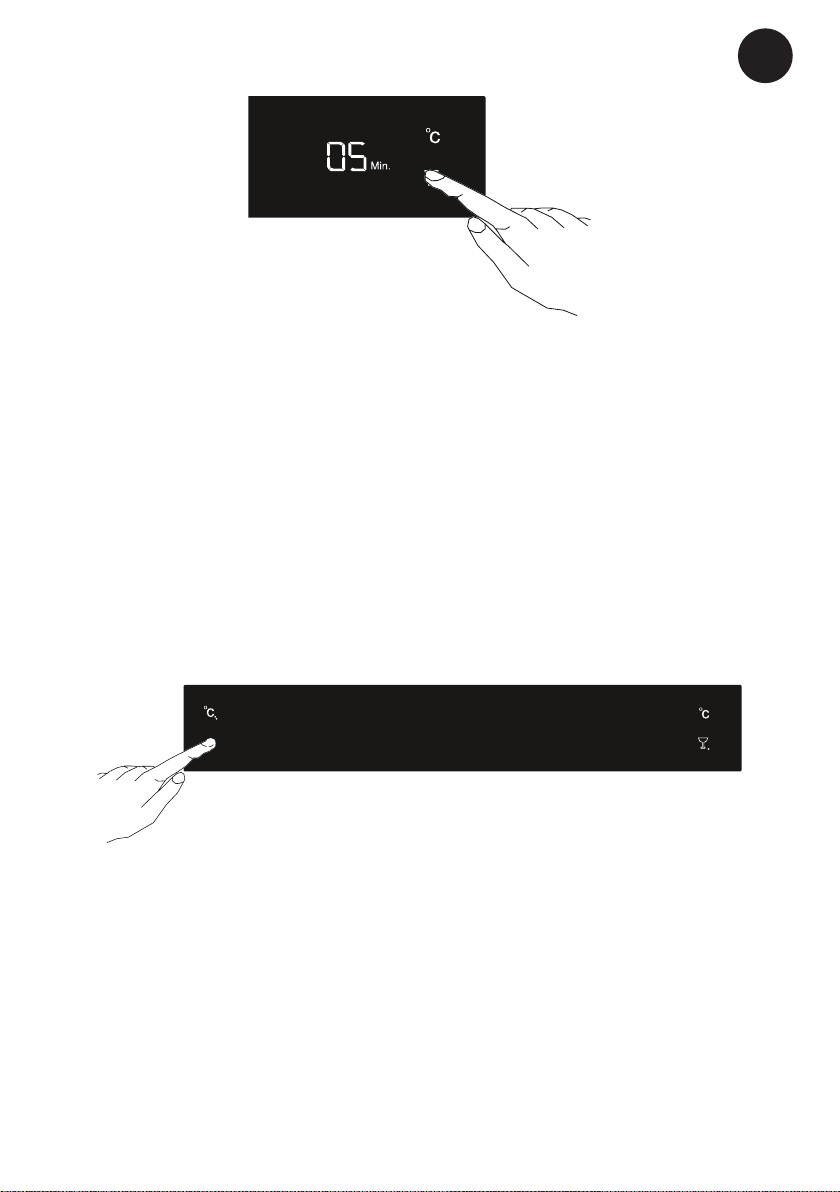

Drink cool mode
Drink cool button should be pressed to activate beverage cooling mode. Each press will
increment the time for 5 minutes up to 30 minutes, and then it returns to zero. You can view
the time zone you want to set on “Drink cool alarm counter” section.Drink cool mode only
lets the refrigerator release an audible alert after a specific period.
Important: It should not be confused with cooling.
Note: You must adjust the time according to the temperature of the bottles before you put
them in.
For example, you can set the time as “5 minutes” in the beginning. After this time, if the cooling
is insufficient, you might set another 5 or 10 minutes.
While using this mode, you must check the temperature of the bottles regularly. When the
bottles are cool enough, you must take them out of the appliance.
In the event that you leave the bottles in when the Drink Cool mode is on, they might explode.
Screen saver mode
How to use?
• This mode will be activated when you press on mode button for 5 seconds.
• If pressed on no button in 5 seconds when the mode is active, lights of the control panel
will go off.
• If you press any button when lights of control panel are off, the current settings will
appear on the screen, and then you can make the adjustment as you want. If you
neither cancel screen saver mode nor press on any button in 5 seconds, the control
panel will go off again.
• To cancel screen saver mode press on mode button for 5 seconds again.
• When screen saver mode is active you can also activate child lock.
• If you do not press any button for 5 seconds after activating child lock, the lights of the
control panel will go off. Then, you can view the previous settings and that child lock
symbol is active when you pres any button, and you can cancel child lock as is described
in the instruction of that mode.

EN-16
EN
Mute Mode
This mode can be activated when you press and hold mute button for 3 seconds.
When this mode is activeted all button sounds and sound alarms will be off.
This mode can be cancelled when you press and hold mute button for 3 seconds.
Function of Child lock
When would it be used?
To prevent children from playing with the buttons and changing the settings you
have made, child lock is available in the appliance.
Activating Child Lock
Press on Freezer and Fridge buttons simultaneously for 5 seconds.
Deactivating Child Lock
Press on Freezer and Fridge buttons simultaneously for 5 seconds.
Note: Child lock will also be deactivated if electricity is interrupted or the appliance
is unplugged.

EN-17
EN
Freezer temperature settings
• Initial temperature value for Freezer Setting Indicator is -18°C.
• Press freezer set button once.
• When you first push this button, the last set value will blink on screen.
• Whenever you press on this button, lower temperature will be set (-16°C, -18°C, -20°C,
-22°C, -24°C superfreeze).
• When you push the freezer set button until superfreeze symbol appears on the Freezer
Setting Indicator, and if you do not push any button in 1 seconds Super Freeze will flash.
• If you continue to press, it will restart from -16°C.
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool
Mode or Economy Mode is activated will remain the same when the mode is over or
cancelled. The appliance continues to operate with this temperature value.
Fridge temperature settings
• Initial temperature value for Fridge Setting Indicator is +4 °C.
• Press fridge button once.
• When you first push this button, the last value appears on the setting indicator of the fridge.
• Whenever you press on this button, lower temperature will be set. (+8°C, +6°C, +5°C,
+4°C, +2°C, supercool)
• When you push the fridge set button until supercool symbol appears on the Fridge
Setting Indicator, and if you do not push any button in 1 seconds Super Cool will flash.
• If you continue to press, it will restart from +8°C.
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool
Mode or Economy Mode is activated will remain the same when the mode is over or
cancelled. The appliance continues to operate with this temperature value.

EN-18
EN
Temperature Adjustment Warnings
• It is not recommended that you operate your refrigerator in environments colder than
10°C in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings,
the quantity of food kept inside the refrigerator and the ambient temperature in the
location of your appliance.
• In order to allow your refrigerator to reach the operating temperature after being
connected to mains, do not open the doors frequently or place large quantities of food
in the refrigerator. Please note that, depending on the ambient temperature, it may take
24 hours for your appliance to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your
refrigerator. when connecting or disconnecting to mains, or when an energy breakdown
occurs. Your appliance will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C)
intervals stated in the standards, according to the climate class displayed on the
information label. We do not recommend operating your appliance out of the stated
temperature limits in terms of cooling effectiveness.
Climate class and meaning:
T (tropical): This refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 43 °C.
ST (subtropical): This refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 38 °C.
N (temperate): This refrigerating appliance is intended to be used at ambient temperatures
ranging from 16 °C to 32 °C.
SN (extended temperate): This refrigerating appliance is intended to be used at ambient
temperatures ranging from 10 °C to 32 °C.
Important installation instructions
This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110
degrees F) and is powered with ‘Freezer Shield’ technology which ensures that the frozen
food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So
you may then install your appliance in an unheated room without having to worry about frozen
food in the freezer being spoilt. When the ambient temperature returns to normal, you may
continue using the appliance as usual.

EN-19
EN
Accessories
Ice Tray
• Fill the ice tray with water and place in the freezer compartment.
• After the water has completely frozen, you can twist the tray as shown below to remove
the ice cubes.
The Freezer Box
The freezer box allows food to be accessed more
easily.
Removing the freezer box:
• Pull the box out as far as possible
• Pull the front of the box up and out
Carry out the opposite of this operation when
refitting the sliding compartment.
Always keep hold of the handle of the box while
removing it.
Freezer boxes
The Chiller Shelf
Keeping food in the Chiller compartment, instead
of the freezer or fridge compartments, allows food
to retain freshness and flavour for longer, while
preserving its fresh appearance. When the Chiller
tray becomes dirty, remove it and wash with water.
(Water freezes at 0°C, but food containing salt or
sugar freezes at temperatures lower than this).
The Chiller compartment is usually used for
storing foods such as raw fish, lightly pickled
food, rice, and so on.
Do not put food you want to freeze or ice trays (to make ice) in the Chiller
compartment.
To remove the Chiller Shelf:
• Pull the chiller shelf towards you by sliding it on the rails.
• Pull the chiller shelf up from the rail and remove it from the fridge.
After the chiller shelf has been removed, it can support a maximum 20 kg load.
Chiller shelf
(In some models)

EN-20
EN
The Fresh Dial
If the crisper is full, the fresh dial located in front of the
crisper should be opened. This allows the air in the
crisper and the humidity rate to be controlled, to increase
the life of food within.
The dial, located behind the shelf, must be opened if any
condensation is seen on the glass shelf.
Fresh dial
(In some models)
Adjustable Glass Shelf
Adjustable glass shelf mechanism provides
higher storage spaces with a simple movement.
To cover the glass shelf, push it.
You can load your food as you want in the
resulting extra space. To bring the shelf in its
original position, pull it toward you.
Fig. 1 Fig. 2
(In some models)
Purebeam Technology
Purebeam
The Purebeam technology effectively removes odors from inside the fridge. Thanks to
this module located in the ceiling of the fridge compartment, via fan the malodor molecules
that are directed to the filter are broken down by special LEDs and the cleaned air directs
to the fresh foods. The quality of the air in the fridge improves and always kept clean.
