Veterinary technics 7F-5 User manual

Oxygen Concentrator
7F-5
User’s manual
DO NOT OPERATE THIS UNIT WITHOUT FIRST
READING AND UNDERSTANDING THIS MANUAL.
1
TABLE OF CONTENTS
SAFETY NOTES……………………………………2-5
FEATURES………………………………………….6-7
HANDLING…………………………………………8
OPERATING INSTALLATION…….………………9-10
MAINTENANCE…………………………………..11-14
OTHER ATTENTION ITEMS……………………...15-16

2
SAFETY NOTES
WARNING: For avoiding power outage or oxygen concentrator
operating failure, exigent oxygen user and serious patient must
equip with reserve oxygen supply (for example: oxygen cylinder,
oxygen bag). This device is to be used as an oxygen supplement
and is not considered life supporting or life sustaining.
Ⅰ
ⅠⅠ
Ⅰ.BEFORE INSTALLATION
The concentrator should always be kept upright to prevent cabinet
damage while being transported.
If the electrical source power voltage is instable that beyond
normal power rang, please add the manostat.
Please use eligible, safe power set and junction box.
Non-professional people do not open oxygen concentrator’s
cabinet.
Ⅱ
ⅡⅡ
Ⅱ.PUT POSITION
You may select a room in your house where using your oxygen
concentrator would be most convenient. Your concentrator can be
easily rolled from room to room on its casters.
Be certain to place the unit so all sides are at least 10cm away
from walls, draperies, furniture, or other obstruction. Do not place
the unit in a confined area.
Oxygen concentrator must avoid heat source, fire source, wetness,
exorbitant or over-low extra ventricular condition.
Sundries and vessel do not be placed on top of the concentrator.
3
SAFETY NOTES
 NEVER block the air openings of the unit or place it on a soft
surface, such as a bed or couch, where the air opening may be
blocked. Keep the openings free from lint, hair and the like.
Ⅲ
ⅢⅢ
Ⅲ.USING
The use of oxygen therapy requires that special care be taken to
reduce the risk of fire. Users MUST NOT SMOKE while using
this device. Keep all matches, lighted cigarettes or other sources of
ignition out of the room in which this product is located. NO
SMOKING signs should be prominently displayed. Textiles and
other materials that normally would not burn are easily ignited and
burn with great intensity in oxygen enriched air. Failure to observe
this warning can result in severe fire, property damage and cause
physical injury or DEATH.
For optimum performance, do not open or turn off the concentrator
frequently, reset after 3～5 minutes. Shorter periods of operation
may reduce maximum product life.
A spontaneous and violent ignition may occur if oil, grease or
greasy substances come in contact with oxygen under pressure.
These substances MUST be kept away from the oxygen
concentrator, tubing and connections, and all other oxygen
equipment. DO NOT use any lubricants unless recommended by
manufacturer.
Ⅳ
ⅣⅣ
Ⅳ. MAINTENANCE
The oxygen concentrator was specifically designed to minimize
routine preventive maintenance at intervals of once per year. Only
professionals of the healthcare field or persons fully conversant with

4
SAFETY NOTES
this process such as authorized or factory trained personnel should
perform preventive maintenance or performance adjustments on the
oxygen concentrator.
Ⅴ
ⅤⅤ
Ⅴ. RADIO FREQUENCY INTERFERENCE
Most electronic equipment is influenced by Radio Frequency
Interference (RFI). CAUTION should be exercised with regard to
the use of portable communications equipment in the area around
such equipment.
Ⅵ
ⅥⅥ
Ⅵ. TO REDUCE THE RISK OF BURNS, ELECTROCUTION,
FIRE OR INJURY TO PERSONS.
Avoid using while bathing. If continuous usage is required by the
physician’s prescription:
The concentrator must be located in another room at least
2.5m from the bath.
DO NOT come in contact with the concentrator while wet.
DO NOT place or store product where it can drop into water or
other liquid.
DO NOT reach for product that has fallen into water. UNPLUG
IMMEDIATELY.
A product should NEVER be left unattended when plugged in.
This device is to be used only in accordance with the prescription of
a physician and this User’s Manual. If at any time the patient or
attendant conclude that the patient is receiving an insufficient
amount of oxygen, the supplier and/or physician should be contacted
immediately. No adjustments should be made to the flowrate unless
5
SAFETY NOTES
prescribed by a physician.
Close supervision is necessary when this product is used near
children or physically-challenged individuals.
Use this product for only intended use as described in this manual.
DO NOT use parts, accessories or adapters other than those
authorized by manufacturer.
DO NOT connect the concentrator in parallel or series with other
oxygen concentrators or oxygen therapy devices.
Use of some administration accessories or certain humidifiers not
specified for use with oxygen concentrator may impair the
performance.
In certain circumstances oxygen therapy can be hazardous.
Manufacturer recommends that you seek medical advice before
using this product.
Avoid creation of any spark near medical oxygen equipment. This
includes sparks from static electricity created by any type of
friction.

6
FEATURES
Ⅰ
ⅠⅠ
Ⅰ.SUMMARY
7F-5 oxygen concentrator is intended for individual use in the home. It
is an electronically operated device that separates oxygen from room
air. It provides high concentration of oxygen directly to you through a
nasal cannula. Clinical studies have documented that oxygen
concentrator are therapeutically equivalent to other types of oxygen
delivery systems.
This user’s manual will tell you about your concentrator and will serve
as a reference as you use your concentrator.
Ⅱ
ⅡⅡ
Ⅱ. CHRARCTERS
Complete plastic outer shell, safe and reliable.
Timing accumulates function, show total working hours through
the display screen.
Exceed press safety valve helping safe ensure.
Install power loss alarming function, high pressure and low
pressure alarming function.

Compressor has got hot protection that ensures the safety of the
compressor and concentrator.
Ⅲ
ⅢⅢ
Ⅲ.SPECIFICAIONS
1. Flow Range: 1～5L/min
2. Oxygen Concentration: ≥90%
3. Maximum Outlet Pressure: 45kPa±4.5kPa
4. Pressure Relief Mechanism Operational at: 250kPa±25kPa
5. Altitude: Up to 1828 meters above sea level without degradation of
concentration levels. From 1828 meters to 4000meters below 90%
efficiency.
7
FEATURES
6. Sound Level: ≤55dB(A)
7. Power Supply:
□AC120V±10% □AC220V±10% □AC230V±10%
□50Hz □60Hz
□4.6amps(AC120V) □2.2amps(AC220V)
8. Input Power: ≤600VA
9. Weight: 26kg
10. Dimension: 44.5×37.2×68(cm
3
)
11. Minimum Operating Time: 30minutes
Electric classification: II class B type.
Work system: work continuously.
Keep it far from flammable and explosive gas area.
Ⅳ
ⅣⅣ
Ⅳ.NORMAL WORKING CONDITION
Temperature range: 5℃～40℃
Relative humidity: 20%～60%
Atmosphere pressure: 86kPa～106kPa
NOTICE: Please place the device in normal working temperature
circumstance for at least 4 hours if the storage, transportation
temperature beneath 5℃.

8
HANDLING
Ⅰ
ⅠⅠ
Ⅰ. UNPACKING
Check for any obvious damage to the carton or its contents. If
damage is evident, please notify the carrier or local dealer.
Remove all loose packing from the carton.
Carefully remove all the components from the carton.
NOTE: Unless the oxygen concentrator is to be used immediately,
retain containers and packing materials for storage until use of the
concentrator is required.
Ⅱ
ⅡⅡ
Ⅱ. INSPECTION
Examine exterior of the oxygen concentrator for nicks, dents,
scratches or other damages. Inspect all components.
Ⅲ
ⅢⅢ
Ⅲ. STORAGE
Store the repackaged oxygen concentrator in a dry area.
DO NOT place other objects on top of the repackaged concentrator.
9
OPERATING INSTRUCTIONS
Ⅰ
ⅠⅠ
Ⅰ.FEATURE VIEW
Ⅱ
ⅡⅡ
Ⅱ.PREPARE WORK
Unscrew the cover of the humidifier, fill the purify water (or
distilled water) into the humidifier bottle between the maximum
and minimum water level lines, and then screw the humidifier
bottle. (If needed, add other medicine into the water, please
according to the doctor’s suggestion.)
Screw the humidifier bottle absorbing connector into the cover of
the humidifier, then insert the humidifier to the elastic belt on the
left side of the unit, and connect the other end of the cannula to the
oxygen outlet.
Oxygen outlet
Humidifier bottle
Nasal oxygen cannula
Cabinet
Humidifier bottle
adapter
Elapsed time meter
Flowmeter
Fault indicator light
Power indicator light
Circuit breaker
Power switch
Panel
Humidifier outlet

10
OPERATING INSTRUCTIONS
Plug in power supply.
Press down the power switch, the concentrator works.
Ⅲ
ⅢⅢ
Ⅲ.OXYGEN ABSORBING OPERATING
1. FLOWRATE
Turn the flowmeter knob to the setting prescribed by your
physician or therapist.
NOTE: To properly read the flowmeter, locate the prescribed
flowrate line on the flowmeter. Next, turn the flow knob until the
ball rises to the line. Now, center the ball on the L/min line
prescribed.
CAUTION: If the flowrate on the flowmeter ever falls below
0.5L/min, check tubing or accessories for blocked or kinked
tubing or a defective humidifier bottle.
Meanwhile, humidifier bottle will have air bubble around the sieve
core. Then, oxygen comes from the humidifier outlet.
2. Connect nasal oxygen cannula to humidifier outlet, the other end
match the patient.
Note: The time of absorbing oxygen and the flowrate range according
to the doctor’s advices.
Ⅳ
ⅣⅣ
Ⅳ.TURNING OFF
Take off nasal oxygen cannula from humidifier outlet first, close
power switch, and then cut off power source.
Ⅴ
ⅤⅤ
Ⅴ.SYMBOL AND SIGNIFICATION

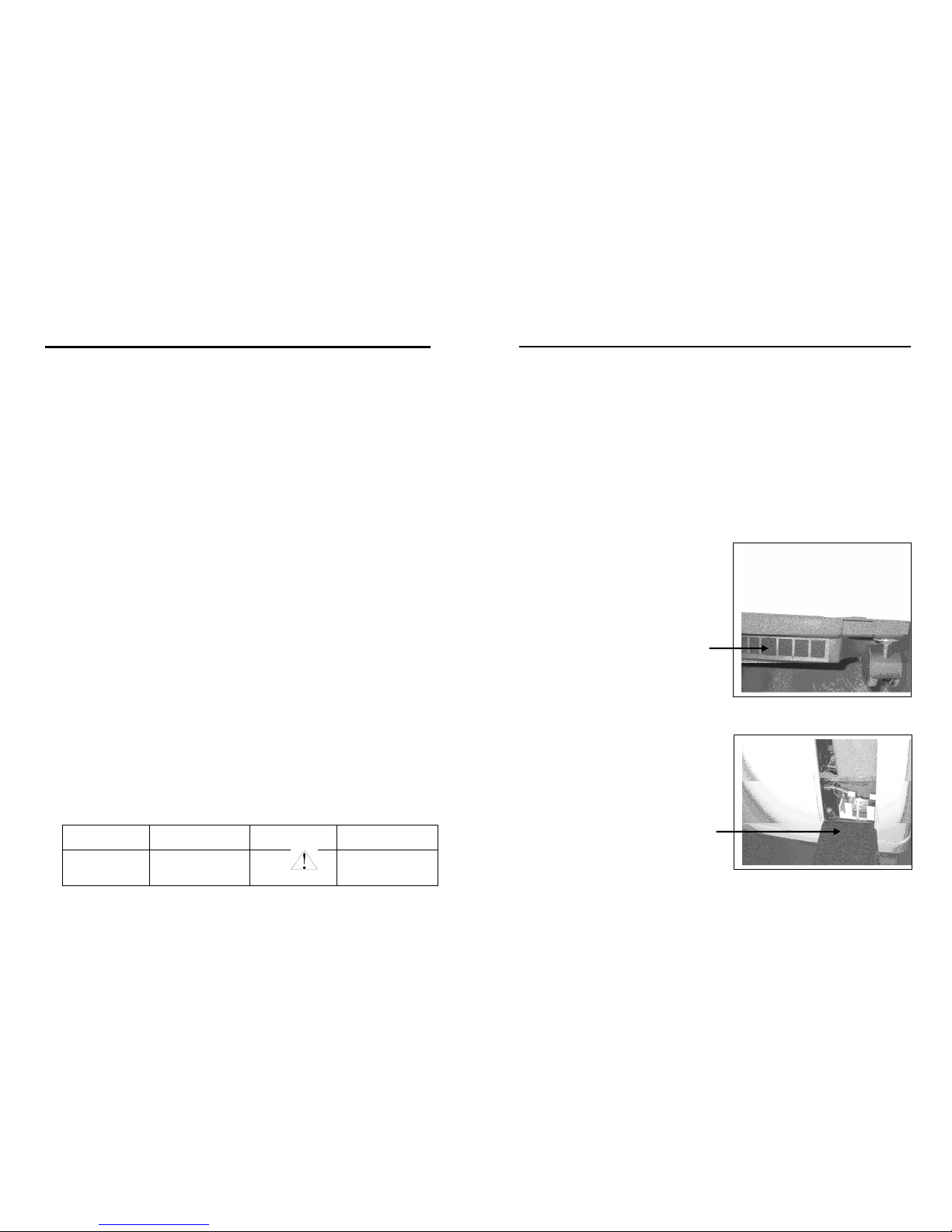

Symbol Signification Symbol Signification
～
～～
～Alternating
current
Consult the
manual
11
MAINTENANCE
Ⅰ
ⅠⅠ
Ⅰ.CLEANING CABINET
Clean the cabinet at least once a month. First cut off the power supply,
and then clean the cabinet with a mild household cleaner and
non-abrasive cloth or sponge. Avoid seeping liquid into the crack of
the cabinet.
Ⅱ
ⅡⅡ
Ⅱ.CLEANING FILTER
Please clean and replace the filters in time that is very important to
protect compressor and delay concentrator’s life.
DISASSEMBLY
1) The first stage mesh in
filter cleans once half a month.
The first stage filter Ⅰcan be
taken out down from the bottom.
(Located at the back of concentrator)
The first stage filter Ⅱcan be taken
out down by small flat-screwdriver.
(Located on both sides of
concentrator)
Figure 1
Figure 2

12
MAINTENANCE

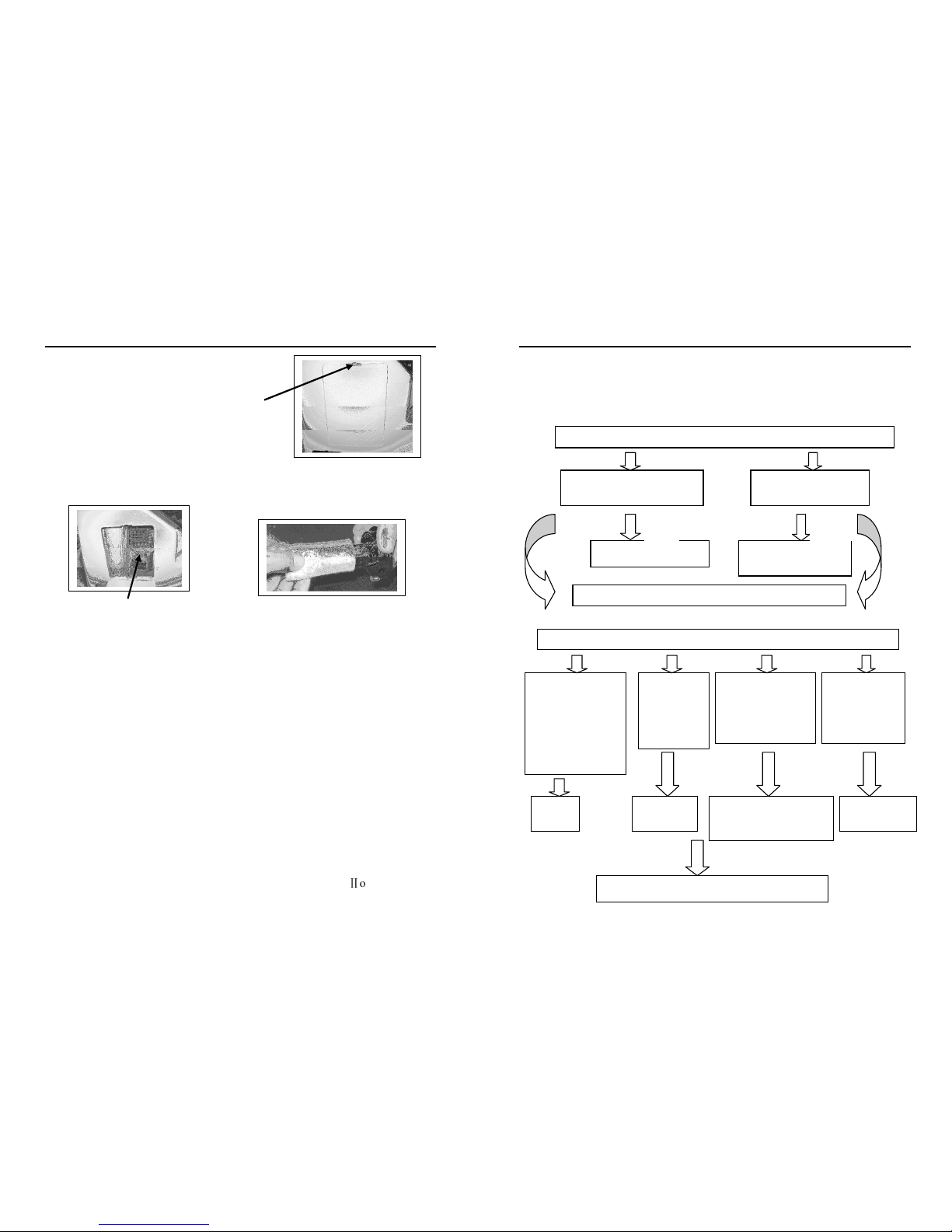

2) The second stage mesh in filter cleans
once a month.
A. Open filter access door. (Figure 3)
B. Unscrew the filter core. C. Ⅱ-stage filter mesh cleaning time
depends on practically using and
condition. If the filter core
becomes black, please replace or
clean it at once, no matter how
long it used.
 CLEANING: Clean the filter with dilute cleaner first, then rinse
thoroughly. Dry the filters thoroughly before reinstallation.
Ⅲ
ⅢⅢ
Ⅲ.CLEANING HUMIDIFIER BOTTLE
Chang the water in humidifier bottle every day. Clean the humidifier
bottle once a week with dilute cleaner, then rinse thoroughly. Pay
attention to cleaning the core tube and filter core to ensure oxygen can
pass through.
Ⅳ
ⅣⅣ
Ⅳ.REPLACE BATTERY
When the power of the battery is in shortage, alarm of the buzzer is
weak, please change it immediately. Open the first stage filter Ⅱ on the left of
Plate groove (insert flat-screwdriver)
Figure 3
Figure 4
Figure 5
13
MAINTENANCE
the cabinet, replace the battery. (Figure 2) (NOTICE: This device use
9v stromatolite battery. If the concentrator won’t be used for a long
period, please take off the battery.)
Ⅴ
ⅤⅤ
Ⅴ.TROUBLESHOOTING GUIDE
Press the switch, the concentrator is alarm
of
buzzer
but doesn’
t work
.
Check the power plug
whether plugged in socket.
Contact
with de
aler or manufact
urer
Press down the
circuit breaker.
Open filter
access door and
panel and check
all parts of the
connections of
the tubes whether
loosen.
Inspect
tubes or
cannula
kinked or
blocked.
Check humidifier
bottle whether
leaked or
jammed.
Insert
tubes.
Smooth
the tubes.
Reinstall and tighten
after cleaning.
Concentrator
works
, but oxygen
from
outlet
is little or no.
Contact with dealer and manufacturer.
Circuit breaker is
whether is upward.
Insert the power plug.
Safety valve
of humidifier
whether
opens.
NO
YES
YES
NO
Safety valve
r
estoration
NO
YES YES YES
YES

14
MAINTENANCE
The ball in the flowmeter located on “ 0 ” position or float unstable.
Adjust flowmeter knob. Contact with dealer or manufacturer.
The concentrator works with abnormal sound.
Contact with dealer or manufacturer.
Yellow lamp blink,
alarm sound at
intervals is low
pressure alarming.
Yellow lamp bright
continuously, alarm sound
consecutively is high
pressure alarming.
15
OTHER ATTENTION ITEMS
Ⅰ
ⅠⅠ
Ⅰ.LIMITATION OF THE TRANSPORT AND STOCK
Temperature Range: -40℃～70℃
Relative Humidity Range: 10%～100%
Atmosphere Press Range: 86kPa～106kPa
Shipping Weight:31.5kg
The oxygen concentrator should be stored in area without erode gas;
avoid shaking and inversion in transportation.
.GAS PASS OPERATION SKETCH GRAPHⅡ
ⅡⅡ
Ⅱ
Air
Filter Compressor Condensator
Assembled
regulator
Molecular
sieve
Oxygen azote
separation
Oxygen Azote Commute regulator
Azote export
Cylinder Bacilli
filter
Unilateralism
regulator
Flowmeter
Outlet
Humidifie
r
Nasal oxygen
cannula
Pressure
regulator

16
OTHER ATTENTION ITEMS
Ⅲ
ⅢⅢ

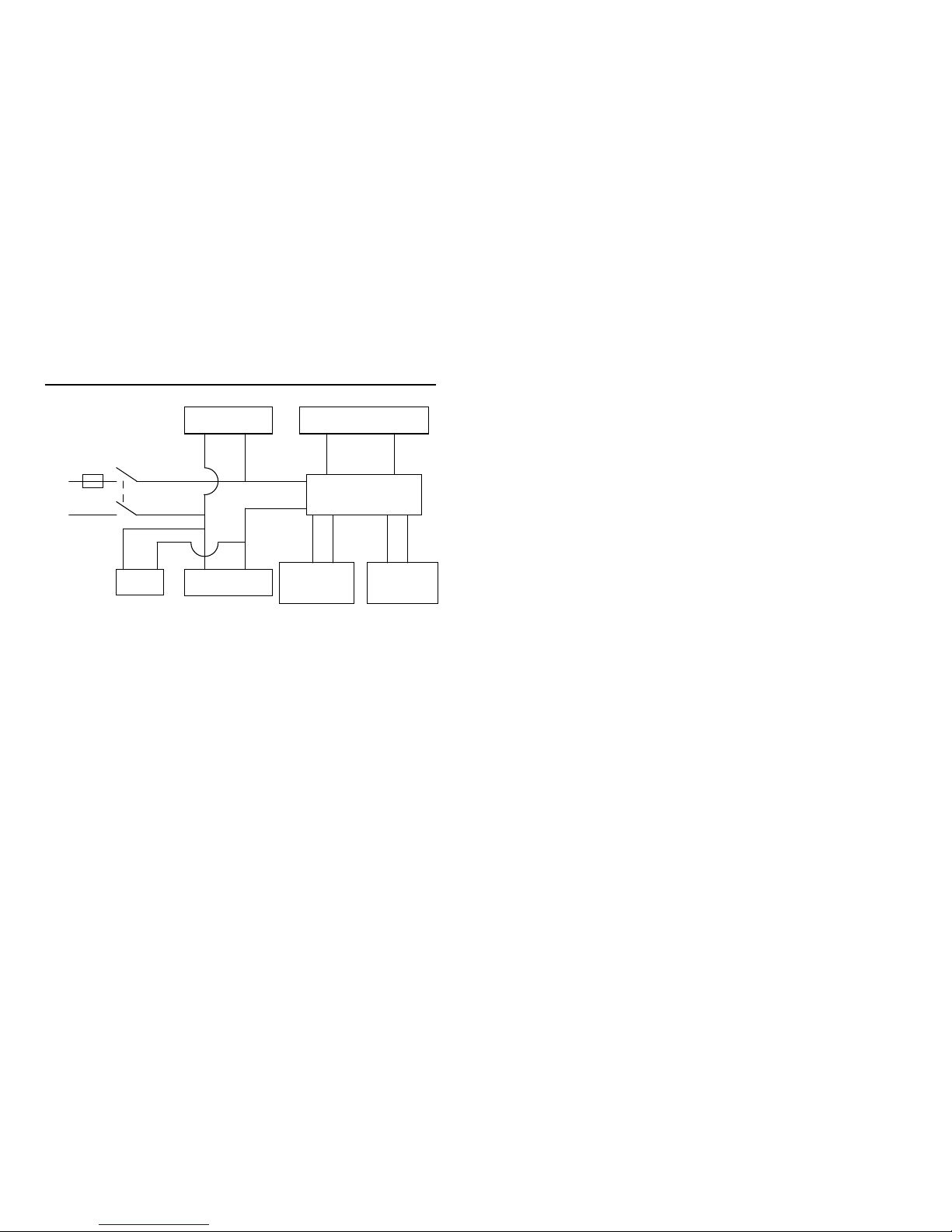

Ⅲ.ELECTRICAL ELEMENTS
Ⅳ
ⅣⅣ
Ⅳ.ACCESSORIES LIST
1. Nasal oxygen cannula: 1 set
2. Filter core: 1 set
3. Humidifier bottle: 1 set
4. Humidifier bottle adapter (including tube): 1 set
5. Manual: 1 piece
All specifications and product configurations are subject to change
without notification
Industriestraat 61D Tel. 0255 – 820010 E-mail: [email protected]
1976 CT IJmuiden Fax 0255 – 820011 Website: www.veterinarytechnics.com
The Netherlands
Transformer Low power supply
Control unit
Regulator
Ⅰ
Regulator
Ⅱ
CompressorFan
～
～～
～
