VETRON 5000 Owner's manual

5000 » PROGRAMMING MANUAL
04/2015


PROGRAMMING MANUAL VETRON 5000 03
PROGRAMMING MANUAL
05 01. OVERVIEW
06 02. OPERATING PANEL
07 03. HOTKEYS
08 04. ELECTRONIC HANDWHEEL & REVERSE SEWING
09 05. CONTROL & MAIN SWITCH
10 06. PEDAL
11 07. LIGHT
12 08. GENERAL INFORMATION IMPORTANT FOR SAFETY
13 09. GENERAL
14 10. CREATE PROGRAMNAME AND STORING
15 11. CHANGE PROGRAMNAME
16 12. PROGRAM PARAMETER
30 13. CREATE PROGRAMCHAIN
34 14. PROGRAMADMINISTRATION WITHOUT USB DONGLE
A COPY PROGRAM
B DELETE ONE PROGAM
C DELETE ALL PROGRAMS
36 15. PROGRAMADMINISTRATION WITH USB DONGLE
A COPY ONE PROGRAM
B COPY ONE PROGRAM FROM MACHINE TO USB
C COPY ONE PROGRAM FROM USB TO MACHINE
D DELETE ONE PROGRAM
E COPY ALL PROGRAMS FROM MACHINE TO USB
F COPY ALL PROGRAMS FROM USB TO MACHINE
G DELETE ALL PROGRAMS
H ADJUSTMENTS FROM MACHINE TO USB
I ADJUSTMENTS FROM USB TO MACHINE

04 PROGRAMMING MANUAL VETRON 5000

ESC
P000 30%
TEST
PROGRAMMING MANUAL VETRON 5000 05
PROGRAMMING MANUAL

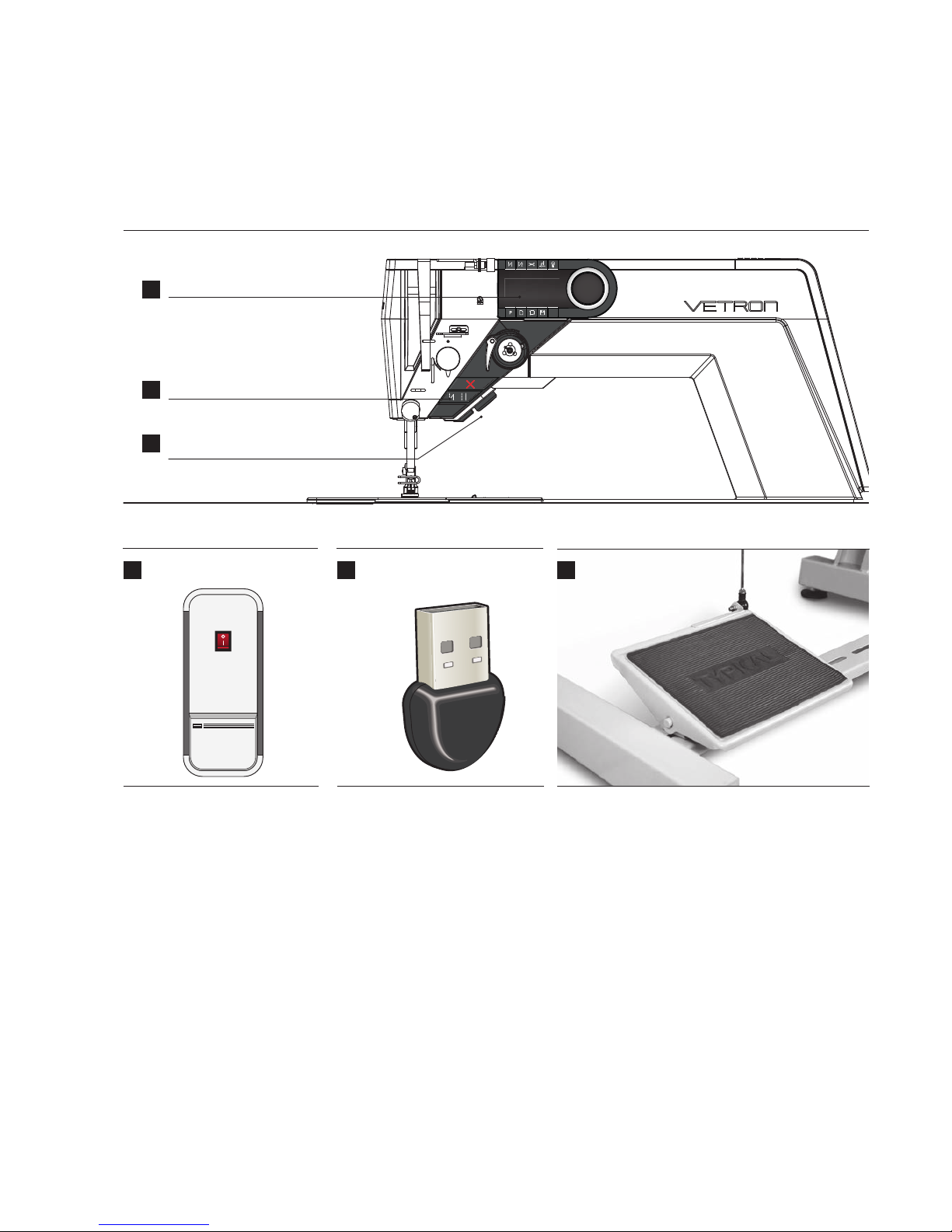

01. OVERVIEW
1 OPERATING PANEL
2 HOTKEYS
4 CONTROL 5 USB-DONGLE 6 PEDAL
3 ELECTRONICS AND SEWING
REVERSE

ESC
000
SE T
30%P
T
1 2 3 4
5 6 7 8 9
10
A B
06 PROGRAMMING MANUAL VETRON 5000
PROGRAMMING MANUAL

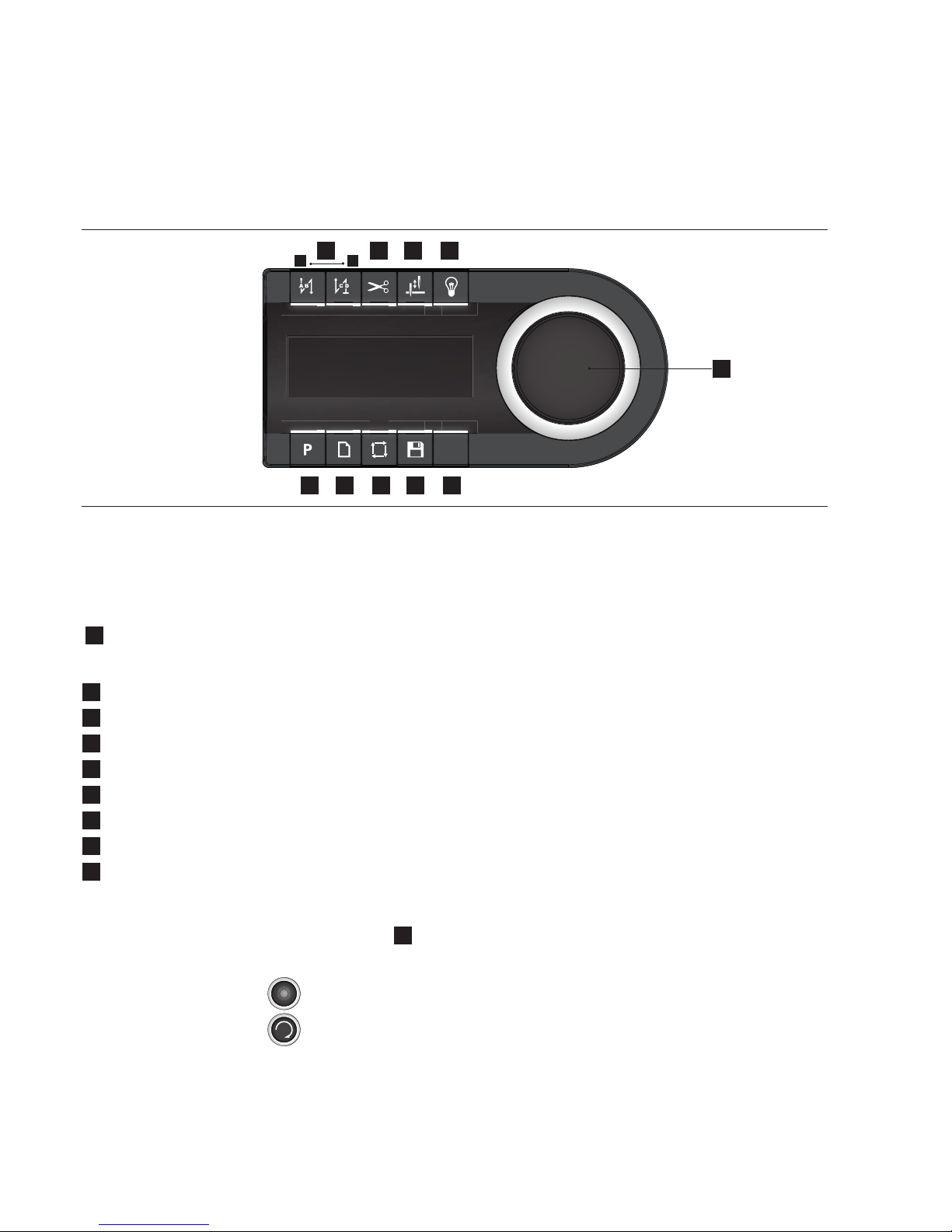

02. OPERATING PANEL
The operating fi eld indicates the current operating states.
Operation takes place via continuous dialog between control and operator.
Depending on the operating state, di erent texts are displayed.
The following functions are assigned to the BUTTONS ABOVE AND BELOW THE DISPLAY:
1 BACKTACK (from left to right):
1. Start backtack
2. End backtack
2 THREAD TRIMMING
3 NEEDLE UP/DOWN AFTER STOP
4 LIGHT ON/OFF
5 PARAMETERS
6 NEW PROGRAM
7 PROGRAMMED SEAM
8 SAVE
9 CANCEL
If a function is activated, this is indicated by illuminating the corresponding LED.
In order to CHANGE OR SET VALUES, use the JOG KEY ( 10 ):
Turning changes the values; pressing the JOG KEY enters the value.
In the following, the operating type is indicated by the following icons:
Input = Press the JOG KEY:
Change = Turn the JOG KEY:

1
2
4
3
PROGRAMMING MANUAL VETRON 5000 07
PROGRAMMING MANUAL

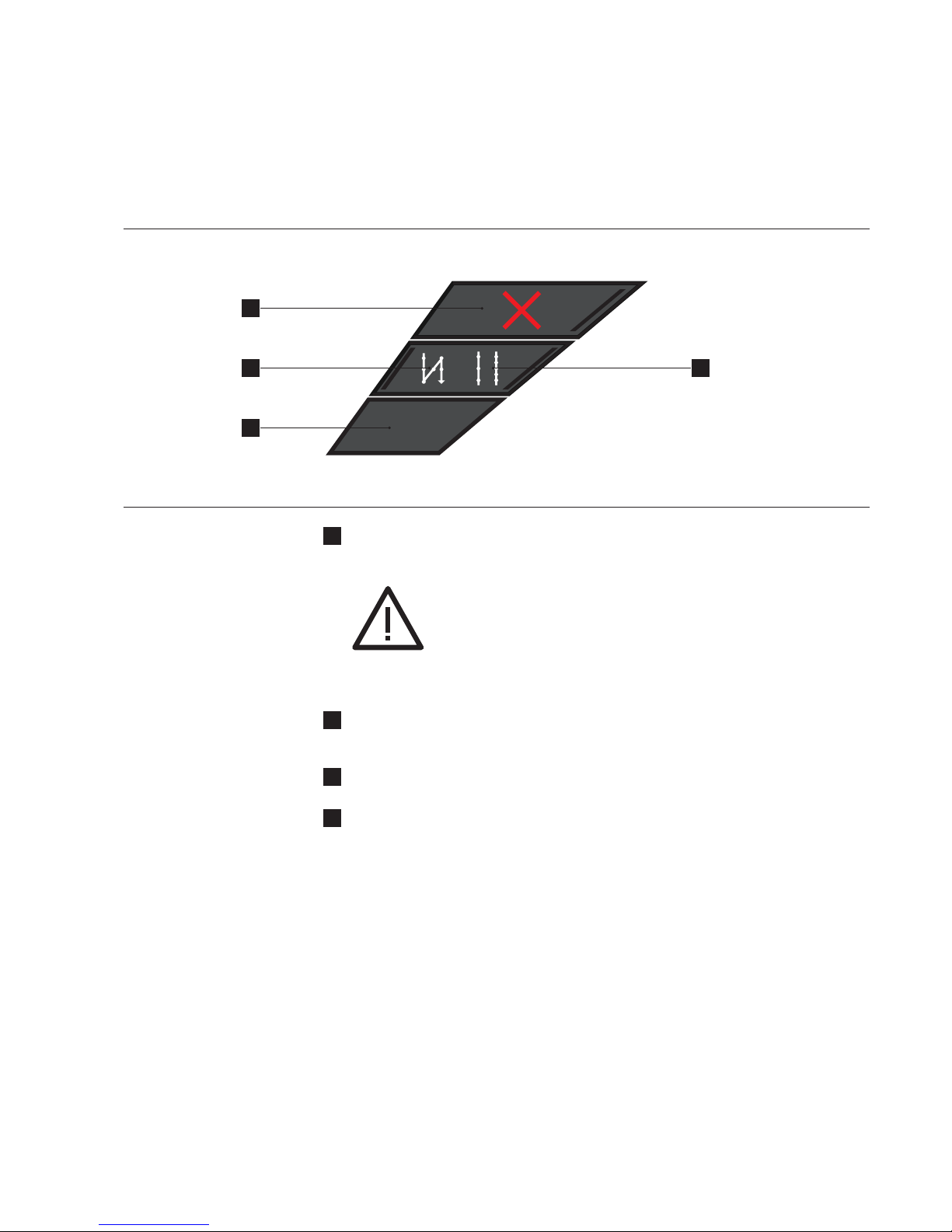

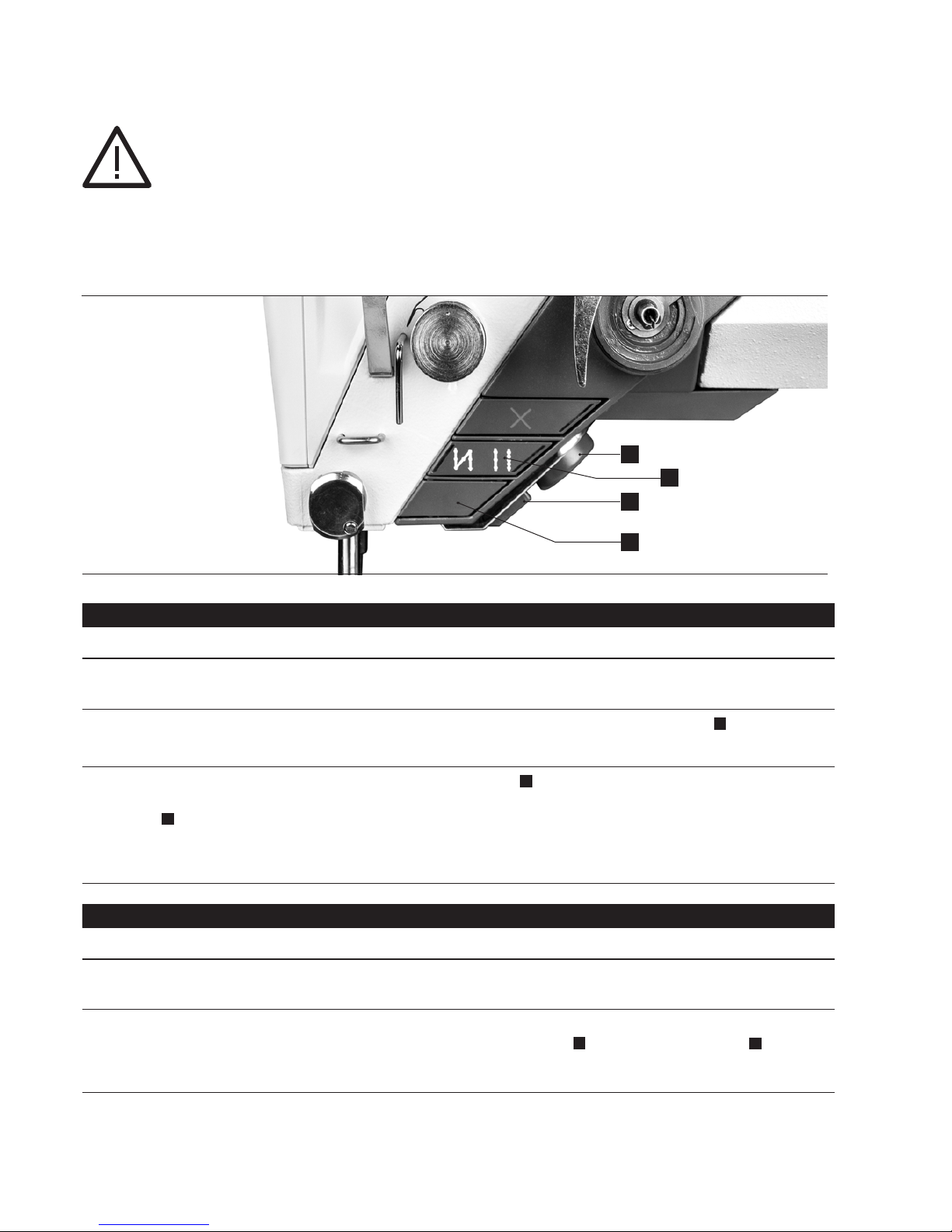

03. HOTKEYS
1 SAFETY SWITCH
If the safety switch is triggered, all functions are locked. The LED lights up red.
The “blocked mode” is active.
CAUTION:
Before activating the machine by the X-button make sure to remove sewing material
or other items below the sewing feet if necessary and follow the instructions displayed
in the control panel.
2 SINGLE BACKTACK SUPRESSION
If the backtack function is activated, the following backtack is switched o one time
by pushing the key.
3 2ND STITCH LENGTH
If the second stitch length is activated, the adjacent LED is lit up.
4 CUSTOMIZABLE BUTTON
Default: Toggle foot stroke level

1
2
3
08 PROGRAMMING MANUAL VETRON 5000

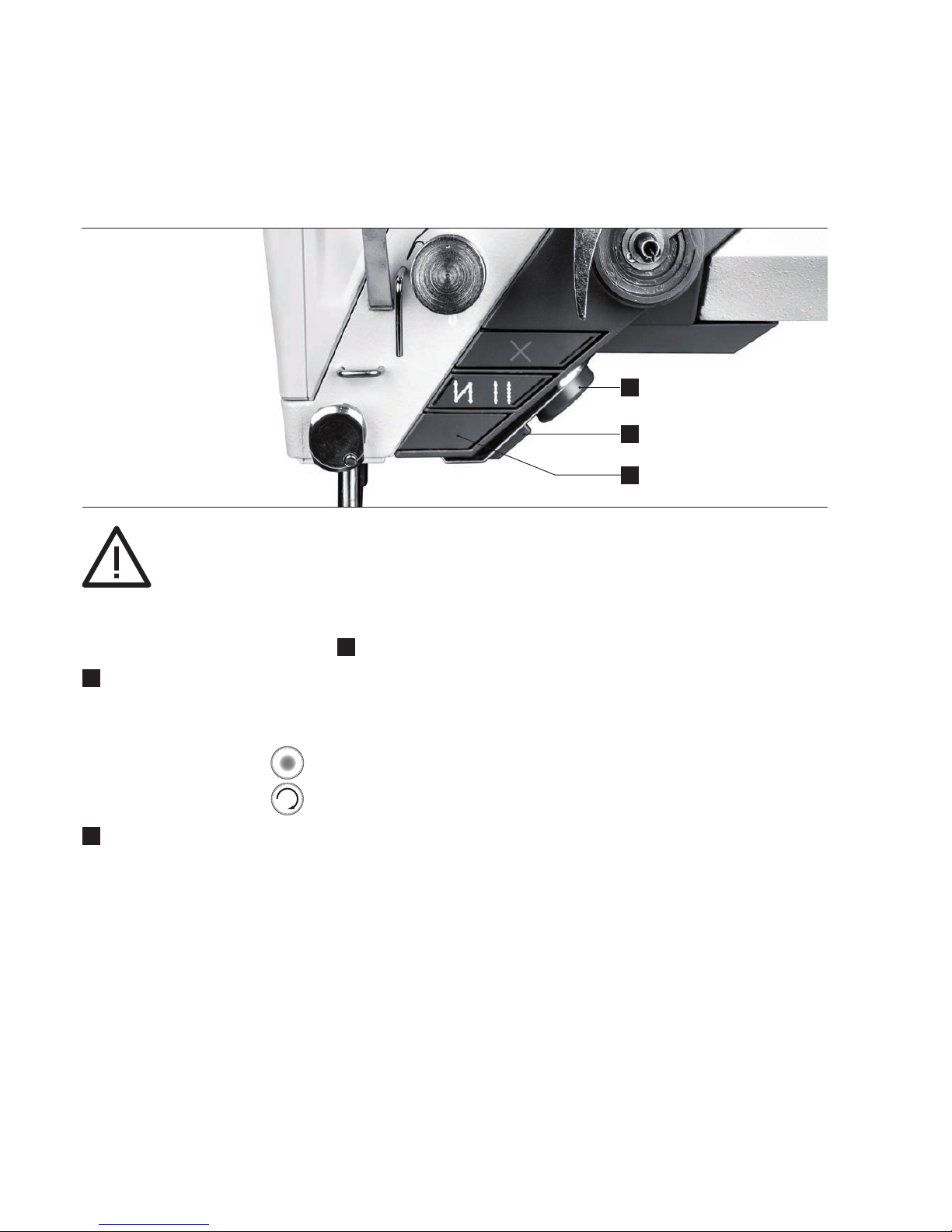

NOTE!
The electronic handwheel is not active unless the machine has performed at least one stitch.
For safety reasons it is necessary during “blocked mode” to push and hold
the programmable button (the lowest button) 3 to activate the handwheel.
1 ELECTRONIC HAND WHEEL – FUNCTION
» By turning the hand wheel, you can move the needle bar forwards or backwards.
In the following, the operating type is indicated by the following icons:
Pressing the hand wheel: stitch-for-stitch function / needle positioning
Turning the hand wheel:
2 REVERSE SEWING
Pulling the button changes the sewing direction.
stitch-for-stitch function / needle positioning
PROGRAMMING MANUAL
04. ELECTRONIC HAND WHEEL & REVERSE SEWING

1
2
PROGRAMMING MANUAL VETRON 5000 09

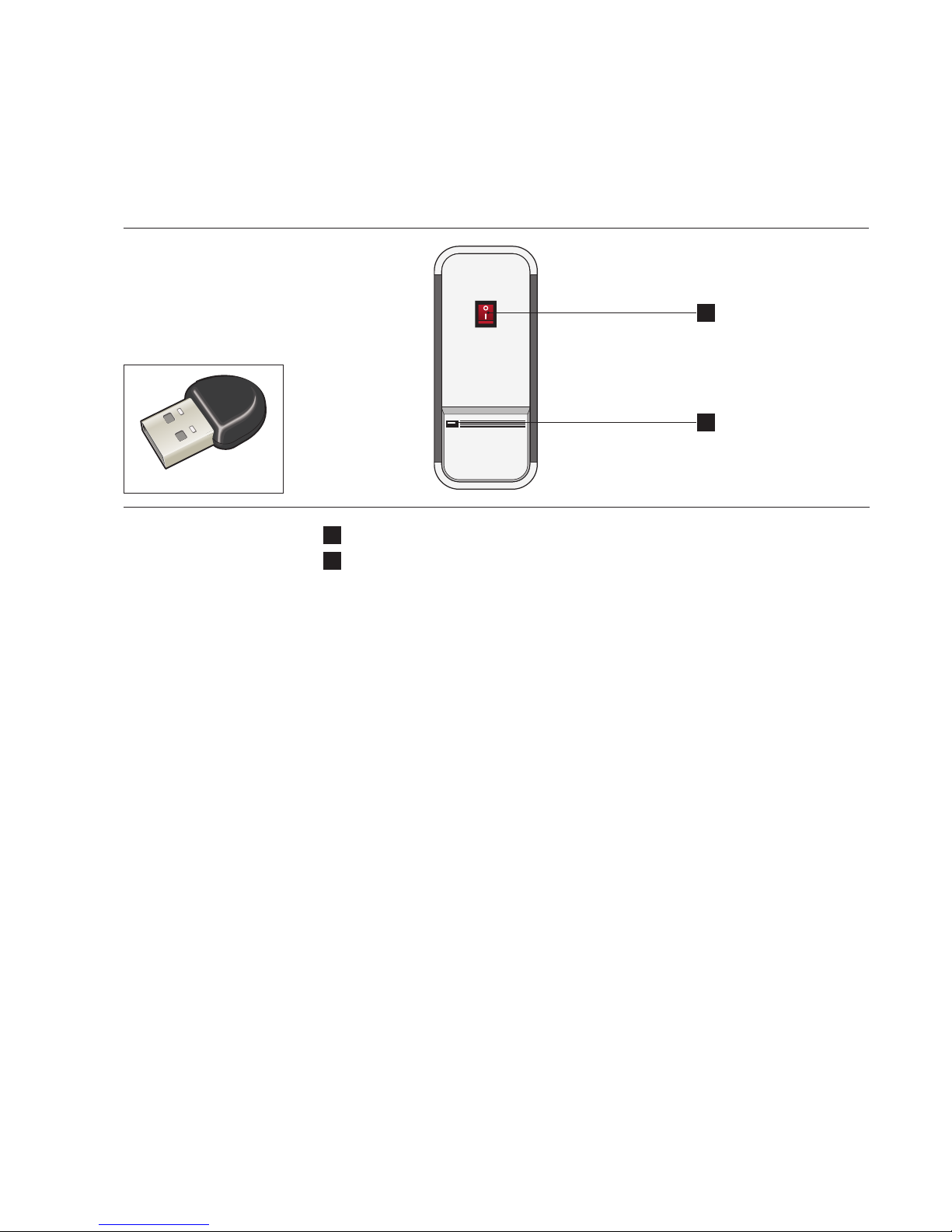

1 MACHINE MAIN SWITCH ON/OFF
2 USB-PORT
Identify yourself using the provided USB dongle.
PROGRAMMING MANUAL
05. CONTROL & MAIN SWITCH

0
+1
-2
+2
-1
10 PROGRAMMING MANUAL VETRON 5000
PROGRAMMING MANUAL

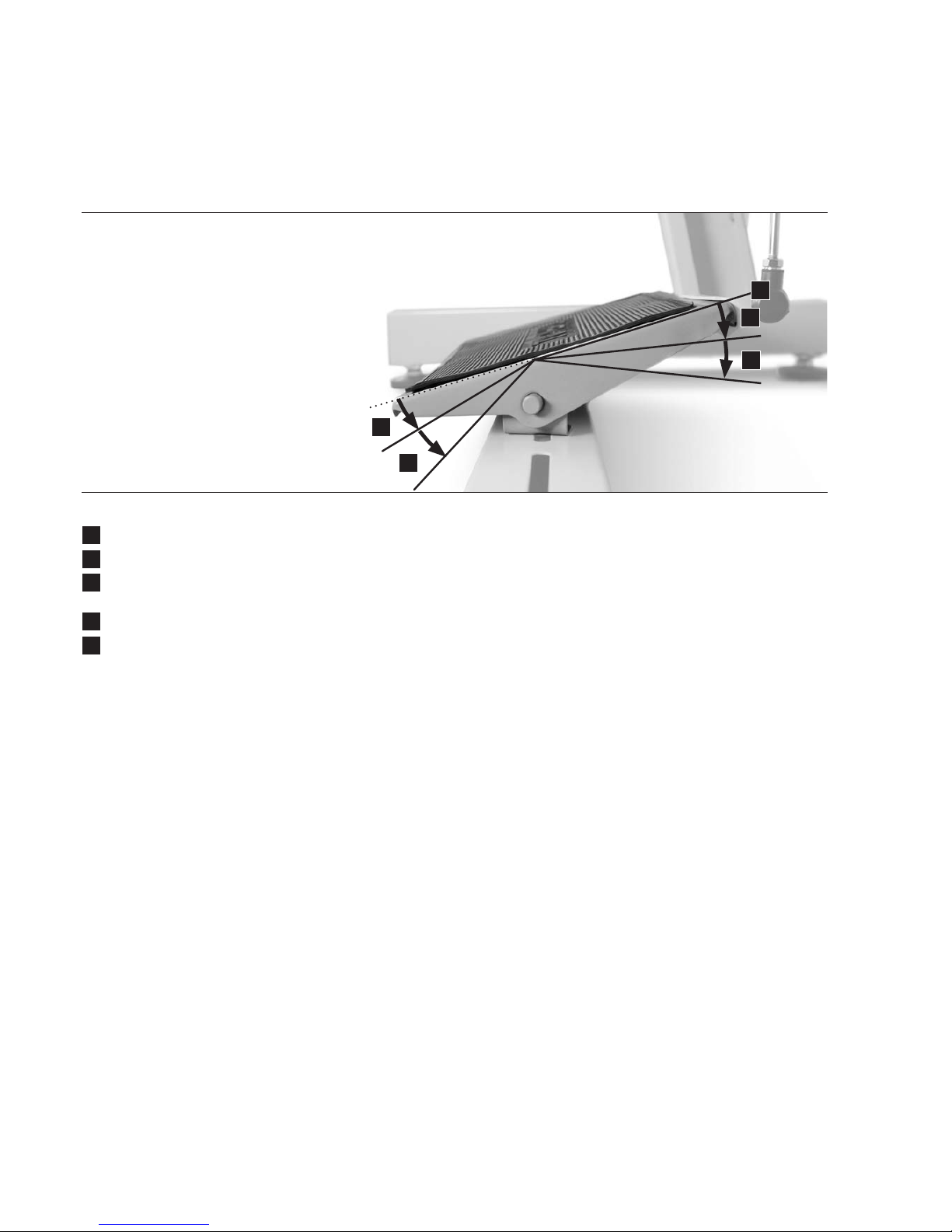

06. PEDAL
0 IDLE POSITION
+1 CONSTANT SEWING SPEED (ADJUSTABLE VIA PARAMETER M502)
+2 VARIABLE SEWING SPEED FROM 0-100%
OF THE CHOOSEN MAXIMUM SPEED (DEPENDING ON SEWING PROGRAM)
-1 SEWING FEET LIFT
-2 SEAM END PROCEDURE ACTIVATION (DEPENDING ON SEWING PROGRAM)

PROGRAMMING MANUAL VETRON 5000 11
PROGRAMMING MANUAL
07. LIGHT
The VETRON head module for sewing is equipped with LED sewing area lighting,
whose intensity can be controlled via the operating field.
For SWITCHING the light ON and OFF, press button »
To ADJUST THE LIGHT INTENSITY, proceed as follows:
DISPLAY STEP DESCRIPTION
» ADJUST LIGHT INTENSITY
11 Press the LIGHT button
►
The corresponding LED on
the display lights up
2r sig %h ne 00st 1B► Change LIGHT INTENSITY Percentage on the display and
light intensity of the light are changed.
3r sig %h ne 60s tB After 2 seconds without further input,
the value is set and the current program
number is shown
4P000
EMP O R AG N
Machine is ready for operation.

12 PROGRAMMING MANUAL VETRON 5000
PROGRAMMING MANUAL
08. GENERAL INFORMATION IMPORTANT FOR SAFETY
This manual and the warning symbols on the machine
should ensure the safe use of the machine, so that
no accidents and injuries may occur. Please read this
instruction and also the safety instructions of the motor
manufacturer carefully.
The machine may only be set into operation after this
instruction manual has been read and the operator has
been trained by authorized personal.
The machine may only be used as specified and with
the appropriate safety devices. General safety instruc-
tions must be applied.
Take note of the danger and safety instructions on the
machine.
The machine must be switched o, or plug pulled
when maintenance and other work e.g. changing of
needle, sewing foot, needle plate, feed dog, bobbin or
threading is done, also when leaving the working place.
Daily maintenance work may only be taken out by
properly trained personnel.
Repairs and special maintenance may only be done
by technical personnel or specially trained sta.
Only qualified mechanic may take out work on the
electrical equipment.
Works on live parts are not allowed. Conversions or
modifications to the machine may only be done with
the common safety measures.
Only original VETRON spare parts or parts which are
cleared by VETRON are allowed to use when repairing
the machine. Failure to comply will void the warranty.
The machine can only be used when the whole unit
complies with the EC-Directive.
The connecting cable must be equipped with a
country-specific connecting plug. This must be done
by an electrician.
General Safety Instructions Notice to the owner
This manual must be at all times be available for the
operator as it is part of the machine. Make sure that
the persons whom are working on the machine read
it before starting the machine for the first time.
The owner must make sure that the machine is in
good working order.
The owner must check that all safety devices are in
place and in working order.
The owner must make sure that only authorize,
trained persons are working on the machine
Operators and Technical Sta
It is the operator´s responsibility to take care of small
adjustments, operating and cleaning of the machine.
The operator has to refrain from any actions that can
interfere with the safety of the machine. There is no
jewelry, changings or rings to be worn while working
on the machine. The clothing should be tight fitting.
Only authorized personnel is allowed on the workplace.
The incidence of an error on the machine that can inter-
fere with the safety must be reported
to the supervisor.
The skilled technical sta is responsible for
lubricating, maintenance, repairing and adjusting
of the machine. The machine must be switched of
before starting any work on the machine and be
secured that it can´t be switched on by evident.
Exceptions are listed in the regulation EN 50110.
The safety guards must be replaced after finishing
the repair and maintenance work.
Operators and technical sta must take attention of
the safety and operating instructions in this manual.

1
PROGRAMMING MANUAL VETRON 5000 13
Basicily
The adjustments for e.g. stitch length, thread tension, foot pressure
and other settings are made with equipment like knobs, switches
and dials on conventional sewing machines. This settings are not
accurate repeatable after changing them.
With the VETRON these settings are made by step motors, they
can exactly reproduce the desired setting. All settings like stitch
length, thread tension and foot pressure for example are adjusted
with parameters on the controler.
Single- and Chainprogams
A complete setting of the machine is called a program and can
be stored under a name or a number. A change of progam can be
done with a push of a button and all adjustments are carried out.
Multiple settings of dierent machines can be united in one machine.
It is also possible to concatenate several programs. They will run
automatically one after another. This is called a chain program.
A progam can be used as a single program, or be linked in a chain
program. Changes in a program will be active in a chain program.
For this reason it is advisable to store the parts of a chain progam
separately e.g. with a number higher than 50 upwards.

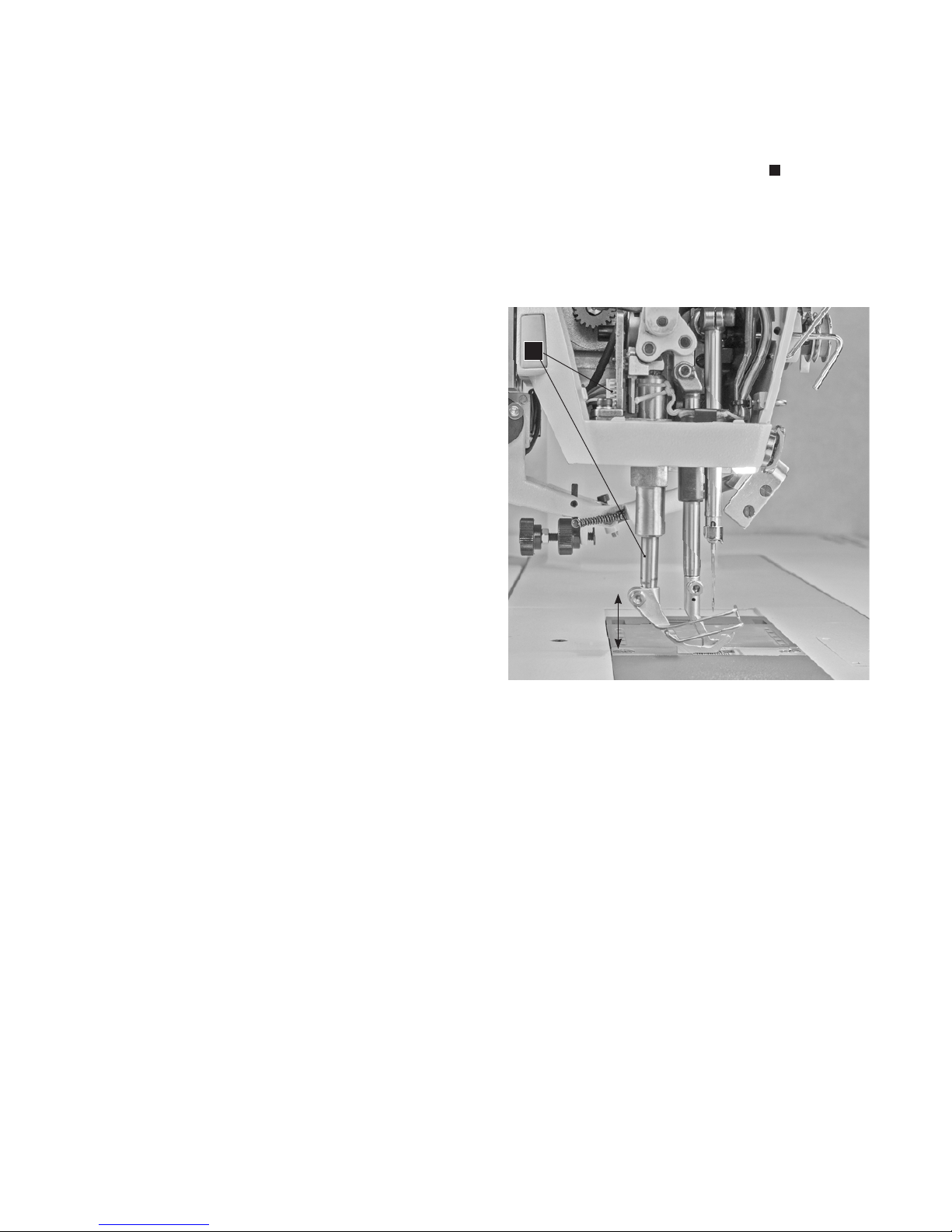

Messurement of the material thickness
The machine is fitted with a electronic device 1 that
can register the thickness of the material. This device
enables the machine to react independently to dierent
requirements within one seam, depending on the con-
figuration. The thread tension, foot pressure and stitch
length will be adjusted with increasing material thickness.
Notice when switching on machine
The system will calibrate itself every time you switch the
machine on. Also after pushing the safety switch (X-Key)
calibration will take place. Calibration must take place
without material under the sewing foot. The needle plate
surface is 0 mm material thickness.
PROGRAMMING MANUAL
09. GENERAL

ESC
000
SE T
30%P
T
1 2 3 4
5 6 7 8 9
10
A B
ESC
000
SE T
30%P
T
14 PROGRAMMING MANUAL VETRON 5000
PROGRAMMING MANUAL
10. CREATE PROGRAMNAME AND STORING
DISPLAY STEP DESCRIPTION
» CREATE PROGRAM NAME AND STORING
1Push the key NEW PROGRAM (6)
►
2P0 )03
CE R ATGRPAOMER
The next empty program space will be
shown on the display.
3
► Push the JOG KEY (10)
4
EPTGMRNN RE EA
Programname or number can be entered
on the display.
5
► Push the JOG KEY again
6A
EPTGMRNN RE EA
The cursor on the display will fl ash. You can
select a number or letter by turning the JOG
KEY. Push the JOG KEY to confi rm selection.
The cursor will move to the position for the
next number or letter. You can enter a maxi-
mum of 15 digits.
7VTO )E 1R N
EPTGMRNN RE EA
Move the cursor below the righthand arrow
when the name is complete.
8P001
VTOERN
► Push the JOG KEY to confi rm
your entry.
The display will now show your
selected name.
INFO!
Turn the JOG KEY to select the desired parameter. Push the JOG KEY. The parameter will fl ash and can be changed by turning
the JOG KEY. Pushing the JOG KEY again will store your input.

ESC
000
SE T
30%P
T
1 2 3 4
5 6 7 8 9
10
A B
ESC
000
SE T
30%P
T
PROGRAMMING MANUAL VETRON 5000 15
PROGRAMMING MANUAL

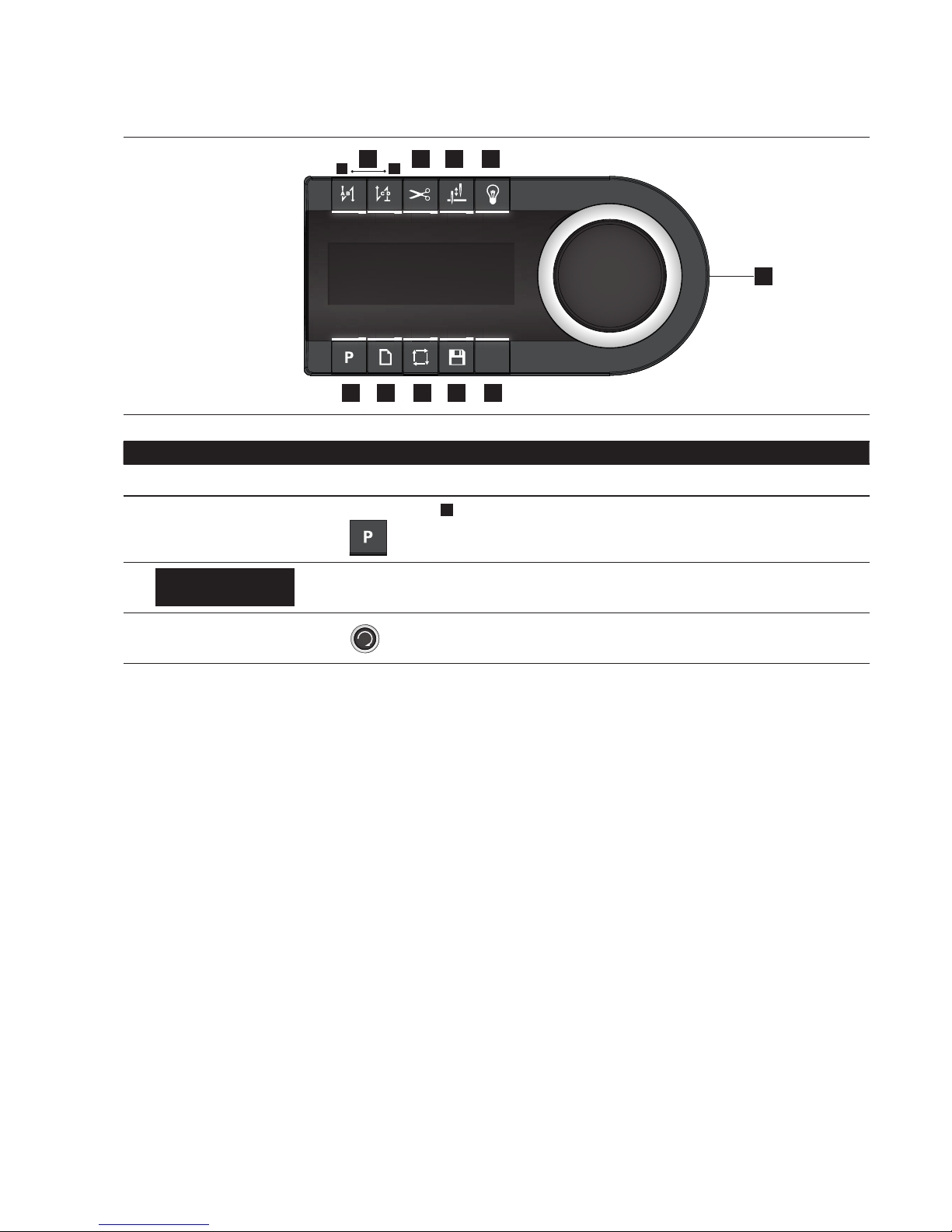

11. CHANGE PROGRAMNAME
DISPLAY STEP DESCRIPTION
» CHANGE PROGRAMNAME
1Push the P button (5).
► The appropriate LED will shine on the display.
20T1OV0RNE1
Pmoarer ng ma
Parameter 1 appears on the display.
Now you can change the name.
3
► Turn the JOG KEY to the right. You will get to the program parameters.

1
2
4
3

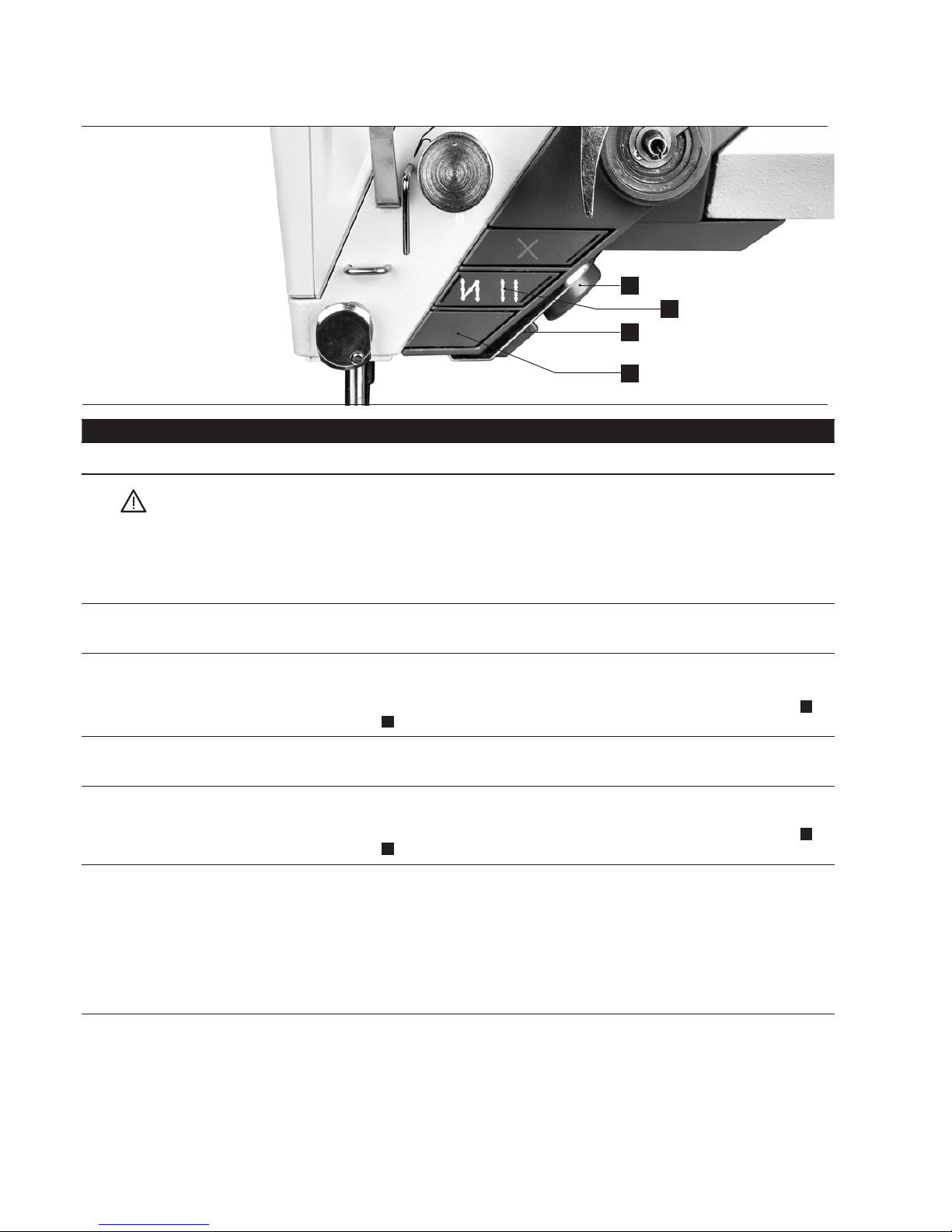

16 PROGRAMMING MANUAL VETRON 5000
PROGRAMMING MANUAL
12. PROGRAM PARAMETER
-1-10
NR. PARAMETER DESCRIPTION
» STITCH LENGHT IN THE SEAM
010 Stitch length 1 Main stitch length in mm in the seam. The stitch length can also be entered in the
negative range. The seam will be done in reverse.
011 Stitch length 2
Second stitch length which can be selected by pushing button 4 (parameter 018)
The stitch length can also be entered in the negative range. The seam will be done
in reverse.
018 Button 4
Stitch length trigger function
Select function with button 4.
OFF Without function
SWITCH Stitch length will change to 2nd stitch length as long as you hold it.
When button is release 1st stitch length is back.
TOGGLE Stitch length will change when button is pressed. When it is
pressed a second time it will change back to 1st stitch length.
NR. PARAMETER DESCRIPTION
» FOOT STROKE
020 Foot stroke 1 Stroke in mm during normal sewing. The value must be set depending on
the thickness and texture of the material to archieve a correct material feed.
021 Foot stroke 2
2nd stroke in mm. Can be switched on when you come to thick joints in the seam.
Switching over can be done with key 3 or the electronic handwheel 1 .
It can also be done with a knee lever (optional) or with the automatic switch
parameter 027.
INFO:
A seam program can be created with the following parameters. When a function is deactivated the according parameter will
not be displayed. To select a progam parameter you have to turn the JOG KEY and push it when the desired parameter appears.
It will now flash. Now you can select the desired parameter setting by turning the JOG KEY. The new setting will be stored by
pushing the JOG KEY again.

PROGRAMMING MANUAL VETRON 5000 17
030 thread tension A 1
010 stitch length 1
020 foot stroke 1
061 edge value
041 speed
027 automatic stroke switch
according to sewing speed
031 thread tension A 2
038 2nd tension level when
switched to 2nd stroke
039 release tension on
foot lift
150 thread trimming
050 foot pressure
074 foot position on stop
077 needle position on stop
110 stitch in stitch
140 backtack or condensed
stitches at seam end
120 backtack or condensed
stitches at seam start
100 thread clamp
135 bobbin thread counter
021 foot stroke 2
121 A stitch count
122 B stitch count
123 A/B repetition
124 A stitch length
125 B stitch length
126 A/B speed
141 C stitch count
142 D stitch count
143 C/D repetition
144 C stitch length
145 D stitch length
146 C/D speed
028 automatic stroke switch
speed threshold
029 automatic stroke switch
delay
032 thread tension B 1
034 thread tension based
on material thickness
070 foot lift height
» SEWING PARAMETER
033 thread tension B 2
054 dynamic foot pressure
PROGRAMMING MANUAL
12. PROGRAM PARAMETER
-2-14
NR. PARAMETER DESCRIPTION
» FOOT STROKE

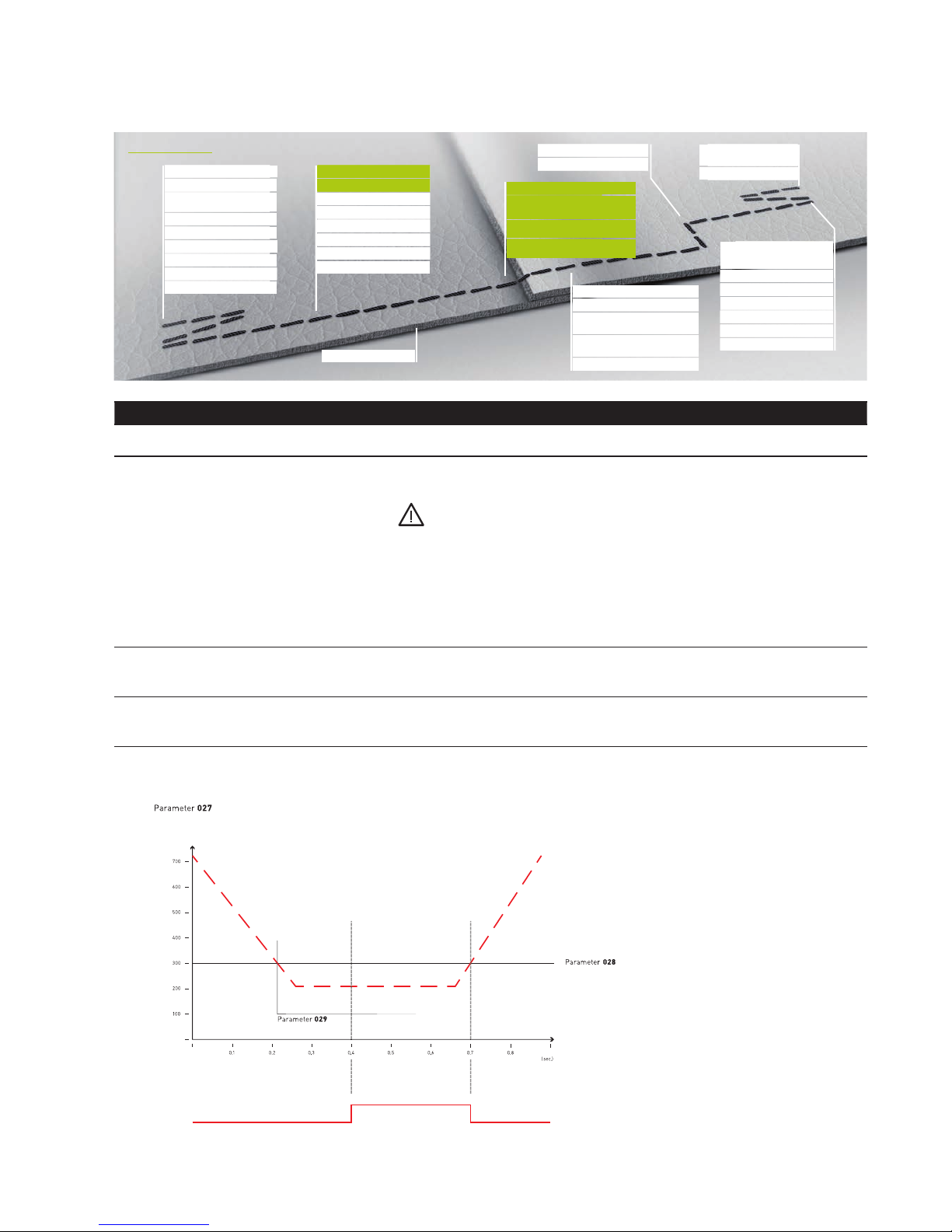

027 Automatic stroke switch
The machine will switch over to a higher stroke automatically after a certain time
and revolution speed.
INFO!
Automatic stroke switch parameter 027
The stroke on a alternate machine are normally changed by pressing a button or
with a knee lever. The VETRON can do this also automatically with the foot pedal.
By activating parameter 027 it will activate the facility. When the machine is run a
certain time on the 1st step of the foot pedal it will automatically over to a higher
stroke. When you sew faster than the 1st step the machine will return back to the
lower stroke. The time and revolution is adjustable (parameter 028, 029).
028 Automatic stroke switch
speed threshold Rotation per minute when switch should take place.
029 Automatic stroke switch
delay Delay time until stroke switch will occur.
Time
STROKE SIGNAL
Automatic stroke switch
Speed
ON OFF
OFF

1
2
4
3
18 PROGRAMMING MANUAL VETRON 5000
NR. PARAMETER DESCRIPTION
» THREAD TENSION
INFO!
Thread tension
The thread tension on conventional machines is adjusted with a spring. The reproduction of the desired thread tension
is dicult. The VETRON sets the thread tension with a step motor. The task of the tension spring is taken over by a elastomer.
A second thread tension on conventional machines needs a additional tension unit. The VETRON accomplish the 2nd thread
tension by increasing the tension.
030
Thread tension A 1 Main thread tension in program.
Setting range 0 to 100 %.
031 Thread tension A 2
Higher thread tension than the main program.
Setting range 0 to 100 %.
The connection with the higher thread tension can be done by pushing button 3,
or 1 or when the 2nd top feed stroke is activated.
032 Thread tension B 1
(Two needle machine)
Main thread tension in program.
Setting range 0 to 100 %.
033
Thread tension B 2
(Two needle machine)
Higher thread tension than the main program.
Setting range 0 to 100 %.
The connection with the higher thread tension can be done by pushing button 3,
or 1 or when the 2nd top feed stroke is activated.
034
Thread tension level increase / decrease
based on material thickness
Two function are available.
Function 1 = OFF (no change on dierent material thickness)
Function 2 = % (lower percentage = less thread tension increase)
(higher percentage = more thread tension increase)
Automatic thread tension adjustment depending on material thickness
The tension will be adjusted with the information received from the material
thickness recognition. You can activate this function with the parameter 034.
With a lower percentage the increase will be less than with a higher percentage.
PROGRAMMING MANUAL
12. PROGRAM PARAMETER
-3-14

PROGRAMMING MANUAL VETRON 5000 19
PROGRAMMING MANUAL
12. PROGRAM PARAMETER
-4-14
NR. PARAMETER DESCRIPTION
» MAXIMUM ROTATION SPEED
040 Speed mode
You can chose between two versions:
Function 1 = PEDAL Sewing speed will be regulated by the posititon of the pedal.
Function 2 = CONSTANT Constant sewing speed as selected in parameter 041.
041 Maximum speed The maximum speed will be entered here.
Automatic tension adjustment when material thickness changes
70
60
50
40
30
20
10
mm
Thread tension
rise
Thread tension
in %
Material thickness
2 mm
4 mm
NR. PARAMETER DESCRIPTION
» THREAD TENSION
038 2nd tension level when
switched to 2nd stroke
Two functions are available.
Function 1 = OFF Thread tension will not change over.
Function 2 = ON Thread tension will change over.
039 Release tension on foot lift
Three functions are available.
Function 1 = OFF (No tension release when foot is lifted)
Function 2 = END (Tension release when thread is cut)
Function 3 = ALWAYS (Tension release when foot is lifted)
030 thread tension A 1
010 stitch length 1
020 foot stroke 1
061 edge value
041 speed
027 automatic stroke switch
according to sewing speed
031 thread tension A 2
038 2nd tension level when
switched to 2nd stroke
039 release tension on
foot lift
150 thread trimming
050 foot pressure
074 foot position on stop
077 needle position on stop
110 stitch in stitch
140 backtack or condensed
stitches at seam end
120 backtack or condensed
stitches at seam start
100 thread clamp
135 bobbin thread counter
021 foot stroke 2
121 A stitch count
122 B stitch count
123 A/B repetition
124 A stitch length
125 B stitch length
126 A/B speed
141 C stitch count
142 D stitch count
143 C/D repetition
144 C stitch length
145 D stitch length
146 C/D speed
028 automatic stroke switch
speed threshold
029 automatic stroke switch
delay
032 thread tension B 1
034 thread tension based
on material thickness
070 foot lift height
» SEWING PARAMETER
033 thread tension B 2
054 dynamic foot pressure

1
2
4
3

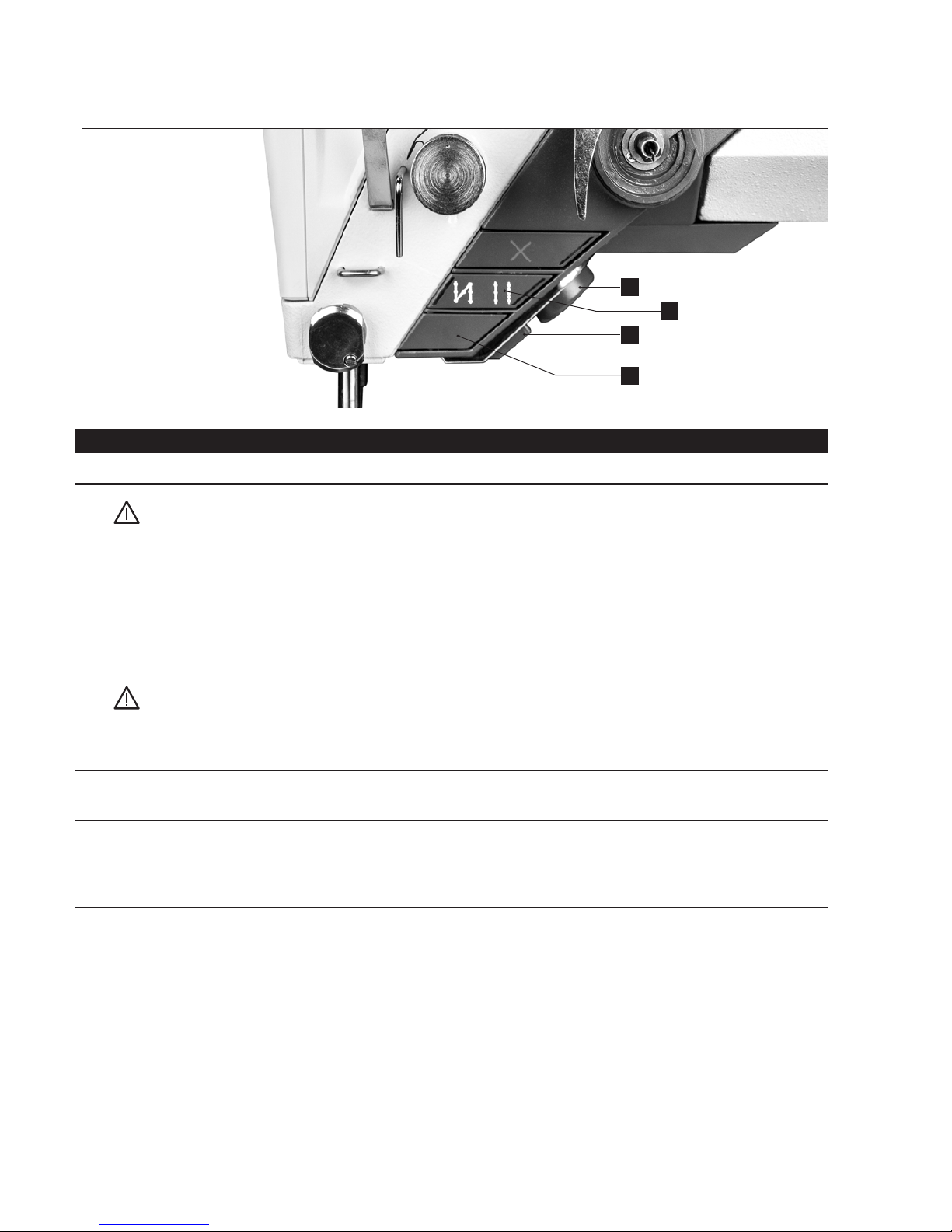

20 PROGRAMMING MANUAL VETRON 5000
PROGRAMMING MANUAL
12. PROGRAM PARAMETER
-5-14
NR. PARAMETER DESCRIPTION
» FOOT PRESSURE CONTROL
INFO!
Automatic foot pressure control
On conventional machines the foot pressure is generated by a spring and will be adjusted seldom. The VETRON also generates
the foot pressure with a spring, but the spring is pre-stressed by a step motor with gear (parameter 050). In dierent programs
can dierent foot pressure be applied. You have the choice between three operation modes (parameter 054).
Operation mode: 1 = OFF Foot pressure is generated like on a conventional machine.
Can be dierent depending on the program.
2 = CONSTANT The foot pressure will be constant on all material thicknesses. The material thickness recog-
nition will make sure that the foot pressure control that you have a constant foot pressure.
3 = 1-100% The foot pressure will be increased with increased sewing speed. Low percentage will
increase the pressure only weak. High percentage will increase the pressure stronger.
INFO!
When sewing operation are done where the foot pressure is used to keep the material in position (e.g. piping) it is advisable
to use operation mode 1 (OFF). Operation mode 2 (CONSTANT) will lead to a negativ result. The material thickness recognition
will prevent positioning the piping.
050 Foot pressure You will set the foot pressure for the program here. Comparable like on
a conventional machine.
054 Dynamic foot pressure
The following functions are available:
Function 1 = OFF
Function 2 = CONST
Function 3 = %
Other manuals for 5000
5
Table of contents
Other VETRON Sewing Machine manuals

VETRON
VETRON 5000 User manual

VETRON
VETRON 5000 User manual

VETRON
VETRON 4000 User manual

VETRON
VETRON 5000 User manual

VETRON
VETRON 5390 User manual

VETRON
VETRON Typical GC6890 User manual

VETRON
VETRON 5400 User manual

VETRON
VETRON 5000 User manual

VETRON
VETRON 5064 User manual

VETRON
VETRON 5300 User manual
