Game Hoist USER MANUAL
Model:GZB88055-CD400LBS

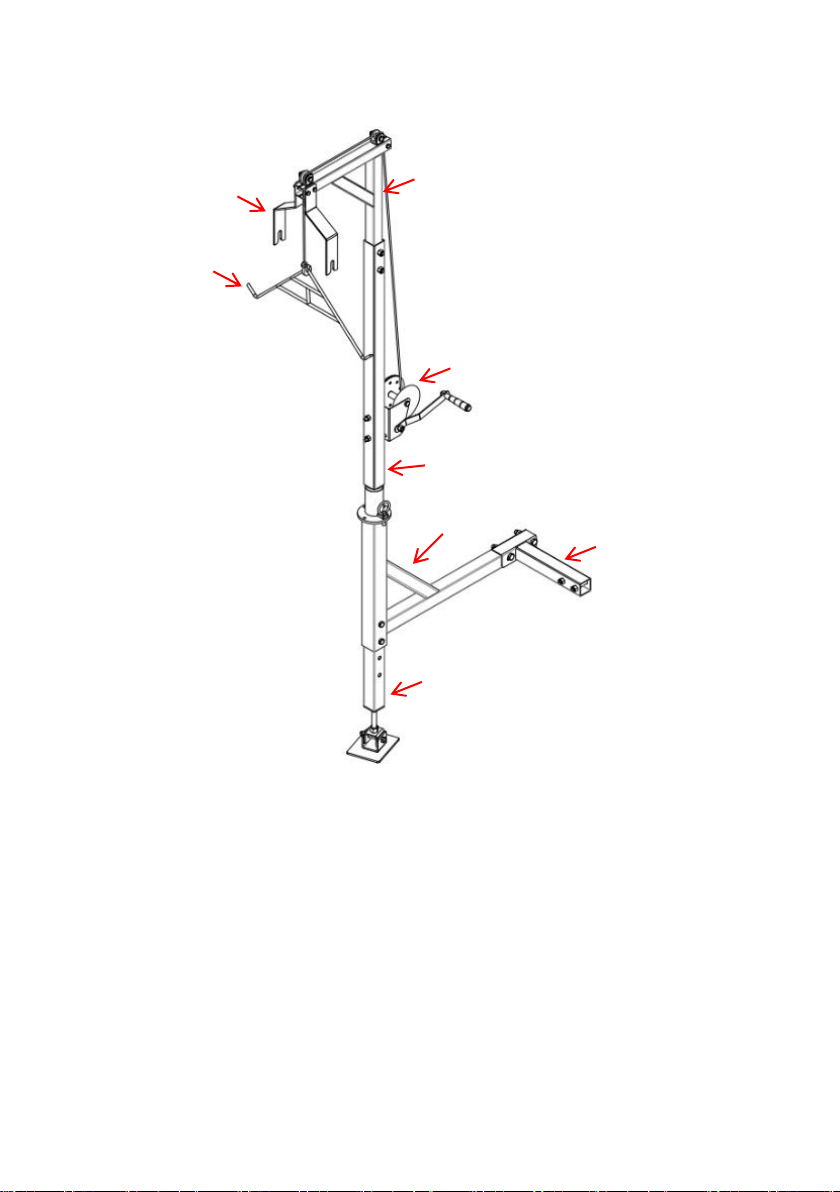

GZB88055-CD400LBS+ZCT
GZB88056-CD500LBS+ZCT
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Game Hoist

- 2 -
1. Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions may
result in serious personal injury.
GENERAL SAFETY RULES
1.Never overload.
2.This winch is designed for pulling, not for lifting!
3. Never put your hand or anything else near the gear, rim and rolling
cable.Always wear gloves when using the winch
4. Never try to repair disassemble the winch when there is a problem.Ask a
machinist or specialist for help.
5.Do not use the product when you are tired, while under the influence of
alcohol, prescription medicines or drugs.
6.The safety precautions and instructions given in this manual are unable
to cover in detail all the conditions and situations that may arise.
7.The operator and/or user must use common sense and caution when
operating the product especially for any matters that are not referred in the
above.
8.The use of any accessories ，other than those recommended by the
manufacturer or stated in the instructions manual，may result in injury or
may cause damages.
Operation:
1.Keep the work area clean and free.Cluttered areas invite accidents.
2.Observe work area environment conditions
- Do not expose the product to rain.
- Do not use in damp or wet Locations.
- Ensure that work area environment is kept well lit (sunlight or artificial
lighting).
3.Dress properly

- 3 -
- Do not wear loose clothing or jewelry that could be caught in moving
parts.
- Rubber gloves and non-skid footwear are recommended as well as a cap
to contain long hair.
4. Do not use the product for purposes other than those for which it is
intended.The product will do a better and safer job at its rated load if it is
used for the purposes it was designed for.
5.The load is maximum when the lifting rod of the product is adjusted to the
lowest;The load of the product decreases as the height of the lifting rod
increases.
6. Keep a safe distance and keep children away
- Keep yourself and others at a safe distance from the work area,the
product and the steel cable when it is pulling under load.
- Keep bystanders (esp. children) and animals away from the work area.
- Keep the product away from children or from their environment.
Never allow children to operate the product.Children should be supervised
to ensure that they do not play with the product.
7.Do not damage the steel cable
- Never move the product by dragging it by the cable.
- Keep the cable away from heat and sharp edges.
- Do not step or roll over the product or steel cable.
- During operation, do not step over the product or the steel cable.
8.Safety at work
- Use proper protective equipment according to the work environment.
-Never pull loads greater than the maximal capacity of the product.
SAVE THESE INSTRUCTIONS

- 4 -
MODEL AND PARAMETERS
Model
GZB88055-CD4
00LBS
GZB88055-CD4
00LBS+ZCT
GZB88056-CD5
00LBS+ZCT
Hoist Capacity
Max. 400lbs
Max. 400lbs
Max. 500lbs
Hoisting Height
172~214cm
198~256cm
206~269cm
Hand Winch
Max. 1200lbs
Max. 1200lbs
Max. 1200lbs
Rotation Angle
360 degree
360 degree
360 degree
Material
Powder-coated
Steel
Powder-coated
Steel
Powder-coated
Steel
Color
Black
Black
Black

- 5 -

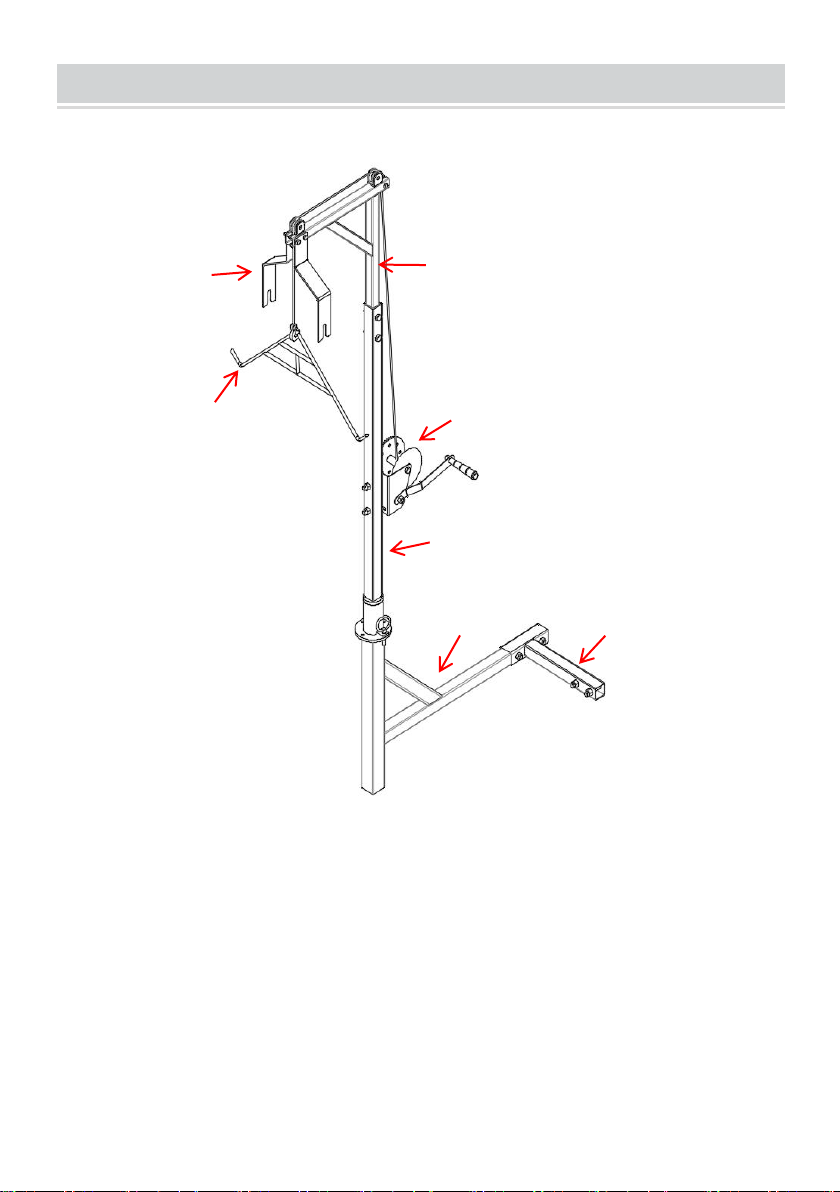

STRUCTURE DIAGRAM
GZB88055-CD400LBS
1. Prey Hook
2. Stop Fork
3. Lifting Rod
4. Hand winch
5. Upright Rod
6. Trailer Bar
7.Bar Connection Rod
4
1
3
5
6
7
2

- 6 -
GZB88055-CD400LBS+ZCT
GZB88056-CD500LBS+ZCT
1.Prey Hook
2.Stop Fork
3.Lifting Rod
4. Hand winch
5.Upright Rod
6.Trailer Bar
7.Bar Connection Rod
8.Supporting Leg
5
1
2
3
4
7
6
8

- 7 -
COMPONENTS
NO.
Name
Q’ty of
GZB880
55-CD40
0LBS
Q’ty of
GZB880
55-CD40
0LBS+Z
CT
Q’ty of
GZB880
56-CD5
00LBS+
ZCT
1
A
1
1
1
2
B
1
1
1
3
C
1
1
1
4
D
1
1
1
5
E
1
1
1
6
F
1
1
1
7
G
1
1
1
8
H
1
1
1

- 8 -
9
I
/
1
1
10
J
M12*60
/
/
2
M12*50
2
2
/
11
K
M10*55
2
2
/
M10*70
/
/
2
12
L
M8*45
3
3
/
M8*55
/
/
3
13
M
M12*60
2
2
2
14
N
M12*60
/
2
/
M12*70
/
/
2
15
O
∅8
3
3
3

- 9 -
ASSEMBLY
Installation Preparation:
1. Two or more people to move and assemble the product.
2. Please prepare a carpet or mat to protect your floor you need to spread
out all the accessories.
3. Please prepare gloves to avoid being scratched by sharp parts that may
occur during installation.
4. Please open all the boxes to check that the accessories are complete
and in good condition.
5. If you need to use power tools to install this product, please set the
speed to low speed in advance.

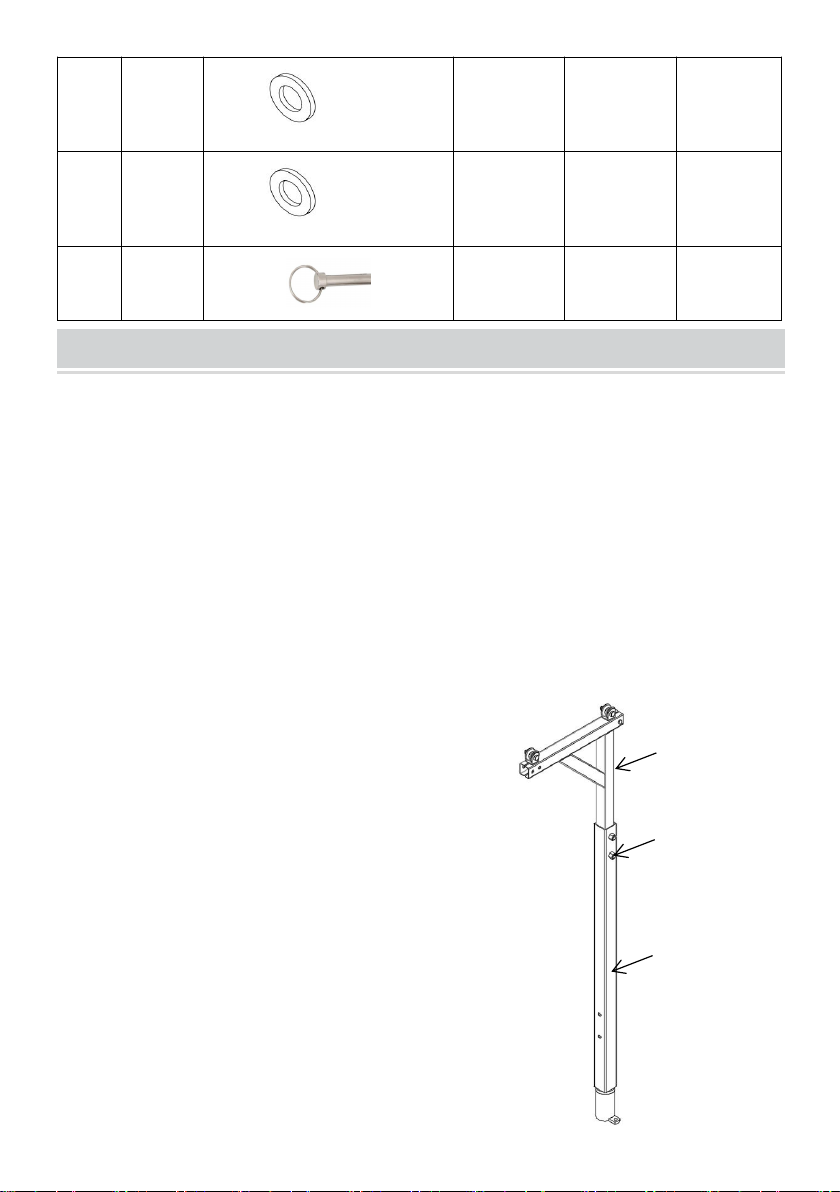

Step1：Insert C into D, align holes, lock
with J+P. Note:The hole position can be
adjusted according to the required height.
16
P
∅10
2
2
2
17
Q
∅12
4
6
6
18
R
1
1
1
C
D
J+P

- 10 -
Step2：Install manual winch(F),Align 2 mounting holes and lock with K+O.
Step3：Install stop fork(B). First put the steel cable into the pulley groove
and then lock with L+N.
F
D
K+O
Steel Cable
B
L+N
L+N

- 11 -

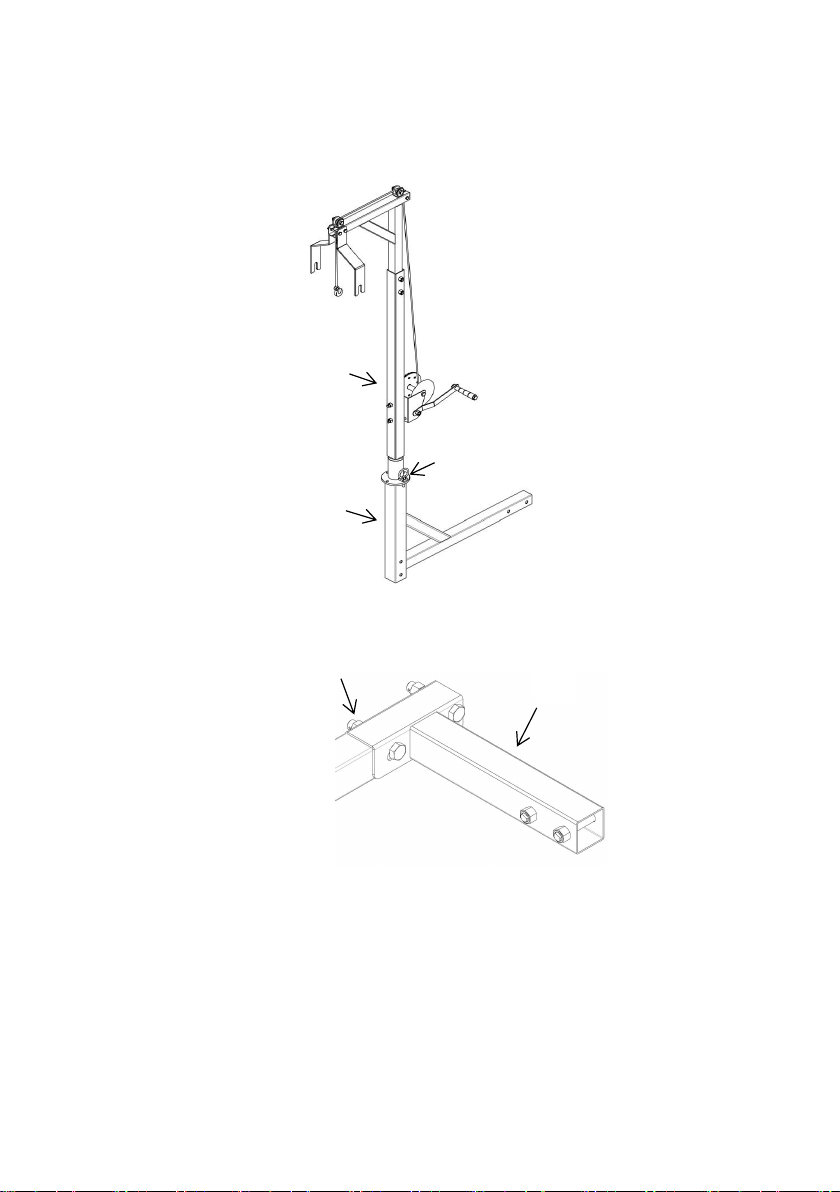

Step4：Install the trailer bar.Insert H into D, Match Q, and Product
GZB88055-CD400LBS is assembled;Then connect it to the car and you can
use it. (Note：You can also connect to your car with the help of (E) )
D
H
Q
E
M+P

- 12 -

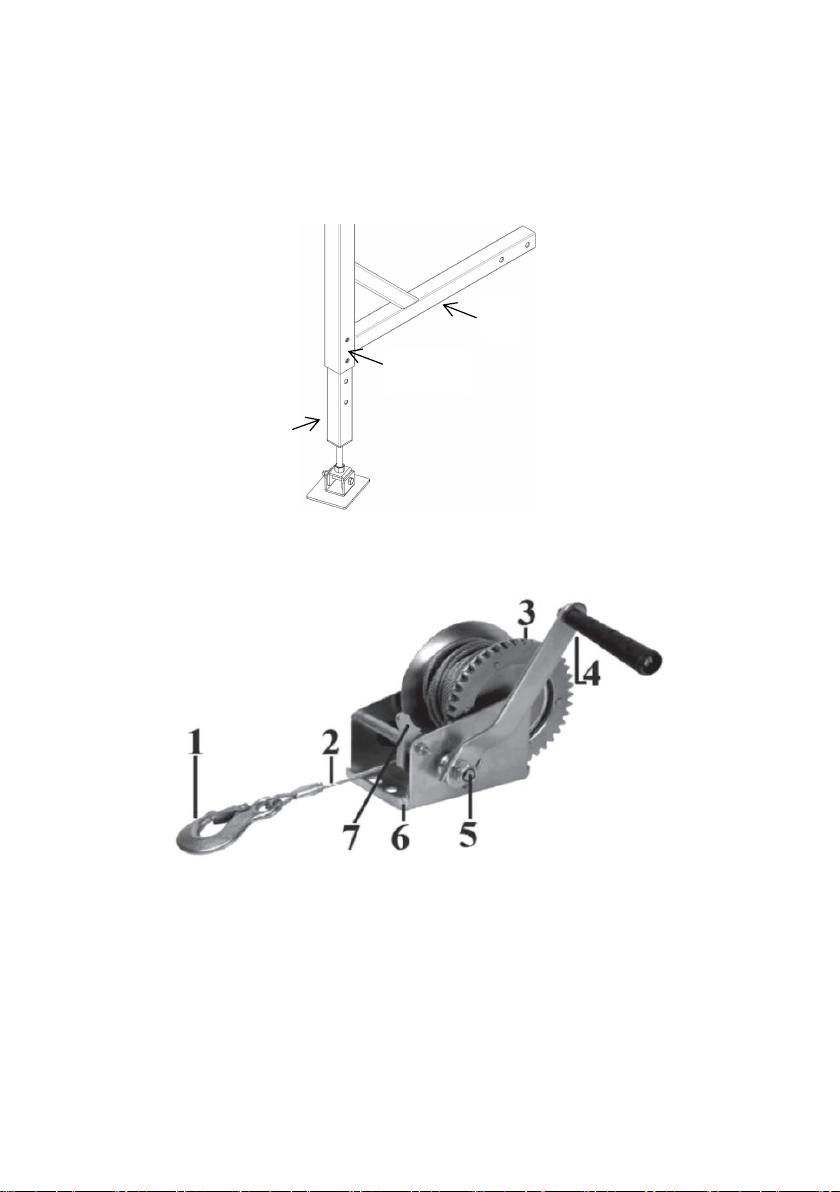

For GZB88055-CD400LBS+ZCT and GZB88056-CD500LBS+ZCT, a support
leg is required,as shown below.
Insert I into H, align holes, and lock with M+P.(Note:The hole position can
be adjusted according to the required height.)
Connect to the car as in Step 4.
Hand Winch Operation:
1. Hook 2. Steel Cable 3. Rim 4. Crank 5. Axis Bolt 6. Base
7. Ratchet Switch
Install 4 on 5 and lock securely,
The forward and reverse steering is controlled by 7,
Turn the handle 4 to rewind or release the steel cable.
The ratchet switch should always be fully engaged.
I
H
M+P

- 13 -
MAINTENANCE（维护与保养）
1.Lubricate the steel cable and hook regularly with slight grease.
2.Grease the gears and bearings every 6 months.Use any good quality
waterproof grease.
2. Inspect periodically all parts，steel cable，accessories and replace them
if damaged or used.
3.Have damaged parts replaced by an authorized service center.
4.Check the nuts periodically and tighten them if they are loose.
5.Regularly check the steel cable for signs of tear and wear. Replace any
damaged cable at an authorized service centre.
6.Keep the product properly maintained and clean for a better and safer
performance.
7.Inspect all moving parts and mounting bolts and nuts prior to use. Tighten
if necessary.
8.Product must be stored in a dry location. Always lock up product and
keep out of reach of children.
