SAUNA HEATER
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL：SCA-30NS, SCA-45NS, SCA-60NS,
SCA-80NS, SCA-90BW
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
SAUNA HEATER
User Manual

- 2 -
BEFORE INSTALLATION
Parts
Check that the following parts are included in the packaging:
1．Sauna heater
2．Connectors x 3 (Pre-installed inside Junction box)
3．Bracket screws x 4 (6*40mm 2pcs, 6*16mm 2pcs)
4．Fork terminal x 3
WARNING
1．Electrical shock hazard------To avoid electrical shock hazard, all
installations and relevant services shall be performed by qualified
personnel.
2．Sauna bath time should be less than half an hour. Bathing too long
may cause heart beating too fast, heartache, feeling weak or dizzy. User
should stop sauna bath immediately as soon as the above symptoms
occur.
3．Sauna bath may cause tension of bathers. Thus, those who have

- 3 -
one of the symptoms as below, should take sauna bath under direction by
physician:
A. Being pregnant B. Having heart disease C. Having high blood
pressure D. Having circulation system disease E. After drinking
F. After taking medicine G. Diabetes H. Not feeling well
4．Children must be under the company of adults during sauna bath.
5．Risk of scald: Must not touch or move the sauna heater during
heating. Stay at least 30cm away from the hot heater.
6．Use ordinary drinking water only.
It may damage the heating elements when water with other materials
is poured into the stone compartment,which is beyond our guarantee.
7．Odors may occur during the first sauna bath as the Anti-rust oil for
heating elements, which will disappear after sauna heater powers on when
opening sauna door about 10-15mins.
INSTALLATION

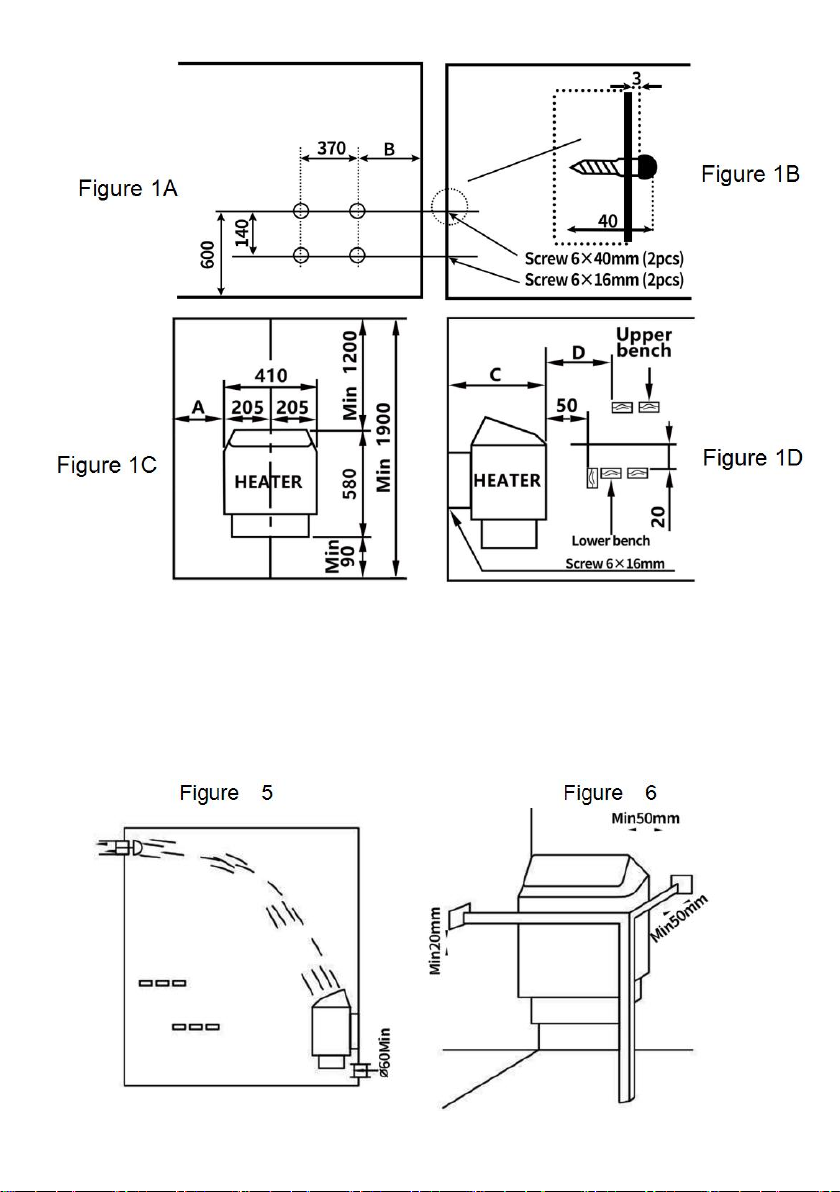

Install the sauna heater onto the wall using the screws provided with the
heater,according to the minimum safety distances and volumes indicated
in table 1 and figure 1, or on the tech-plate of the heater.
------The heater can be installed inside the sauna room with the minimum
height of 1900mm.(Figure 1C)
------The wall behind the heater is not allowed to be covered by materials
like asbestos cement, asbestos board and so on, because this sort of
covering layer could cause high temperature and a risk of burn.
------Must use qualified materials for the walls and ceiling.

- 4 -
Noted: the upper screws must be fastened tight, the minimum distances
between screw head and wall is 3mm.
GUARD RAIL
Please follow the minimum distances requirements in figure 6 if guardrail is
desired for the heater.

- 5 -
TEMPERATURE CONTROL
The temperature could be controlled by the thermostat inside the sauna
heater (figure 3).The thermostat dial shows a rising heat scale.Find the
sauna temperature which suits you best(Usually 158-176℉/70-80℃).
Sauna room can reach on a preset temperature in 30 to 60 minutes, it
depends on the size of sauna room and power of sauna heater.
POWER SWITCH(TIMER)
A. The power switch should be turned off when leaving the sauna
room,as it is the main power control of sauna room.
B. To set the time for immediate start: Turn the timer knob full
clock-wise,the length of sauna is set for 180 minutes.

- 6 -
Specifications
Model
Power
Supply(V
/Hz)
Power(K
w)
Sauna room
Volume(m³)
Suggestion
heating time
Min
Max
(28-70℃)
SCA-30
NS
220/60
3
2
4
20-40min
SCA-45
NS
4.5
3
6
20-40min
SCA-60
NS
6
5
9
30-50min
SCA-80
NS
8
8
12
30-50min
SCA-90
BW
9
9
13
30-50min
Above suggested heating time should be achieved, including but not
limited to these:
1. Room thermometer installed opposite to the sauna heater,closing to
the ceiling.
2. Sauna room is installed indoor with insulation for diffusion prevention
purpose.
3. Temp knob adjust to the Max.
CONNECTION OF ELECTRICITY SUPPLY
CABLE
1. Only the qualified electrician can finish the connection of the heater’s
cables. You must obey electrical codes to finish the installation.Rubber

- 7 -
insulated cables are suggested as the connection cables from mains
supply to the sauna heater.
2. The junction box inside sauna heater must be of a hermetic,splashing
proof type, also including a 7mm diameter drainage hole to prevent
moisture and condensation.The junction box should be less than
500mm over the floor.
VENTILATION
To have a smoothing sauna bath, there should be a proper mixing of hot
and cold air inside the sauna room. Another reason for ventilation is to
draw air around the sauna heater and move the heat to farthest part of
sauna room.
The inlet vent with diameter more than 6cm should be installed directly
below the sauna heater.
The outlet vent should be installed diagonally opposite to the inlet, its
suggested to place under the platform inside the sauna room as far as
possible from the inlet vent.The diameter of outlet vent should be twice as
big as the inlet, it may be installed far away the floor and under the bottom
of the upper bench.

- 8 -
SAUNA STONES
Its recommended that all sauna stones should be rinsed to remove any
staines or dust.The largest ones should be loaded at the bottom.Do not
load the stones too tight to block air circulation through the sauna heater.
New ones should be loaded when the stones get broken or crumbling.
Load sufficient sauna rocks(10-15kgs) into the sauna heater after finishing
the installation of sauna heater and controller.
ATTENTION: Sauna rocks must be of best quality because temperature
inside sauna heater is extremely high. Rocks of inferior quality cant
withstand heat and they maybe easily broken or crumbling because of the
huge heat changing, which may damage heating elements. Or these
stones may counteract the heat circulation because they are easily
oxidized, then sauna heater maybe damaged while stone being heated or
being poured water to make vapors.
GUARANTEE
1.Control panel is under one year guarantee.
2. Main body of sauna heater is under one year guarantee.
3.The following situation are not guaranteed:
1) Installation or disassembly of inside structure by unprofessional
personnel;
2) Supply voltage fluctuation range>±10%;
3) Unqualified rocks on sauna heater’s operation;
4) Installation without following the dimension instruction inside manual.

- 9 -

- 10 -

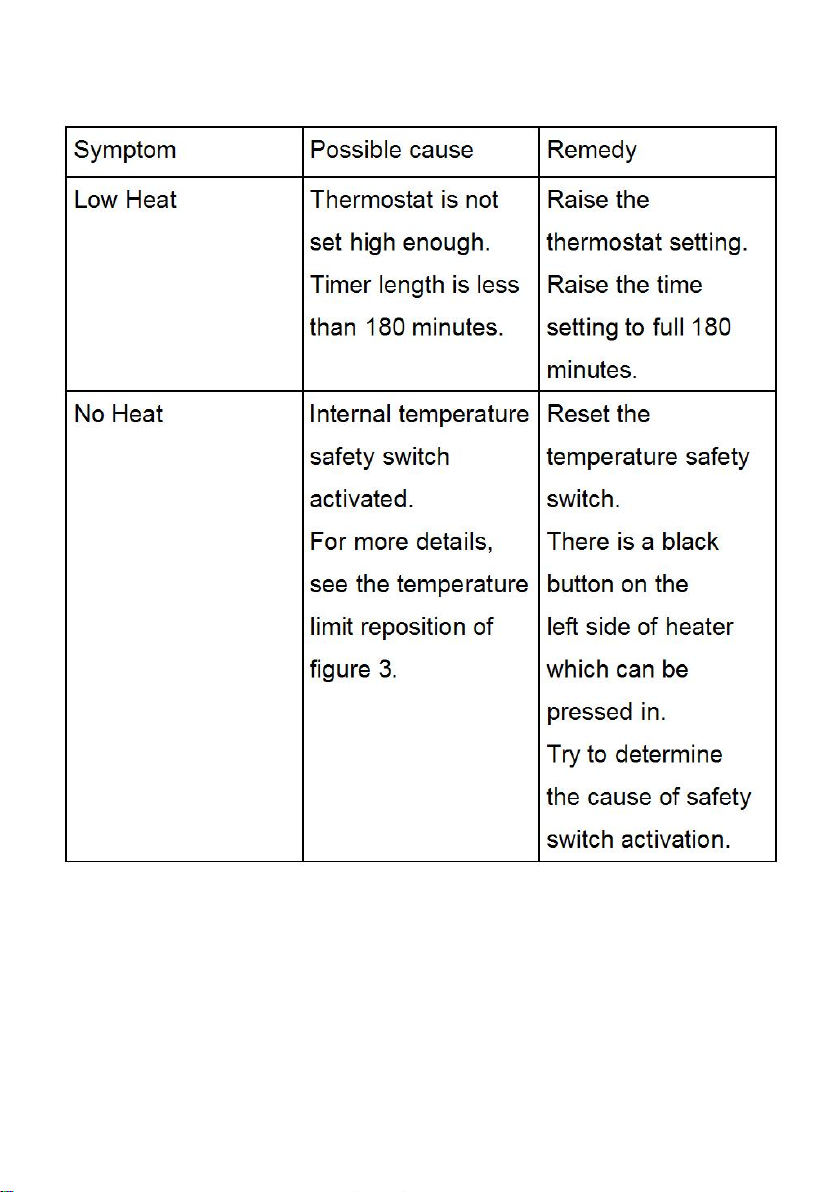

TROUBLESHOOTING
