4-JAW SELF-CENTERING WOOD CHUCK
MODEL:KP2-3/4, KP96, KP965
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
MODEL:KP2-3/4, KP96, KP965
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
4-JAW SELF-CENTERING
WOOD CHUCK

- 2 -
Geometry accuracy (mm)
Diagram of test
Test item
Chuck Diameter
70
96
a.Radial run-out
b.axial run-out
a:0.005
b:0.005
Radial
run-out of chuck
≤0.15
≤0.15
Axial
run-out of
chuck
≤0.15
≤0.15
Radial
run-out of test
bar
α≤0.4
L=50
α≤0.4
L=50（75）

- 3 -
DESCRIPTION
This Chuck is 4-Jaw Self-Centering chuck utilizing the precision, simplicity
and reliability of the engineering chuck.
This Chuck is self-centering; grips internally and externally; will hold round
and square work; has a hollow center so through boring can be done from
either end; and can be run clockwise or anticlockwise.
Manufactured from,this gives the chucks a higher durability ensuring a
longer life and high quality finish which is less.
PACKING LIST
(KP2-3/4, KP96)
1.4-Jaw Self-Centering Chuck……………1pcs
2.Accessory
Wooden Screw ………………………… 1pcs
T-bar Allen Key ………………………… 1pcs
Key chuck…………………………………1pcs
Adapter ……………………………………1pcs
3. Instruction

- 4 -

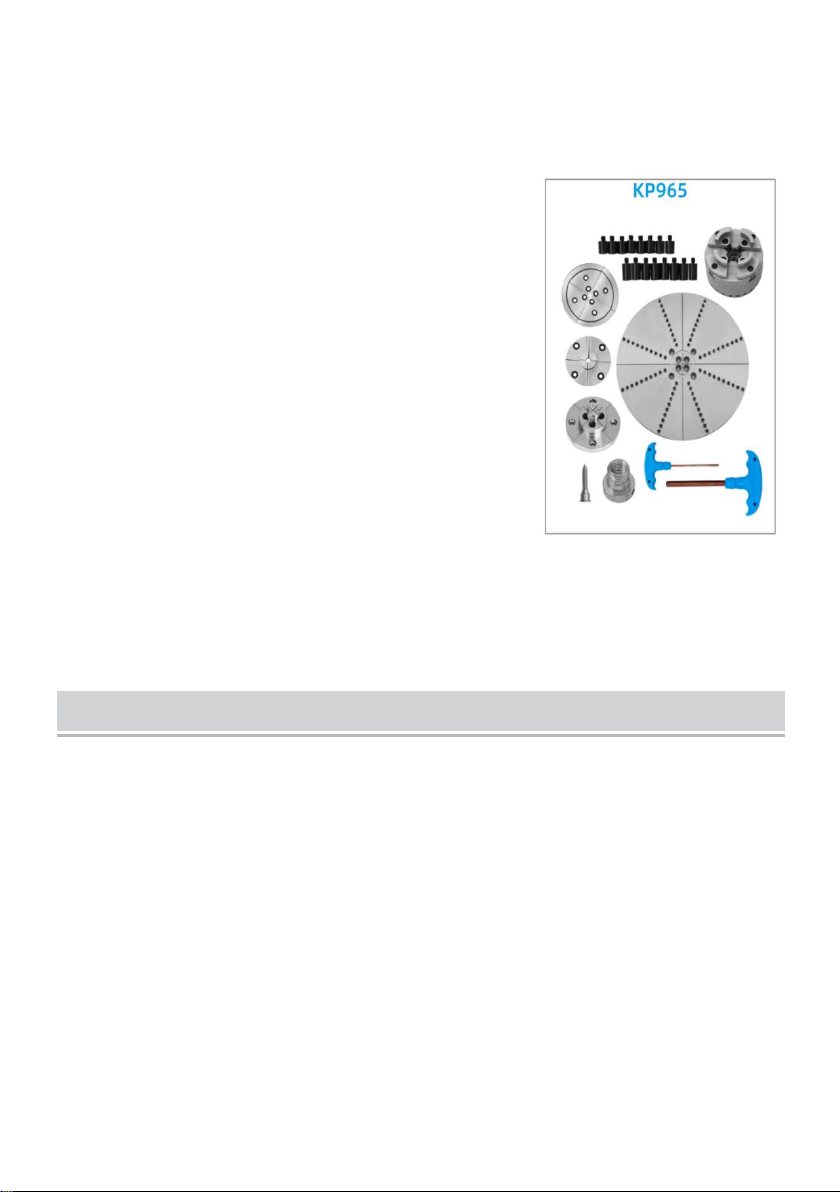

(KP965)
1.4-Jaw Self-Centering Chuck …………1pcs
2.Accessory
Wooden Screw………………………….1pcs
T-bar Allen Key ……………………...… 1pcs
Key chuck ……………………………… 1pcs
Adapter … ……………………………… 1pcs
Big Round Jaw (4 pieces) …………… 1sets
Pin Jaw (4 pieces) ………………… 1sets
Step Jaw (4 pieces)…………………1sets
Flat Jaw (4 pieces) …………………1sets
Stud……………………………………16pcs
3. Instruction
SAFETY PRECAUTIONS
1. Read and und 9 and instructions anual before operation wood lathe.
2.. Always wear eye protection.
3. Do not wear gloves, neckties, jewelry or loose clothing.
4. Do not operate without guards in place.
5. Rough out workpiece before installing face plate.
6. Do not mount a split workpiece or one containing a knot.
7. Tighten all locks before operating.
8. Rotate workpiece by hand before applying power.
9. Use slowest speed when starting a new workpiece and do not exceed

- 5 -
permitted speed.
10.Disconnect machine from power source before making repairs or
adjustments.
11.Do not operate while under influence of drugs,alcohol or medication.
12.Remove the tool rest before sanding or polishing.
It is beyond the scope of this manual to describe all of the turning
techniques that are possible with the 4-Jaw Chuck. It is recommended that
beginner turners attend a reputable course of instruction refer to one of the
many available books on turning techniques.
MOUNTING ON THE LATHE
The 4-Jaw Chuck fits a wide range of lathe
spindle sizes. This is done by changing the
threaded Adapter. Your dealer will adviseon the
Adapter required for your lathe. Check that the
Adapter is firmly screwed into the Chuck body
and then screw the assembled chuck onto the
lathe spindle.Adapter must be firmly seated
against the lathe spindle shoulder.

- 6 -
THE SCREW POINT
The Screw Chuck is used to mount small, cross-grained pieces.
4-Jaw Self-Centering Chuck
25MM JAWS
These jaws are used for expansion into small recesses and for firm holding
of fine spindle work, such as earrings, chess pieces, etc.. To turn very small
articles, the jaws can be unscrewed and the backing jaws only can be
used.
DOVETAIL JAWS
Dovetail jaws are designed for mounting bowls by expanding into a recess
or clamping onto a spigot. The size indicated is the outside measurement
of the jaw face when fully closed. Dovetail jaws provide approximately
25mm of expansion beyond their specified size.

- 7 -
KEY CHUCK
The 4-Jaw Chucks provide one-hand tightening along with tremendous
griping power provided by the 6 to 1 ratio of the scroll. The totally enclosed
back assures consistent, smooth action by preventing dust and debris from
getting into scroll of the Chuck.
Key chuck cannot be beaten when it comes to holding power.
Its compact size makes it ideal for use on 300mm capacity lathes or
smaller.
Basic Chuck includes: Chuck body, dovetail jaw set; T-Bar Allen Key;screw
point; Key chuck; appropriate Adapter to fit your lathe and owner's manual.
1. T-bar Allen key 2.Screw 3.Lid 4.Screwdriver
5.Adapter 6.Circlip 7.Scroll ring 8. Key chuck
9.Pinion 10.Pin 11.Baking pin 12.Chuck body
13.Backing jaw 14.jaws 15. Countersunk screw
16. T-bar Allen key 17. Wood screw
CLAMP-MODE
With this application the workpiece is held by the jaws. To achieve a good
hold, press the bowl end hard against the jaws. Fasten the workpiece to
the screw or onto a face plate. When pre-turning bowls from green timber it
is possible to do this between centers or with a pivot chuck. Turn a 5 to
10mm deep dovetail recess first.

- 8 -
EXPANSION MODE
For this application arecess is turned into thework piece. The depth ofthe
recess depends on the actual size of the workpiece as well as the type
oftimber used. The minimum depth should be 5mm to 10mm.
MAINTENANCE
The chuck is engineered to close tolerances and may initially be stiff to
operate. With use movement will be easier.To maintain easy jaw action,
regularly spray oil into the scroll and work Key chuck through full range of
movement. Inspect chuck regularly for build-up of dust in the scroll and
jaws.Clean as required.
BEGINNER'S HINTS
Prepare the wokpiece the following way:
200-250mm dia.40-50mm thick; RPM80- 100
1.Drill a 25mm deep and 7-8mm dia. hole in the center of workpiece (avoid
drilling the end grain, less grip).
2.Make sure the work piece is as round as possible.

- 9 -
3.Choose appropriate speed before you start the lathe.
4.Screw the work piece hard against the jaws.
5.Heavy or unbalanced work pieces should not be fastened directly to the
screw chuck. Use the faceplate rings instead.
