VEVOR QLDZ16 User manual

Technical Support and E-Warranty Certificate https://www.vevor.com/support
MECHANICAL MEASURING WHEEL
USER MANUAL
MODEL: QLDZ16
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
QLDZ16
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.

- 2 -
1.Product Introduction
Thank you for choosing our product , the mechanical measuring wheel is a
suitable tool for long distance measurement , Widely used in professional
surveying and mapping operations , road engineering , measurement and
evaluation of pipeline laying works , wire and cable works , construction survey
of garden scenery and golf course , measurement of distance location of traffic
accidents and the measurement of farmland construction management . It is a
worthy tool that adopts high-tech and humanized design , durable and
convenient .
2.Parts

- 3 -
3.Technical Data
Maximum Measuring Distance : 9999.9 m
Measurement Accuracy : ±0 . 5%
Minimum Display Value : 0 . 1m
Suitable Use Temperature : -10℃-45℃
Wheel Diameter : 6.3 in / 159 mm
Measurement Unit : Meter ( m )
4.How to Use
1 . Using the aluminum alloy telescopic rod: Hold the bottom end of the rod tightly,
and twist the adjusting rod counter-clockwise; freely adjust the telescopic rod to
the appropriate length required; it can achieve 2 levels of telescopic it by
tightening it clockwise, easy for storage.

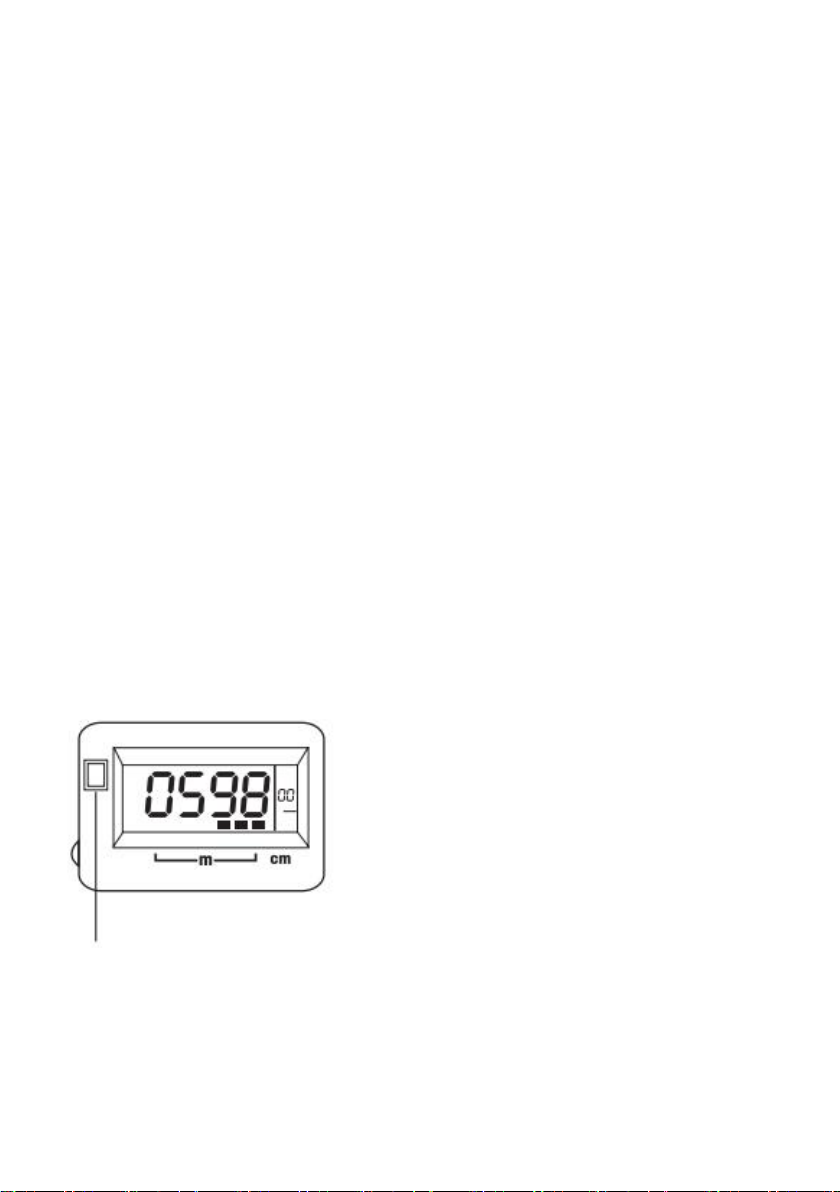

2 . Use the reset button: Press the reset button to clear the counter.
3 . The steps to use：First, adjust the lifting rod to the proper length
Press the reset button; the counter is reset to zero.
The bottom of the wheel is aligned with the starting position. Hold the handle to
push the wheel forward, and the counter starts counting. When the bottom of the
wheel reaches the end of the measurement, read the counter value.
Press the reset button to reset the counter
The lowermost part of the wheel is aligned with the measurement starting
position , the handle is held to push the wheel forward , the counter starts
counting until the lowermost part of the wheel reaches the measurement

- 4 -
endpoint . The value of the counter is the result you measured.
5. Product Characteristics
1 . The wheels are made of new ABS engineering plastics and covered with thick
TPR soft rubber ,which is strong and durable.
2 . The measuring rod is designed to rotate in two -stage lifting and contracting ,
which can be easily put into a backpack , and is easy to carry , light and
convenient.
3 . Finely machined gear counter , stable transmission and accurate
measurement.
4 . Anti-skid design of handle , fine and beautiful surface treatment lines.
6. Precautions
1 . If measuring a straight line , walk straight to ensure the accuracy of the
measurement.
2 . Do not measure uneven surfaces , which will reduce the accuracy of
measurement.
3 . Please use this product in a dry environment.
4 . Do not measure in high temperature environment and do not store this
instrument in high temperature place.
5 . If you do not use this instrument for a long time , please put it in a dry or
suitable place for storage.
6 . Do not use the instrument as a child s toy to avoid injury.
